Plate Tectonics Plate Tectonic Vocabulary Continental drift Continental
Plate Tectonics

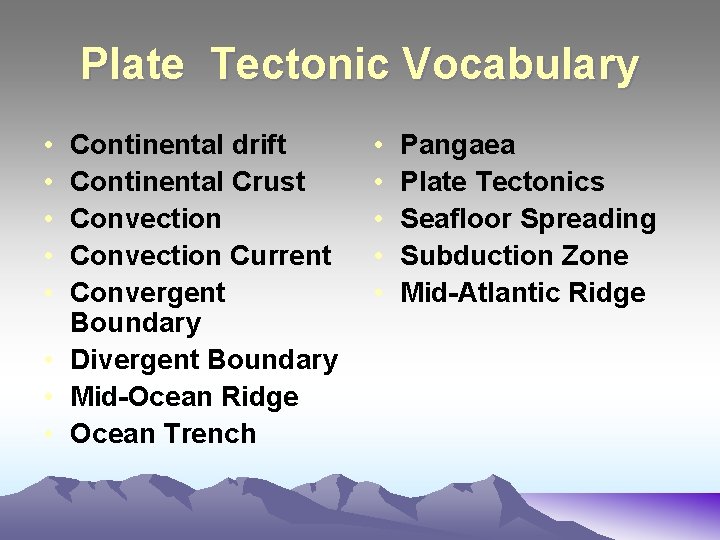

Plate Tectonic Vocabulary • • • Continental drift Continental Crust Convection Current Convergent Boundary • Divergent Boundary • Mid-Ocean Ridge • Ocean Trench • • • Pangaea Plate Tectonics Seafloor Spreading Subduction Zone Mid-Atlantic Ridge

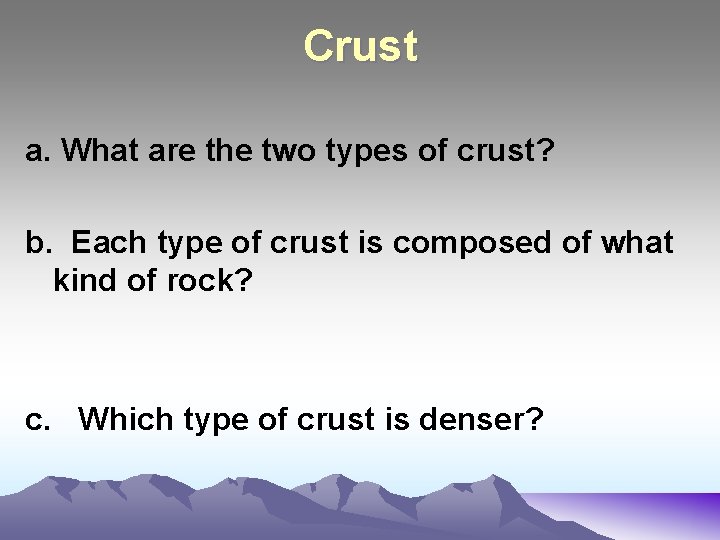

Crust a. What are the two types of crust? b. Each type of crust is composed of what kind of rock? c. Which type of crust is denser?
Shorelines are not true boundaries: 1. Continental margin – where the ocean water covers the continental crust 2. Deep ocean basinwhere the ocean water covers oceanic crust water Continental margin Oceanic basin Oceanic crust Continental crust • The ocean water may cover miles of the continental crust

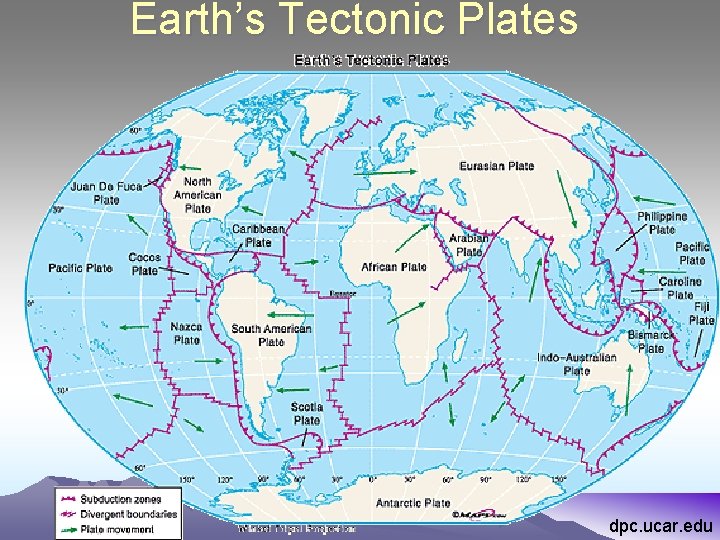

Earth’s Tectonic Plates dpc. ucar. edu

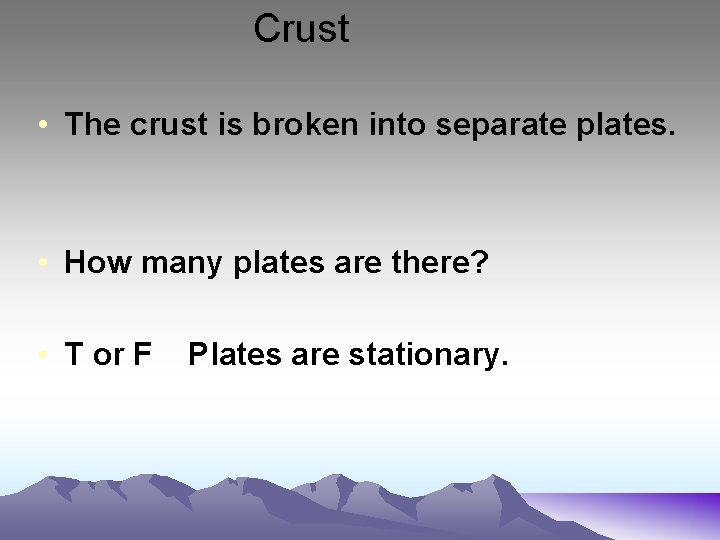

Crust • The crust is broken into separate plates. • How many plates are there? • T or F Plates are stationary.

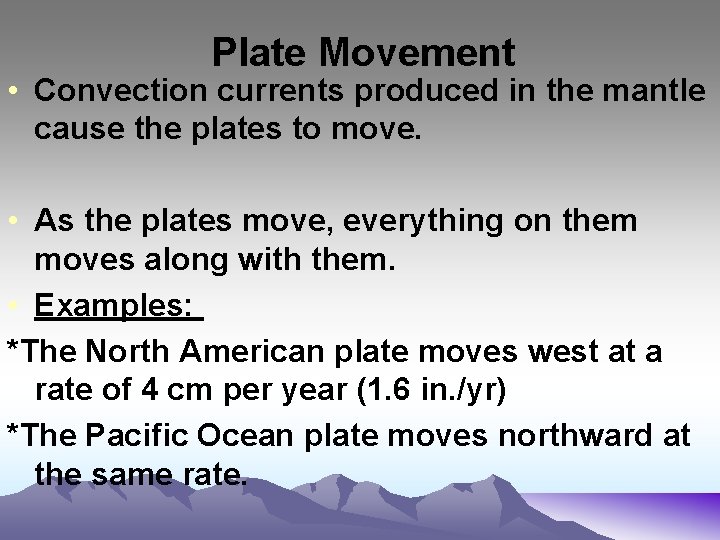

Plate Movement • Convection currents produced in the mantle cause the plates to move. • As the plates move, everything on them moves along with them. • Examples: *The North American plate moves west at a rate of 4 cm per year (1. 6 in. /yr) *The Pacific Ocean plate moves northward at the same rate.
• PLATE TECTONICS • The continental & oceanic plates on the earth’s surface are constantly moving. • Many geologists believe that at one time all landmasses were together: supercontinent. Also called?

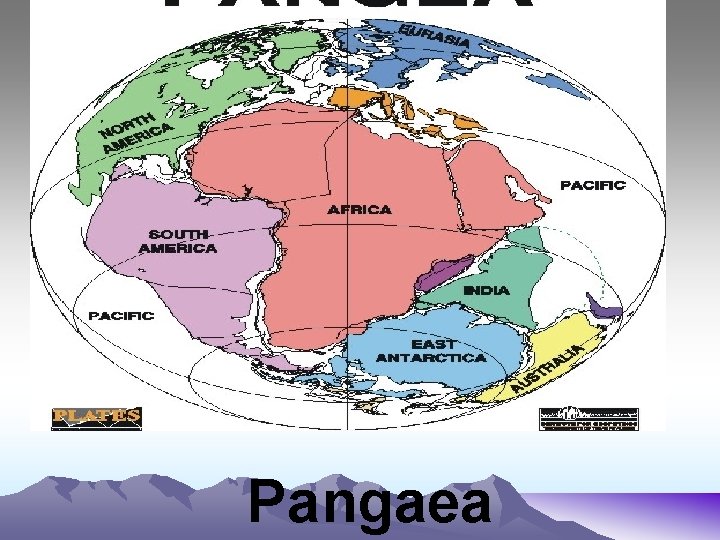

Pangaea

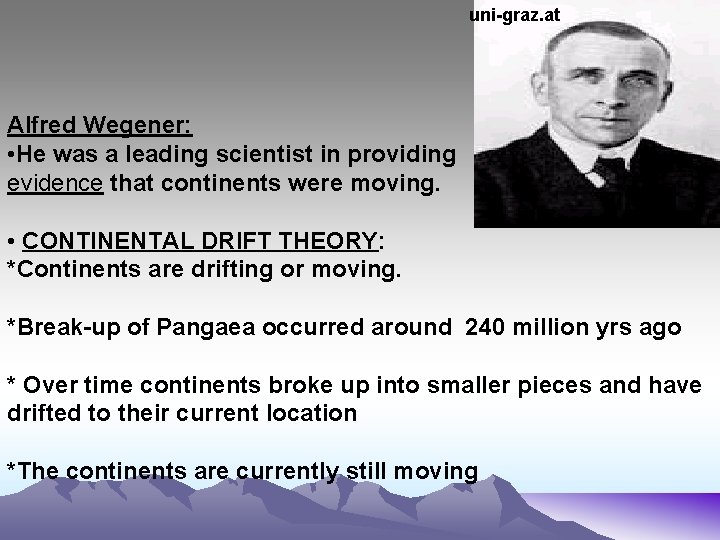

uni-graz. at Alfred Wegener: • He was a leading scientist in providing evidence that continents were moving. • CONTINENTAL DRIFT THEORY: *Continents are drifting or moving. *Break-up of Pangaea occurred around 240 million yrs ago * Over time continents broke up into smaller pieces and have drifted to their current location *The continents are currently still moving
Alfred Wegener: Continental Drift Evidence: 1. Similarities in coastlines 2. Similarities in fossil records 3. Similarities in rock
Continental Drift: Evidence • 180 million years ago, Pangaea began to break up into separate continents. • Provided evidence of ancient animal and plant remains from South America, Africa, India, and Australia that were very similar.

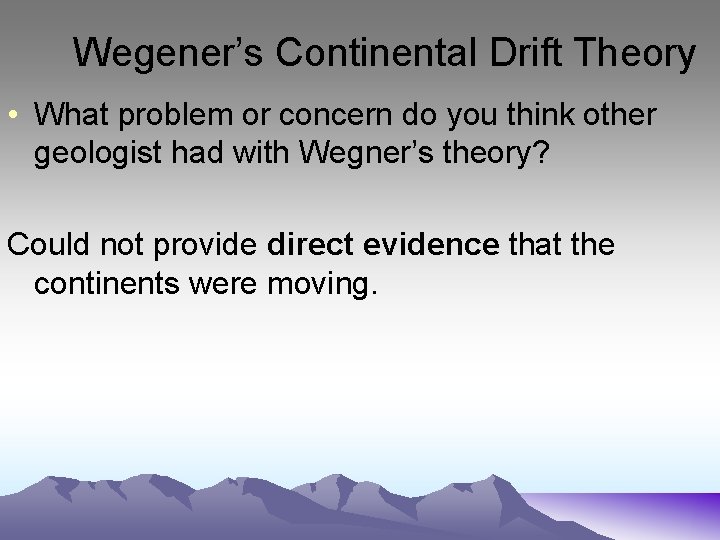

Wegener’s Continental Drift Theory • What problem or concern do you think other geologist had with Wegner’s theory? Could not provide direct evidence that the continents were moving.

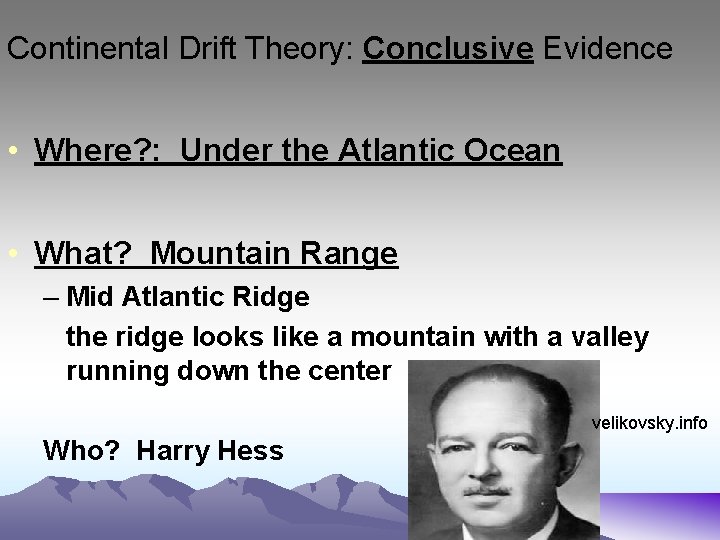

Continental Drift Theory: Conclusive Evidence • Where? : Under the Atlantic Ocean • What? Mountain Range – Mid Atlantic Ridge the ridge looks like a mountain with a valley running down the center velikovsky. info Who? Harry Hess
Aerial picture of the Mid-Atlantic Ridge

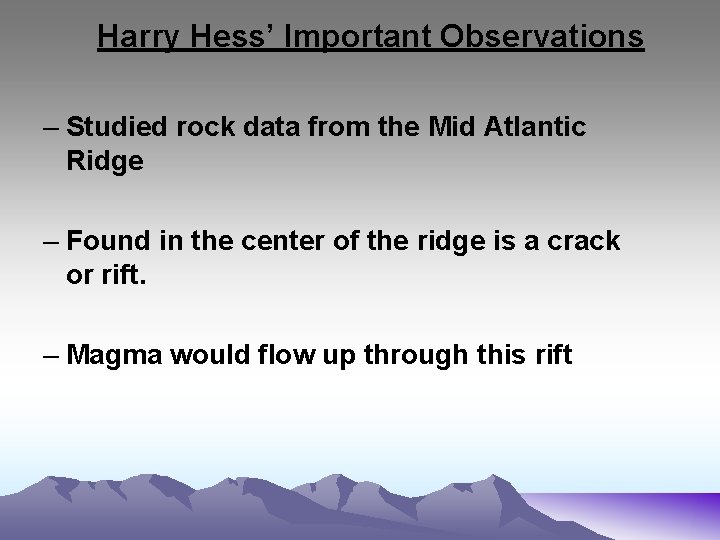

Harry Hess’ Important Observations – Studied rock data from the Mid Atlantic Ridge – Found in the center of the ridge is a crack or rift. – Magma would flow up through this rift

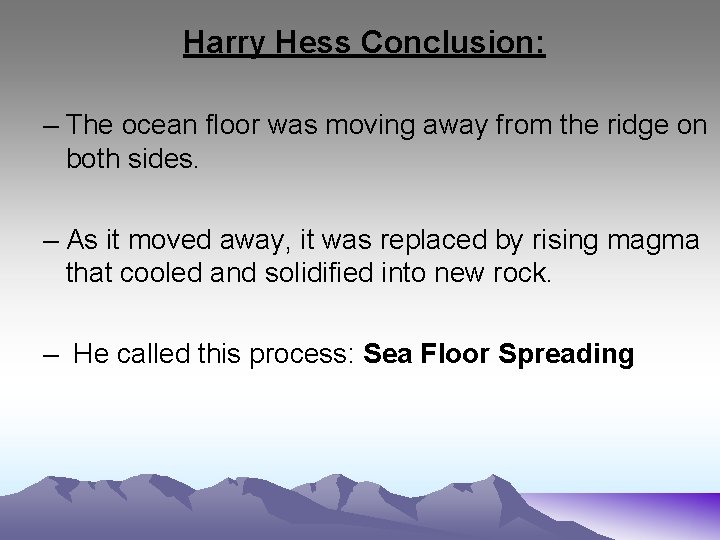

Harry Hess Conclusion: – The ocean floor was moving away from the ridge on both sides. – As it moved away, it was replaced by rising magma that cooled and solidified into new rock. – He called this process: Sea Floor Spreading

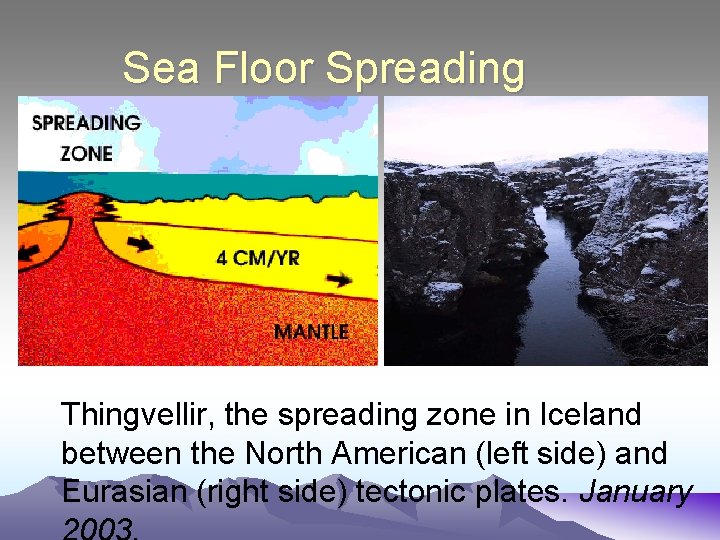

Sea Floor Spreading Thingvellir, the spreading zone in Iceland between the North American (left side) and Eurasian (right side) tectonic plates. January

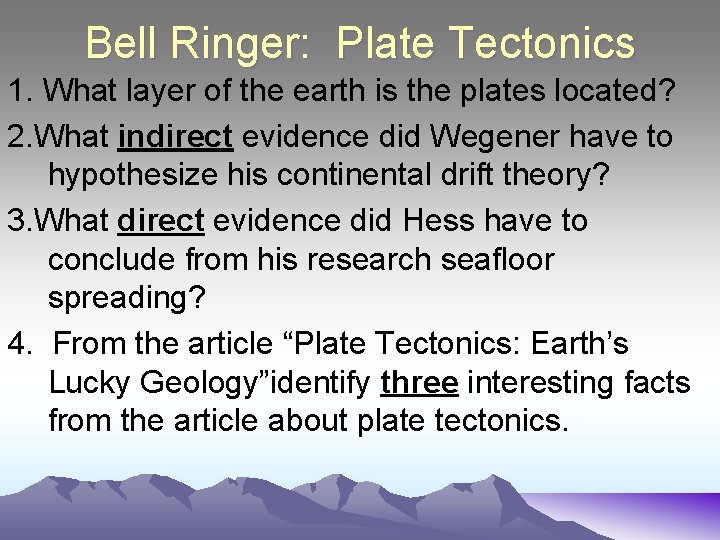

Bell Ringer: Plate Tectonics 1. What layer of the earth is the plates located? 2. What indirect evidence did Wegener have to hypothesize his continental drift theory? 3. What direct evidence did Hess have to conclude from his research seafloor spreading? 4. From the article “Plate Tectonics: Earth’s Lucky Geology”identify three interesting facts from the article about plate tectonics.
Hess’ Later Observations and Conclusions – Continued to support sea floor spreading. – Evidence by further studying the structure, properties, and age of the rock around the Mid. Atlantic ridge.
Scientific Evidence is Dynamic Scientific evidence presented to the public is only established after years of sound research in the hands of many scientists. Despite this truth, scientists continue to test these facts as technology advances. Homework: Read annotate the article “ UCLA scientist discovers plate tectonics on Mars”. Explain with three supporting facts from this article why the statement above is necessary for science to remain beneficial to humanity.

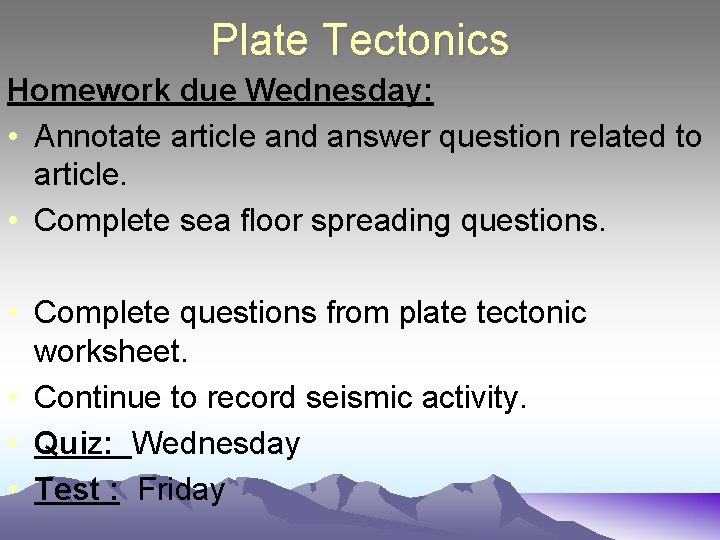

Plate Tectonics Homework due Wednesday: • Annotate article and answer question related to article. • Complete sea floor spreading questions. • Complete questions from plate tectonic worksheet. • Continue to record seismic activity. • Quiz: Wednesday • Test : Friday

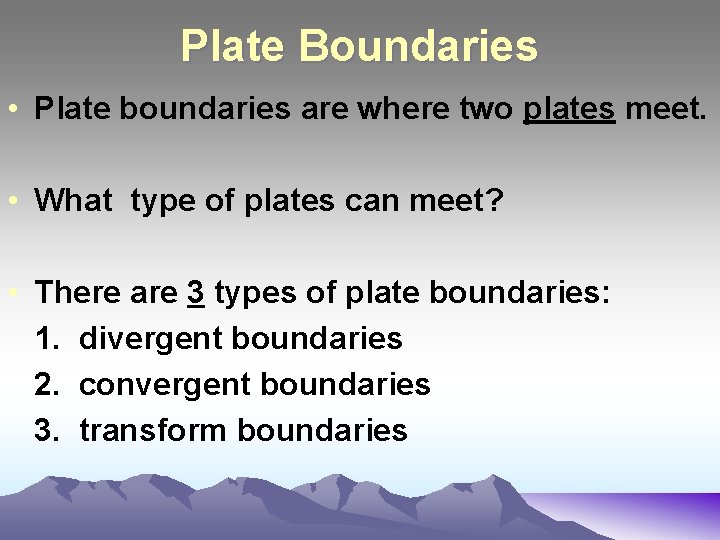

Plate Boundaries • Plate boundaries are where two plates meet. • What type of plates can meet? • There are 3 types of plate boundaries: 1. divergent boundaries 2. convergent boundaries 3. transform boundaries
Divergent Boundaries What are divergent boundaries?

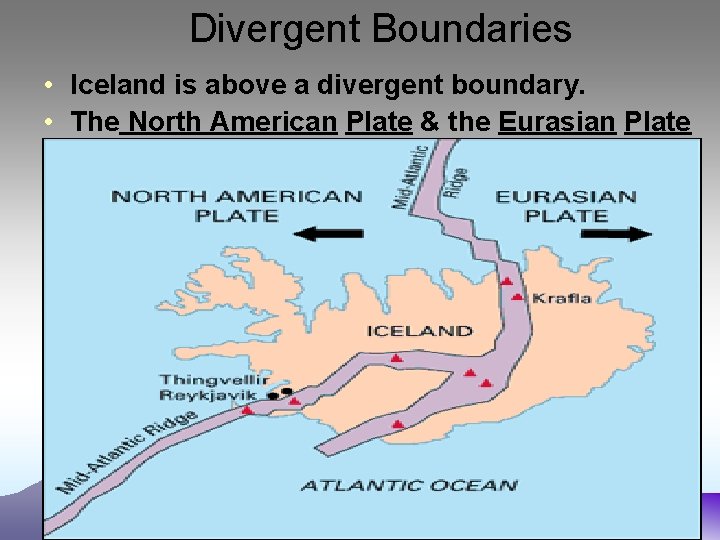

Divergent Boundaries • Iceland is above a divergent boundary. • The North American Plate & the Eurasian Plate
Thingvellier, Iceland
Divergent Boundaries Mid-Atlantic Ridge: Extends from the Arctic Ocean to beyond the southern tip of Africa & moves 2. 5 cm per year.
Divergent Boundaries: African Rift Valley – east African Plate is spreading & has torn Saudi Arabia away from the rest of the African continent forming the Red Sea

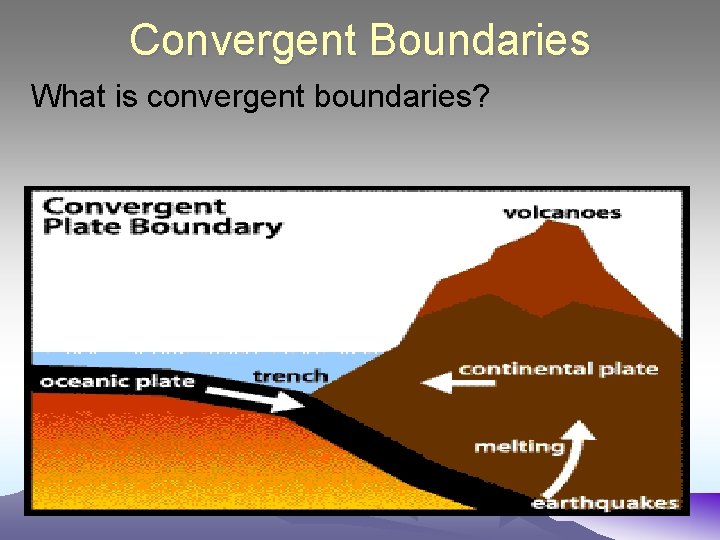

Convergent Boundaries What is convergent boundaries?
Convergent Boundaries What are three types of convergent boundaries? 1. Oceanic-oceanic 2. oceanic-continental 3. continental-continental nature. nps. gov
Convergent Boundaries Continental Convergence: • • Continental convergence form mountain ranges Example: Himalayan Mountains formed by the convergence of the Indian and Eurasian Plates. nature. nps. gov

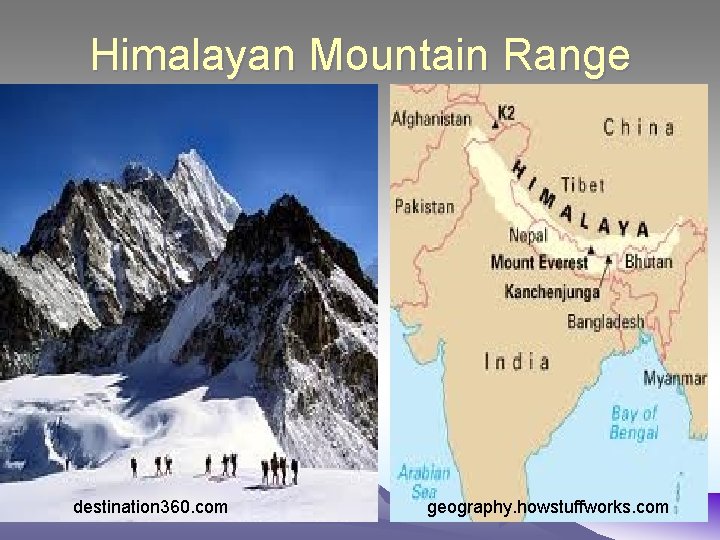

Himalayan Mountain Range destination 360. com geography. howstuffworks. com
Convergence Boundaries: Continental and Oceanic Convergence: • Create trenches and volcanic mountains • One crust subducts under another.
Aleutian Islands • Pacific Plate & North American Plate form the Aleutian Islands in the Pacific Ocean off the northeast coast of Siberia

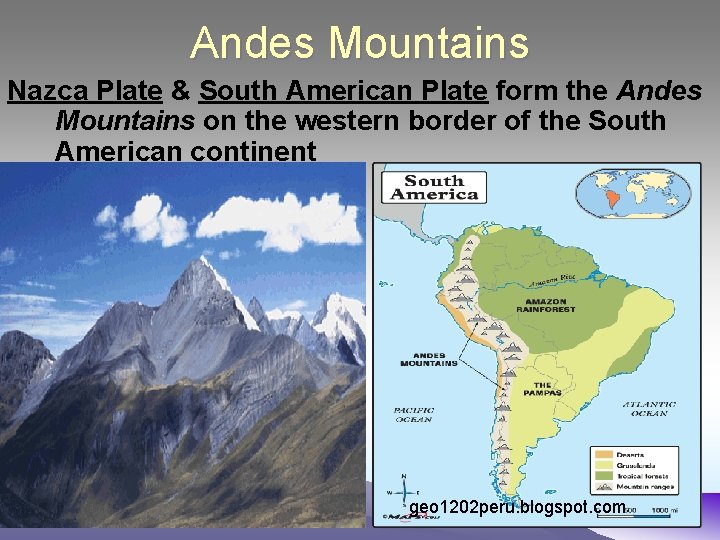

Andes Mountains Nazca Plate & South American Plate form the Andes Mountains on the western border of the South American continent geo 1202 peru. blogspot. com

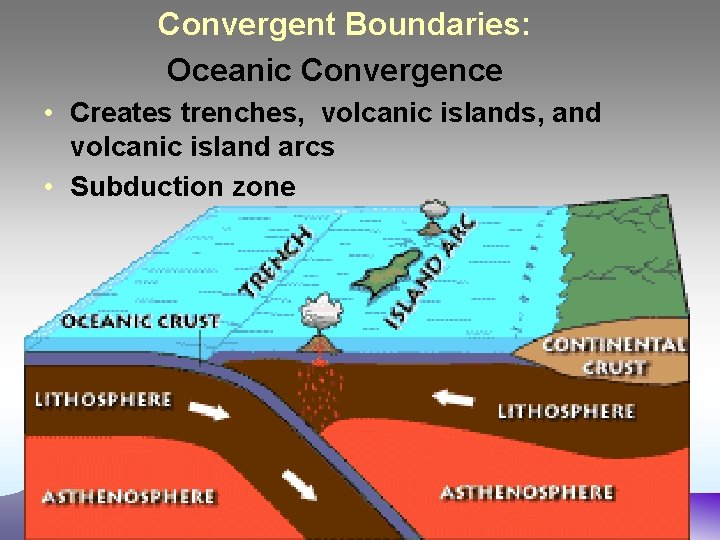

Convergent Boundaries: Oceanic Convergence • Creates trenches, volcanic islands, and volcanic island arcs • Subduction zone
Mariana Trench • Located in the Pacific Ocean near Japan. • Created by ocean-to-ocean subduction. -Phillipine Plate is subducting under the Pacific Plate
Plate Tectonics Homework due Wednesday: • Annotate article and answer question related to article. • Complete sea floor spreading questions. • Continue to record seismic activity. • Complete questions from plate tectonic worksheet. • Quiz: Wednesday • Test : Friday
Sea Floor Spreading Model Use the picture below to help understand the sea floor spreading model you made last week. a. What kind of boundary is represented at #1? (slit? ) b. What kind of boundary is represented at #2? (slit? ) 1. 2.
Transform Boundaries What is a transform boundary?

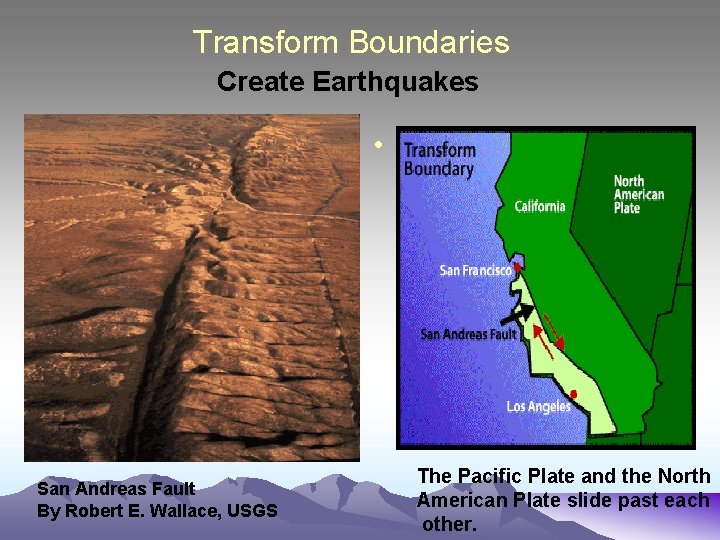

Transform Boundaries Create Earthquakes • San Andreas Fault By Robert E. Wallace, USGS The Pacific Plate and the North American Plate slide past each other.

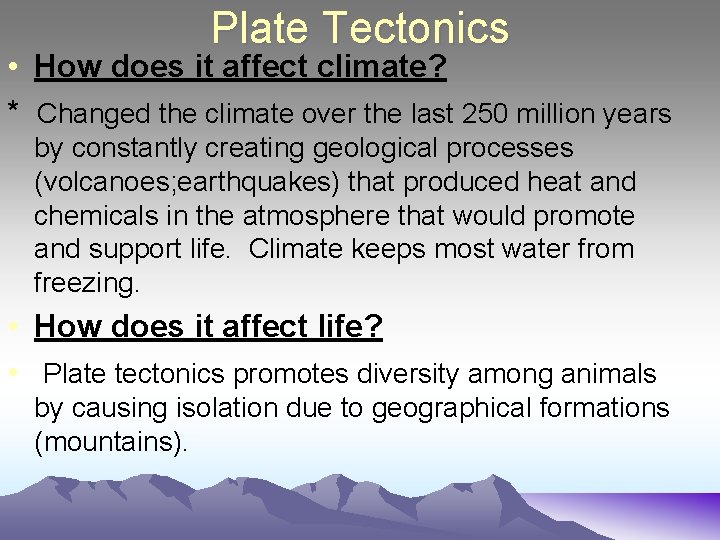

Plate Tectonics • How does it affect climate? * Changed the climate over the last 250 million years by constantly creating geological processes (volcanoes; earthquakes) that produced heat and chemicals in the atmosphere that would promote and support life. Climate keeps most water from freezing. • How does it affect life? • Plate tectonics promotes diversity among animals by causing isolation due to geographical formations (mountains).
Earth’s Tectonic Plates dpc. ucar. edu
