Plate Tectonics Chapter 9. 2 – 9. 3
Plate Tectonics • Proposed in 1965 by Tuzo Wilson = combination of Wegener & Hess’s ideas. • Convection Currents move the lithospheric plates causing geologic activity – (mountain building, volcanic eruptions and earthquakes)

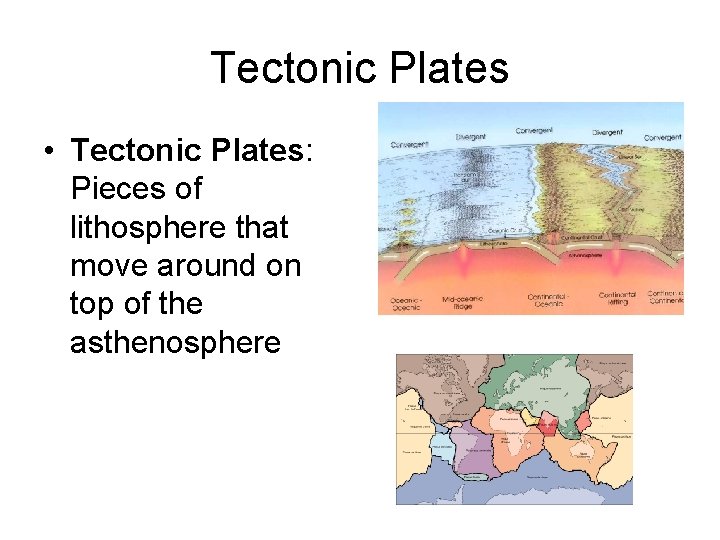

Tectonic Plates • Tectonic Plates: Pieces of lithosphere that move around on top of the asthenosphere
About the Tectonic Plates About the tectonic plates… – There are 7 large plates and many smaller ones • Not all plates are the same shape and size – Plates can contain either oceanic or continental crust, or both

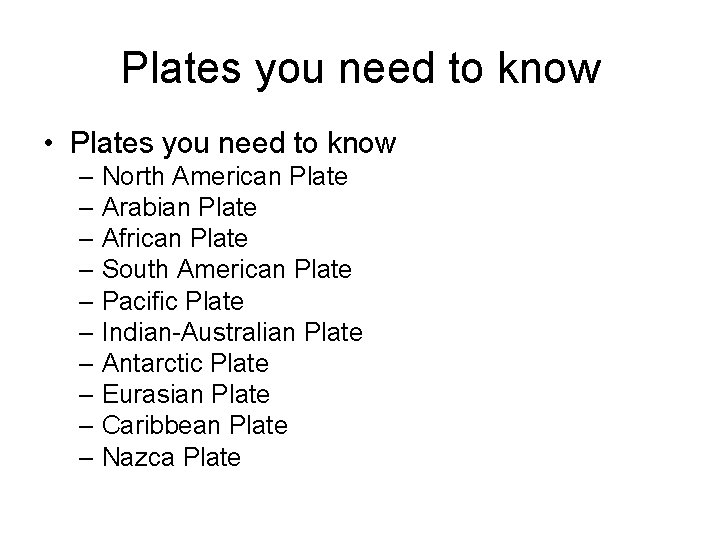

Plates you need to know • Plates you need to know – North American Plate – Arabian Plate – African Plate – South American Plate – Pacific Plate – Indian-Australian Plate – Antarctic Plate – Eurasian Plate – Caribbean Plate – Nazca Plate
Juan de Fuca Fiji Cocos Scotia
Plate Tectonics Reference Table You need to know how to read this table!!
Convection Currents Upper Mantle - COOLER Lower Mantle - HOTTER The magma in the lower mantle is warmer. It expands, becomes less dense and rises. When it reaches the upper mantle it cools, contracts, becoming more dense and sinks. This constant rise and fall of magma causes the convection currents that drive plate tectonics. The crust plates ride along on top of these convection currents.
• The plates have boundaries • As they move they affect one another. Convergent Boundary Divergent Boundary Transform Boundary
Plate Boundaries!! Divergent Convergent Transform
Tectonic Boundaries • Tectonic plates are constantly moving in different directions – Where two plates meet is called a boundary • Each boundary has certain geological characteristics and processes associated with it
Divergent Boundary • When Plates Divide or Separate

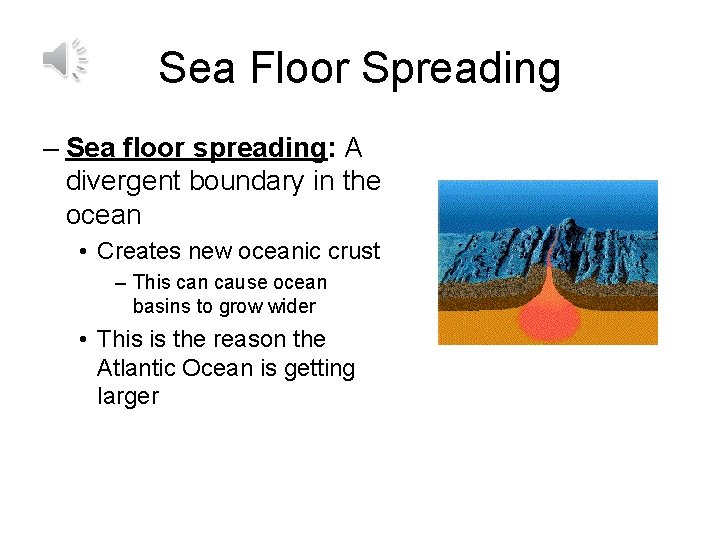

Sea Floor Spreading – Sea floor spreading: A divergent boundary in the ocean • Creates new oceanic crust – This can cause ocean basins to grow wider • This is the reason the Atlantic Ocean is getting larger
Step 1 – Rift Valley • Magma pushes up cracks in the crust • Convection causes the separated plates to move and form a rift valley.
Step 2 – Add Water • The valley widens and begins to be filled with water. (Red Sea)
Step 3 – Ocean Formed • Eventually an ocean forms – At the rate of 6 cm per year Ex. Mid Atlantic Ridge
Divergent Boundaries Map

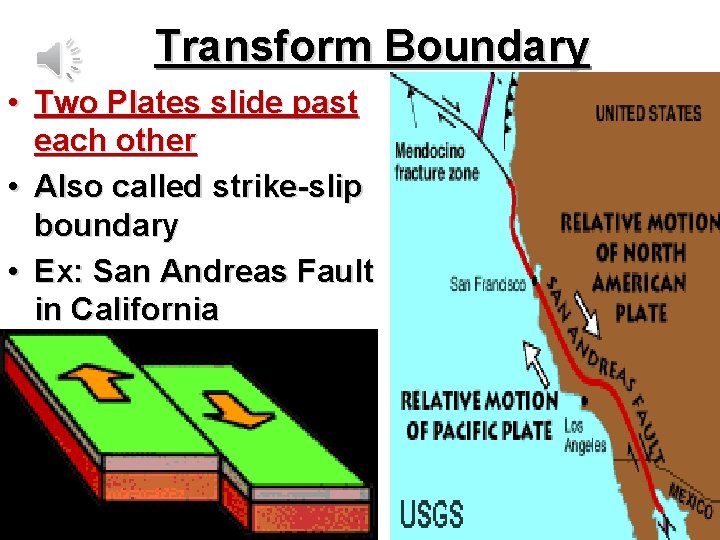

Transform Boundary • Two Plates slide past each other • Also called strike-slip boundary • Ex: San Andreas Fault in California
San Andreas Fault • The Pacific Plate moves North • The North American Plate moves South
San Andreas Fault • Causes stress that leads to Earthquakes in California
Convergent Boundaries • 2 Plates colliding into each other. • Example: Himalayan Mountains formed when India collided with Asia
Oceanic – Continental Convergence • 1. Collision!!! • 2. Continental Crust is less dense so Oceanic crust sinks (subducts) into the asthenosphere.

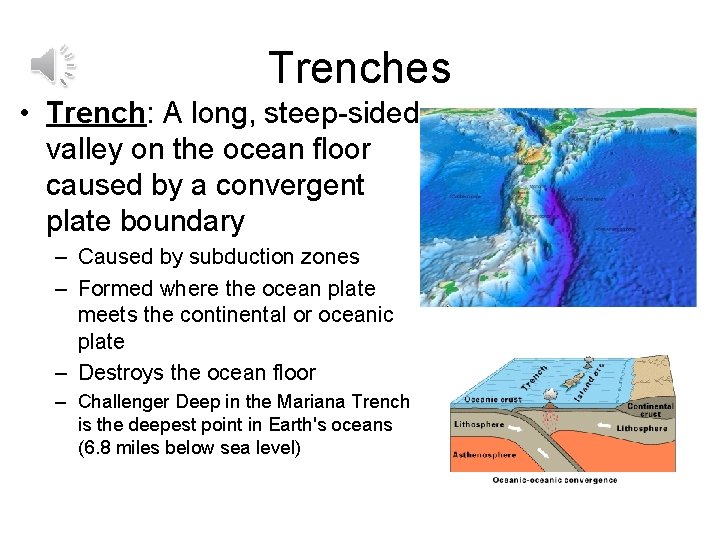

Trenches • Trench: A long, steep-sided valley on the ocean floor caused by a convergent plate boundary – Caused by subduction zones – Formed where the ocean plate meets the continental or oceanic plate – Destroys the ocean floor – Challenger Deep in the Mariana Trench is the deepest point in Earth's oceans (6. 8 miles below sea level)
Oceanic – Continental Convergence • 3. Subducting Ocean Plate creates a Vshaped Trench. • 4. Oceanic Plate reaches the asthenosphere and melts.
Oceanic – Continental Convergence • 5. The melted magma begins to rise through the mantle and crust. • 6. It will rise to make a volcanic eruption. • 7. Lava cools forming a continental volcanic arc.
Oceanic – Continental Examples • Andes Volcanic Mountains • Cascades Mountain Range (Mt. St. Helens) (South America)
Oceanic – Oceanic Boundary • 1. Collision!!! • 2. The more dense ocean plate (older) subducts into the asthenosphere.

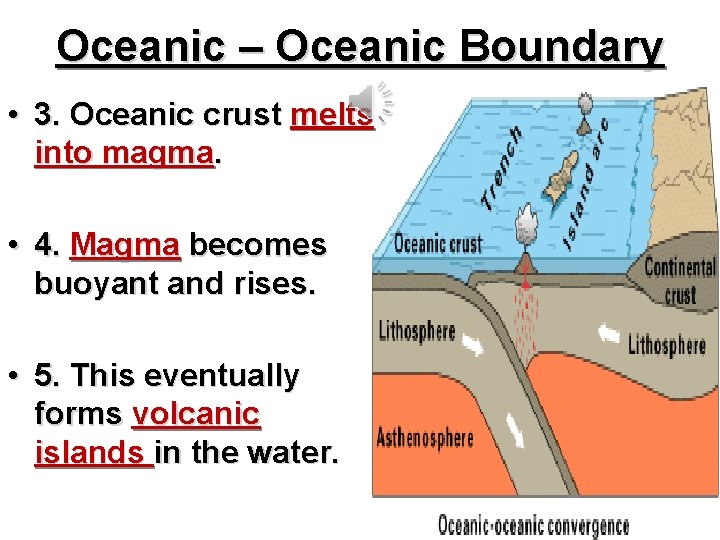

Oceanic – Oceanic Boundary • 3. Oceanic crust melts into magma. • 4. Magma becomes buoyant and rises. • 5. This eventually forms volcanic islands in the water.
Example of Oceanic-Oceanic Boundaries ALUETIAN ISLANDS
Example of Oceanic-Oceanic Boundaries Northern Mariana Islands
Continental – Continental Boundary • 1. Collision!!! • 2. Neither plate subducts because they are both low in density.
Continental – Continental Boundary • 3. Crust is compressed and deformed, forced upward forming a mountain range.
Mountains • Mountains: Formed when two continental plates push into each other – You can tell relative ages of mountains based on how eroded they are—sharp, pointy mountains are younger, rounded mountains are older • The Appalachian Mountains were formed around 480 mya • The Rocky Mountains were formed about 80 mya
Example: Continental- Continental Convergence • Mt. Everest! (Himalayan Mts. )

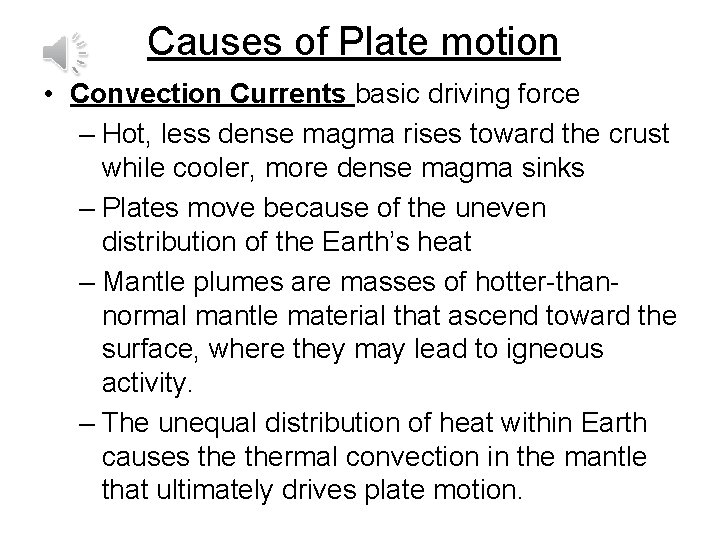

Causes of Plate motion • Convection Currents basic driving force – Hot, less dense magma rises toward the crust while cooler, more dense magma sinks – Plates move because of the uneven distribution of the Earth’s heat – Mantle plumes are masses of hotter-thannormal mantle material that ascend toward the surface, where they may lead to igneous activity. – The unequal distribution of heat within Earth causes thermal convection in the mantle that ultimately drives plate motion.
Slab-pull • The pulling of old crust down in the mantle because by the downward flow of more dense magma in the convection current • Is a mechanism that contributes to plate motion in which cool, dense oceanic crust sinks into the mantle and “pulls” the trailing lithosphere along. It is thought to be the primary downward arm of convective flow in the mantle.
Ridge –push The down-ward pull, from gravity, on the oceanic lithosphere at the ridge Causes oceanic lithosphere to slide down the sides of the oceanic ridge under the pull of gravity. It may contribute to plate motion.
• http: //www. youtube. com/watch? v=ryr. XAG Y 1 dm. E
Keeping it straight Tectonic Boundaries Convergent Subduction Zone Trenches Divergent Transform Mountains Ridges Fault Rift Valley Sea Floor Spreading
