Plaque as designed in SOLIDWORKS Saving plaque Saving

  • Slides: 11
Download presentation

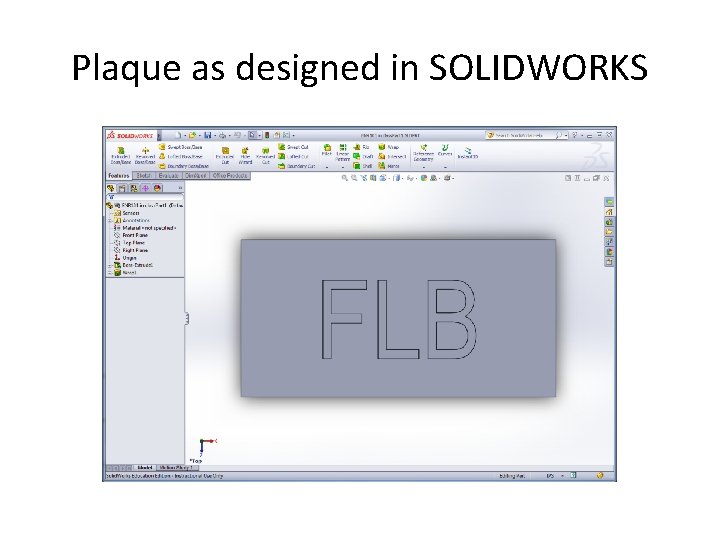

Plaque as designed in SOLIDWORKS

Plaque as designed in SOLIDWORKS

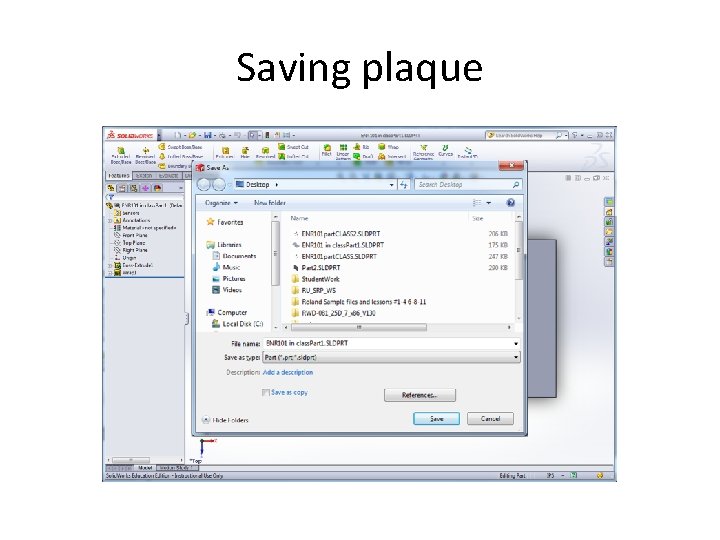

Saving plaque

Saving plaque

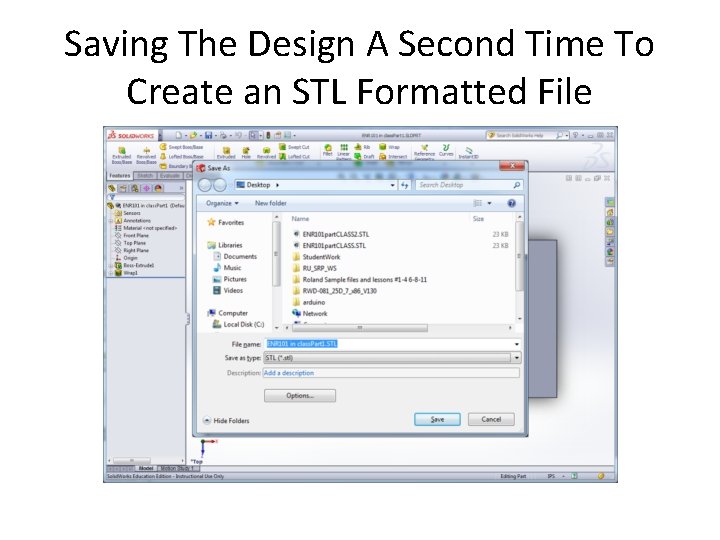

Saving The Design A Second Time To Create an STL Formatted File

Saving The Design A Second Time To Create an STL Formatted File

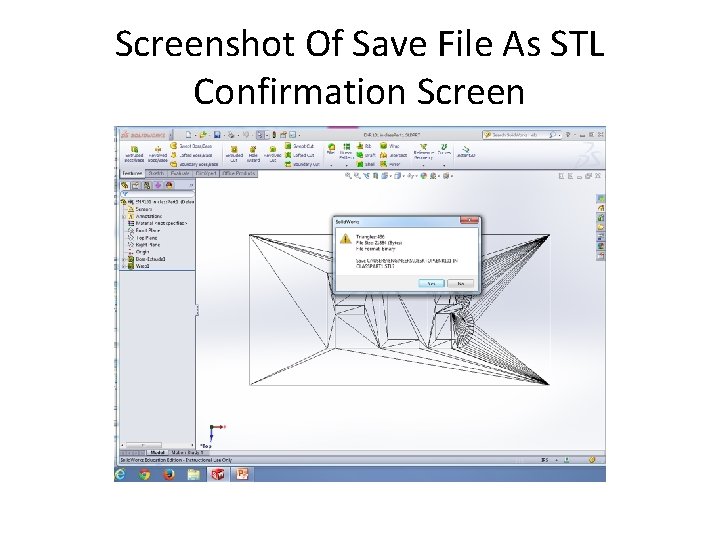

Screenshot Of Save File As STL Confirmation Screen

Screenshot Of Save File As STL Confirmation Screen

Screenshot showing the launching of the SRP Player software

Screenshot showing the launching of the SRP Player software

Screenshot of VPannel SRP Player Open File Screen with Open Button Identified

Screenshot of VPannel SRP Player Open File Screen with Open Button Identified

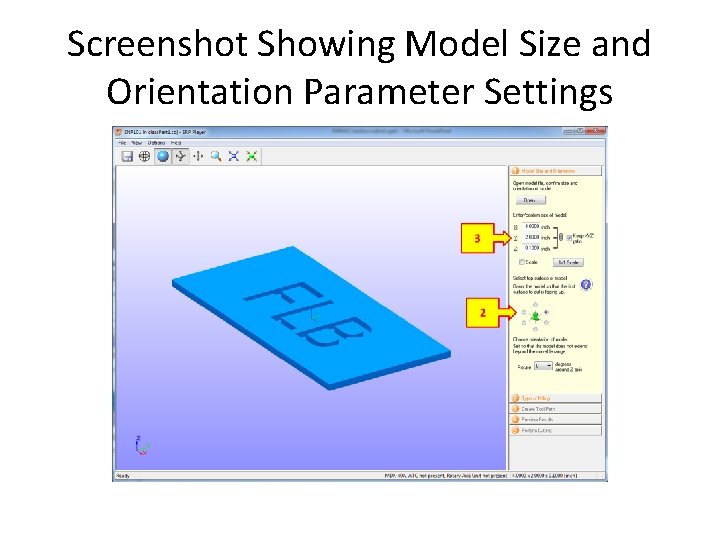

Screenshot Showing Model Size and Orientation Parameter Settings

Screenshot Showing Model Size and Orientation Parameter Settings

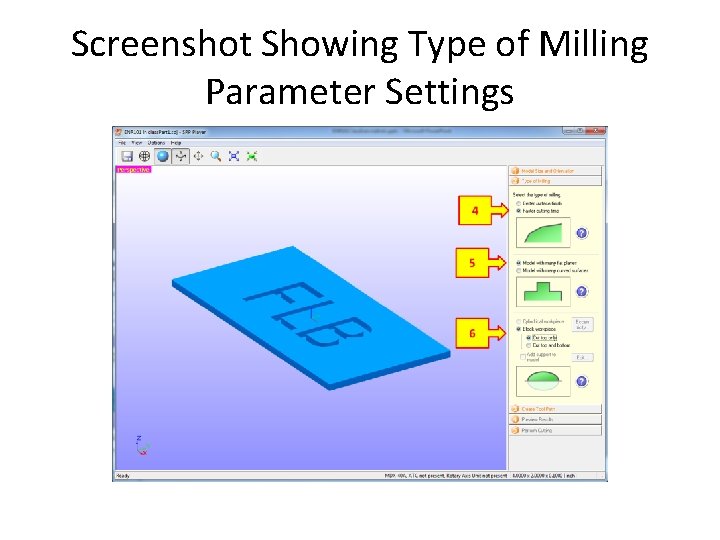

Screenshot Showing Type of Milling Parameter Settings

Screenshot Showing Type of Milling Parameter Settings

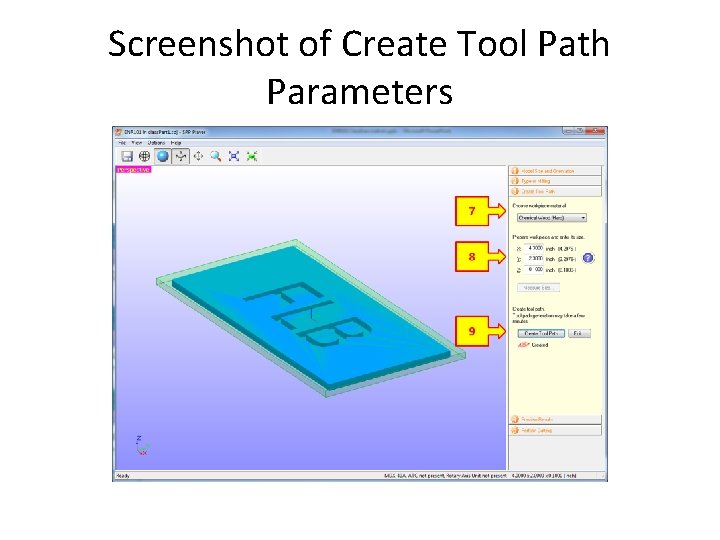

Screenshot of Create Tool Path Parameters

Screenshot of Create Tool Path Parameters

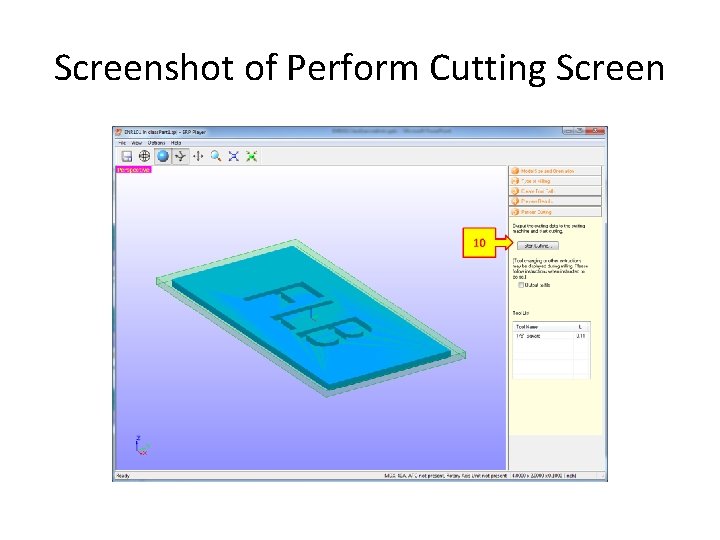

Screenshot of Perform Cutting Screen

Screenshot of Perform Cutting Screen
