Plant Pigment Chromatography Visual Instructions Step through the slides to see how to set up your experiment.

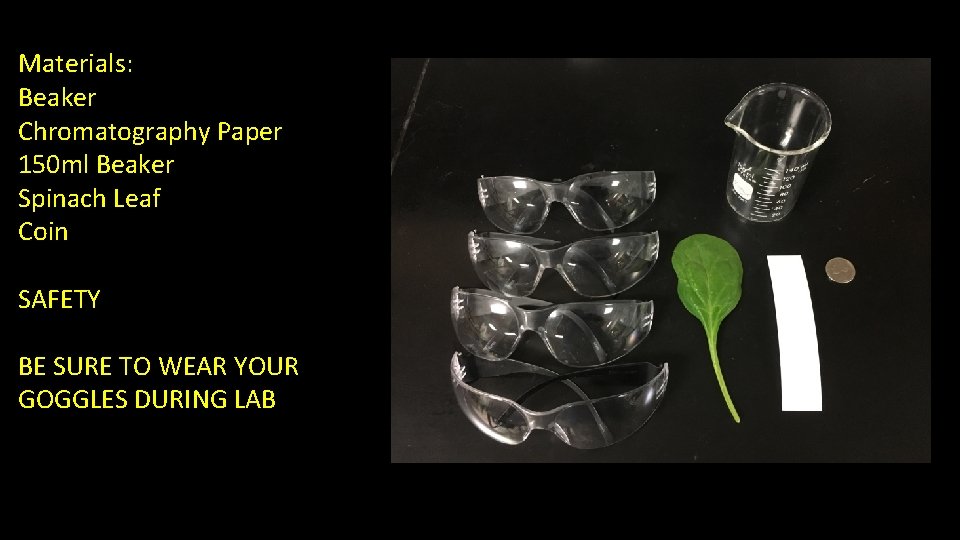

Materials: Beaker Chromatography Paper 150 ml Beaker Spinach Leaf Coin SAFETY BE SURE TO WEAR YOUR GOGGLES DURING LAB

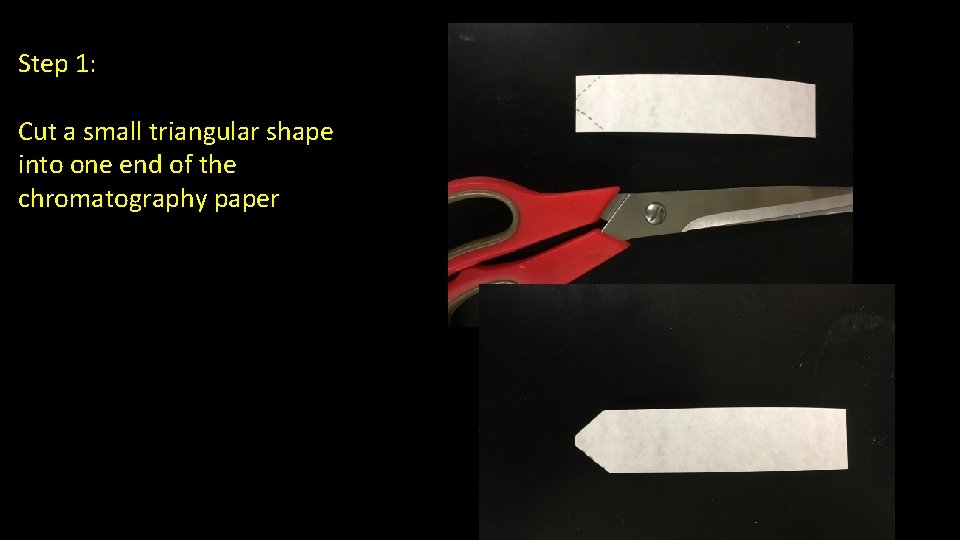

Step 1: Cut a small triangular shape into one end of the chromatography paper

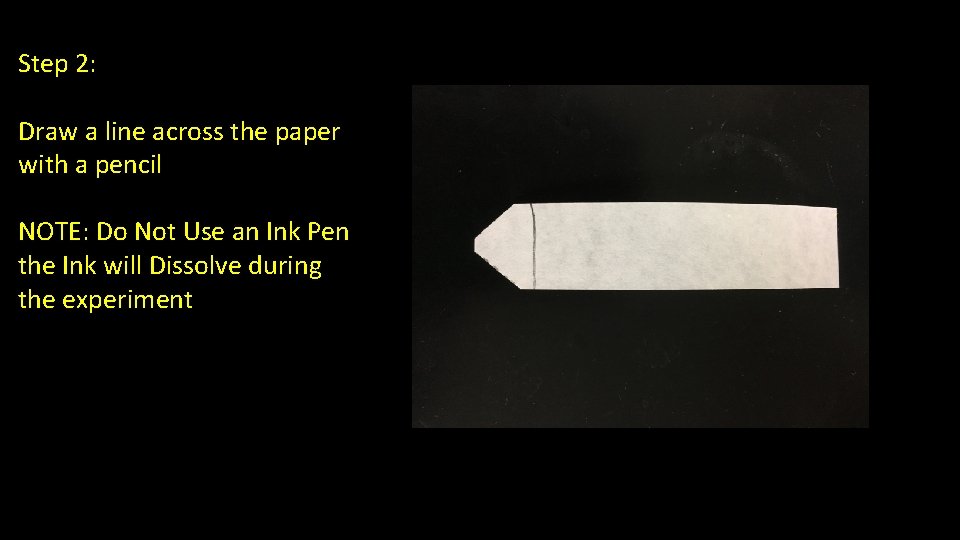

Step 2: Draw a line across the paper with a pencil NOTE: Do Not Use an Ink Pen the Ink will Dissolve during the experiment

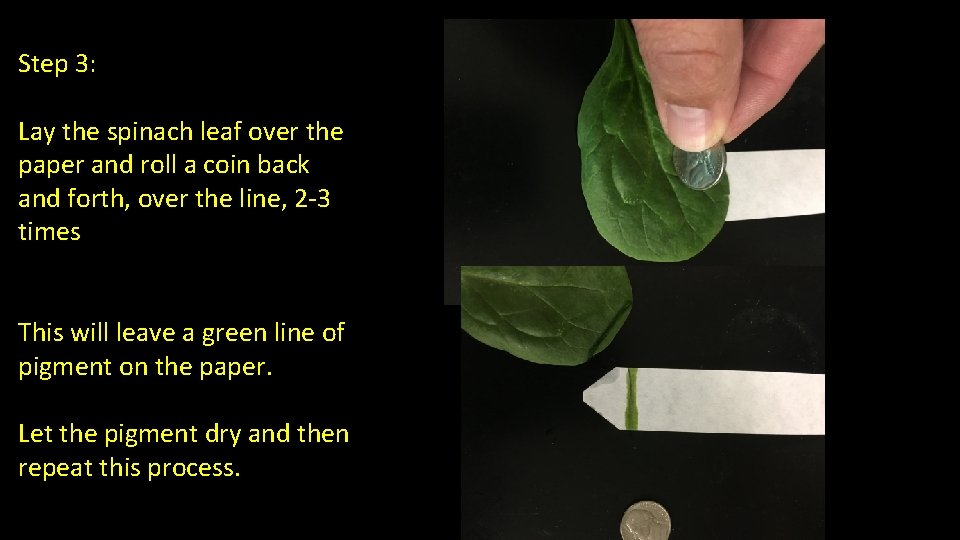

Step 3: Lay the spinach leaf over the paper and roll a coin back and forth, over the line, 2 -3 times This will leave a green line of pigment on the paper. Let the pigment dry and then repeat this process.

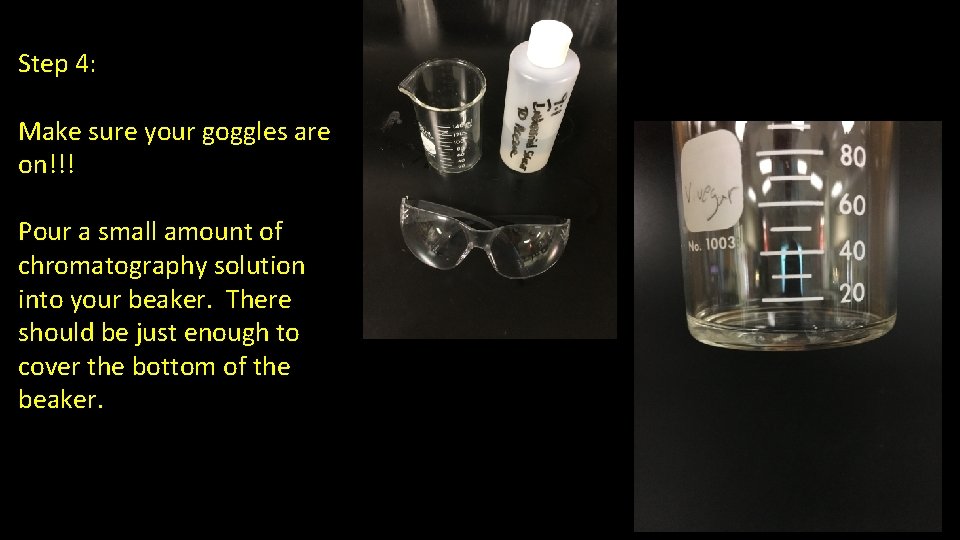

Step 4: Make sure your goggles are on!!! Pour a small amount of chromatography solution into your beaker. There should be just enough to cover the bottom of the beaker.

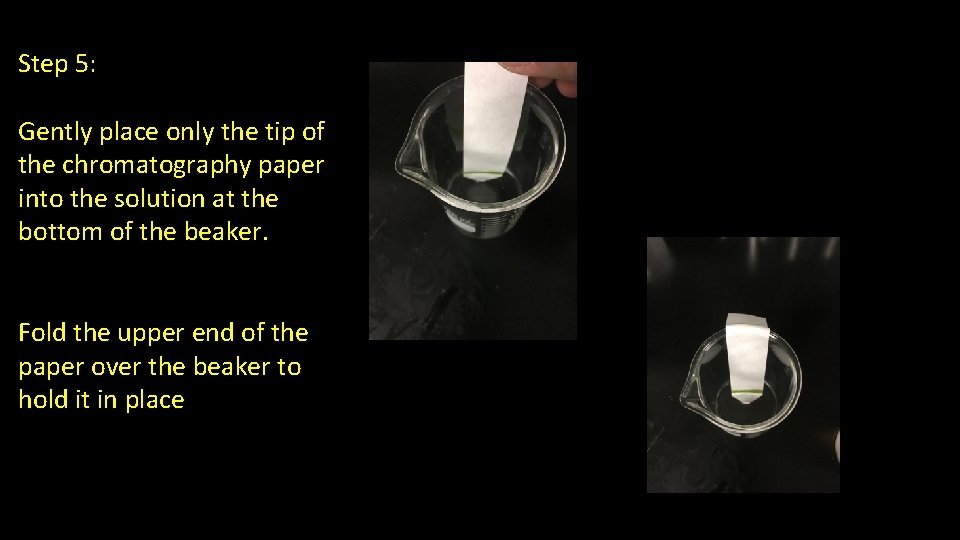

Step 5: Gently place only the tip of the chromatography paper into the solution at the bottom of the beaker. Fold the upper end of the paper over the beaker to hold it in place

Allow the solution to move all the way up the paper as far as it will go. It may not make it to the top You will see different colors appearing. These are the different pigments in the leaf. Greens are Chlorophylls Yellows are Carotenes and Xanthophylls

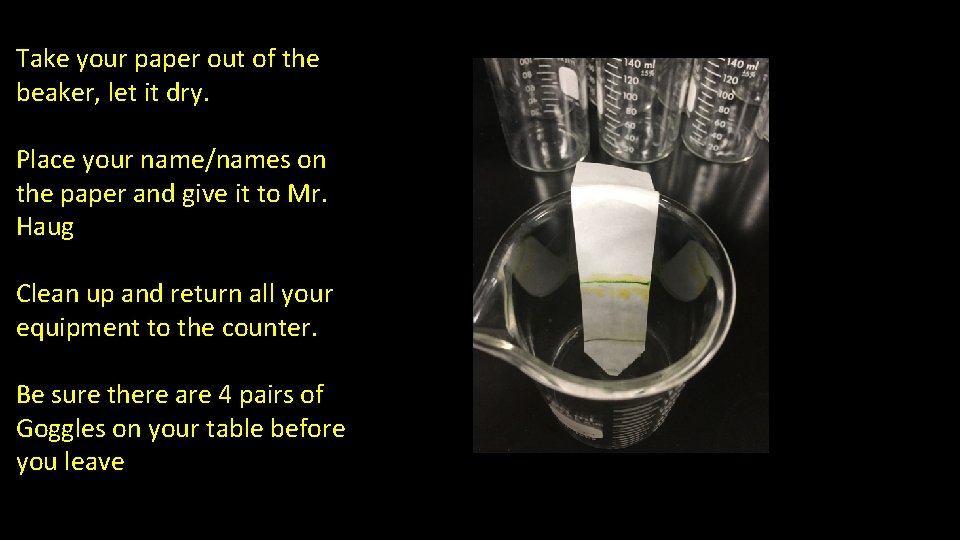

Take your paper out of the beaker, let it dry. Place your name/names on the paper and give it to Mr. Haug Clean up and return all your equipment to the counter. Be sure there are 4 pairs of Goggles on your table before you leave
