Plant biofuel related Novel biofuel Novel ways to
Plant biofuel related • Novel biofuel • Novel ways to enhance biofuel production • Biophotovoltaics Photosynthesis related • Enhancing light harvesting • Enhancing carbon capture • Carboxysomes in higher plants • Carbonic anhydrase • C 4 rice Plant biotechnology related • Plantibodies • Other useful products made in plants • Bioremediation • Heavy metals • Pesticides
Agriculture related Improving nutritional value by GMO or wide-breeding • Vitamins • Essential amino acids • Iron • Other nutrients Reducing fertilizer needs • Selecting for water-use efficiency • Selecting for efficiency of other nutrients • Moving N-fixation to other species • Improving mycorrhizae GMO for weed and pest control • Round-up resistance • BT toxin • Treating viruses, viroids, etc by GMO
Light regulation of growth Plants sense 1. Light quantity 2. Light quality (colors) 3. Light duration 4. Direction it comes from Have photoreceptors that sense specific wavelengths

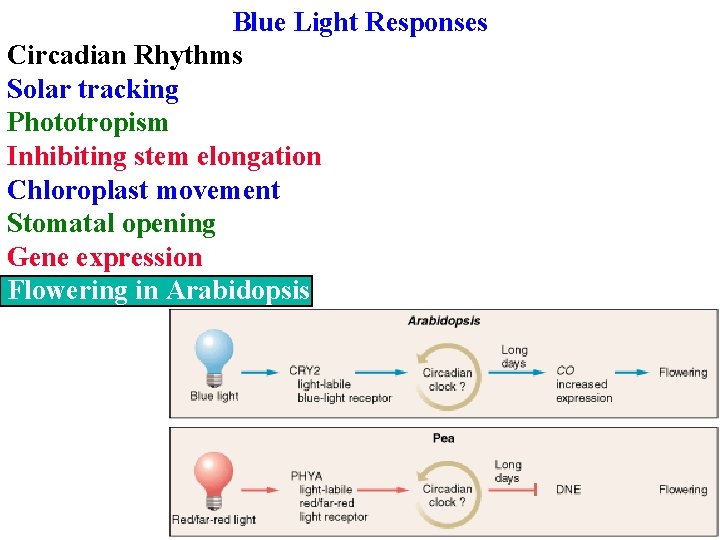

Blue Light Responses Circadian Rhythms Solar tracking Phototropism Inhibiting stem elongation Chloroplast movement Stomatal opening Gene expression Flowering in Arabidopsis
Blue Light Responses vary in their fluence requirements & lag time Stomatal opening is reversible by green light; others aren’t Multiple blue receptors with different functions!
Blue Light Responses vary in their fluence requirements & lag time Stomatal opening is reversible by green light; others aren’t Multiple blue receptors with different functions! Identified by mutants, then clone the gene and identify the protein

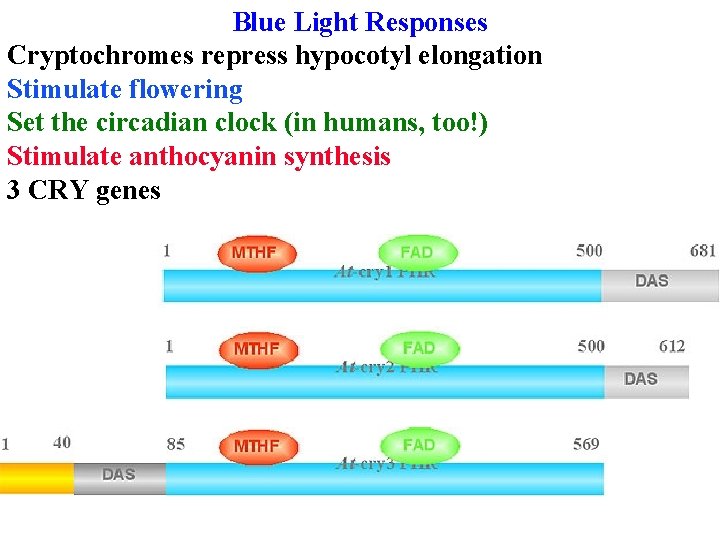

Blue Light Responses Cryptochromes repress hypocotyl elongation Stimulate flowering Set the circadian clock (in humans, too!) Stimulate anthocyanin synthesis
Blue Light Responses Cryptochromes repress hypocotyl elongation Stimulate flowering Set the circadian clock (in humans, too!) Stimulate anthocyanin synthesis 3 CRY genes
Blue Light Responses 3 CRY genes All have same basic structure: Photolyase-like domain binds FAD and a pterin (MTHF) that absorbs blue & transfers energy to FAD in photolyase (an enzyme that uses light energy to repair pyr dimers) DAS binds COP 1 & has nuclear localization signals CRY 1 & CRY 2 kinase proteins after absorbing blue

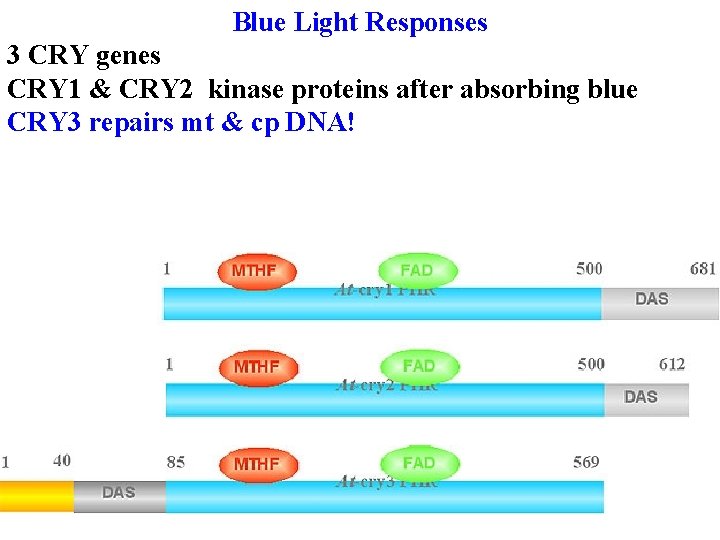

Blue Light Responses 3 CRY genes CRY 1 & CRY 2 kinase proteins after absorbing blue CRY 3 repairs mt & cp DNA!
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable • Triggers rapid changes in PM potential & growth
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable • Triggers rapid changes in PM potential & growth • Opens anion channels in PM
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable • Triggers rapid changes in PM potential & growth • Opens anion channels in PM • Stimulates anthocyanin synthesis
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable • Triggers rapid changes in PM potential & growth • Opens anion channels in PM • Stimulates anthocyanin synthesis • Entrains the circadian clock
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable • Triggers rapid changes in PM potential & growth • Opens anion channels in PM • Stimulates anthocyanin synthesis • Entrains the circadian clock • Also accumulates in nucleus & interacts with PHY & COP 1 to regulate photomorphogenesis, probably by kinasing substrates
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable • Triggers rapid changes in PM potential & growth • Opens anion channels in PM • Stimulates anthocyanin synthesis • Entrains the circadian clock • Also accumulates in nucleus & interacts with PHY & COP 1 to regulate photomorphogenesis, probably by kinasing substrates 2. CRY 2 controls flowering
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable 2. CRY 2 controls flowering: little effect on other processes • Light-labile
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth: light-stable 2. CRY 2 controls flowering: little effect on other processes • Light-labile 3. CRY 3 enters cp & mito, where binds & repairs DNA!
Blue Light Responses 3 CRY genes 1. CRY 1 regulates blue effects on growth 2. CRY 2 controls flowering: little effect on other processes 3. CRY 3 enters cp & mito, where binds & repairs DNA! Cryptochromes are not involved in phototropism or stomatal opening!
Blue Light Responses Cryptochromes are not involved in phototropism or stomatal opening! Phototropins are!
Blue Light Responses Phototropins are involved in phototropism & stomatal opening! Many names (nph, phot, rpt) since found by several different mutant screens
Phototropins Many names (nph, phot, rpt) since found by several different mutant screens Mediate blue light-induced growth enhancements
Phototropins Many names (nph, phot, rpt) since found by several different mutant screens Mediate blue light-induced growth enhancement & blue light-dependent activation of the plasma membrane H+ATPase in guard cells
Phototropins Many names (nph, phot, rpt) since found by several different mutant screens Mediate blue light-induced growth enhancement & blue light-dependent activation of the plasma membrane H+ATPase in guard cells Contain light-activated serine-threonine kinase domain and LOV 1 (light-O 2 -voltage) and LOV 2 repeats

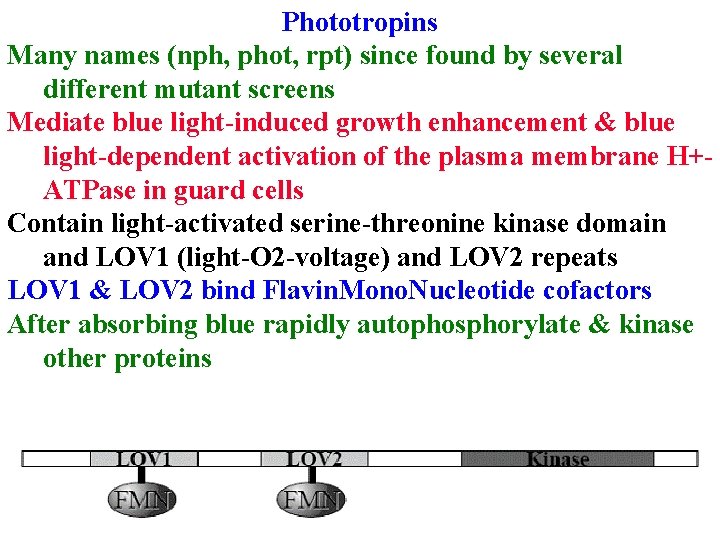

Phototropins Many names (nph, phot, rpt) since found by several different mutant screens Mediate blue light-induced growth enhancement & blue light-dependent activation of the plasma membrane H+ATPase in guard cells Contain light-activated serine-threonine kinase domain and LOV 1 (light-O 2 -voltage) and LOV 2 repeats LOV 1 & LOV 2 bind Flavin. Mono. Nucleotide cofactors
Phototropins Many names (nph, phot, rpt) since found by several different mutant screens Mediate blue light-induced growth enhancement & blue light-dependent activation of the plasma membrane H+ATPase in guard cells Contain light-activated serine-threonine kinase domain and LOV 1 (light-O 2 -voltage) and LOV 2 repeats LOV 1 & LOV 2 bind Flavin. Mono. Nucleotide cofactors After absorbing blue rapidly autophosphorylate & kinase other proteins
Phototropins After absorbing blue rapidly autophosphorylate & kinase other proteins 1 result = phototropism due to uneven auxin transport
Phototropins After absorbing blue rapidly autophosphorylate & kinase other proteins 1 result = phototropism due to uneven auxin transport Send more to side away from light!
Phototropins After absorbing blue rapidly autophosphorylate & kinase other proteins 1 result = phototropism due to uneven auxin transport Send more to side away from light! Phot 1 mediates LF
Phototropins After absorbing blue rapidly autophosphorylate & kinase other proteins 1 result = phototropism due to uneven auxin transport Send more to side away from light! PHOT 1 mediates LF PHOT 2 mediates HIR

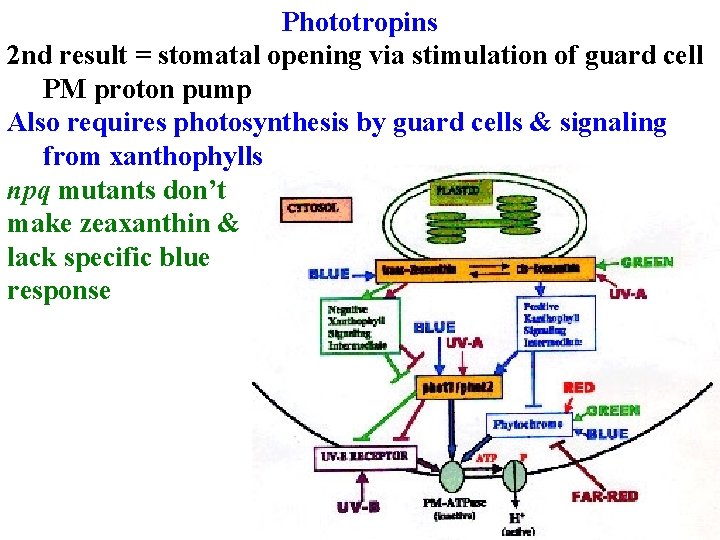

Phototropins 2 nd result = stomatal opening via stimulation of guard cell PM proton pump Also requires photosynthesis by guard cells!
Phototropins 2 nd result = stomatal opening via stimulation of guard cell PM proton pump Also requires photosynthesis by guard cells & signaling from xanthophylls
Phototropins 2 nd result = stomatal opening via stimulation of guard cell PM proton pump Also requires photosynthesis by guard cells & signaling from xanthophylls npq mutants don’t make zeaxanthin & lack specific blue response
Phototropins 2 nd result = stomatal opening via stimulation of guard cell PM proton pump Also requires photosynthesis by guard cells & signaling from xanthophylls npq mutants don’t make zeaxanthin & lack specific blue response Basic idea: open when pump in K+
Phototropins 2 nd result = stomatal opening via stimulation of guard cell PM proton pump Also requires photosynthesis by guard cells & signaling from xanthophylls npq mutants don’t make zeaxanthin & lack specific blue response Basic idea: open when pump in K+ Close when pump out K+
Phototropins Basic idea: open when pump in K+ Close when pump out K+ Control is hideously complicated!
Phototropins Basic idea: open when pump in K+ Close when pump out K+ Control is hideously complicated! Mainly controlled by blue light
Phototropins Basic idea: open when pump in K+ Close when pump out K+ Control is hideously complicated! Mainly controlled by blue light, but red also plays role
Phototropins Basic idea: open when pump in K+ Close when pump out K+ Control is hideously complicated! Mainly controlled by blue light, but red also plays role Light intensity is also important

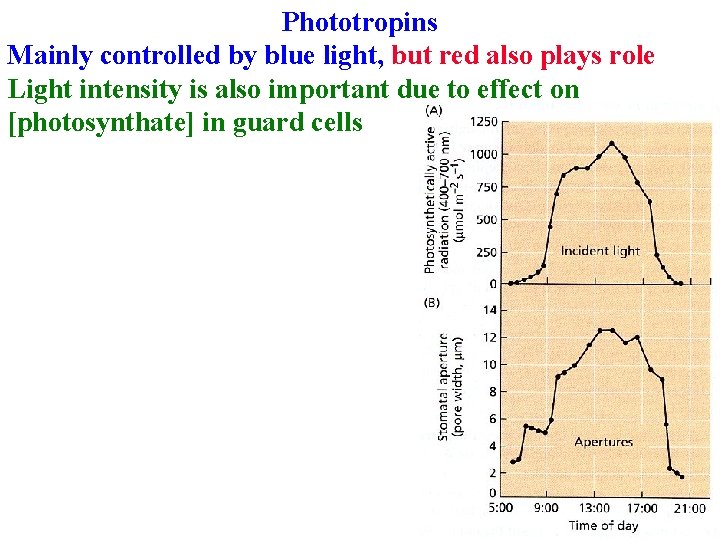

Phototropins Mainly controlled by blue light, but red also plays role Light intensity is also important due to effect on [photosynthate] in guard cells
Phototropins Mainly controlled by blue light, but red also plays role Light intensity is also important due to effect on [photosynthate] in guard cells PHOT 1 &2 also help

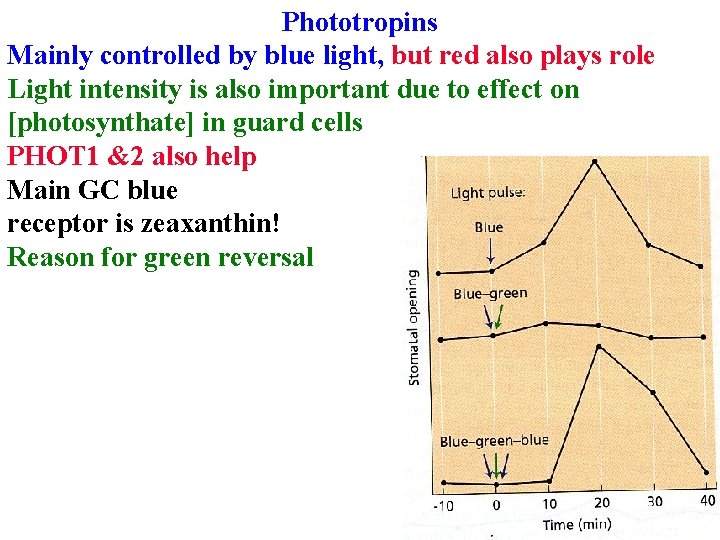

Phototropins Mainly controlled by blue light, but red also plays role Light intensity is also important due to effect on [photosynthate] in guard cells PHOT 1 &2 also help Main GC blue receptor is zeaxanthin!

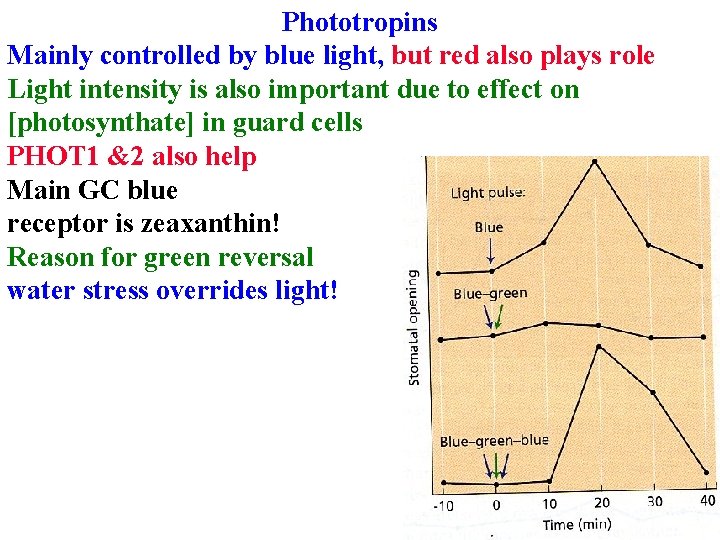

Phototropins Mainly controlled by blue light, but red also plays role Light intensity is also important due to effect on [photosynthate] in guard cells PHOT 1 &2 also help Main GC blue receptor is zeaxanthin! Reason for green reversal
Phototropins Mainly controlled by blue light, but red also plays role Light intensity is also important due to effect on [photosynthate] in guard cells PHOT 1 &2 also help Main GC blue receptor is zeaxanthin! Reason for green reversal water stress overrides light!
Phototropins water stress overrides light: roots make Abscisic Acid: closes stomates & blocks opening regardless of other signals!

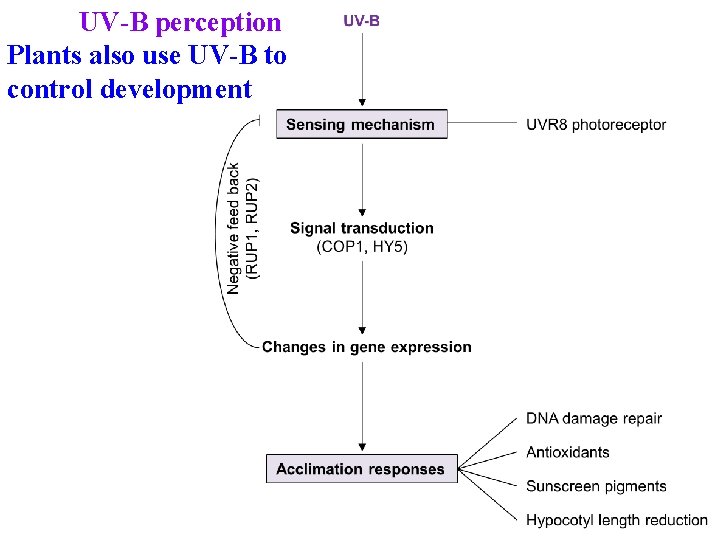

UV-B perception Plants also use UV-B to control development
UV-B perception Plants also use UV-B to control development
UV-B perception Plants also use UV-B to control development

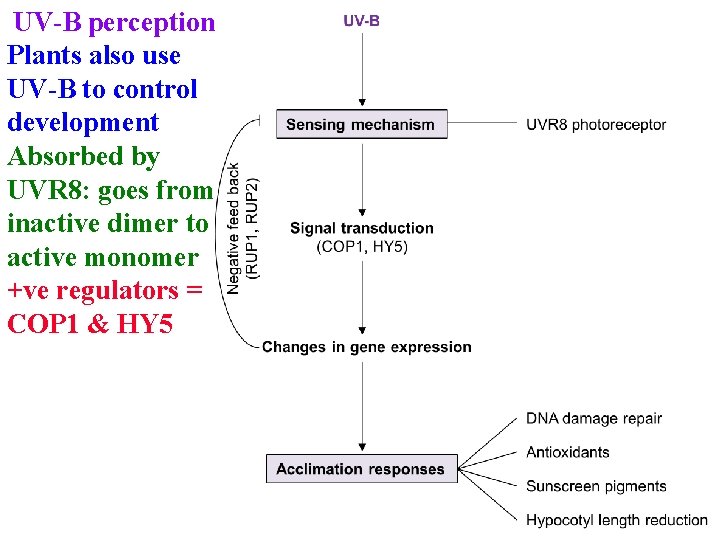

UV-B perception Plants also use UV-B to control development Absorbed by UVR 8: goes from inactive dimer to active monomer
UV-B perception Plants also use UV-B to control development Absorbed by UVR 8: goes from inactive dimer to active monomer +ve regulators = COP 1 & HY 5
UV-B perception Plants also use UV-B to control development Absorbed by UVR 8: goes from inactive dimer to active monomer +ve regulators = COP 1 & HY 5 -ve regulators = RUP 1 & RUP 2
Growth regulators 1. Auxins 2. Cytokinins 3. Gibberellins 4. Abscisic acid 5. Ethylene 6. Brassinosteroids All are small organics: made in one part, affect another part
Growth regulators All are small organics: made in one part, affect another part Treating a plant tissue with a hormone is like putting a dime in a vending machine. It depends on the machine, not the dime!
Auxin First studied by Darwins! Showed that a "transmissible influence" made at tips caused bending lower down
Auxin First studied by Darwins! Showed that a "transmissible influence" made at tips caused bending lower down No tip, no curve!
Auxin First studied by Darwins! Showed that a "transmissible influence" made at tips caused bending lower down No tip, no curve! 1913: Boysen-Jensen showed that diffused through agar blocks but not through mica
Auxin 1913: Boysen-Jensen showed that diffused through agar blocks but not through mica 1919: Paal showed that if tip was replaced asymmetrically, plant grew asymmetrically even in dark
Auxin 1913: Boysen-Jensen showed that diffused through agar blocks but not through mica 1919: Paal showed that if tip was replaced asymmetrically, plant grew asymmetrically even in dark Uneven amounts of "transmissible influence" makes bend

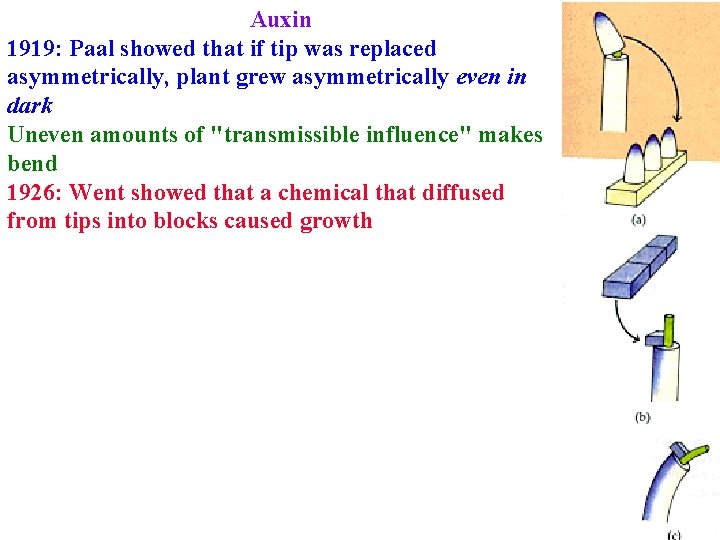

Auxin 1919: Paal showed that if tip was replaced asymmetrically, plant grew asymmetrically even in dark Uneven amounts of "transmissible influence" makes bend 1926: Went showed that a chemical that diffused from tips into blocks caused growth
Auxin 1919: Paal showed that if tip was replaced asymmetrically, plant grew asymmetrically even in dark Uneven amounts of "transmissible influence" makes bend 1926: Went showed that a chemical that diffused from tips into blocks caused growth If placed asymmetrically get bending due to asymmetrical growth
Auxin 1919: Paal showed that if tip was replaced asymmetrically, plant grew asymmetrically even in dark Uneven amounts of "transmissible influence" makes bend 1926: Went showed that a chemical that diffused from tips into blocks caused growth If placed asymmetrically get bending due to asymmetrical growth Amount of bending depends on [auxin]
Auxin 1919: Paal showed that if tip was replaced asymmetrically, plant grew asymmetrically even in dark Uneven amounts of "transmissible influence" makes bend 1926: Went showed that a chemical that diffused from tips into blocks caused growth If placed asymmetrically get bending due to asymmetrical growth Amount of bending depends on [auxin] 1934: Indole-3 -Acetic acid (IAA) from the urine of pregnant women was shown to cause bending
Auxin 1934: Indole-3 -Acetic acid (IAA) from the urine of pregnant women was shown to cause bending IAA is the main auxin in vivo. Others include Indole-3 -butyric acid (IBA), 4 -Chloroindole-3 -acetic acid and phenylacetic acid (PA) IAA 4 -CI-IAA IBA PA
Auxin IAA is the main auxin in vivo. Many synthetic auxins have been identified IAA
Auxin IAA is the main auxin in vivo. Many synthetic auxins have been identified No obvious structural similarity, yet all work!
Auxin IAA is the main auxin in vivo. Many synthetic auxins have been identified No obvious structural similarity, yet all work! Widely used in agriculture
Auxin IAA is the main auxin in vivo. Many synthetic auxins have been identified No obvious structural similarity, yet all work! Widely used in agriculture • to promote growth (flowering, cuttings) IAA
Auxin IAA is the main auxin in vivo. Many synthetic auxins have been identified No obvious structural similarity, yet all work! Widely used in agriculture • to promote growth (flowering, cuttings) • as weed killers! Agent orange was 1: 1 2, 4 -D and 2, 4, 5 -T

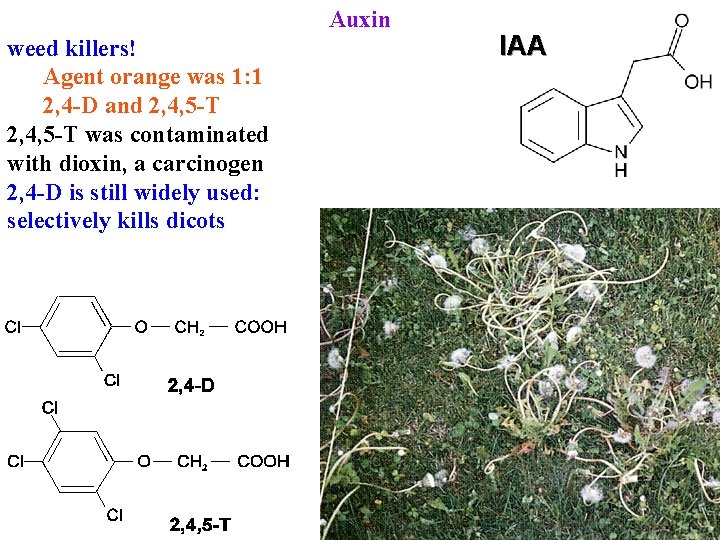

Auxin weed killers! Agent orange was 1: 1 2, 4 -D and 2, 4, 5 -T was contaminated with dioxin, a carcinogen IAA
Auxin weed killers! Agent orange was 1: 1 2, 4 -D and 2, 4, 5 -T was contaminated with dioxin, a carcinogen 2, 4 -D is still widely used: selectively kills dicots IAA
Auxin IAA weed killers! 2, 4 -D is still widely used: selectively kills dicots Controls weeds in monocot crops (corn, rice, wheat) Mech unclear: may cause excess ethylene or ABA production.
Auxin IAA weed killers! 2, 4 -D is still widely used: selectively kills dicots Controls weeds in monocot crops (corn, rice, wheat) Mech unclear: may cause excess ethylene or ABA production.
Auxin >90%of IAA is conjugated to sugars in vivo!
Auxin >90%of IAA is conjugated to sugars in vivo! Inactive, but readily activated!
Auxin >90%of IAA is conjugated to sugars in vivo! Inactive, but readily activated! Best way to measure [auxin] is bioassay!
Auxin >90%of IAA is conjugated to sugars in vivo! Inactive, but readily activated! Best way to measure [auxin] is bioassay! Critical concentration varies between tissues
Auxin >90%of IAA is conjugated to sugars in vivo! Inactive, but readily activated! Best way to measure [auxin] is bioassay! Critical concentration varies between tissues Roots are much more sensitive than leaves!
Auxin Critical concentration varies between tissues Roots are much more sensitive than leaves! Made in leaves & transported to roots so [IAA] decreases going down the plant Most cells are IAA sinks!
Auxin Synthesis Made in leaves & transported to roots so [IAA] decreases going down the plant Most is made from trp

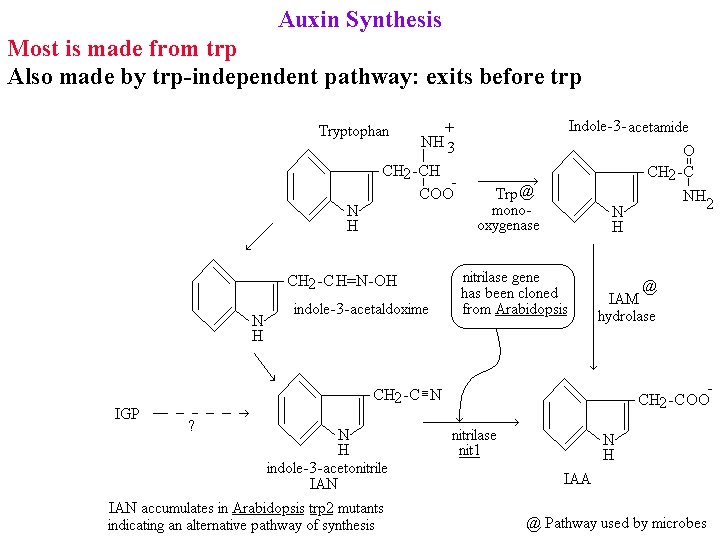

Auxin Synthesis Most is made from trp Also made by trp-independent pathway: exits before trp
Auxin Synthesis Most is made from trp Also made by trp-independent pathway: exits before trp Path used varies between tissues
Auxin Synthesis Most is made from trp Also made by trp-independent pathway: exits before trp Path used varies between tissues No way to run out of IAA

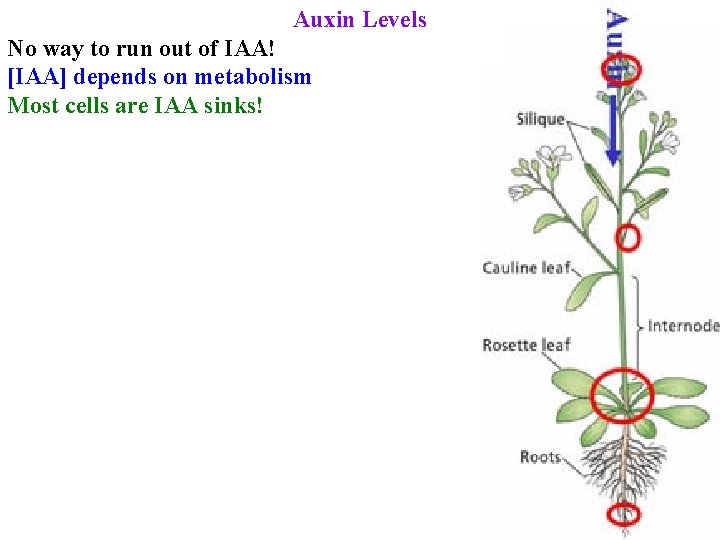

Auxin Levels No way to run out of IAA! [IAA] depends on metabolism
Auxin Levels No way to run out of IAA! [IAA] depends on metabolism Most cells are IAA sinks!
Auxin Levels No way to run out of IAA! [IAA] depends on metabolism Most cells are IAA sinks! IAA is made at shoot apex & transported down: basipetal
Auxin Levels No way to run out of IAA! [IAA] depends on metabolism Most cells are IAA sinks! IAA is made at shoot apex & transported down: basipetal IAA transport therefore affects growth & development
Auxin Transport IAA transport therefore affects growth & development is polar and basipetal: New roots form at base of stem even if stored upside-down
Auxin Transport IAA transport therefore affects development: is polar and basipetal. New roots form at base of stem even if stored upside-down. Stem sections only move IAA basipetally
