Planning Test Automation Wisely Introductions Avner Uzan Test

Planning Test Automation (Wisely)

Introductions Avner Uzan Test Automation Analyst Thomas Messerschmidt Test Automation Specialist Now @ Paramount Pictures Planning Test Automation 2

Disclaimer The views expressed in this presentation are those of the presenters & do not necessarily reflect the views of their current or past employers; their subsidiaries or affiliated companies! Planning Test Automation 3

Planning Automation Wisely n n Premise Set the hook Basic Rules Methodology: ¨ ¨ n n Keyword-Driven Spreadsheet-Test Cases Framework Construction Scope: ¨ ¨ n (Does Test automation Find Bugs? ) Smoke, Functional, System, Performance Prioritizing Test Construction Best Kept Secrets (Trackers & Analysis Masters) Test Automation Best Practices Planning Test Automation 4

Premise: Create maintainable automated test suites Create a testing framework that will use easy-to-read spreadsheets to enumerate the actual test cases n Create & maintain generic & application specific functions & subroutines to support the automation n Planning Test Automation 5

Does Test Automation Find Bugs? Automation Vs Manual 160 140 120 100 80 60 40 20 0 134 76 Testers 16 1 Automation Bugs Manual

Basic Rules n n n n Plan your automation process thoroughly Establish & follow naming conventions Establish & persist a directory structure * Build automation for platform independence Solicit development’s cooperation to develop for testability Expand your knowledge with other SMEs MEASURE OR DIE Planning Test Automation 7

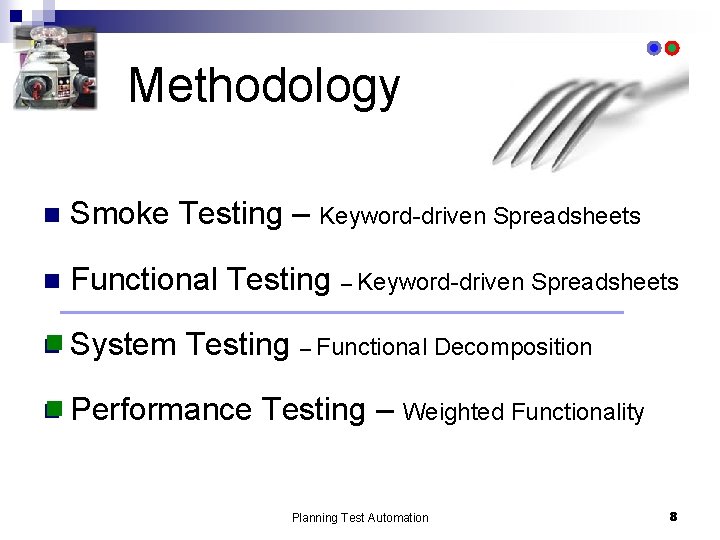

Methodology n Smoke Testing – Keyword-driven Spreadsheets n Functional Testing – Keyword-driven Spreadsheets n System Testing – Functional Decomposition n Performance Testing – Weighted Functionality Planning Test Automation 8

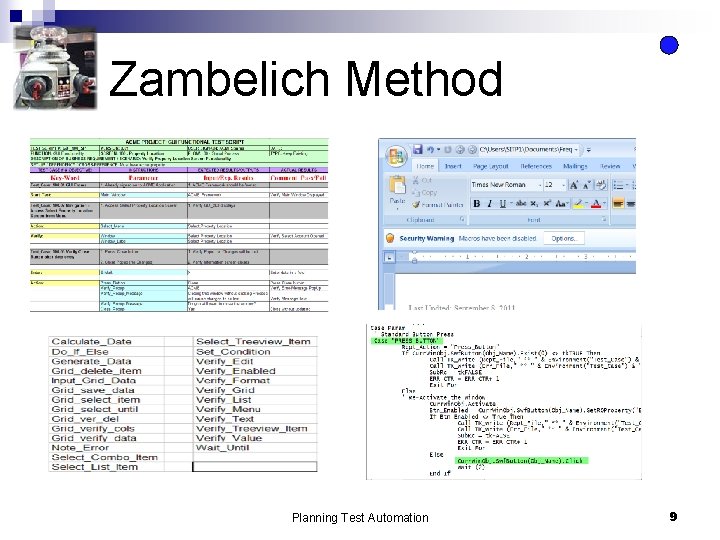

Zambelich Method Planning Test Automation 9

Spreadsheet-Test Cases Planning Test Automation 10

Generic Functions Planning Test Automation 11

App Specific Functions Planning Test Automation 12

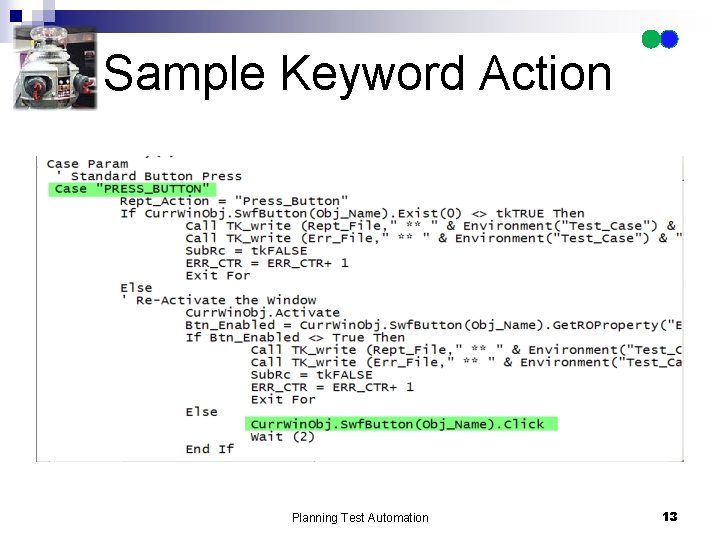

Sample Keyword Action Planning Test Automation 13

Parameter & Data File Planning Test Automation 14

Smoke Test Objectives n n Primarily validate builds Open and close as many GUIs as possible ¨ Some windows are ¨ Manually test GUIs acct data dependant that could not be automated Smoke Test Execution Metrics ¨ Covers 115/120 L 1 GUIs - 105/110 L 2 GUIs ¨ Execution time: 1: 25 / L 1, 1: 10 L 2 ¨ This was run 200+ times on the WR version ¨ This has runs 200+ times on the QTP version ¨ Currently demonstrates 100% GUI Pass rate Planning Test Automation 15

GUI Functional Objectives n Validates the functionality of Each GUI ¨ ¨ ¨ Verify screen functionality as per spec, NOT business processes Validates objects exist on UI per spec Verifies object operations, calculations & navigations Verifies data formats ($-Amts, SSN, Phone #, etc. ) Verifies field/object data comparisons across screens Verifies all error processing (invalid values, pop-ups, etc. ) GUI Functional Scope ¨ Targeted two languages Planning Test Automation 16

System Test Use Functional Decomposition System Test Objectives n n n Focus on core functionality – align w/ project team &/or customer Regression test regular release & special projects Future plans include converting our system test to BPT & auto. Scope Execution Metrics n n 200 scripts of which about 175 are active - take about 4 -5 days 50 full suite runs, 10, 000 tests run over 5 year period Planning Test Automation 17

Performance Test Planning Test Automation 18

Prioritize Test Construction n Target low hanging fruit to get early ROI ¨ Prioritize n & build common functions first Create tests for most frequented GUIs Planning Test Automation 19

Optimizing Automation n n Optimize automation for maximum coverage Increase number of executing machines The downside Brake automation into “byte-size” pieces If one function can do the work of two Planning Test Automation 20

Other Considerations n n n n Number of test platform / environments Availability of test platform (hours/day) Comparability of test environment to prod. Environment refresh Test data availability / harvesting (method of) Test data accuracy Product or application stability Planning Test Automation 21

Trackers (Measure or Die) Planning Test Automation 22

Analysis Masters n Demo Analysis Masters Planning Test Automation 23

Performance Analysis Master Planning Test Automation 24

Automation Best Practices n n n Setup directory structure & use it consistently Define & establish filing conventions Publish changes to subroutines & functions. Keep test assets under version control Choose automation tools carefully based on compatibility to your development platform, resource knowledge, budget. Include resource, time & process allowances for test asset maintenance. Keep an inventory list of functions & routines easily accessible. If possible cross-reference use of functions & subroutines in scripts to more predicatively understand the impact changes to these assets might have. Prioritize tests to be automated carefully to avoid marginalizing ROI Planning Test Automation 25

Automation Best Practices 2 n n n Get management buy-in & commitment early Set realistic expectations – automation is not just the push of a button Identify a set of relevant metrics & measure regularly & consistently Include regular progress reviews to ensure that the automation team is in fact focused on the business or customer needs Share the wealth – the more people use it the richer you’ll be! Additional References: TOTALLY DATA-DRIVEN AUTOMATED TESTING – Keith Zambelich http: //automation. org. uk/downloads/documentation/white_papers-totally_data_driven_automated_testing. doc Keys to Functional Test Automation Success, by Thomas Murphy / The Gartner Group - Thanks to Microfocus an HP Partner for the link http: //www. gartner. com/technology/media-products/reprints/microfocus/vol 4/article 4. html Load. Runner Test Analysis Master – A. Uzan http: //www. youtube. com/watch? v=m 860 Iurg. HM 8 Planning Test Automation 26

Automation Demo Automation (time permitting) Planning Test Automation 27

Contact us: Avner Uzan: qaanalysis@ca. rr. com Thomas Messerschmidt: qa 4 quality@gmail. com Planning Test Automation 28

Parting Thought On Automation n Why Automate? Automation, fundamentally, is the mechanization of a manual task. Love, education & human interaction should not be automated. However, there is no evil in taking a manual process & allowing a machine to do that which would take a person longer, work a person harder or take the pleasure out of doing a task over & over. However, if by automating something, the existence of life, the values of morality, the sensibilities of one’s existence or the livelihood of those who would otherwise perform the task manually is usurped, than automation has defeated it’s very purpose. Automation should be carefully conceived so that future generations are not burdened with undoing the damage of unwitting or well intended but misguided endeavors. Planning Test Automation 29
