Planning and Sketching a Floor Plan Bubble Diagrams Quick Sketches

Planning and Sketching a Floor Plan Bubble Diagrams Quick Sketches

How to Begin I want to design a small one-story dwelling for a single

How to Begin I want to design a small one-story dwelling for a single person.

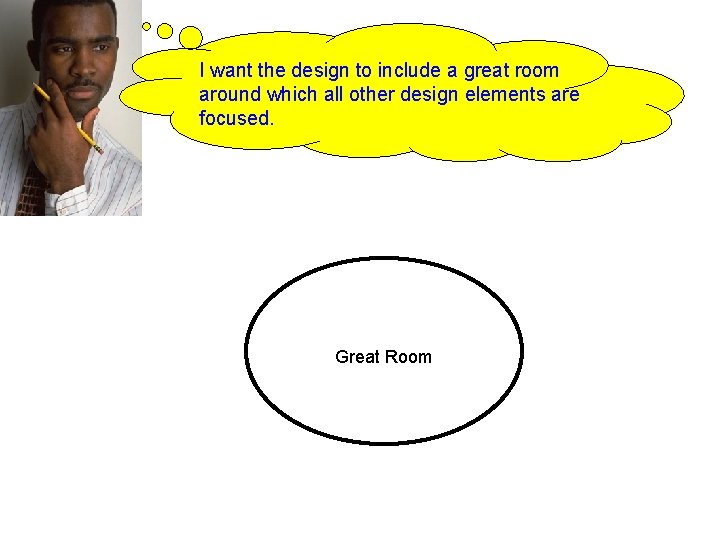

I want the design to include a great room around which all other design

I want the design to include a great room around which all other design elements are focused. Great Room

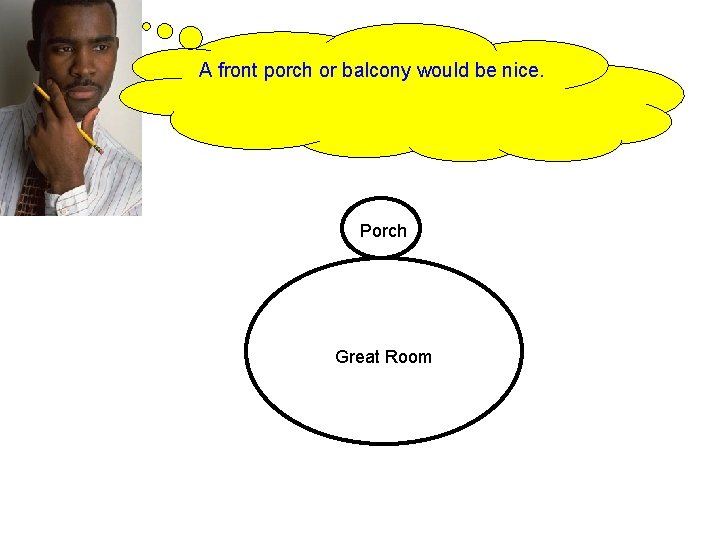

A front porch or balcony would be nice. Porch Great Room

A front porch or balcony would be nice. Porch Great Room

I want the design to include a large master bedroom. Porch Great Room Master

I want the design to include a large master bedroom. Porch Great Room Master Bedroom

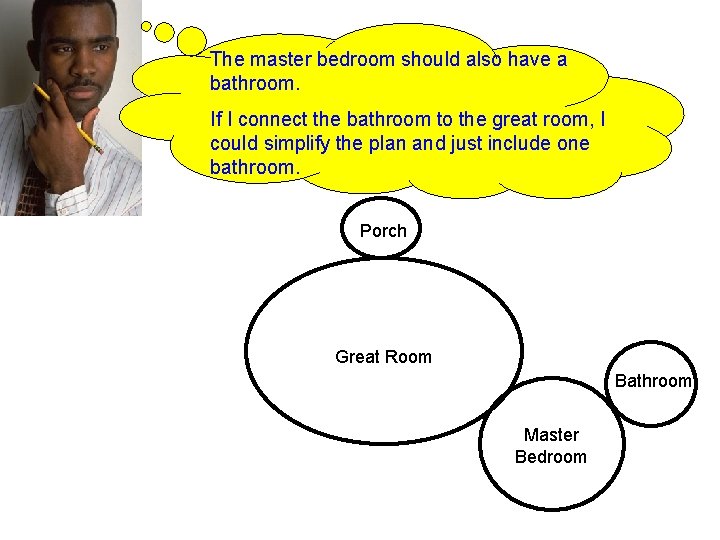

The master bedroom should also have a bathroom. If I connect the bathroom to

The master bedroom should also have a bathroom. If I connect the bathroom to the great room, I could simplify the plan and just include one bathroom. Porch Great Room Bathroom Master Bedroom

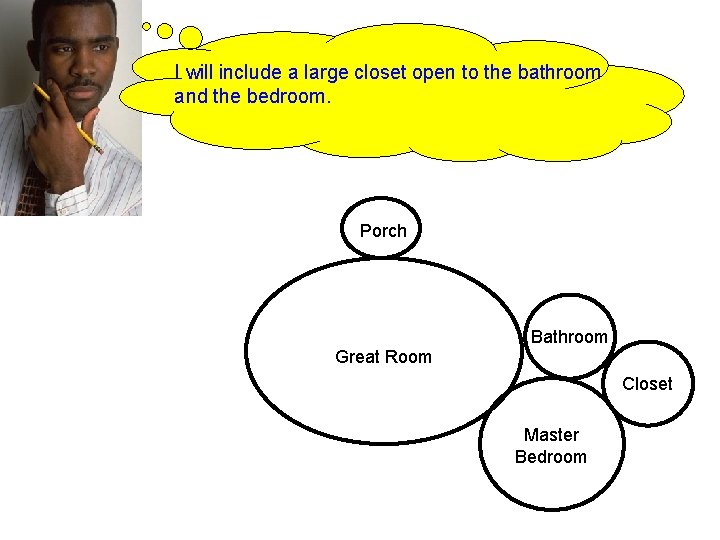

I will include a large closet open to the bathroom and the bedroom. Porch

I will include a large closet open to the bathroom and the bedroom. Porch Great Room Bathroom Closet Master Bedroom

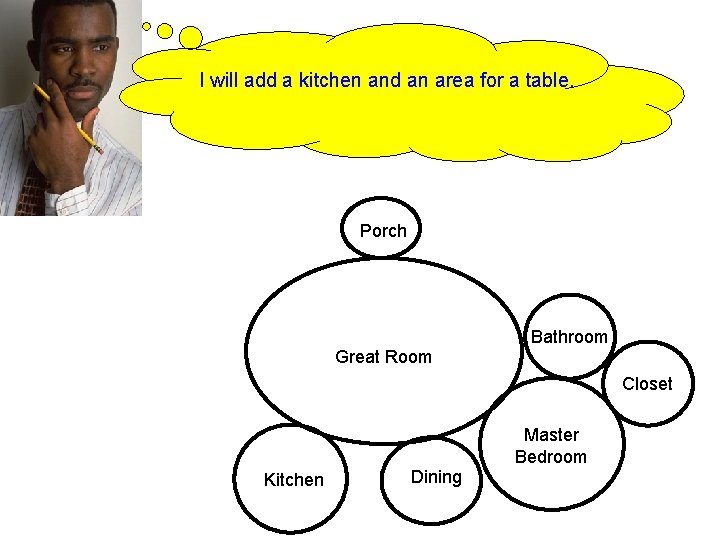

I will add a kitchen and an area for a table. Porch Great Room

I will add a kitchen and an area for a table. Porch Great Room Bathroom Closet Master Bedroom Kitchen Dining

Bubble Diagrams Freehand sketches used to determine locations and relationships Porch Great Room Bathroom

Bubble Diagrams Freehand sketches used to determine locations and relationships Porch Great Room Bathroom Closet Master Bedroom Kitchen Dining

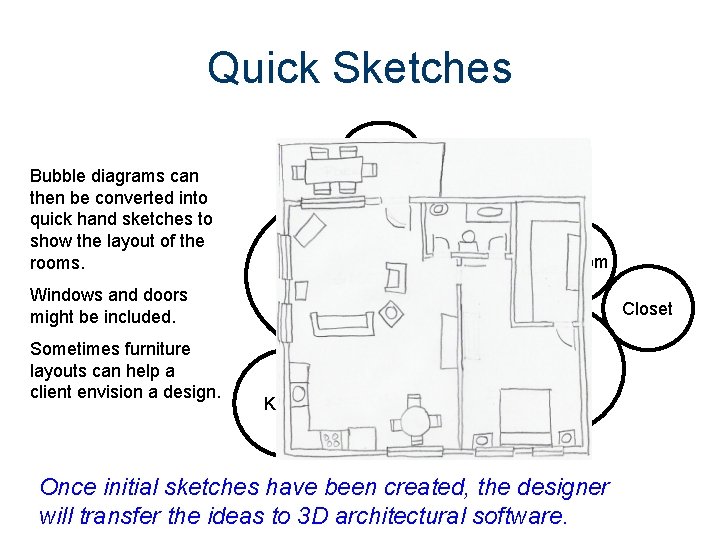

Quick Sketches Porch Bubble diagrams can then be converted into quick hand sketches to

Quick Sketches Porch Bubble diagrams can then be converted into quick hand sketches to show the layout of the rooms. Great Room Windows and doors might be included. Sometimes furniture layouts can help a client envision a design. Bathroom Closet Master Bedroom Kitchen Dining Once initial sketches have been created, the designer will transfer the ideas to 3 D architectural software.

Scaled Drawings A scaled sketch will allow you and your client to better envision

Scaled Drawings A scaled sketch will allow you and your client to better envision the relative relationships among spaces and the space available for fixtures and furniture. , a scaled sketch. Porch Great Room Closet Windows and doors might be included. Sometimes furniture layouts can help a client envision a design. Bathroom Master Bedroom Kitchen Dining Once initial sketches have been created, the designer will transfer the ideas to 3 D architectural software.

Planning and Sketching a Floor Plan Bubble Diagrams Quick Sketches

Planning and Sketching a Floor Plan Bubble Diagrams Quick Sketches

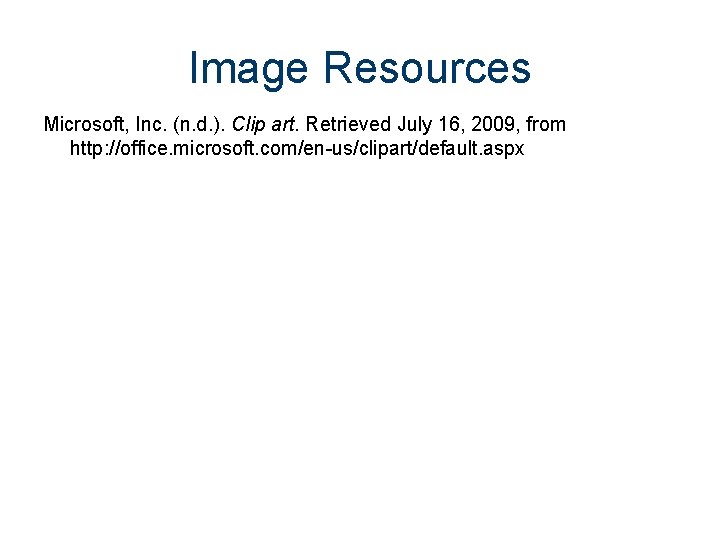

Image Resources Microsoft, Inc. (n. d. ). Clip art. Retrieved July 16, 2009, from
