Planmeca Xray products Planmeca Xray products Planmeca Proline

Planmeca X-ray products

Planmeca X-ray products

Planmeca Proline XC The Planmeca Proline XC provides well-proven panoramic imaging capabilities and ease of use for any dental practice. The unit features a full colour TFT display and a graphical user interface, versatile imaging programs, as well as side entry and open patient positioning.

Planmeca Proline XC • The most sold panoramic X-ray in the world since 1986 • Easy-to-use panoramic Xray unit • Open, easy and accurate patient positioning, triple laser beam, wheelchair access • Basic panoramic and cephalometric imaging programs • Film-based or digital

Planmeca Pro. Max The Planmeca Pro. Max X-ray units offer the complete range of extraoral imaging modalities, including digital panoramic, cephalometric, tomographic, and 3 D imaging. The unique Planmeca Pro. Max platform uses robotic SCARA technology.

Planmeca Pro. Max Unique SCARA technology: free formation of the imaging geometry, unlimited future possibilities • Open, easy and accurate patient positioning, triple laser beam, wheelchair access • Utmost versatility: basic and advanced panoramic imaging, tomography, cephalometry, film or digital

Planmeca Pro. Max 3 D The Planmeca Pro. Max 3 D Cone Beam Volumetric Tomography unit offers effective 3 D imaging and high quality and high resolution images

Planmeca Pro. Max 3 D • Cone Beam Volumetric Tomography (CBVT/CBCT) option • Takes the image with one 18 s scan , exposure time 3 -12 s • Full volume image ready for diagnosis in less than 3 min • Adjustable image volume full 8 x 8 cm half 5 x 8 cm small 4 x 5 cm • Bigger volumes by stitching basic volumes together • Image export in DICOM format

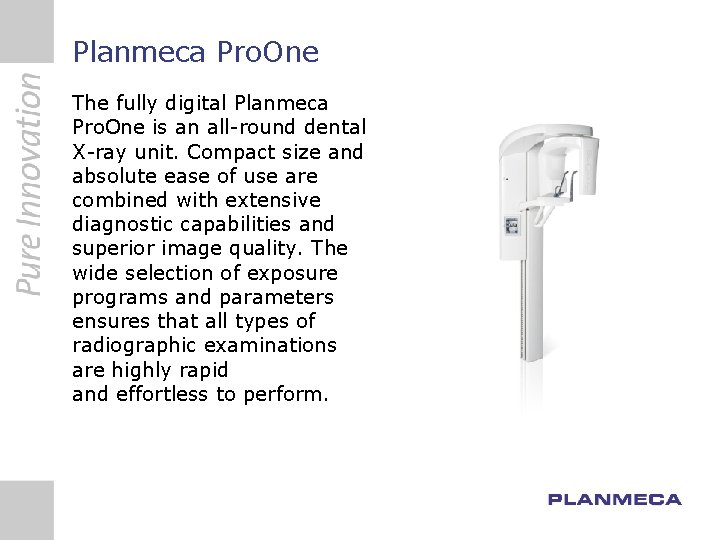

Planmeca Pro. One The fully digital Planmeca Pro. One is an all-round dental X-ray unit. Compact size and absolute ease of use are combined with extensive diagnostic capabilities and superior image quality. The wide selection of exposure programs and parameters ensures that all types of radiographic examinations are highly rapid and effortless to perform.

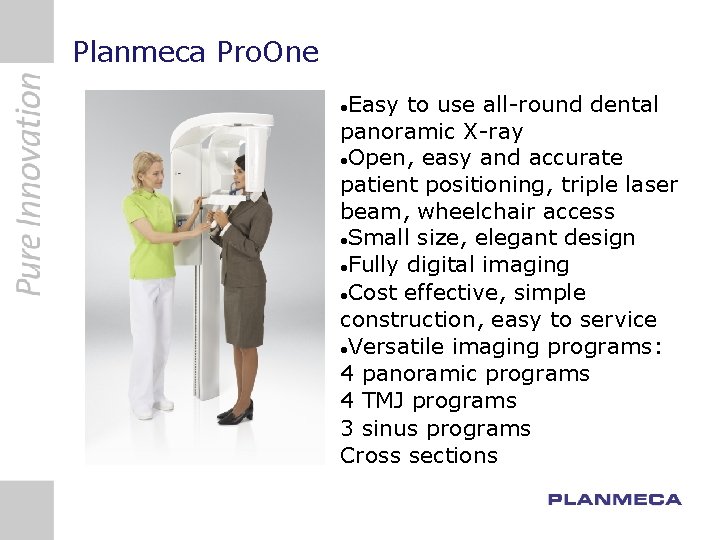

Planmeca Pro. One Easy to use all-round dental panoramic X-ray Open, easy and accurate patient positioning, triple laser beam, wheelchair access Small size, elegant design Fully digital imaging Cost effective, simple construction, easy to service Versatile imaging programs: 4 panoramic programs 4 TMJ programs 3 sinus programs Cross sections

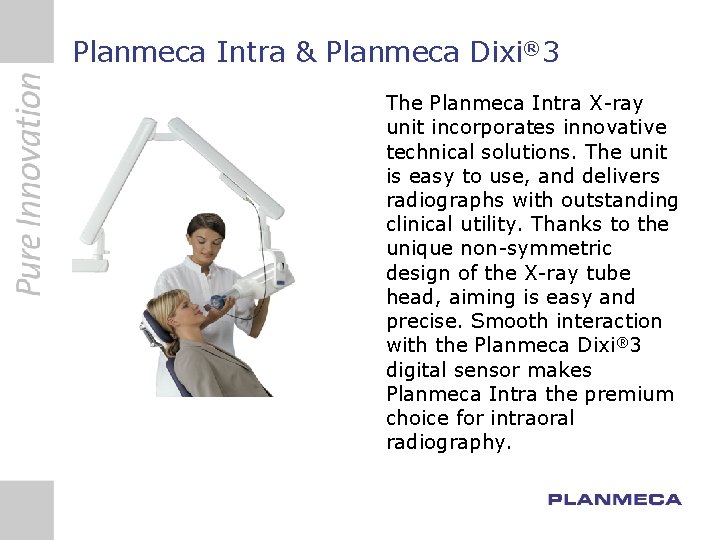

Planmeca Intra & Planmeca Dixi® 3 The Planmeca Intra X-ray unit incorporates innovative technical solutions. The unit is easy to use, and delivers radiographs with outstanding clinical utility. Thanks to the unique non-symmetric design of the X-ray tube head, aiming is easy and precise. Smooth interaction with the Planmeca Dixi® 3 digital sensor makes Planmeca Intra the premium choice for intraoral radiography.

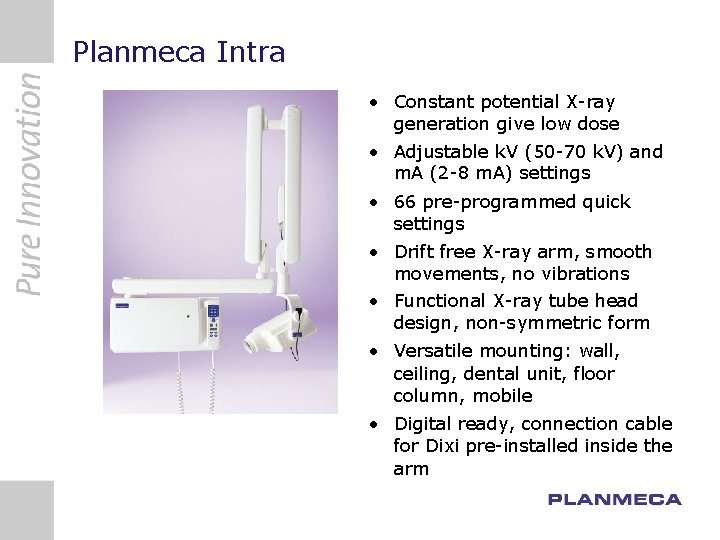

Planmeca Intra • Constant potential X-ray generation give low dose • Adjustable k. V (50 -70 k. V) and m. A (2 -8 m. A) settings • 66 pre-programmed quick settings • Drift free X-ray arm, smooth movements, no vibrations • Functional X-ray tube head design, non-symmetric form • Versatile mounting: wall, ceiling, dental unit, floor column, mobile • Digital ready, connection cable for Dixi pre-installed inside the arm

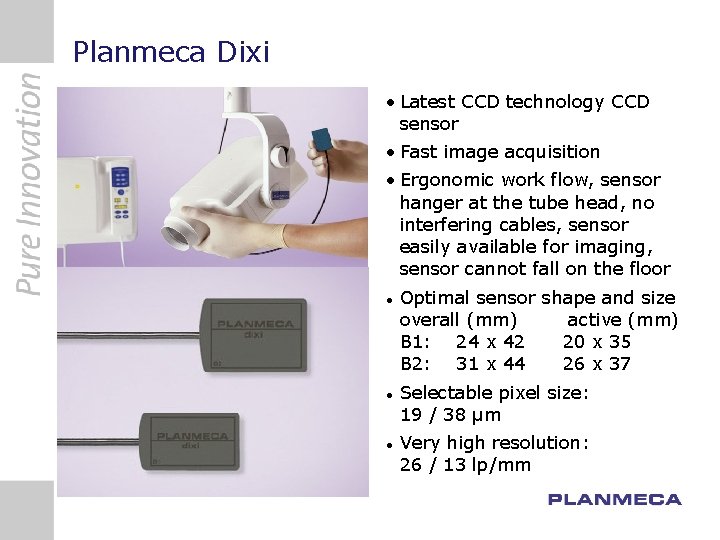

Planmeca Dixi • Latest CCD technology CCD sensor • Fast image acquisition • Ergonomic work flow, sensor hanger at the tube head, no interfering cables, sensor easily available for imaging, sensor cannot fall on the floor Optimal sensor shape and size overall (mm) active (mm) B 1: 24 x 42 20 x 35 B 2: 31 x 44 26 x 37 Selectable pixel size: 19 / 38 µm Very high resolution: 26 / 13 lp/mm
