Planmeca Pro Max 3 D Pro Face PERFECT

Planmeca Pro. Max 3 D Pro. Face PERFECT VISUALISATION

Planmeca Pro. Max 3 D Pro. Face • The first CBVT unit integrated 3 D surface scan • CBVT volume and 3 D photo in one scan • 3 D photo acquisition can be acquired separately • Totally radiation-free process • Real multipurpose equipment – CBVT imaging – Traditional panoramic imaging – Smartpan frame panoramic imaging – Cephalometric imaging

Planmeca Pro. Max 3 D Pro. Face • • • Lasers scan face geometry Digital cameras capture colour texture Software calculates information into a 3 D photo • No additional equipment required; all components are integrated to sensor housing

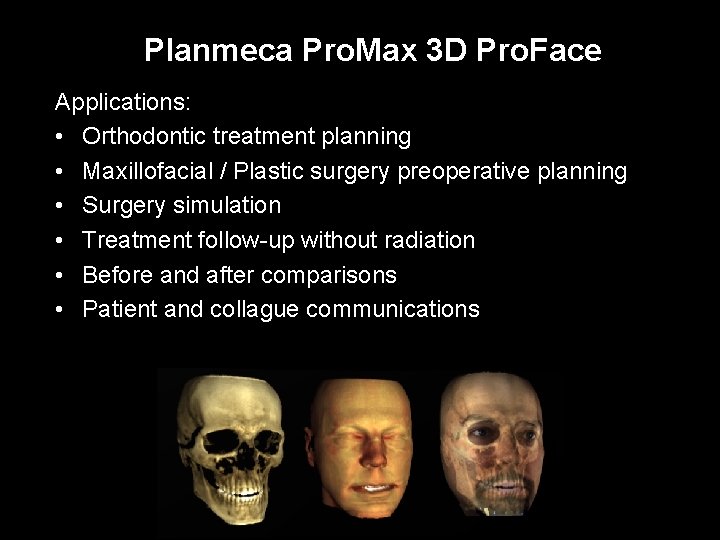

Planmeca Pro. Max 3 D Pro. Face Applications: • Orthodontic treatment planning • Maxillofacial / Plastic surgery preoperative planning • Surgery simulation • Treatment follow-up without radiation • Before and after comparisons • Patient and collague communications

Planmeca Pro. Max 3 D Pro. Face Outstanding benefits: • Visualises soft tissue in relation to dentin • Provides photorealistic documentation • Allows for measuring the softtissue anatomy • Provides an objective foundation for quantifying patient outcomes • 100% radiation-free process

Planmeca Romexis Planning tools: - Measure - Compare - Superimpose - Deviation - Import- export

Planmeca Romexis - Measurements

Planmeca Romexis - Measurements BONE IN RELATION TO SOFT TISSUE

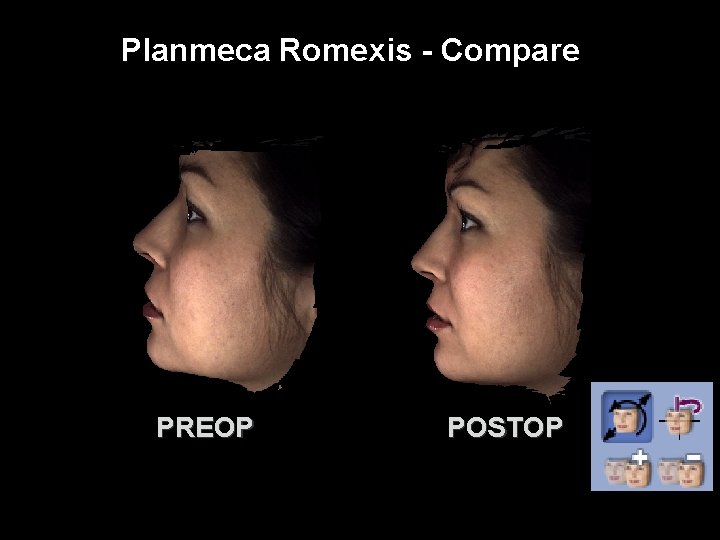

Planmeca Romexis - Compare PREOP POSTOP

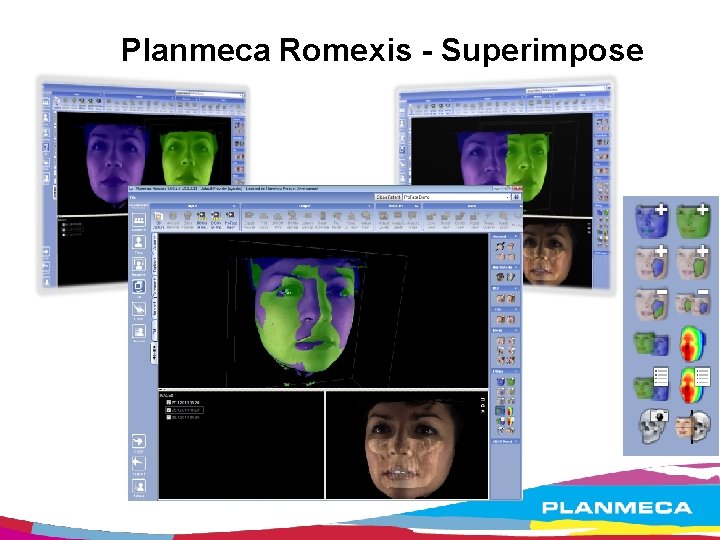

Planmeca Romexis - Superimpose

Planmeca Romexis - Deviation SEE THE DIFFERENCE

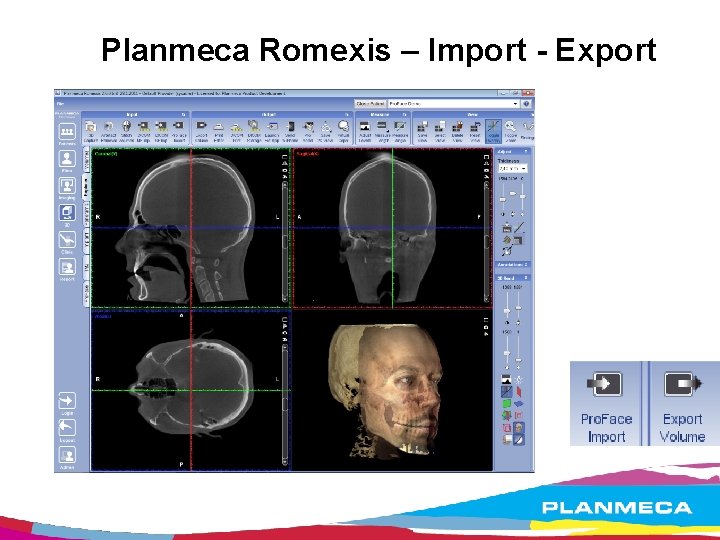

Planmeca Romexis – Import - Export

Planmeca Pro. Max 3 D Pro. Face 3 D photo cameras and software in market CAMERAS SOFTWARE • • • 3 d. MD, USA – 3 d. MDface, 3 d. MDcranial, 3 DMDtorso 3 d. Shape, Germany – Face. SCAN, Body. SCAN Canfield Scientific, USA – Vectra M 3 Dimensional Imaging, UK – DI 3 D Planmeca Pro. Max 3 D Pro. Face is the first CBVT unit integrated 3 D scan – other are dedicated to 3 D photo only. • Medicim, Belgium – Maxilim Dolphin Imaging, USA – Dolphin

Planmeca Pro. Max 3 D Pro. Face PERFECT VISUALISATION
