Planetary Protection at NASA: Overview and Status Catharine A. Conley, NASA Planetary Protection Officer

Planetary Protection at NASA: Overview and Status Catharine A. Conley, NASA Planetary Protection Officer 4 August, 2010

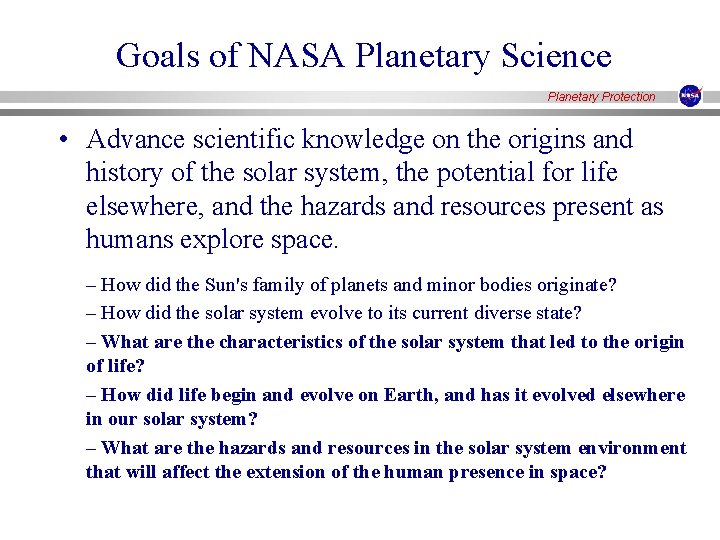

Goals of NASA Planetary Science Planetary Protection • Advance scientific knowledge on the origins

Goals of NASA Planetary Science Planetary Protection • Advance scientific knowledge on the origins and history of the solar system, the potential for life elsewhere, and the hazards and resources present as humans explore space. – How did the Sun's family of planets and minor bodies originate? – How did the solar system evolve to its current diverse state? – What are the characteristics of the solar system that led to the origin of life? – How did life begin and evolve on Earth, and has it evolved elsewhere in our solar system? – What are the hazards and resources in the solar system environment that will affect the extension of the human presence in space?

Planetary Environments are Diverse The unaltered surfaces of most planets are cold, and by

Planetary Environments are Diverse The unaltered surfaces of most planets are cold, and by being cold, are dry - spacecraft can change this Interior environments may be more similar to Earth: - possible subsurface oceans, both hot and cold - subsurface rock, similar (? ) to inhabited Earth rocks

NASA Planetary Protection Policy Planetary Protection • The policy and its implementation requirements are

NASA Planetary Protection Policy Planetary Protection • The policy and its implementation requirements are embodied in NPD 8020. 7 G (NASA Administrator) – Planetary Protection Officer acts on behalf of the Aassociate Administrator for Science to maintain and enforce the policy – NASA obtains recommendations on planetary protection issues (requirements for specific bodies and mission types) from the National Research Council’s Space Studies Board – Advice on policy implementation to be obtained from the NAC Planetary Protection Subcommittee • Specific requirements for robotic missions are embodied in NPR 8020. 12 C (AA, SMD) – Encompasses all documentation and implementation requirements forward and back-contamination control • Future requirements for human missions are being studied with a broad science and exploration focus (Initial recommendations for Mars developed in 2001; Further refined in 2005; NPR planned responding to human exploration initiatives)

Role of the Planetary Protection Officer (NPD 8020. 7 G) Planetary Protection • Designee

Role of the Planetary Protection Officer (NPD 8020. 7 G) Planetary Protection • Designee of the SMD Associate Administrator, responsible for managing planetary protection policy: – Prescribes standards, procedures, and guidelines applicable to all NASA organizations, programs, and activities to achieve policy objectives – Certifies to the SMD AA that missions are compliant • Before launch • If returning samples, before initiating return and again before Earth entry – Conducts reviews, inspections, and evaluations of plans, facilities, equipment, personnel, procedures, and practices of NASA organizational elements and NASA contractors – Keeps the SMD AA (and, as appropriate, the Administrator) informed of developments, and takes action to ensure compliance with applicable NASA policies and requirements

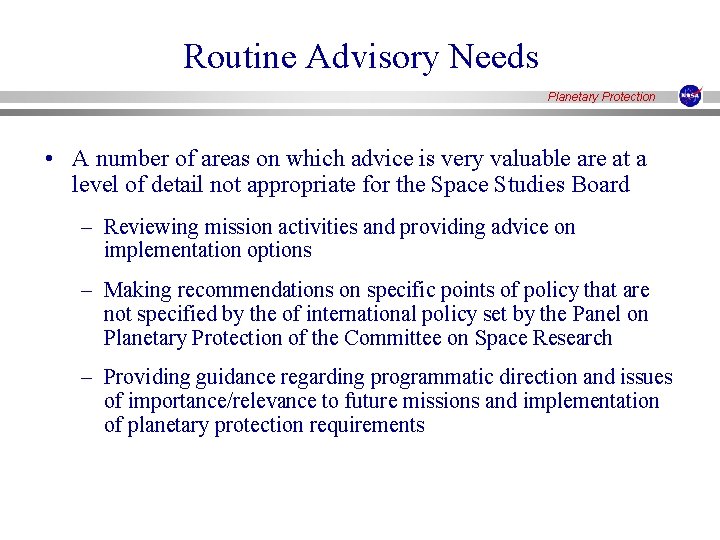

Routine Advisory Needs Planetary Protection • A number of areas on which advice is

Routine Advisory Needs Planetary Protection • A number of areas on which advice is very valuable are at a level of detail not appropriate for the Space Studies Board – Reviewing mission activities and providing advice on implementation options – Making recommendations on specific points of policy that are not specified by the of international policy set by the Panel on Planetary Protection of the Committee on Space Research – Providing guidance regarding programmatic direction and issues of importance/relevance to future missions and implementation of planetary protection requirements

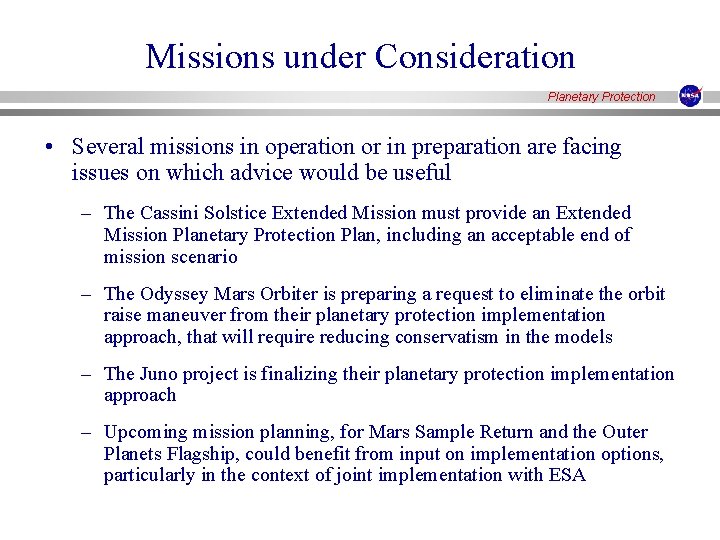

Missions under Consideration Planetary Protection • Several missions in operation or in preparation are

Missions under Consideration Planetary Protection • Several missions in operation or in preparation are facing issues on which advice would be useful – The Cassini Solstice Extended Mission must provide an Extended Mission Planetary Protection Plan, including an acceptable end of mission scenario – The Odyssey Mars Orbiter is preparing a request to eliminate the orbit raise maneuver from their planetary protection implementation approach, that will require reducing conservatism in the models – The Juno project is finalizing their planetary protection implementation approach – Upcoming mission planning, for Mars Sample Return and the Outer Planets Flagship, could benefit from input on implementation options, particularly in the context of joint implementation with ESA

Preventing Contamination of Solar System Bodies Example with some relevant factors Planetary Protection The

Preventing Contamination of Solar System Bodies Example with some relevant factors Planetary Protection The number of organisms of type X that could survive on a planetary body is based on the initial contamination level [NX 0] and various survival factors: NXs = NX 0 F 1 F 2 F 3 F 4 F 5 F 6 F 7 F 1—Total number of cells relative to assayed cells (NX 0) F 2—Bioburden reduction survival fraction, when applied F 3—Cruise survival fraction F 4—Radiation survival fraction F 5—Probability of impacting a protected body, including spacecraft failure modes F 6—Probability that an organism survives impact F 7—Burial survival fraction (probability of growth given introduction is assumed to be 1) Where the organisms of type X are defined as: Type A: Type B: Type C: Type D: Typical, common microorganisms of all types (bacteria, fungi, etc. ); Spores of microorganisms, which are known to be resistant to insults (e. g. , desiccation, heat, radiation); Dormant microorganisms (e. g. , spores) that are especially radiation-resistant; and Rare but highly radiation resistant non-spore microorganisms (e. g. , Deinococcus radiodurans).

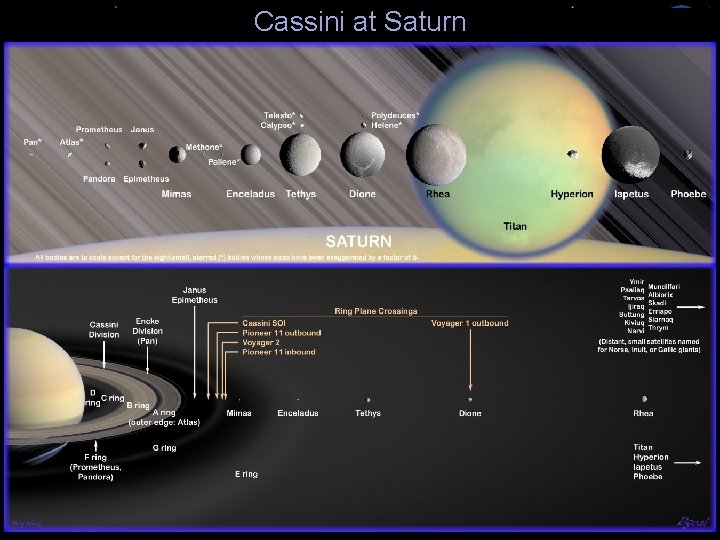

Cassini at Saturn

Cassini at Saturn

Prepare for the unexpected. . .

Prepare for the unexpected. . .

Updates to Policy and Requirements Planetary Protection • Discussions both within NASA and at

Updates to Policy and Requirements Planetary Protection • Discussions both within NASA and at the international level highlight several areas that would benefit from attention – Current requirements for Mars do not consider explicitly the reliability of Entry, Descent, and Landing: future missions propose to use increasingly complex EDL approaches – Human error appears to have contributed to the failure of the Mars Global Surveyor mission: how might it be appropriate to include mitigation approaches as part of future requirements – An international Mars Sample Return mission set is currently being planned by NASA and ESA: as the first mission with a Restricted Earth Return designation, this will require additional definition of planetary protection requirements

Expected Mars Exploration Program Timeline & Missions Launch Year Recent Past & Present 2011

Expected Mars Exploration Program Timeline & Missions Launch Year Recent Past & Present 2011 2013 2016 2018 2020 and Beyond MRO ODY MAVEN MGS Exo. Mars/TGO (ESA/NASA) MEX (ESA) Mars Sample Return Mars Network MAX-C Spirit PHX Mars Science Mars Panel Meeting Sept. 9 -10 Laboratory Opportunity 2009 12 MATT-3 Interim Report: for discussion purposes only Exo. Mars (ESA) 12 Pre-decisional – for planning and discussion purposes only

The Torquemada Approach Viking Life Detection Package Terminal Sterilization Works

The Torquemada Approach Viking Life Detection Package Terminal Sterilization Works

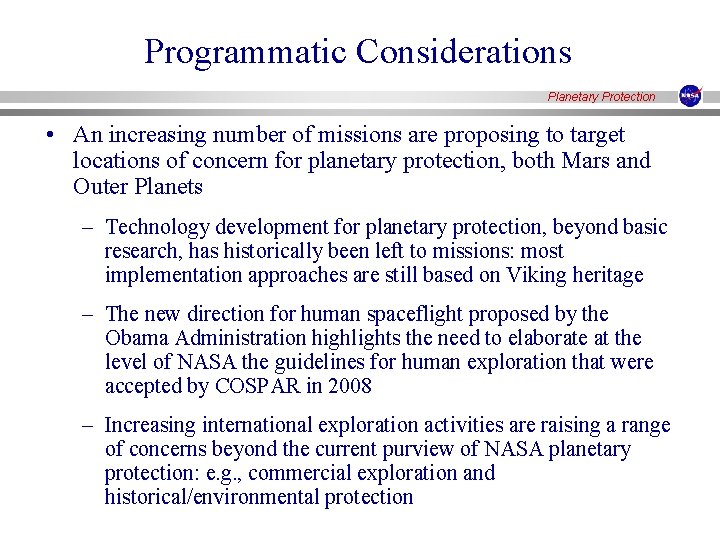

Programmatic Considerations Planetary Protection • An increasing number of missions are proposing to target

Programmatic Considerations Planetary Protection • An increasing number of missions are proposing to target locations of concern for planetary protection, both Mars and Outer Planets – Technology development for planetary protection, beyond basic research, has historically been left to missions: most implementation approaches are still based on Viking heritage – The new direction for human spaceflight proposed by the Obama Administration highlights the need to elaborate at the level of NASA the guidelines for human exploration that were accepted by COSPAR in 2008 – Increasing international exploration activities are raising a range of concerns beyond the current purview of NASA planetary protection: e. g. , commercial exploration and historical/environmental protection

Mars Sample Return Select samples to meet geologic and life-detection science objectives International interest

Mars Sample Return Select samples to meet geologic and life-detection science objectives International interest may bring the possibility of productive partnerships

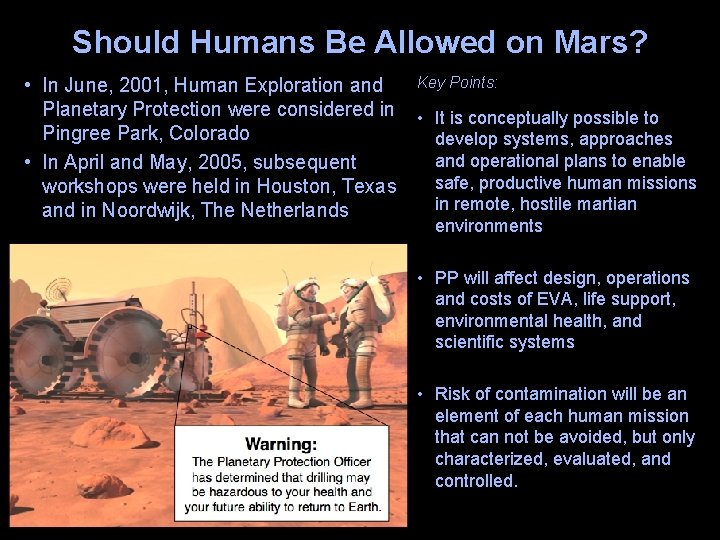

Should Humans Be Allowed on Mars? • In June, 2001, Human Exploration and Planetary

Should Humans Be Allowed on Mars? • In June, 2001, Human Exploration and Planetary Protection were considered in Pingree Park, Colorado • In April and May, 2005, subsequent workshops were held in Houston, Texas and in Noordwijk, The Netherlands Warning: The Key Points: • It is conceptually possible to develop systems, approaches and operational plans to enable safe, productive human missions in remote, hostile martian environments • PP will affect design, operations and costs of EVA, life support, environmental health, and scientific systems • Risk of contamination will be an element of each human mission that can not be avoided, but only characterized, evaluated, and controlled.

Beware! H. G. Wells 1898 And scattered about. . . were the Martians–dead! –slain

Beware! H. G. Wells 1898 And scattered about. . . were the Martians–dead! –slain by the putrefactive and disease bacteria against which their systems were unprepared; slain as the red weed was being slain; slain, after all man's devices had failed, by the humblest things that God, in his wisdom, has put upon this earth. . By virtue of this natural selection of our kind we have developed resisting power; to no germs do we succumb without a struggle. . . Orson Welles 1938
