Plan A Standard lecture course Plan B Standard
Plan A Standard lecture course Plan B Standard lecture course, except: 1. Last lectures will be chosen by you -> electives 2. Last 4 labs will be an independent research project 3. 20% of grade will be “elective” • Paper • Talk • Research proposal • Poster • Exam
Plan C 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. Phytoremediation Plant products Biofuels Effects of nutrient deprivation Effects of stresses Climate/CO 2 change Hormones Non-coding RNAs Plant movements: flytraps, mimosa, soybeans Carnivorous plants Plant tropisms and nastic movements Root growth responses Circadian rhythms Plant signaling (including neurobiology) Flowering Biotechnology magnetic fields Different colors of light Something else?

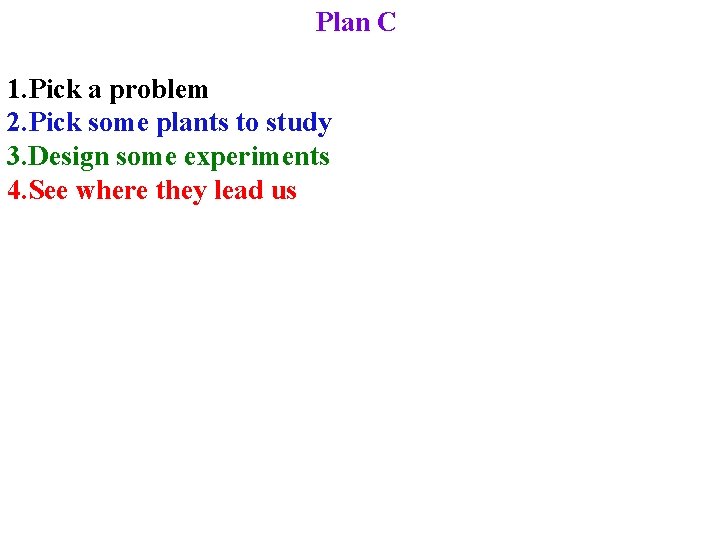

Plan C 1. Pick a problem 2. Pick some plants to study 3. Design some experiments 4. See where they lead us
• • • Plant Development Cell division = growth Determination = what cell can become Differentiation = cells become specific types Pattern formation Morphogenesis: organization into tissues & organs
Plant Development umbrella term for many processes • Embryogenesis • Seed dormancy and germination • Seedling Morphogenesis • Transition to flowering, fruit and seed formation Many responses to environment

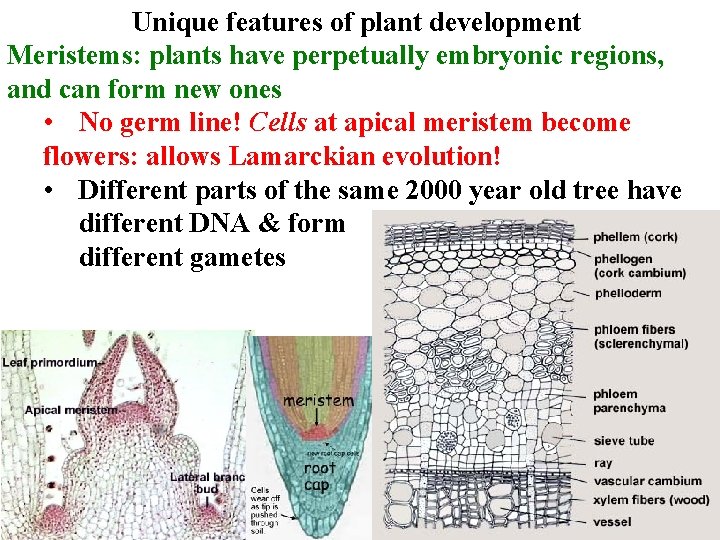

Unique features of plant development Meristems: plants have perpetually embryonic regions, and can form new ones • No germ line! Cells at apical meristem become flowers: allows Lamarckian evolution! • Different parts of the same 2000 year old tree have different DNA & form different gametes
Endomembrane system Organelles derived from the ER 1) ER 2) Golgi 3) Vacuoles 4) Plasma Membrane 5) Nuclear Envelope 6) Endosome 7) Oleosomes
VACUOLES Vacuoles are subdivided: lytic vacuoles are distinct from storage vacuoles!
Endomembrane System Oleosomes: oil storage bodies derived from SER Surrounded by lipid monolayer! • filled with lipids: no internal hydrophobic effect!
Peroxisomes Fn: 1. destroy H 2 O 2, other O 2 -related poisons 2. change fat to CH 2 O (glyoxysomes) 3. Detoxify & recycle photorespiration products 4. Destroy Et. OH (made in anaerobic roots)
endosymbionts 1) Peroxisomes (microbodies) 2) Mitochondria
Mitochondria Bounded by 2 membranes
Mitochondria 2 membranes Smooth OM
Mitochondria 2 membranes Smooth OM IM folds into cristae
Mitochondria -> 4 compartments 1) OM 2) intermembrane space 3) IM 4) matrix

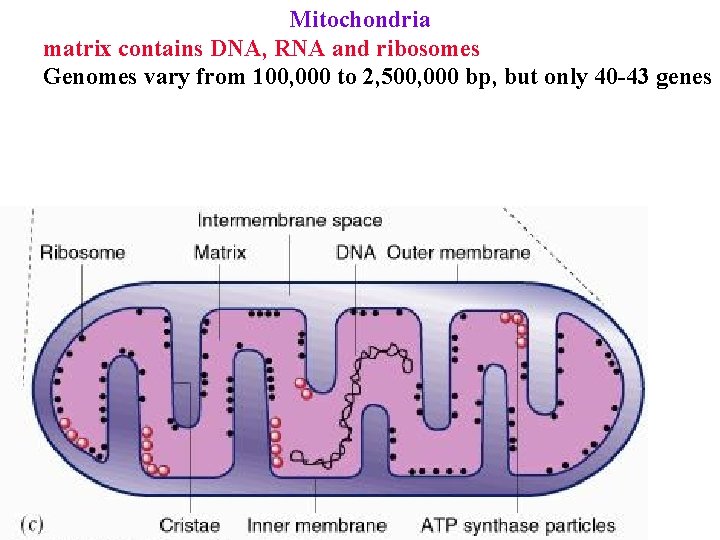

Mitochondria matrix contains DNA, RNA and ribosomes
Mitochondria matrix contains DNA, RNA and ribosomes Genomes vary from 100, 000 to 2, 500, 000 bp, but only 40 -43 genes
Mitochondria matrix contains DNA, RNA and ribosomes Genomes vary from 100, 000 to 2, 500, 000 bp, but only 40 -43 genes • Sometimes mutate to cause cytoplasmic male sterility
Mitochondria matrix contains DNA, RNA and ribosomes Genomes vary from 100, 000 to 2, 500, 000 bp, but only 40 -43 genes • Sometimes mutate to cause cytoplasmic male sterility Reproduce by fission
Mitochondria Reproduce by fission IM is 25% cardiolipin, a bacterial phospholipid Genes most related to Rickettsidae
Mitochondria Fn : cellular respiration -> oxidizing food & supplying energy to cell Also make many important biochemicals
Mitochondria Fn : cellular respiration -> oxidizing food & supplying energy to cell Also make important biochemicals & help recycle PR products

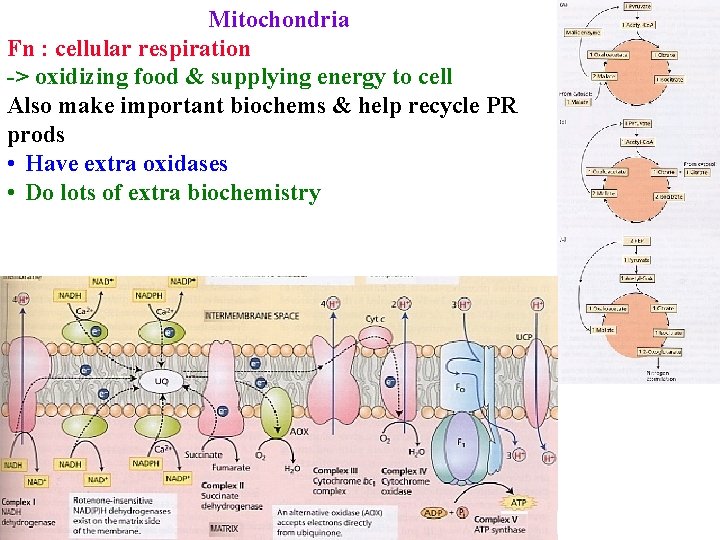

Mitochondria Fn : cellular respiration -> oxidizing food & supplying energy to cell Also make important biochems & help recycle PR prods • Have extra oxidases: burn off excess NADH or NADPH? • Can’t kill plants with cyanide because of alternative oxidase!
Mitochondria Fn : cellular respiration -> oxidizing food & supplying energy to cell Also make important biochems & help recycle PR prods • Have extra oxidases • Do lots of extra biochemistry
endosymbionts 1) Peroxisomes 2) Mitochondria 3) Plastids
Plastids Present in all plant cells, but take many forms • Chloroplasts do photosynthesis • Amyloplasts store starch • Chromoplasts store pigments • Leucoplasts are found in roots

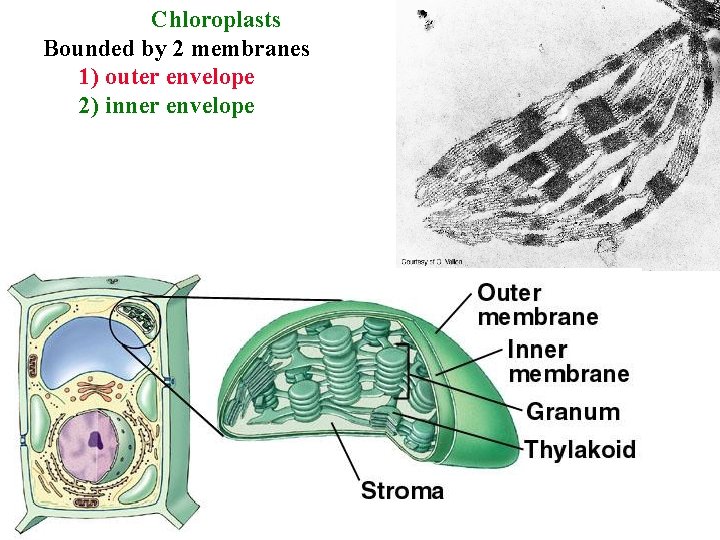

Chloroplasts Bounded by 2 membranes 1) outer envelope 2) inner envelope
Chloroplasts Interior = stroma Contains thylakoids • membranes where light rxns of photosynthesis occur • mainly galactolipids
Chloroplasts Interior = stroma Contains thylakoids • membranes where light rxns of photosynthesis occur • mainly galactolipids Contain DNA, RNA, ribosomes

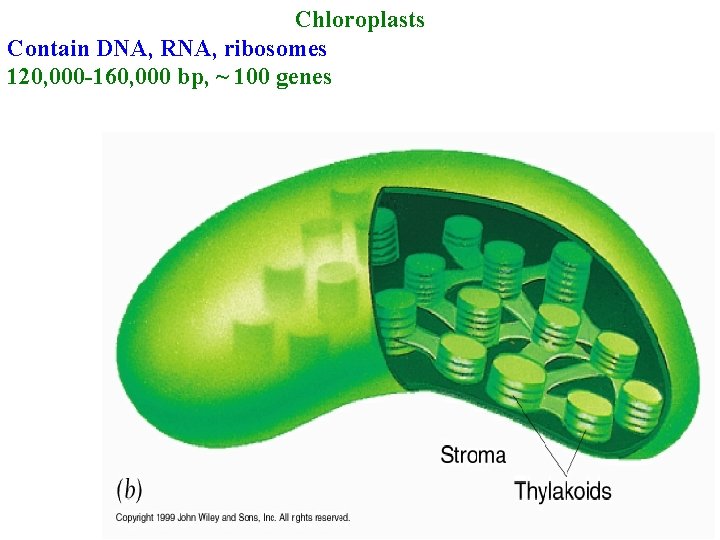

Chloroplasts Contain DNA, RNA, ribosomes 120, 000 -160, 000 bp, ~ 100 genes
Chloroplasts Contain DNA, RNA, ribosomes 120, 000 -160, 000 bp, ~ 100 genes Closest relatives = cyanobacteria
Chloroplasts Contain DNA, RNA, ribosomes 120, 000 -160, 000 bp, ~ 100 genes Closest relatives = cyanobacteria Divide by fission
Chloroplasts Contain DNA, RNA, ribosomes 120, 000 -160, 000 bp, ~ 100 genes Closest relatives = cyanobacteria Divide by fission Fns: Photosynthesis
Chloroplasts Fns: Photosynthesis & starch synth Photoassimilation of N & S
Chloroplasts Fns: Photosynthesis & starch synth Photoassimilation of N & S Fatty acid & some lipid synth
Chloroplasts Fns: Photosynthesis & starch synth Photoassimilation of N & S Fatty acid & some lipid synth Synth of ABA, GA, many other biochem
Chloroplasts & Mitochondria Contain eubacterial DNA, RNA, ribosomes Inner membranes have bacterial lipids Divide by fission Provide best support for endosymbiosis theory
Endosymbiosis theory (Margulis) Archaebacteria ate eubacteria & converted them to symbionts
Endosymbiosis theory (Margulis) Archaebacteria ate eubacteria & converted them to symbionts
Endosymbiosis theory (Margulis) Archaebacteria ate eubacteria & converted them to symbionts
cytoskeleton network of proteins which give cells their shape also responsible for shape of plant cells because guide cell wall formation left intact by detergents that extract rest of cell
Cytoskeleton Actin fibers (microfilaments) ~7 nm diameter Form 2 chains of polar actin subunits arranged in a double helix
Actin fibers polar subunits arranged in a double helix • Add to + end • Fall off - end • Fn = movement
Actin fibers Very conserved in evolution
Actin fibers Very conserved in evolution Fn = motility Often with myosin
Actin fibers Very conserved in evolution Fn = motility Often with myosin: responsible for cytoplasmic streaming
Actin fibers Very conserved in evolution Fn = motility Often with myosin: responsible for cytoplasmic streaming, Pollen tube growth & movement through plasmodesmata
Actin fibers Often with myosin: responsible for cytoplasmic streaming, Pollen tube growth & movement through plasmodesmata
Actin fibers Often with myosin: responsible for cytoplasmic streaming, Pollen tube growth & movement through plasmodesmata
Intermediate filaments Protein fibers 8 -12 nm dia (between MFs & MTs) form similar looking filaments Conserved central, rod-shaped alpha-helical domain

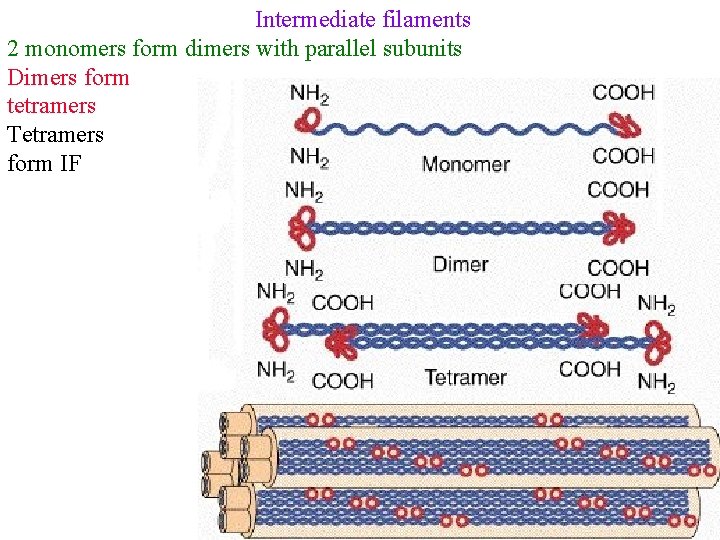

Intermediate filaments 2 monomers form dimers with parallel subunits Dimers form tetramers aligned in opposite orientations & staggered
Intermediate filaments 2 monomers form dimers with parallel subunits Dimers form tetramers Tetramers form IF
Intermediate filaments 2 monomers form dimers with parallel subunits Dimers form tetramers Tetramers form IF Plants have several keratins: fn unclear
Intermediate filaments 2 monomers form dimers with parallel subunits Dimers form tetramers Tetramers form IF Plants have several keratins: fn unclear No nuclear lamins! Have analogs that form similar structures
Microtubules Hollow, cylindrical; found in most eukaryotes outer diameter - 24 nm wall thickness - ~ 5 nm Made of 13 longitudinal rows of protofilaments
Microtubules Made of tubulin subunits polymerize to form protofilaments (PF) PF form sheets Sheets form microtubules
Microtubules Protofilaments are polar -tubulin @ - end -tubulin @ + end all in single MT have same polarity

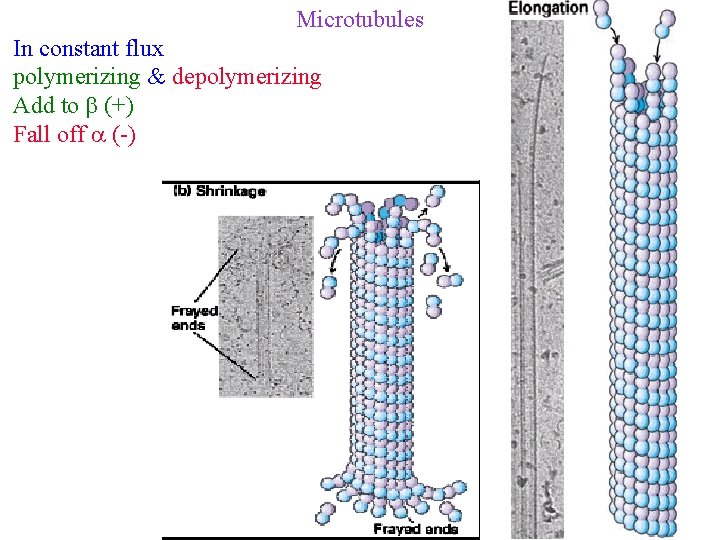

Microtubules In constant flux polymerizing & depolymerizing Add to (+) Fall off (-)
Microtubules Control growth by controlling rates of assembly & disassembly because these are distinct processes can be controlled independently! Colchicine makes MTs disassemble Taxol prevents disassembly
Microtubules Control growth by controlling rates of assembly & disassembly Are constantly rearranging inside plant cells!
Microtubules Control growth by controlling rates of assembly & disassembly Are constantly rearranging inside plant cells! • during mitosis & cytokinesis
Microtubules Control growth by controlling rates of assembly & disassembly Are constantly rearranging inside plant cells! • during mitosis & cytokinesis • Guide formation of cell plate & of walls in interphase
µT Assembly µTs always emerge from Microtubule-Organizing Centers (MTOC)
µT Assembly µTs always emerge from Microtubule-Organizing Centers (MTOC) patches of material at outer nuclear envelope

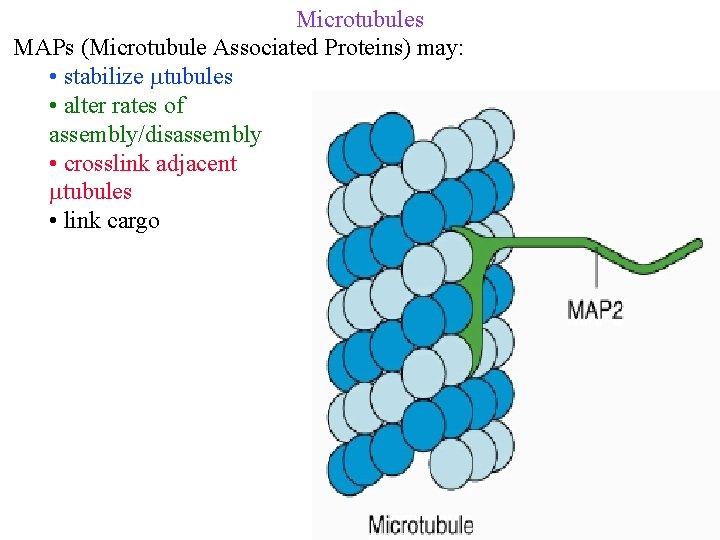

Microtubules MAPs (Microtubule Associated Proteins) may: • stabilize tubules • alter rates of assembly/disassembly • crosslink adjacent tubules • link cargo
2 classes of molecular motors 1) Kinesins move cargo to µT plus end 2) Dyneins move cargo to minus end “Walk” hand-over-hand towards chosen end
µT functions 1) Give cells shape by guiding cellulose synth
µT functions 1) Give cells shape by guiding cellulose synth 2) Anchor organelles
µT functions 1) Give cells shape by guiding cellulose synth 2) Anchor organelles 3) Intracellular motility
WATER Plants' most important chemical • most often limits productivity
Climate change will alter rainfall Overall prediction is that crops will suffer in many parts of world

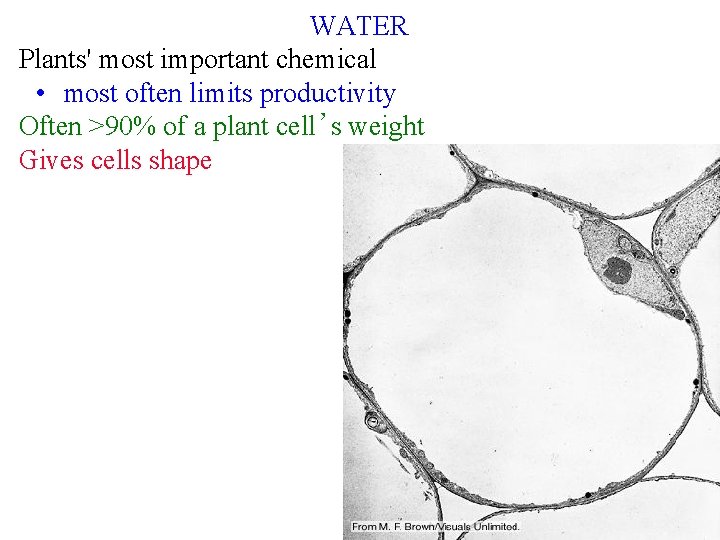

WATER Plants' most important chemical • most often limits productivity Often >90% of a plant cell’s weight
WATER Plants' most important chemical • most often limits productivity Often >90% of a plant cell’s weight Gives cells shape
WATER Plants' most important chemical • most often limits productivity Often >90% of a plant cell’s weight Gives cells shape Dissolves many chem
WATER • Dissolves many chem • most biochem occurs in water • Source of e- for PS
WATER • most biochem occurs in water • Source of e- for PS • Constantly lose water due to PS (1000 H 2 O/CO 2)
WATER • most biochem occurs in water • Source of e- for PS • Constantly lose water due to PS • Water transport is crucial!
WATER Water transport is crucial! SPAC= Soil Plant Air Continuum • moves from soil->plant->air

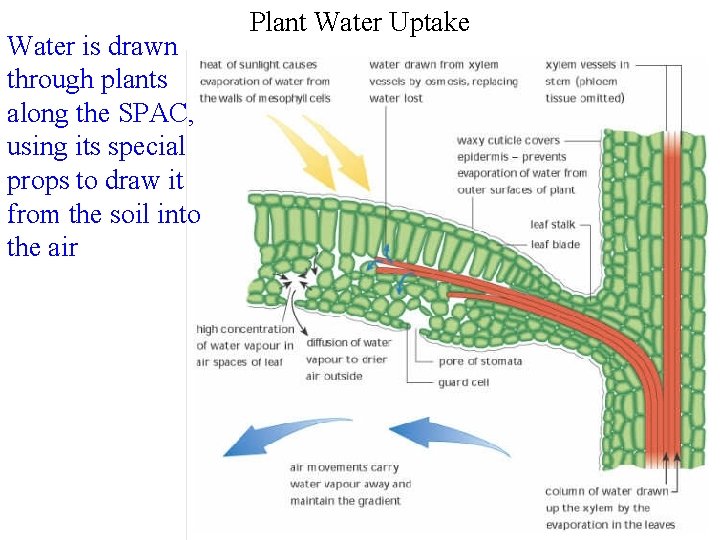

Water is drawn through plants along the SPAC, using its special props to draw it from the soil into the air Plant Water Uptake

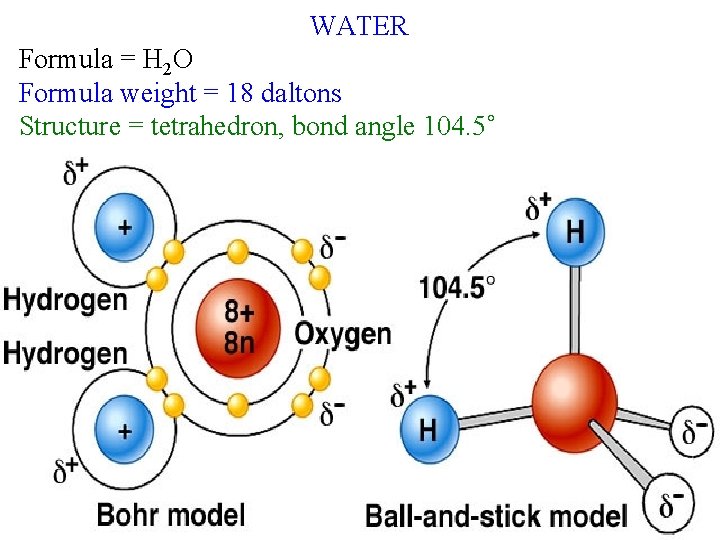

WATER Formula = H 2 O Formula weight = 18 daltons Structure = tetrahedron, bond angle 104. 5˚
WATER Structure = tetrahedron, bond angle 104. 5˚ polar: O is more attractive to electrons than H + on H - on O
Water Polarity is reason for water’s properties water forms H-bonds with polar molecules
Water Polarity is reason for water’s properties water forms H-bonds with polar molecules Hydrophilic = polar molecules Hydrophobic = non-polar molecules
Properties of water 1) Cohesion = water H-bonded to water
Properties of water 1) Cohesion = water H-bonded to water -> reason for surface tension
Properties of water 1) Cohesion = water H-bonded to water -> reason for surface tension -> why water can be drawn from roots to leaves

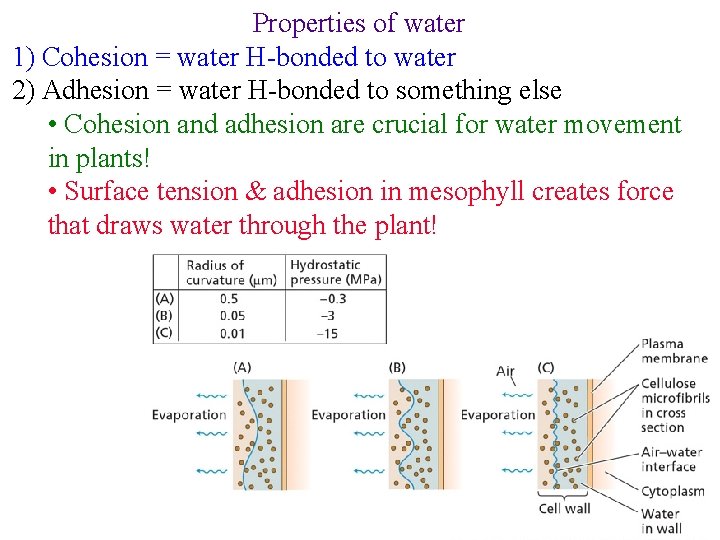

Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else • capillary action
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else • capillary action • why things dissolve in water
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else • Cohesion and adhesion are crucial for water movement in plants!
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else • Cohesion and adhesion are crucial for water movement in plants! • Surface tension & adhesion in mesophyll creates force that draws water through the plant!
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else 3) high specific heat • absorb heat when break H-bonds: cools leaves
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else 3) high specific heat • absorb heat when break H-bonds • Release heat when form H-bonds
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else 3) high specific heat 4) Ice floats
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else 3) high specific heat 4) Ice floats 5) Universal solvent
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else 3) high specific heat 4) Ice floats 5) Universal solvent • Take up & transport nutrients dissolved in water
Properties of water 5) “Universal” solvent • Take up & transport nutrients dissolved in water • Transport organics dissolved in water
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else 3) high specific heat 4) Ice floats 5) Universal solvent 6) Hydrophobic interactions
Properties of water 1) Cohesion = water H-bonded to water 2) Adhesion = water H-bonded to something else 3) high specific heat 4) Ice floats 5) Universal solvent 6) Hydrophobic interactions 7) Water ionizes
p. H [H+] = acidity of a solution p. H = convenient way to measure acidity p. H = - log 10 [H+] p. H 7 is neutral: [H+] = [OH-] -> at p. H 7 [H+] = 10 -7 moles/l p. H of cytoplasm = 7. 2 p. H of stroma & matrix =8 p. H of apoplast = 5. 5 p. H of lumen = 4. 5
p. H Plants vary p. H to control many processes!
p. H Plants vary p. H to control many processes! • Plants alter p. H @ roots to aid uptake
Water movement Diffusion: movement of single molecules down ∆[ ] due to random motion until [ ] is even Driving force?
Water movement Diffusion: movement of single molecules down ∆[ ] due to random motion until [ ] is even Driving force: lowers free energy ∆G = ∆H- T∆S
Water movement Diffusion: movement of single molecules down ∆[ ] due to random motion until [ ] is even Bulk Flow: movement of groups of molecules down a pressure gradient
Water movement Diffusion: movement of single molecules down ∆[ ] due to random motion until [ ] is even Bulk Flow: movement of groups of molecules down a pressure gradient • Independent of ∆ [ ] !
Water movement Diffusion: movement of single molecules down ∆[] due to random motion until [ ] is even Bulk Flow: movement of groups of molecules down a pressure gradient • Independent of ∆[ ] ! • How water moves through xylem
Water movement Diffusion: movement of single molecules down [] due to random motion until [ ] is even Bulk Flow: movement of groups of molecules down a pressure gradient • Independent of ∆ [ ] ! • How water moves through xylem • How water moves through soil and apoplast
Water movement Bulk Flow: movement of groups of molecules down a pressure gradient • Independent of ∆ [ ] ! • How water moves through xylem • Main way water moves through soil and apoplast • Very sensitive to radius of vessel: increases as r 4
Water movement Diffusion: movement of single molecules down ∆[] due to random motion until [ ] is even Bulk Flow: movement of groups of molecules down a pressure gradient • Independent of ∆[ ] ! • How water moves through xylem • Main way water moves through soil and apoplast • Very sensitive to radius of vessel: increases as r 4 Osmosis: depends on bulk flow and diffusion!
Water movement Osmosis: depends on bulk flow and diffusion! water crosses membranes but other solutes do not water tries to even its [ ] on each side
Water movement Osmosis: depends on bulk flow and diffusion! water crosses membranes but other solutes do not water tries to even its [ ] on each side other solutes can’t: result is net influx of water
Water movement Osmosis: depends on bulk flow and diffusion! • Moves through aquaporins, so rate depends on pressure and [ ] gradients!
Water movement Osmosis: depends on bulk flow and diffusion! • Moves through aquaporins, so rate depends on pressure and [ ] gradients! • Driving force = water's free energy (J/m 3 = MPa)
Water potential Driving force = water's free energy = water potential Yw • Important for many aspects of plant physiology
Water potential Driving force = water's free energy = water potential Yw Water moves to lower its potential
Water potential Driving force = water's free energy = water potential Yw Water moves to lower its potential
