Plaat. Sign (Raspberry Pi Digital Content Viewer) Open Source Project W. B. J. van der Plaat (Principal IT Architect)
Questions • How can I display digital content on a Full HD Screen remotely?
Idea • Lets create an (web) application were digital content can be managed • Use Linux tools to display digital content on monitor • Use low cost hardware
Plaat. Sign - Features • Web GUI to managed digital content o JPG, GIF and PNG Images o MP 4 Video o PHP Scripts • Display content real time on attached Full HD Monitor • Web GUI is protected with HTTPS and User Access Management
Plaat. Sign Software Architecture HTML/CSS/JS Presentation Layer Apache PHP Business Logic Layer My. SQL Database Layer Digital Image Viewer Digital Video Viewer Operating System PHP Script Engine Linux Tools Debian Linux
Used hardware • • • Raspberry Pi 3 B Raspberry Case USB Power Supply SD Card Full HD Monitor HDMI cable
Hardware View – Configuration 1 Wifi Router Wifi Raspberry Pi Ethernet Plaat. Sign ADSL Router HDMI Ethernet Internet Digital content can be managed remotely Digital content is displayed on monitor
Hardware View – Configuration 2 P 1 cable Digital Energy Meter Bluetooth Hosola Solar Converter Wifi Router Ethernet ADSL Router Ethernet Internet Hosola Solar Converter Wifi Digital content can be managed remotely Digital Gas Meter USB Raspberry Pi Plaat. Energy Plaat. Sign HDMI Digital content is displayed at monitor

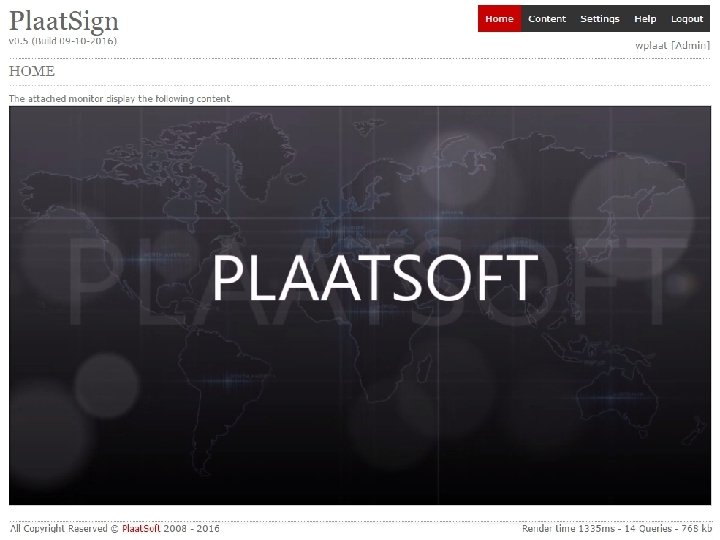

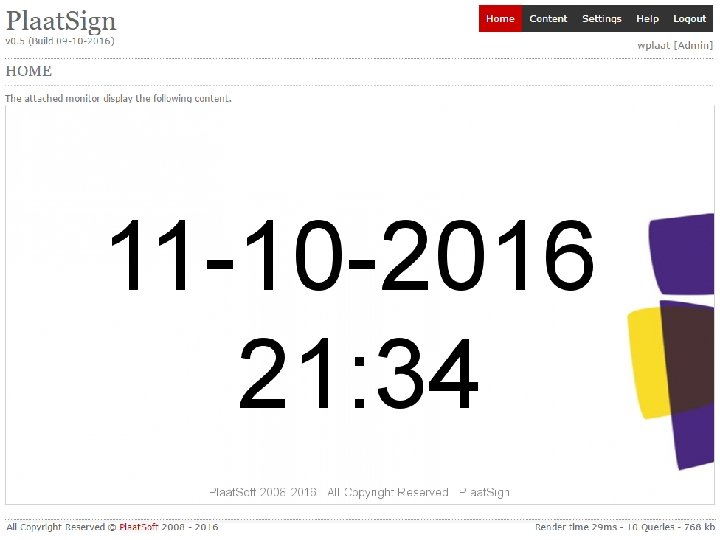

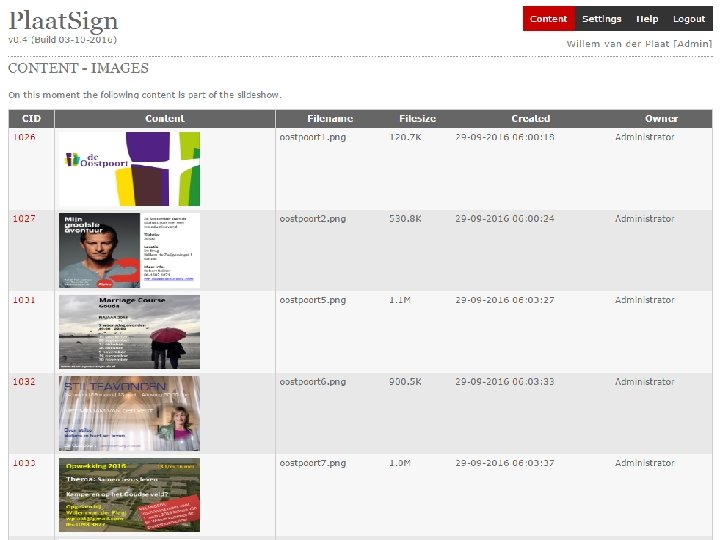

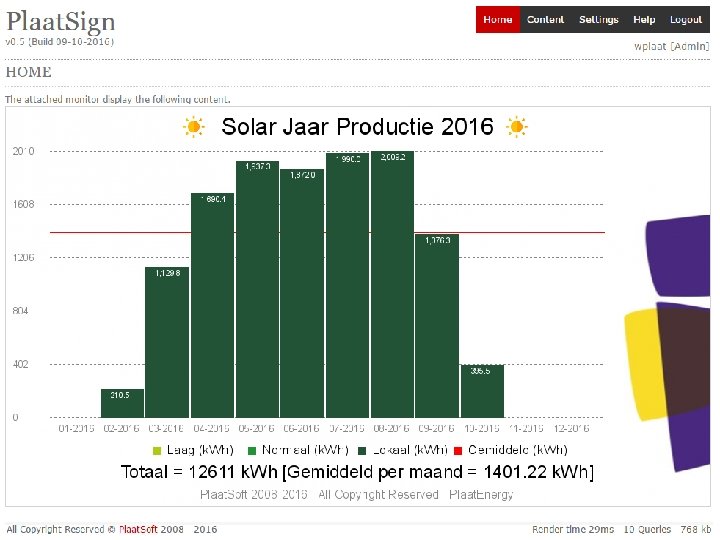

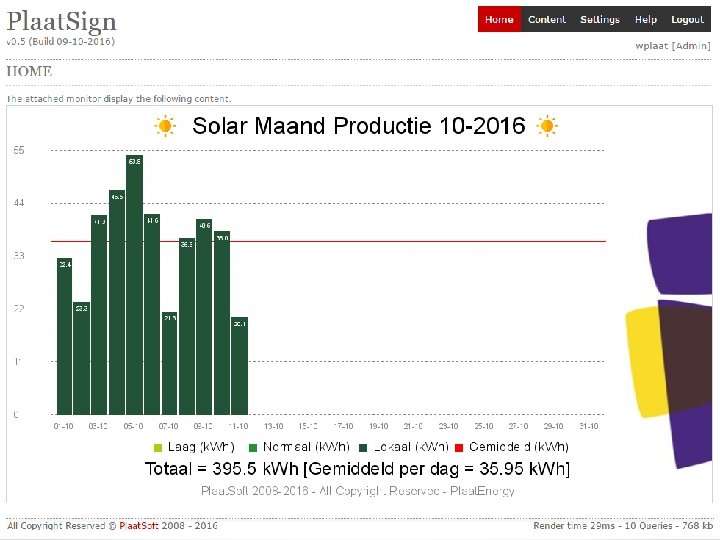

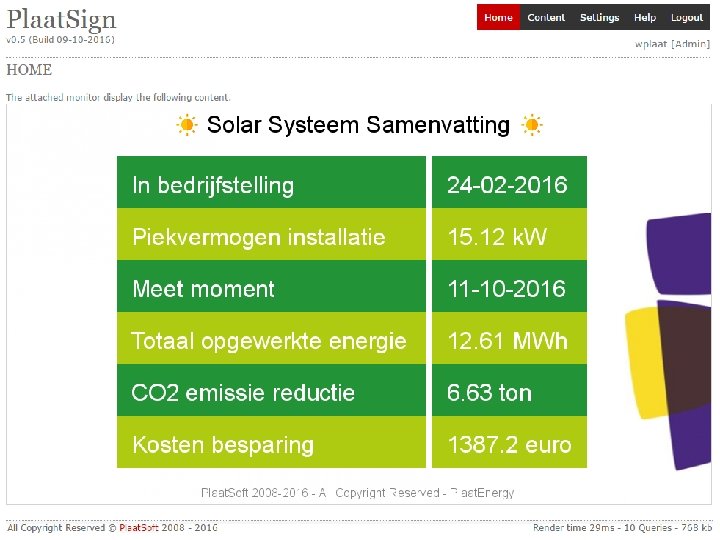

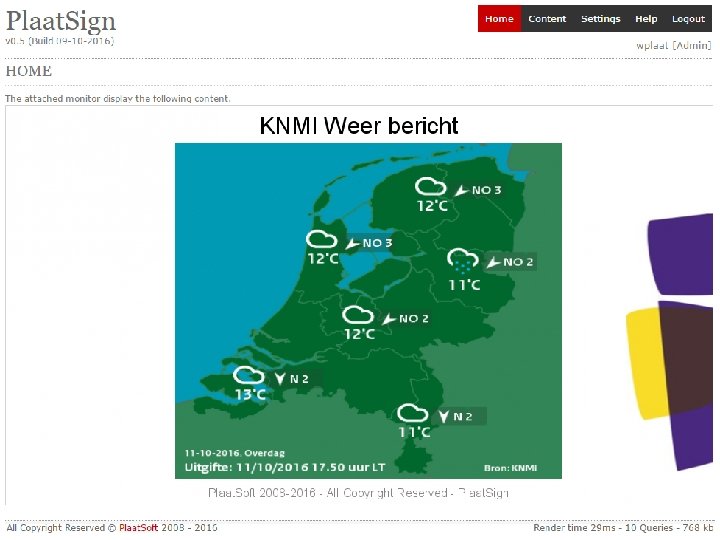

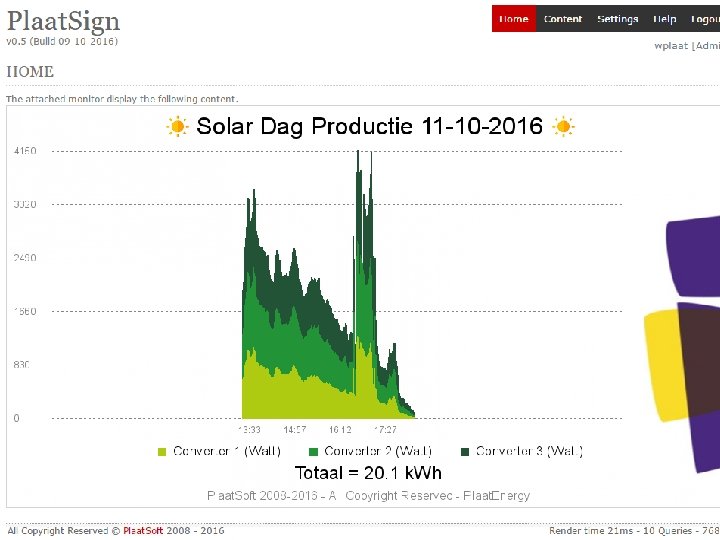

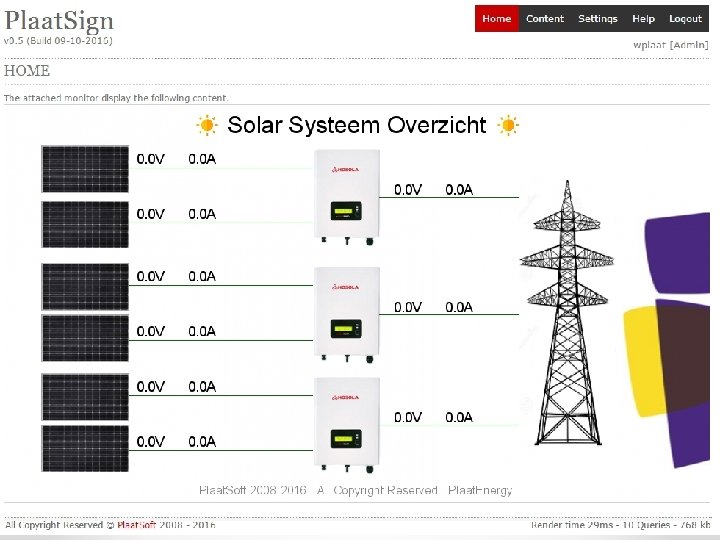

Screenshots
Conclusion • Plaat. Sign offers a free digital content viewer platform for the Raspberry Pi • Following content types are supported: o Images o Videos o Scripts • New features will be added soon
