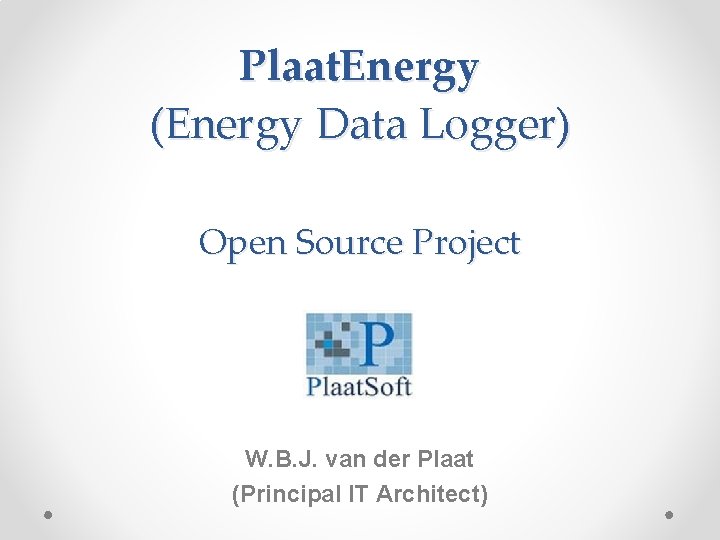

Plaat. Energy (Energy Data Logger) Open Source Project W. B. J. van der Plaat (Principal IT Architect)

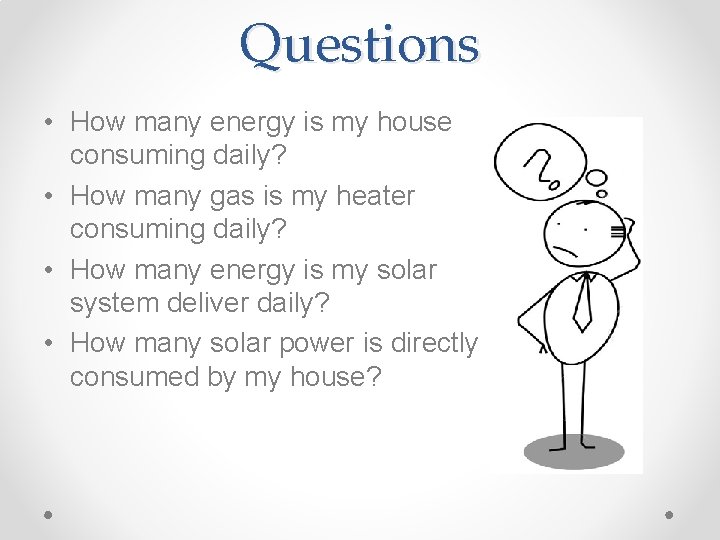

Questions • How many energy is my house consuming daily? • How many gas is my heater consuming daily? • How many energy is my solar system deliver daily? • How many solar power is directly consumed by my house?
Idea • Lets create an application which measure everything • Create user friendly Web GUI • Use low cost, low energy hardware
Used Hardware • • • Raspberry Pi 3 B USB to P 1 Cable Micro SD card (16 GB) USB power supply Raspberry Pi Case
Optional Hardware • • Wifi USB Dongle Bluetooth USB Dongle Pi Sense Hat Unicorn Hat
Hardware View – Configuration 1 HDMI Omnik Solar Converter Raspberry Pi Wifi Router Plaat. Energy Ethernet Pi Sense Hat USB
Hardware View – Configuration 2 P 1 cable Digital Energy Meter Bluetooth USB Omnik Solar Converter Raspberry Pi Wifi Router Ethernet Plaat. Energy Sense Hat Ethernet ADSL Router Ethernet Internet Plaat. Energy Reachable on internet Digital Gas Meter
Hardware View – Configuration 3 P 1 cable Digital Energy Meter Bluetooth Hosola Solar Converter Wifi Router Ethernet ADSL Router Ethernet Internet Hosola Solar Converter Wifi Ethernet Plaat. Energy Reachable on internet Digital Gas Meter USB Raspberry Pi Plaat. Energy Unicorn hat HDMI Plaat. Energy slide show at monitor
Plaat. Energy Software Architecture Weather Service Google Charts PHP/CSS/JS Presentation Layer Apache PHP Business Logic Layer My. SQL Database Layer Solar Converter Interface Energy Meter Interface Environment Interface WS / JSON Display Interface Operating System Vendor Support Vendor support - Omnik - Kaifa - Pi onboard - Pi Sense Hat - Hosola - Landis - Pi Sense Hat - Unicorn Hat - Kamstrup PHP/ Python Debian Linux

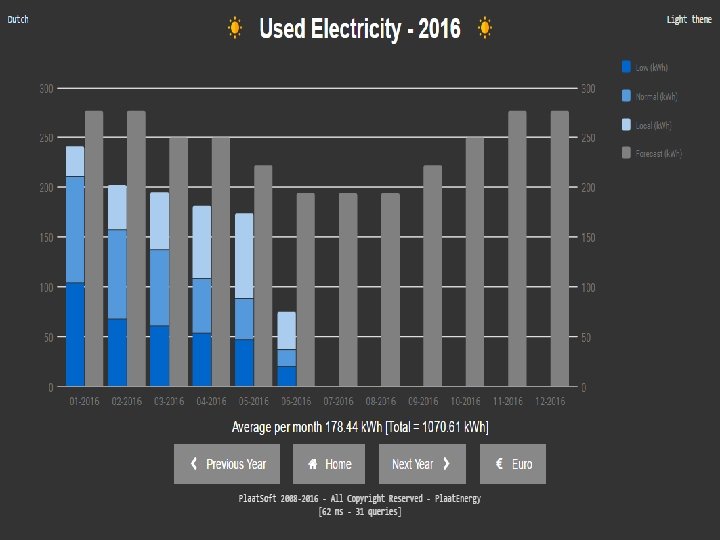

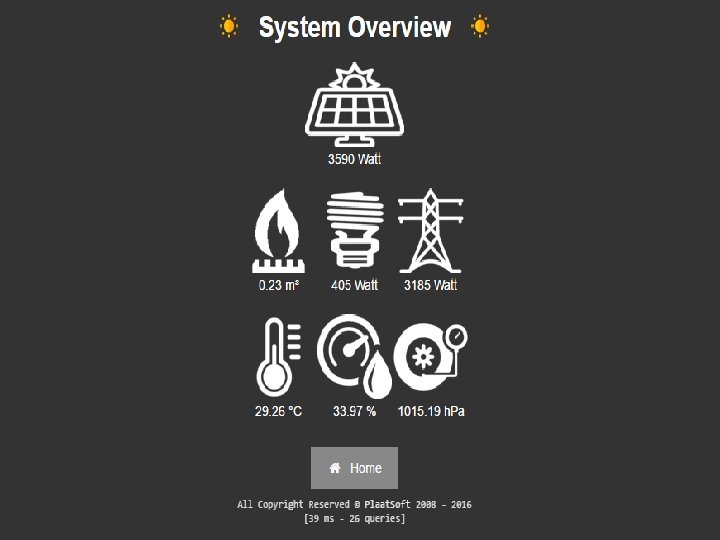

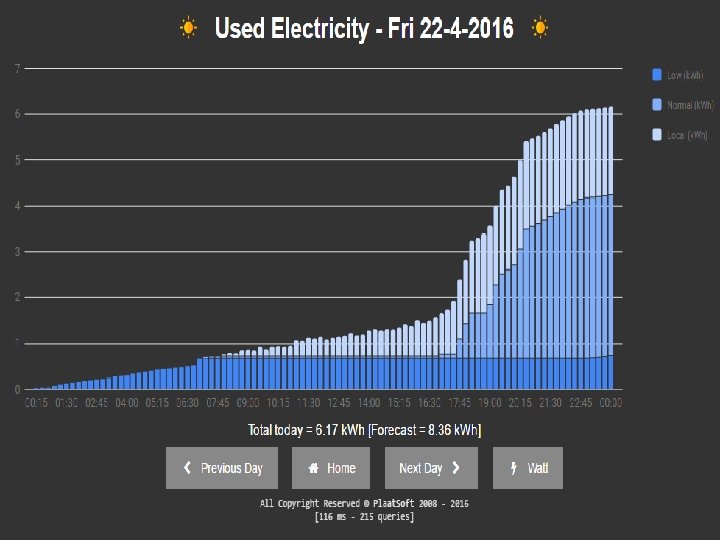

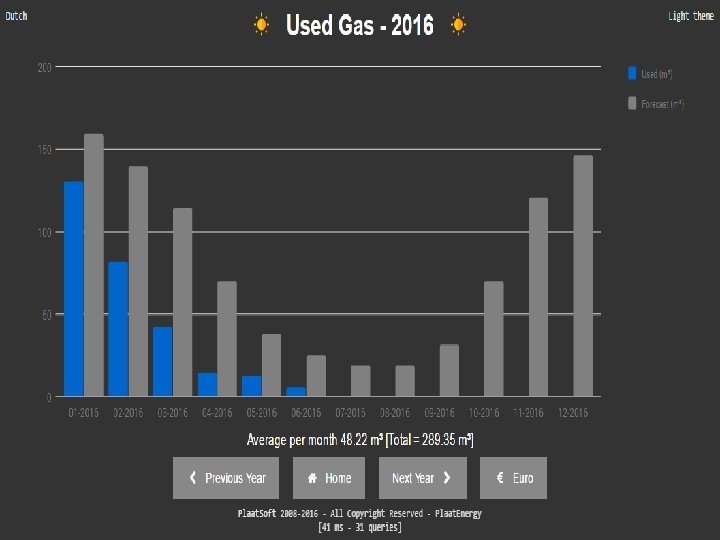

Plaat. Energy Key Features • • Measure each device every minute Easy to use web interface Show real-time, historical and forecast data Show financial data Support measurement corrections Export measure data to CSV or SQL Secure access to Web GUI and settings Open Source project. So free to use!

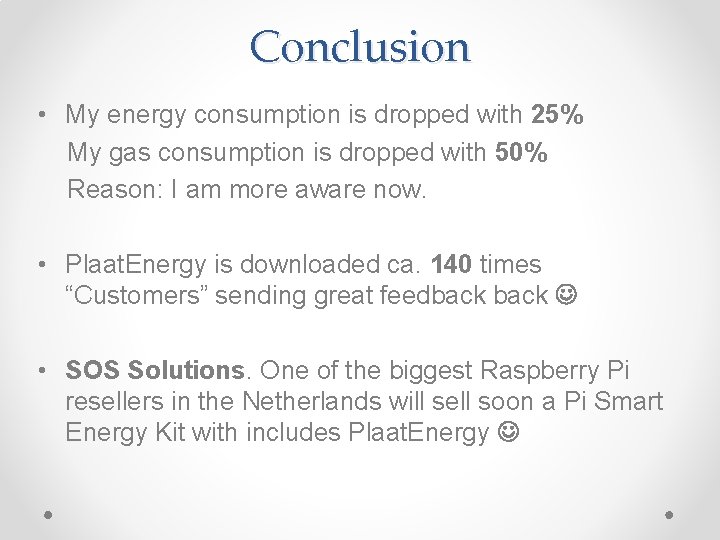

Conclusion • My energy consumption is dropped with 25% My gas consumption is dropped with 50% Reason: I am more aware now. • Plaat. Energy is downloaded ca. 140 times “Customers” sending great feedback • SOS Solutions. One of the biggest Raspberry Pi resellers in the Netherlands will sell soon a Pi Smart Energy Kit with includes Plaat. Energy
More info visit plaatsoft. nl
