PKI: The View from Down Under Presentation to 2001 Institutional Web Management Workshop Queen’s University Belfast Monday 25 June 2001 Ed Bristow, PKI Technical Manager, Australian Taxation Office 25 June 2001 EB IMW Belfast

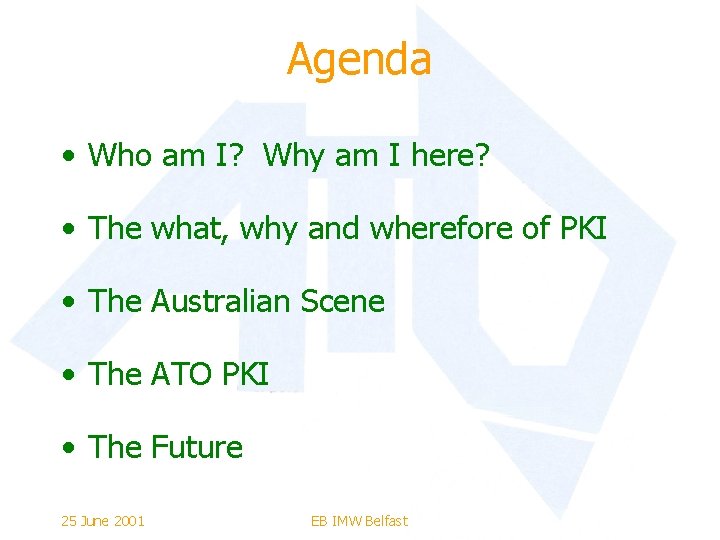

Agenda • Who am I? Why am I here? • The what, why and wherefore of PKI • The Australian Scene • The ATO PKI • The Future 25 June 2001 EB IMW Belfast

Canberra • Canberra 25 June 2001 EB IMW Belfast

Some definitions • PKI - Public Key Infrastructure – The technology, policies and processes involved in generation, signing, issue and use of asymmetric ciphers and digital certificates • ATO - Australian Taxation Office • BAS - Business Activity Statement – Monthly or quarterly business tax report completed by all Australian businesses • SSL - Secure Sockets Layer – Standard for encryption of connection between web server and browser. Now at Version 3. 0. • S/MIME - Secure Multipurpose Internet Mail Extensions (RFC 1521) – A standard for creating securely wrapped messages 25 June 2001 EB IMW Belfast

More Definitions • OCSP - Online Certificate Status Protocol. – Standard (RFC 2560) for the checking of a certificate’s revocation status in real time • CRL - Certificate revocation list – List of serial numbers of revoked certificates, published periodically by CA. Part of X. 509 (RFC 2459) • DMZ - Demilitarised zone. – Area between outer and inner firewalls where elements of a site’s security architecture is deployed • X. 500 - Standard for Internet directories • LDAP - Lightweight Directory Access Protocol • PKCS - Proprietary (but industry-wide) standards developed and maintained by RSA Security Inc 25 June 2001 EB IMW Belfast

Why PKI • E-commerce on the rise • The Internet is a dangerous place • The importance of standards • Digital signatures promise remote, unrepudiable authentication • The dream of PKI - certificate once, authenticate everywhere 25 June 2001 EB IMW Belfast

Key Topics • Confidentiality • Authentication • Authorisation 25 June 2001 EB IMW Belfast

Confidentiality • Is SSL good enough? – Data is vulnerable on the server – Enforce strong cipher suites • Consider use of S/MIME – Decryption is done deeper in DMZ • Need to pay attention to web site design • Some products don’t support two key pairs 25 June 2001 EB IMW Belfast

Authentication • What to use? – User ID & Password • Simple for users, but have to be administered & can be cracked – Shared Secret • Just how secure is the secret? • Doesn’t also provide integrity & non-repudiation – Digital Certificates • It’s not a trivial decision 25 June 2001 EB IMW Belfast

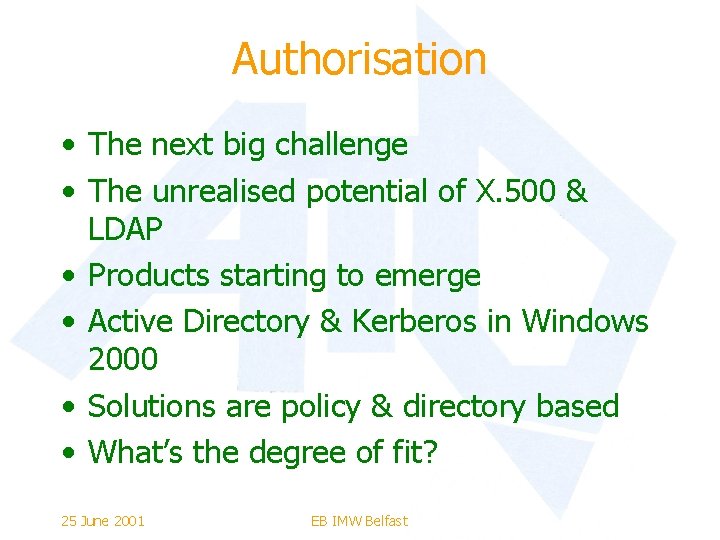

Authorisation • The next big challenge • The unrealised potential of X. 500 & LDAP • Products starting to emerge • Active Directory & Kerberos in Windows 2000 • Solutions are policy & directory based • What’s the degree of fit? 25 June 2001 EB IMW Belfast

Can PKI be made to work? • It does cost! • But it does also deliver • Many standards based components • But overall solution will need to be customised • Native browser based PKI is just not up to it at present 25 June 2001 EB IMW Belfast

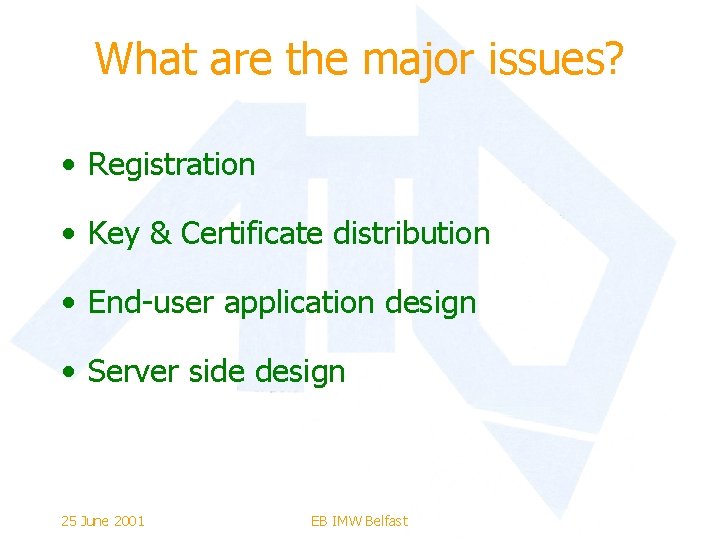

What are the major issues? • Registration • Key & Certificate distribution • End-user application design • Server side design 25 June 2001 EB IMW Belfast

Registration • Binds the identity to the public key • Get this wrong and there’s no point in worrying about the rest • Can be logistically difficult (and expensive) – Especially with geographically dispersed population • Are there opportunities to leverage another progress? 25 June 2001 EB IMW Belfast

End-User application design • Native browser, applet or fat client • What platforms to support? – Windows & Mac – IE & Netscape • How are private keys stored & accessed – Smart card (PKCS#11) – ‘Soft Key’ (PKCS#12) 25 June 2001 EB IMW Belfast

Server Side Design • Performance • Availability • Certificate validation – OCSP vs CRL • Do responses need to be signed? • Accept keys and certificates from multiple CA’s or just one? 25 June 2001 EB IMW Belfast

Overall • Assess the value and importance of transactions • Threat and risk analysis as first step • look for leverage opportunities 25 June 2001 EB IMW Belfast

Australia - Land of Contrasts • Strengths – Innovative culture – Early adopters – Government sector prepared to lead – Small enough for national solutions to be viable – ‘Can do’ attitude 25 June 2001 EB IMW Belfast

Australia - Land of Contrasts • Weaknesses – 7 + 2 Governments – Short electoral cycle – Small population base – Geographic Isolation – ‘Branch Office’ Economy – Slow telecoms in rural and remote areas – ‘The Tyranny of Distance’ 25 June 2001 EB IMW Belfast

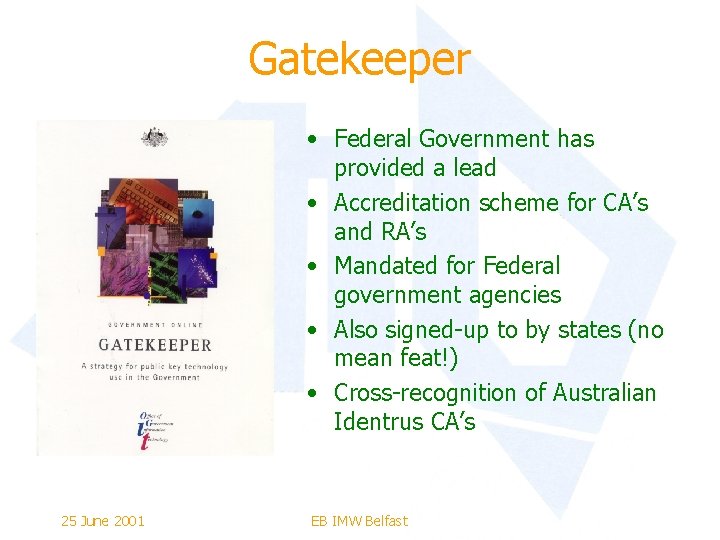

Gatekeeper • Federal Government has provided a lead • Accreditation scheme for CA’s and RA’s • Mandated for Federal government agencies • Also signed-up to by states (no mean feat!) • Cross-recognition of Australian Identrus CA’s 25 June 2001 EB IMW Belfast

Gatekeeper - Drawbacks • High barrier to entry • Onerous accreditation requirements – ATO completed 33 different documents – Can be too slow for commercial requirements • Focus to date has been on business – PKI for individuals still some way off • But Gatekeeper 2 is coming. . . 25 June 2001 EB IMW Belfast

Gatekeeper - Progress • ATO was first to achieve full accreditation • Commercial sector (e. Sign & Baltimore) now also fully accredited • Government-sponsored standard for certificates – Contains Australian Business Number (ABN) – Can be used by businesses to deal with government at all levels – Can be issued by any accredited or crossrecognized CA EB IMW Belfast 25 June 2001

The ATO • Main revenue collection authority for Commonwealth Government • Collects Income Tax, GST, Excise and other taxes • Approx 20, 000 Staff • Facing the ‘electronic challenge’ – Improve services – Reduce costs – Change the paradigm of interaction 25 June 2001 EB IMW Belfast

ATO Electronic Initiatives • Agent lodged Income Tax returns via X. 25 and proprietary s/w since 1991 – Now accounts for > 75% of all returns • Self-lodged Income Tax returns via pre. Gatekeeper PKI-enabled ‘e-tax’ system – Now in 4 th year of operation – Expect 400, 000 lodgments this year 25 June 2001 EB IMW Belfast

PKI in the ATO • First full Gatekeeper accreditation • Support of tax Reform – GST (VAT type tax) from 1/7/2001 – New reporting regime for business • Not our core business! • 100 k certificate pairs issued 25 June 2001 EB IMW Belfast

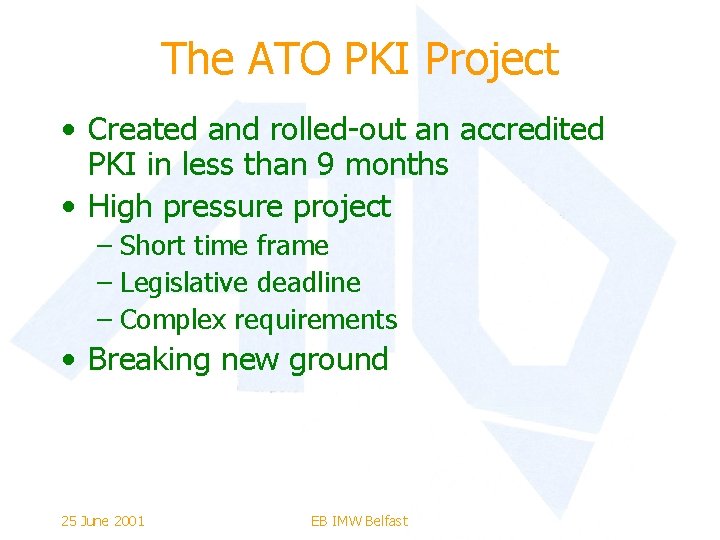

The ATO PKI Project • Created and rolled-out an accredited PKI in less than 9 months • High pressure project – Short time frame – Legislative deadline – Complex requirements • Breaking new ground 25 June 2001 EB IMW Belfast

Features • Rely on business registration process to feed the RA – Integrated with legacy (DB 2/OS 390) database • Centrally-generated keys • Distribution via Internet • Two key pairs/certificates – Authentication (Signing) – Confidentiality (Encryption) 25 June 2001 EB IMW Belfast

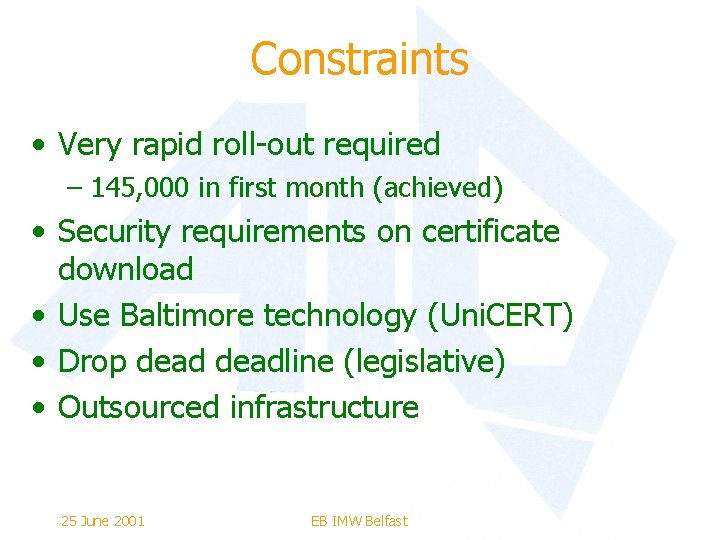

Constraints • Very rapid roll-out required – 145, 000 in first month (achieved) • Security requirements on certificate download • Use Baltimore technology (Uni. CERT) • Drop deadline (legislative) • Outsourced infrastructure 25 June 2001 EB IMW Belfast

The Good • 100, 000 sets of keys and certificates distributed in first year of operation • 70, 000 businesses registered to deal electronically • Over 500, 000 e-BAS’s lodged • Most find process fairly straightforward • Businesses appear happy with authentication and confidentiality provided • Vastly lower rejection and intervention rates on e. BAS’s • Quicker refunds (where payable) 25 June 2001 EB IMW Belfast

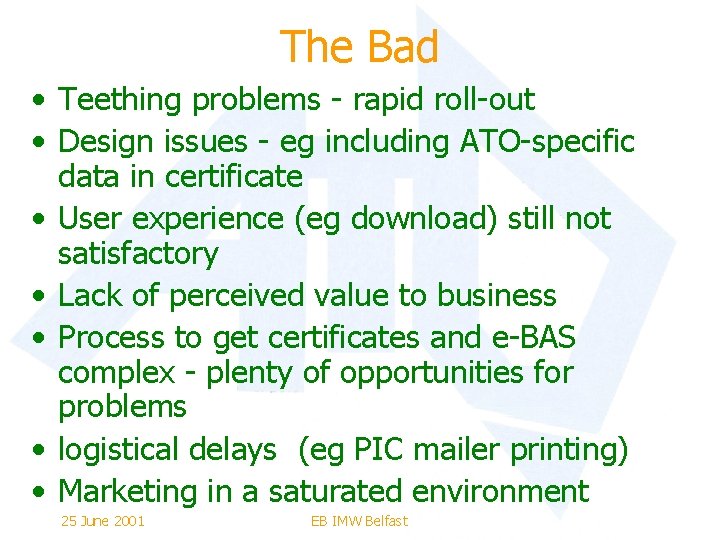

The Bad • Teething problems - rapid roll-out • Design issues - eg including ATO-specific data in certificate • User experience (eg download) still not satisfactory • Lack of perceived value to business • Process to get certificates and e-BAS complex - plenty of opportunities for problems • logistical delays (eg PIC mailer printing) • Marketing in a saturated environment 25 June 2001 EB IMW Belfast

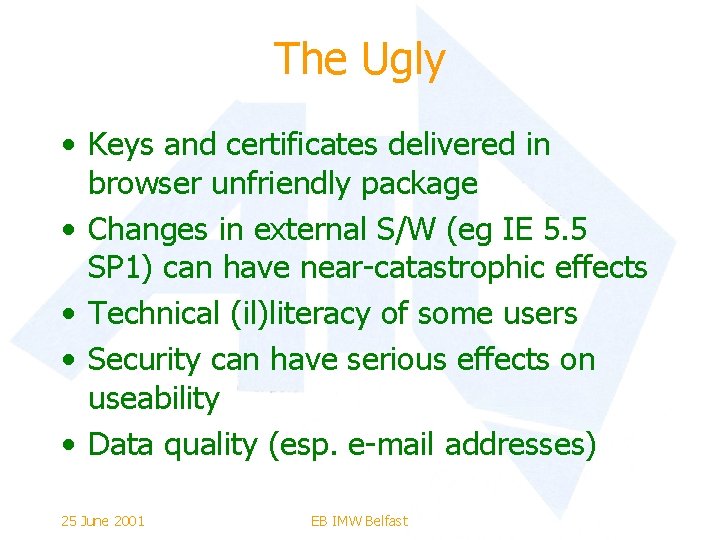

The Ugly • Keys and certificates delivered in browser unfriendly package • Changes in external S/W (eg IE 5. 5 SP 1) can have near-catastrophic effects • Technical (il)literacy of some users • Security can have serious effects on useability • Data quality (esp. e-mail addresses) 25 June 2001 EB IMW Belfast

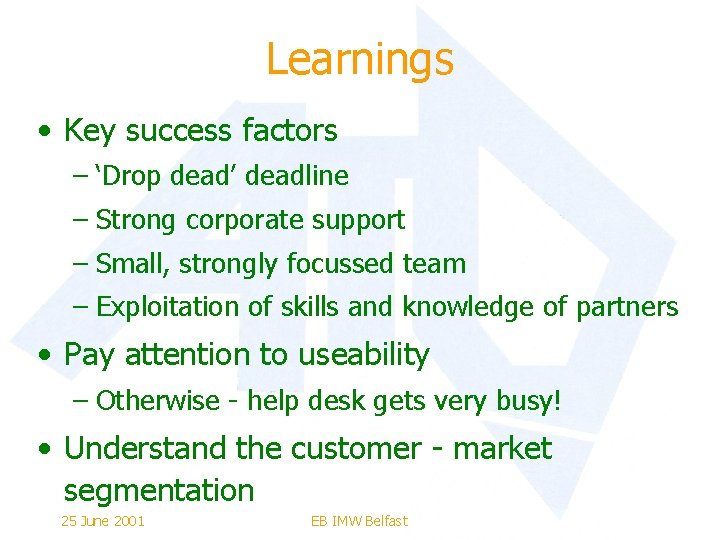

Learnings • Key success factors – ‘Drop dead’ deadline – Strong corporate support – Small, strongly focussed team – Exploitation of skills and knowledge of partners • Pay attention to useability – Otherwise - help desk gets very busy! • Understand the customer - market segmentation 25 June 2001 EB IMW Belfast

The Future - Some Questions • Will PKI become universal, or is it just too hard? • Is the Internet too dangerous a place to do business? • Can schemes like Gatekeeper ever really succeed? • Can anyone make serious money out of PKI? 25 June 2001 EB IMW Belfast

The Future - Some Answers • RSA appears to be unassailable - for now – We can be confident about the technology • Success of PKI depends on – Robust and trustable registration processes – Useful applications - there must be a value proposition – Making the technology transparent • Australian model has significant strengths – Universal scheme – Standards based - vendor neutral – Public-Private sector partnership 25 June 2001 EB IMW Belfast

Links www. ato. gov. au www. taxreform. ato. gov. au www. ato-pki. ato. gov. au www. govonline. gov. au www. baltimore. com www. esign. com. au www. identrus. com 25 June 2001 EB IMW Belfast
