PIP-II Interface Management Process Alex Martinez / Fermilab PIP-II Technical Workshop Wednesday, December 2 nd, 2020 A Partnership of: US/DOE India/DAE Italy/INFN UK/UKRI-STFC France/CEA, CNRS/IN 2 P 3 Poland/WUST

Agenda • PIP-II Interface Management Plan • Interface Documents – Master ICD – Interface Specification Documents • • 2 Interface Change Requests Traceability between Documents Verification of Interfaces Interface reviews/audits 12/2/2020 Alex Martinez | PIP-II Technical Workshop

Background Bio • Alex Martinez – Organization: PIP-II Integration Office – Role: PIP-II Integration Coordinator • Responsible for the control, management, verification and approval of project technical interfaces • 29 years at Fermilab, mostly in Cryogenics, last few years on the PIP-II project • Mechanical Engineer • martinez@fnal. gov 3 12/2/2020 Alex Martinez | PIP-II Technical Workshop

PIP-II Interface Management Process • Interface management process is documented in the PIP-II Interface Management Plan – ED 0007942 “The Interface Management Plan provides a process to develop, control, identify, manage, verify, review, approve, release and revise technical interfaces for the PIP-II project. ” – – L 3 to L 3 interfaces L 3 to Fermilab external interfaces (i. e. to other accelerators/infrastructure) Partner interfaces (Partner to Fermilab, Partner to Partner) Below L 3 at the discretion of the L 2 Design Authority Level 3 Interfaces and Partner Interfaces Highest control level (requires adherence to interface management plan) Sub-Level 3 Interfaces 4 12/2/2020 Lowest control level (at the discretion of the L 2 Design Authority) Alex Martinez | PIP-II Technical Workshop

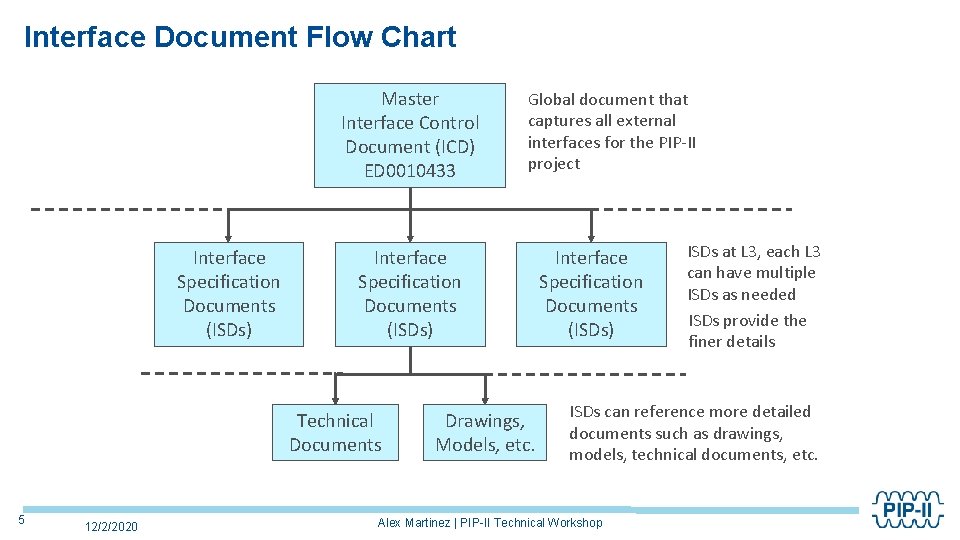

Interface Document Flow Chart Master Interface Control Document (ICD) ED 0010433 Interface Specification Documents (ISDs) Technical Documents 5 12/2/2020 Global document that captures all external interfaces for the PIP-II project Drawings, Models, etc. Interface Specification Documents (ISDs) ISDs at L 3, each L 3 can have multiple ISDs as needed ISDs provide the finer details ISDs can reference more detailed documents such as drawings, models, technical documents, etc. Alex Martinez | PIP-II Technical Workshop

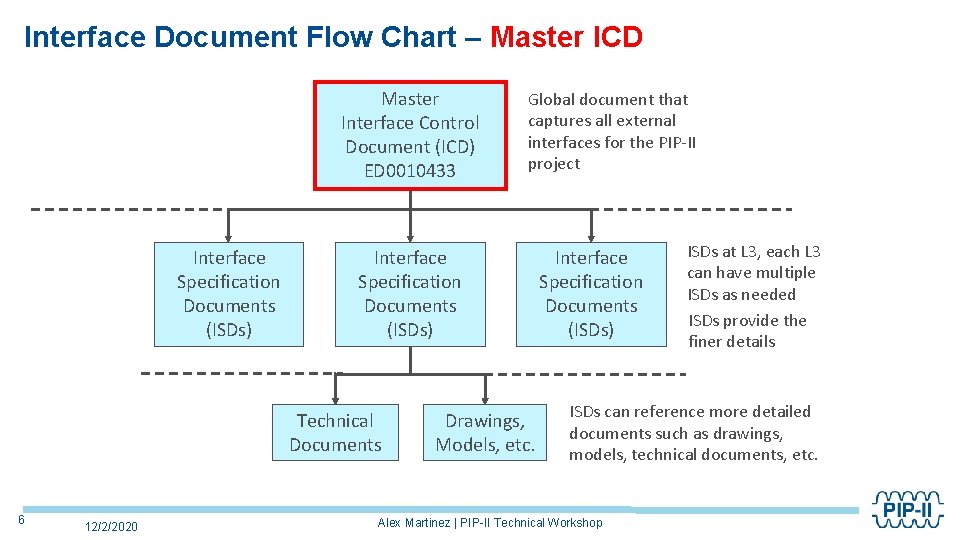

Interface Document Flow Chart – Master ICD Master Interface Control Document (ICD) ED 0010433 Interface Specification Documents (ISDs) Technical Documents 6 12/2/2020 Global document that captures all external interfaces for the PIP-II project Drawings, Models, etc. Interface Specification Documents (ISDs) ISDs at L 3, each L 3 can have multiple ISDs as needed ISDs provide the finer details ISDs can reference more detailed documents such as drawings, models, technical documents, etc. Alex Martinez | PIP-II Technical Workshop

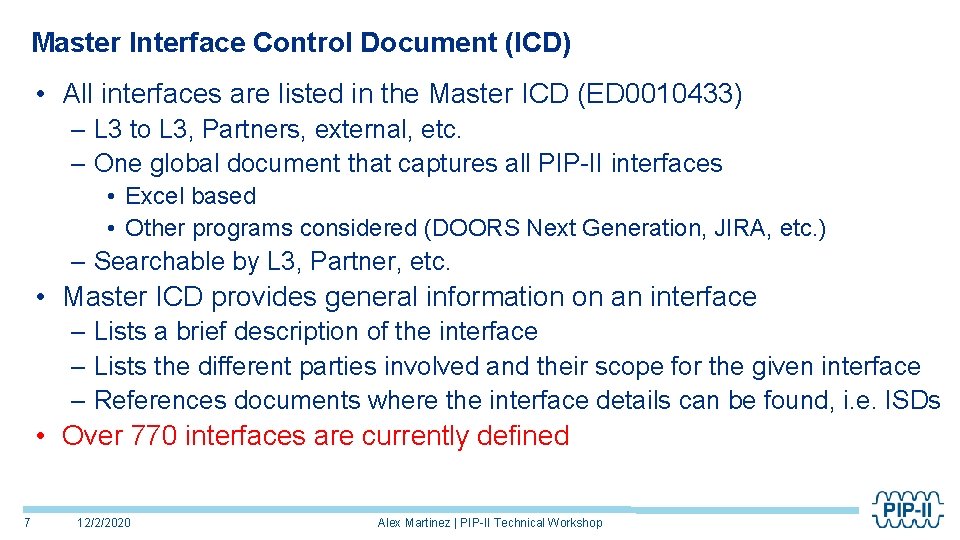

Master Interface Control Document (ICD) • All interfaces are listed in the Master ICD (ED 0010433) – L 3 to L 3, Partners, external, etc. – One global document that captures all PIP-II interfaces • Excel based • Other programs considered (DOORS Next Generation, JIRA, etc. ) – Searchable by L 3, Partner, etc. • Master ICD provides general information on an interface – Lists a brief description of the interface – Lists the different parties involved and their scope for the given interface – References documents where the interface details can be found, i. e. ISDs • Over 770 interfaces are currently defined 7 12/2/2020 Alex Martinez | PIP-II Technical Workshop

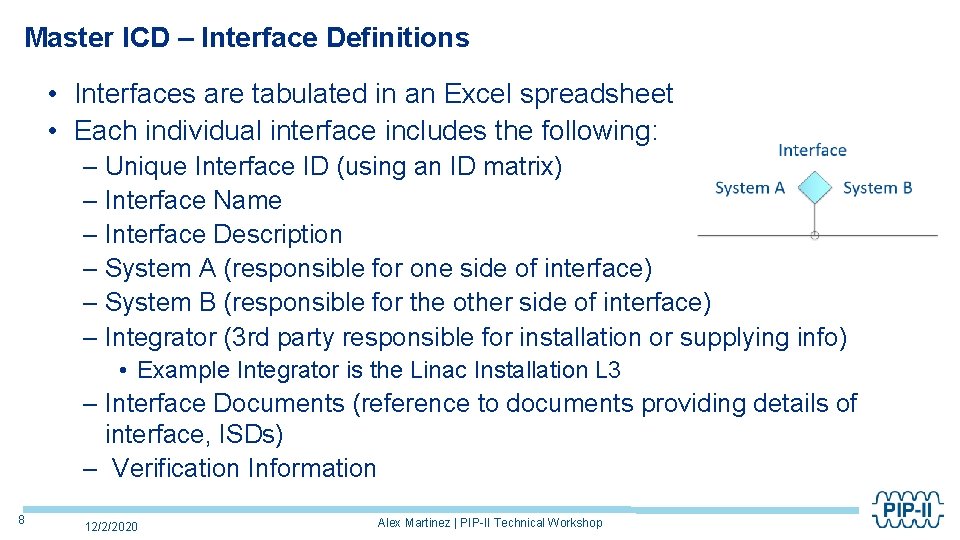

Master ICD – Interface Definitions • Interfaces are tabulated in an Excel spreadsheet • Each individual interface includes the following: – Unique Interface ID (using an ID matrix) – Interface Name – Interface Description – System A (responsible for one side of interface) – System B (responsible for the other side of interface) – Integrator (3 rd party responsible for installation or supplying info) • Example Integrator is the Linac Installation L 3 – Interface Documents (reference to documents providing details of interface, ISDs) – Verification Information 8 12/2/2020 Alex Martinez | PIP-II Technical Workshop

Master ICD Sheet Details Searchable by L 3/Partner 9 12/2/2020 Alex Martinez | PIP-II Technical Workshop

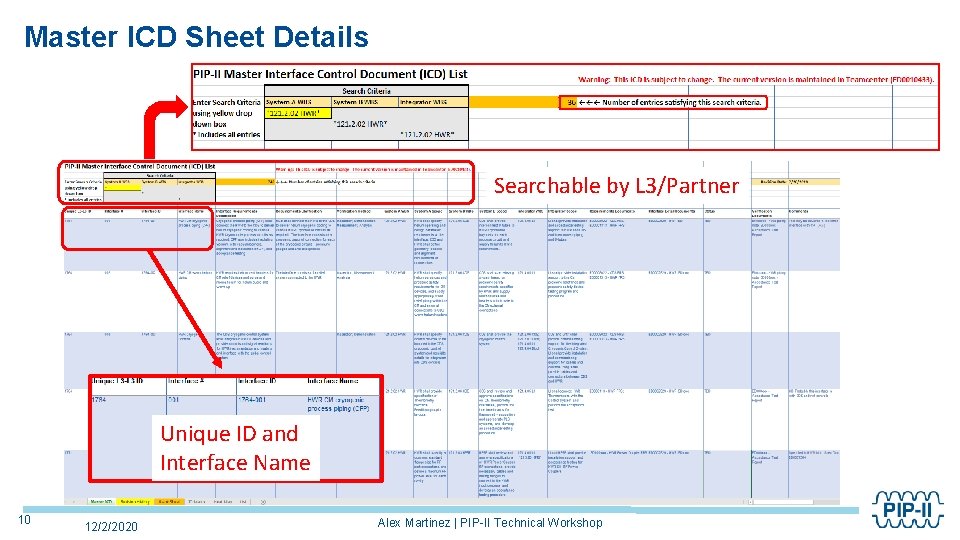

Master ICD Sheet Details Searchable by L 3/Partner Unique ID and Interface Name 10 12/2/2020 Alex Martinez | PIP-II Technical Workshop

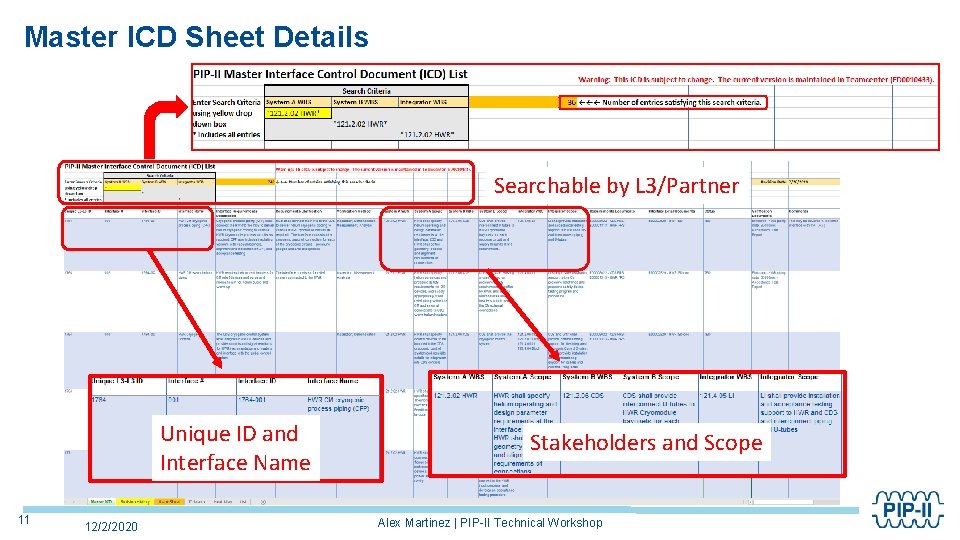

Master ICD Sheet Details Searchable by L 3/Partner Unique ID and Interface Name 11 12/2/2020 Stakeholders and Scope Alex Martinez | PIP-II Technical Workshop

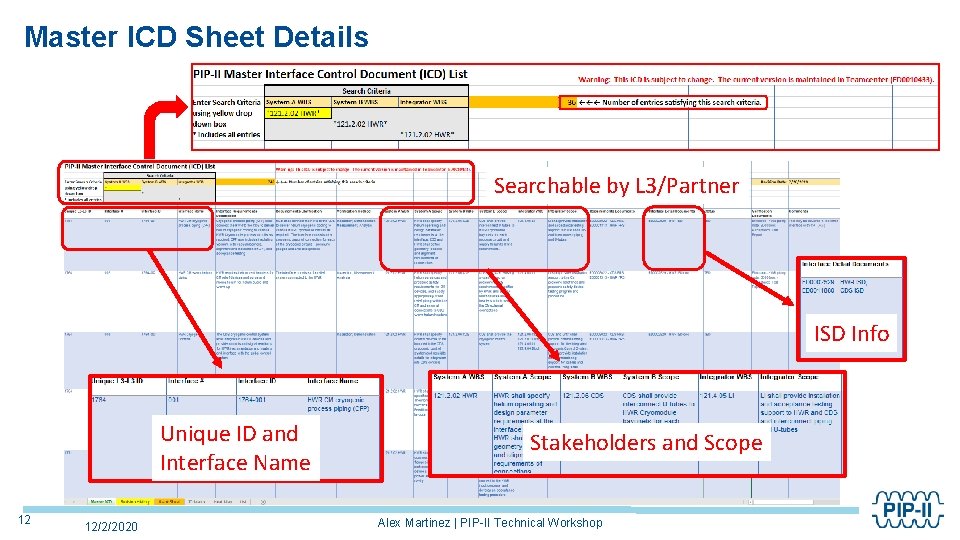

Master ICD Sheet Details Searchable by L 3/Partner ISD Info Unique ID and Interface Name 12 12/2/2020 Stakeholders and Scope Alex Martinez | PIP-II Technical Workshop

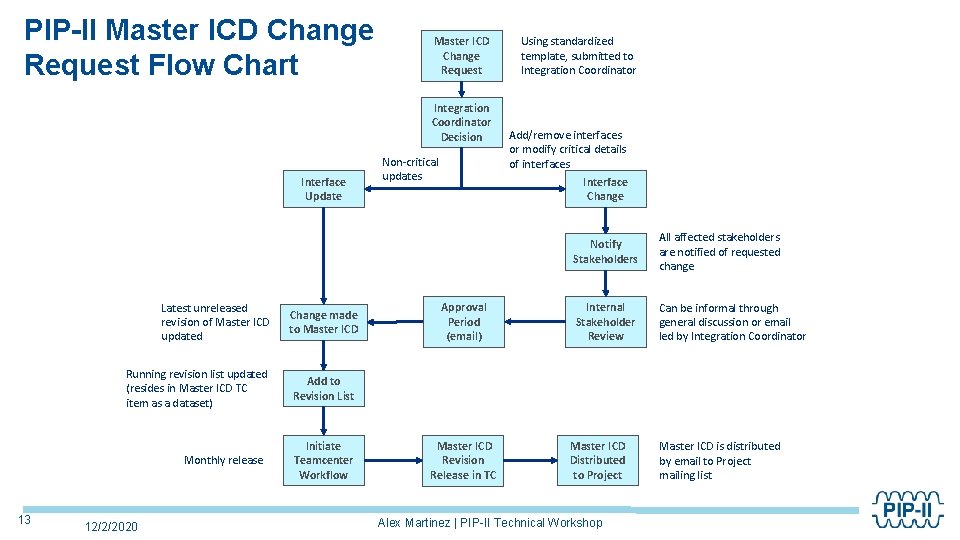

PIP-II Master ICD Change Request Flow Chart Master ICD Change Request Integration Coordinator Decision Interface Update Latest unreleased revision of Master ICD updated Running revision list updated (resides in Master ICD TC item as a dataset) Monthly release 13 12/2/2020 Change made to Master ICD Non-critical updates Approval Period (email) Using standardized template, submitted to Integration Coordinator Add/remove interfaces or modify critical details of interfaces Interface Change Notify Stakeholders All affected stakeholders are notified of requested change Internal Stakeholder Review Can be informal through general discussion or email led by Integration Coordinator Add to Revision List Initiate Teamcenter Workflow Master ICD Revision Release in TC Master ICD Distributed to Project Alex Martinez | PIP-II Technical Workshop Master ICD is distributed by email to Project mailing list

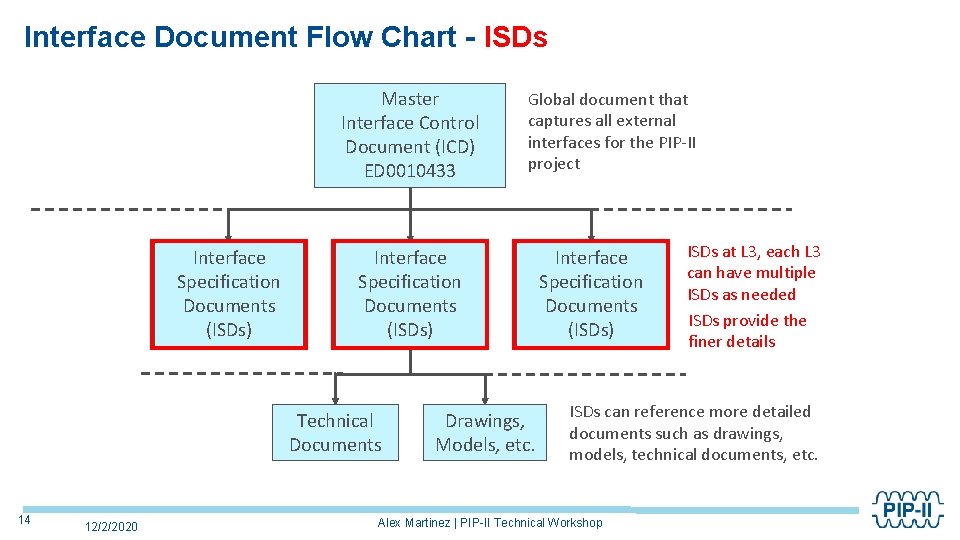

Interface Document Flow Chart - ISDs Master Interface Control Document (ICD) ED 0010433 Interface Specification Documents (ISDs) Technical Documents 14 12/2/2020 Global document that captures all external interfaces for the PIP-II project Drawings, Models, etc. Interface Specification Documents (ISDs) ISDs at L 3, each L 3 can have multiple ISDs as needed ISDs provide the finer details ISDs can reference more detailed documents such as drawings, models, technical documents, etc. Alex Martinez | PIP-II Technical Workshop

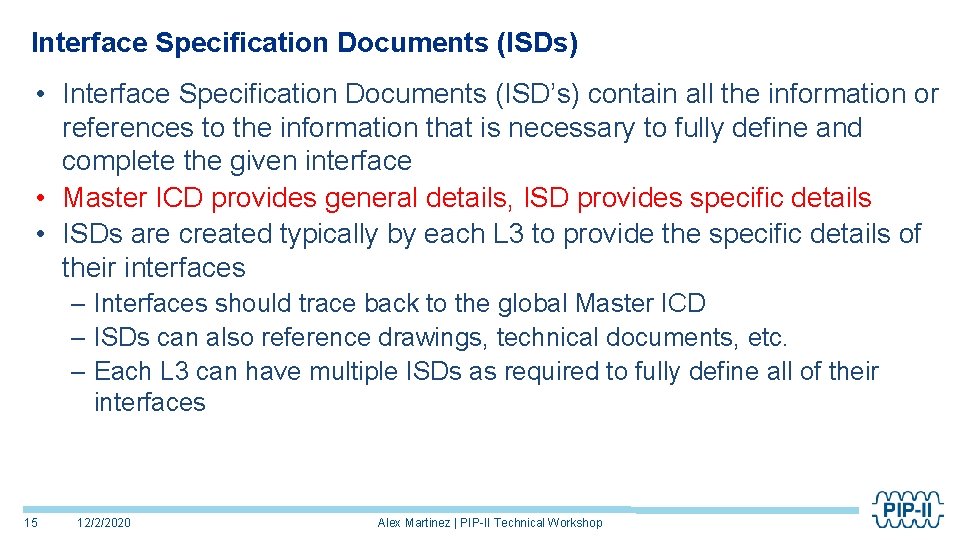

Interface Specification Documents (ISDs) • Interface Specification Documents (ISD’s) contain all the information or references to the information that is necessary to fully define and complete the given interface • Master ICD provides general details, ISD provides specific details • ISDs are created typically by each L 3 to provide the specific details of their interfaces – Interfaces should trace back to the global Master ICD – ISDs can also reference drawings, technical documents, etc. – Each L 3 can have multiple ISDs as required to fully define all of their interfaces 15 12/2/2020 Alex Martinez | PIP-II Technical Workshop

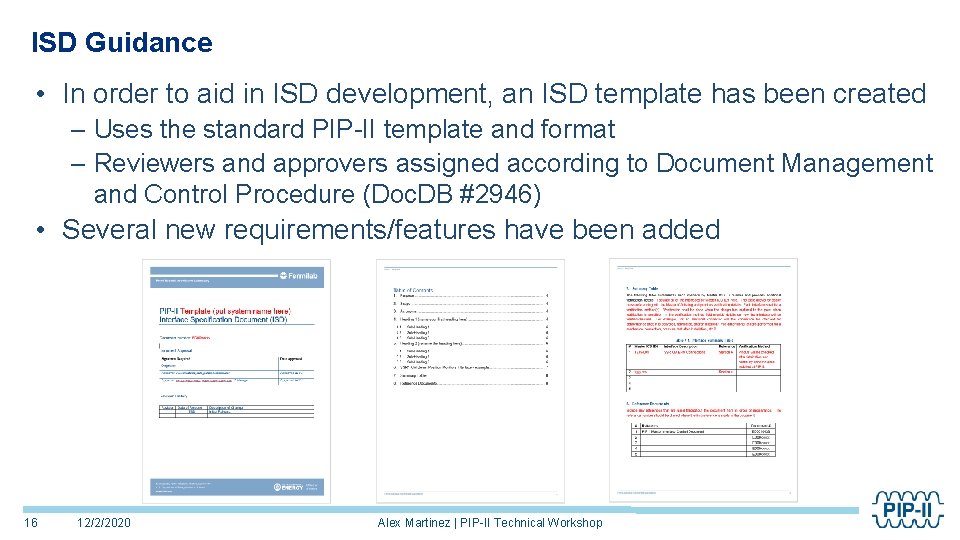

ISD Guidance • In order to aid in ISD development, an ISD template has been created – Uses the standard PIP-II template and format – Reviewers and approvers assigned according to Document Management and Control Procedure (Doc. DB #2946) • Several new requirements/features have been added 16 12/2/2020 Alex Martinez | PIP-II Technical Workshop

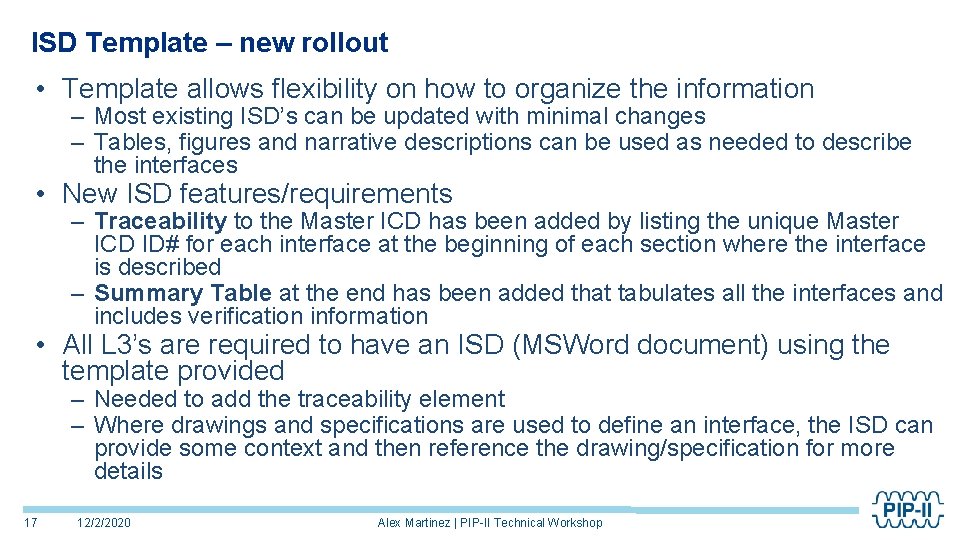

ISD Template – new rollout • Template allows flexibility on how to organize the information – Most existing ISD’s can be updated with minimal changes – Tables, figures and narrative descriptions can be used as needed to describe the interfaces • New ISD features/requirements – Traceability to the Master ICD has been added by listing the unique Master ICD ID# for each interface at the beginning of each section where the interface is described – Summary Table at the end has been added that tabulates all the interfaces and includes verification information • All L 3’s are required to have an ISD (MSWord document) using the template provided – Needed to add the traceability element – Where drawings and specifications are used to define an interface, the ISD can provide some context and then reference the drawing/specification for more details 17 12/2/2020 Alex Martinez | PIP-II Technical Workshop

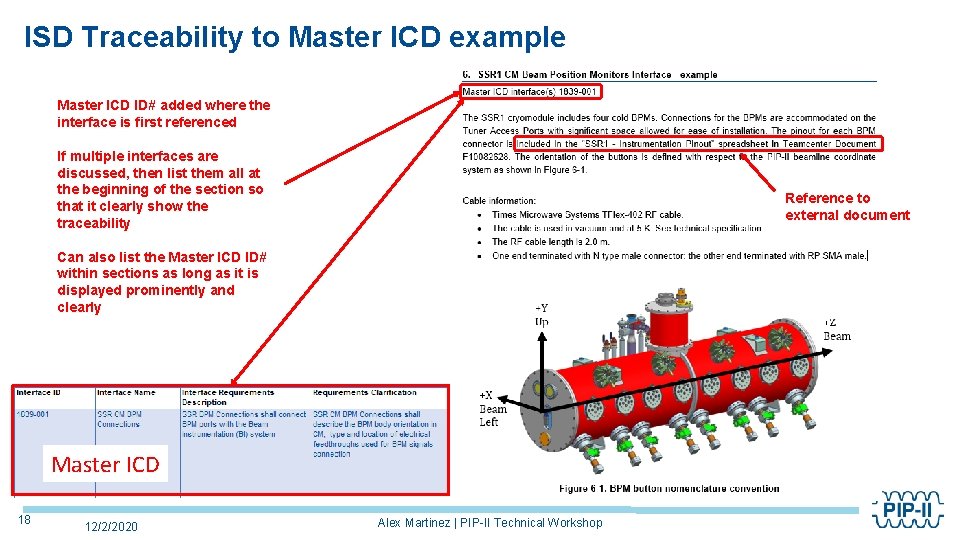

ISD Traceability to Master ICD example Master ICD ID# added where the interface is first referenced If multiple interfaces are discussed, then list them all at the beginning of the section so that it clearly show the traceability Reference to external document Can also list the Master ICD ID# within sections as long as it is displayed prominently and clearly Master ICD 18 12/2/2020 Alex Martinez | PIP-II Technical Workshop

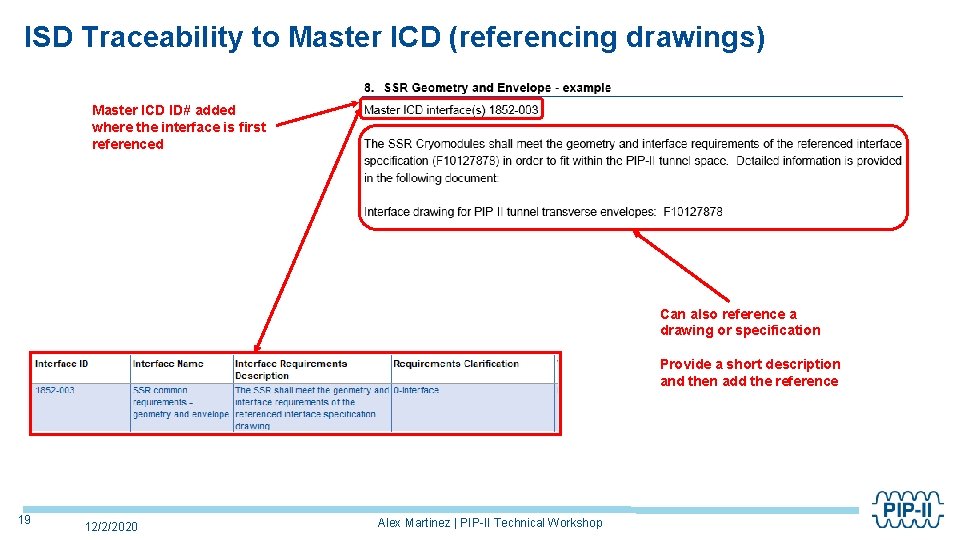

ISD Traceability to Master ICD (referencing drawings) Master ICD ID# added where the interface is first referenced Can also reference a drawing or specification Provide a short description and then add the reference 19 12/2/2020 Alex Martinez | PIP-II Technical Workshop

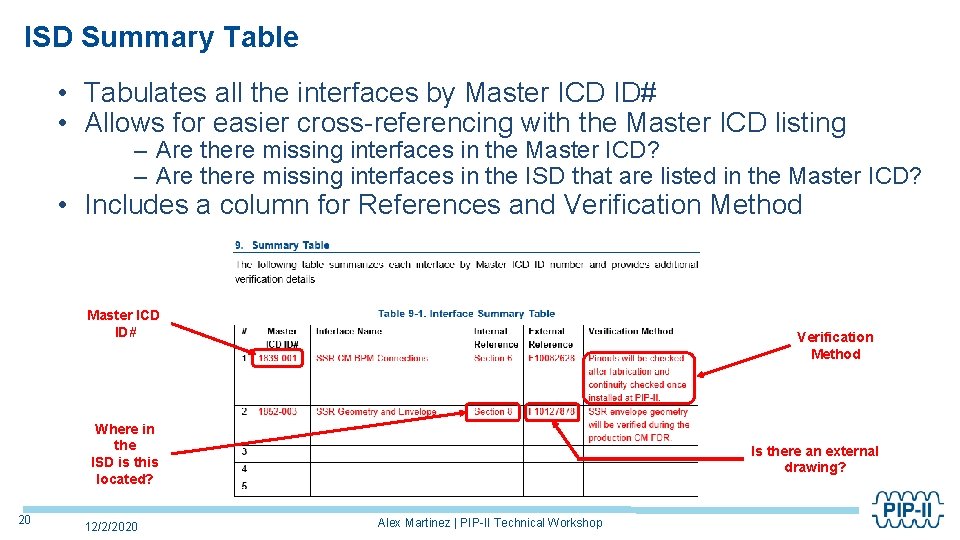

ISD Summary Table • Tabulates all the interfaces by Master ICD ID# • Allows for easier cross-referencing with the Master ICD listing – Are there missing interfaces in the Master ICD? – Are there missing interfaces in the ISD that are listed in the Master ICD? • Includes a column for References and Verification Method Master ICD ID# Verification Method Where in the ISD is this located? 20 12/2/2020 Is there an external drawing? Alex Martinez | PIP-II Technical Workshop

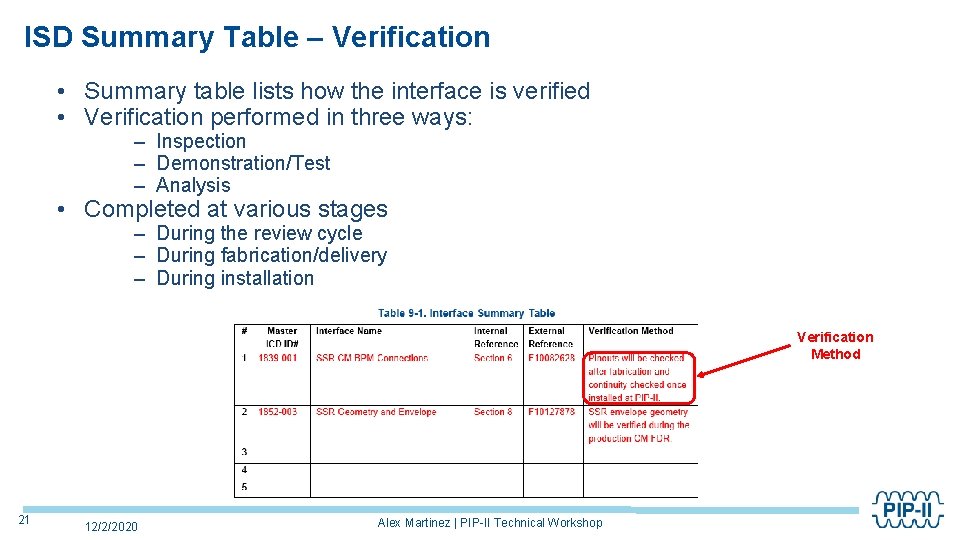

ISD Summary Table – Verification • Summary table lists how the interface is verified • Verification performed in three ways: – Inspection – Demonstration/Test – Analysis • Completed at various stages – During the review cycle – During fabrication/delivery – During installation Verification Method 21 12/2/2020 Alex Martinez | PIP-II Technical Workshop

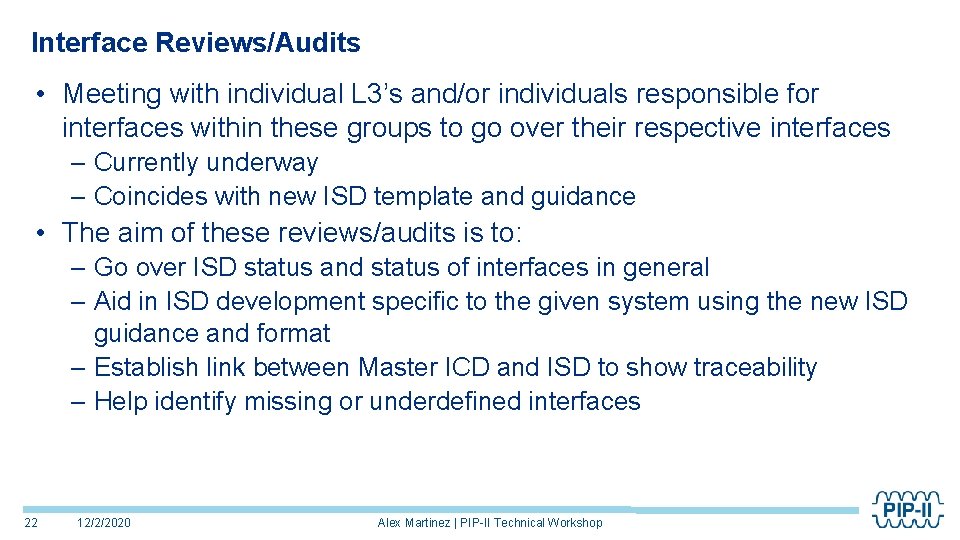

Interface Reviews/Audits • Meeting with individual L 3’s and/or individuals responsible for interfaces within these groups to go over their respective interfaces – Currently underway – Coincides with new ISD template and guidance • The aim of these reviews/audits is to: – Go over ISD status and status of interfaces in general – Aid in ISD development specific to the given system using the new ISD guidance and format – Establish link between Master ICD and ISD to show traceability – Help identify missing or underdefined interfaces 22 12/2/2020 Alex Martinez | PIP-II Technical Workshop

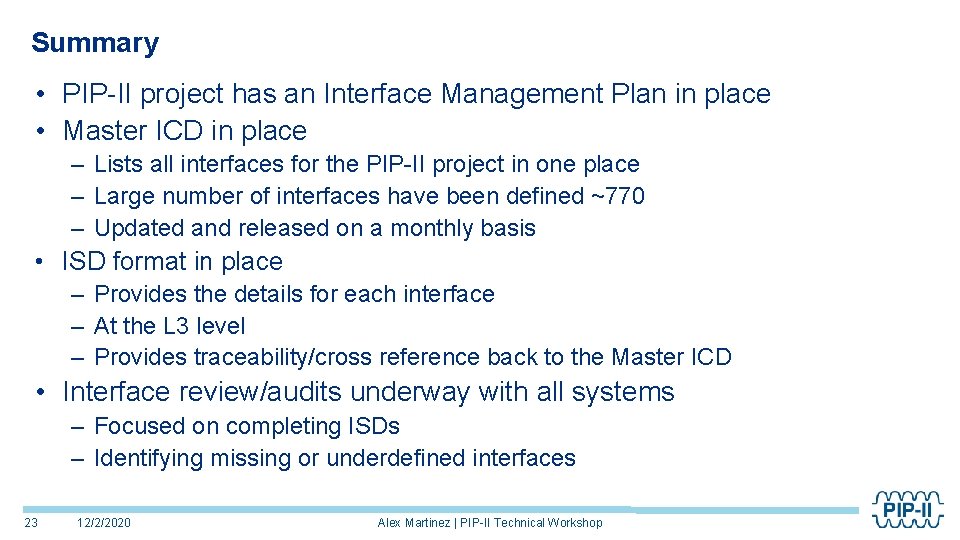

Summary • PIP-II project has an Interface Management Plan in place • Master ICD in place – Lists all interfaces for the PIP-II project in one place – Large number of interfaces have been defined ~770 – Updated and released on a monthly basis • ISD format in place – Provides the details for each interface – At the L 3 level – Provides traceability/cross reference back to the Master ICD • Interface review/audits underway with all systems – Focused on completing ISDs – Identifying missing or underdefined interfaces 23 12/2/2020 Alex Martinez | PIP-II Technical Workshop

Thank You! 24 12/2/2020 Alex Martinez | PIP-II Technical Workshop

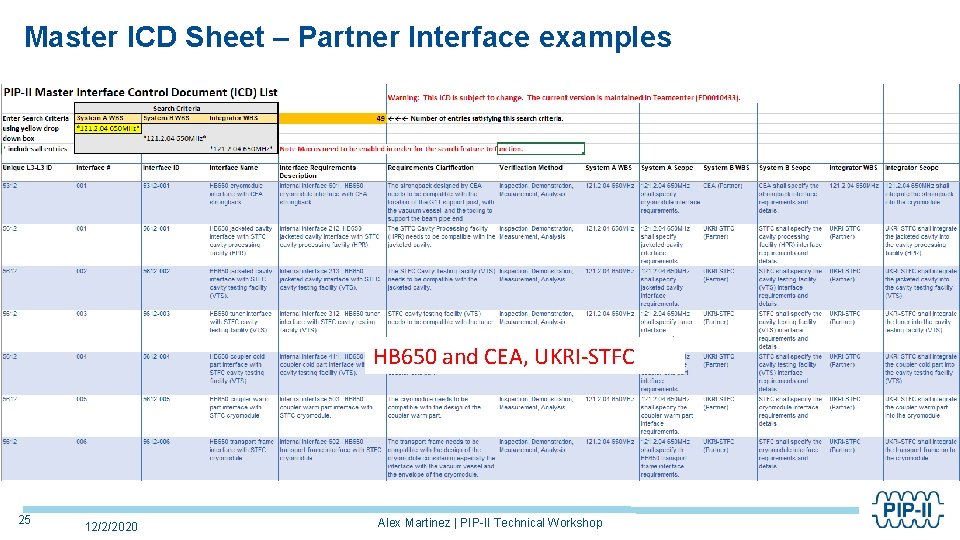

Master ICD Sheet – Partner Interface examples HB 650 and CEA, UKRI-STFC 25 12/2/2020 Alex Martinez | PIP-II Technical Workshop

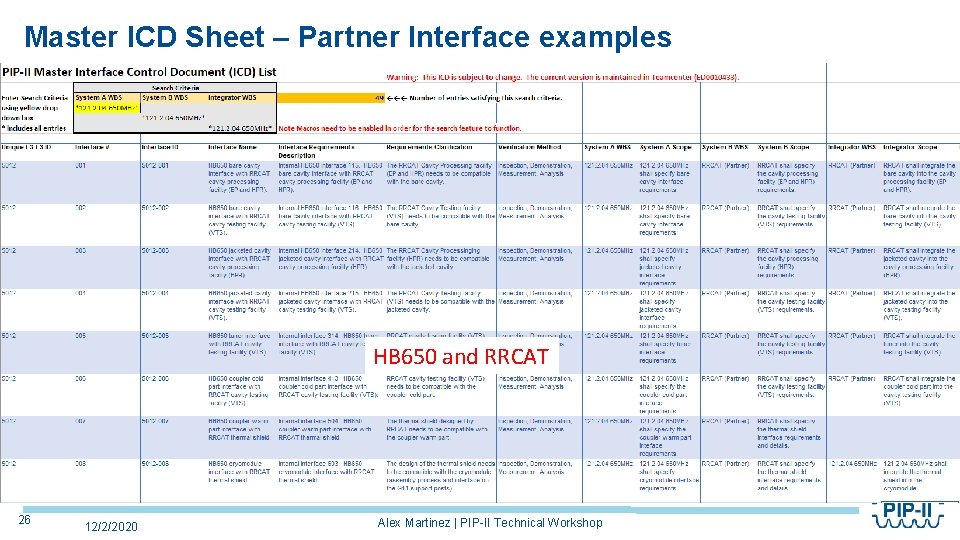

Master ICD Sheet – Partner Interface examples HB 650 and RRCAT 26 12/2/2020 Alex Martinez | PIP-II Technical Workshop

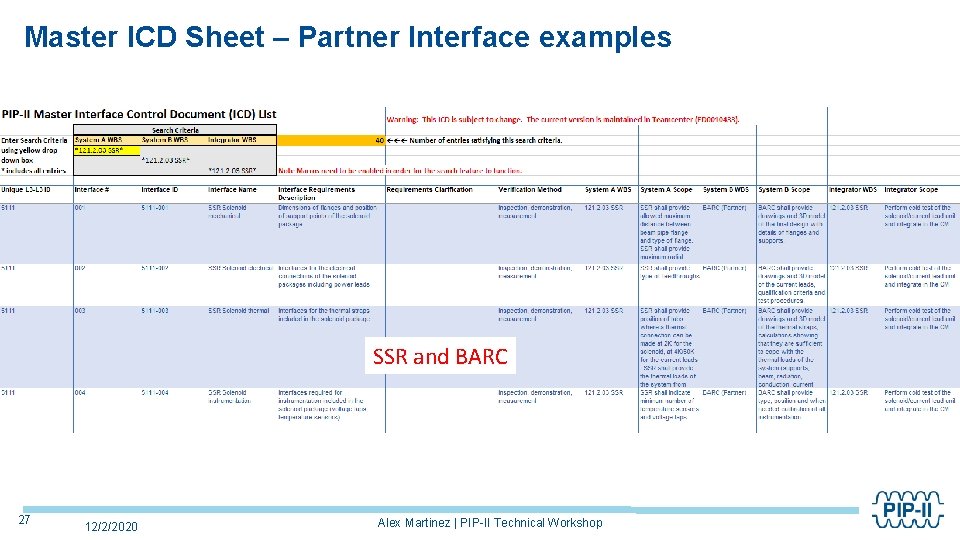

Master ICD Sheet – Partner Interface examples SSR and BARC 27 12/2/2020 Alex Martinez | PIP-II Technical Workshop
