Piezoelectric crystals Optical axis Z Mechanical axis Y

Piezoelectric crystals Optical axis Z Mechanical axis Y Electrical axis X Plate with Xcutting Quartz KNT (Seignette salt)

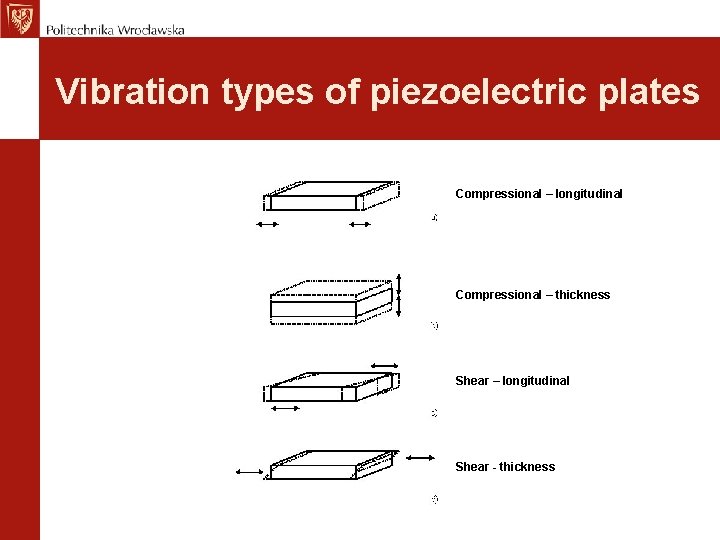

Vibration types of piezoelectric plates Compressional – longitudinal Compressional – thickness Shear – longitudinal Shear - thickness

Piezoelectric materials • • • acid amonium phosphate (ADP) Seignette-Rochelle’s salt (KNT) barian titanete (BAT) lead titanete zirconato (PZT) polymers vinylidene polyfluoride

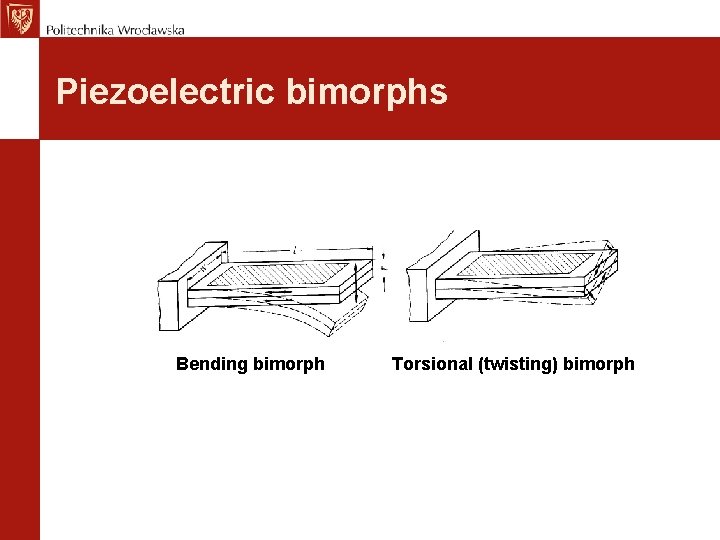

Piezoelectric bimorphs Bending bimorph Torsional (twisting) bimorph

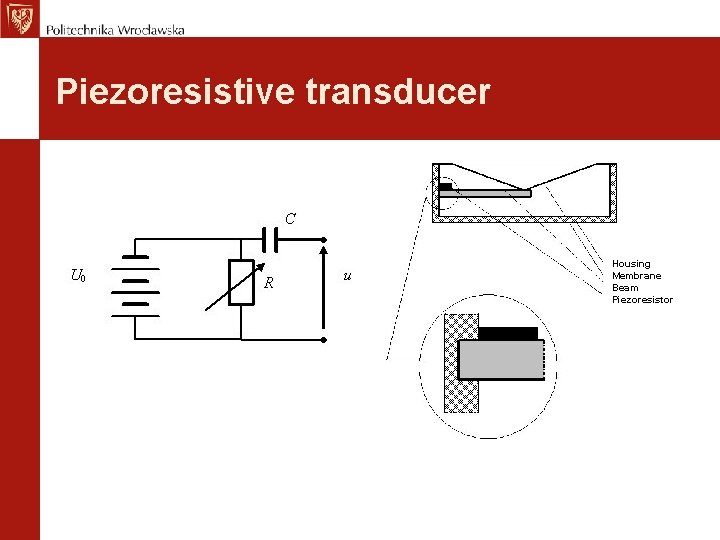

Piezoresistive transducer Housing Membrane Beam Piezoresistor

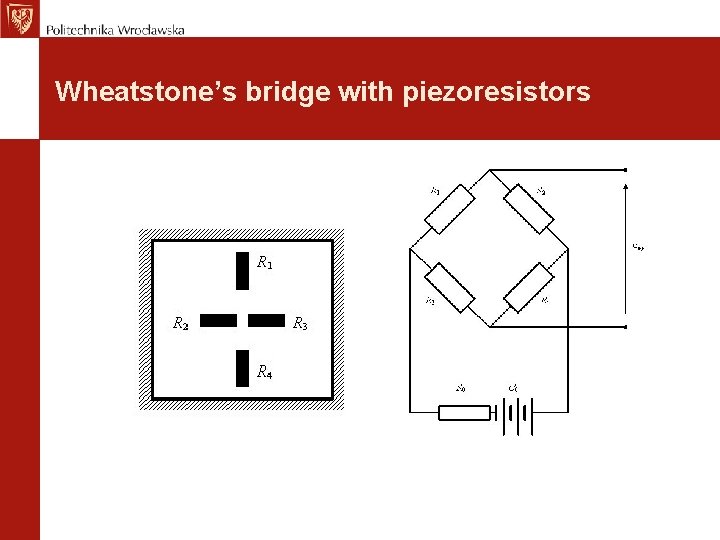

Wheatstone’s bridge with piezoresistors

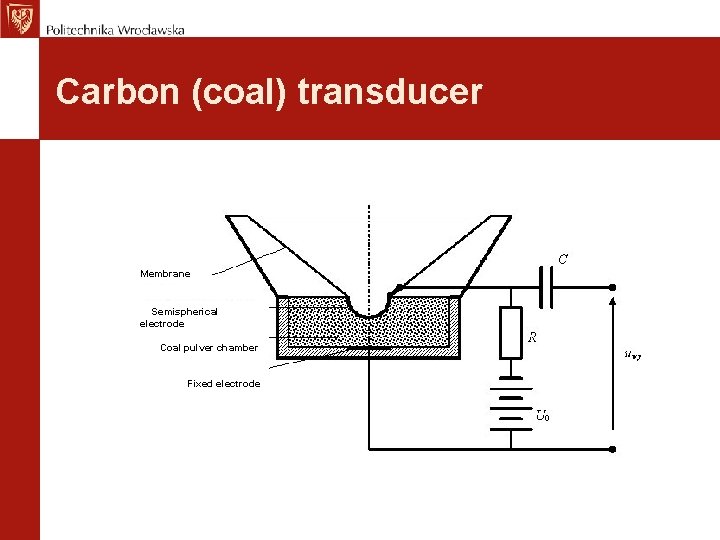

Carbon (coal) transducer Membrane Semispherical electrode Coal pulver chamber Fixed electrode

ELECTROACOUSTICS PART IV MICROPHONES

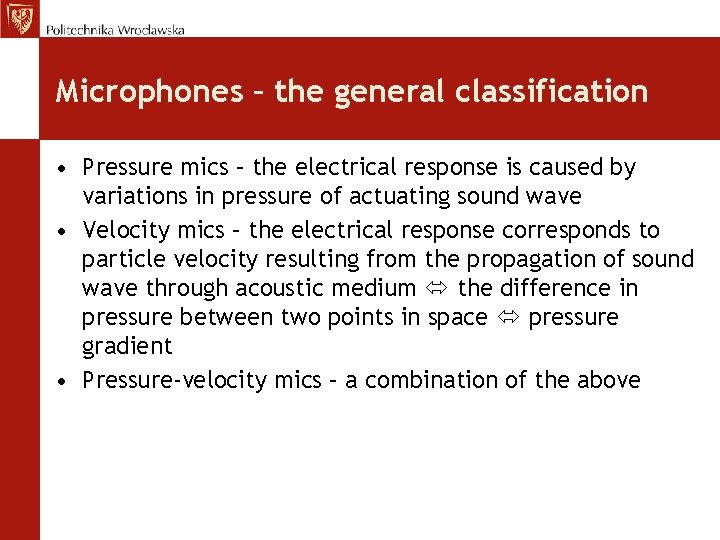

Microphones – the general classification • Pressure mics – the electrical response is caused by variations in pressure of actuating sound wave • Velocity mics – the electrical response corresponds to particle velocity resulting from the propagation of sound wave through acoustic medium the difference in pressure between two points in space pressure gradient • Pressure-velocity mics – a combination of the above

Microphones • - Pressure microphones carbon mics condenser mics piezoelectric mics moving conductor mics (dynamic – moving coil)

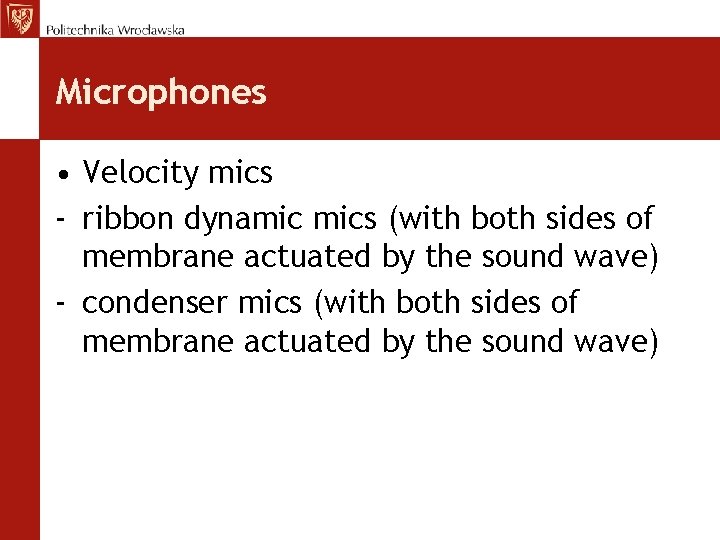

Microphones • Velocity mics - ribbon dynamic mics (with both sides of membrane actuated by the sound wave) - condenser mics (with both sides of membrane actuated by the sound wave)

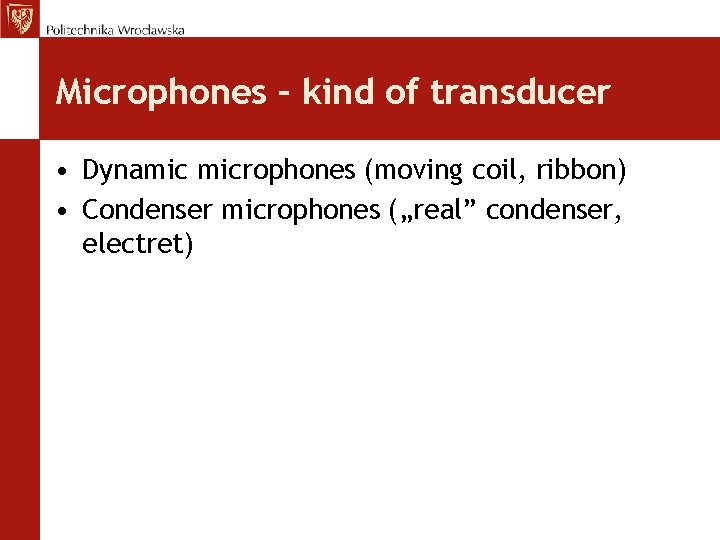

Microphones – kind of transducer • Dynamic microphones (moving coil, ribbon) • Condenser microphones („real” condenser, electret)

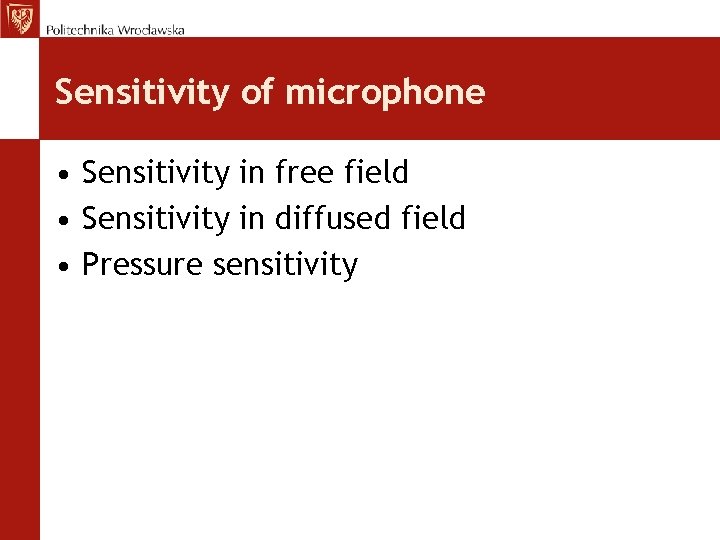

Sensitivity of microphone • Sensitivity in free field • Sensitivity in diffused field • Pressure sensitivity

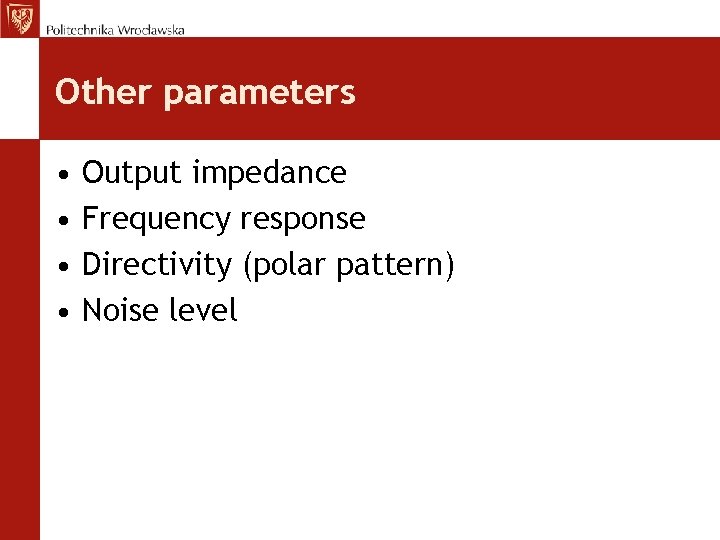

Other parameters • • Output impedance Frequency response Directivity (polar pattern) Noise level

Pressure microphones

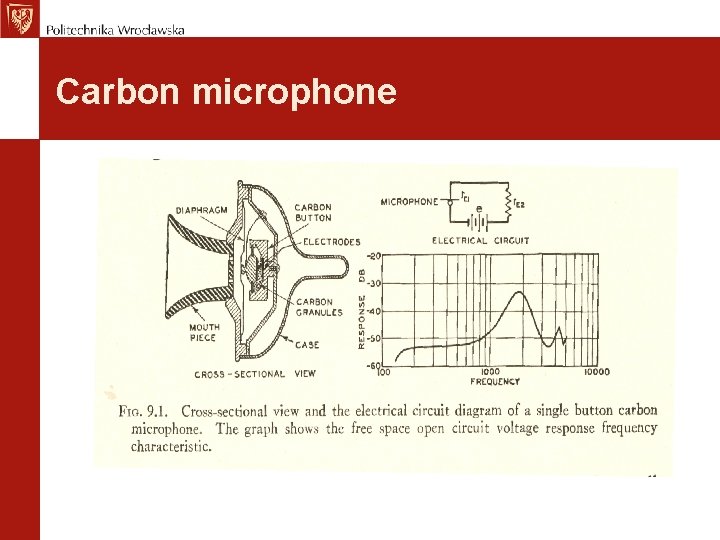

Carbon microphone

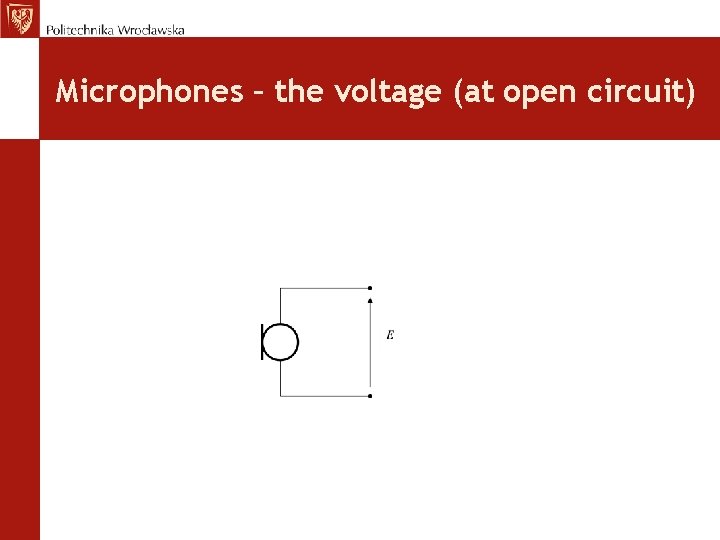

Microphones – the voltage (at open circuit)

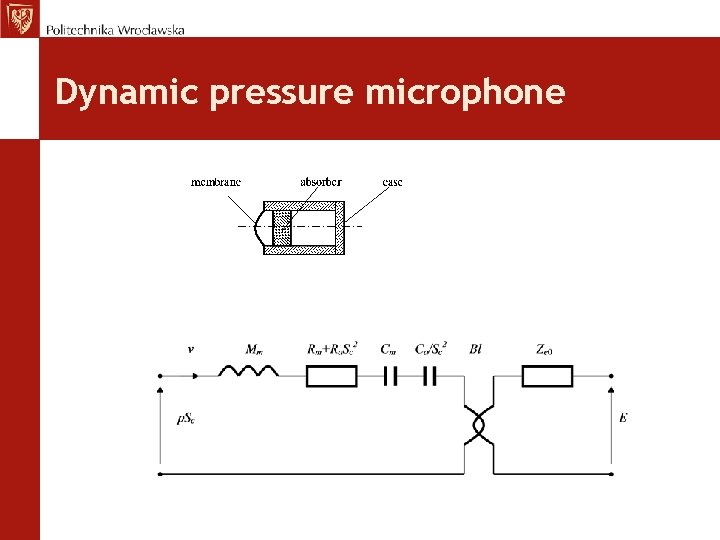

Dynamic pressure microphone

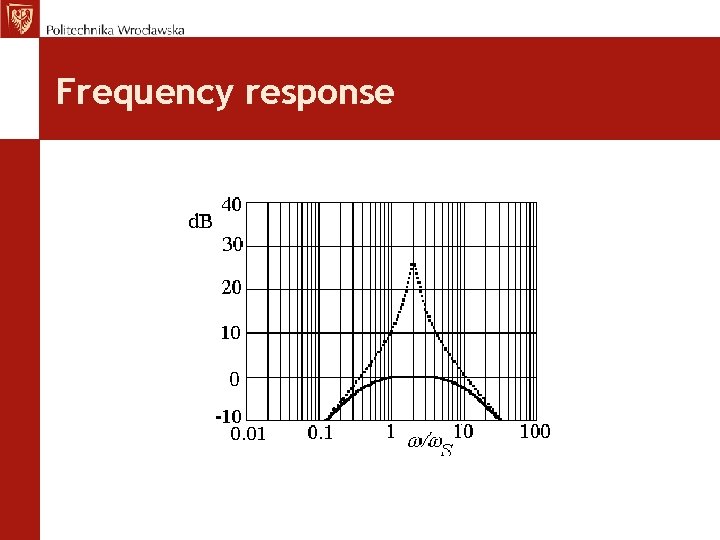

Frequency response

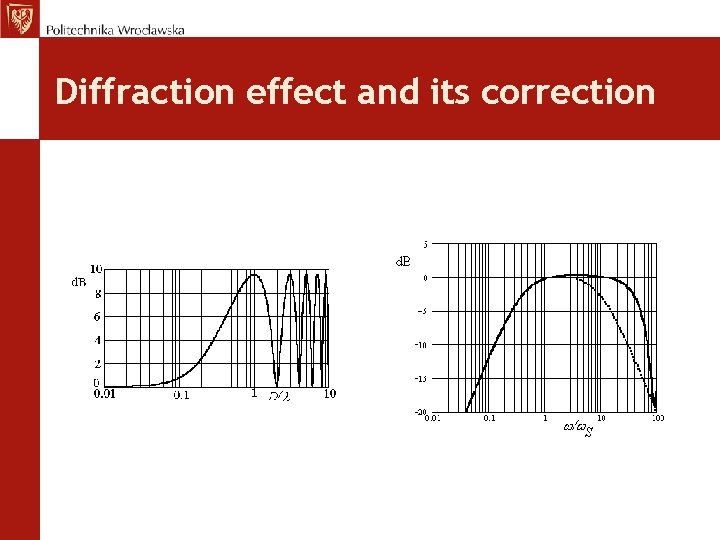

Diffraction effect and its correction

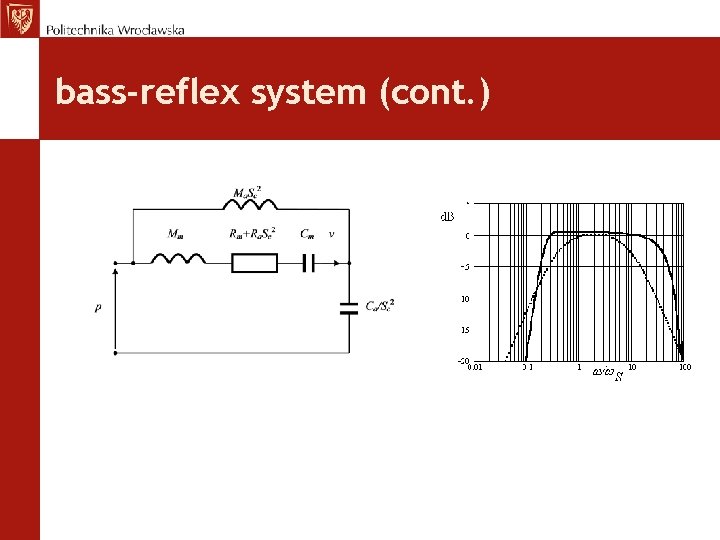

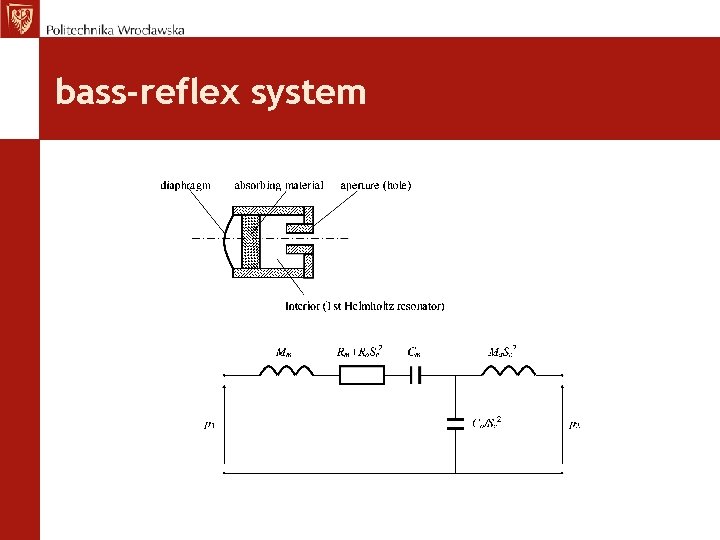

bass-reflex system

bass-reflex system (cont. )

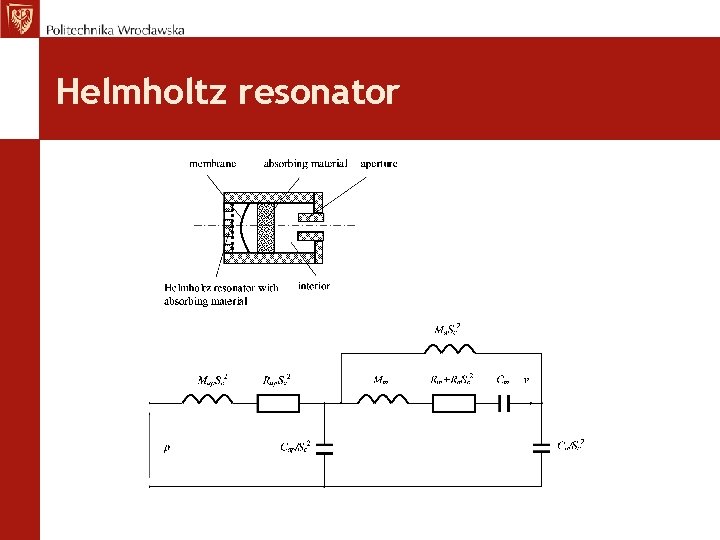

Helmholtz resonator

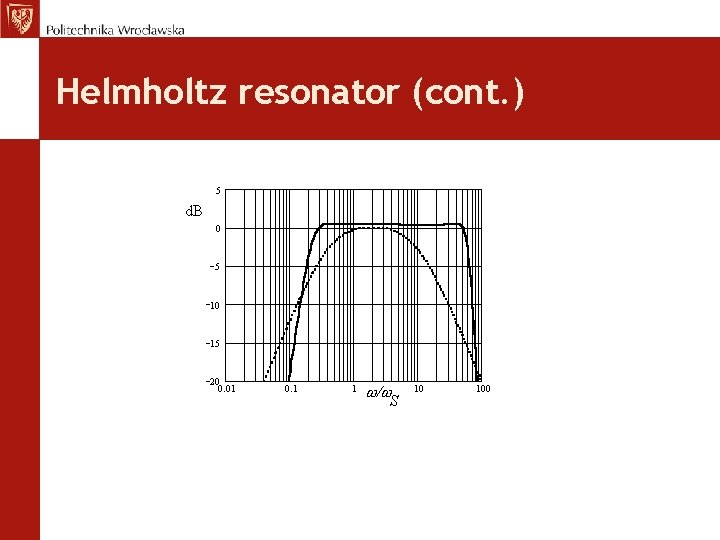

Helmholtz resonator (cont. )

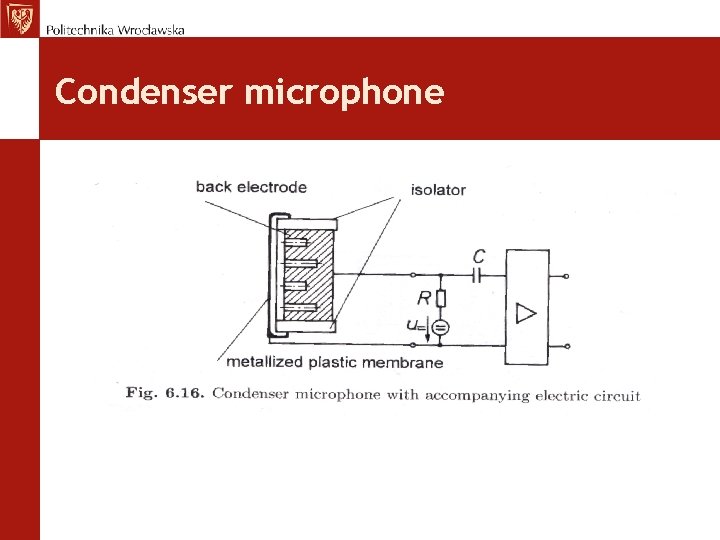

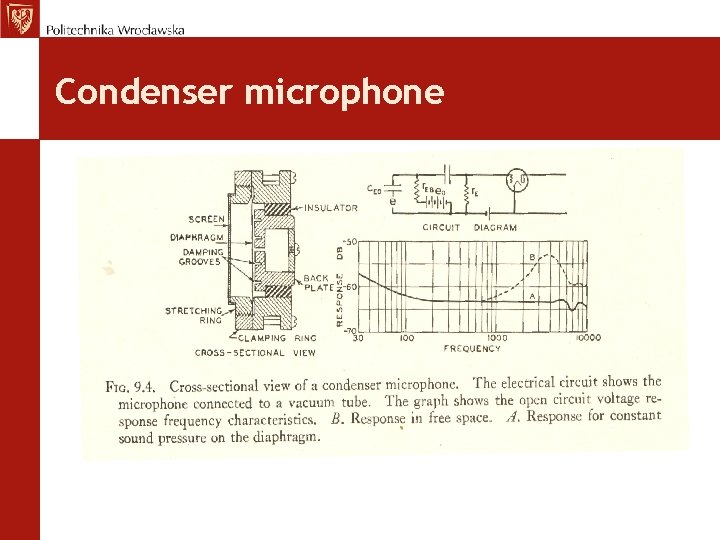

Condenser microphone

Condenser microphone

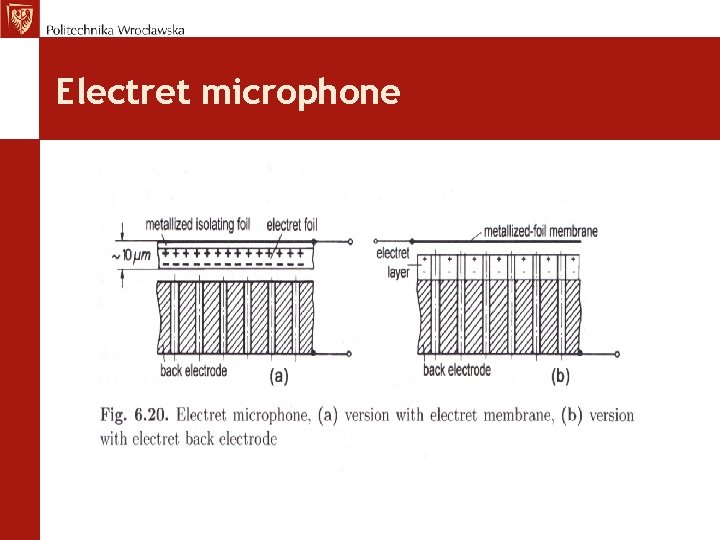

Electret microphone

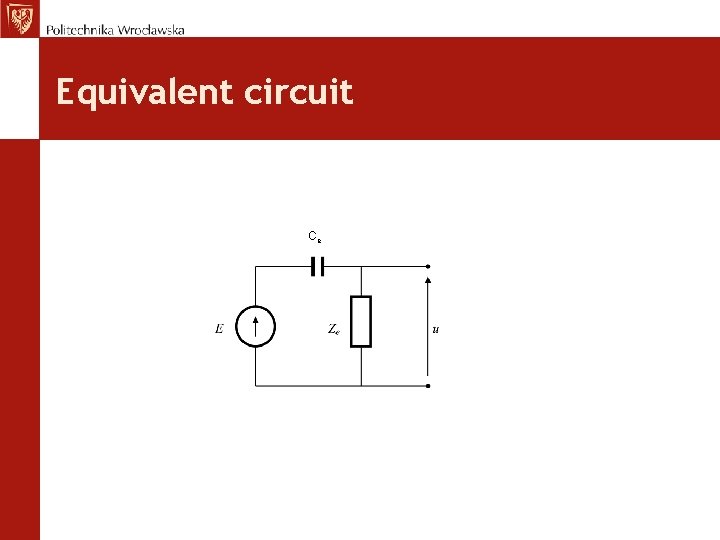

Equivalent circuit Ce

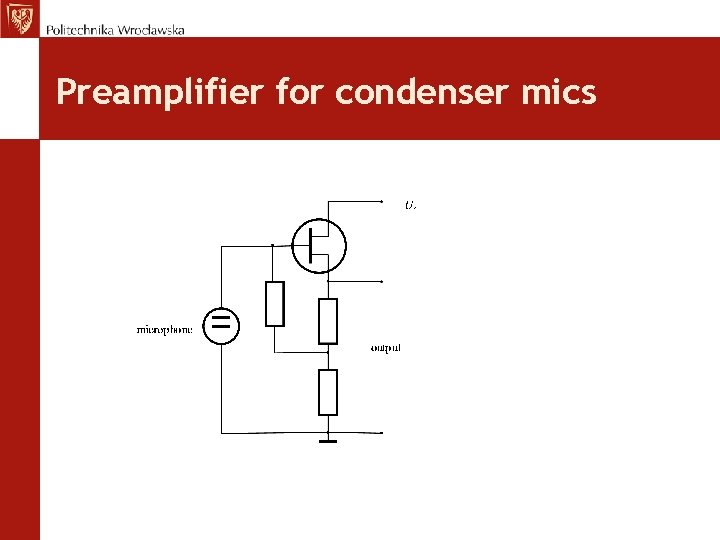

Preamplifier for condenser mics

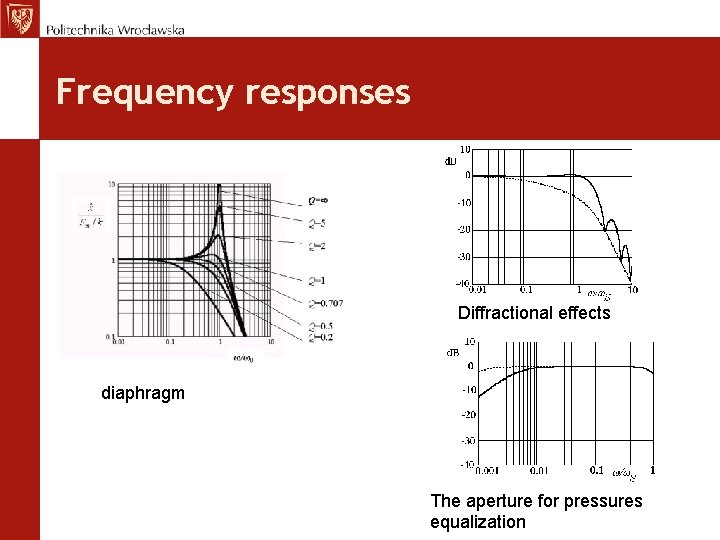

Frequency responses Diffractional effects diaphragm The aperture for pressures equalization

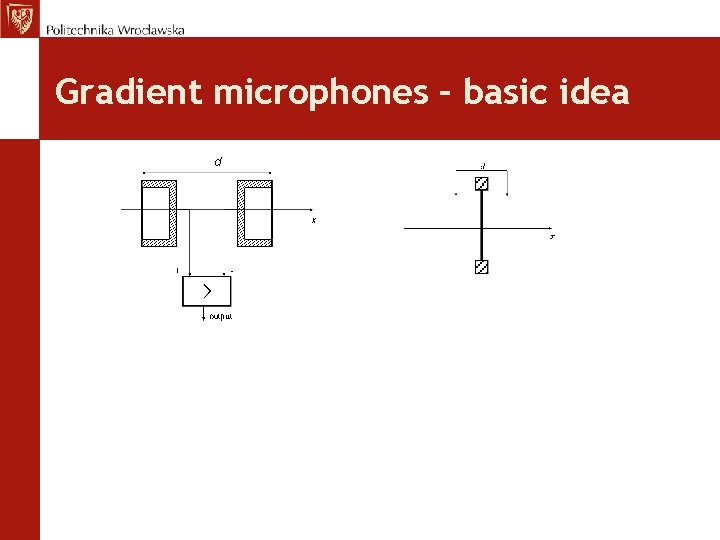

Gradient microphones – basic idea d

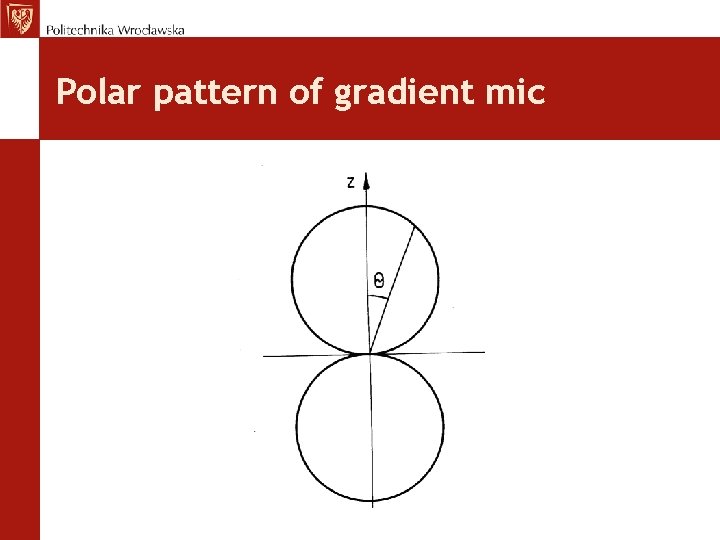

Polar pattern of gradient mic

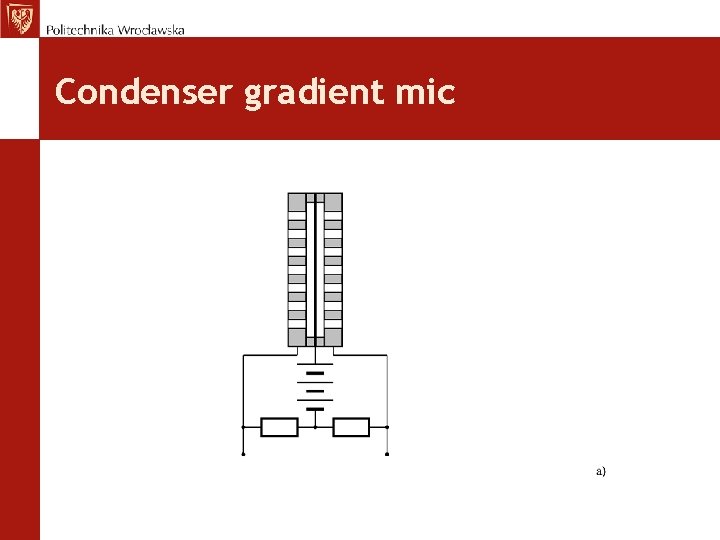

Condenser gradient mic

Equivalent circuit

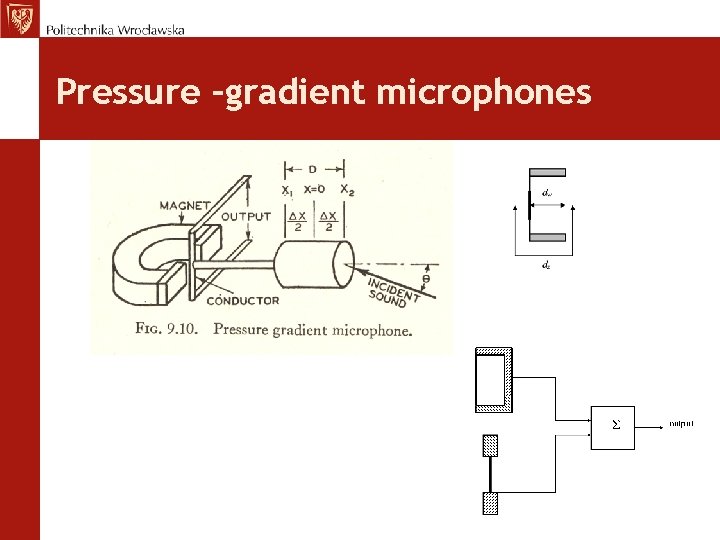

Pressure –gradient microphones

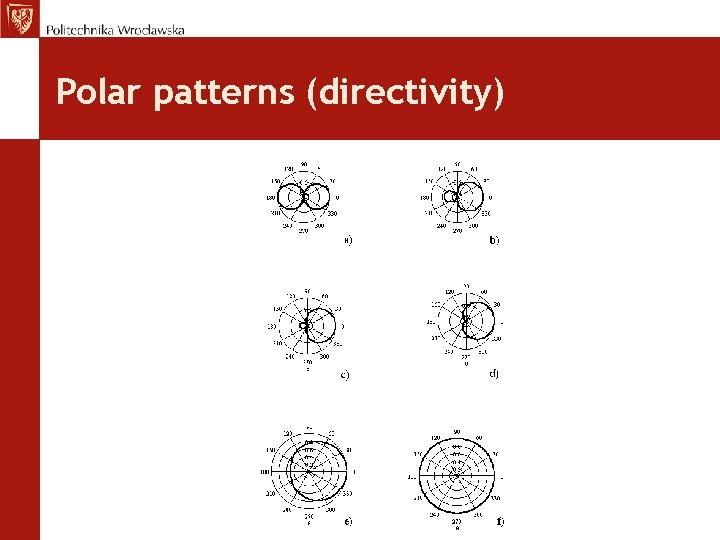

Polar patterns (directivity)

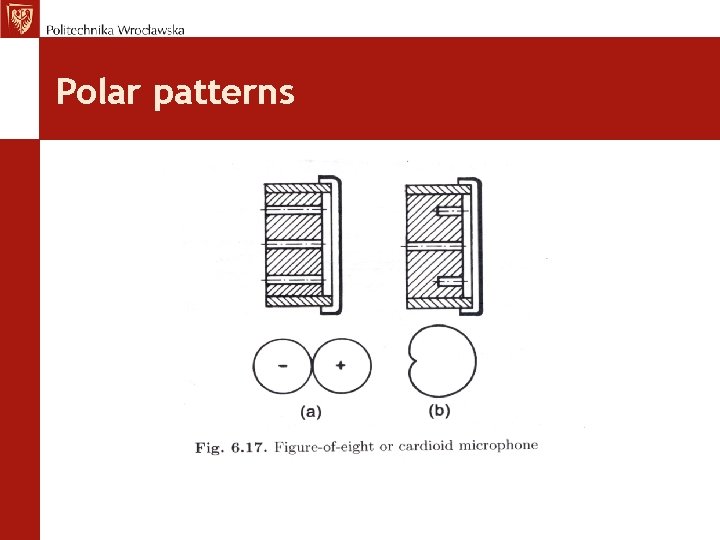

Polar patterns

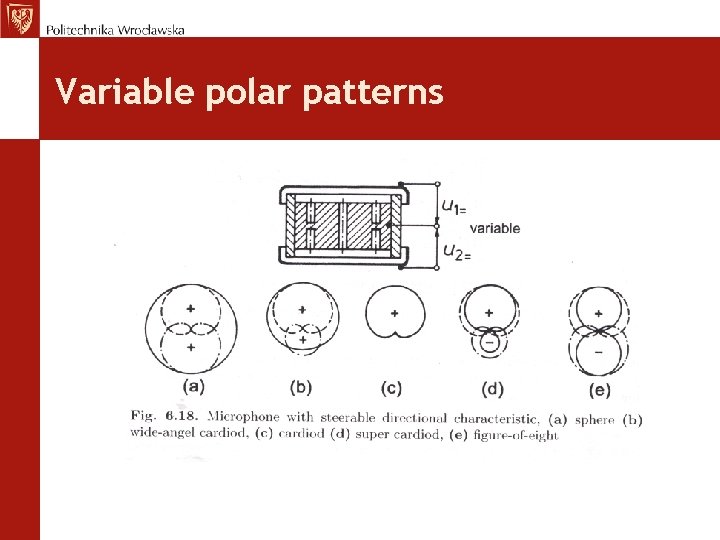

Variable polar patterns

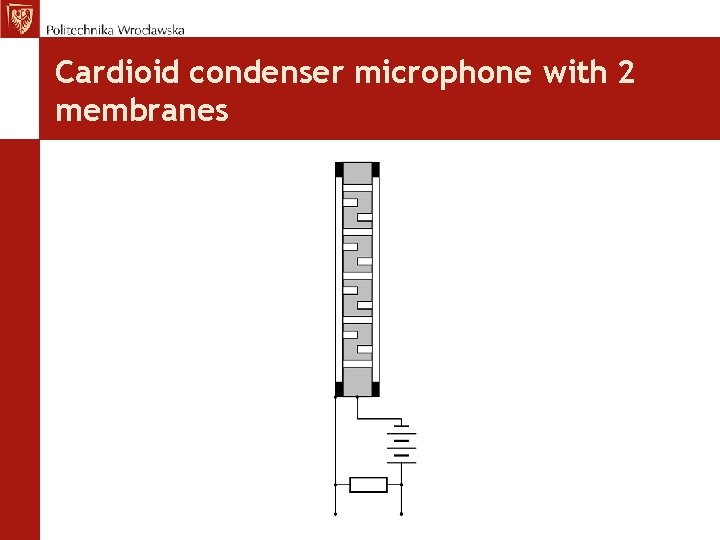

Cardioid condenser microphone with 2 membranes

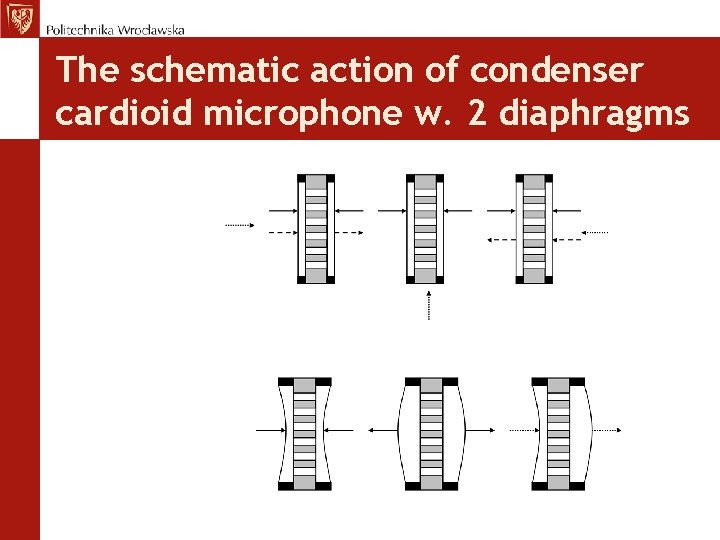

The schematic action of condenser cardioid microphone w. 2 diaphragms

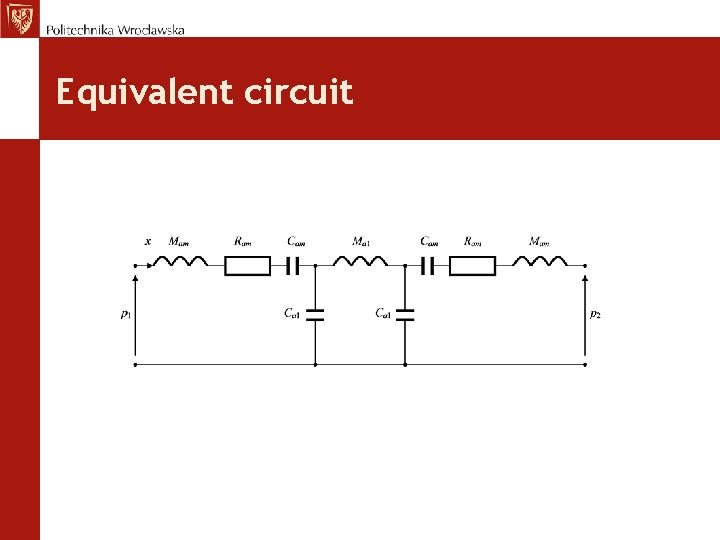

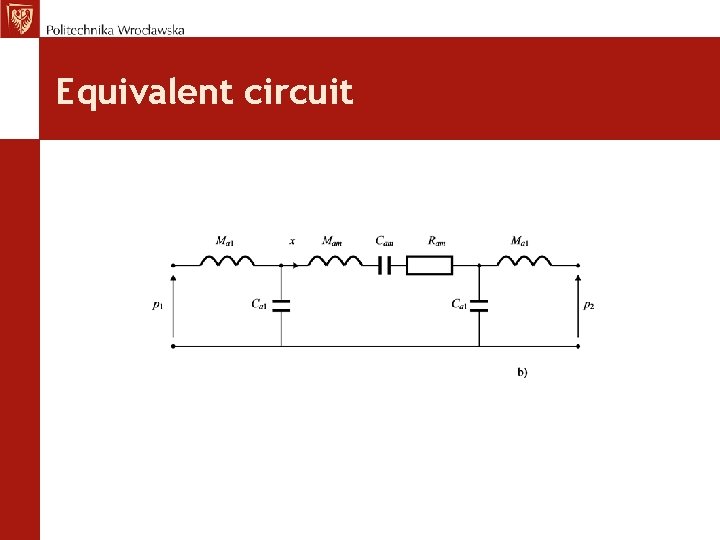

Equivalent circuit
