Pie Charts – Proportional Method – Foundation – GCSE Questions – AQA These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in 2 sizes.
Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.
AQA Foundation: June 2018 Paper 3, Q 19 1 AQA Foundation: June 2018 Paper 3, Q 19 In an election there were four candidates, J, K, L and M. Fran is drawing a pie chart to show the results. The sectors for J and K have been drawn. Votes 1 In an election there were four candidates, J, K, L and M. Fran is drawing a pie chart to show the results. The sectors for J and K have been drawn. Votes J J # # 126° K K 1 (a) Twice as many people voted for L as voted for M. Complete the pie chart. 1 (b) Altogether, 12 600 people voted. How many voted for K? Answer [3 marks] 1 (a) Twice as many people voted for L as voted for M. Complete the pie chart. [3 marks] [2 marks] 1 (b) Altogether, 12 600 people voted. How many voted for K? [2 marks] Answer

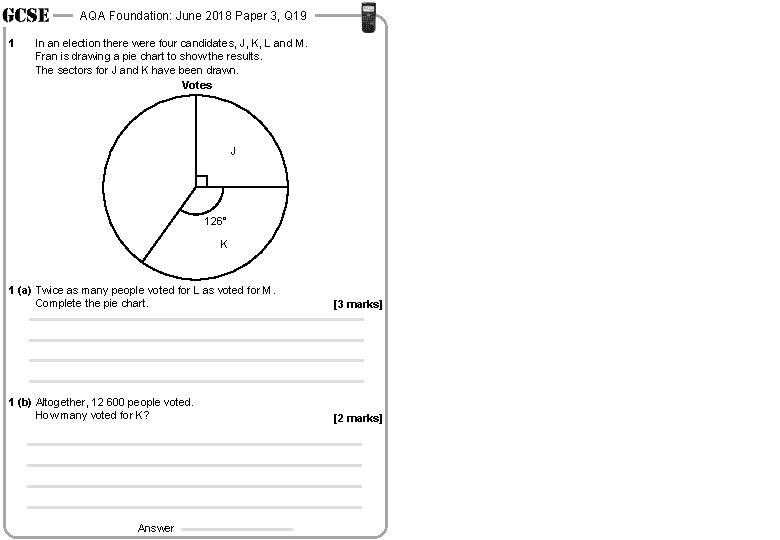

AQA Foundation: June 2018 Paper 3, Q 19 1 In an election there were four candidates, J, K, L and M. Fran is drawing a pie chart to show the results. The sectors for J and K have been drawn. Votes J # 126° K 1 (a) Twice as many people voted for L as voted for M. Complete the pie chart. [3 marks] 1 (b) Altogether, 12 600 people voted. How many voted for K? [2 marks] Answer
AQA Foundation: June 2018 Paper 3, Q 19 1 In an election there were four candidates, J, K, L and M. Fran is drawing a pie chart to show the results. The sectors for J and K have been drawn. Votes M L 48° 96° J # 126° L : M 2 : 1 = 3 1 (a) Twice as many people voted for L as voted for M. K Complete the pie chart. [3 marks] 360 – 90 – 126 = 144 ÷ 3 = 48° per part 1 (b) Altogether, 12 600 people voted. How many voted for K? L : M 96° : 48° [2 marks] 35 people for 1° 35 × 126 = 4410 Answer 4410
