Pie Charts Be able to construct a pie

Pie Charts Be able to construct a pie chart from a collection of data, using a protractor.

Makes of car in a school car park Make Frequency Cavalier Ford Rover Volvo 3 2 4 1 Construct a pie chart to show this information. A full circle is 360 o There a total of 3+2+4+1 = 10 cars We use 36 o to represent each car 360 o

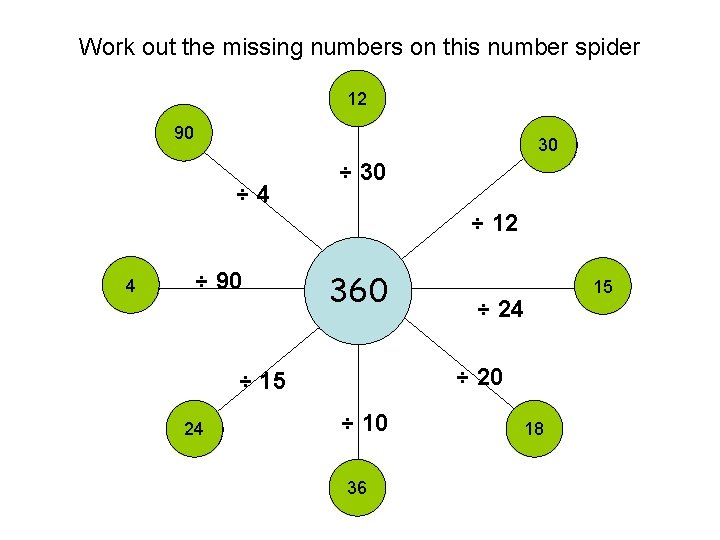

Work out the missing numbers on this number spider 12 90 30 ÷ 4 ÷ 30 ÷ 12 4 ÷ 90 360 ÷ 20 ÷ 15 24 ÷ 10 36 18 15

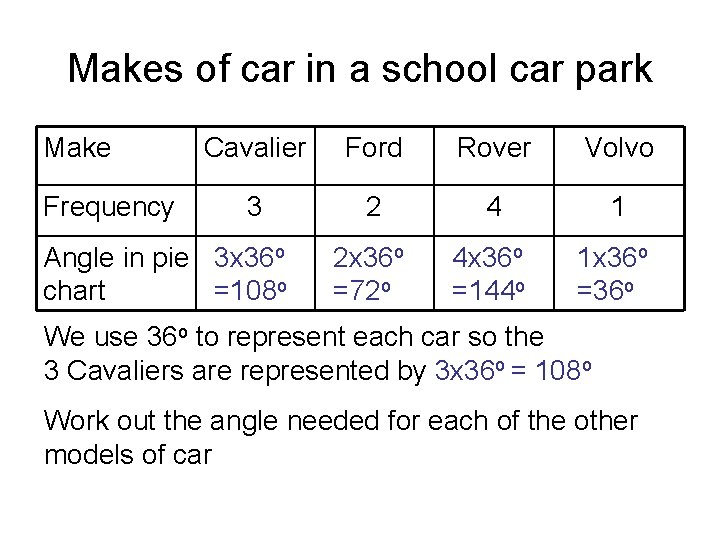

Makes of car in a school car park Make Frequency Cavalier Ford Rover Volvo 3 2 4 1 2 x 36 o =72 o 4 x 36 o =144 o 1 x 36 o =36 o Angle in pie 3 x 36 o chart =108 o We use 36 o to represent each car so the 3 Cavaliers are represented by 3 x 36 o = 108 o Work out the angle needed for each of the other models of car

Makes of car in a school car park Make Cavalier Ford Rover Volvo Angle 108 o 72 o 144 o 36 o Mark the centre of the pie and draw the circle. Draw a line from the centre to the edge Measure the first angle needed (108 o) Draw in the line and label the section Cavalier o 108

Makes of car in a school car park Make Cavalier Ford Rover Volvo Angle 108 o 72 o 144 o 36 o From this line measure the next angle, draw the line and label the section. Continue in this way Check that the last section has the correct angle and label it. 36 o Volvo Cavalier Rover 144 o 72 o Ford

Why? • Why do we use 36 o to represent 1 car? • What would happen if there were 20 cars? • What about 60 cars? Or 15 cars? If there were 20 cars in your survey, what angle would you use to represent 4 cars? 7 cars? 12 cars?

Construct Pie charts questions Q 1 A survey of how 30 pupils got to school Method Frequency Walk Cycle Car Bus 15 5 7 3 Q 2 How Cameroon spent his £ 40 birthday money How Amount Games £ 6 Clothes £ 19 Books £ 9 Q 3 Who is your favourite Telly-Tubby survey. Telly. Tinky. Dipsy La-La Tubby Winky Frequency 12 20 18 Cinema £ 6 Po 40

Interpreting Pie Charts 20 pupils in class 3 B travel to school. From the chart find the number of pupils who travel by each method. Walk = Cycle = Bus =

180 boys in year 5 chose their favourite sport. From the chart find how many chose each sport.

300 passengers boarded a train in London. From the chart find how many are travelling to each destination.

150 packets of crisps were sold from a vending machine. From the chart find the number for each flavour. Find also the percentage for each.

Answers Sports: Football: 72, Rugby 40, Hockey 30 Cross Country 20, Squash 18 pupils. Passengers: Southampton 100, Bournemouth 75, Poole 50, Branksome 45, Parkstone 30. Crisps: Plain 60, Cheese & Onion 45, Salt & Vinegar 30, Prawn Cocktail 15
