PIDs and Symbols Chapter 02 PIDs and Symbols

P&IDs and Symbols Chapter 02 – P&IDs and Symbols EMEC 125

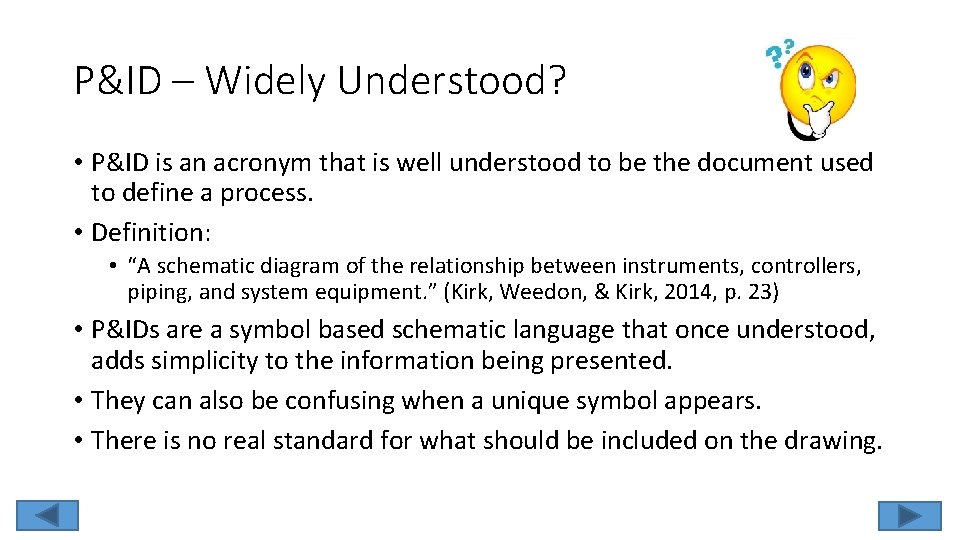

P&ID – Widely Understood? • P&ID is an acronym that is well understood to be the document used to define a process. • Definition: • “A schematic diagram of the relationship between instruments, controllers, piping, and system equipment. ” (Kirk, Weedon, & Kirk, 2014, p. 23) • P&IDs are a symbol based schematic language that once understood, adds simplicity to the information being presented. • They can also be confusing when a unique symbol appears. • There is no real standard for what should be included on the drawing.

P&ID Acronym • What does P&ID stand for? • The letter meanings are not universal. • ‘P’ could stand for “Piping” or it could stand for “Process”. • ‘I’ could represent “Instrumentation” or represent “Instrument”. • ‘D’ could mean “Drawing” or it could mean “Diagram”. • Which ever is used, including those not listed, we are all talking about the same document(s).

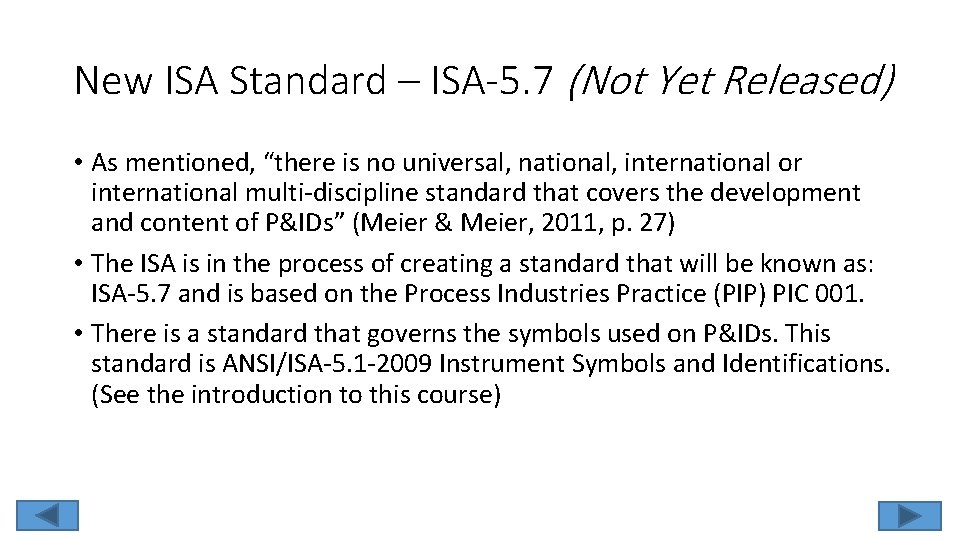

New ISA Standard – ISA-5. 7 (Not Yet Released) • As mentioned, “there is no universal, national, international or international multi-discipline standard that covers the development and content of P&IDs” (Meier & Meier, 2011, p. 27) • The ISA is in the process of creating a standard that will be known as: ISA-5. 7 and is based on the Process Industries Practice (PIP) PIC 001. • There is a standard that governs the symbols used on P&IDs. This standard is ANSI/ISA-5. 1 -2009 Instrument Symbols and Identifications. (See the introduction to this course)

What Comes From P&IDs? • Instrument Lists or Index • Documents specifications, acquisition and installation • Motor Lists • Size, horsepower, voltage • Piping • Line lists, sizes, service and purpose • Tanks & Vessels • Information about tanks and vessels • All this information is used to lay out equipment, start specifying and purchasing the necessary equipment.

A Few Acronyms • BPCS – Basic Process Control System “ 1. The control equipment that is installed to perform the normal regulatory functions for the process—for example, PID control and sequential control. [ANSI/ISA-91. 01 -1995] 2. A system that responds to input signals from the equipment under control and/or from an operator and generates output signals that cause the equipment under control to operate in the desired manner. Some examples include control of an exothermic reaction, antisurge control of a compressor, and fuel/ air controls in fired heaters. Also referred to as process control system. [ANSI/ISA-84. 01 -1996]” (International Society of Automation, 2003, p. 43)

A Few Acronyms • BPCS – Basic Process Control System • HLCS – High Level Control System “A system above that of BPCS” (Meier & Meier, 2011, p. 31)

A Few Acronyms • BPCS – Basic Process Control System • HLCS – High Level Control System • SIS – Safety Instrumented System “A system that is composed of sensors, logic solvers, and final control elements whose purpose is to take the process to a safe state when predetermined conditions are violated. Other terms commonly used include "emergency shutdown system" (ESS), "safety shutdown system" (SSD), and "safety interlock system. " [ANSI/ISA-84. 01 -1996] See emergency shutdown system (ESS) and safety shutdown (SSD). ” (International Society of Automation, 2003, p. 433)

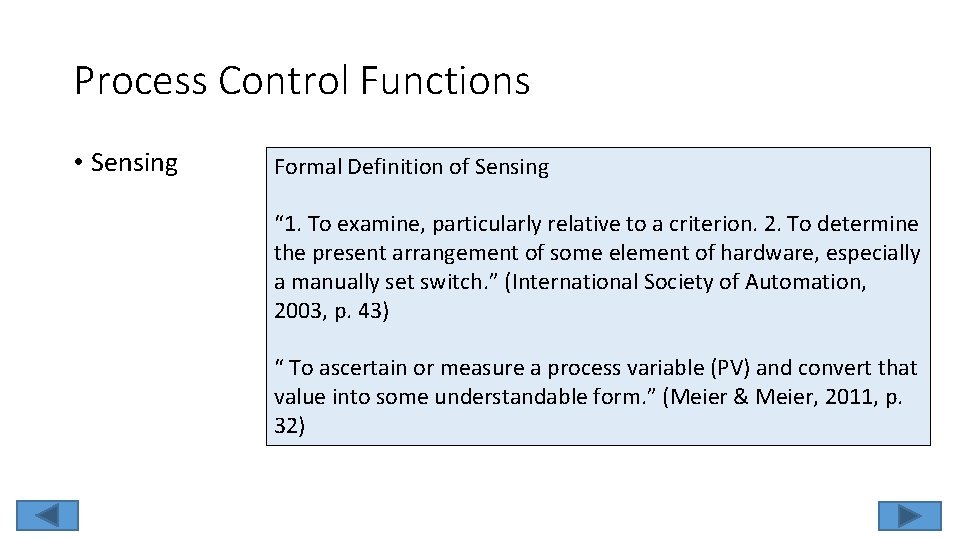

Process Control Functions • Sensing Formal Definition of Sensing “ 1. To examine, particularly relative to a criterion. 2. To determine the present arrangement of some element of hardware, especially a manually set switch. ” (International Society of Automation, 2003, p. 43) “ To ascertain or measure a process variable (PV) and convert that value into some understandable form. ” (Meier & Meier, 2011, p. 32)

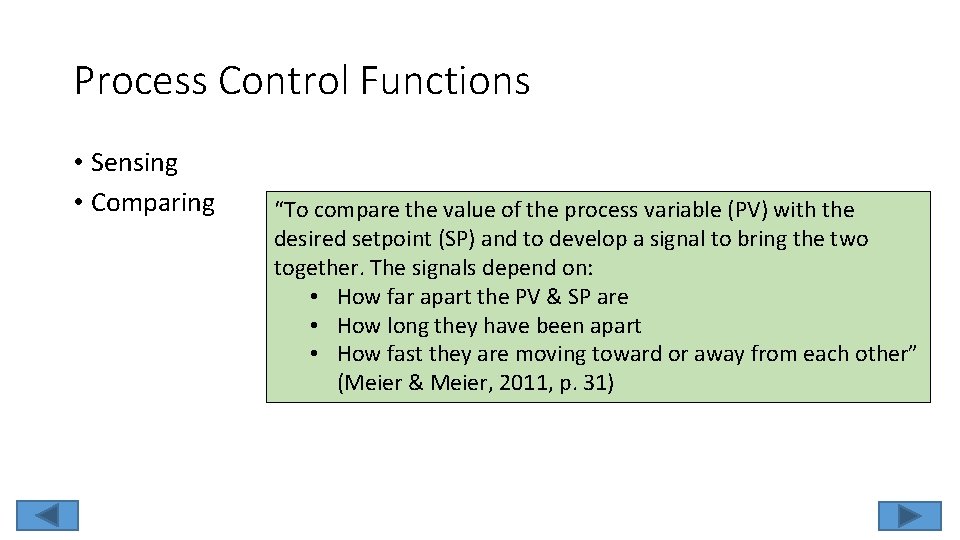

Process Control Functions • Sensing • Comparing “To compare the value of the process variable (PV) with the desired setpoint (SP) and to develop a signal to bring the two together. The signals depend on: • How far apart the PV & SP are • How long they have been apart • How fast they are moving toward or away from each other” (Meier & Meier, 2011, p. 31)

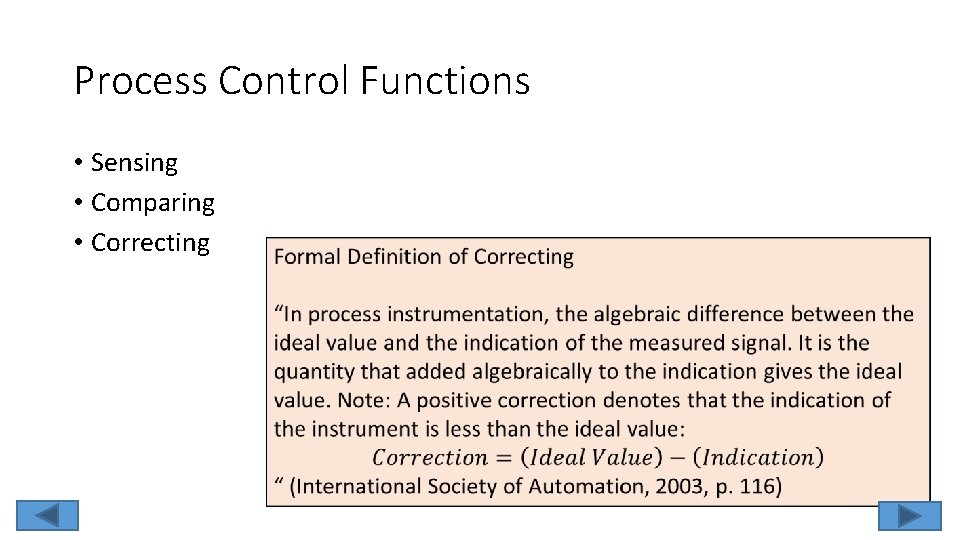

Process Control Functions • Sensing • Comparing • Correcting

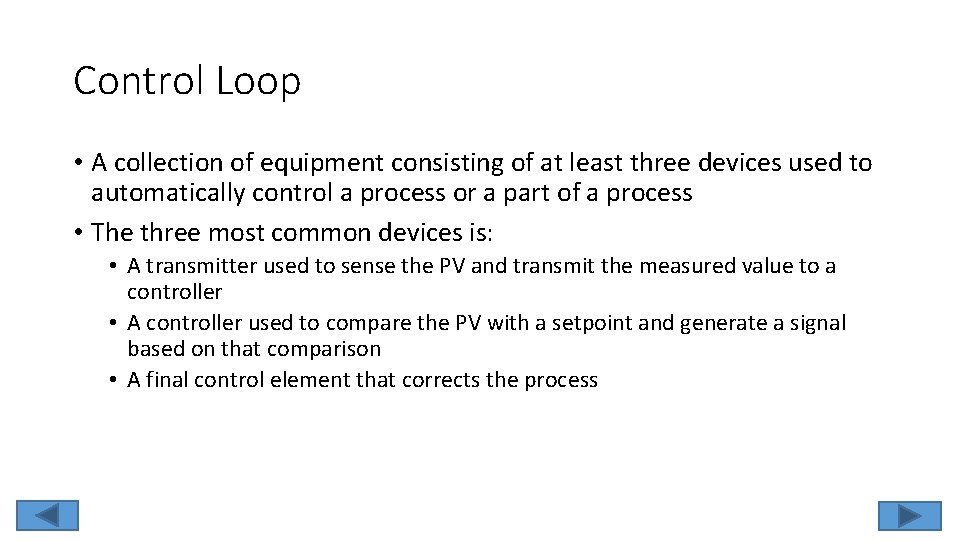

Control Loop • A collection of equipment consisting of at least three devices used to automatically control a process or a part of a process • The three most common devices is: • A transmitter used to sense the PV and transmit the measured value to a controller • A controller used to compare the PV with a setpoint and generate a signal based on that comparison • A final control element that corrects the process

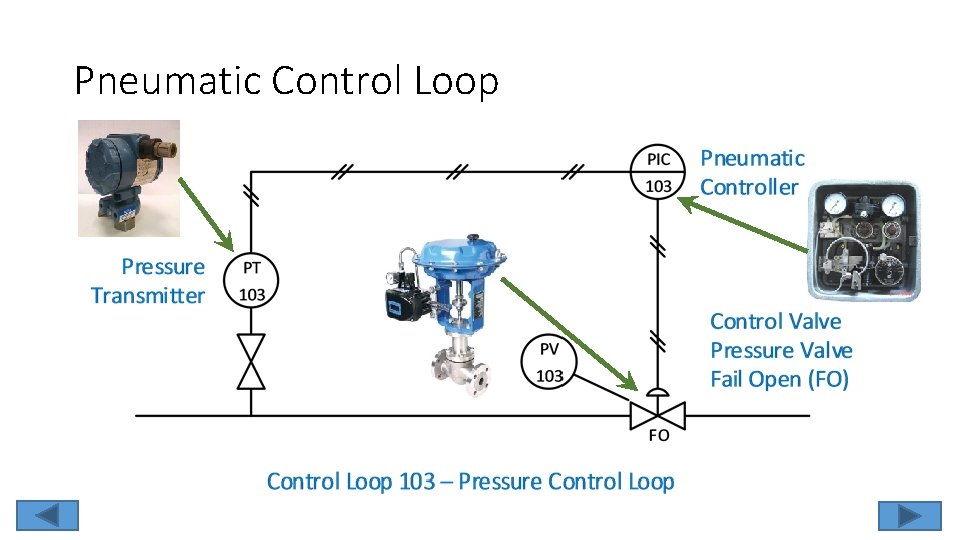

Pneumatic Control Loop

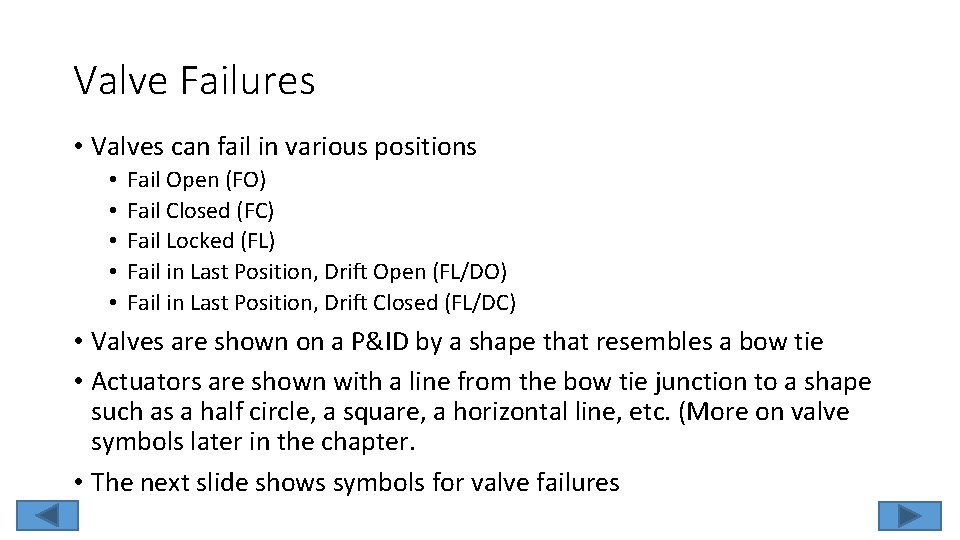

Valve Failures • Valves can fail in various positions • • • Fail Open (FO) Fail Closed (FC) Fail Locked (FL) Fail in Last Position, Drift Open (FL/DO) Fail in Last Position, Drift Closed (FL/DC) • Valves are shown on a P&ID by a shape that resembles a bow tie • Actuators are shown with a line from the bow tie junction to a shape such as a half circle, a square, a horizontal line, etc. (More on valve symbols later in the chapter. • The next slide shows symbols for valve failures

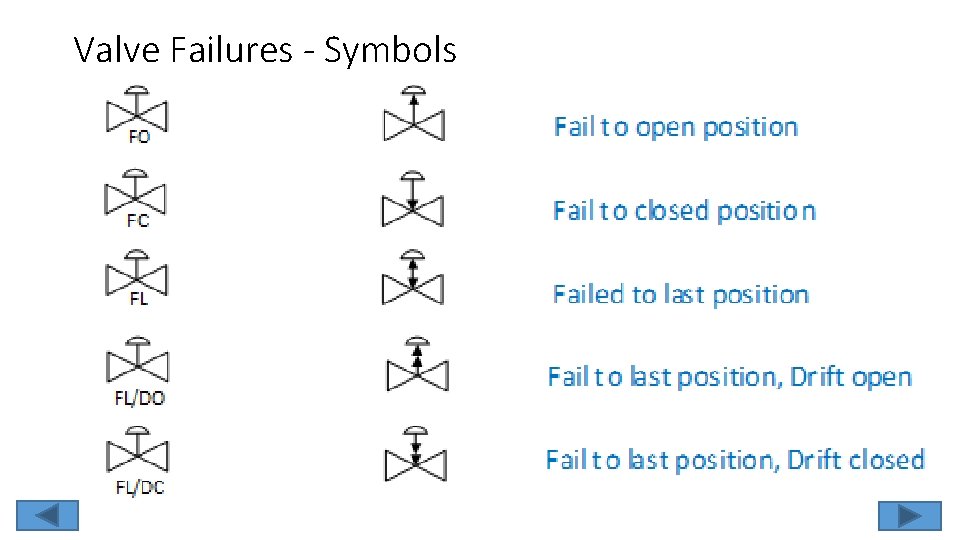

Valve Failures - Symbols

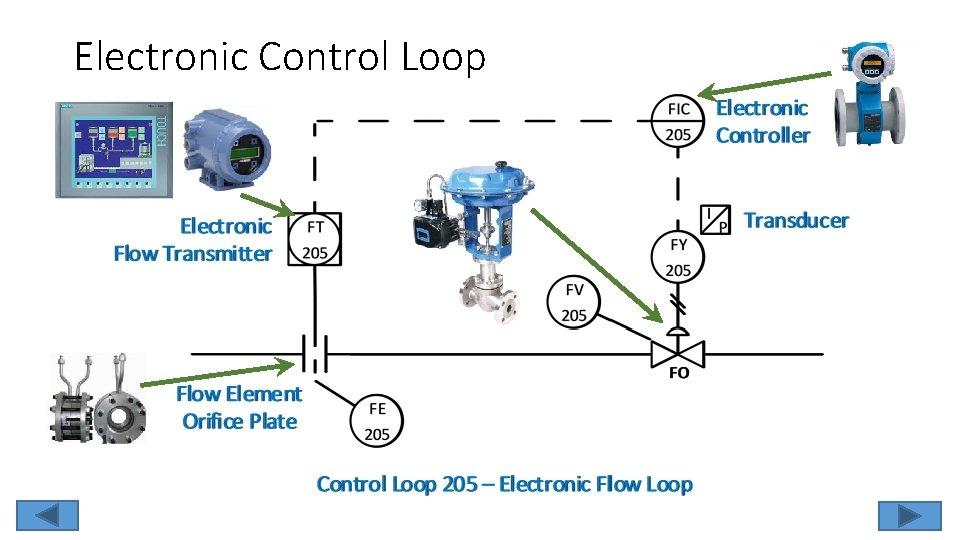

Electronic Control Loop

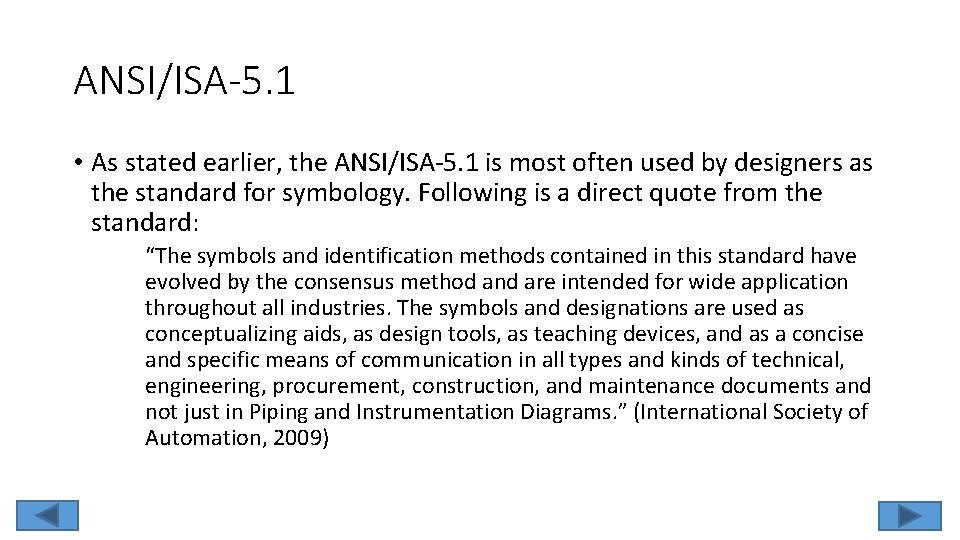

ANSI/ISA-5. 1 • As stated earlier, the ANSI/ISA-5. 1 is most often used by designers as the standard for symbology. Following is a direct quote from the standard: “The symbols and identification methods contained in this standard have evolved by the consensus method and are intended for wide application throughout all industries. The symbols and designations are used as conceptualizing aids, as design tools, as teaching devices, and as a concise and specific means of communication in all types and kinds of technical, engineering, procurement, construction, and maintenance documents and not just in Piping and Instrumentation Diagrams. ” (International Society of Automation, 2009)

Instrument Identification (Tag Numbers) • All instruments should have a metal, plastic or paper tag attached to them that states an instrument identification number; known as a “Tag Number”. • There are several numbering schemes; however, the ISA standard, ISA -RP-5. 1 (1949) superseded by ANSI/ISA-5. 1 -1984 (R 1992) superseded by ANSI/ISA-5. 1 -2009 is the most common. • Tag numbers are an alpha-numeric code where the: • Alpha portion should be no more than four upper case characters • Numeric portion should be know more than four digits. • The smaller the tag number, the better.

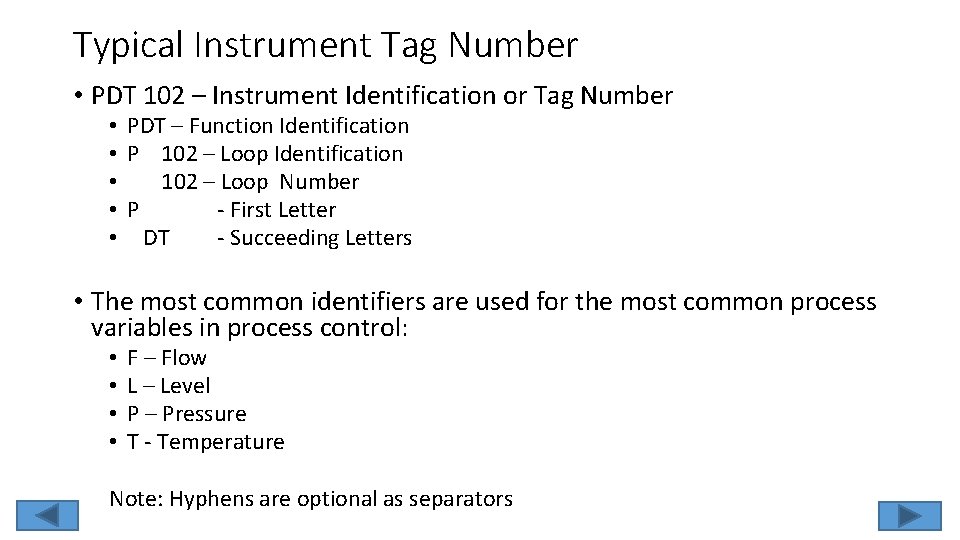

Typical Instrument Tag Number • PDT 102 – Instrument Identification or Tag Number • PDT – Function Identification • P 102 – Loop Identification • 102 – Loop Number • P - First Letter • DT - Succeeding Letters • The most common identifiers are used for the most common process variables in process control: • • F – Flow L – Level P – Pressure T - Temperature Note: Hyphens are optional as separators

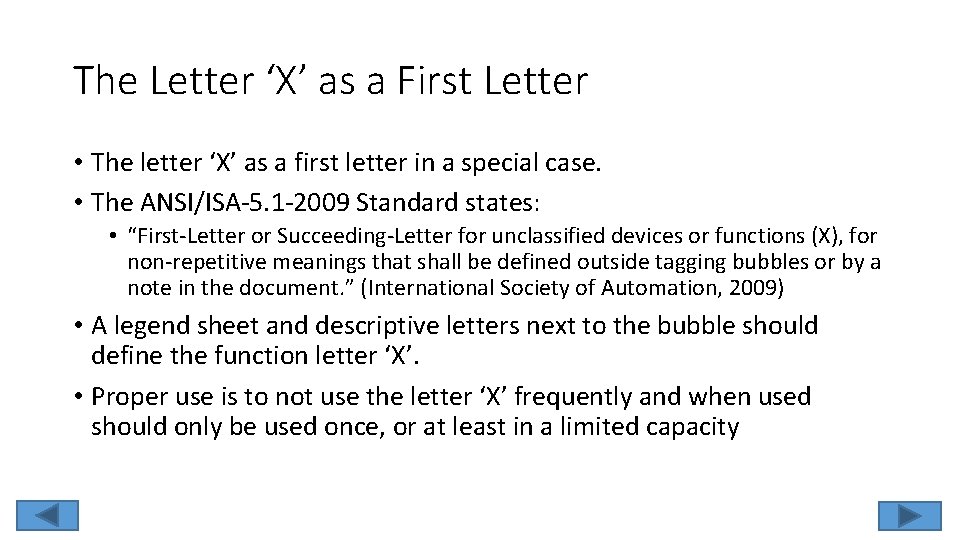

The Letter ‘X’ as a First Letter • The letter ‘X’ as a first letter in a special case. • The ANSI/ISA-5. 1 -2009 Standard states: • “First-Letter or Succeeding-Letter for unclassified devices or functions (X), for non-repetitive meanings that shall be defined outside tagging bubbles or by a note in the document. ” (International Society of Automation, 2009) • A legend sheet and descriptive letters next to the bubble should define the function letter ‘X’. • Proper use is to not use the letter ‘X’ frequently and when used should only be used once, or at least in a limited capacity

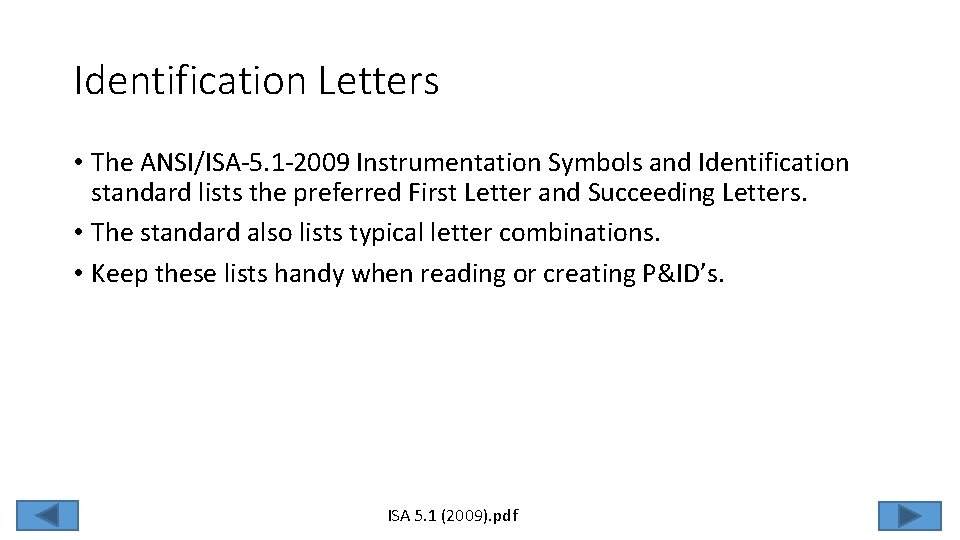

Identification Letters • The ANSI/ISA-5. 1 -2009 Instrumentation Symbols and Identification standard lists the preferred First Letter and Succeeding Letters. • The standard also lists typical letter combinations. • Keep these lists handy when reading or creating P&ID’s. ISA 5. 1 (2009). pdf

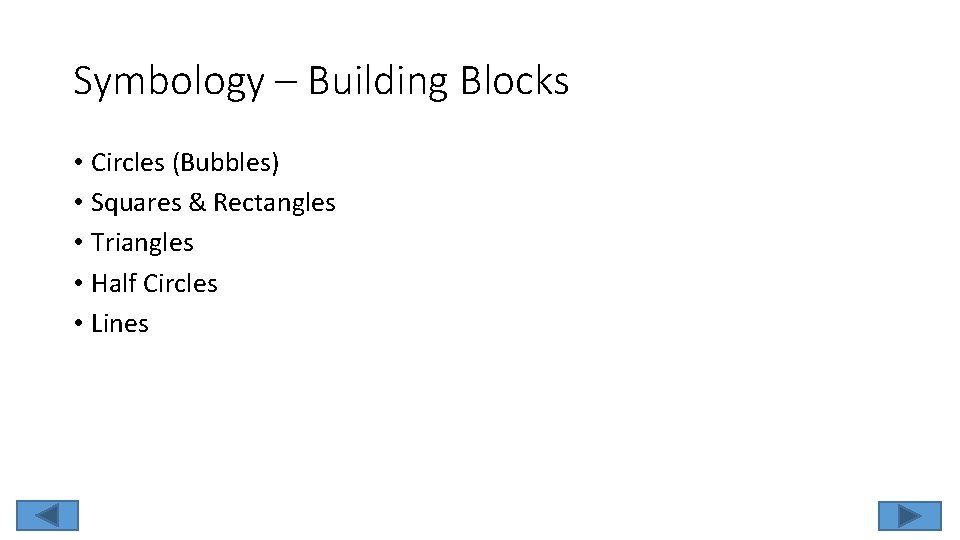

Symbology – Building Blocks • Circles (Bubbles) • Squares & Rectangles • Triangles • Half Circles • Lines

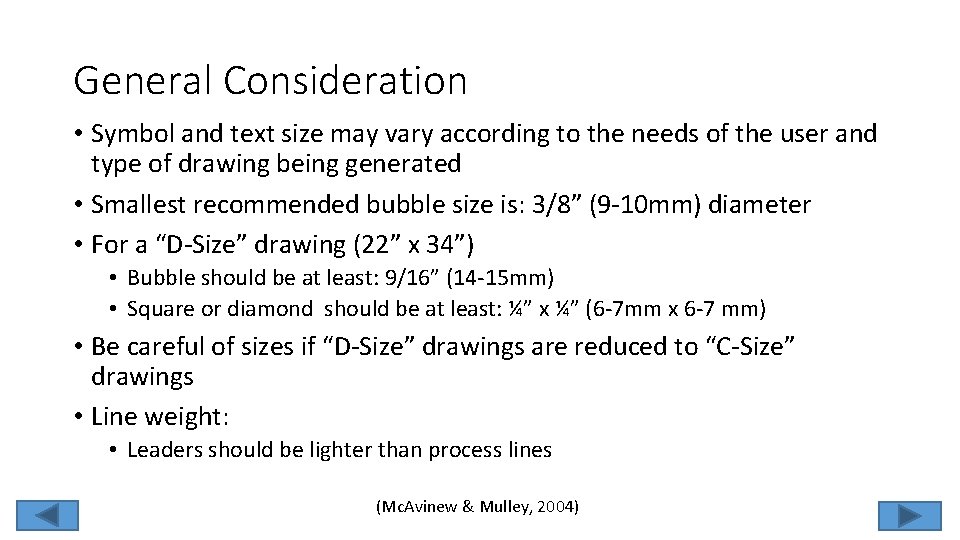

General Consideration • Symbol and text size may vary according to the needs of the user and type of drawing being generated • Smallest recommended bubble size is: 3/8” (9 -10 mm) diameter • For a “D-Size” drawing (22” x 34”) • Bubble should be at least: 9/16” (14 -15 mm) • Square or diamond should be at least: ¼” x ¼” (6 -7 mm x 6 -7 mm) • Be careful of sizes if “D-Size” drawings are reduced to “C-Size” drawings • Line weight: • Leaders should be lighter than process lines (Mc. Avinew & Mulley, 2004)

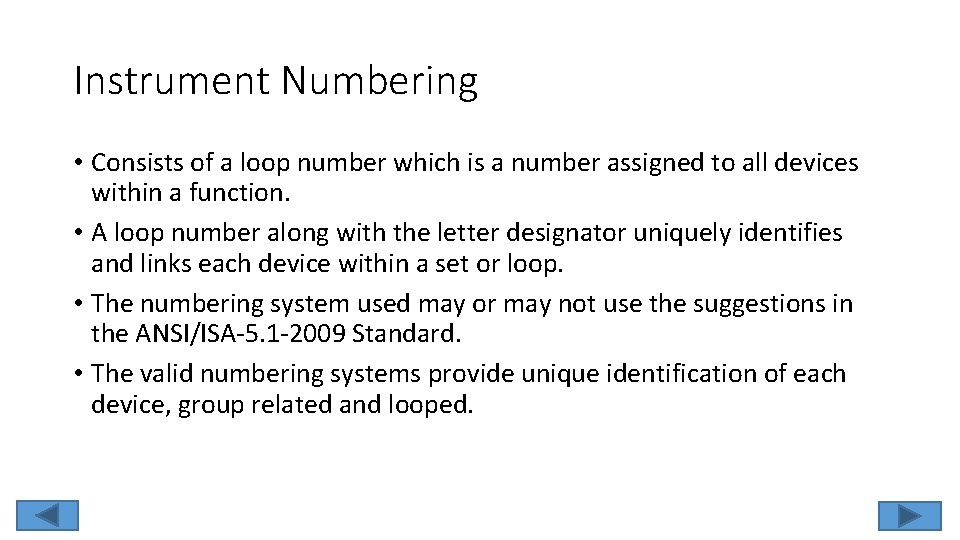

Instrument Numbering • Consists of a loop number which is a number assigned to all devices within a function. • A loop number along with the letter designator uniquely identifies and links each device within a set or loop. • The numbering system used may or may not use the suggestions in the ANSI/ISA-5. 1 -2009 Standard. • The valid numbering systems provide unique identification of each device, group related and looped.

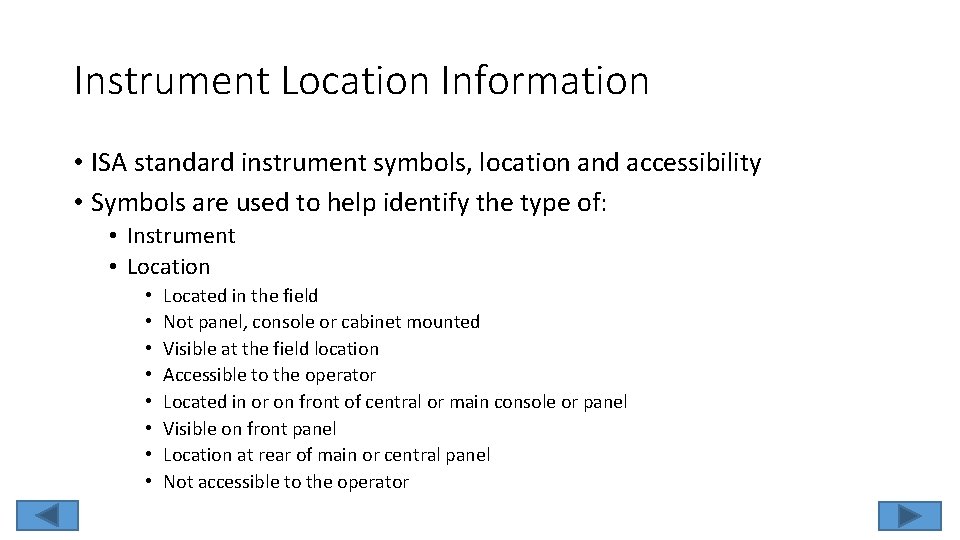

Instrument Location Information • ISA standard instrument symbols, location and accessibility • Symbols are used to help identify the type of: • Instrument • Location • • Located in the field Not panel, console or cabinet mounted Visible at the field location Accessible to the operator Located in or on front of central or main console or panel Visible on front panel Location at rear of main or central panel Not accessible to the operator

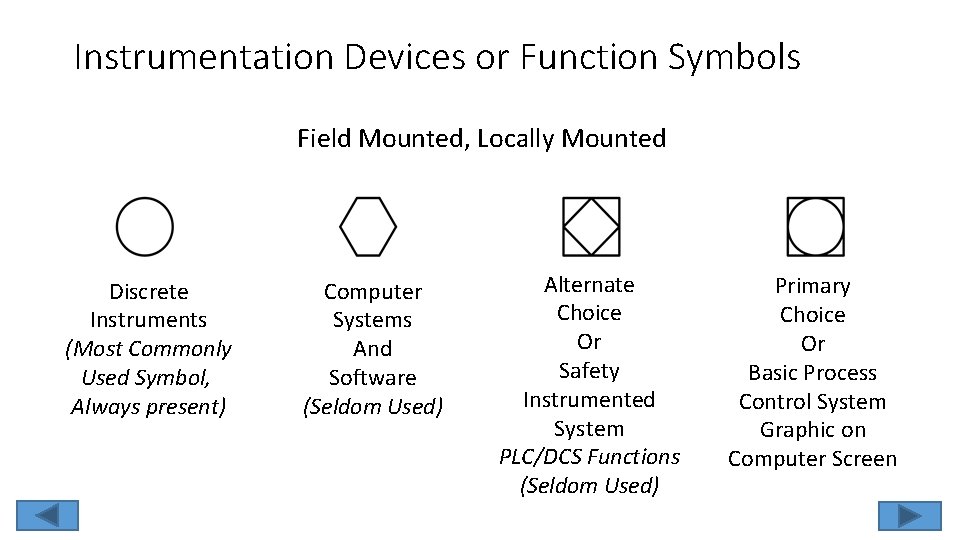

Instrumentation Devices or Function Symbols Field Mounted, Locally Mounted Discrete Instruments (Most Commonly Used Symbol, Always present) Computer Systems And Software (Seldom Used) Alternate Choice Or Safety Instrumented System PLC/DCS Functions (Seldom Used) Primary Choice Or Basic Process Control System Graphic on Computer Screen

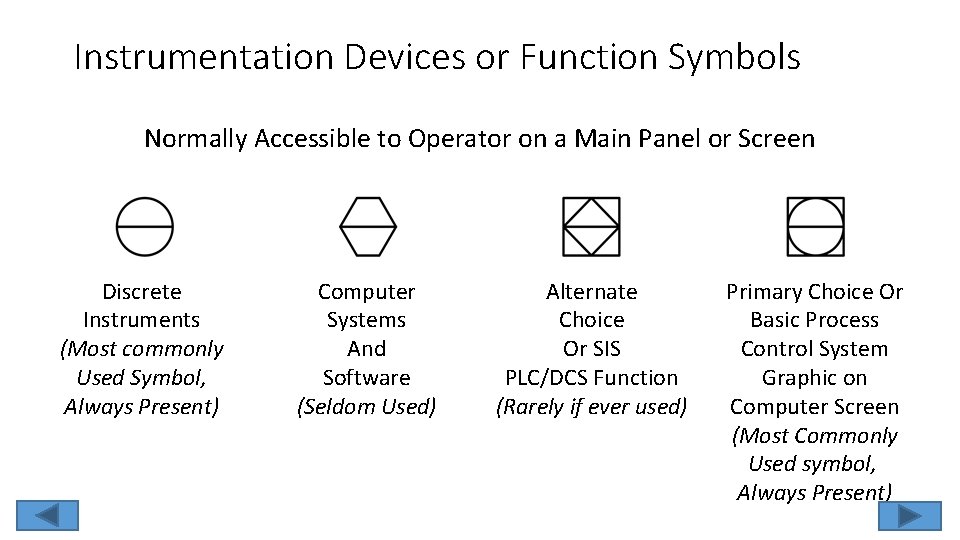

Instrumentation Devices or Function Symbols Normally Accessible to Operator on a Main Panel or Screen Discrete Instruments (Most commonly Used Symbol, Always Present) Computer Systems And Software (Seldom Used) Alternate Choice Or SIS PLC/DCS Function (Rarely if ever used) Primary Choice Or Basic Process Control System Graphic on Computer Screen (Most Commonly Used symbol, Always Present)

Instrumentation Devices and Function Symbols Normally inaccessible to the operator or behind-the-panel devices or functions Discrete Instruments (Not Usually Needed Unless There is a Good Reason) Computer Systems And Software (Rarely if Ever Used) Alternate Choice Or SIS (Rarely if Ever Used) Primary Choice Or Basic Process Control System Graphic on Computer Screen (Not Usually Needed Unless There is a Good Reason)

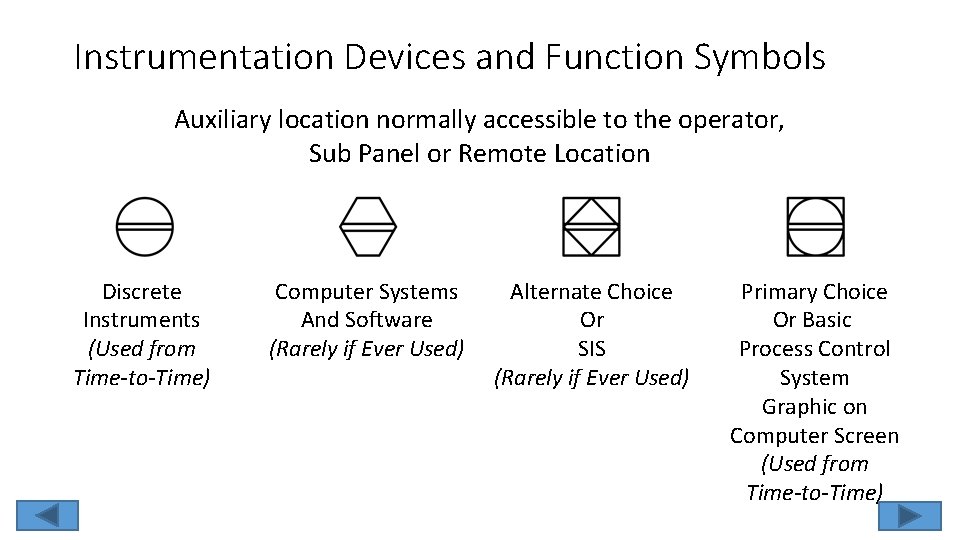

Instrumentation Devices and Function Symbols Auxiliary location normally accessible to the operator, Sub Panel or Remote Location Discrete Instruments (Used from Time-to-Time) Computer Systems And Software (Rarely if Ever Used) Alternate Choice Or SIS (Rarely if Ever Used) Primary Choice Or Basic Process Control System Graphic on Computer Screen (Used from Time-to-Time)

Instrumentation Devices and Function Symbols Normally inaccessible to the operator or behind-the-panel devices or functions Discrete Instruments (Rarely if Ever Used) Computer Systems And Software (Rarely if Ever Used) Alternate Choice Or SIS (Rarely if Ever Used) Primary Choice Or Basic Process Control System (Rarely if Ever Used)

Instrumentation Devices and Function Symbols A Summary http: //www. aiche. org/sites/default/files/chenected/2010/09/P 3 F 4. jpg

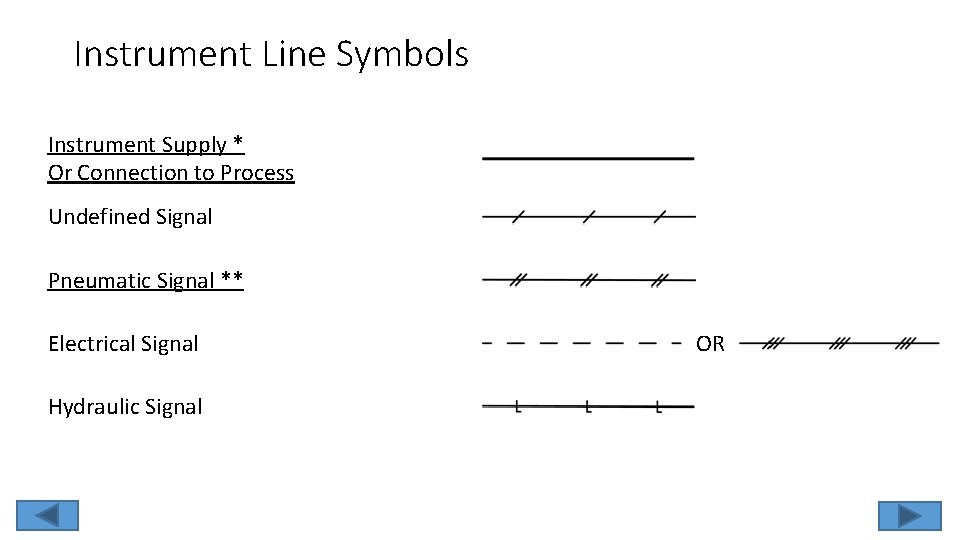

Instrument Line Symbols Instrument Supply * Or Connection to Process Undefined Signal Pneumatic Signal ** Electrical Signal Hydraulic Signal OR

Instrument Line Symbols * The following abbreviations are suggested to denote the types of power supply. These designations may also be applied to purge fluid supplies. Instrument Supply * Or Connection to Process AS – Air Supply HS – Hydraulic Supply NS – Nitrogen Supply Undefined Signal IA – Instrument Air PA – Plant Air SS – Steam Supply ES – ** Electric Supply WS – Water Supply Pneumatic Signal GS – Gas Supply Electrical Signal OR The supply level may be added to the instrument supply line. E. g. AS-100, A 100 -psig air supply; ES-24 DC, a 24 -volt direct current power supply. Hydraulic Signal ** The pneumatic signal symbol applies to a signal using any gas as the signal medium. If a gas other than air is used, the gas may be identified by a note on the signal symbol or otherwise.

Instrument Line Symbols Capillary Tube Electromagnetic or Sonic Signal (Guided) *** Electromagnetic or Sonic Signal (Not Guided) *** Internal System Link (Software or Data Link) *** Electromagnetic phenomena include heat, radio waves, nuclear radiation, and light.

Instrument Line Symbols Mechanical Link Optional Binary (ON – OFF) Symbols Pneumatic Binary Signal Electric Binary Signal OR

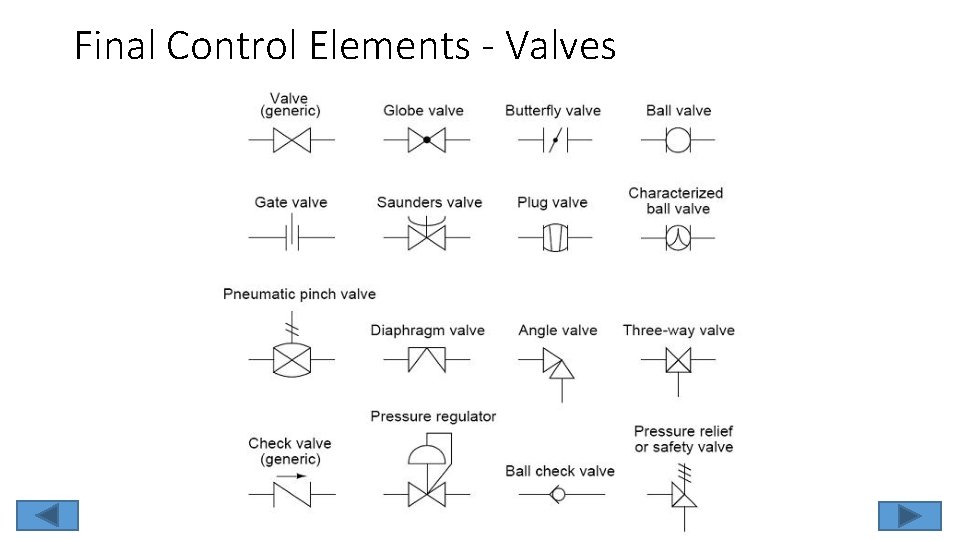

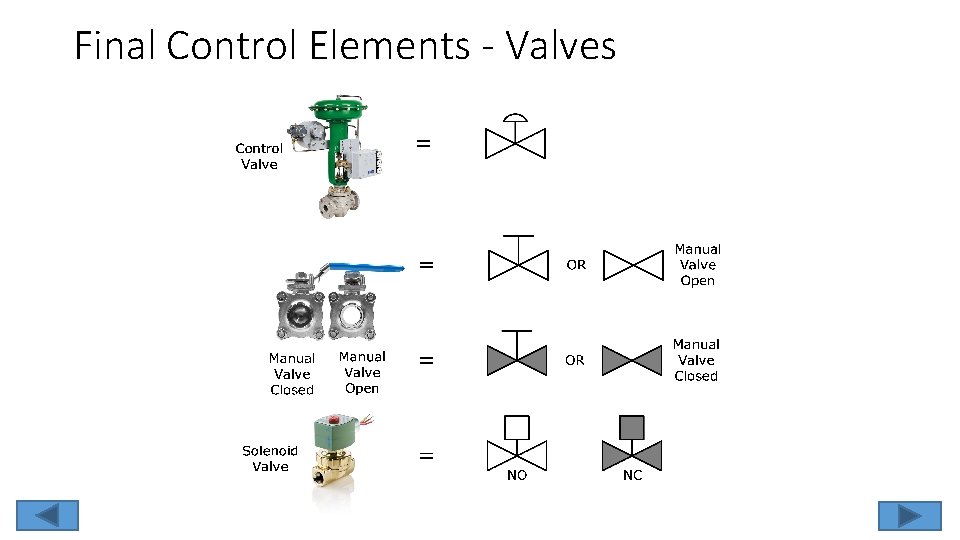

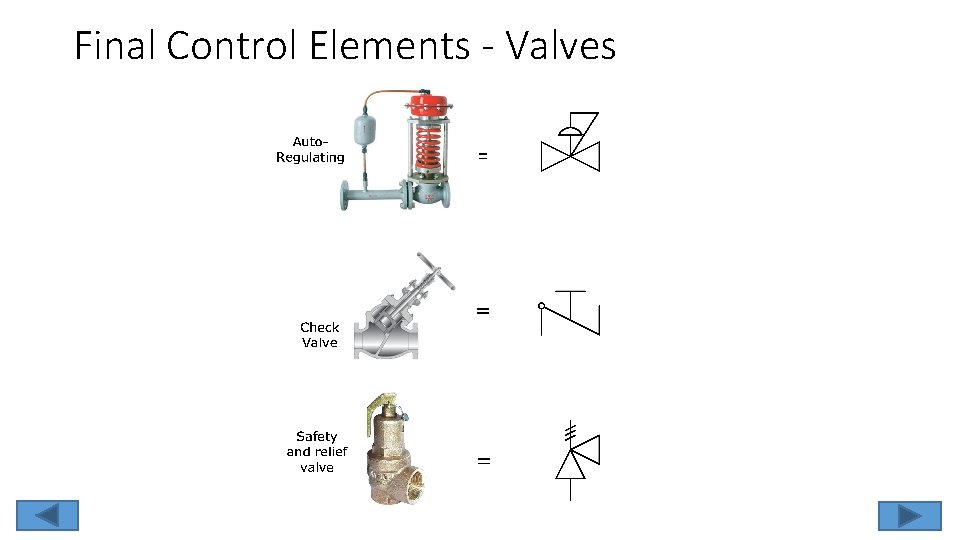

Final Control Elements - Valves

Final Control Elements - Valves

Final Control Elements - Valves

Final Control Elements - Valves

Final Control Elements - Valves

Primary Flow Measurement - Flowmeters

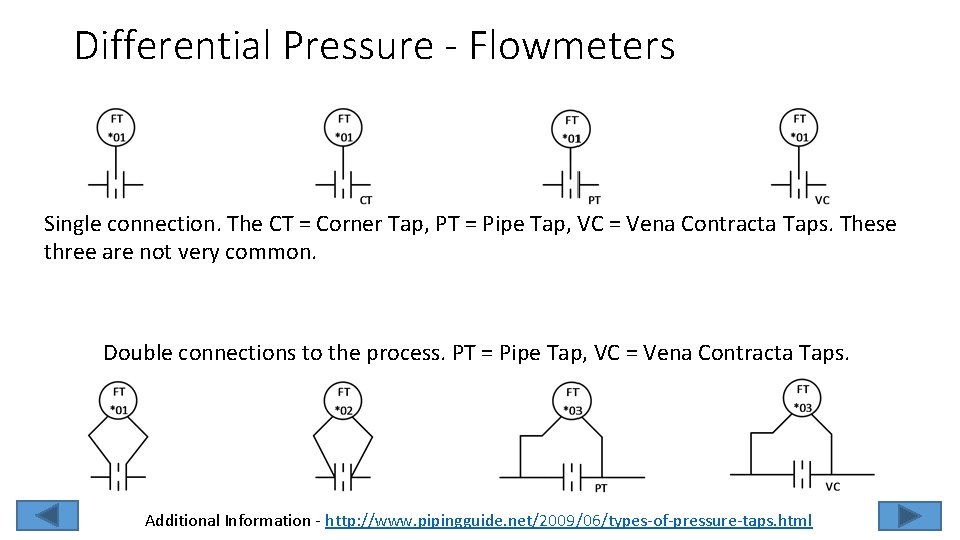

Differential Pressure - Flowmeters Single connection. The CT = Corner Tap, PT = Pipe Tap, VC = Vena Contracta Taps. These three are not very common. Double connections to the process. PT = Pipe Tap, VC = Vena Contracta Taps. Additional Information - http: //www. pipingguide. net/2009/06/types-of-pressure-taps. html

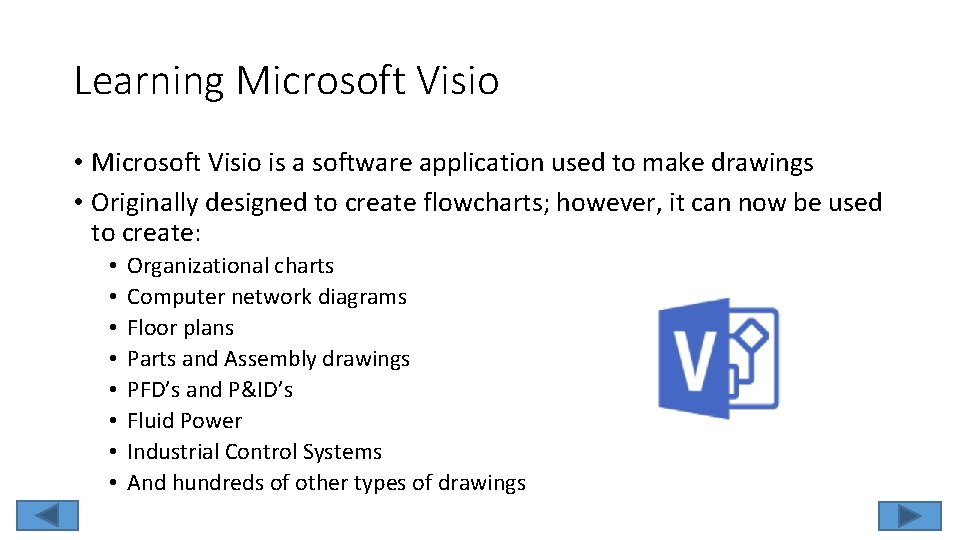

Learning Microsoft Visio • Microsoft Visio is a software application used to make drawings • Originally designed to create flowcharts; however, it can now be used to create: • • Organizational charts Computer network diagrams Floor plans Parts and Assembly drawings PFD’s and P&ID’s Fluid Power Industrial Control Systems And hundreds of other types of drawings

Learning Microsoft Visio • Your instructor will prompt you through creating your first drawing • There are video’s in the Learning Management System (LMS) that can be used as a review and/or a how to while coming up the curve on the use of this powerful software application

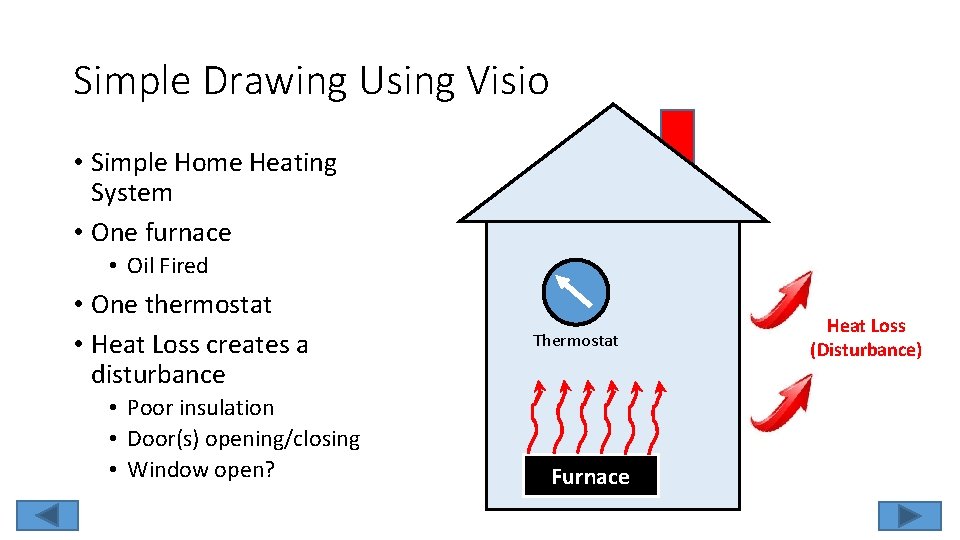

Simple Drawing Using Visio • Simple Home Heating System • One furnace • Oil Fired • One thermostat • Heat Loss creates a disturbance • Poor insulation • Door(s) opening/closing • Window open? Thermostat Furnace Heat Loss (Disturbance)

Simple Drawing Using Visio • One possible method to draw the home heating process

Process Flow Diagram

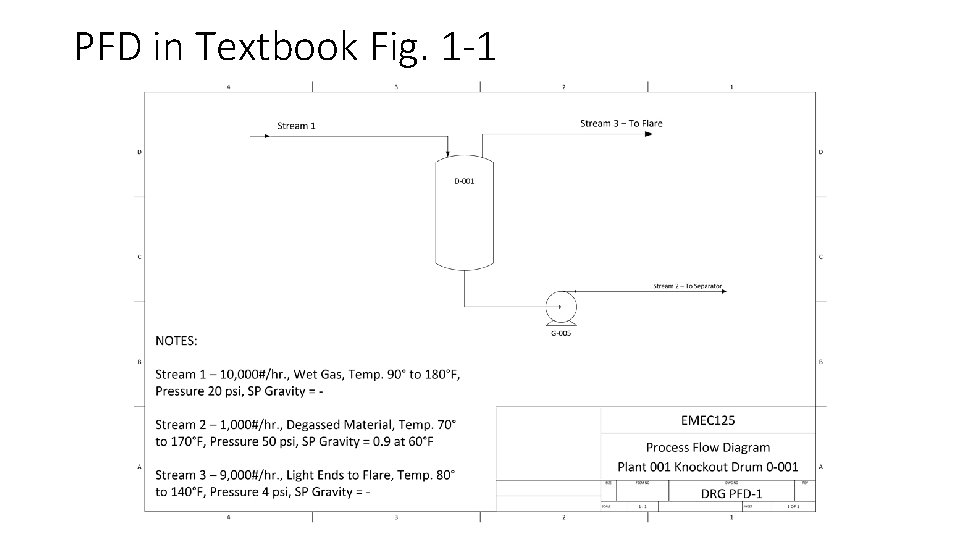

PFD in Textbook Fig. 1 -1

P&ID for PFD in Textbook Fig. 2 -21

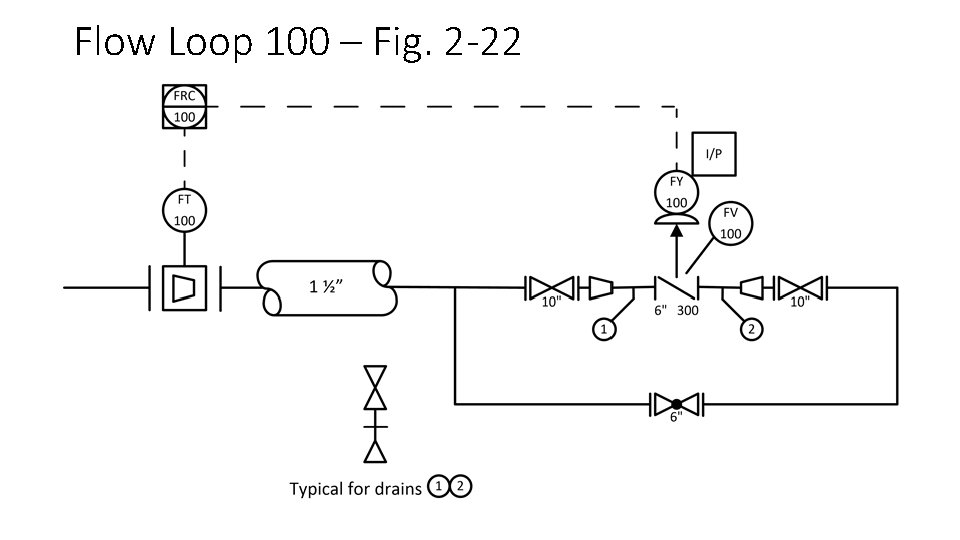

Flow Loop 100 – Fig. 2 -22

Pressure Loop 100 Fig. 2 -23

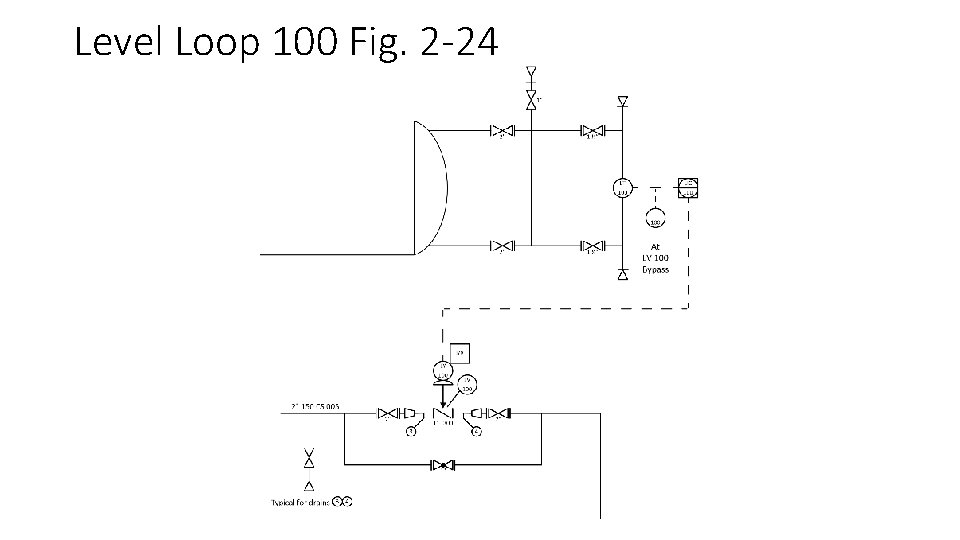

Level Loop 100 Fig. 2 -24

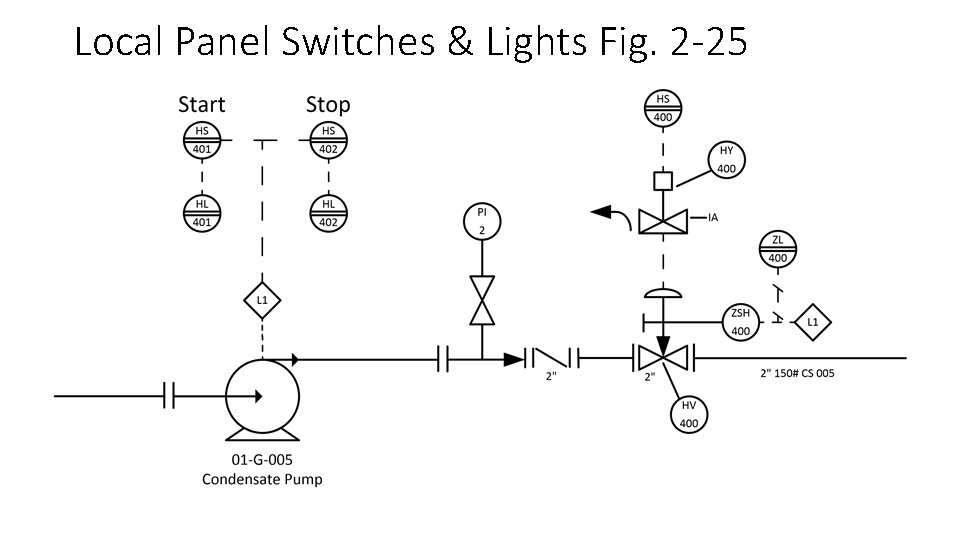

Local Panel Switches & Lights Fig. 2 -25

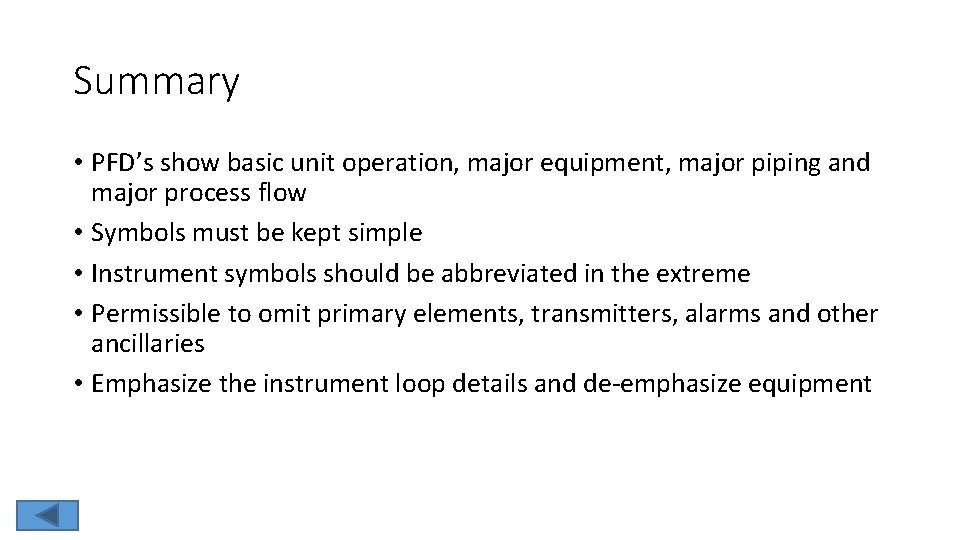

Summary • PFD’s show basic unit operation, major equipment, major piping and major process flow • Symbols must be kept simple • Instrument symbols should be abbreviated in the extreme • Permissible to omit primary elements, transmitters, alarms and other ancillaries • Emphasize the instrument loop details and de-emphasize equipment

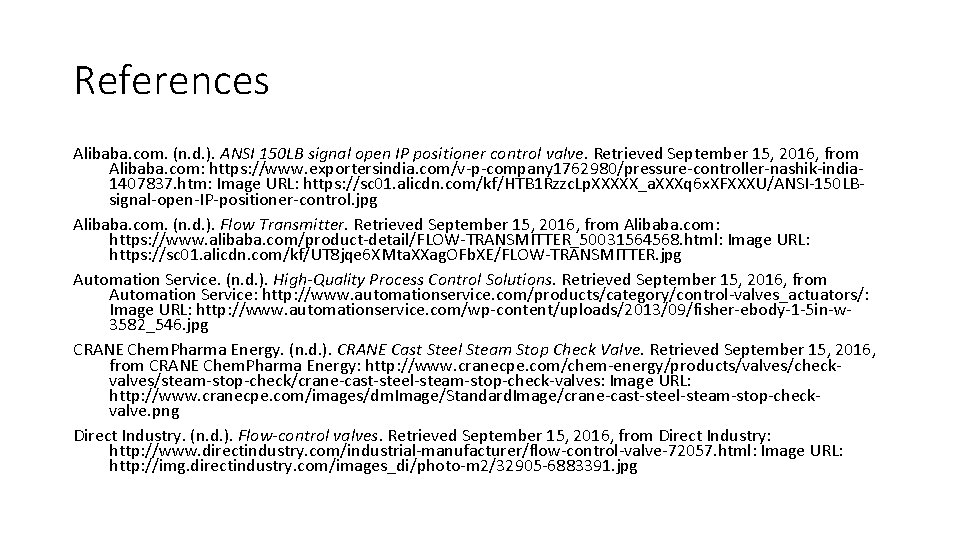

References Alibaba. com. (n. d. ). ANSI 150 LB signal open IP positioner control valve. Retrieved September 15, 2016, from Alibaba. com: https: //www. exportersindia. com/v-p-company 1762980/pressure-controller-nashik-india 1407837. htm: Image URL: https: //sc 01. alicdn. com/kf/HTB 1 Rzzc. Lp. XXXXX_a. XXXq 6 x. XFXXXU/ANSI-150 LBsignal-open-IP-positioner-control. jpg Alibaba. com. (n. d. ). Flow Transmitter. Retrieved September 15, 2016, from Alibaba. com: https: //www. alibaba. com/product-detail/FLOW-TRANSMITTER_50031564568. html: Image URL: https: //sc 01. alicdn. com/kf/UT 8 jqe 6 XMta. XXag. OFb. XE/FLOW-TRANSMITTER. jpg Automation Service. (n. d. ). High-Quality Process Control Solutions. Retrieved September 15, 2016, from Automation Service: http: //www. automationservice. com/products/category/control-valves_actuators/: Image URL: http: //www. automationservice. com/wp-content/uploads/2013/09/fisher-ebody-1 -5 in-w 3582_546. jpg CRANE Chem. Pharma Energy. (n. d. ). CRANE Cast Steel Steam Stop Check Valve. Retrieved September 15, 2016, from CRANE Chem. Pharma Energy: http: //www. cranecpe. com/chem-energy/products/valves/checkvalves/steam-stop-check/crane-cast-steel-steam-stop-check-valves: Image URL: http: //www. cranecpe. com/images/dm. Image/Standard. Image/crane-cast-steel-steam-stop-checkvalve. png Direct Industry. (n. d. ). Flow-control valves. Retrieved September 15, 2016, from Direct Industry: http: //www. directindustry. com/industrial-manufacturer/flow-control-valve-72057. html: Image URL: http: //img. directindustry. com/images_di/photo-m 2/32905 -6883391. jpg

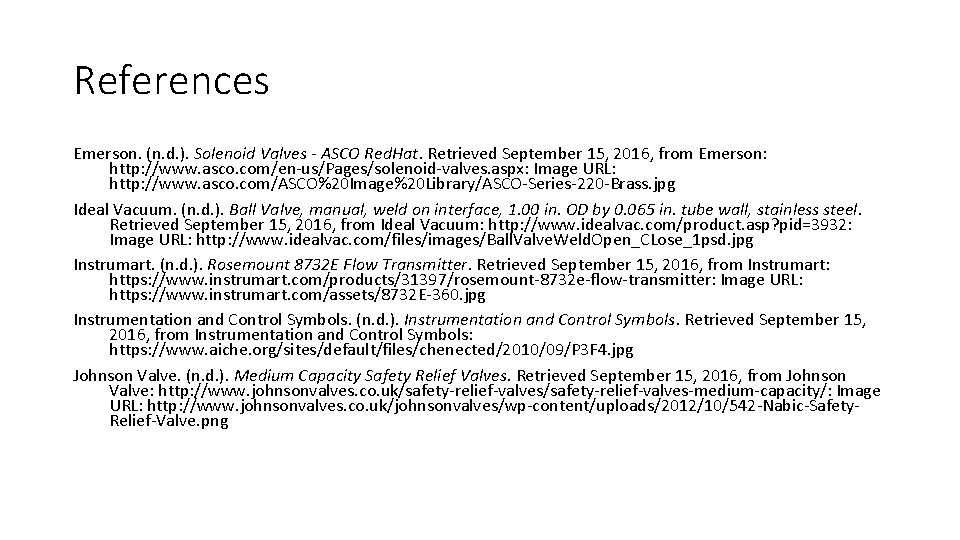

References Emerson. (n. d. ). Solenoid Valves - ASCO Red. Hat. Retrieved September 15, 2016, from Emerson: http: //www. asco. com/en-us/Pages/solenoid-valves. aspx: Image URL: http: //www. asco. com/ASCO%20 Image%20 Library/ASCO-Series-220 -Brass. jpg Ideal Vacuum. (n. d. ). Ball Valve, manual, weld on interface, 1. 00 in. OD by 0. 065 in. tube wall, stainless steel. Retrieved September 15, 2016, from Ideal Vacuum: http: //www. idealvac. com/product. asp? pid=3932: Image URL: http: //www. idealvac. com/files/images/Ball. Valve. Weld. Open_CLose_1 psd. jpg Instrumart. (n. d. ). Rosemount 8732 E Flow Transmitter. Retrieved September 15, 2016, from Instrumart: https: //www. instrumart. com/products/31397/rosemount-8732 e-flow-transmitter: Image URL: https: //www. instrumart. com/assets/8732 E-360. jpg Instrumentation and Control Symbols. (n. d. ). Instrumentation and Control Symbols. Retrieved September 15, 2016, from Instrumentation and Control Symbols: https: //www. aiche. org/sites/default/files/chenected/2010/09/P 3 F 4. jpg Johnson Valve. (n. d. ). Medium Capacity Safety Relief Valves. Retrieved September 15, 2016, from Johnson Valve: http: //www. johnsonvalves. co. uk/safety-relief-valves-medium-capacity/: Image URL: http: //www. johnsonvalves. co. uk/johnsonvalves/wp-content/uploads/2012/10/542 -Nabic-Safety. Relief-Valve. png

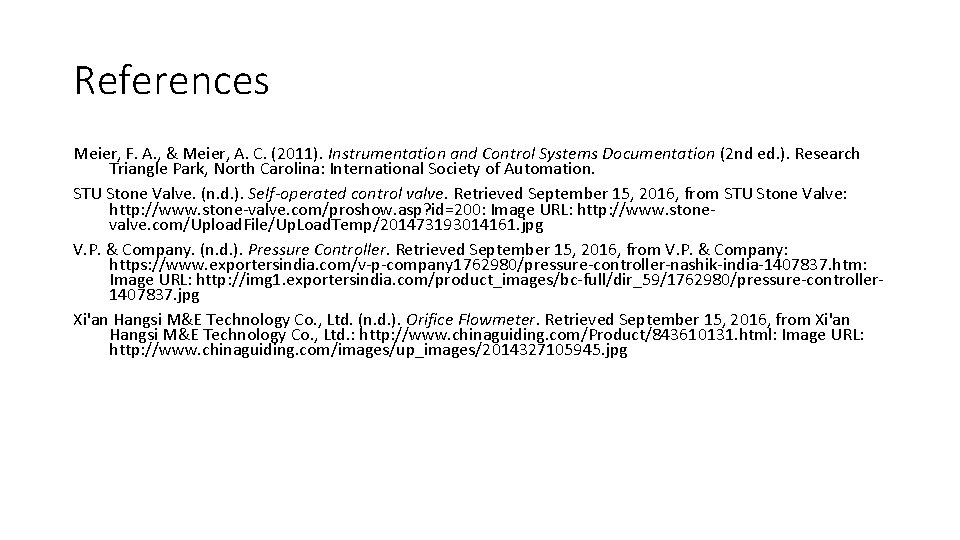

References Meier, F. A. , & Meier, A. C. (2011). Instrumentation and Control Systems Documentation (2 nd ed. ). Research Triangle Park, North Carolina: International Society of Automation. STU Stone Valve. (n. d. ). Self-operated control valve. Retrieved September 15, 2016, from STU Stone Valve: http: //www. stone-valve. com/proshow. asp? id=200: Image URL: http: //www. stonevalve. com/Upload. File/Up. Load. Temp/201473193014161. jpg V. P. & Company. (n. d. ). Pressure Controller. Retrieved September 15, 2016, from V. P. & Company: https: //www. exportersindia. com/v-p-company 1762980/pressure-controller-nashik-india-1407837. htm: Image URL: http: //img 1. exportersindia. com/product_images/bc-full/dir_59/1762980/pressure-controller 1407837. jpg Xi'an Hangsi M&E Technology Co. , Ltd. (n. d. ). Orifice Flowmeter. Retrieved September 15, 2016, from Xi'an Hangsi M&E Technology Co. , Ltd. : http: //www. chinaguiding. com/Product/843610131. html: Image URL: http: //www. chinaguiding. com/images/up_images/2014327105945. jpg
