PICK N PLACE ROBOTIC ARM AND MOVEMENT CONTROLLED

PICK N PLACE ROBOTIC ARM AND MOVEMENT CONTROLLED BY ANDROID WIRELESSLY Submitted by:

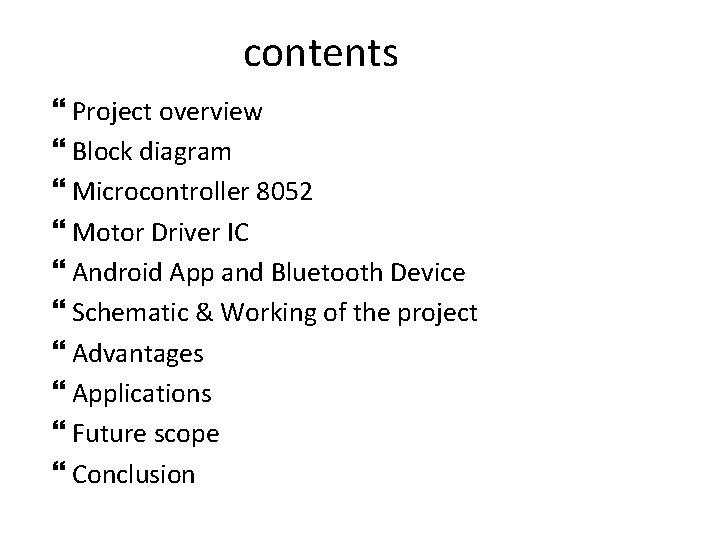

contents Project overview Block diagram Microcontroller 8052 Motor Driver IC Android App and Bluetooth Device Schematic & Working of the project Advantages Applications Future scope Conclusion

Project overview • The project is designed to develop a pick n place robotic vehicle with a soft catching gripper. • it can safely handle a bomb very carefully to avoid explosion while catching. • The robotic vehicle is android application controlled for remote operation. • At the transmitting end using android application device, commands are sent to the receiver to control the movement of the robot.

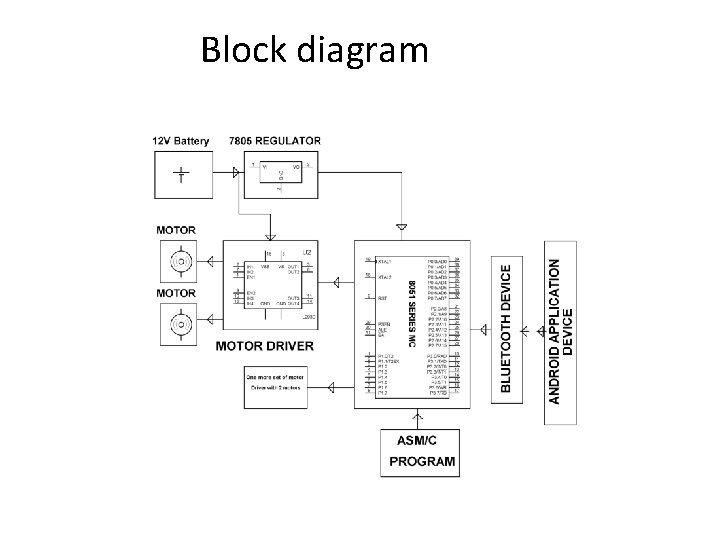

Block diagram

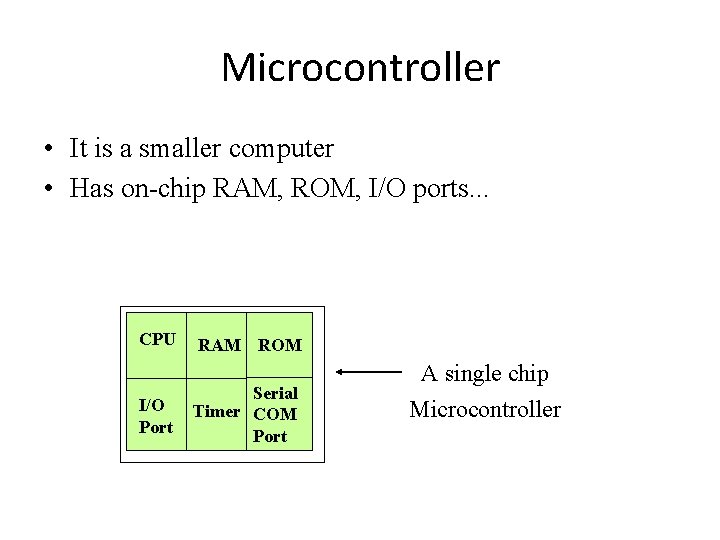

Microcontroller • It is a smaller computer • Has on-chip RAM, ROM, I/O ports. . . CPU I/O Port RAM ROM Serial Timer COM Port A single chip Microcontroller

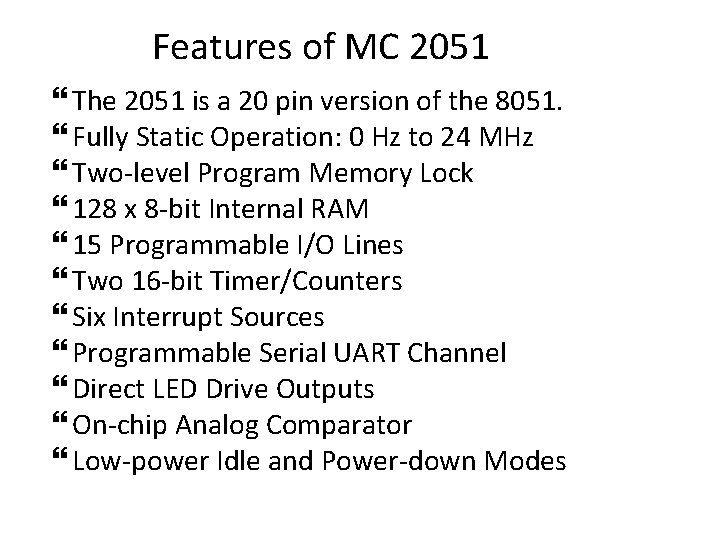

Features of MC 2051 The 2051 is a 20 pin version of the 8051. Fully Static Operation: 0 Hz to 24 MHz Two-level Program Memory Lock 128 x 8 -bit Internal RAM 15 Programmable I/O Lines Two 16 -bit Timer/Counters Six Interrupt Sources Programmable Serial UART Channel Direct LED Drive Outputs On-chip Analog Comparator Low-power Idle and Power-down Modes

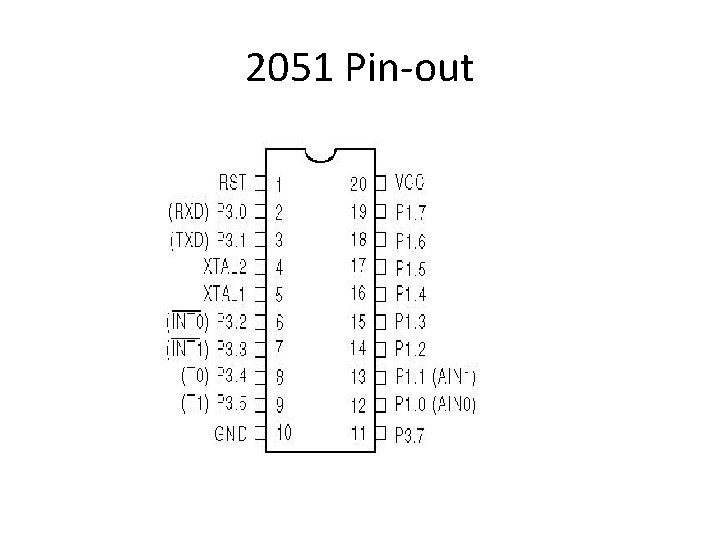

2051 Pin-out

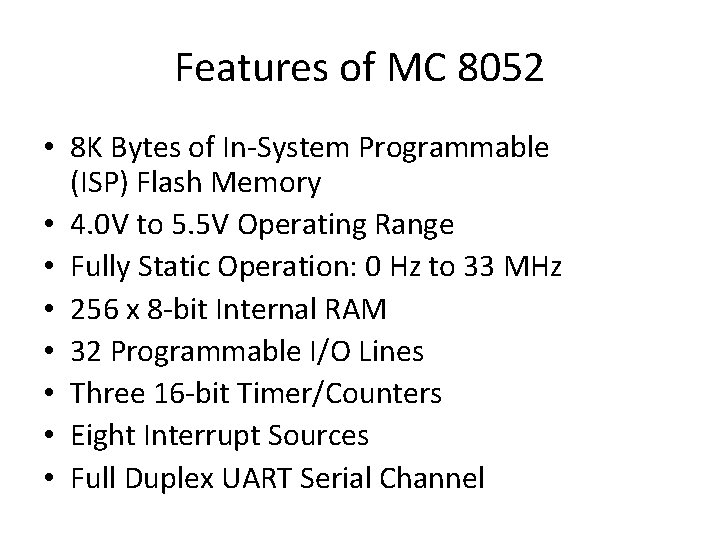

Features of MC 8052 • 8 K Bytes of In-System Programmable (ISP) Flash Memory • 4. 0 V to 5. 5 V Operating Range • Fully Static Operation: 0 Hz to 33 MHz • 256 x 8 -bit Internal RAM • 32 Programmable I/O Lines • Three 16 -bit Timer/Counters • Eight Interrupt Sources • Full Duplex UART Serial Channel

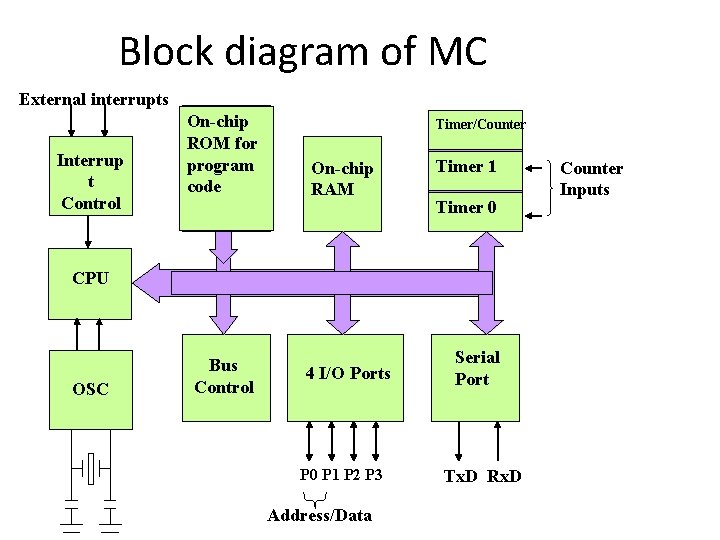

Block diagram of MC External interrupts Interrup t Control On-chip ROM for program code Timer/Counter On-chip RAM Timer 1 Timer 0 CPU OSC Bus Control 4 I/O Ports P 0 P 1 P 2 P 3 Address/Data Serial Port Tx. D Rx. D Counter Inputs

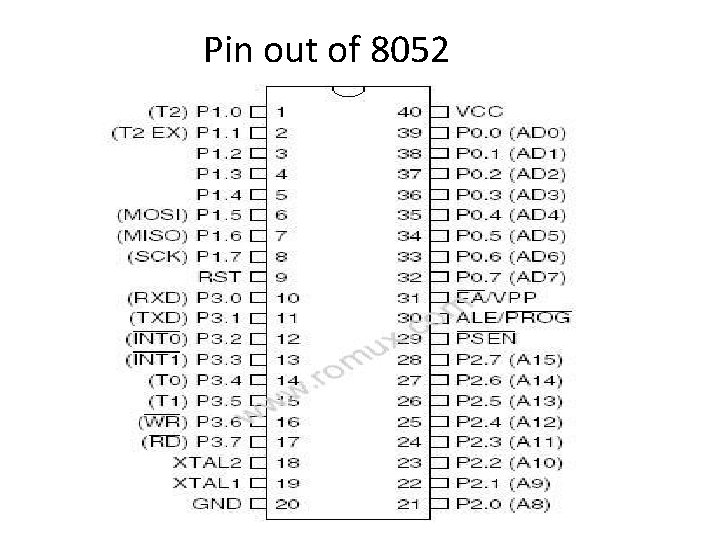

Pin out of 8052

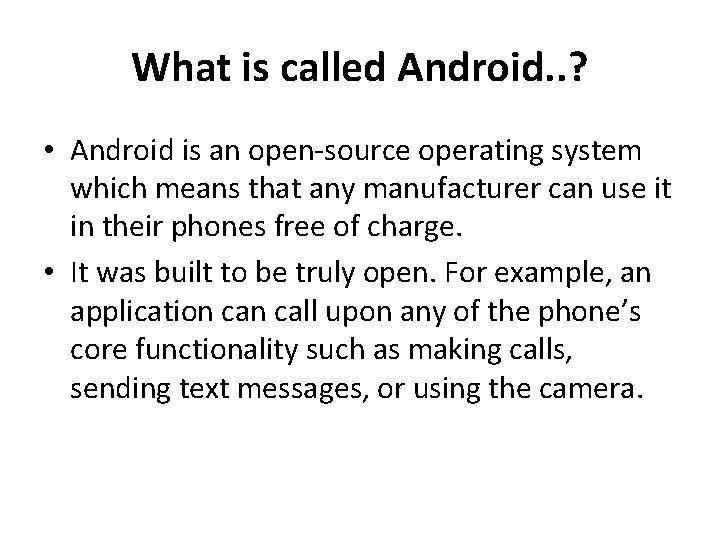

What is called Android. . ? • Android is an open-source operating system which means that any manufacturer can use it in their phones free of charge. • It was built to be truly open. For example, an application call upon any of the phone’s core functionality such as making calls, sending text messages, or using the camera.

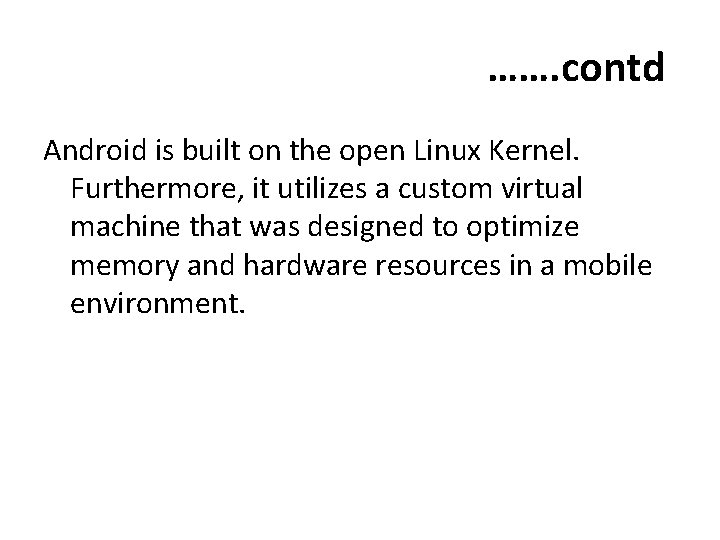

……. contd Android is built on the open Linux Kernel. Furthermore, it utilizes a custom virtual machine that was designed to optimize memory and hardware resources in a mobile environment.

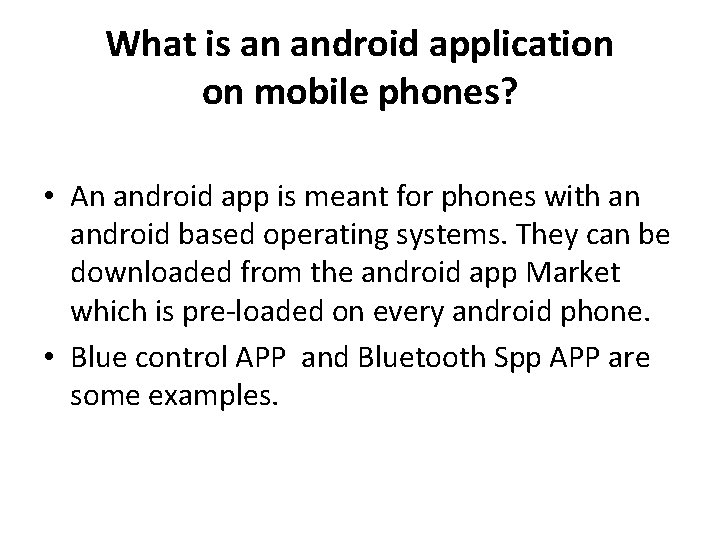

What is an android application on mobile phones? • An android app is meant for phones with an android based operating systems. They can be downloaded from the android app Market which is pre-loaded on every android phone. • Blue control APP and Bluetooth Spp APP are some examples.

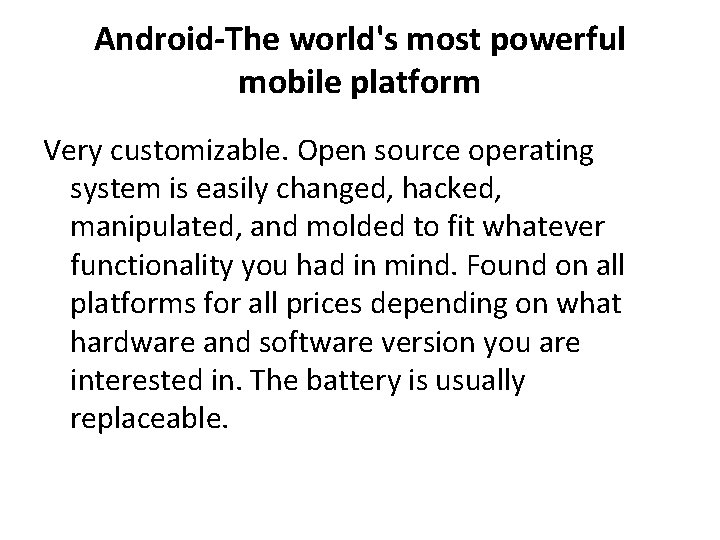

Android-The world's most powerful mobile platform Very customizable. Open source operating system is easily changed, hacked, manipulated, and molded to fit whatever functionality you had in mind. Found on all platforms for all prices depending on what hardware and software version you are interested in. The battery is usually replaceable.

COMPARISION OF ANDROID WITH OTHER OS ANDROID OS : Android is open source software, manufacturers can modify the operating system to suit their respective needs and phones. This becomes a cheap and feasible alternative for the manufacturer, as opposed to developing an operating system in-house or hiring a software company to do it.

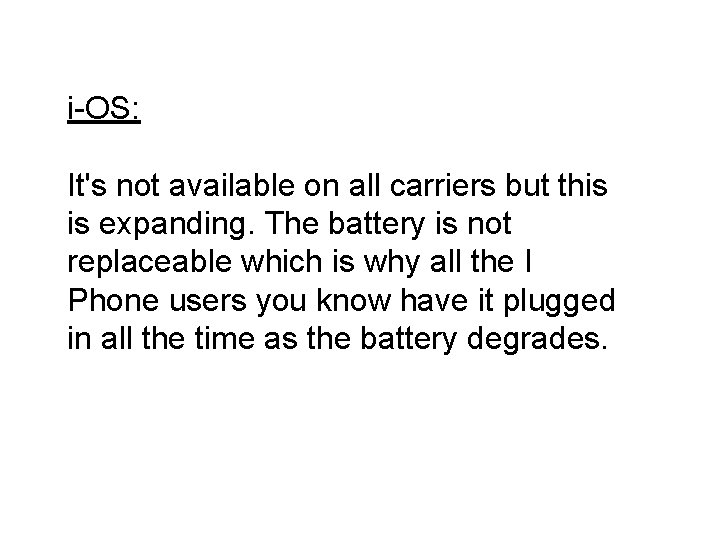

i-OS: It's not available on all carriers but this is expanding. The battery is not replaceable which is why all the I Phone users you know have it plugged in all the time as the battery degrades.

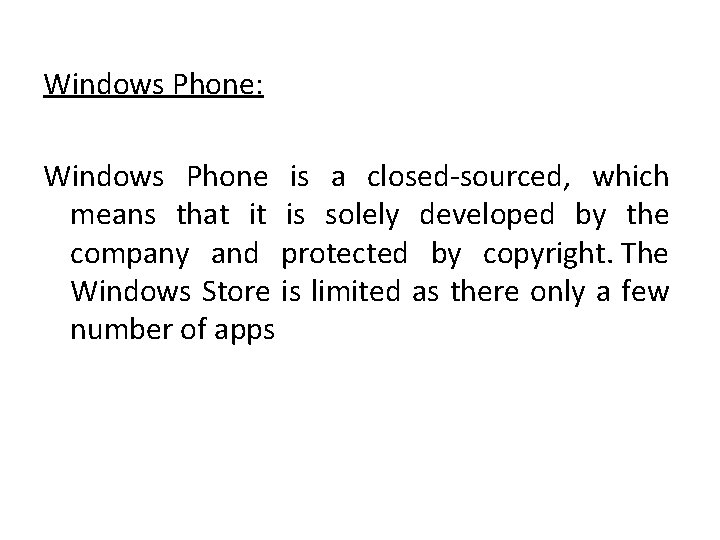

Windows Phone: Windows Phone is a closed-sourced, which means that it is solely developed by the company and protected by copyright. The Windows Store is limited as there only a few number of apps

ANDROID APPLICATION OPERATED BLUETOOTH • The Android platform includes support for the Bluetooth network stack, which allows a device to wirelessly exchange data with other Bluetooth devices. • The application framework provides access to the Bluetooth functionality through the Android Bluetooth APIs.

An example of Android App Blue-control Screen

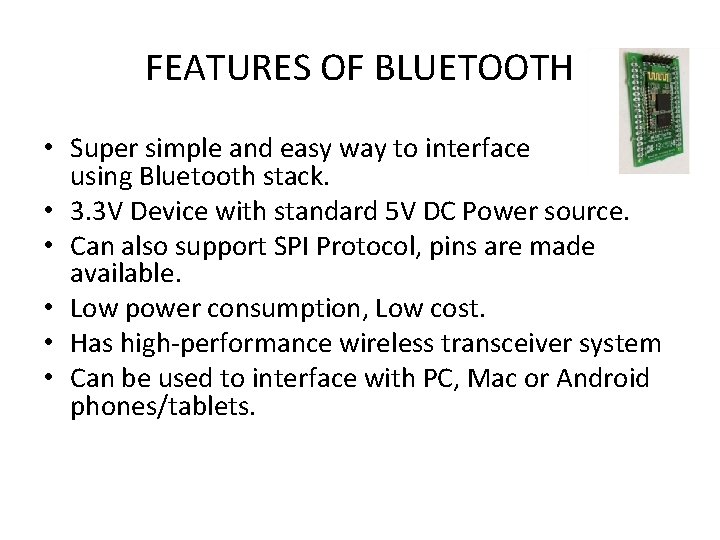

FEATURES OF BLUETOOTH • Super simple and easy way to interface using Bluetooth stack. • 3. 3 V Device with standard 5 V DC Power source. • Can also support SPI Protocol, pins are made available. • Low power consumption, Low cost. • Has high-performance wireless transceiver system • Can be used to interface with PC, Mac or Android phones/tablets.

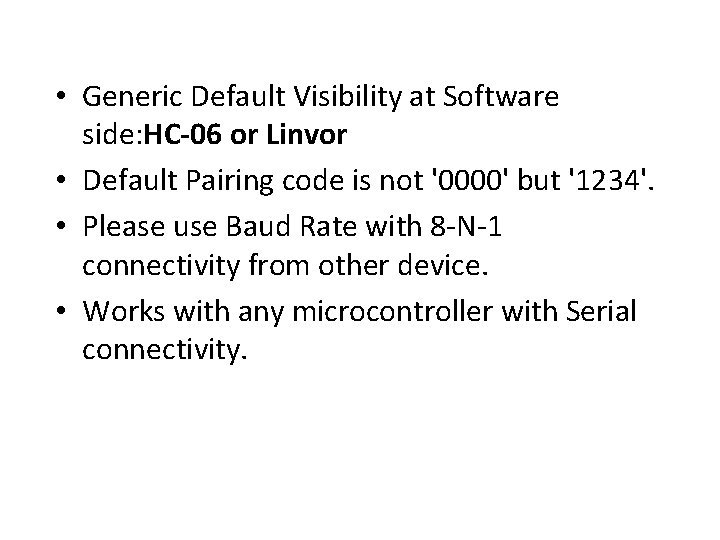

• Generic Default Visibility at Software side: HC-06 or Linvor • Default Pairing code is not '0000' but '1234'. • Please use Baud Rate with 8 -N-1 connectivity from other device. • Works with any microcontroller with Serial connectivity.

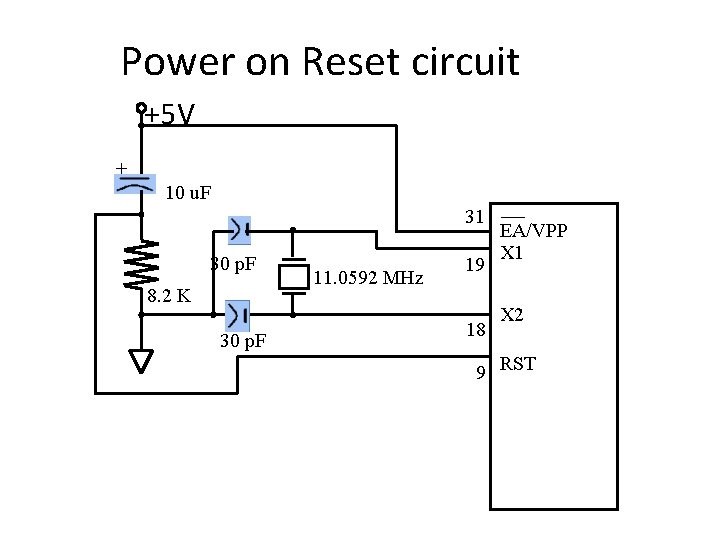

Power on Reset circuit +5 V + 10 u. F 31 30 p. F 8. 2 K 30 p. F 11. 0592 MHz 19 18 EA/VPP X 1 X 2 9 RST

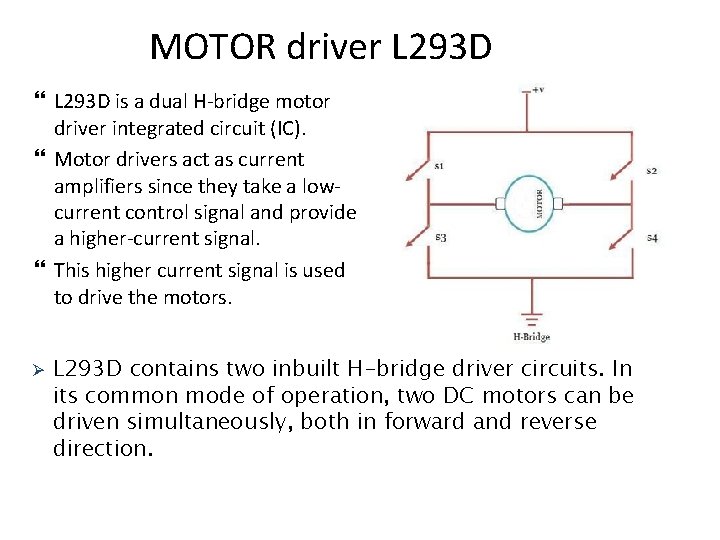

MOTOR driver L 293 D is a dual H-bridge motor driver integrated circuit (IC). Motor drivers act as current amplifiers since they take a lowcurrent control signal and provide a higher-current signal. This higher current signal is used to drive the motors. Ø L 293 D contains two inbuilt H-bridge driver circuits. In its common mode of operation, two DC motors can be driven simultaneously, both in forward and reverse direction.

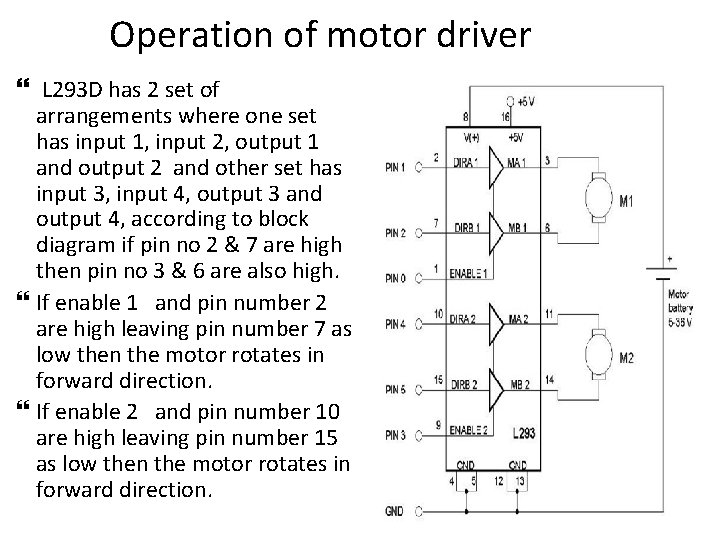

Operation of motor driver L 293 D has 2 set of arrangements where one set has input 1, input 2, output 1 and output 2 and other set has input 3, input 4, output 3 and output 4, according to block diagram if pin no 2 & 7 are high then pin no 3 & 6 are also high. If enable 1 and pin number 2 are high leaving pin number 7 as low then the motor rotates in forward direction. If enable 2 and pin number 10 are high leaving pin number 15 as low then the motor rotates in forward direction.

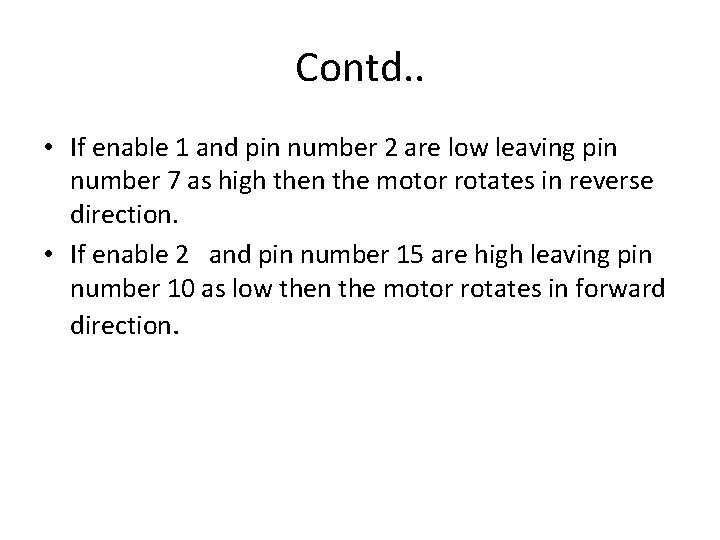

Contd. . • If enable 1 and pin number 2 are low leaving pin number 7 as high then the motor rotates in reverse direction. • If enable 2 and pin number 15 are high leaving pin number 10 as low then the motor rotates in forward direction.

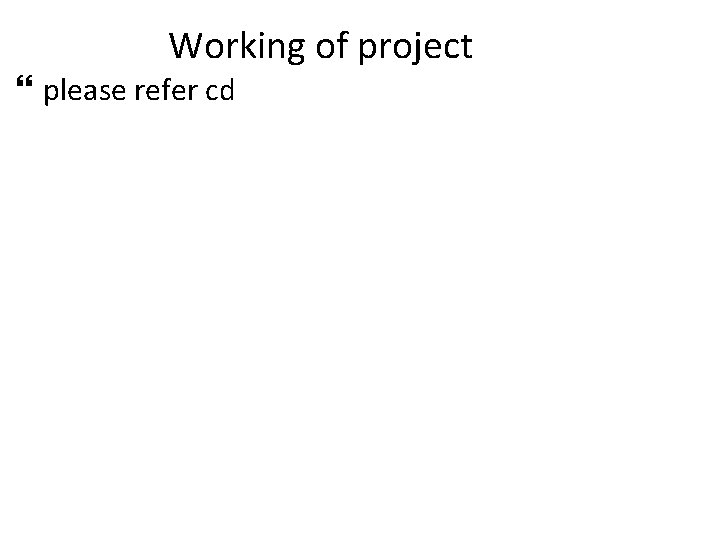

Working of project please refer cd

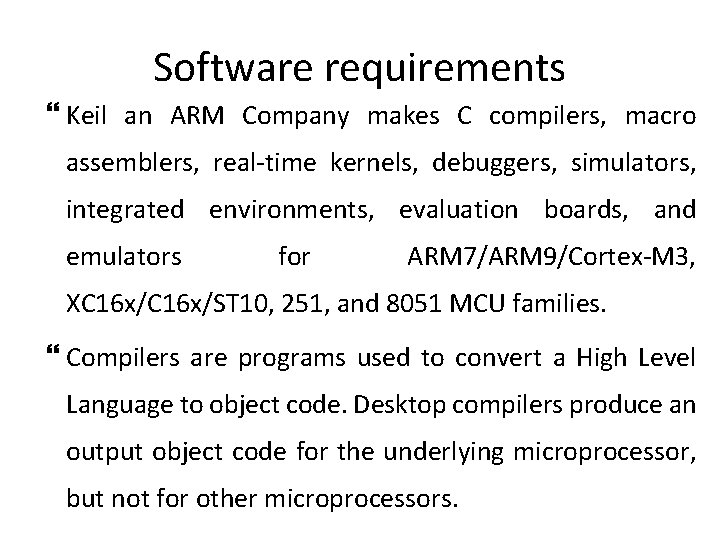

Software requirements Keil an ARM Company makes C compilers, macro assemblers, real-time kernels, debuggers, simulators, integrated environments, evaluation boards, and emulators for ARM 7/ARM 9/Cortex-M 3, XC 16 x/ST 10, 251, and 8051 MCU families. Compilers are programs used to convert a High Level Language to object code. Desktop compilers produce an output object code for the underlying microprocessor, but not for other microprocessors.

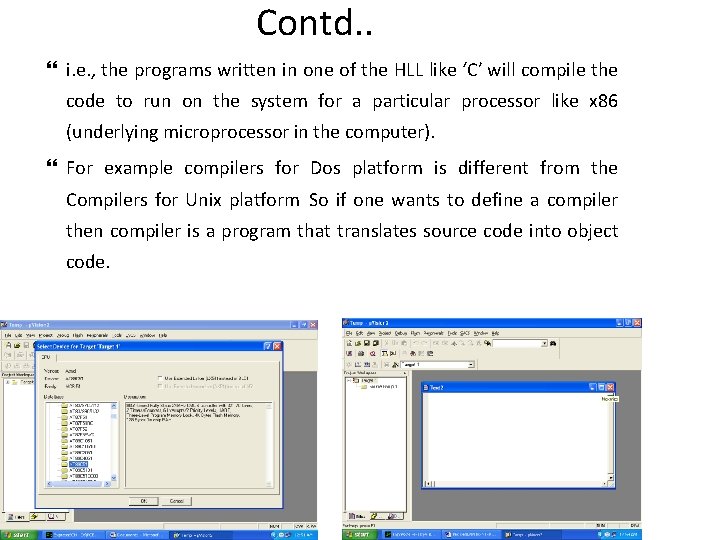

Contd. . i. e. , the programs written in one of the HLL like ‘C’ will compile the code to run on the system for a particular processor like x 86 (underlying microprocessor in the computer). For example compilers for Dos platform is different from the Compilers for Unix platform So if one wants to define a compiler then compiler is a program that translates source code into object code.
