PIANIFICAZIONE ETOPS Extendedrange Twinengine Operational Performance Standard di

PIANIFICAZIONE ETOPS Extended-range Twin-engine Operational Performance Standard di Performance Operativi per bimotori a range esteso

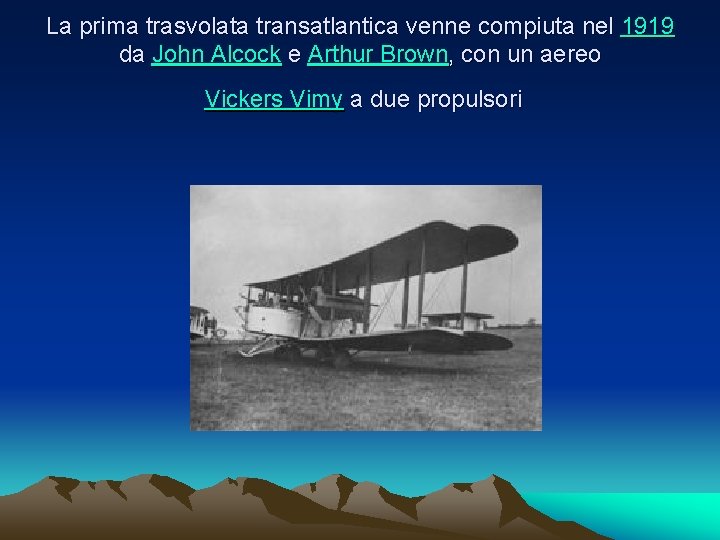

La prima trasvolata transatlantica venne compiuta nel 1919 da John Alcock e Arthur Brown, con un aereo Vickers Vimy a due propulsori

B 767 -200 TWA § FAA certificò a maggio 1985 la TWA per il Boeing 767 ad operazioni a 90 min § Successivamente il periodo venne esteso a 120 minuti dopo la certificazione delle procedure operative della compagnia.

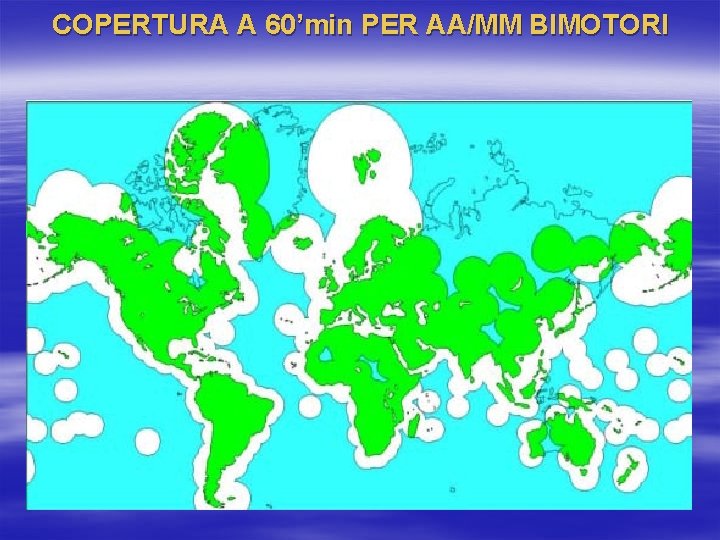

COPERTURA A 60’min PER AA/MM BIMOTORI

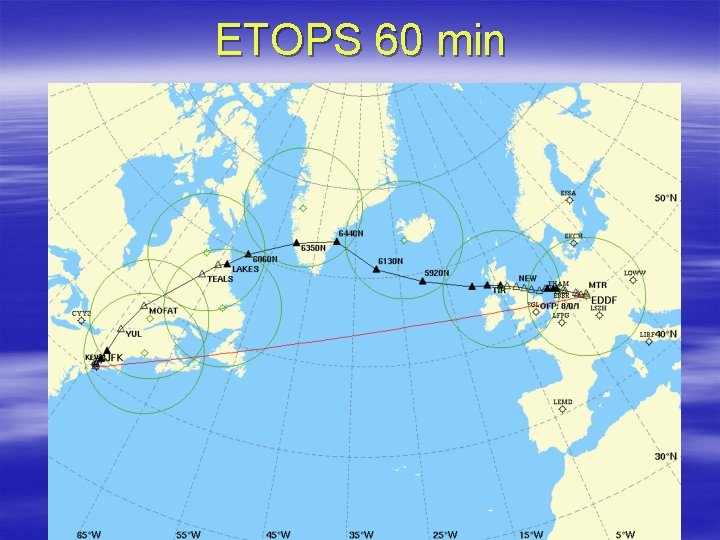

ETOPS 60 min

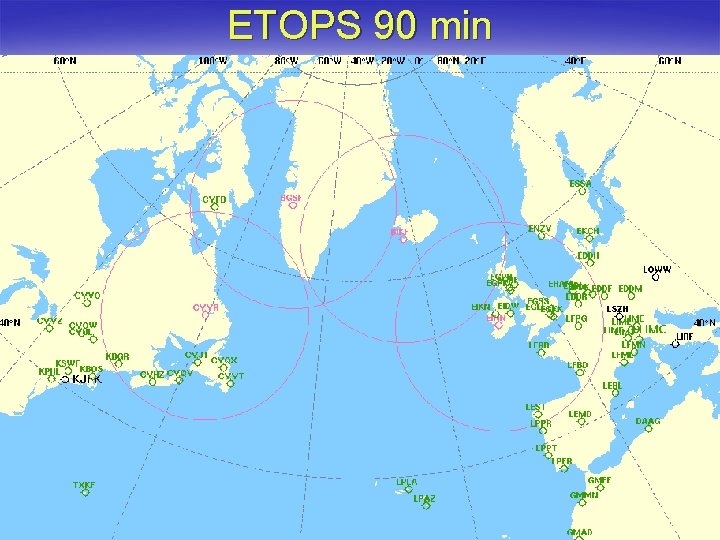

ETOPS 90 min

ETOPS 120 min

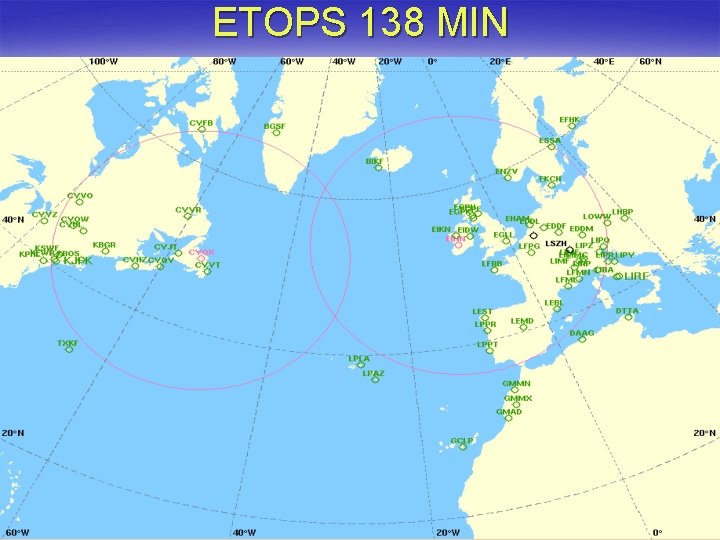

ETOPS 138 MIN

ETOPS 180 min

PACIFIC COVERAGE 207 min

PACIFIC COVERAGE 207 min

ADEQUATE/SUITABLE AERODROME

ADEQUATE A/D

SUITABLE A/D

PIANIFICAZIONE ETOPS § ETOPS 90 -120 -138 -180 -207 min

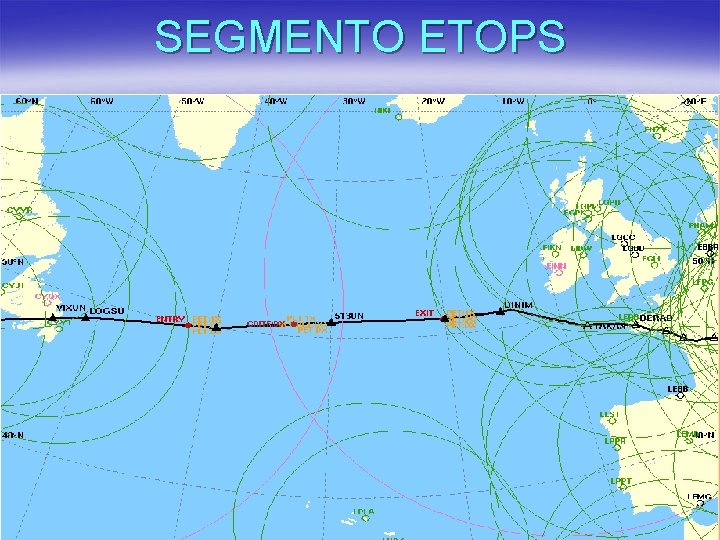

SEGMENTO ETOPS

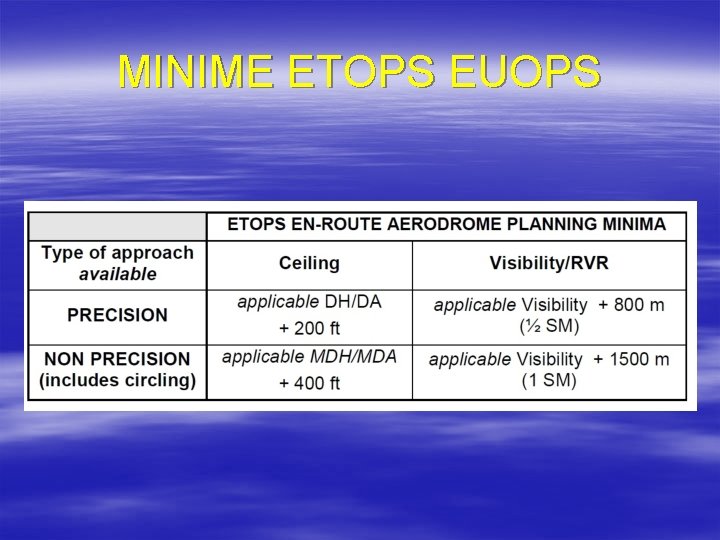

MINIME ETOPS EUOPS

MINIME ETOPS CANADA

MINIME ETOPS USA

MINIME EINN/SNN

MINIME CYYR/YYR

ETOPS SUMMARY E T O P S (138 MIN) ENRTE ALTNS (TIME WINDOW OF SUITABILITY -UTC) EIDW (1902 -2241) CYYT (2119 -2241) --------- ---------ETOPS CRITICAL POINT AT: ETP 1 EIDW-CYYT POSITION N 5634. 4 W 03520. 4 DIST 1011/834 SCEN DX (1 X/DC/DX) ADDITIONAL ETOPS FUEL 0 KG FUEL TIME TRIP DEP-CP 36670 0452 DIST 2104 CONT 3% 1100 0009 REQD 22324 0234 CRIT FUEL RES 60094 0735 --------- ---------

ETOPS SUMMARY ROUTING

NAT North Atlantic Tracks Westbound 1130 z-1900 z

NAT North Atlantic Tracks Eastbound 01 z-08 z

TMI North Atlantic Tracks 232103 EGGXZOZX (NAT-1/2 TRACKS FLS 310/390 INCLUSIVE FEB 24/1130 Z TO FEB 24/1900 Z PART ONE OF TWO PARTS - A PIKIL 57/20 57/30 56/40 54/50 CARPE REDBY EAST LVLS NIL WEST LVLS 310 320 330 340 350 360 370 NAR N 204 B N 206 C - B RESNO 56/20 56/30 55/40 53/50 HECKK YAY EAST LVLS NIL WEST LVLS 310 320 330 340 350 360 370 NAR N 184 B N 188 B- C DOGAL 55/20 55/30 54/40 52/50 CRONO DOTTY EAST LVLS NIL WEST LVLS 310 320 330 340 350 360 370 NAR N 162 B N 164 B - D MALOT 54/20 54/30 53/40 51/50 DENDU CYMON EAST LVLS NIL WEST LVLS 310 320 330 340 350 360 370 NAR N 142 B N 148 B- n . 380 390 EUR RTS WEST NIL

REMARK TMI REMARKS. 1. TMI IS 052 AND OPERATORS ARE REMINDED TO INCLUDE THE TMI NUMBER AS PART OF THE OCEANIC CLEARANCE READ BACK. 2. ADS-C AND CPDLC MANDATED OTS ARE AS FOLLOWS TRACK F 360 370 380 390 TRACK G 360 370 380 390 END OF ADS-C AND CPDLC MANDATED OTS

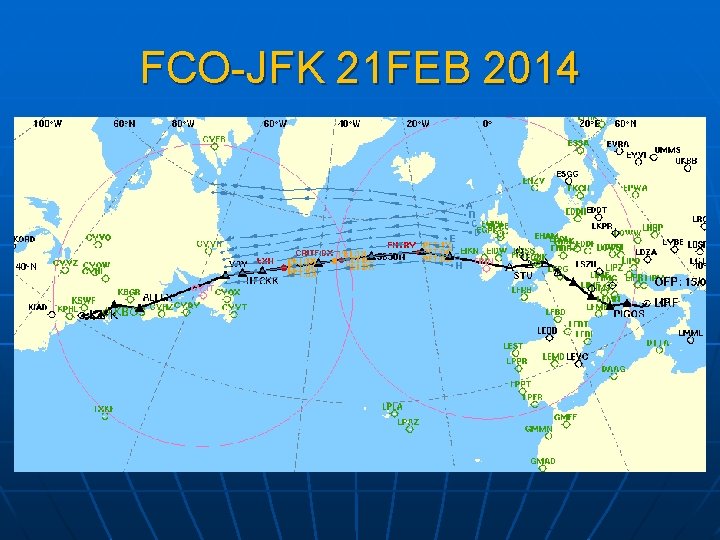

FCO-JFK 21 FEB 2014

NOR

AUSTRALIAN OTS

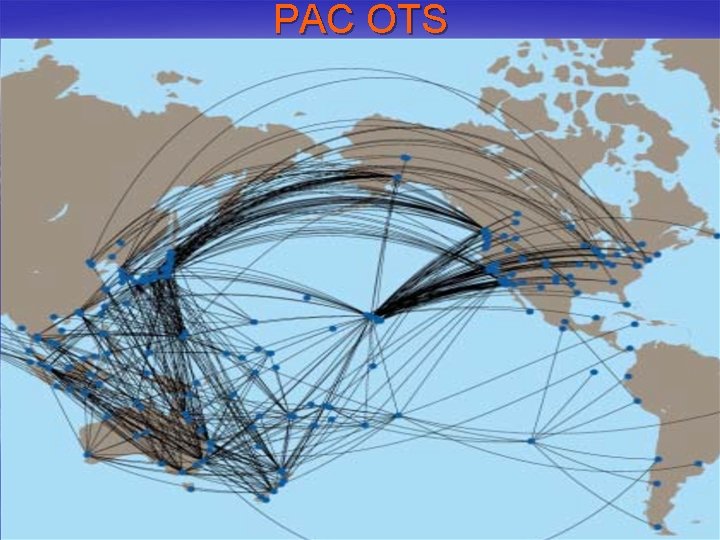

PAC OTS

FLIGHT DISPATCH • raccoglie tutte le informazione x la pianificazione • analizza le anomalie tecniche dell’ A/M • valuta tutto lo scenario meteo della pianificazione • controlla gli AA/DD in partenza, in rotta, a destinazione e gli alternati • coordina con gli enti di controllo il volo pianificato • monitorizza il volo durante tutta la sua durata

OFPL --------- ---------*** ETOPS 138 MIN FLIGHT *** --------- ---------OFP AZ 784/11 11 FEB LIRF/ FCO RJAA/ NRT LIRF 16 R/00007 FT 14/0/1 IDISU (101. 3) 1415/1436 0226/0230 RJAA 34 L/00139 FT B 777 -200 ER EST. . . . /. . . . COST INDEX 26 EKLM CTOT. . ROUTE FCONRT 51 ACT. . . . /. . . . GND DIST 5954 ATS C/S. . AIR DIST 5476 G/C DIST 5352 SPEED ECON LOAD ZFW ADDFU LW TOW AVGE FF 6588 EST 35000 185000 0 L MAL 213188 296195 AVGE WC P 043 PLN 35000 185000 0 L PLN 192909 270914 AVGE ISA DEV M 02 ACT . . . RELEASE PROGNOSIS 1112 1115 1118 1121 110214/11: 46: 31 OBSERVATION 1106 --------- ---------

OFPL REMARKS: ****** ATTN CREW ****** --PLANNED VIA FCONRT 51 --CREW PLS NOTE: --MFOD: CHECKED --ALTERNATE FUEL CALCOLATE COST INDEX 00 --PLANNED WITH COST INDEX 26 --FROM SWC ANALYSIS: 18 Z AREA MOD CAT TOP FL 380 BTN INKUB-SOMUN 18 Z AREA MOD CAT TOP FL 380 BTN GR-ROGLA 00 Z NIL --TEMPERATURE -65 BTN NEKLI-TR --LAST MEL CHECKED AT 10 Z NONE APPLIED FOR FLIGHT PLANNING --LAST ZFW 185000 CHECKED AT 12 Z *********************** ======= SALUTI E BUON LAVORO =========

TRIP 78005 11. 50 CONT 3% 2340 00. 21 ALTN 2853 00. 28 FINRES 2716 OFPL. . ZBAA . . RJTT . . 00. 30 . . 0 00. 00 . . PLNTOF 85914 13. 09 . . DIFF . . . REQTOF . . (CORRECTED) EXTRA . . . POSS 20279 L. . ACTTOF . . 693 00. 21 EROPS TAXI BLOCK . . . (792) . . . TCAP 136084 . . REM FUEL. . . AT. .

OFPL ---------TIME AWY MTRK DIST TTL POSITION TTRK TTL PTO ETO ATO MORA ---------. . LIRF/16 R 14 OKUNO 5 A 76 0014 OKUNO 0076 N 4206. 4 E 01258. 4. . . A 70 1 UL 5 8 0015 TINIX 0084 N 4210. 0 E 01307. 4. . . A 91 3 UL 5 24 0018 ATRUP 0108 N 4220. 9 E 01335. 7 --------- ----TAS G/S PRC REFU LVL TP T W/V PLN ACT --------- ----32 M 03 14/003. . . . CLB 33 -36 19/046 79. 7. . . . CLB 33 -38 19/054 79. 5. . . . CLB 34 -44 19/079 78. 9

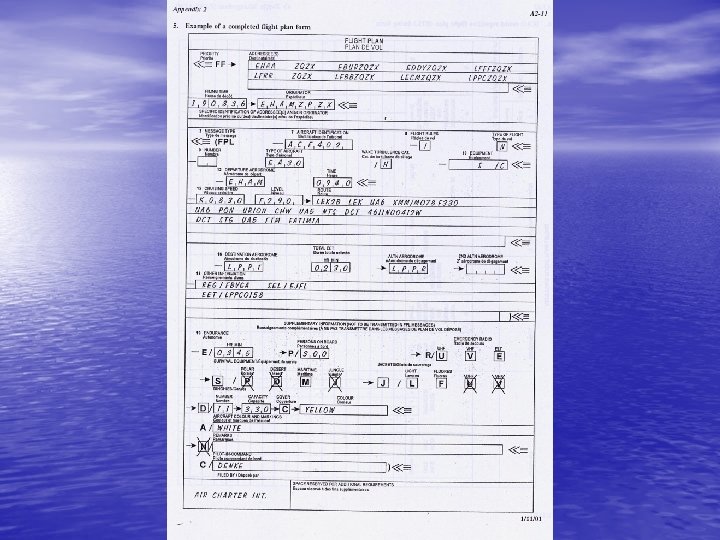

OFPL AD ZSACZQZX ZSOFZRZX ZSCNZRZX ZSAMZRZX ZSSSZRZX ZSQDZRZX RKRRZQZX AD RKSSZTZX RJJJZQZX RJAAZPZX RJAAYSYX (FPL-AZA 784 -IS -B 772/H-SDE 1 FGHIJ 3 J 5 M 1 RWXYZ/LB 1 D 1 -LIRF 1415 -N 0471 F 310 OKUNO UL 5 SPL/N 0472 F 330 UL 5 SOMUN UN 978 BUSES N 978 SUVUR/K 0872 F 330 N 978 BOGMA/K 0868 F 350 N 978 TP M 987 KHR A 137 GOBUN/K 0869 F 350 B 110 RASAP A 279 PNZ B 922 TIRET B 365 GISUL G 549 GOPAR G 901 RG G 540 LANTO R 480 OKETI R 235 ABESA A 487 NR/K 0858 F 370 R 480 TR A 308 GINOM/K 0868 S 1130 A 308 BULAG A 575 UDA B 339 POLHO/K 0880 S 1130 B 339 LADIX A 326 DOBGA/K 0889 S 1190 A 326 DONVO G 597 AGAVO/N 0480 F 390 Y 644 ENKAS G 597 LANAT/N 0480 F 390 Y 51 SAMON Y 517 LANAI Y 301 SHELY/N 0480 F 380 Y 30 MELON DAISY -RJAA 1140 RJTT -PBN/A 1 B 1 D 1 O 1 DAT/SVM DOF/140211 REG/IDISU EET/LIRR 0011 LIBB 0018 LDZO 0027 LQSB 0036 LYBA 0048 LRBB 0059 LUUU 0131 UKOV 0139 UKBV 0148 UKDV 0154 UUWV 0220 UWWW 0250 USCC 0401 USSS 0439 UNNT 0448 UNKL 0616 ZMUB 0700 ZBPE 0826 ZYSH 0926 ZSHA 0939 RKRR 0950 RJJJ 1031 SEL/EKLM CODE/300177 OPR/AZA RALT/UIBB ZBAA RVR/100 RMK/TCAS)
