Physiology of the eye

Physiology of the eye

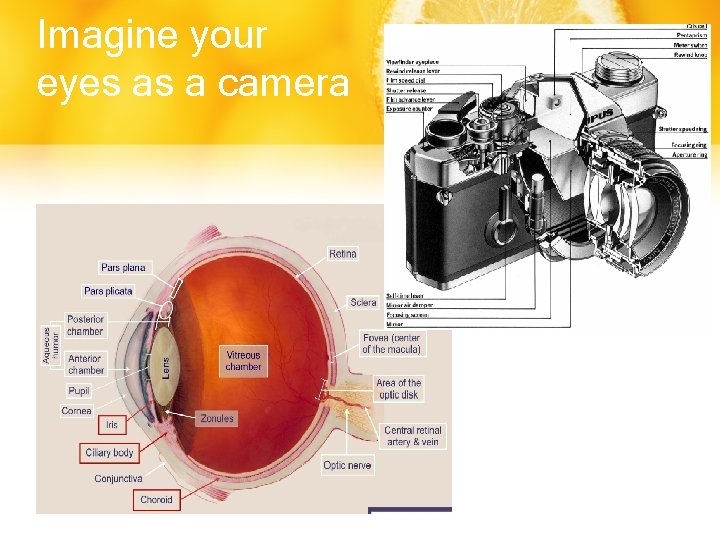

Imagine your eyes as a camera

Imagine your eyes as a camera

Sagital View of the eye

Sagital View of the eye

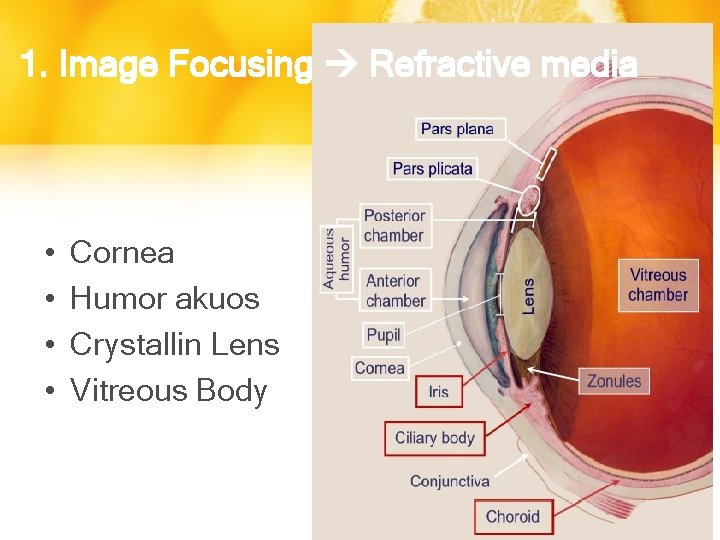

1. Image Focusing Refractive media • • Cornea Humor akuos Crystallin Lens Vitreous Body

1. Image Focusing Refractive media • • Cornea Humor akuos Crystallin Lens Vitreous Body

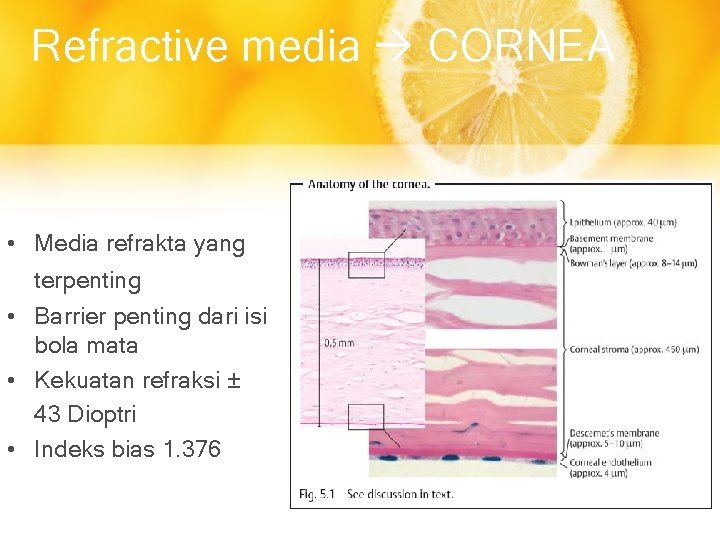

Refractive media CORNEA • Media refrakta yang terpenting • Barrier penting dari isi bola

Refractive media CORNEA • Media refrakta yang terpenting • Barrier penting dari isi bola mata • Kekuatan refraksi ± 43 Dioptri • Indeks bias 1. 376

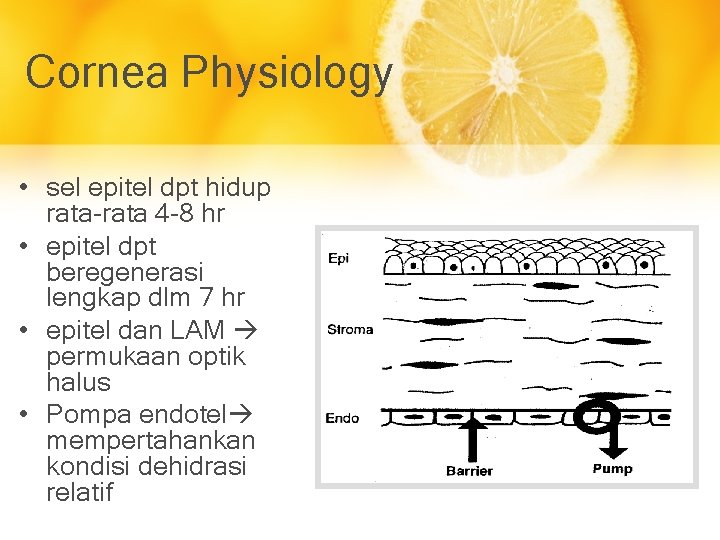

Cornea Physiology • sel epitel dpt hidup rata-rata 4 -8 hr • epitel dpt

Cornea Physiology • sel epitel dpt hidup rata-rata 4 -8 hr • epitel dpt beregenerasi lengkap dlm 7 hr • epitel dan LAM permukaan optik halus • Pompa endotel mempertahankan kondisi dehidrasi relatif

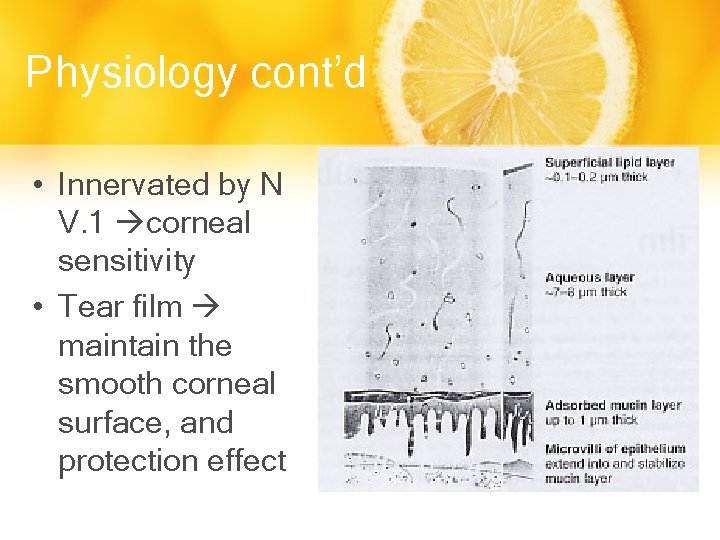

Physiology cont’d • Innervated by N V. 1 corneal sensitivity • Tear film maintain

Physiology cont’d • Innervated by N V. 1 corneal sensitivity • Tear film maintain the smooth corneal surface, and protection effect

Refractive Media Aquos Humor • Produced by the ciliary body • Refractive Media •

Refractive Media Aquos Humor • Produced by the ciliary body • Refractive Media • Nutrition and O 2 supply for cornea, lens etc. • Maintain the ocular pressure • Refractive index 1. 336

Refractive Media The Lens • biconvex, avascular, and transparent • 66% water • Other

Refractive Media The Lens • biconvex, avascular, and transparent • 66% water • Other Proteins • Protein Can be degenerated cataract Other function 1. Accommodations 2. UV absorption (protecting the retina)

Refractive Media Vitreous Body

Refractive Media Vitreous Body

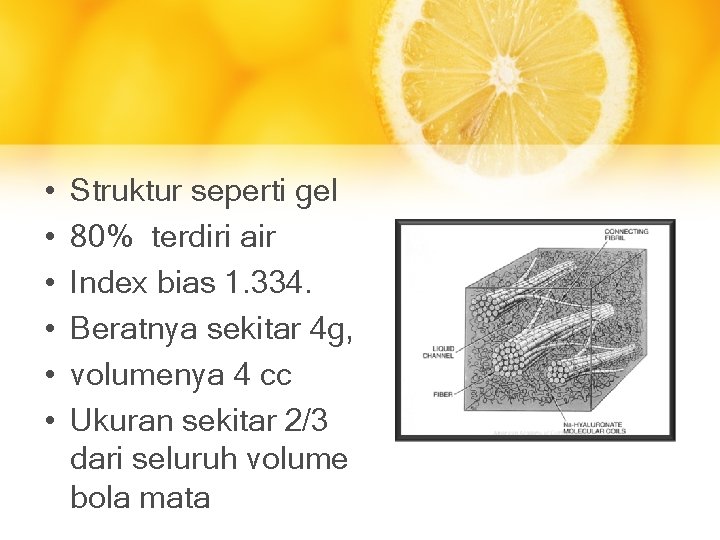

 • • • Struktur seperti gel 80% terdiri air Index bias 1. 334.

• • • Struktur seperti gel 80% terdiri air Index bias 1. 334. Beratnya sekitar 4 g, volumenya 4 cc Ukuran sekitar 2/3 dari seluruh volume bola mata

Refractive Indices of Refractive Media Element Air Cornea Surface Thickness Radius (mm) Anterior Posterior

Refractive Indices of Refractive Media Element Air Cornea Surface Thickness Radius (mm) Anterior Posterior 7. 7 6. 8 Aqueous Anterior lens Anterior cortex Posterior Lens core Posterior Anterior lens cortex Posterior Vitreous Retina 10. 0 0. 50 Refractive Index 1. 000 1. 376 Position (mm) 3. 10 0. 546 1. 336 1. 386 3. 60 2. 419 0. 635 1. 406 1. 386 4. 146 6. 565 0. 0 0. 50 7. 911 -5. 76 -6. 0 7. 20 16. 80 -12. 0 1. 336 24. 0

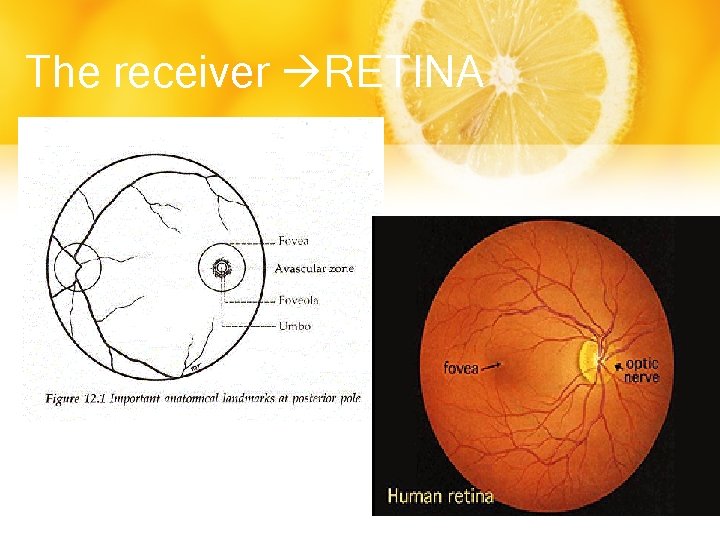

The receiver RETINA

The receiver RETINA

 • Transparant, • Histology 10 layers • Photoreseptor : rod & cones •

• Transparant, • Histology 10 layers • Photoreseptor : rod & cones • Supporting : Glial cells, amacrine, Muller cells

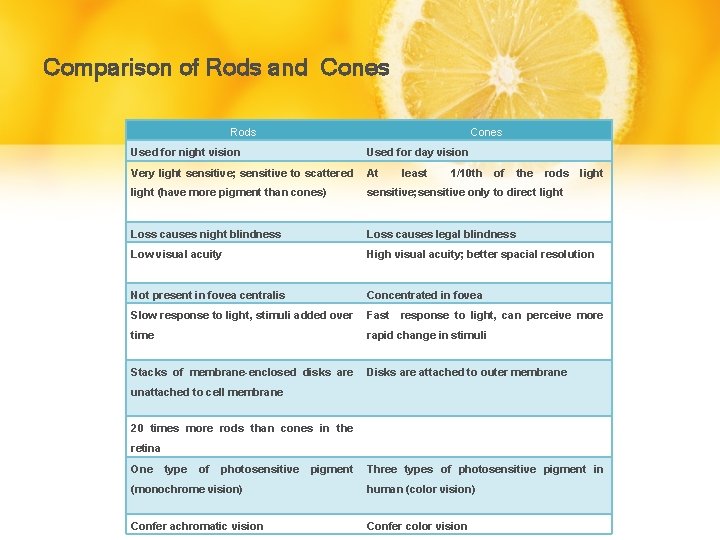

Comparison of Rods and Cones Rods Cones Used for night vision Used for day

Comparison of Rods and Cones Rods Cones Used for night vision Used for day vision Very light sensitive; sensitive to scattered At light (have more pigment than cones) sensitive; sensitive only to direct light Loss causes night blindness Loss causes legal blindness Low visual acuity High visual acuity; better spacial resolution Not present in fovea centralis Concentrated in fovea Slow response to light, stimuli added over Fast response to light, can perceive more time rapid change in stimuli Stacks of membrane-enclosed disks are Disks are attached to outer membrane least 1/10 th of the rods light unattached to cell membrane 20 times more rods than cones in the retina One type of photosensitive pigment Three types of photosensitive pigment in (monochrome vision) human (color vision) Confer achromatic vision Confer color vision

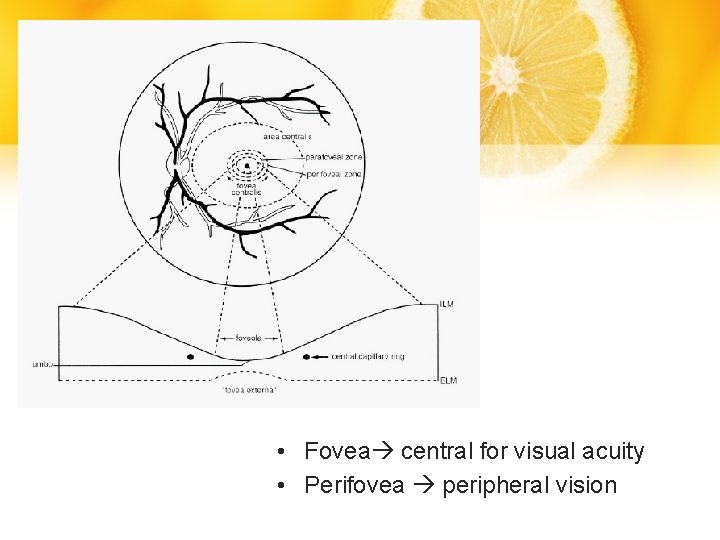

 • Fovea central for visual acuity • Perifovea peripheral vision

• Fovea central for visual acuity • Perifovea peripheral vision

The Conversion Phototransduction • Process of conversion from image in to neural impulse

The Conversion Phototransduction • Process of conversion from image in to neural impulse

The Pathway Retina into visual cortex § Start from the retinal photoreceptors , through

The Pathway Retina into visual cortex § Start from the retinal photoreceptors , through the optic nerve, chiasma and optic tract into the LGN § Ends in the visual cortex (LGN) Striate Cortex

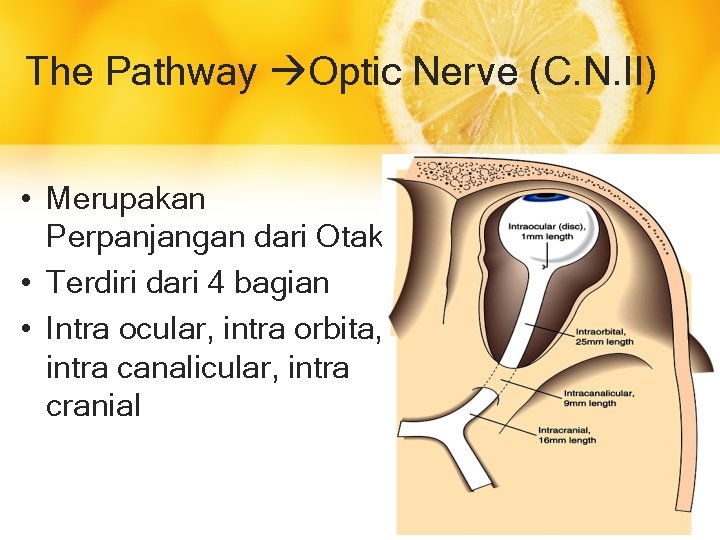

The Pathway Optic Nerve (C. N. II) • Merupakan Perpanjangan dari Otak • Terdiri

The Pathway Optic Nerve (C. N. II) • Merupakan Perpanjangan dari Otak • Terdiri dari 4 bagian • Intra ocular, intra orbita, intra canalicular, intra cranial

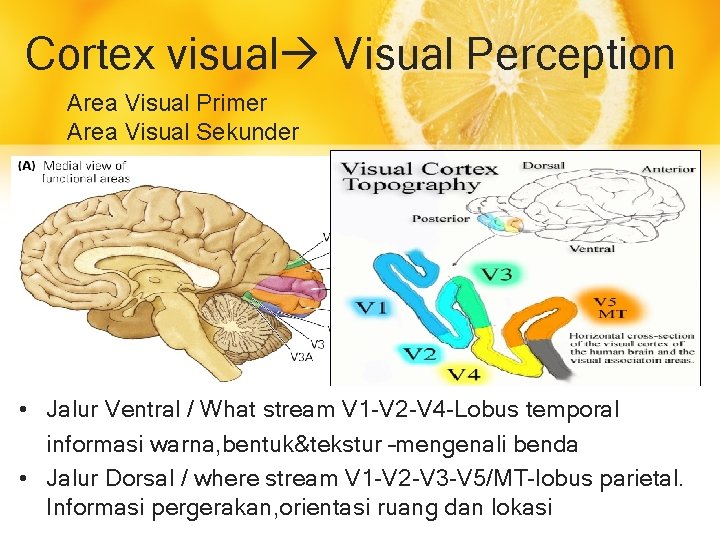

Cortex visual Visual Perception Area Visual Primer Area Visual Sekunder • Jalur Ventral /

Cortex visual Visual Perception Area Visual Primer Area Visual Sekunder • Jalur Ventral / What stream V 1 -V 2 -V 4 -Lobus temporal informasi warna, bentuk&tekstur –mengenali benda • Jalur Dorsal / where stream V 1 -V 2 -V 3 -V 5/MT-lobus parietal. Informasi pergerakan, orientasi ruang dan lokasi

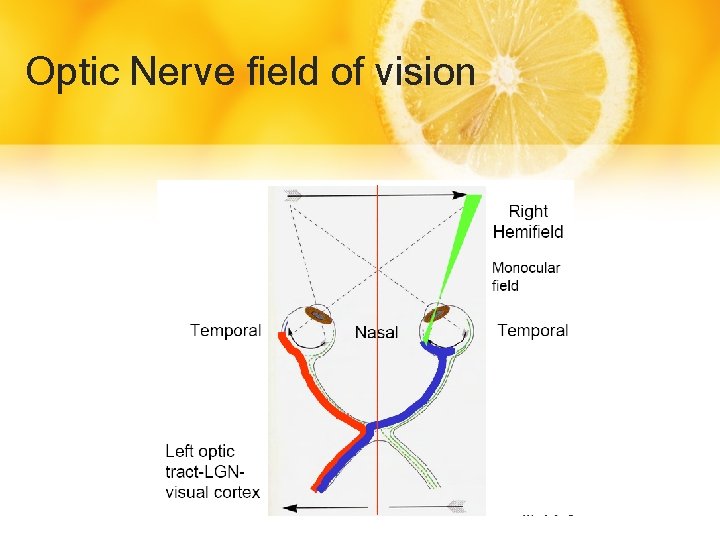

Optic Nerve field of vision

Optic Nerve field of vision

 • Pembagian daerah visual field saat serabut saraf berjalan ke otak

• Pembagian daerah visual field saat serabut saraf berjalan ke otak

Neural pathways 7 direct reflex

Neural pathways 7 direct reflex

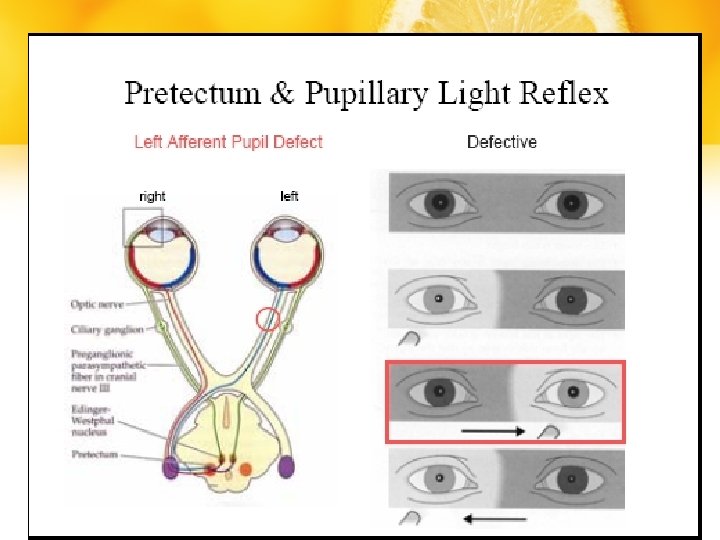

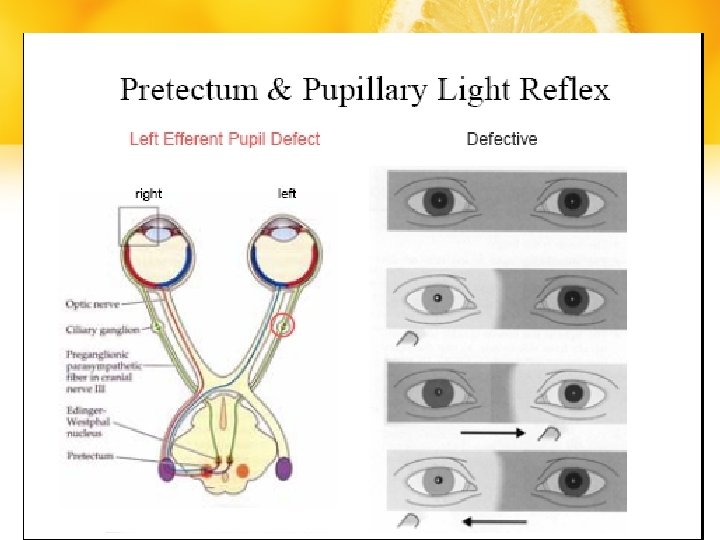

Neural pathways consensual reflex Note: Ada 2 tempat dimana information bersilangan - the optic

Neural pathways consensual reflex Note: Ada 2 tempat dimana information bersilangan - the optic chiasm - the pretectal nucleus. to the Edinger-Westphal nucleus 8

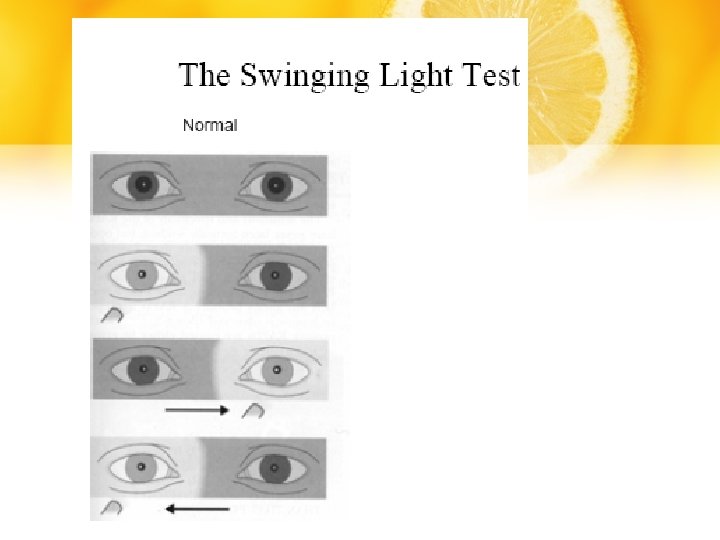

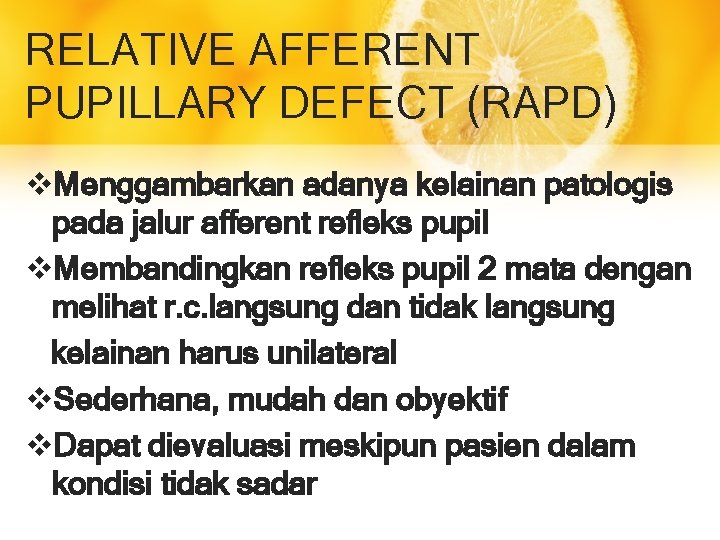

RELATIVE AFFERENT PUPILLARY DEFECT (RAPD) v. Menggambarkan adanya kelainan patologis pada jalur afferent refleks

RELATIVE AFFERENT PUPILLARY DEFECT (RAPD) v. Menggambarkan adanya kelainan patologis pada jalur afferent refleks pupil v. Membandingkan refleks pupil 2 mata dengan melihat r. c. langsung dan tidak langsung kelainan harus unilateral v. Sederhana, mudah dan obyektif v. Dapat dievaluasi meskipun pasien dalam kondisi tidak sadar

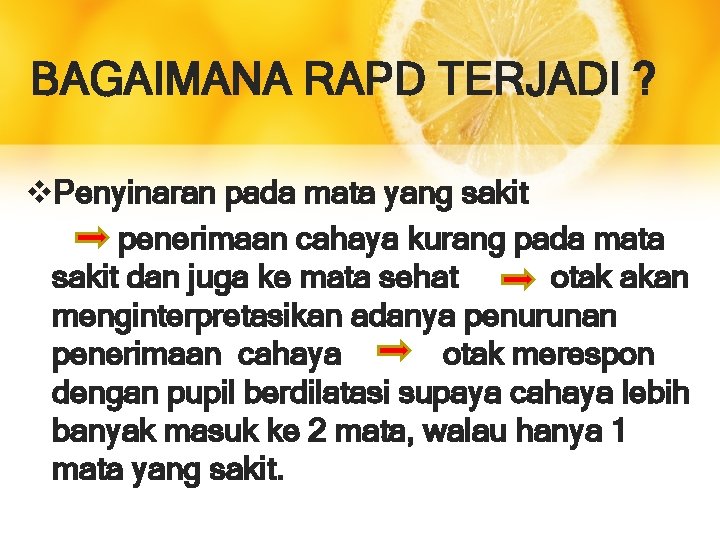

BAGAIMANA RAPD TERJADI ? v. Penyinaran pada mata yang sakit penerimaan cahaya kurang pada

BAGAIMANA RAPD TERJADI ? v. Penyinaran pada mata yang sakit penerimaan cahaya kurang pada mata sakit dan juga ke mata sehat otak akan menginterpretasikan adanya penurunan penerimaan cahaya otak merespon dengan pupil berdilatasi supaya cahaya lebih banyak masuk ke 2 mata, walau hanya 1 mata yang sakit.

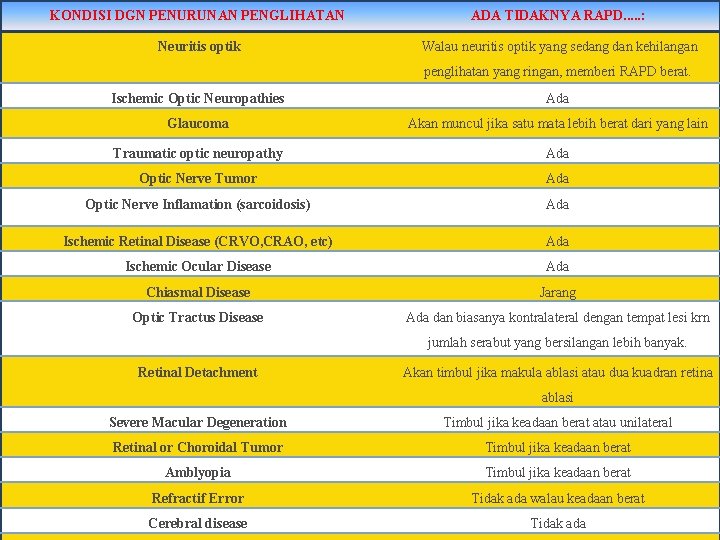

KONDISI DGN PENURUNAN PENGLIHATAN ADA TIDAKNYA RAPD. . . : Neuritis optik Walau neuritis

KONDISI DGN PENURUNAN PENGLIHATAN ADA TIDAKNYA RAPD. . . : Neuritis optik Walau neuritis optik yang sedang dan kehilangan penglihatan yang ringan, memberi RAPD berat. Ischemic Optic Neuropathies Ada Glaucoma Akan muncul jika satu mata lebih berat dari yang lain Traumatic optic neuropathy Ada Optic Nerve Tumor Ada Optic Nerve Inflamation (sarcoidosis) Ada Ischemic Retinal Disease (CRVO, CRAO, etc) Ada Ischemic Ocular Disease Ada Chiasmal Disease Jarang Optic Tractus Disease Ada dan biasanya kontralateral dengan tempat lesi krn jumlah serabut yang bersilangan lebih banyak. Retinal Detachment Akan timbul jika makula ablasi atau dua kuadran retina ablasi Severe Macular Degeneration Timbul jika keadaan berat atau unilateral Retinal or Choroidal Tumor Timbul jika keadaan berat Amblyopia Timbul jika keadaan berat Refractif Error Tidak ada walau keadaan berat Cerebral disease Tidak ada

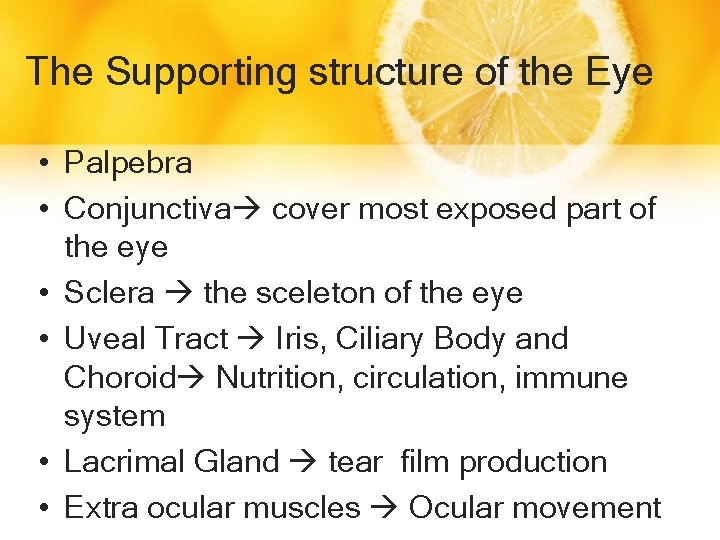

The Supporting structure of the Eye • Palpebra • Conjunctiva cover most exposed part

The Supporting structure of the Eye • Palpebra • Conjunctiva cover most exposed part of the eye • Sclera the sceleton of the eye • Uveal Tract Iris, Ciliary Body and Choroid Nutrition, circulation, immune system • Lacrimal Gland tear film production • Extra ocular muscles Ocular movement

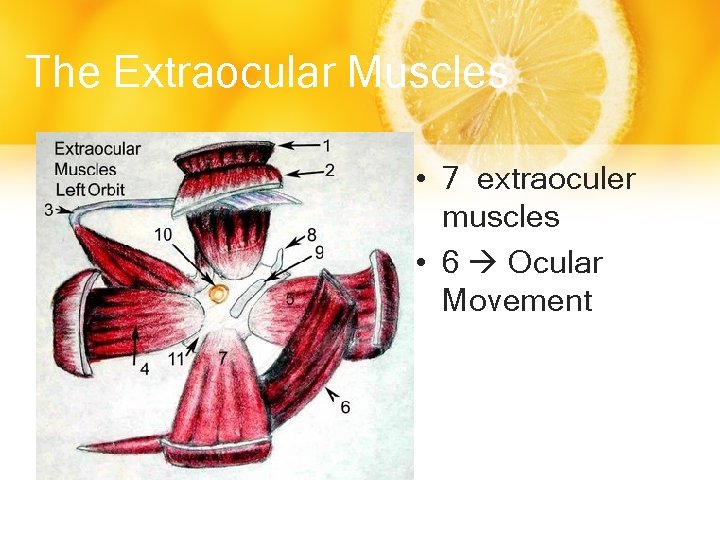

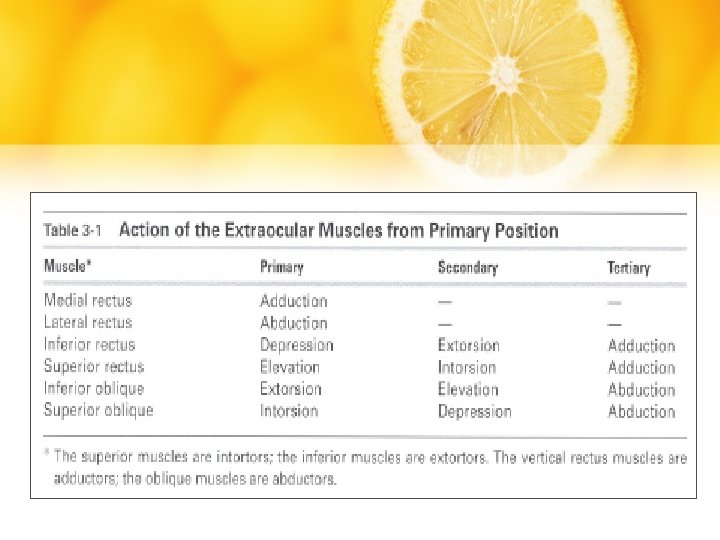

The Extraocular Muscles • 7 extraoculer muscles • 6 Ocular Movement

The Extraocular Muscles • 7 extraoculer muscles • 6 Ocular Movement

Eye Movements I. Monocular eye movements (ductions) 1. Adduction is movement of the eye

Eye Movements I. Monocular eye movements (ductions) 1. Adduction is movement of the eye nasally. 2. Abduction is movement of the eye temporally 3. Elevation (supraduction) is an upward rotation of the eye. 4. Depression (infraduction) is a downward rotation of the eye. 5. Intorsion (incicloduction)is a nasal rotation of the superior portion of the vertical corneal meridian. 6. Extorsion (excycloduction) is a temporal rotation of the superior portion of the vertical cornea meridian Sherrington’s law Pada gerakkan monookular impuls syaraf akan dialirkan secara aktif untuk otot-otot sinergis sedangkan untuk otot -otot antagonis impuls syaraf akan dihambat. II. Binocular eye movements (versions) Innervasi yang seimbang dan simultan mengalir ke otot-otot yang berpasangan Hering’s law

Parese n. III

Parese n. III

right cranial nerve VI palsy

right cranial nerve VI palsy

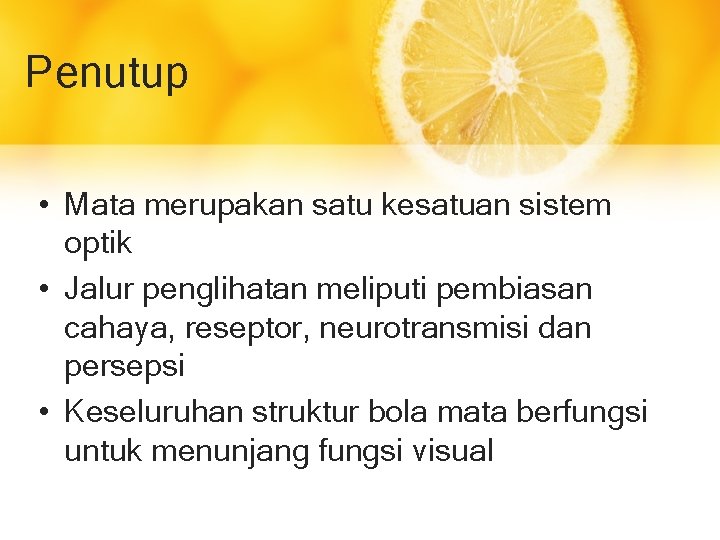

Penutup • Mata merupakan satu kesatuan sistem optik • Jalur penglihatan meliputi pembiasan cahaya,

Penutup • Mata merupakan satu kesatuan sistem optik • Jalur penglihatan meliputi pembiasan cahaya, reseptor, neurotransmisi dan persepsi • Keseluruhan struktur bola mata berfungsi untuk menunjang fungsi visual

Terima kasih

Terima kasih

JALUR NEAR REFLEKS : AKOMODASI KONVERGENSI

JALUR NEAR REFLEKS : AKOMODASI KONVERGENSI
