Physiological factors in glider aerobatics
FLIGHT, PILOT AND INSTRUMENTATION FLIGHT Place = “Alfina” AIRFIELD (Orvieto – Italia) Date = 30 / 04 / 2010 Glider = MDM FOX D-7309 Programme = “Artistic Free Programme” as in World Air Games 2009 PILOT Name = Pietro Filippini Age = 61 years old Hours of flight = 12. 000 Italian and WAG Champion INSTRUMENTATION metabolimetro “Cosmed K 4 B 2” Video camera “voice recorder”
Graphic representation of the “Artistic Free Programme” of the WAG winner Pietro Filippini
DATA CONCERNING THE COMPLET TEST (DURATION 24’ 38”) TEST PHASES 1 BEFORE TAKE OFF AFTER ON BOARD ARRANGEMENT 2 TAKE OFF 3 TOW FLIGHT 4 AEROBATIC PROGRAMME 5 LANDING
THREE CHARACTERISTIC FIGURES OF THE PROGRAMME the “ITALIAN EIGHT” the “SUNFLOWER” the “RAINBOW”
The “ITALIAN EIGHT” Entry speed = km/h 220 Exit speed = km/h 90 (inverted flight) DURATION = 26 sec. “g” MAX = 5, 0 POS/1, 0 NEG Exposure to over 3 pos. “g” = never more than 3 sec.
00: 17: 10 00: 17: 21 00: 17: 29 00: 17: 38 00: 17: 48 00: 17: 56 00: 18: 05 00: 18: 12 00: 18: 21 00: 18: 29 00: 18: 38 00: 18: 46 00: 18: 54 00: 19: 03 00: 19: 10 00: 19: 18 00: 19: 27 00: 19: 35 00: 19: 44 00: 19: 51 00: 19: 59 00: 20: 07 00: 20: 14 00: 25 00: 20: 35 The VE l/min CO 2 exp ml “ITALIAN EIGHT” VE l/min CO 2 exp ml 80 70 60 50 40 30 20 10 0
The “ITALIAN EIGHT”
00: 17: 10 00: 17: 21 00: 17: 29 00: 17: 38 00: 17: 48 00: 17: 56 00: 18: 05 00: 18: 12 00: 18: 21 00: 18: 29 00: 18: 38 00: 18: 46 00: 18: 54 00: 19: 03 00: 19: 10 00: 19: 18 00: 19: 27 00: 19: 35 00: 19: 44 00: 19: 51 00: 19: 59 00: 20: 07 00: 20: 14 00: 25 00: 20: 35 The “ITALIAN EIGHT” VO 2/HR ml/bpm 16 14 12 10 8 6 4 2 0
The “SUNFLOWER” Entry speed = km/h 220 (vertical flight down) Exit speed= km/h 270 DURATION = 21 sec. “g” MAX = 5, 0 POS/5, 0 NEG Exposure to over 3 pos. “g” = never more than 3 sec. Exposure to over 3 neg. “g” = 4 sec.
00: 17: 10 00: 17: 21 00: 17: 29 00: 17: 38 00: 17: 48 00: 17: 56 00: 18: 05 00: 18: 12 00: 18: 21 00: 18: 29 00: 18: 38 00: 18: 46 00: 18: 54 00: 19: 03 00: 19: 10 00: 19: 18 00: 19: 27 00: 19: 35 00: 19: 44 00: 19: 51 00: 19: 59 00: 20: 07 00: 20: 14 00: 25 00: 20: 35 The “SUNFLOWER” VE l/min CO 2 exp ml 80 70 60 50 40 30 20 10 0
The “SUNFLOWER”
00: 17: 10 00: 17: 21 00: 17: 29 00: 17: 38 00: 17: 48 00: 17: 56 00: 18: 05 00: 18: 12 00: 18: 21 00: 18: 29 00: 18: 38 00: 18: 46 00: 18: 54 00: 19: 03 00: 19: 10 00: 19: 18 00: 19: 27 00: 19: 35 00: 19: 44 00: 19: 51 00: 19: 59 00: 20: 07 00: 20: 14 00: 25 00: 20: 35 The “SUNFLOWER” VO 2/HR ml/bpm 16 14 12 10 8 6 4 2 0
The “RAINBOW” Entry speed = km/h 280 Exit speed = km/h 250 DURATION = 17 sec “g” MAX = 7, 0 POS/0, 0 NEG Exposure to over 5 pos. “g” = 4 second Ballistic flight = 12 second
00: 17: 10 00: 17: 21 00: 17: 29 00: 17: 38 00: 17: 48 00: 17: 56 00: 18: 05 00: 18: 12 00: 18: 21 00: 18: 29 00: 18: 38 00: 18: 46 00: 18: 54 00: 19: 03 00: 19: 10 00: 19: 18 00: 19: 27 00: 19: 35 00: 19: 44 00: 19: 51 00: 19: 59 00: 20: 07 00: 20: 14 00: 25 00: 20: 35 The “RAINBOW” VE l/min CO 2 exp ml 80 70 60 50 40 30 20 10 0
VO 2/kg ml/min/kg 30 25 5 0 00: 17: 10 00: 17: 21 00: 17: 29 00: 17: 38 00: 17: 48 00: 17: 56 00: 18: 05 00: 18: 12 00: 18: 21 00: 18: 29 00: 18: 38 00: 18: 46 00: 18: 54 00: 19: 03 00: 19: 10 00: 19: 18 00: 19: 27 00: 19: 35 00: 19: 44 00: 19: 51 00: 19: 59 00: 20: 07 00: 20: 14 00: 20: 25 00: 20: 35 The “RAINBOW” O 2 exp ml 350 300 20 250 200 15 150 10 100 50 0
00: 17: 10 00: 17: 21 00: 17: 29 00: 17: 38 00: 17: 48 00: 17: 56 00: 18: 05 00: 18: 12 00: 18: 21 00: 18: 29 00: 18: 38 00: 18: 46 00: 18: 54 00: 19: 03 00: 19: 10 00: 19: 18 00: 19: 27 00: 19: 35 00: 19: 44 00: 19: 51 00: 19: 59 00: 20: 07 00: 20: 14 00: 25 00: 20: 35 The “RAINBOW” VO 2/HR ml/bpm 16 14 12 10 8 6 4 2 0
CONCLUSION It is possible to use the Cosmed K 4 B 2 in “high level” glider aerobatic

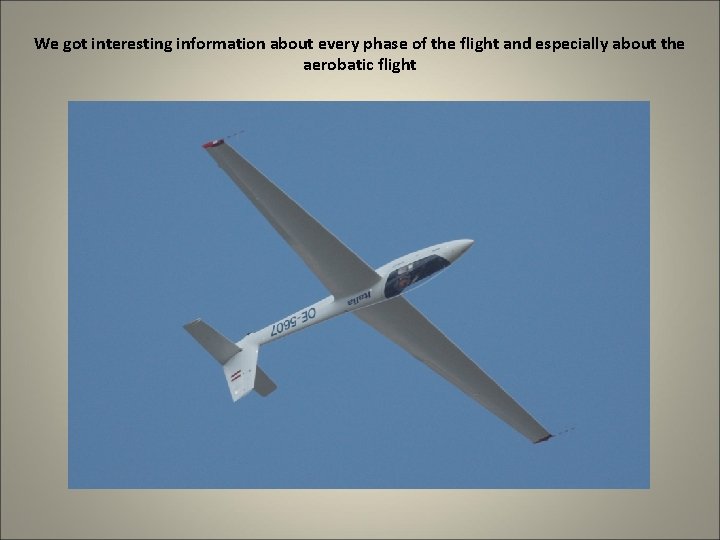

We got interesting information about every phase of the flight and especially about the aerobatic flight
It is very important to use together “K 4 B 2” and video recording because of the unreliability of GPS due to “g”
The research may be extended to different: • pilots • aerobatic programmes • phases of training
