Physics Problem Solving Chapter 4 Vectors Physics Problem

Physics: Problem Solving Chapter 4 Vectors

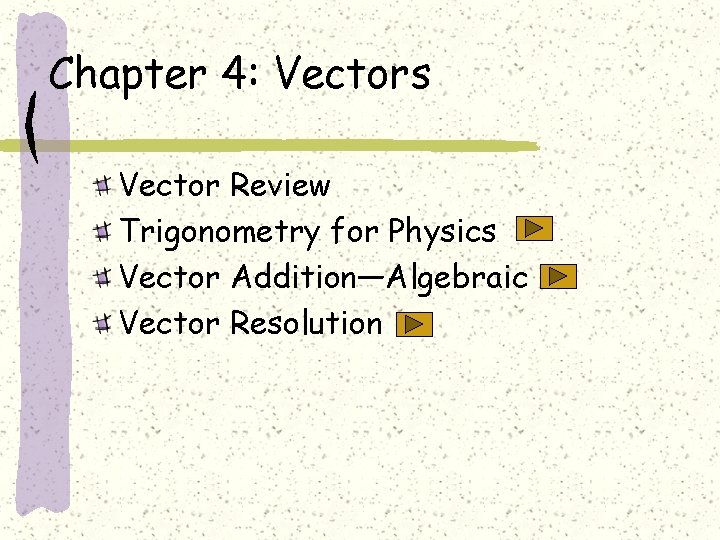

Chapter 4: Vectors Vector Review Trigonometry for Physics Vector Addition—Algebraic Vector Resolution

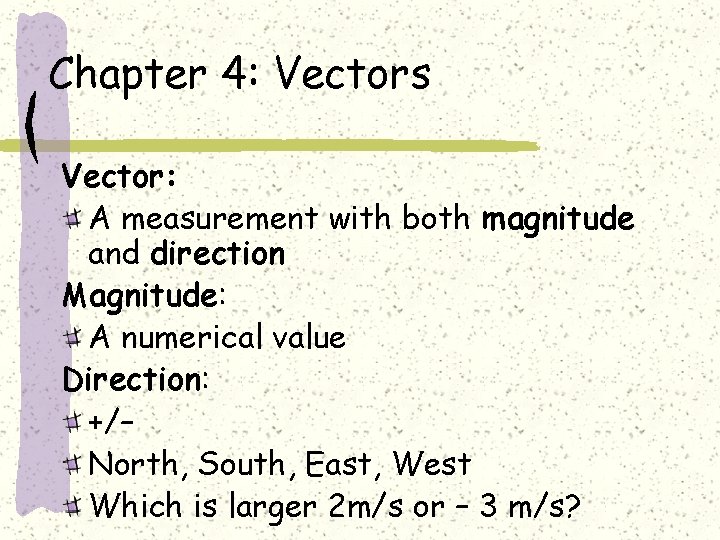

Chapter 4: Vectors Vector: A measurement with both magnitude and direction Magnitude: A numerical value Direction: +/– North, South, East, West Which is larger 2 m/s or – 3 m/s?

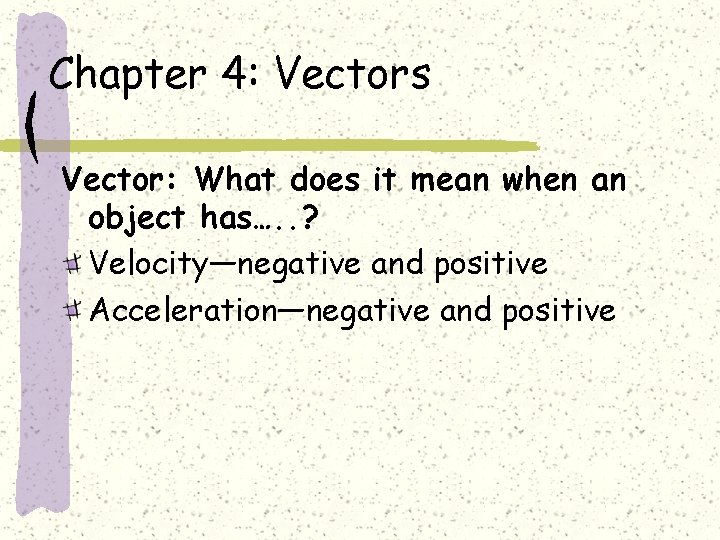

Chapter 4: Vectors Vector: What does it mean when an object has…. . ? Velocity—negative and positive Acceleration—negative and positive

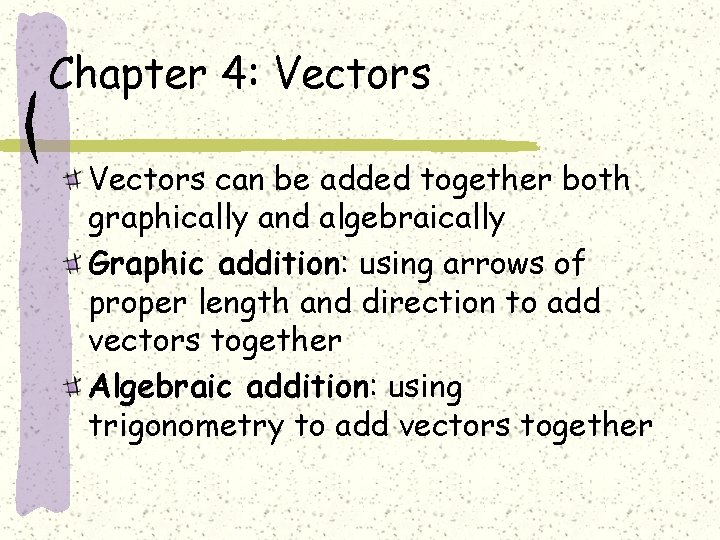

Chapter 4: Vectors can be added together both graphically and algebraically Graphic addition: using arrows of proper length and direction to add vectors together Algebraic addition: using trigonometry to add vectors together

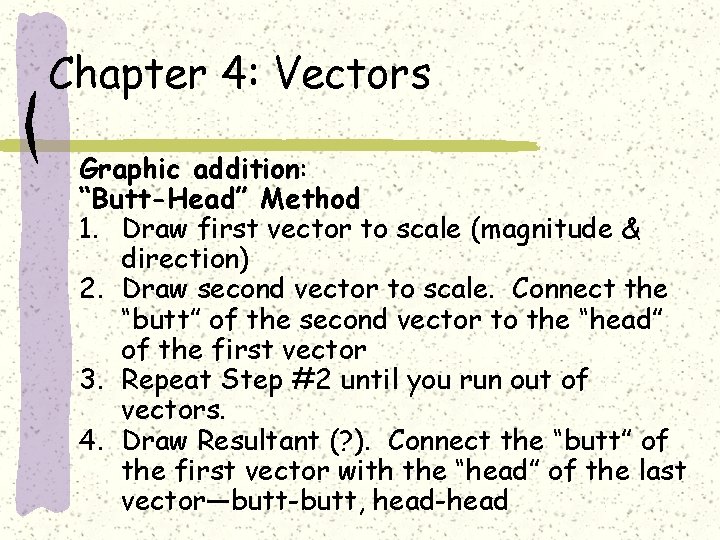

Chapter 4: Vectors Graphic addition: “Butt-Head” Method 1. Draw first vector to scale (magnitude & direction) 2. Draw second vector to scale. Connect the “butt” of the second vector to the “head” of the first vector 3. Repeat Step #2 until you run out of vectors. 4. Draw Resultant (? ). Connect the “butt” of the first vector with the “head” of the last vector—butt-butt, head-head

Chapter 4: Vectors Graphic addition: “Butt-Head” Method A dog walks 15 km east and then 10 km west find the sum of the vectors (resultant)

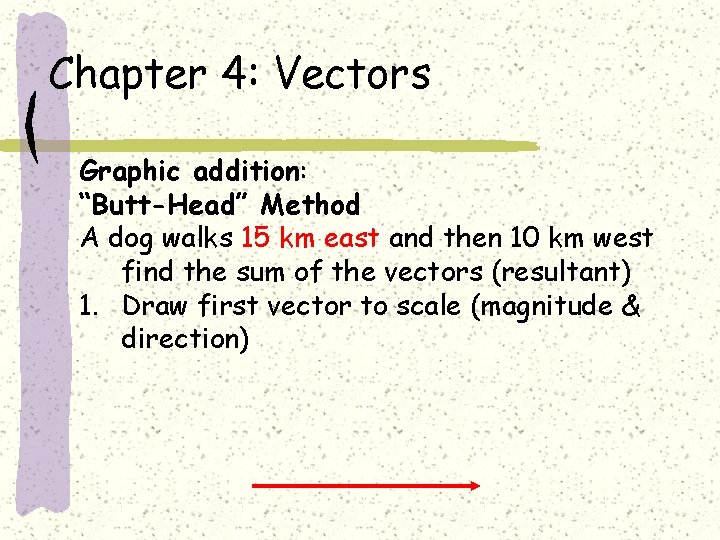

Chapter 4: Vectors Graphic addition: “Butt-Head” Method A dog walks 15 km east and then 10 km west find the sum of the vectors (resultant) 1. Draw first vector to scale (magnitude & direction)

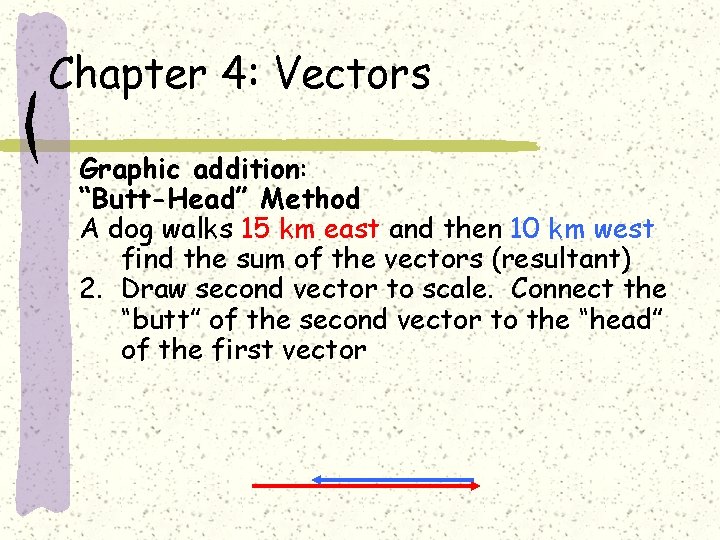

Chapter 4: Vectors Graphic addition: “Butt-Head” Method A dog walks 15 km east and then 10 km west find the sum of the vectors (resultant) 2. Draw second vector to scale. Connect the “butt” of the second vector to the “head” of the first vector

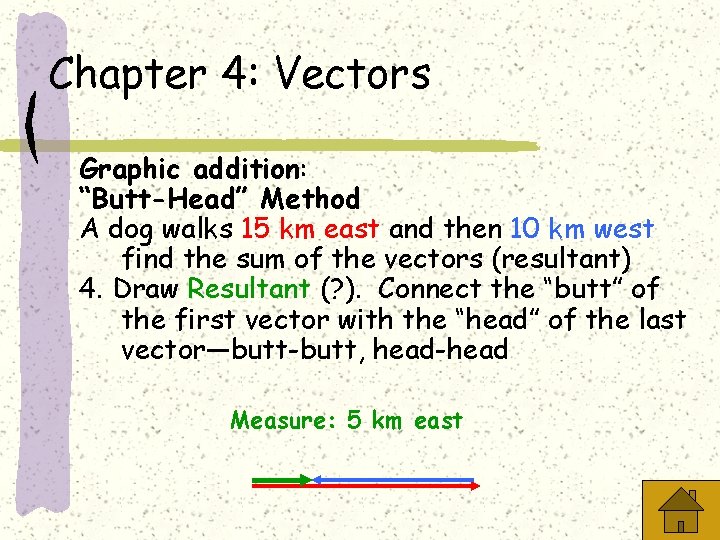

Chapter 4: Vectors Graphic addition: “Butt-Head” Method A dog walks 15 km east and then 10 km west find the sum of the vectors (resultant) 4. Draw Resultant (? ). Connect the “butt” of the first vector with the “head” of the last vector—butt-butt, head-head Measure: 5 km east

Chapter 4: Vectors Graphic addition: “Butt-Head” Method A dog walks 15 km east and then 10 km south find the sum of the vectors (resultant) Measure: 18 km 34 south of east

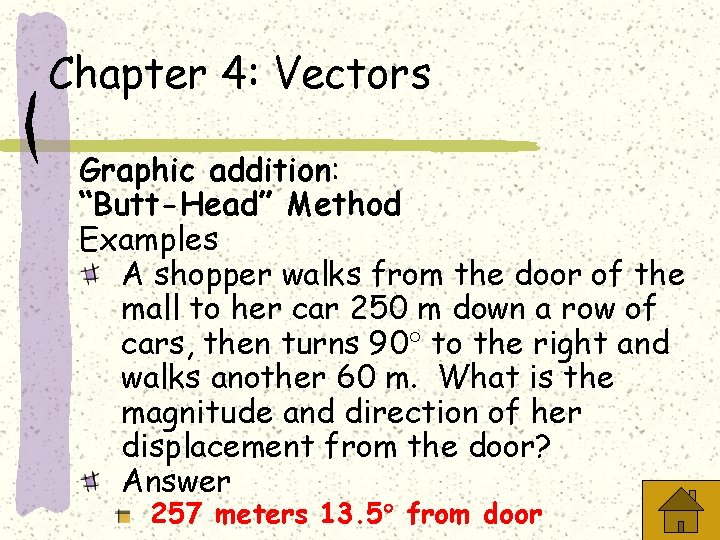

Chapter 4: Vectors Graphic addition: “Butt-Head” Method Examples A shopper walks from the door of the mall to her car 250 m down a row of cars, then turns 90 to the right and walks another 60 m. What is the magnitude and direction of her displacement from the door? Answer 257 meters 13. 5 from door

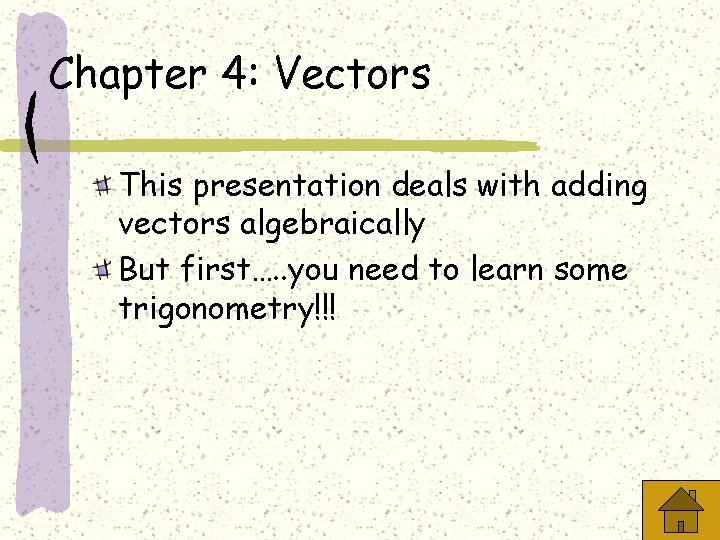

Chapter 4: Vectors This presentation deals with adding vectors algebraically But first…. . you need to learn some trigonometry!!!

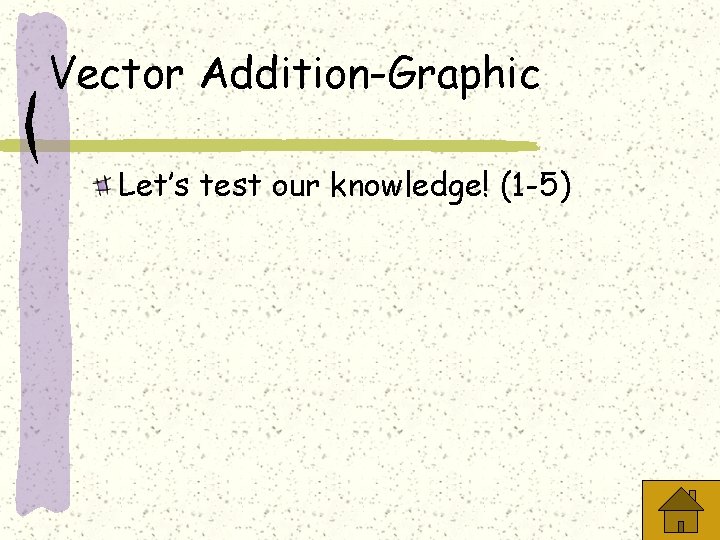

Vector Addition-Graphic Let’s test our knowledge! (1 -5)

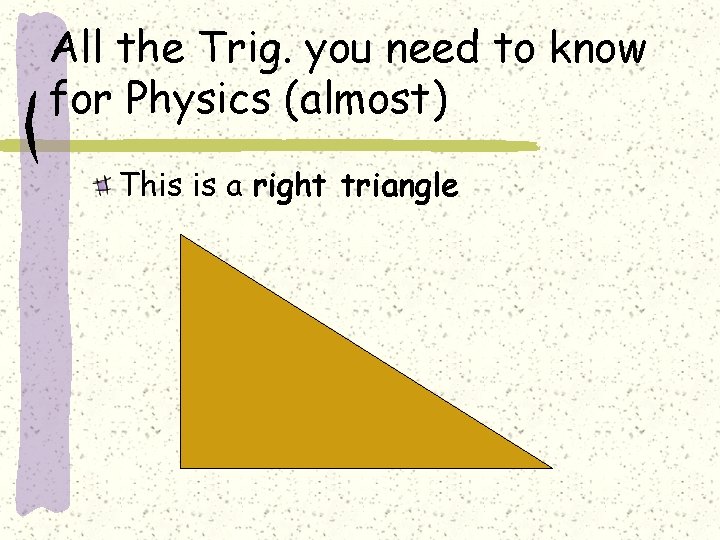

All the Trig. you need to know for Physics (almost) This is a right triangle

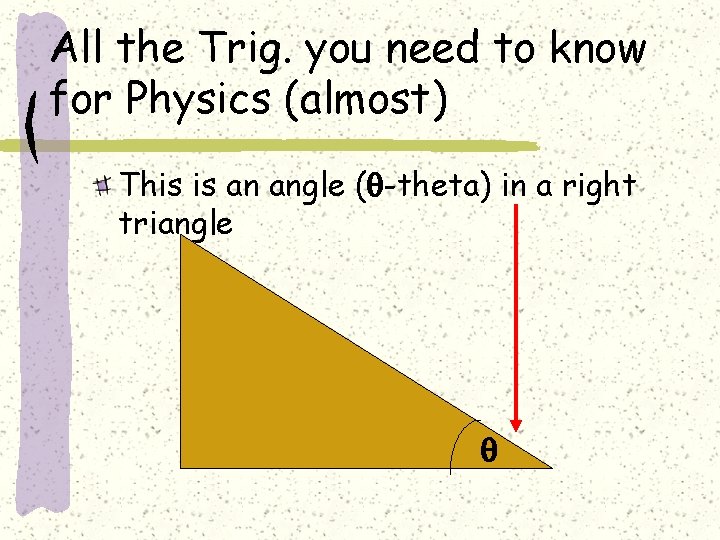

All the Trig. you need to know for Physics (almost) This is an angle ( -theta) in a right triangle

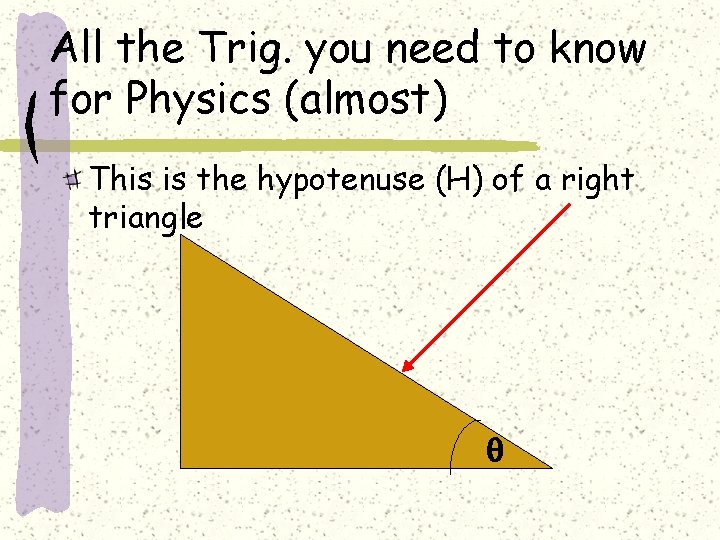

All the Trig. you need to know for Physics (almost) This is the hypotenuse (H) of a right triangle

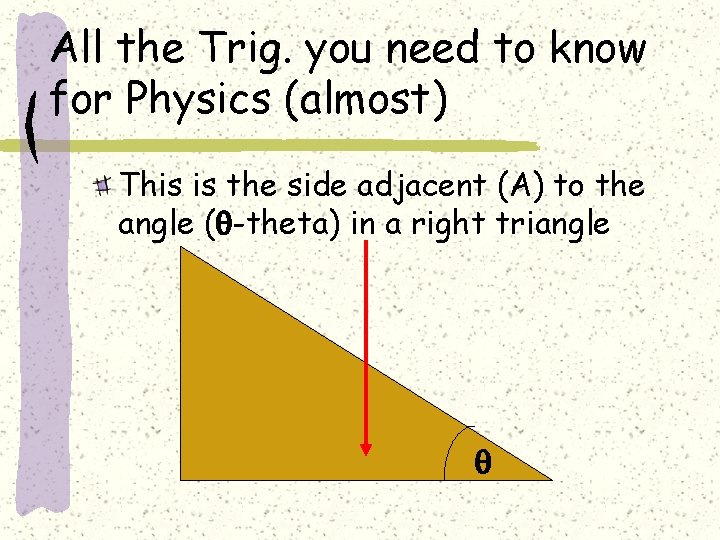

All the Trig. you need to know for Physics (almost) This is the side adjacent (A) to the angle ( -theta) in a right triangle

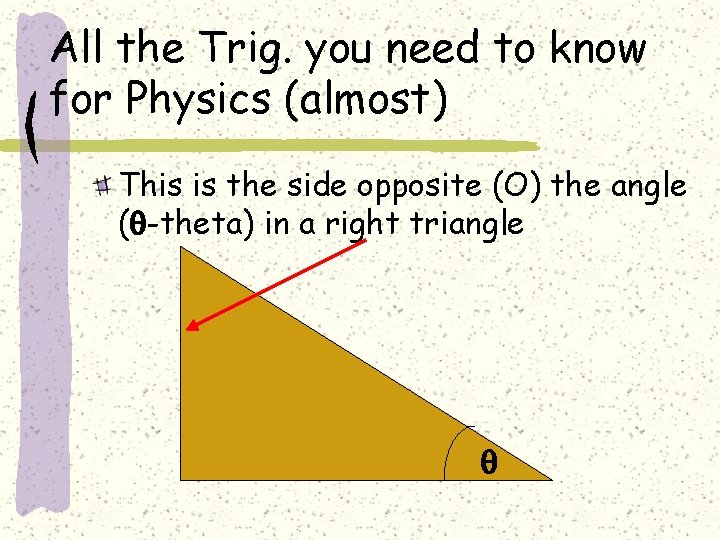

All the Trig. you need to know for Physics (almost) This is the side opposite (O) the angle ( -theta) in a right triangle

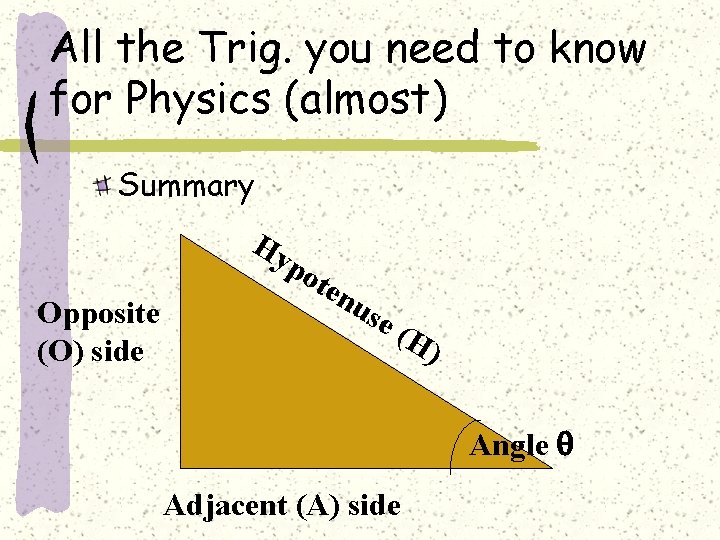

All the Trig. you need to know for Physics (almost) Summary Hy po Opposite (O) side ten us e( H) Angle Adjacent (A) side

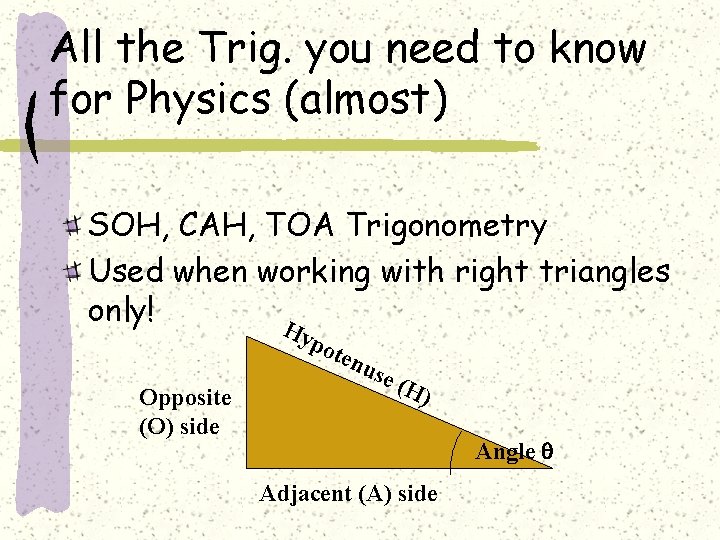

All the Trig. you need to know for Physics (almost) SOH, CAH, TOA Trigonometry Used when working with right triangles only! H ypo ten Opposite (O) side use (H) Angle Adjacent (A) side

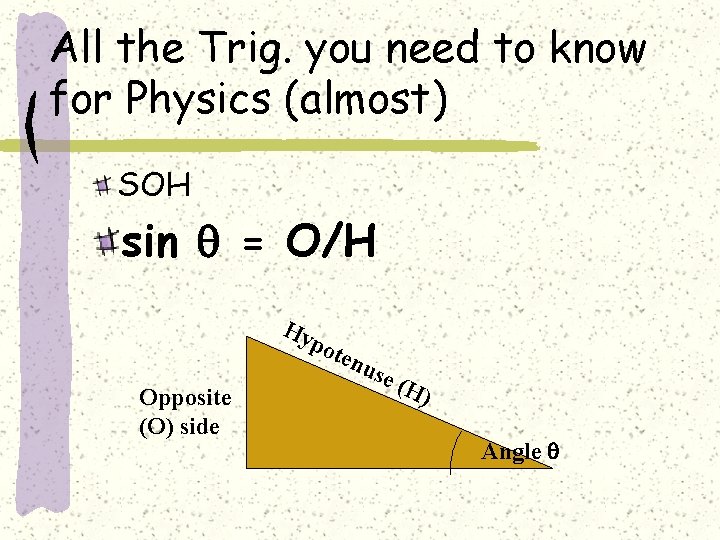

All the Trig. you need to know for Physics (almost) SOH sin = O/H Hy pot e Opposite (O) side nus e (H ) Angle

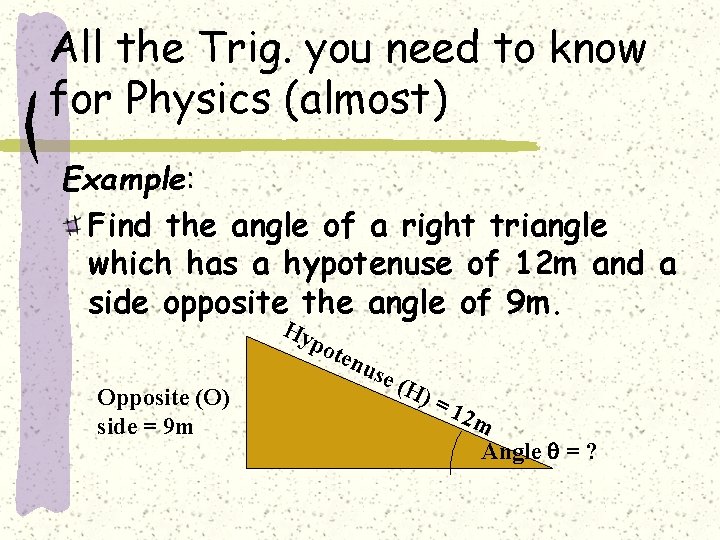

All the Trig. you need to know for Physics (almost) Example: Find the angle of a right triangle which has a hypotenuse of 12 m and a side opposite the angle of 9 m. Hy pot e Opposite (O) side = 9 m nus e (H )= 12 m Angle = ?

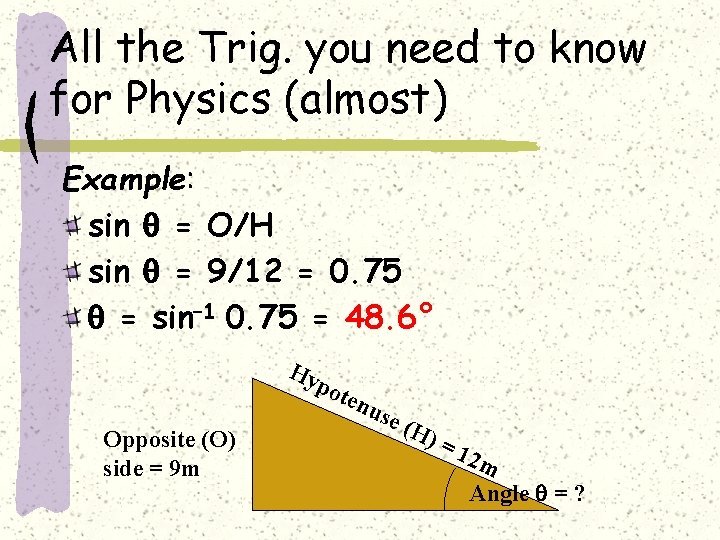

All the Trig. you need to know for Physics (almost) Example: sin = O/H sin = 9/12 = 0. 75 = sin– 1 0. 75 = 48. 6° Hy pot e Opposite (O) side = 9 m nus e (H )= 12 m Angle = ?

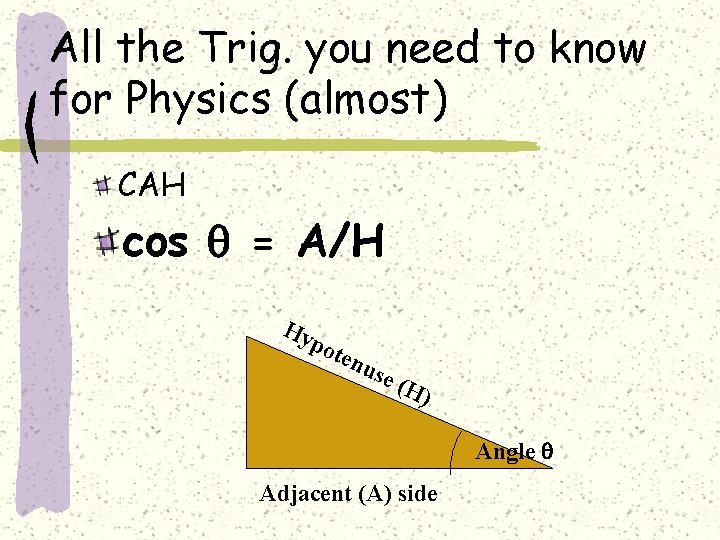

All the Trig. you need to know for Physics (almost) CAH cos = A/H Hy pot e nus e (H ) Angle Adjacent (A) side

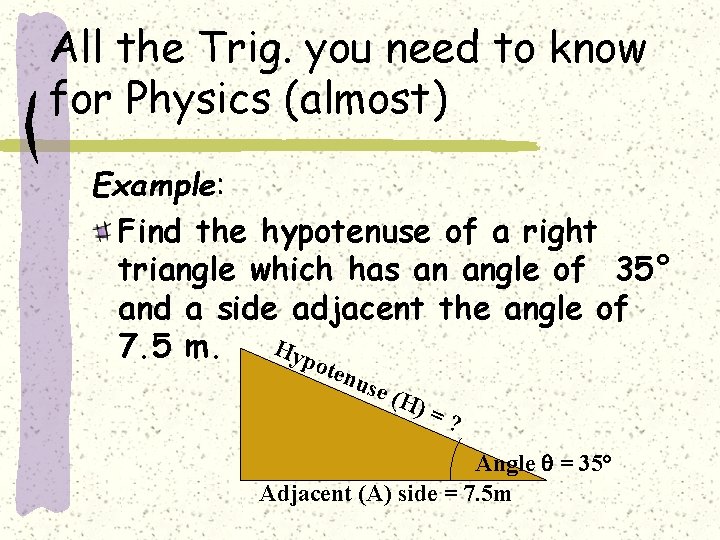

All the Trig. you need to know for Physics (almost) Example: Find the hypotenuse of a right triangle which has an angle of 35° and a side adjacent the angle of Hyp 7. 5 m. o ten use (H) =? Angle = 35° Adjacent (A) side = 7. 5 m

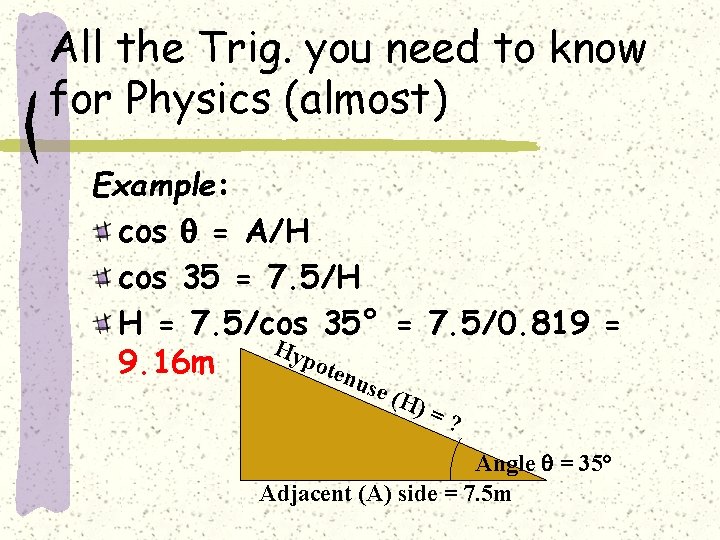

All the Trig. you need to know for Physics (almost) Example: cos = A/H cos 35 = 7. 5/H H = 7. 5/cos 35° = 7. 5/0. 819 = Hyp oten 9. 16 m use (H) =? Angle = 35° Adjacent (A) side = 7. 5 m

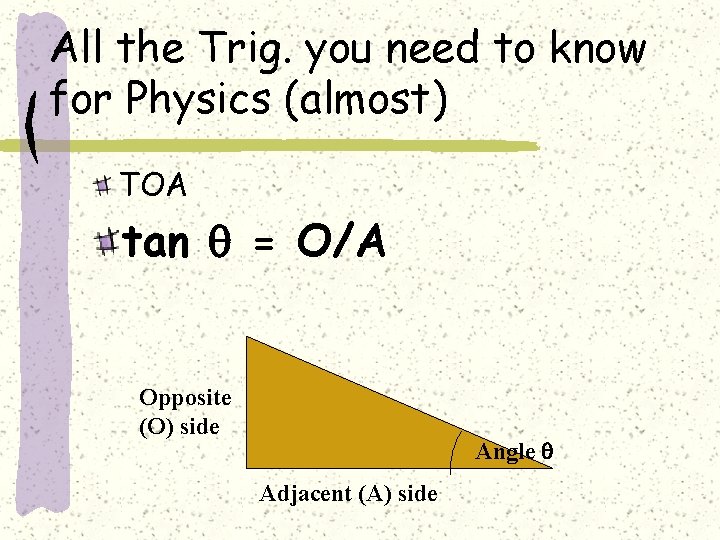

All the Trig. you need to know for Physics (almost) TOA tan = O/A Opposite (O) side Angle Adjacent (A) side

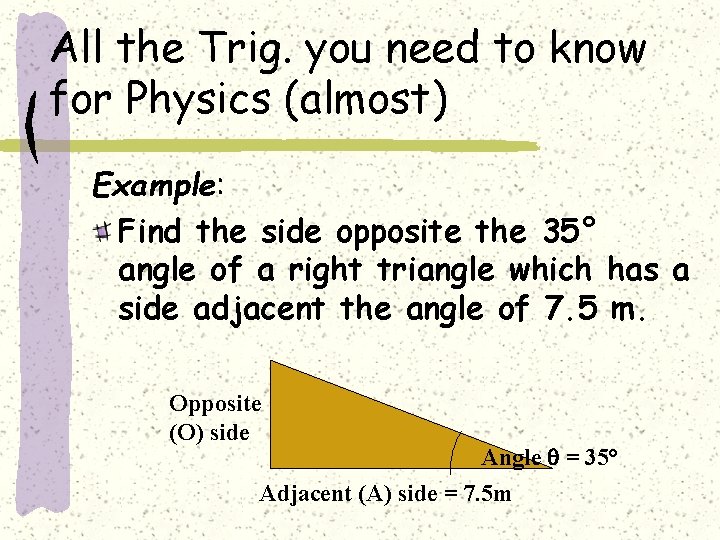

All the Trig. you need to know for Physics (almost) Example: Find the side opposite the 35° angle of a right triangle which has a side adjacent the angle of 7. 5 m. Opposite (O) side Angle = 35° Adjacent (A) side = 7. 5 m

All the Trig. you need to know for Physics (almost) tan = O/A tan 35 = O/7. 5 O = (7. 5)(tan 35) = (7. 5)(. 7)= 5. 25 m Opposite (O) side Angle = 35° Adjacent (A) side = 7. 5 m

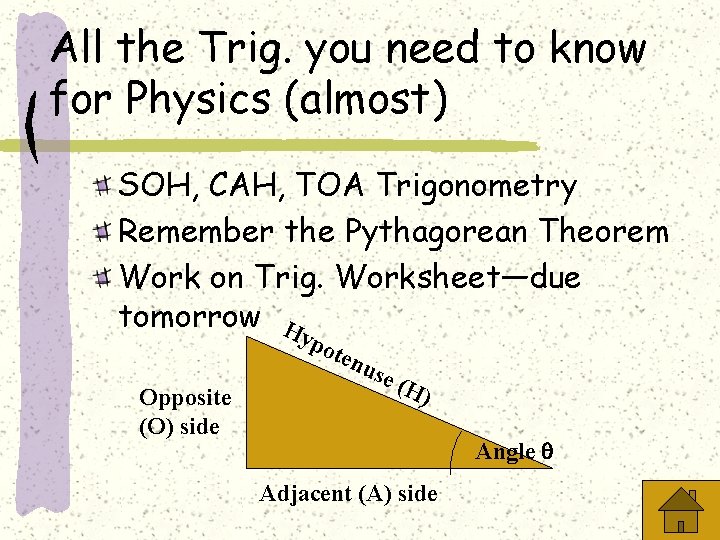

All the Trig. you need to know for Physics (almost) SOH, CAH, TOA Trigonometry Remember the Pythagorean Theorem Work on Trig. Worksheet—due tomorrow H ypo ten Opposite (O) side use (H) Angle Adjacent (A) side

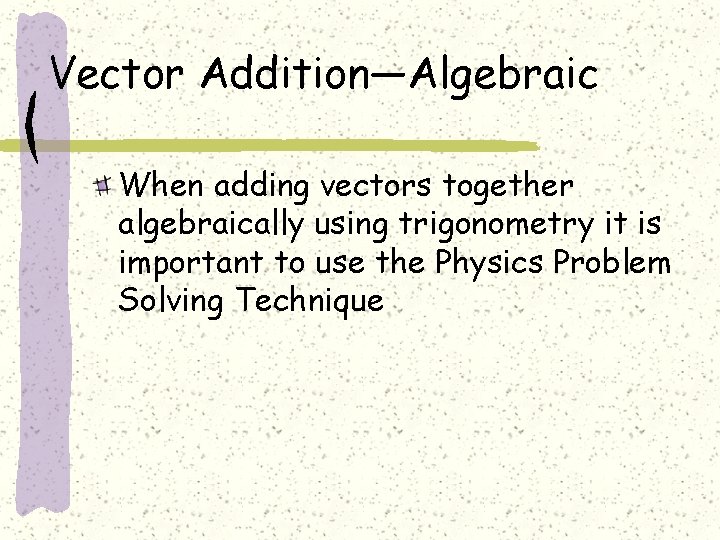

Vector Addition—Algebraic When adding vectors together algebraically using trigonometry it is important to use the Physics Problem Solving Technique

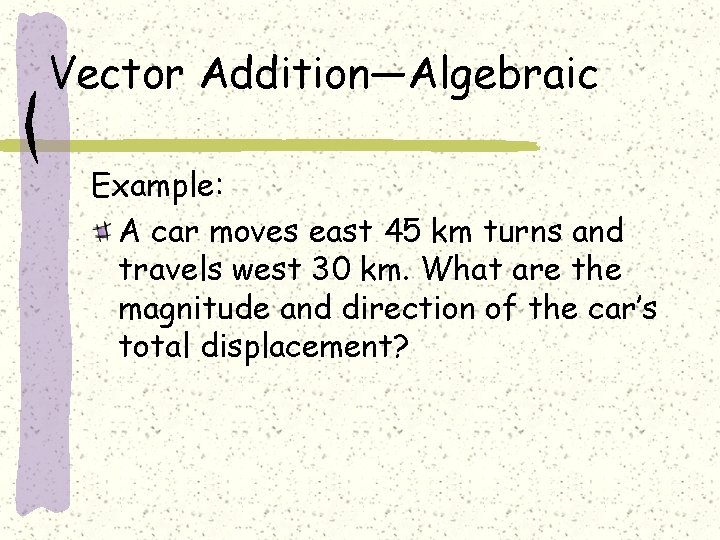

Vector Addition—Algebraic Example: A car moves east 45 km turns and travels west 30 km. What are the magnitude and direction of the car’s total displacement?

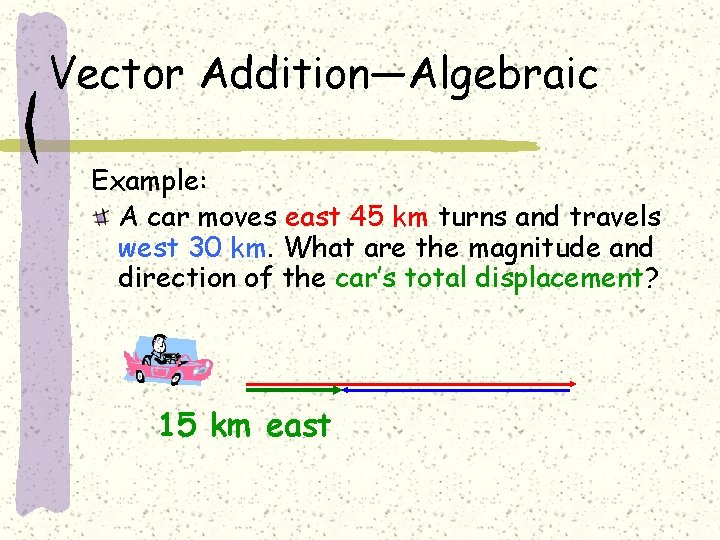

Vector Addition—Algebraic Example: A car moves east 45 km turns and travels west 30 km. What are the magnitude and direction of the car’s total displacement? 15 km east

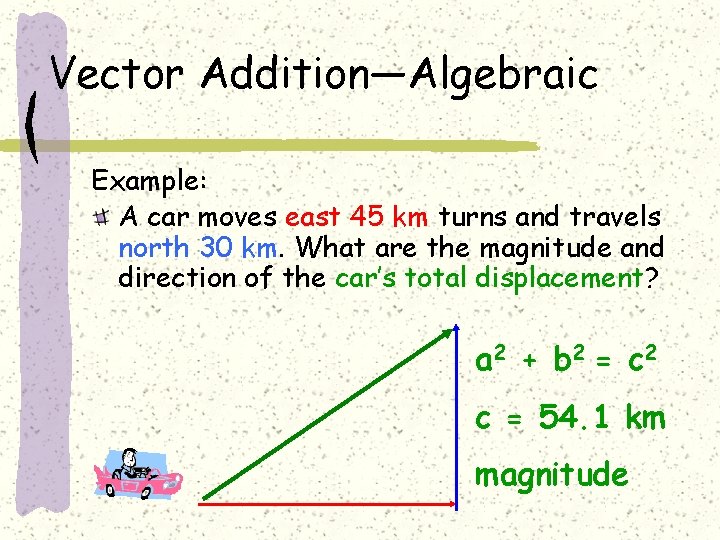

Vector Addition—Algebraic Example: A car moves east 45 km turns and travels north 30 km. What are the magnitude and direction of the car’s total displacement? a 2 + b 2 = c 2 c = 54. 1 km magnitude

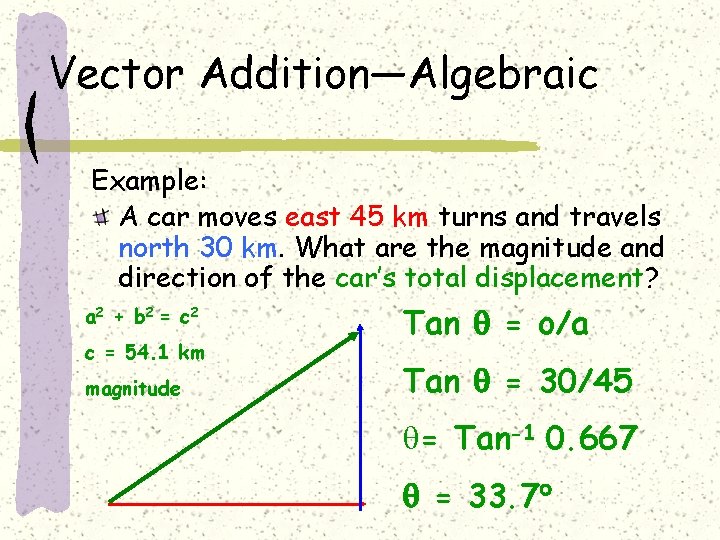

Vector Addition—Algebraic Example: A car moves east 45 km turns and travels north 30 km. What are the magnitude and direction of the car’s total displacement? a 2 + b 2 = c 2 c = 54. 1 km magnitude Tan = o/a Tan = 30/45 q= Tan-1 0. 667 = 33. 7

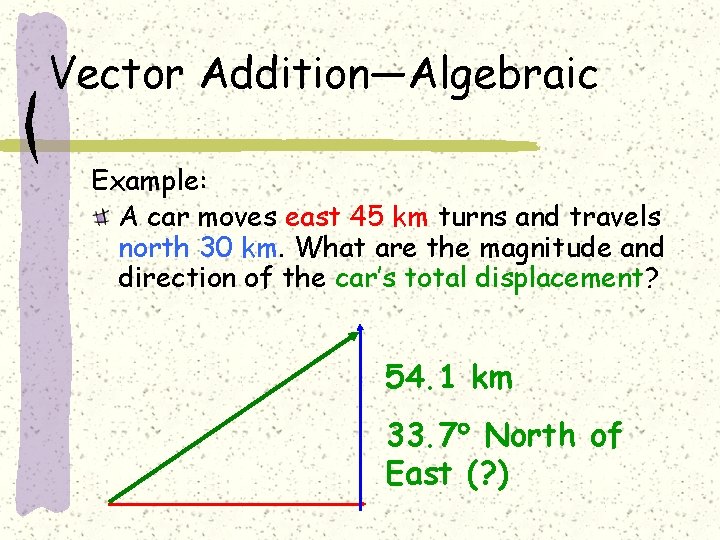

Vector Addition—Algebraic Example: A car moves east 45 km turns and travels north 30 km. What are the magnitude and direction of the car’s total displacement? 54. 1 km 33. 7 North of East (? )

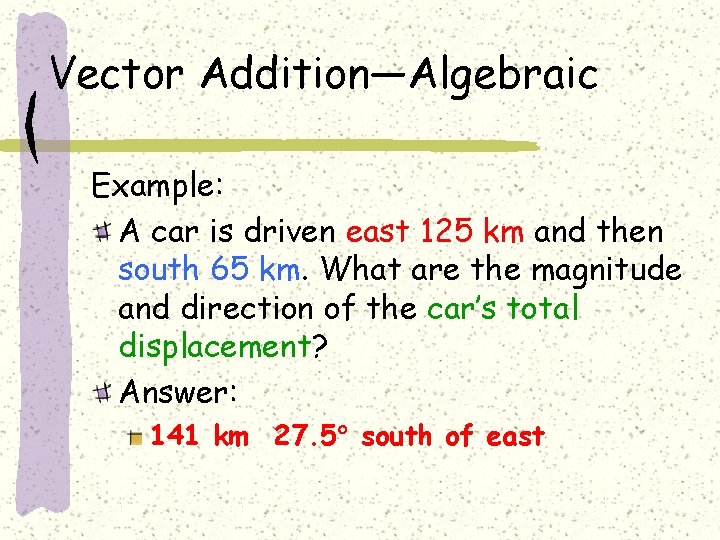

Vector Addition—Algebraic Example: A car is driven east 125 km and then south 65 km. What are the magnitude and direction of the car’s total displacement? Answer: 141 km 27. 5 south of east

Vector Addition—Algebraic Example: A boat is rowed directly across a river at a speed of 2. 5 m/s. The river is flowing at a rate of 0. 5 m/s. Find the magnitude and direction of the boat’s diagonal motion. Answer 2. 55 m/s 11. 3 measured from center of river (or 78. 7 measured from shore)

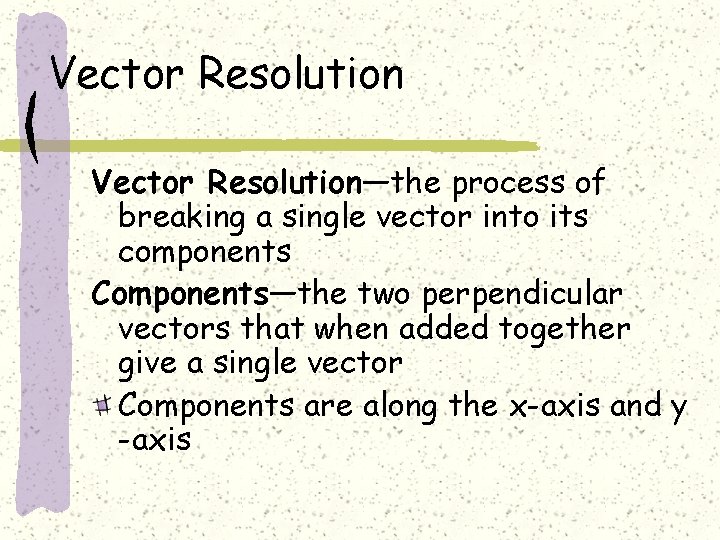

Vector Resolution—the process of breaking a single vector into its components Components—the two perpendicular vectors that when added together give a single vector Components are along the x-axis and y -axis

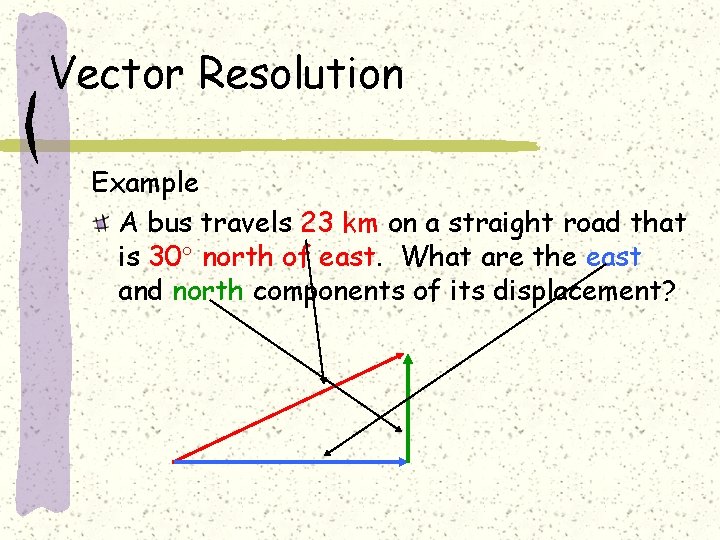

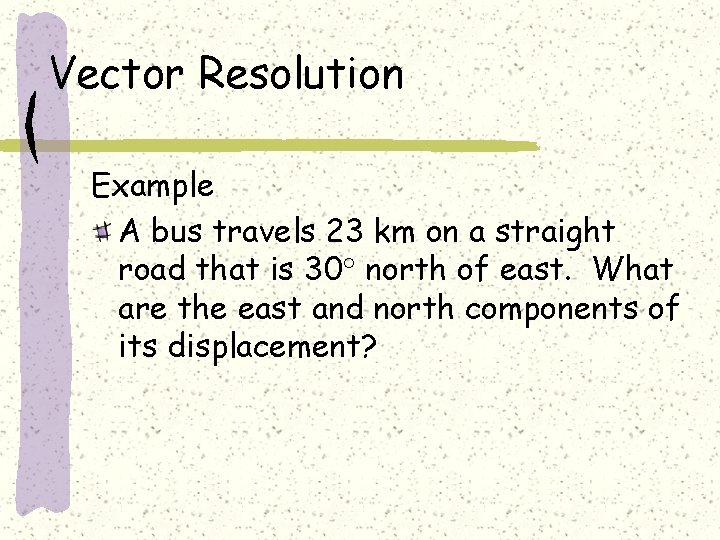

Vector Resolution Example A bus travels 23 km on a straight road that is 30 north of east. What are the east and north components of its displacement?

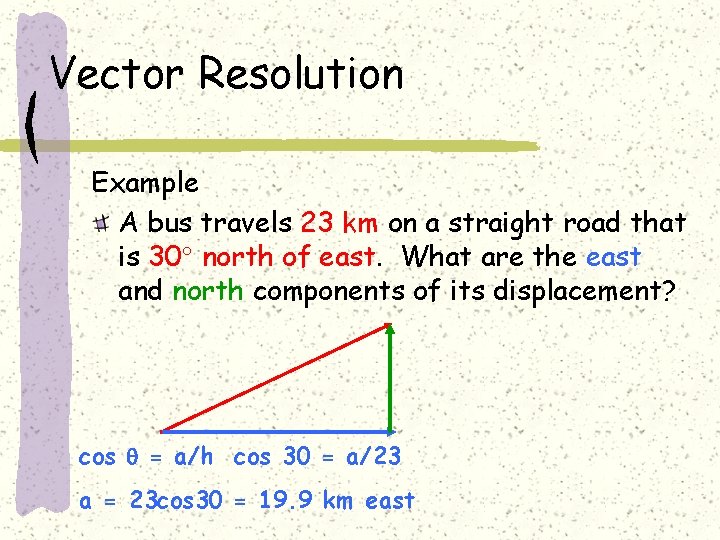

Vector Resolution Example A bus travels 23 km on a straight road that is 30 north of east. What are the east and north components of its displacement? cos = a/h cos 30 = a/23 a = 23 cos 30 = 19. 9 km east

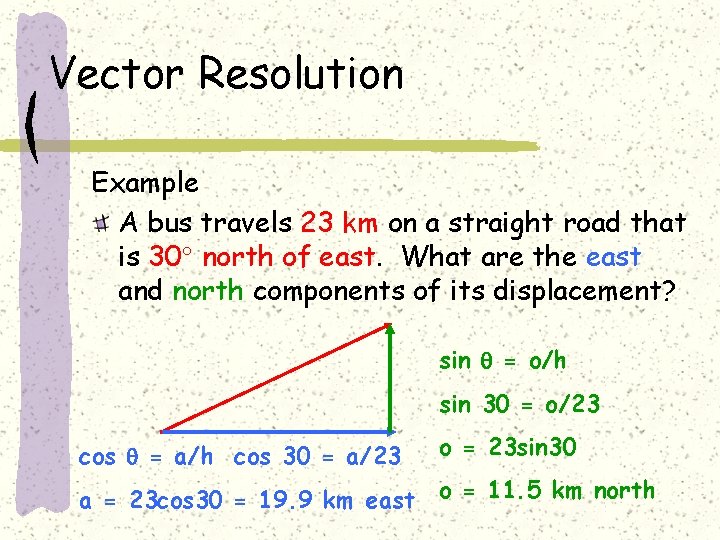

Vector Resolution Example A bus travels 23 km on a straight road that is 30 north of east. What are the east and north components of its displacement? sin = o/h sin 30 = o/23 cos = a/h cos 30 = a/23 o = 23 sin 30 a = 23 cos 30 = 19. 9 km east o = 11. 5 km north

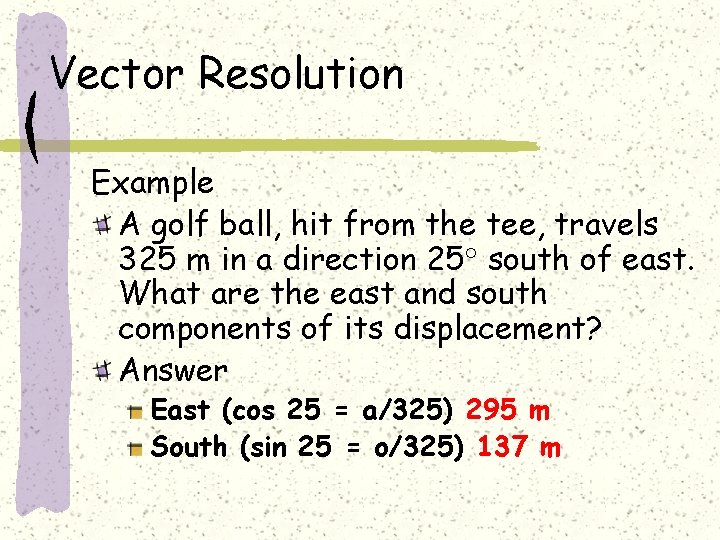

Vector Resolution Example A golf ball, hit from the tee, travels 325 m in a direction 25 south of east. What are the east and south components of its displacement? Answer East (cos 25 = a/325) 295 m South (sin 25 = o/325) 137 m

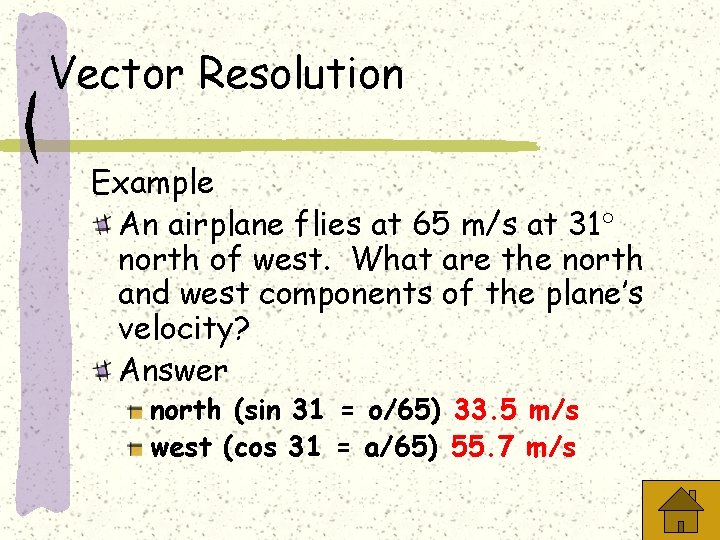

Vector Resolution Example An airplane flies at 65 m/s at 31 north of west. What are the north and west components of the plane’s velocity? Answer north (sin 31 = o/65) 33. 5 m/s west (cos 31 = a/65) 55. 7 m/s

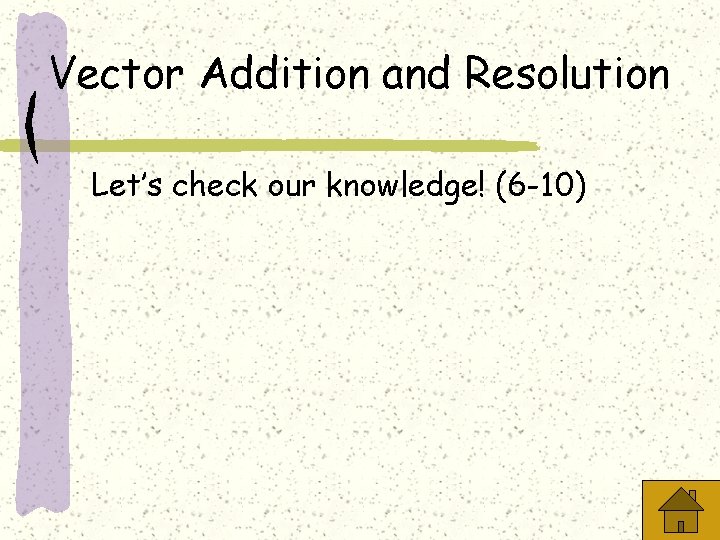

Vector Addition and Resolution Let’s check our knowledge! (6 -10)
