Physics of a 10 Ge. V laser-plasma accelerator stage Eric Esarey C. Schroeder, C.

Physics of a 10 Ge. V laser-plasma accelerator stage Eric Esarey C. Schroeder, C. Geddes, E. Cormier-Michel, W. Leemans LOASIS Program Lawrence Berkeley National Laboratory http: //loasis. lbl. gov/ HBEB Workshop, Nov 16 -19, 2009

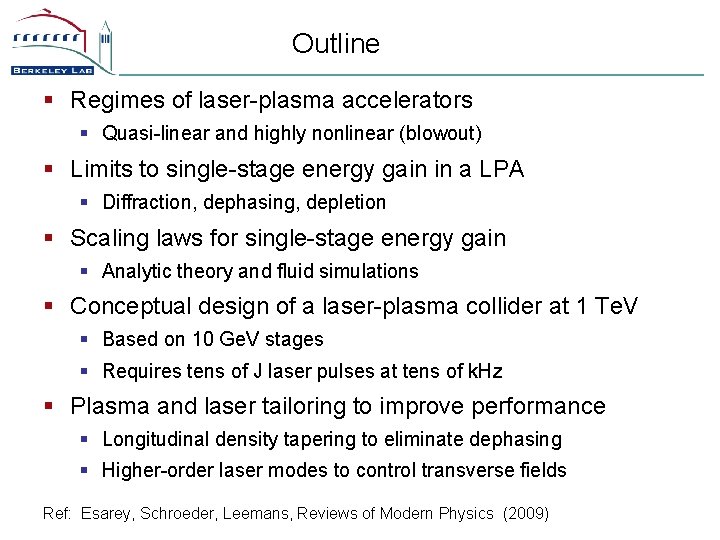

Outline § Regimes of laser-plasma accelerators § Quasi-linear and highly nonlinear (blowout) § Limits

Outline § Regimes of laser-plasma accelerators § Quasi-linear and highly nonlinear (blowout) § Limits to single-stage energy gain in a LPA § Diffraction, dephasing, depletion § Scaling laws for single-stage energy gain § Analytic theory and fluid simulations § Conceptual design of a laser-plasma collider at 1 Te. V § Based on 10 Ge. V stages § Requires tens of J laser pulses at tens of k. Hz § Plasma and laser tailoring to improve performance § Longitudinal density tapering to eliminate dephasing § Higher-order laser modes to control transverse fields Ref: Esarey, Schroeder, Leemans, Reviews of Modern Physics (2009)

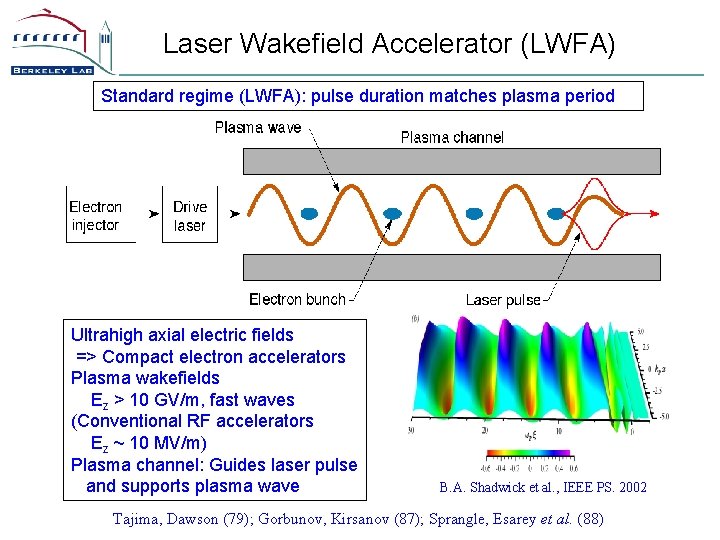

Laser Wakefield Accelerator (LWFA) Standard regime (LWFA): pulse duration matches plasma period Ultrahigh axial

Laser Wakefield Accelerator (LWFA) Standard regime (LWFA): pulse duration matches plasma period Ultrahigh axial electric fields => Compact electron accelerators Plasma wakefields Ez > 10 GV/m, fast waves (Conventional RF accelerators Ez ~ 10 MV/m) Plasma channel: Guides laser pulse and supports plasma wave B. A. Shadwick et al. , IEEE PS. 2002 Tajima, Dawson (79); Gorbunov, Kirsanov (87); Sprangle, Esarey et al. (88)

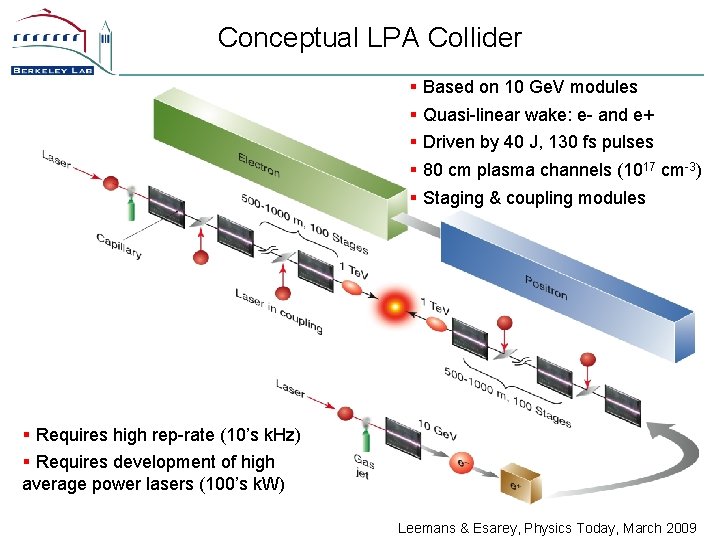

Conceptual LPA Collider § Based on 10 Ge. V modules § Quasi-linear wake: e-

Conceptual LPA Collider § Based on 10 Ge. V modules § Quasi-linear wake: e- and e+ § Driven by 40 J, 130 fs pulses § 80 cm plasma channels (1017 cm-3) § Staging & coupling modules § Requires high rep-rate (10’s k. Hz) § Requires development of high average power lasers (100’s k. W) Leemans & Esarey, Physics Today, March 2009

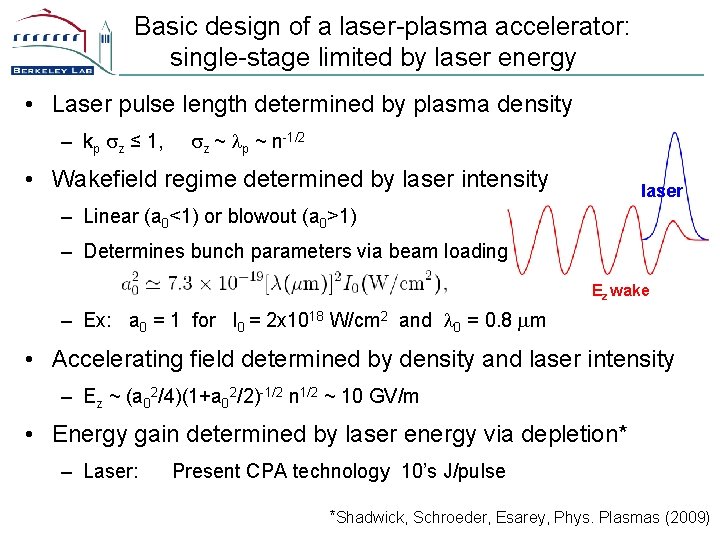

Basic design of a laser-plasma accelerator: single-stage limited by laser energy • Laser pulse

Basic design of a laser-plasma accelerator: single-stage limited by laser energy • Laser pulse length determined by plasma density – kp z ≤ 1, z ~ p ~ n-1/2 • Wakefield regime determined by laser intensity laser – Linear (a 0<1) or blowout (a 0>1) – Determines bunch parameters via beam loading Ez wake – Ex: a 0 = 1 for I 0 = 2 x 1018 W/cm 2 and 0 = 0. 8 m • Accelerating field determined by density and laser intensity – Ez ~ (a 02/4)(1+a 02/2)-1/2 n 1/2 ~ 10 GV/m • Energy gain determined by laser energy via depletion* – Laser: Present CPA technology 10’s J/pulse *Shadwick, Schroeder, Esarey, Phys. Plasmas (2009)

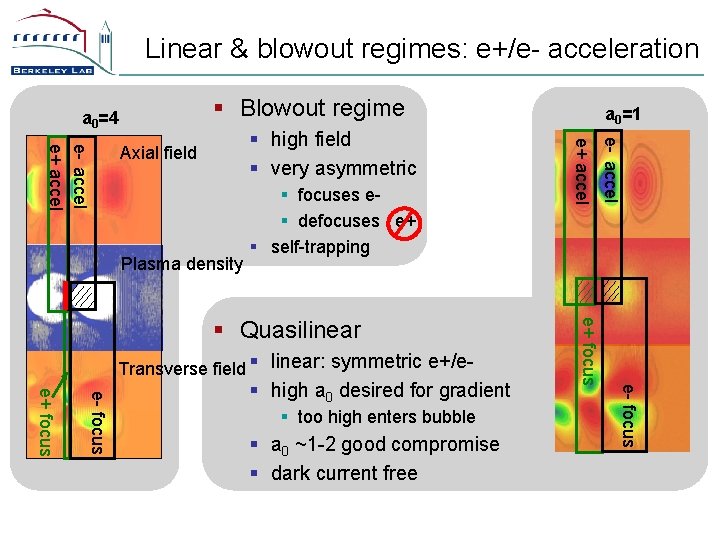

Linear & blowout regimes: e+/e- acceleration § Blowout regime a 0=4 Plasma density §

Linear & blowout regimes: e+/e- acceleration § Blowout regime a 0=4 Plasma density § focuses e§ defocuses e+ § self-trapping Transverse field § linear: symmetric e+/e- § too high enters bubble § a 0 ~1 -2 good compromise § dark current free e- focus e+ focus § high a 0 desired for gradient e+ focus § Quasilinear e- accel run 405 e+ accel e- accel e+ accel § high field § very asymmetric Axial field a 0=1

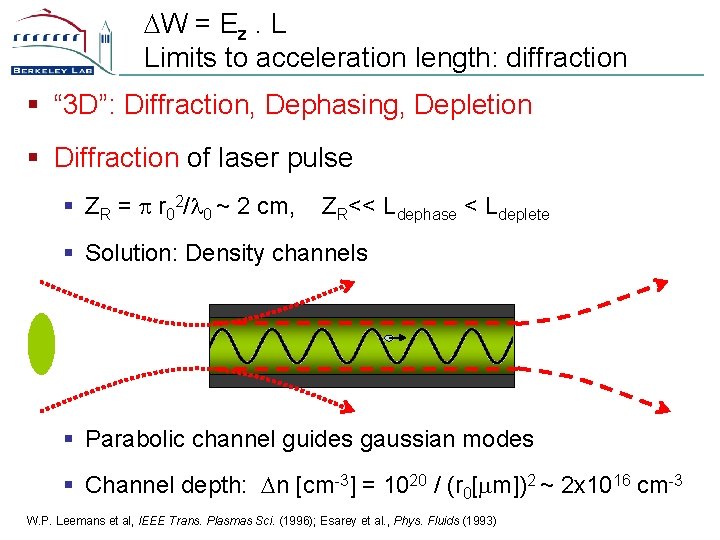

DW = Ez. L Limits to acceleration length: diffraction § “ 3 D”: Diffraction,

DW = Ez. L Limits to acceleration length: diffraction § “ 3 D”: Diffraction, Dephasing, Depletion § Diffraction of laser pulse § ZR = p r 02/ 0 ~ 2 cm, ZR<< Ldephase < Ldeplete § Solution: Density channels § Parabolic channel guides gaussian modes § Channel depth: Dn [cm-3] = 1020 / (r 0[ m])2 ~ 2 x 1016 cm-3 W. P. Leemans et al, IEEE Trans. Plasmas Sci. (1996); Esarey et al. , Phys. Fluids (1993)

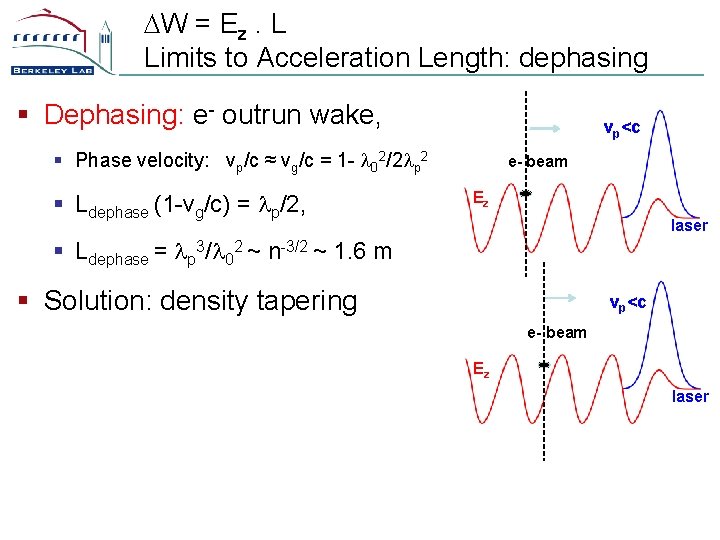

DW = Ez. L Limits to Acceleration Length: dephasing § Dephasing: e- outrun wake,

DW = Ez. L Limits to Acceleration Length: dephasing § Dephasing: e- outrun wake, vp<c § Phase velocity: vp/c ≈ vg/c = 1 - 02/2 p 2 § Ldephase (1 -vg/c) = p/2, e- beam Ez laser § Ldephase = p 3/ 02 ~ n-3/2 ~ 1. 6 m § Solution: density tapering vp<c e- beam Ez laser

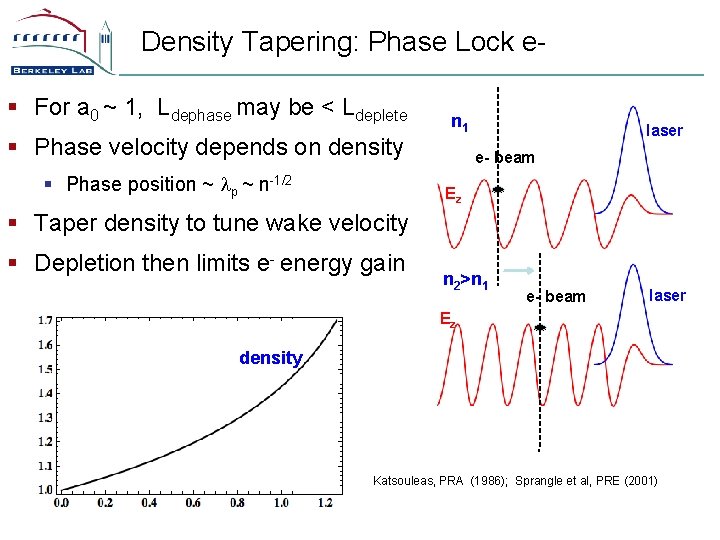

Density Tapering: Phase Lock e§ For a 0 ~ 1, Ldephase may be <

Density Tapering: Phase Lock e§ For a 0 ~ 1, Ldephase may be < Ldeplete § Phase velocity depends on density § Phase position ~ p ~ n-1/2 n 1 laser e- beam Ez § Taper density to tune wake velocity § Depletion then limits e- energy gain n 2>n 1 e- beam laser Ez density Katsouleas, PRA (1986); Sprangle et al, PRE (2001)

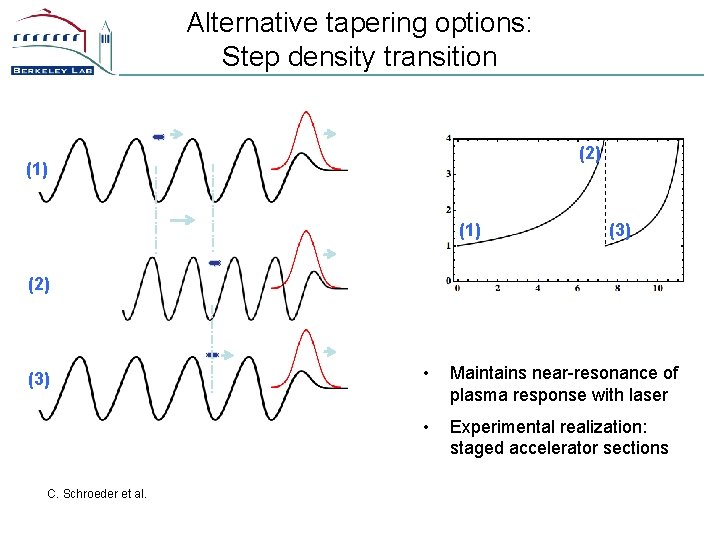

Alternative tapering options: Step density transition (2) (1) (3) (2) (3) C. Schroeder et

Alternative tapering options: Step density transition (2) (1) (3) (2) (3) C. Schroeder et al. • Maintains near-resonance of plasma response with laser • Experimental realization: staged accelerator sections

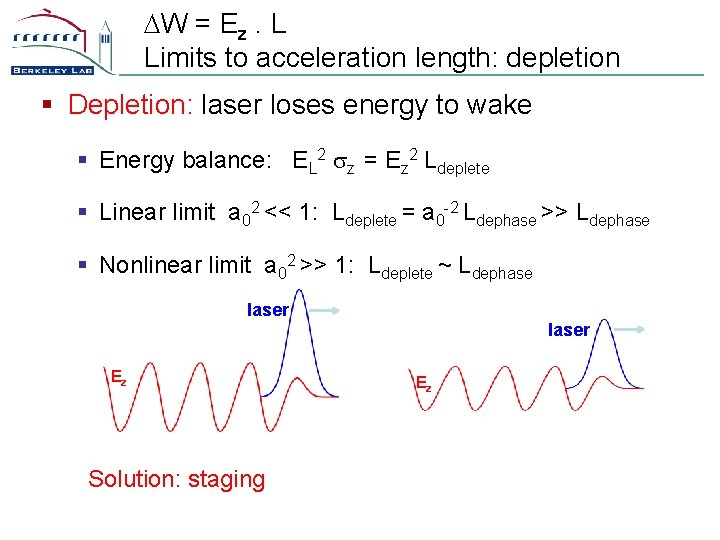

DW = Ez. L Limits to acceleration length: depletion § Depletion: laser loses energy

DW = Ez. L Limits to acceleration length: depletion § Depletion: laser loses energy to wake § Energy balance: EL 2 z = Ez 2 Ldeplete § Linear limit a 02 << 1: Ldeplete = a 0 -2 Ldephase >> Ldephase § Nonlinear limit a 02 >> 1: Ldeplete ~ Ldephase laser Ez Solution: staging laser Ez

Rate of laser energy deposition § Developed theory of nonlinear short-pulse laser evolution. §

Rate of laser energy deposition § Developed theory of nonlinear short-pulse laser evolution. § Derived general energy evolution equation valid for any laser intensity and pulse shape § Scale separation (laser frequency >> plasma frequency) § Neglect backward going waves (Raman backscatter) § Model plasma as cold fluid characteristic accelerating field: § Apply quasi-static approximation (laser slowly varying compared to plasma response): Shadwick, Schroeder, Esarey, Physics of Plasmas (2009)

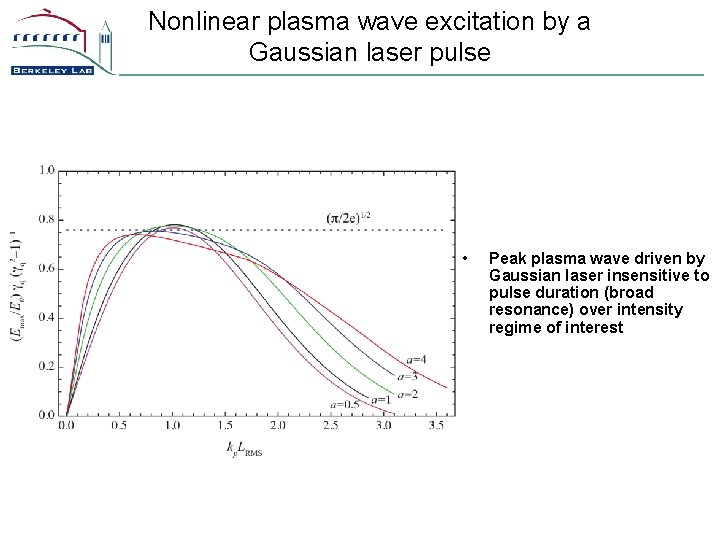

Nonlinear plasma wave excitation by a Gaussian laser pulse • Peak plasma wave driven

Nonlinear plasma wave excitation by a Gaussian laser pulse • Peak plasma wave driven by Gaussian laser insensitive to pulse duration (broad resonance) over intensity regime of interest

Pump depletion length independent of intensity for ultra-intense pulses Pump depletion length: • Pump

Pump depletion length independent of intensity for ultra-intense pulses Pump depletion length: • Pump depletion length for near-resonant Gaussian laser pulse: Characteristic length scale independent of intensity for relativistically-intense laser pulses

Depletion: necessitates multiple stages § Single stage energy gain limited by laser energy depletion

Depletion: necessitates multiple stages § Single stage energy gain limited by laser energy depletion § Diffraction limitation: mitigated by transverse plasma density tailoring § Dephasing limitation: mitigated by longitudinal plasma density tailoring Depletion Length: Accelerating field: Energy gain (linear regime): § Ex: Wstage = 10 Ge. V for I = 1018 W/cm 2 and n = 1017 cm-3 § Multiple-stages for controlled acceleration to high energy: laser + channel …

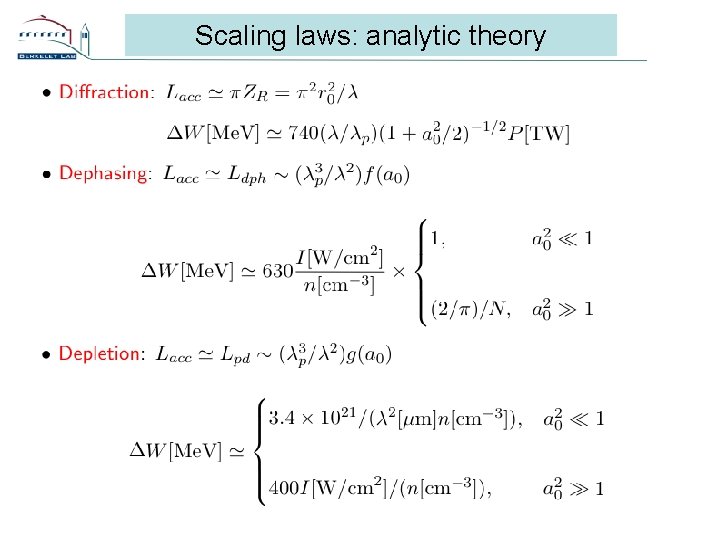

Scaling laws: analytic theory 16

Scaling laws: analytic theory 16

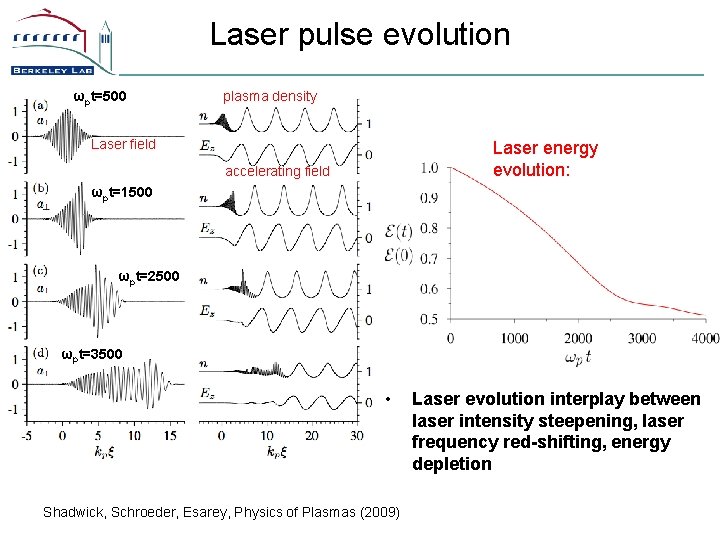

Laser pulse evolution ωpt=500 plasma density Laser field Laser energy evolution: accelerating field ωpt=1500

Laser pulse evolution ωpt=500 plasma density Laser field Laser energy evolution: accelerating field ωpt=1500 ωpt=2500 ωpt=3500 • Shadwick, Schroeder, Esarey, Physics of Plasmas (2009) Laser evolution interplay between laser intensity steepening, laser frequency red-shifting, energy depletion

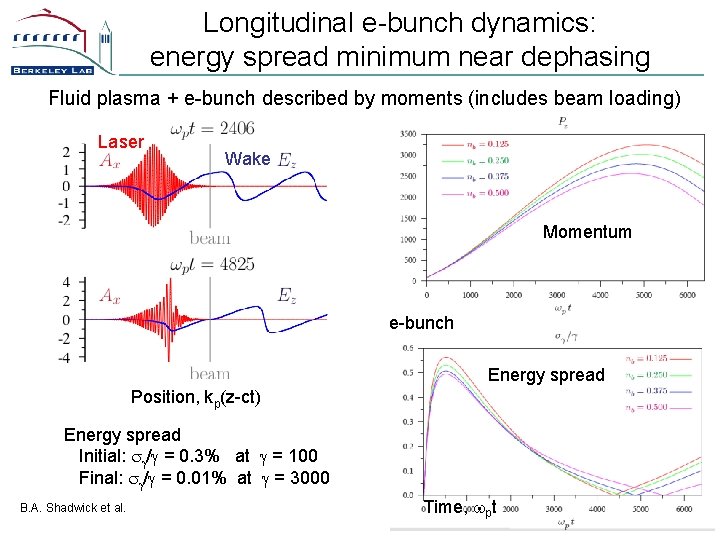

Longitudinal e-bunch dynamics: energy spread minimum near dephasing Fluid plasma + e-bunch described by

Longitudinal e-bunch dynamics: energy spread minimum near dephasing Fluid plasma + e-bunch described by moments (includes beam loading) Laser Wake Momentum e-bunch Energy spread Position, kp(z-ct) Energy spread Initial: / = 0. 3% at = 100 Final: / = 0. 01% at = 3000 B. A. Shadwick et al. Time, pt 18

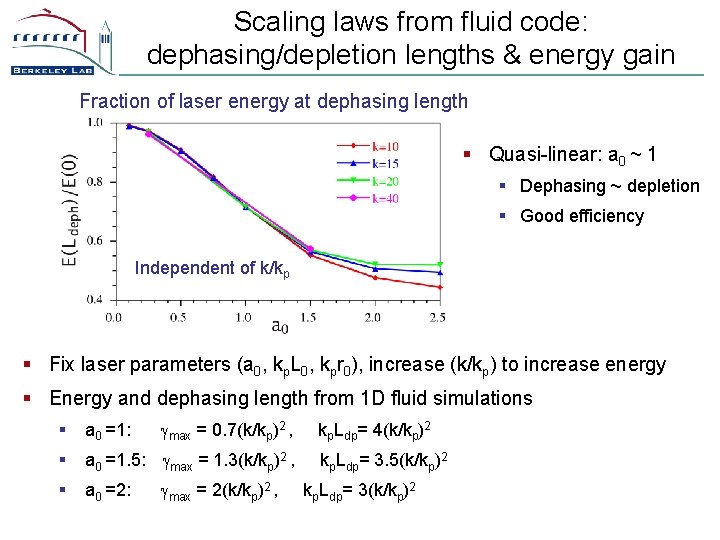

Scaling laws from fluid code: dephasing/depletion lengths & energy gain Fraction of laser energy

Scaling laws from fluid code: dephasing/depletion lengths & energy gain Fraction of laser energy at dephasing length § Quasi-linear: a 0 ~ 1 § Dephasing ~ depletion § Good efficiency Independent of k/kp § Fix laser parameters (a 0, kp. L 0, kpr 0), increase (k/kp) to increase energy § Energy and dephasing length from 1 D fluid simulations § a 0 =1: max = 0. 7(k/kp)2 , kp. Ldp= 4(k/kp)2 § a 0 =1. 5: max = 1. 3(k/kp)2 , kp. Ldp= 3. 5(k/kp)2 § a 0 =2: max = 2(k/kp)2 , kp. Ldp= 3(k/kp)2

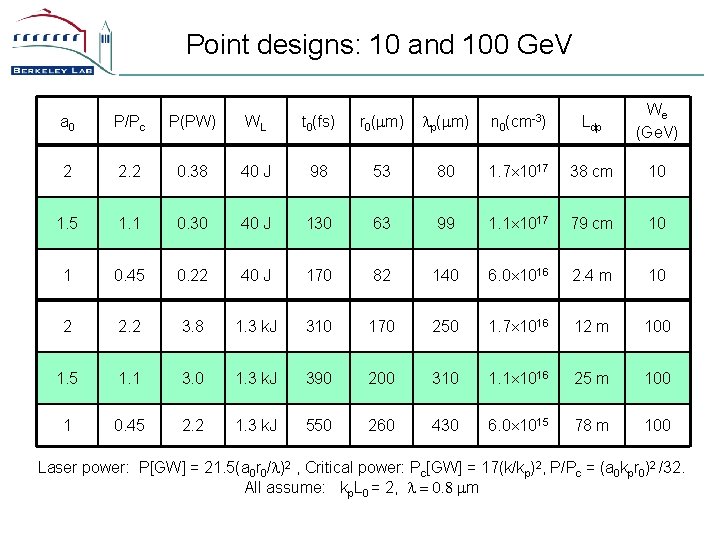

Point designs: 10 and 100 Ge. V a 0 P/Pc P(PW) WL t 0(fs)

Point designs: 10 and 100 Ge. V a 0 P/Pc P(PW) WL t 0(fs) r 0( m) p( m) n 0(cm-3) Ldp We (Ge. V) 2 2. 2 0. 38 40 J 98 53 80 1. 7 1017 38 cm 10 1. 5 1. 1 0. 30 40 J 130 63 99 1. 1 1017 79 cm 10 1 0. 45 0. 22 40 J 170 82 140 6. 0 1016 2. 4 m 10 2 2. 2 3. 8 1. 3 k. J 310 170 250 1. 7 1016 12 m 100 1. 5 1. 1 3. 0 1. 3 k. J 390 200 310 1. 1 1016 25 m 100 1 0. 45 2. 2 1. 3 k. J 550 260 430 6. 0 1015 78 m 100 Laser power: P[GW] = 21. 5(a 0 r 0/ )2 , Critical power: Pc[GW] = 17(k/kp)2, P/Pc = (a 0 kpr 0)2 /32. All assume: kp. L 0 = 2, m

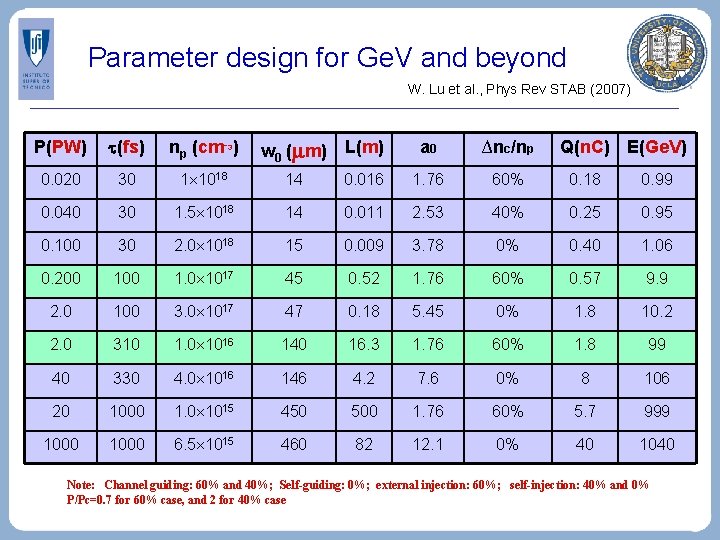

Parameter design for Ge. V and beyond W. Lu et al. , Phys Rev

Parameter design for Ge. V and beyond W. Lu et al. , Phys Rev STAB (2007) P(PW) (fs) np (cm-3) 0. 020 30 1 1018 14 0. 040 30 1. 5 1018 0. 100 30 0. 200 w 0 ( m) L(m) a 0 ∆nc/np Q(n. C) E(Ge. V) 0. 016 1. 76 60% 0. 18 0. 99 14 0. 011 2. 53 40% 0. 25 0. 95 2. 0 1018 15 0. 009 3. 78 0% 0. 40 1. 06 100 1. 0 1017 45 0. 52 1. 76 60% 0. 57 9. 9 2. 0 100 3. 0 1017 47 0. 18 5. 45 0% 1. 8 10. 2 2. 0 310 1. 0 1016 140 16. 3 1. 76 60% 1. 8 99 40 330 4. 0 1016 146 4. 2 7. 6 0% 8 106 20 1000 1. 0 1015 450 500 1. 76 60% 5. 7 999 1000 6. 5 1015 460 82 12. 1 0% 40 1040 Note: Channel guiding: 60% and 40%; Self-guiding: 0%; external injection: 60%; self-injection: 40% and 0% P/Pc=0. 7 for 60% case, and 2 for 40% case

Beam loading simulations predicts 300 -500 p. C for 10 Ge. V stages Ø

Beam loading simulations predicts 300 -500 p. C for 10 Ge. V stages Ø Beam loading theoretical limit Ø e-bunch wake = laser wake Ø Linear theory , kp z < 1, kp r ~ 1 Ø Nb ~ 9 x 9 (n 0 16 cm-3)-1/2 (Ez/E 0) Ø Ex. : Nb = 3 x 109 (0. 5 n. C) for n 0 17 cm-3 and Ez/E 0=1 Ø VORPAL PIC simulations ~constant field inside bunch Quasi-linear beam loading matches linear theory + 2 D * 3 D -- theory Ø 500 p. C at 1017 cm-3 for kp. L=2, kp r~ 2 • 10% of laser energy to electrons Ø Bunch length & profile alters field inside bunch • flatten field across bunch – reduces DE • focusing must be matched for emittance density & kp. L: kp r = 0. 3 1 kp. L =2, a 0=1 n 0 = 1018 cm-3 1. 8 +* Ø Ongoing: precise control w/shaped bunches kp. L =2, a 0=1 n 0 = 1019 cm-3 +* * Cormier-Michel et al, Proc. AAC 2008, **Katsouleas PRA 1986 kp. L =1, a 0=1. 4 n 0 = 1019 cm-3 + +* +*

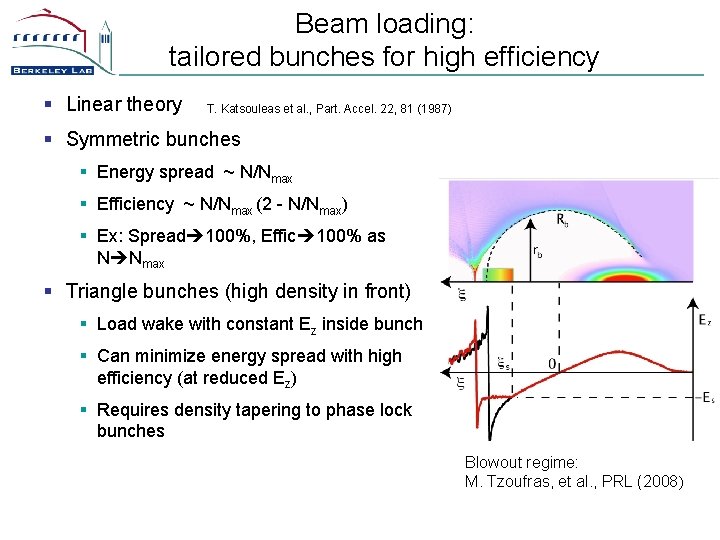

Beam loading: tailored bunches for high efficiency § Linear theory T. Katsouleas et al.

Beam loading: tailored bunches for high efficiency § Linear theory T. Katsouleas et al. , Part. Accel. 22, 81 (1987) § Symmetric bunches § Energy spread ~ N/Nmax § Efficiency ~ N/Nmax (2 - N/Nmax) § Ex: Spread 100%, Effic 100% as N Nmax § Triangle bunches (high density in front) § Load wake with constant Ez inside bunch § Can minimize energy spread with high efficiency (at reduced Ez) § Requires density tapering to phase lock bunches Blowout regime: M. Tzoufras, et al. , PRL (2008)

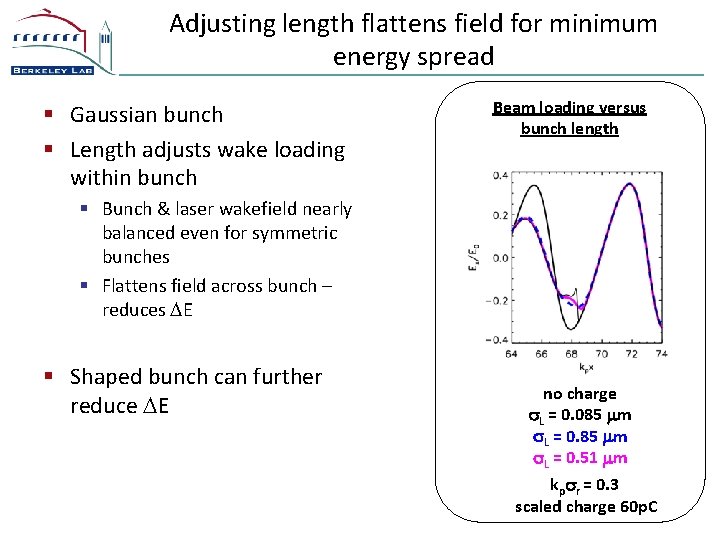

Adjusting length flattens field for minimum energy spread § Gaussian bunch § Length adjusts

Adjusting length flattens field for minimum energy spread § Gaussian bunch § Length adjusts wake loading within bunch Beam loading versus bunch length § Bunch & laser wakefield nearly balanced even for symmetric bunches § Flattens field across bunch – reduces DE § Shaped bunch can further reduce DE no charge L = 0. 085 m L = 0. 51 m kp r = 0. 3 scaled charge 60 p. C

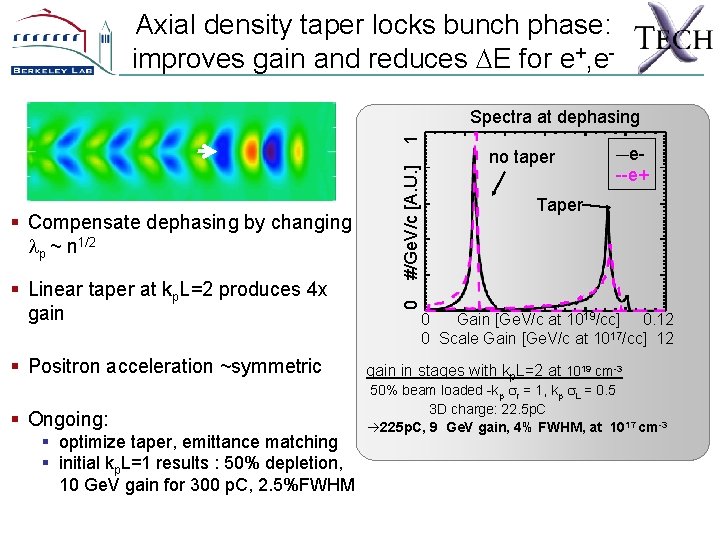

Axial density taper locks bunch phase: improves gain and reduces DE for e+, e-

Axial density taper locks bunch phase: improves gain and reduces DE for e+, e- § Linear taper at kp. L=2 produces 4 x gain § Positron acceleration ~symmetric § Ongoing: § optimize taper, emittance matching § initial kp. L=1 results : 50% depletion, 10 Ge. V gain for 300 p. C, 2. 5%FWHM no taper __e- --e+ Taper 0 § Compensate dephasing by changing p ~ n 1/2 #/Ge. V/c [A. U. ] 1 Spectra at dephasing 0 Gain [Ge. V/c at 1019/cc] 0. 12 0 Scale Gain [Ge. V/c at 1017/cc] 12 gain in stages with kp. L=2 at 1019 cm-3 50% beam loaded -kp r = 1, kp L = 0. 5 3 D charge: 22. 5 p. C 225 p. C, 9 Ge. V gain, 4% FWHM, at 1017 cm-3

Matched electron beam spot size is small § Matched beam spot size § linear

Matched electron beam spot size is small § Matched beam spot size § linear regime § bubble regime § matched beam < 1 m (<< p ~ 100 m) for = 20, 000 (10 Ge. V), n 0 = 1017 cm-3, en = 1 mm mrad § Limits electron beam charge and quality § Increase y for higher charge, with nbpeak small § In linear regime kb 2 ∝ E⊥∝ ∇⊥a 2 § Reduce transverse field gradient to increase matched beam radius 26

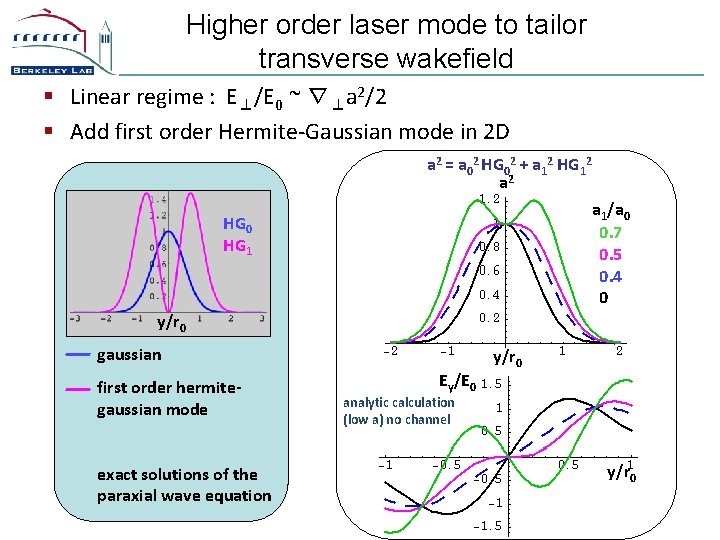

Higher order laser mode to tailor transverse wakefield § Linear regime : E⊥/E 0

Higher order laser mode to tailor transverse wakefield § Linear regime : E⊥/E 0 ~ ∇⊥a 2/2 § Add first order Hermite-Gaussian mode in 2 D a 2 = a 02 HG 02 + a 12 HG 12 a 1/a 0 0. 7 0. 5 0. 4 0 HG 1 y/r 0 gaussian first order hermitegaussian mode exact solutions of the paraxial wave equation Ey/E 0 y/r 0 analytic calculation (low a) no channel y/r 0

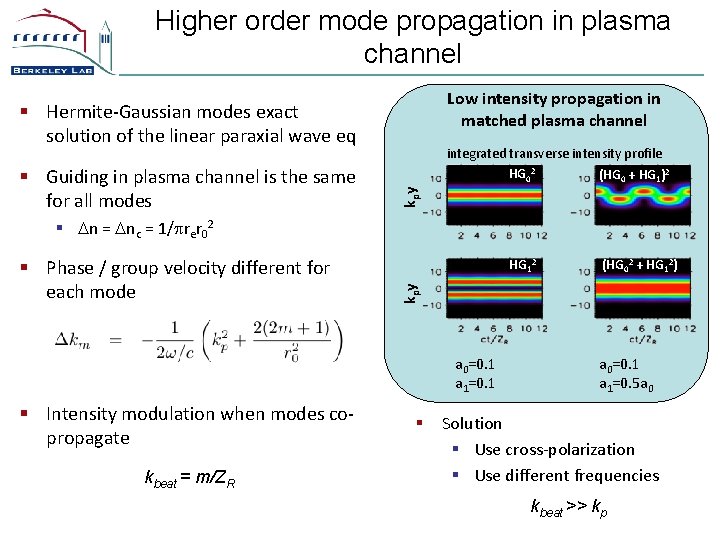

Higher order mode propagation in plasma channel Low intensity propagation in matched plasma channel

Higher order mode propagation in plasma channel Low intensity propagation in matched plasma channel § Hermite-Gaussian modes exact solution of the linear paraxial wave eq kpy § Guiding in plasma channel is the same for all modes integrated transverse intensity profile HG 02 (HG 0 + HG 1)2 § Dn = Dnc = 1/prer 02 HG 12 a 0=0. 1 a 1=0. 1 § Intensity modulation when modes copropagate kbeat = m/ZR (HG 02 + HG 12) kpy § Phase / group velocity different for each mode § a 0=0. 1 a 1=0. 5 a 0 Solution § Use cross-polarization § Use different frequencies kbeat >> kp

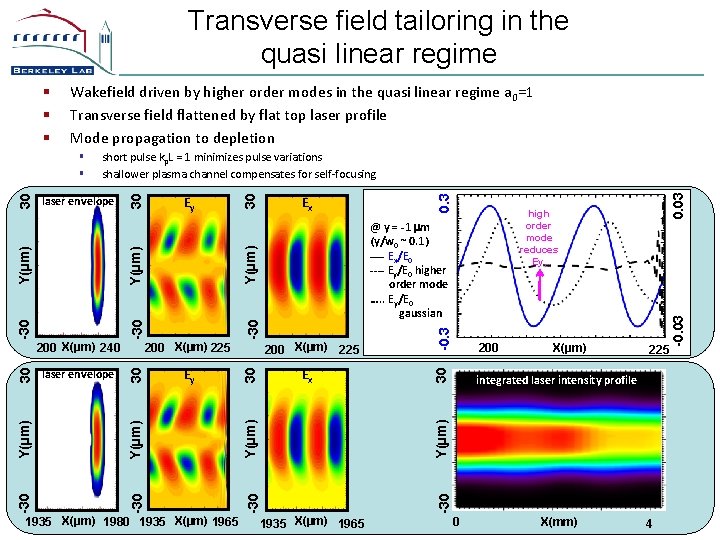

Transverse field tailoring in the quasi linear regime Wakefield driven by higher order modes

Transverse field tailoring in the quasi linear regime Wakefield driven by higher order modes in the quasi linear regime a 0=1 Transverse field flattened by flat top laser profile Mode propagation to depletion Y(µm) -30 1935 X(µm) 1980 1935 X(µm) 1965 integrated laser intensity profile 0. 03 225 1935 X(µm) 1965 0 X(mm) 4 -0. 03 0. 3 -0. 3 Ex X(µm) Y(µm) Ey 200 -30 laser envelope 200 X(µm) 225 30 Y(µm) 200 X(µm) 225 30 200 X(µm) 240 high order mode reduces Ey, @ y = -1 m (y/w 0 ~ 0. 1) ___ E /E x 0 ---- Ey/E 0 higher order mode …. . Ey/E 0 gaussian -30 Y(µm) -30 Ex -30 30 Ey 30 laser envelope 30 short pulse kp. L = 1 minimizes pulse variations shallower plasma channel compensates for self-focusing Y(µm) 30 § § §

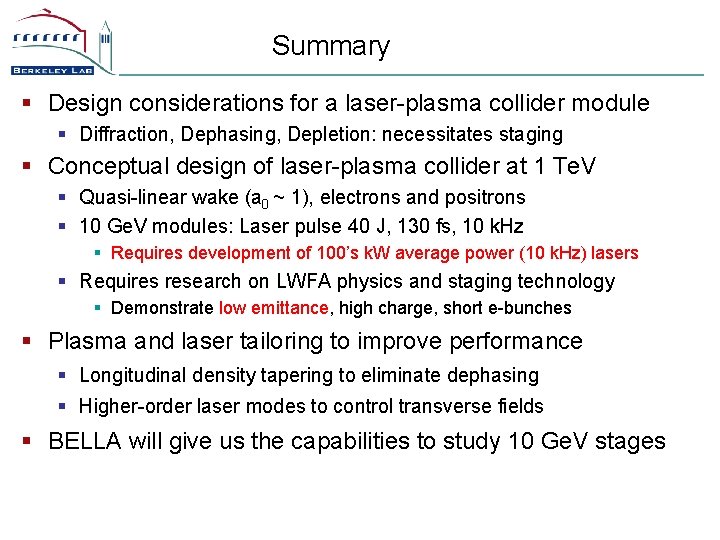

Summary § Design considerations for a laser-plasma collider module § Diffraction, Dephasing, Depletion: necessitates

Summary § Design considerations for a laser-plasma collider module § Diffraction, Dephasing, Depletion: necessitates staging § Conceptual design of laser-plasma collider at 1 Te. V § Quasi-linear wake (a 0 ~ 1), electrons and positrons § 10 Ge. V modules: Laser pulse 40 J, 130 fs, 10 k. Hz § Requires development of 100’s k. W average power (10 k. Hz) lasers § Requires research on LWFA physics and staging technology § Demonstrate low emittance, high charge, short e-bunches § Plasma and laser tailoring to improve performance § Longitudinal density tapering to eliminate dephasing § Higher-order laser modes to control transverse fields § BELLA will give us the capabilities to study 10 Ge. V stages

Additional information

Additional information

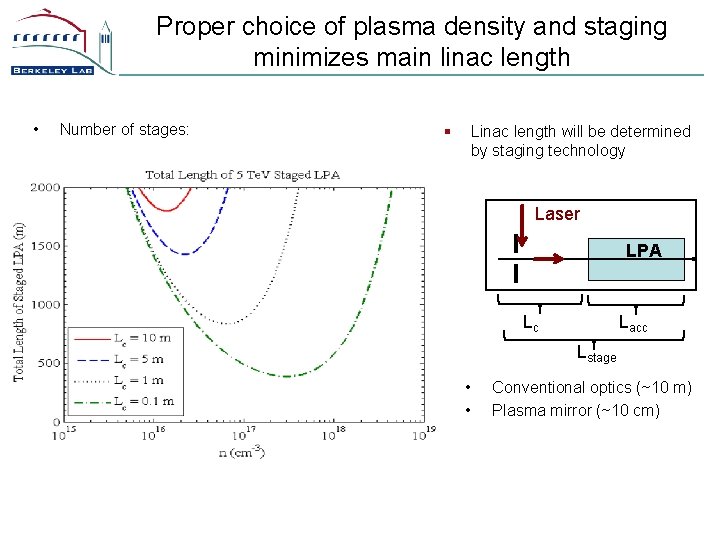

Proper choice of plasma density and staging minimizes main linac length • Number of

Proper choice of plasma density and staging minimizes main linac length • Number of stages: § Linac length will be determined by staging technology Laser LPA Lc Lacc Lstage • • Conventional optics (~10 m) Plasma mirror (~10 cm)

0. 5 Te. V γ-γ Collider Example Plasma density scalings: Stage density scalings: Collider

0. 5 Te. V γ-γ Collider Example Plasma density scalings: Stage density scalings: Collider density scalings (for fixed luminosity):

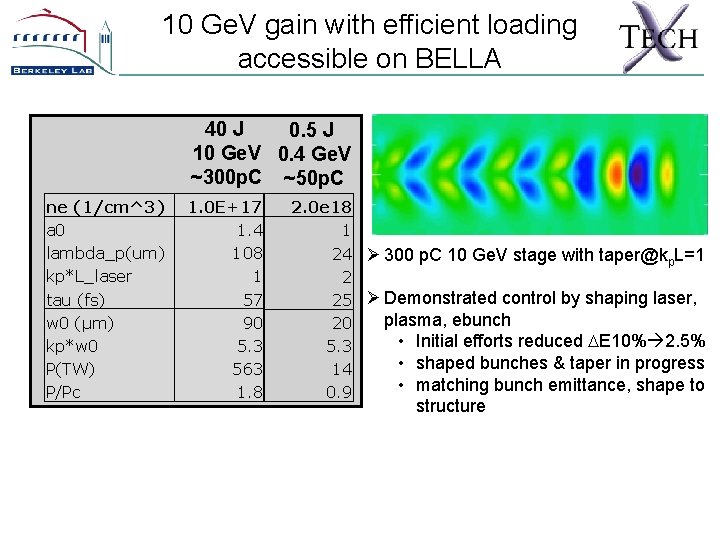

10 Ge. V gain with efficient loading accessible on BELLA 40 J 0. 5

10 Ge. V gain with efficient loading accessible on BELLA 40 J 0. 5 J 10 Ge. V 0. 4 Ge. V ~300 p. C ~50 p. C ne (1/cm^3) 1. 0 E+17 ne (1/cm^3) a 0 1. 4 a 0 lambda_p(um) 108 lambda_p(um) kp*L_laser 1 tau (fs) 57 tau (fs) w 0 (µm) 90 kp*w 0 5. 3 kp*w 0 P(TW) 563 P(TW) P/Pc 1. 8 P/Pc 2. 0 e 18 1 24 Ø 300 p. C 10 Ge. V stage with taper@kp. L=1 2 25 Ø Demonstrated control by shaping laser, plasma, ebunch 20 • Initial efforts reduced DE 10% 2. 5% 5. 3 • shaped bunches & taper in progress 14 • matching bunch emittance, shape to 0. 9 structure

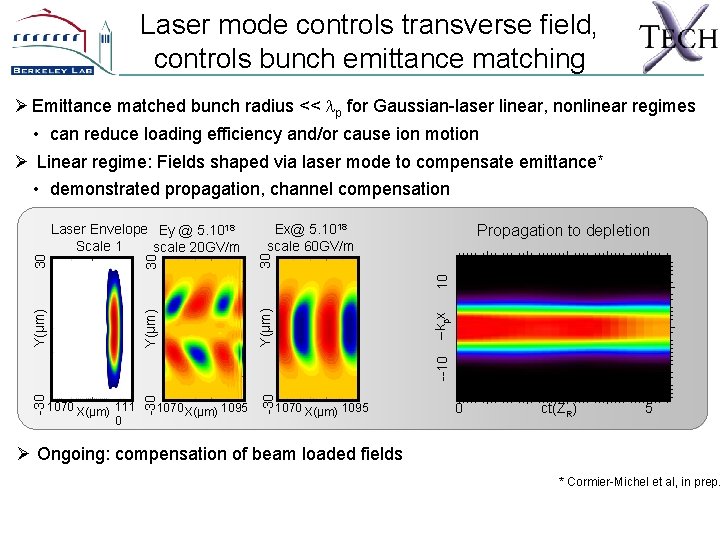

Laser mode controls transverse field, controls bunch emittance matching Ø Emittance matched bunch radius

Laser mode controls transverse field, controls bunch emittance matching Ø Emittance matched bunch radius << p for Gaussian-laser linear, nonlinear regimes • can reduce loading efficiency and/or cause ion motion Ø Linear regime: Fields shaped via laser mode to compensate emittance* • demonstrated propagation, channel compensation 30 30 Y(µm) -30 --10 --kpx 10 30 Propagation to depletion Ex@ 5. 1018 scale 60 GV/m -30 Laser Envelope Ey @ 5. 1018 Scale 1 scale 20 GV/m 1070 X(µm) 111 0 1070 X(µm) 1095 0 ct(ZR) 5 Ø Ongoing: compensation of beam loaded fields * Cormier-Michel et al, in prep.

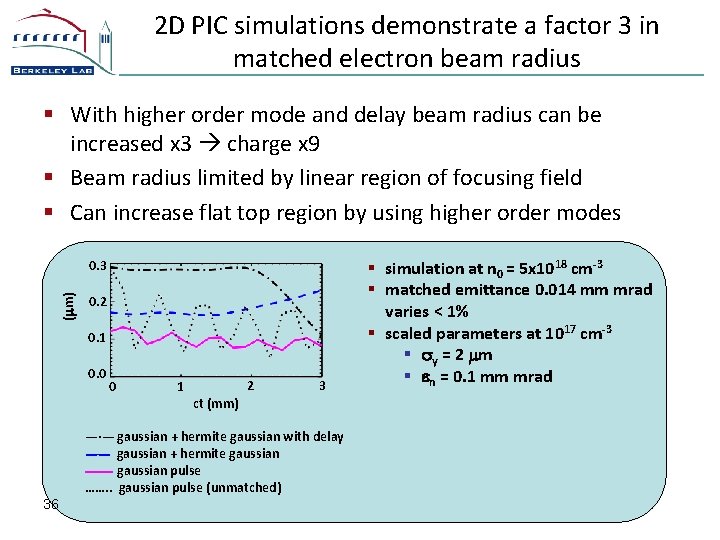

2 D PIC simulations demonstrate a factor 3 in matched electron beam radius §

2 D PIC simulations demonstrate a factor 3 in matched electron beam radius § With higher order mode and delay beam radius can be increased x 3 charge x 9 § Beam radius limited by linear region of focusing field § Can increase flat top region by using higher order modes y ( m) 0. 3 0. 2 0. 1 0. 0 0 2 1 3 ct (mm) —·— gaussian + hermite gaussian with delay —— gaussian + hermite gaussian ______ gaussian pulse ……. . gaussian pulse (unmatched) 36 § simulation at n 0 = 5 x 1018 cm-3 § matched emittance 0. 014 mm mrad varies < 1% § scaled parameters at 1017 cm-3 § y = 2 m § en = 0. 1 mm mrad

Energy depletion: Analytic result in good agreement with numerical solution Analytic result (- -

Energy depletion: Analytic result in good agreement with numerical solution Analytic result (- - - -) :

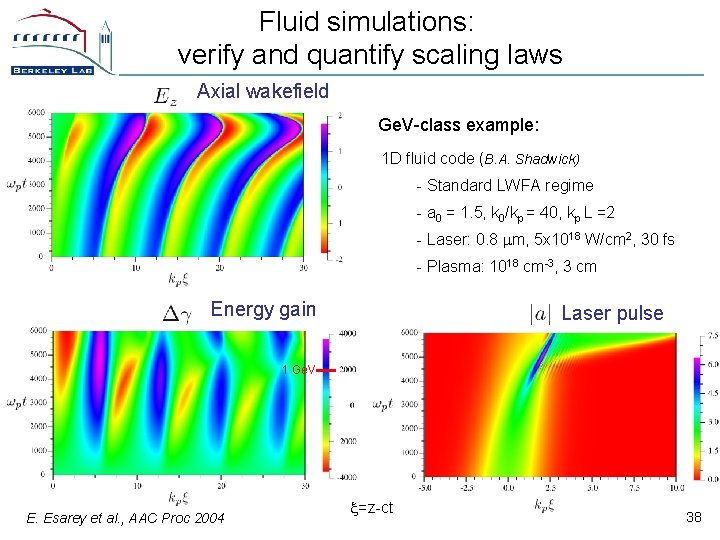

Fluid simulations: verify and quantify scaling laws Axial wakefield Ge. V-class example: 1 D

Fluid simulations: verify and quantify scaling laws Axial wakefield Ge. V-class example: 1 D fluid code (B. A. Shadwick) - Standard LWFA regime - a 0 = 1. 5, k 0/kp = 40, kp L =2 - Laser: 0. 8 m, 5 x 1018 W/cm 2, 30 fs - Plasma: 1018 cm-3, 3 cm Energy gain Laser pulse 1 Ge. V E. Esarey et al. , AAC Proc 2004 =z-ct 38

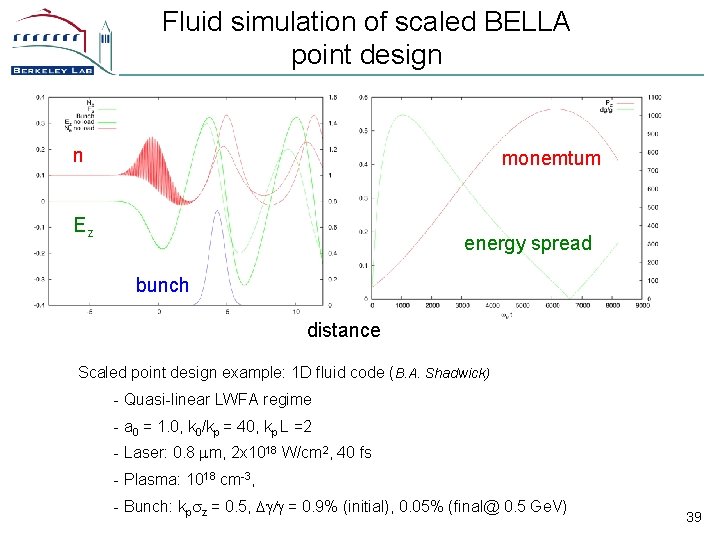

Fluid simulation of scaled BELLA point design n monemtum Ez energy spread bunch distance

Fluid simulation of scaled BELLA point design n monemtum Ez energy spread bunch distance Scaled point design example: 1 D fluid code (B. A. Shadwick) - Quasi-linear LWFA regime - a 0 = 1. 0, k 0/kp = 40, kp L =2 - Laser: 0. 8 m, 2 x 1018 W/cm 2, 40 fs - Plasma: 1018 cm-3, - Bunch: kp z = 0. 5, D = 0. 9% (initial), 0. 05% (final@ 0. 5 Ge. V) 39

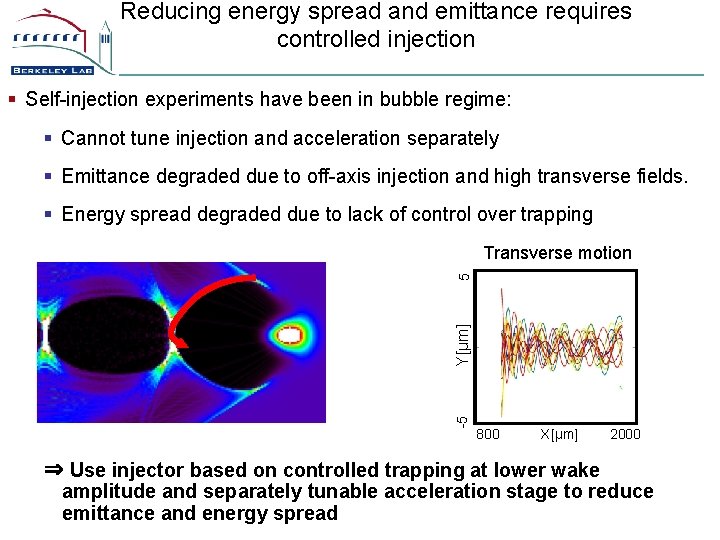

Reducing energy spread and emittance requires controlled injection § Self-injection experiments have been in

Reducing energy spread and emittance requires controlled injection § Self-injection experiments have been in bubble regime: § Cannot tune injection and acceleration separately § Emittance degraded due to off-axis injection and high transverse fields. § Energy spread degraded due to lack of control over trapping -5 Y[µm] 5 Transverse motion 800 X[µm] 2000 ⇒ Use injector based on controlled trapping at lower wake amplitude and separately tunable acceleration stage to reduce emittance and energy spread
