Physics for Games Programmers Problem Overview Squirrel Eiserloh

Physics for Games Programmers Problem Overview Squirrel Eiserloh Technical Director Ritual Entertainment squirrel@eiserloh. net www. ritual. com www. algds. org

2 Types of Problems Knowing when to cheat > Simplifying things > Giving shape to things > Moving things around > Simulation baggage > Detecting (and resolving) collisions > Sustained interactions > Dealing with the impossible > Making it fast enough >

Knowing When To Cheat

4 Knowing When to Cheat Discrete physics simulation falls embarrassingly short of reality. > “Real” physics is prohibitively expensive. . . >. . . so we cheat. > We need to cheat enough to be able to run in real time. > We need to not cheat so much that things break in a jarring and unrecoverable way. > Much of the challenge is knowing how and when to cheat. >

5 Knowing When to Cheat > Ask: “Will the player notice? ” > “Will the player care? ” > “Will the results be predictable? ” > “Are we at least cheating in a consistent way? ” > “Will the simulation break? ” > > If the simulation breaks, they will notice and they will care > Some crimes are greater than others

Simplifying Things

7 Simplifying Things > Simplified bodies

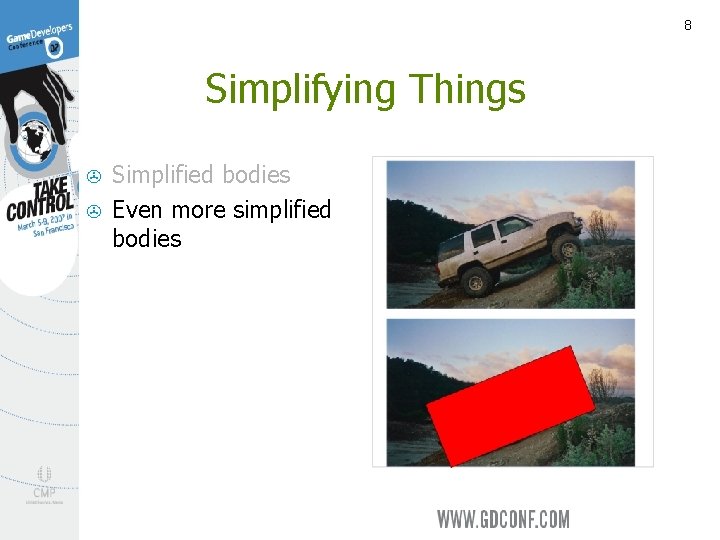

8 Simplifying Things > > Simplified bodies Even more simplified bodies

9 Simplifying Things > > > Simplified bodies Even more simplified bodies Convex bodies

10 Simplifying Things > > Simplified bodies Even more simplified bodies Convex bodies Homogeneous bodies

11 Simplifying Things > > > Simplified bodies Even more simplified bodies Convex bodies Homogeneous bodies Rigid bodies

12 Simplifying Things > > > Simplified bodies Even more simplified bodies Convex bodies Homogeneous bodies Rigid bodies Indestructible bodies

13 Simplifying Things > Movement is often assumed to be in a vacuum (ignoring air resistance) > Even when air resistance does get simulated, it is hugely oversimplified

14 Simplifying Things > Collisions are often assumed to be perfect and elastic > That is, 100% of the energy before the collision is maintained after the collision > Think billiard balls

Giving Shape to Things

16 Giving Shape to Things > N-sphere > > 2 d: Disc 3 d: Sphere

17 Giving Shape to Things > N-sphere > > > 2 d: Disc 3 d: Sphere Simplex > > 2 d: Triangle 3 d: Tetrahedron

18 Giving Shape to Things > N-sphere > > > Simplex > > > 2 d: Disc 3 d: Sphere 2 d: Triangle 3 d: Tetrahedron Convex Polytope > > 2 d: Convex Polygon 3 d: Convex Polyhedron a. k. a. “Convex Hull” a. k. a. “Brush” (Quake)

19 Giving Shape to Things > Discrete Oriented Polytope (DOP)

20 Giving Shape to Things > > Discrete Oriented Polytope (DOP) Oriented Bounding Box (OBB)

21 Giving Shape to Things > > > Discrete Oriented Polytope (DOP) Oriented Bounding Box (OBB) Axis-Aligned Bounding Box (AABB)

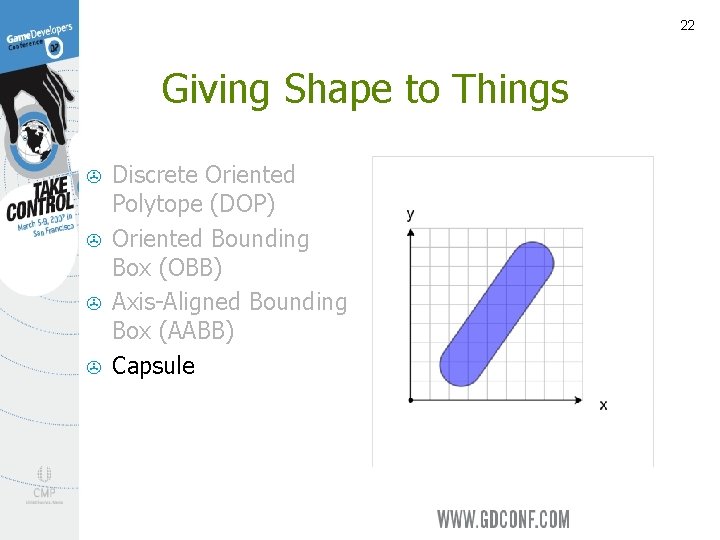

22 Giving Shape to Things > > Discrete Oriented Polytope (DOP) Oriented Bounding Box (OBB) Axis-Aligned Bounding Box (AABB) Capsule

23 Giving Shape to Things > > > Discrete Oriented Polytope (DOP) Oriented Bounding Box (OBB) Axis-Aligned Bounding Box (AABB) Capsule Cylinder (3 d only)

Moving Things Around

25 Moving Things Around > Kinematics > Describes motion > Uses position, velocity, momentum, acceleration

26 Moving Things Around > > Kinematics > Describes motion > Uses position, velocity, momentum, acceleration Dynamics > Explains motion > Uses forces. . . and impulses >

27 Moving Things Around > > Kinematics > Describes motion > Uses position, velocity, momentum, acceleration Dynamics > Explains motion > Forces (F=ma) Impulses > > Rotation > > > Torque Angular momentum Moment of inertia

Simulation Baggage

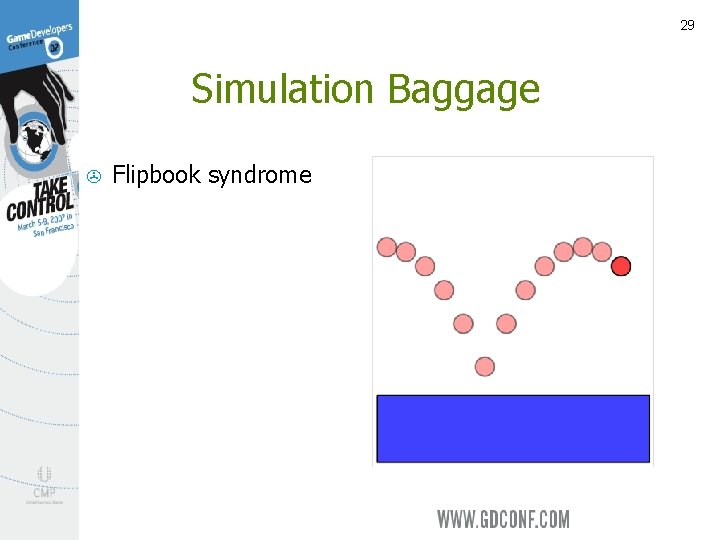

29 Simulation Baggage > Flipbook syndrome

30 Simulation Baggage > > Flipbook syndrome Things can happen inbetween snapshots

31 Simulation Baggage > > Flipbook syndrome Things mostly happen in-between snapshots

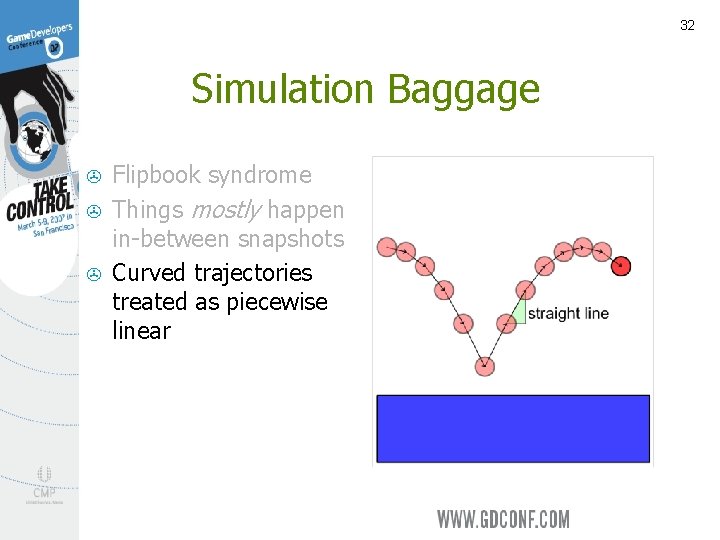

32 Simulation Baggage > > > Flipbook syndrome Things mostly happen in-between snapshots Curved trajectories treated as piecewise linear

33 Simulation Baggage > > Flipbook syndrome Things mostly happen in-between snapshots Curved trajectories treated as piecewise linear Terms often assumed to be constant throughout the frame

34 Simulation Baggage > Error accumulates (cont’d)

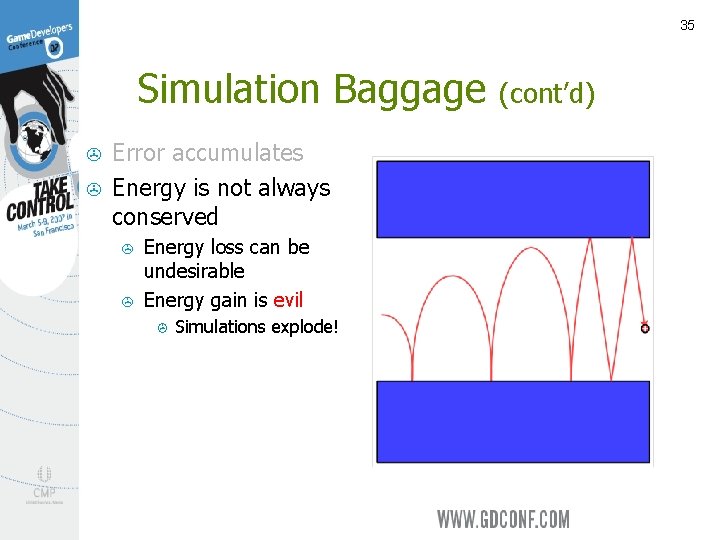

35 Simulation Baggage > > Error accumulates Energy is not always conserved > > Energy loss can be undesirable Energy gain is evil > Simulations explode! (cont’d)

36 Simulation Baggage > > Error accumulates Energy is not always conserved > > Energy loss can be undesirable Energy gain is evil > > Simulations explode! Rotations are often assumed to happen instantaneously at frame boundaries (cont’d)

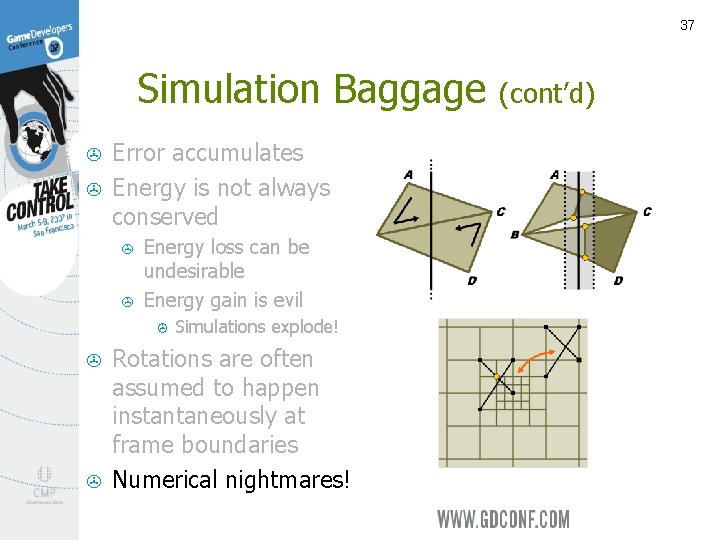

37 Simulation Baggage > > Error accumulates Energy is not always conserved > > Energy loss can be undesirable Energy gain is evil > > > Simulations explode! Rotations are often assumed to happen instantaneously at frame boundaries Numerical nightmares! (cont’d)

Collision Detection

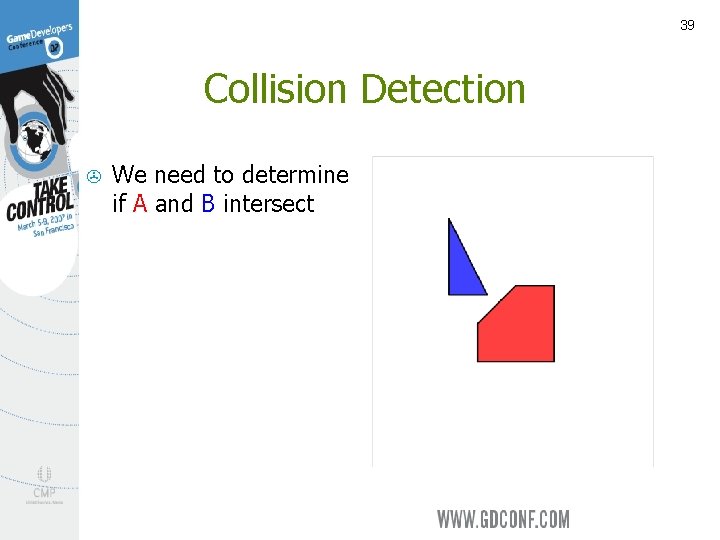

39 Collision Detection > We need to determine if A and B intersect

40 Collision Detection > > We need to determine if A and B intersect Worse yet, they could be (and probably are) in motion

41 Collision Detection > > > We need to determine if A and B intersect Worse yet, they could be (and probably are) in motion If they did collide, we probably also need to know when they collided

42 Collision Response > . . . and we need to figure out how to resolve the collision

Sustained Interactions

44 Sustained Interactions > Surface contact

45 Sustained Interactions > > Surface contact Edge contact

46 Sustained Interactions > > > Surface contact Edge contact Contact points

47 Sustained Interactions > > > Surface contact Edge contact Contact points > Different solutions

48 Sustained Interactions > > > Surface contact Edge contact Contact points > > Different solutions Stacking

49 Sustained Interactions > > > Surface contact Edge contact Contact points > > > Different solutions Stacking Friction > Static & Kinetic

50 Sustained Interactions > > > Surface contact Edge contact Contact points > > > Stacking Friction > > Different solutions Static & Kinetic Constraints & Joints

Dealing With the Impossible

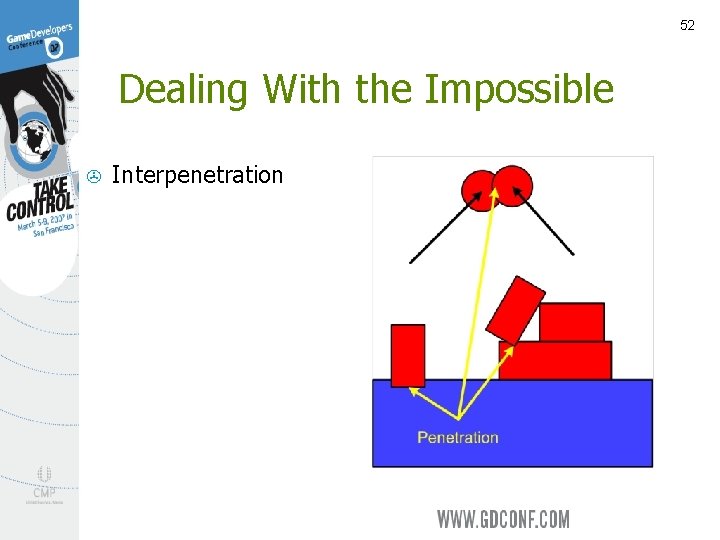

52 Dealing With the Impossible > Interpenetration

53 Dealing With the Impossible > > Interpenetration Tunneling

(Sucks) Tunneling

55 Tunneling > Small objects tunnel more easily

56 Tunneling > (cont’d) Possible solutions > Minimum size requirement? > Inadequate; fast objects still tunnel

57 Tunneling > (cont’d) Fast-moving objects tunnel more easily

58 Tunneling > (cont’d) Possible solutions > Minimum size requirement? > Inadequate; > fast objects still tunnel Maximum speed limit? > Inadequate; since speed limit is a function of object size, this would mean small & fast objects (bullets) would not be allowed > Smaller time step? > Helpful, but inadequate; this is essentially the same as a speed limit

59 Tunneling > Besides, even with min. size requirements and speed limits and a small timestep, you still have degenerate cases that cause tunneling! (cont’d)

60 Tunneling > (cont’d) Tunneling is very, very bad – this is not a “mundane detail” Things falling through world > Bullets passing through people or walls > Players getting places they shouldn’t > Players missing a trigger boundary >

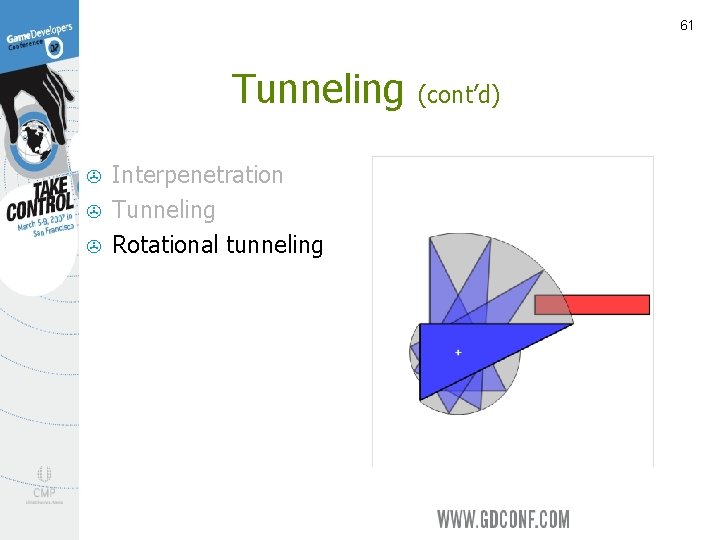

61 Tunneling > > > Interpenetration Tunneling Rotational tunneling (cont’d)

Making It Fast Enough

63 Making It Fast Enough > Don’t be too particular too soon > Avoid unnecessary work

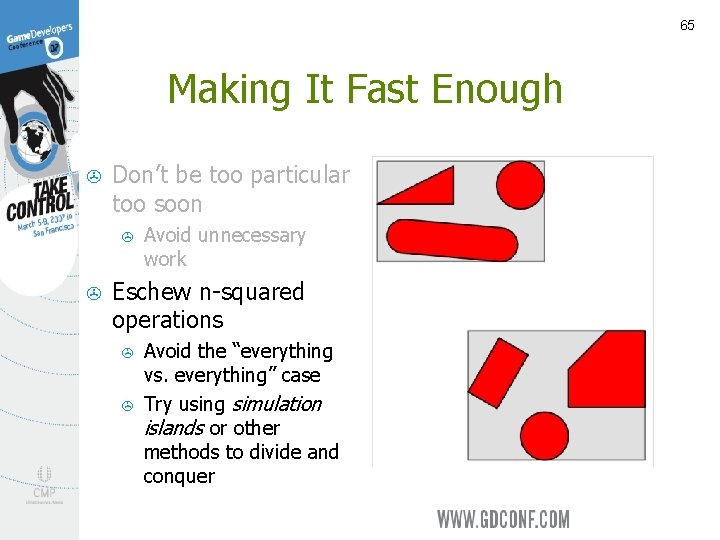

64 Making It Fast Enough > Don’t be too particular too soon > > Avoid unnecessary work Eschew n-squared operations > Avoid the “everything vs. everything” case

65 Making It Fast Enough > Don’t be too particular too soon > > Avoid unnecessary work Eschew n-squared operations > > Avoid the “everything vs. everything” case Try using simulation islands or other methods to divide and conquer

66 Simulation Islands > Consider: > > > 1000 objects, 1 island 1000 x 1000 checks = 1 Million checks

67 Simulation Islands > Consider: > > 1000 objects, 1 island 1000 x 1000 checks = 1 Million checks Verses: > > 1000 objects, divided into 10 islands of 100 10 x (100 x 100) checks = 100, 000 checks 1/10 th as many!

68 Simulation Islands > Simulation islands can “go to sleep” when they become stable > i. e. when forces and motion remain unchanged

69 Simulation Islands > Simulation islands can “go to sleep” when they become stable > i. e. when forces and motion remain unchanged

70 Simulation Islands > Simulation islands can “go to sleep” when they become stable > > i. e. when forces and motion remain unchanged When an object enters the island’s bounds. . .

71 Simulation Islands > Simulation islands can “go to sleep” when they become stable > > i. e. when forces and motion remain unchanged When an object enters the island’s bounds. . .

72 Simulation Islands > Simulation islands can “go to sleep” when they become stable > > > i. e. when forces and motion remain unchanged When an object enters the island’s bounds. . . the island wakes up

73 Simulation Islands > Add the newcomer to this simulation island

74 Simulation Islands > > Add the newcomer to this simulation island. . . and put it back to sleep once it stabilizes > This is just one of many ways to reduce complexity > We’ll be covering several others later on

75 Making It Fast Enough Can also exploit work previously done > Make “educated assumptions” using: > > Temporal/frame coherence: Things tend not to have changed a whole lot in the 15 ms or so since the previous frame, so save the previous frame’s results! > Spatial coherence: Things tend to miss each other far more often than they collide, and only things in the same neighborhood can collide with each other

Summary

77 Summary The nature of simulation causes us real problems. . . problems which can’t be ignored > So we cheat > And we simplify things > And even then, it can get quite complex. . . >

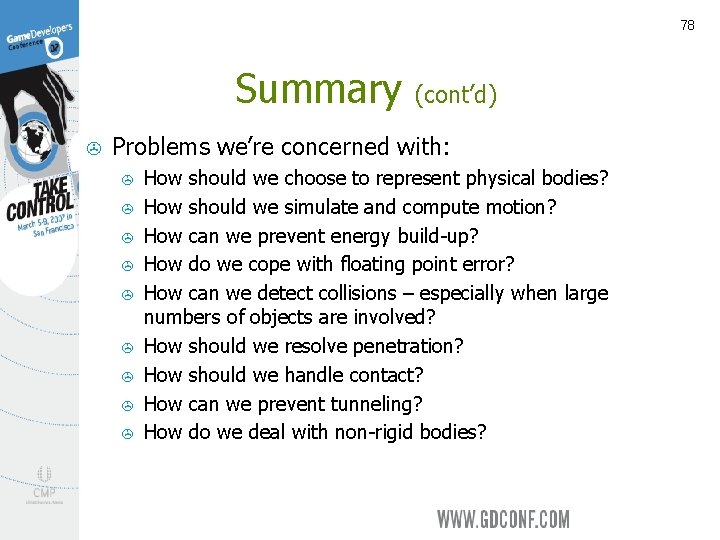

78 Summary > (cont’d) Problems we’re concerned with: > > > > > How should we choose to represent physical bodies? How should we simulate and compute motion? How can we prevent energy build-up? How do we cope with floating point error? How can we detect collisions – especially when large numbers of objects are involved? How should we resolve penetration? How should we handle contact? How can we prevent tunneling? How do we deal with non-rigid bodies?

79 Questions? > Feel free to reach me by email at: squirrel@eiserloh. net or squirrel@ritual. com
