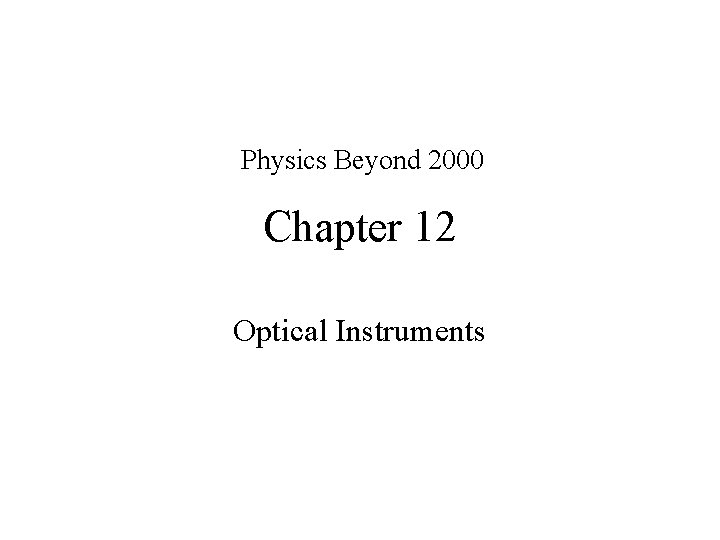

Physics Beyond 2000 Chapter 12 Optical Instruments Geometric

Physics Beyond 2000 Chapter 12 Optical Instruments

Geometric Optics • In this chapter, the lenses and mirrors have dimension much longer than the wavelength of light. • Effect of diffraction can be ignored. • Light is regarded as ray. http: //webphysics. davidson. edu/physletprob/ch 18_v 4_physlets/optics 4/default. html http: //www. phy. ntnu. edu. tw/demolab/index. html

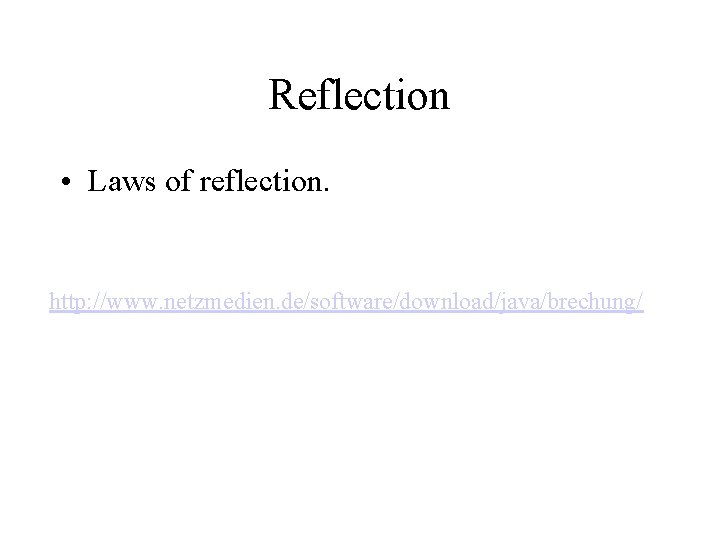

Reflection • Laws of reflection. http: //www. netzmedien. de/software/download/java/brechung/

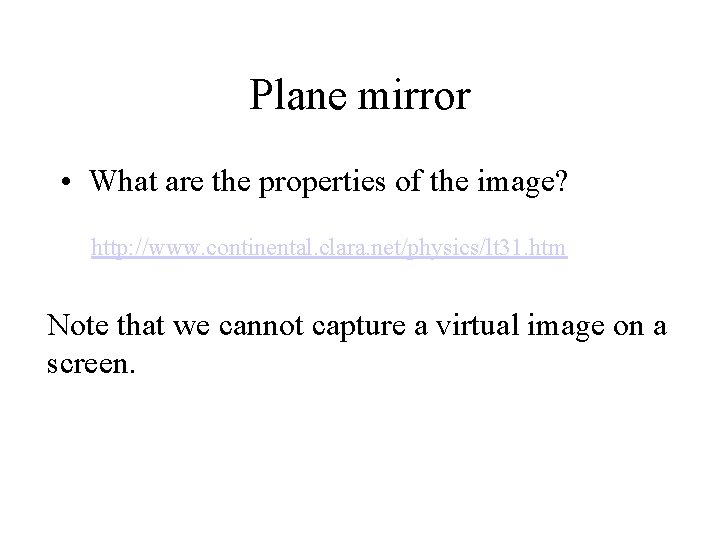

Plane mirror • What are the properties of the image? http: //www. continental. clara. net/physics/lt 31. htm Note that we cannot capture a virtual image on a screen.

Locate a virtual image • Method of no parallax Use a long search pin to locate the image behind the mirror. In front of the mirror, view the image in the mirror and the search pin image plane mirror object

Locate a virtual image • Method of no parallax If the search pin is at the exact position of the image, the image in the mirror and the search pin always coincide even if we change the angle of view. search pin eye image in the mirror eye

Locate a real image • The method of no parallax can be applied to locate the position of real images. search pin O I real image

Rotation of a plane mirror Normal 1 Normal 2 Reflected ray 1 Fixed incident ray θ Reflected ray 2 2θ Mirror 1 Mirror 2 Rotate the plane mirror from position 1 to position 2 by an angle θ. The reflected ray will turn through 2θ.

Rotating a plane mirror • Light-beam galvanometer.

A moving mirror position 2 position 1 image 2 fixed object 2 v v If the plane mirror moves at a speed v, the image moves at speed 2 v. image 1

Concave mirrors • http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/Lens/ lens_e. html

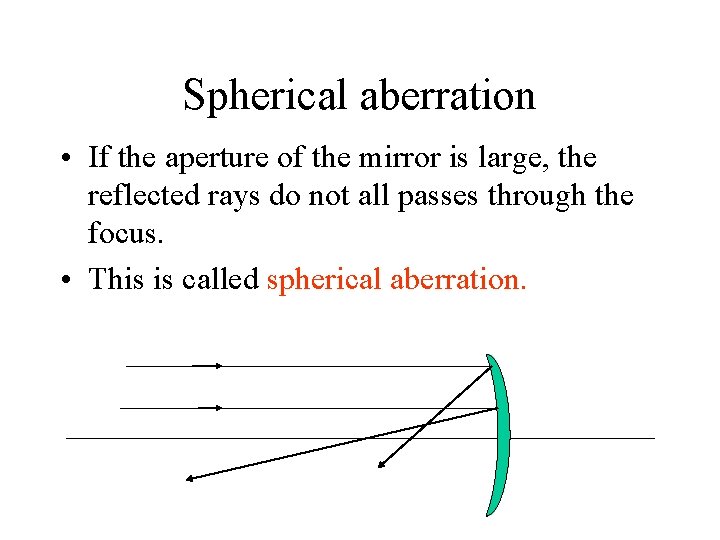

Spherical aberration • If the aperture of the mirror is large, the reflected rays do not all passes through the focus. • This is called spherical aberration.

Spherical aberration • It can be corrected by using a parabolic mirror.

Focal length f and radius of curvature R Show that r = 2 f for small angles. paraxial ray θ θ h 2θ θ C F r f

Images for concave mirror http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/Lens/lens_e. html

Example 1 • The rays from the sun are parallel and the image of the sun is on the focal plane. C F h f θ θ

Mirror formula for small angles θ α O C θ γ β I F r u v h

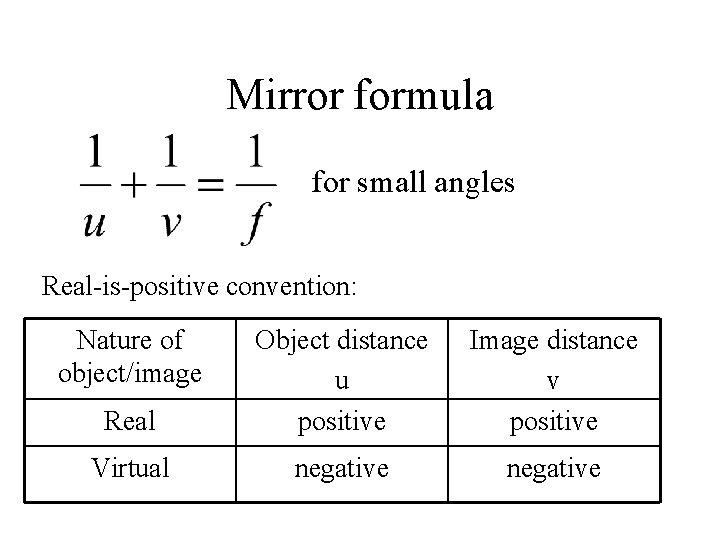

Mirror formula for small angles Real-is-positive convention: Nature of object/image Real Object distance u positive Image distance v positive Virtual negative

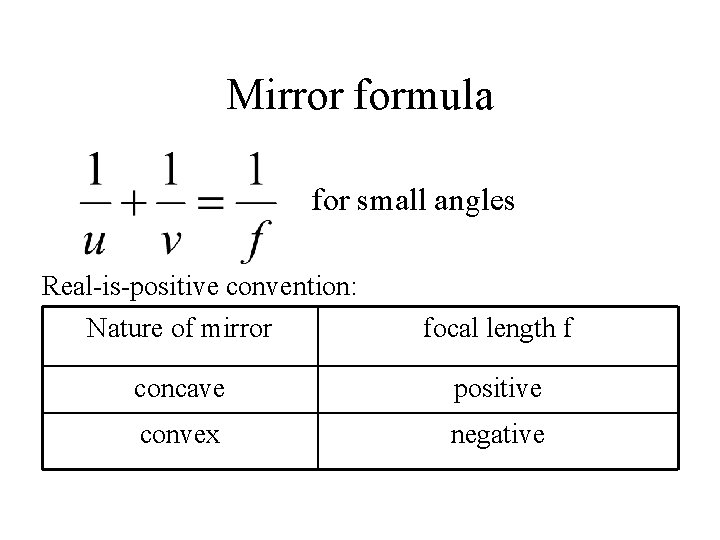

Mirror formula for small angles Real-is-positive convention: Nature of mirror focal length f concave positive convex negative

Linear magnification m I O C u F v

Example 2 • Justify the nature of the image from the sign of image distance v.

Variation of image with object distance http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/Lens/lens_e. html

Variation of magnification with object distance

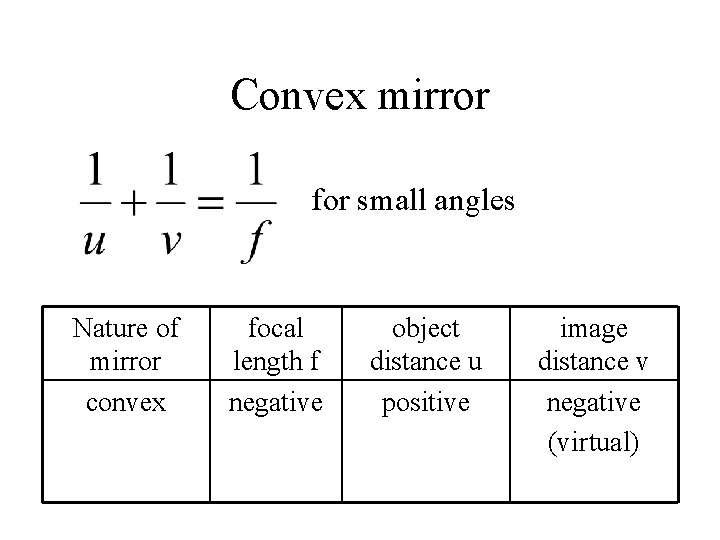

Convex mirror for small angles Nature of mirror convex focal length f negative object distance u positive image distance v negative (virtual)

Convex mirror http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/Lens/lens_e. html http: //www. iln. net/html_p/c/453262/453270/453373/454123/56652_2079292. asp

Example 3 O I u v I F

Measure the focal length of concave mirror Method A • Object at infinity. • Image is at the focal plane. • Measure the distance between the mirror and the screen. C θ θ F h f

Measure the focal length of concave mirror Method B • Object at the radius of curvature. • Image is at the radius of curvature. • Use the method of no parallax to locate the image. • Adjust the position of the object so that its image is coincide with the object. • Measure the distance between the object and the mirror. http: //www. usafa. af. mil/dfp/physics/webphysics/Physlet_examples/concave_mirror_f. html

Measure the focal length of concave mirror Method C • Object at different positions to produce real images. • Images are captured by a screen. 0

Measure the focal length of concave mirror Method D • Object at different positions to produce real images. • Images are captured by a screen. • Calculate the linear magnification m. m slope = 0 -1 v

Measure the focal length fm of a convex mirror • It is not possible to capture a virtual image on a screen. • Put a converging lens of focal length flens in front of the convex mirror. • Adjust the position of the object so that a real image is at the same position as the object. O P Q s I lens flens C 2. fm mirror

Measure the focal length fm of a convex mirror • Measure s, the separation between the lens and the convex lens. • 2 focal length of the convex mirror is flens – s. O P Q s I lens flens C 2. fm mirror

Refraction http: //www. fed. cuhk. edu. hk/sci_lab/download/project/Lightrefraction/Light. Refract. html http: //www. netzmedien. de/software/download/java/brechung/ Medium 1: 1, c 1 and n 1 1 2 Medium 2: 2, c 2 and n 2

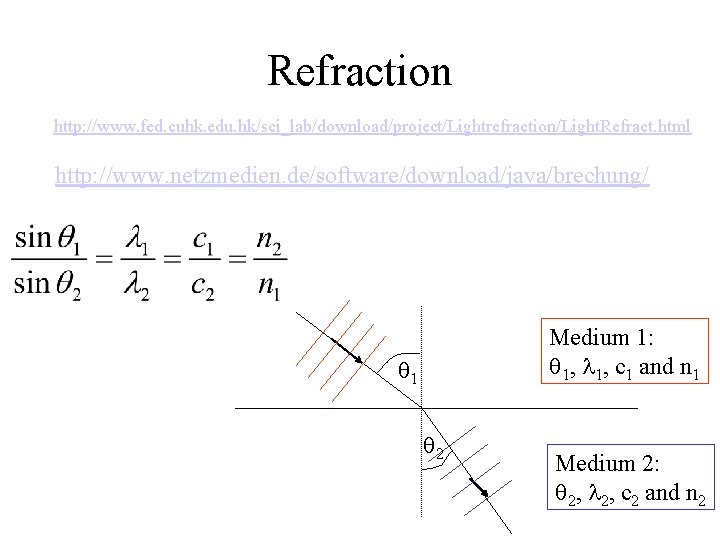

Refraction Snell’s law: n 1. sin 1 = n 2. sin 2 Medium 1: 1, c 1 and n 1 1 2 Medium 2: 2, c 2 and n 2

Refraction If n 2 > n 1, then medium 2 is an optically denser medium and medium 1 is an optically less dense medium Medium 1: 1, c 1 and n 1 1 2 Medium 2: 2, c 2 and n 2

Total internal reflection This occurs when light travels from an optically denser medium to an optically less dense medium and the angle of incidence > critical angle c. refraction with 1 < c. medium 1 medium 2 critical case with 2 = c. 1 2 3 total internal reflection with 3 > c. http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/light/flash. Light. html

Total internal reflection The critical angle c is given by refraction with 1 < c. medium 1 of n 1 medium 2 of n 2 critical case with 2 = c. 1 2 3 http: //www. continental. clara. net/physics/lt 23. htm total internal reflection with 3 > c.

Fish-eye view • http: //www. fed. cuhk. edu. hk/sci_lab/ntnujav a/fish. Eye. html

Example 4 • The critical angle of glass with n = 1. 5 is about 42 o in air. • It depends also on the medium in which the glass is immersed.

Reflecting prism • Angle of incidence = 45 o > Critical angle = 42 o. • Total internal reflection occurs inside the glass prism. • The glass prism can be used as a reflecting mirror. 45 o o 45 45 o

Optical fibre • There is total internal reflection inside the optical fibre. • Light is guided to travel in the optical fibre.

Real depth and apparent depth • The image I is displaced upwards relative to the object O. air medium with refractive index n B C apparent depth I real depth O

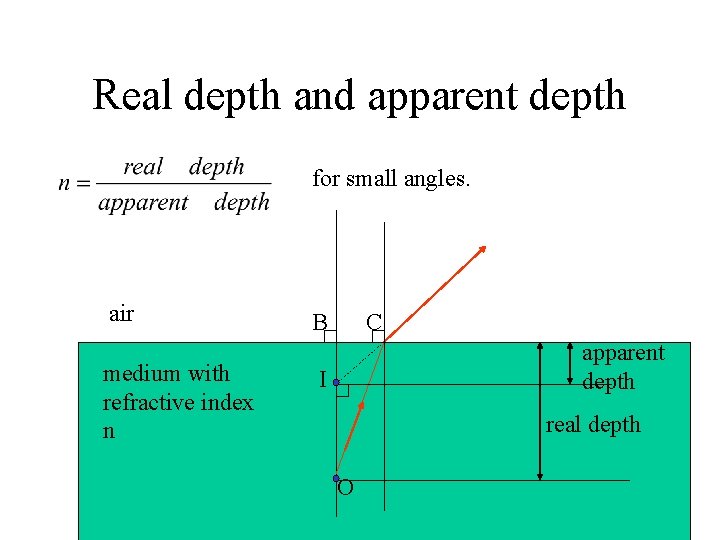

Real depth and apparent depth for small angles. air medium with refractive index n B C apparent depth I real depth O

Real depth and apparent depth Where would be the image I if we are inside the medium? Suppose that the angles are small. O air medium with refractive index n B C

Measure the refractive index of glass Find the real depth and apparent depth from h 1 and h 2. eye travelling microscope h 2 h 1 h h h glass block I O 1 O 2 real depth = h 2 apparent depth = h 2 – h 2

Rectangular glass block The incident ray and the emergent ray are parallel. The lateral displacement is incident ray w i r r i d emergent ray

Prism Find the angle of deviation D in terms of angles of incidence ( 1 and 2) and angles of refraction ( 1 and 2). D = ( 1 - 1)+( 2 - 2) A 1 1 2 D 2

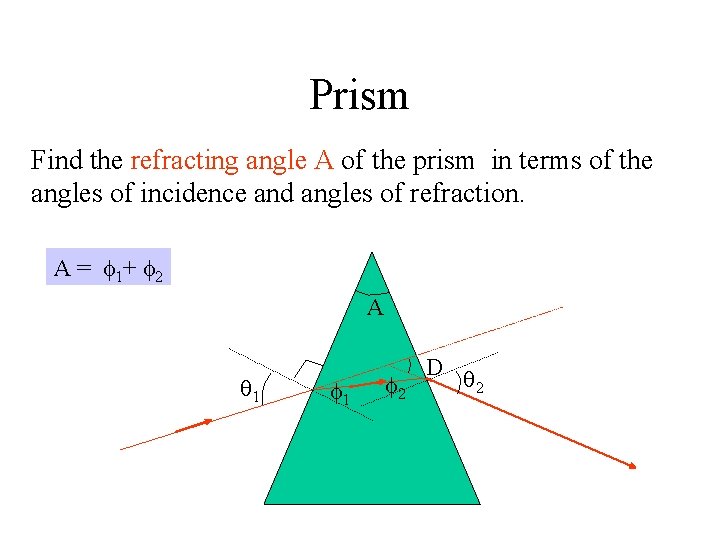

Prism Find the refracting angle A of the prism in terms of the angles of incidence and angles of refraction. A = 1+ 2 A 1 1 2 D 2

Prism The angle of deviation is a minimum Dmin when the light ray is symmetrical. Find the refractive index n of the glass prism. A 1 1 2 D 2

Small-angled prism • For a prism with small refracting angle A. • The angle of deviation D = (n - 1). A • The angle of deviation is independent of the angle of incidence. A D

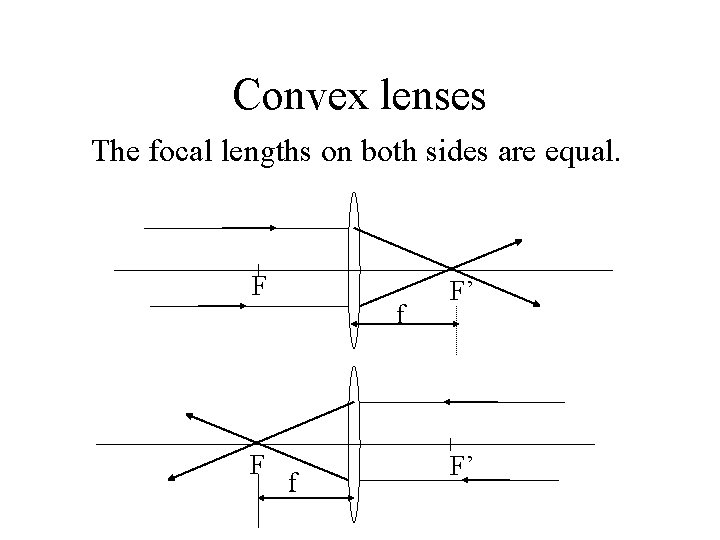

Convex lenses The focal lengths on both sides are equal. F F f f F’ F’

Aberration of lens • Spherical aberration. • Parallel incident rays far from the centre do not meet at the same focus as paraxial rays. http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/thick. Lens. html

Aberration of lens • Chromatic aberration. • Violent light bends more than red light in glass. fviolet < fred white parallel light

Location of image for convex lens http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/Lens/lens_e. html Ray diagrams.

Lens formula for thin lens. Real-is-positive convention: Nature of object/image Real Object distance u positive Image distance v positive Virtual negative

Lens formula for thin lens. Real-is-positive convention: Nature of lens focal length f convex positive concave negative

Lens formula: proof The angle of deviation D = (n – 1). A where A is the refracting angle Note that for small angle prism (thin lens), D is independent of the angle of incidence. B D P f F

Lens formula: proof Suppose that there is a real image. Prove that for thin lens. B O u F’ D P f F v I

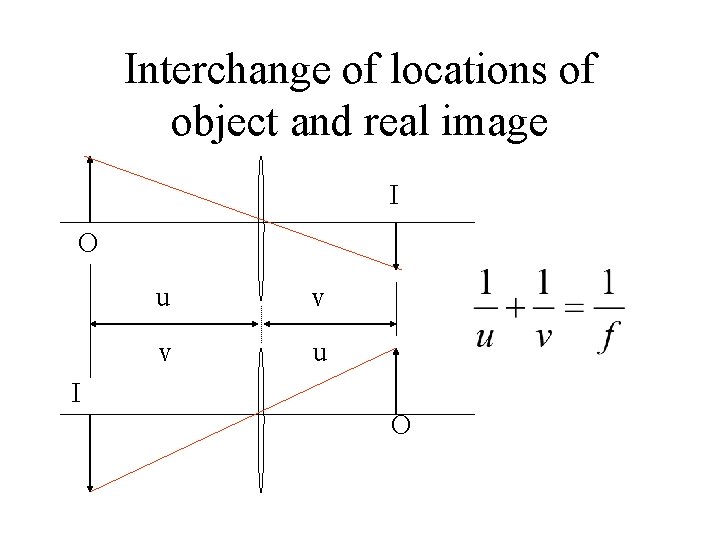

Interchange of locations of object and real image I O u v v u I O

Object-image distance for real image • To produce a real image, the object-image distance d must be longer than or equal to 2. f. • Prove it. I O d

Thin lenses in contact • Let f 1 be the focal length of the first thin lens and f 2 be the focal length of the second thin lens. • When they are in contact, the combined focal length f is given by http: //www. fed. cuhk. edu. hk/sci_lab/ntnujava/thin. Lens. html

Example 5 • The image formed by the first lens is the object of the second lens.

The converging power of a lens • Definition of converging power P= Unit: dipotre (D) • For two thin lenses in contact, the combined power is D 1 + D 2.

Concave lens • For a real object, virtual image is always formed. v is negative. • Focal length is negative.

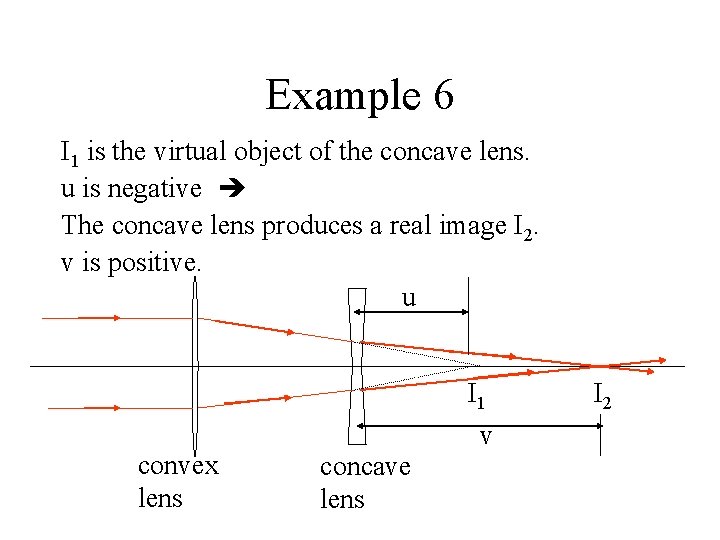

Example 6 I 1 is the virtual object of the concave lens. u is negative The concave lens produces a real image I 2. v is positive. u convex lens concave lens I 1 v I 2

Measure the focal length of convex lens • Method A. Object at infinity Image is at the focal plane. parallel rays from distant object f focal plane I

Measure the focal length of convex lens Method B. Place the convex lens on a plane mirror. Adjust the position of the object so that it coincides with the image. This is method no parallax. eye object O image convex lens plane mirror

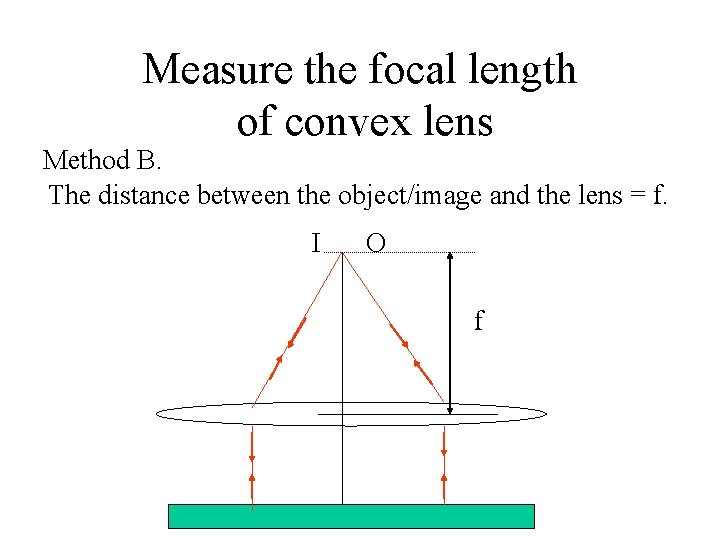

Measure the focal length of convex lens Method B. The distance between the object/image and the lens = f. I O f

Measure the focal length of convex lens • Method C. • Produce different real images. • Measure the object distance u and the real image distance v.

Measure the focal length of convex lens • Method D. Without changing the positions of the object and the image, find the two possible positions of the lens. Measure a and d. and find f from object O 1 st position of lens 2 nd position of lens d a Screen position of image

Measure the focal length of concave lens • Use another convex lens to help producing a virtual object for the concave lens. • Use the lens formula to calculate the focal length of the concave lens. u v O I 1 I 2

Optical instruments • Human eye: a convex lens with variable focal length. • Far point of a normal eye = infinity. • Near point of a normal eye = 25 cm. • Least distance of distinct vision = 25 cm.

Short-sightedness • A short-sighted eye can focus objects in the range from 25 cm to 200 cm. • The far point of the short-sighted eye is 200 cm • Find the focal length of the spectacle to correct the defect. • Wearing a pair of spectacles, what is the new near point?

Long-sightedness • A long-sighted eye can focus objects in the range from 200 cm to infinity. • The near point of the long-sighted eye is 200 cm • Find the focal length of the spectacle to correct the defect. • Wearing a pair of spectacles, what is the new far point?

Visual angle • Visual angle of an object is the angle subtended by the object at the eye. • The bigger the visual angle, the bigger the apparent size of the object. • Most optical instruments are designed to magnify the visual angle. object eye

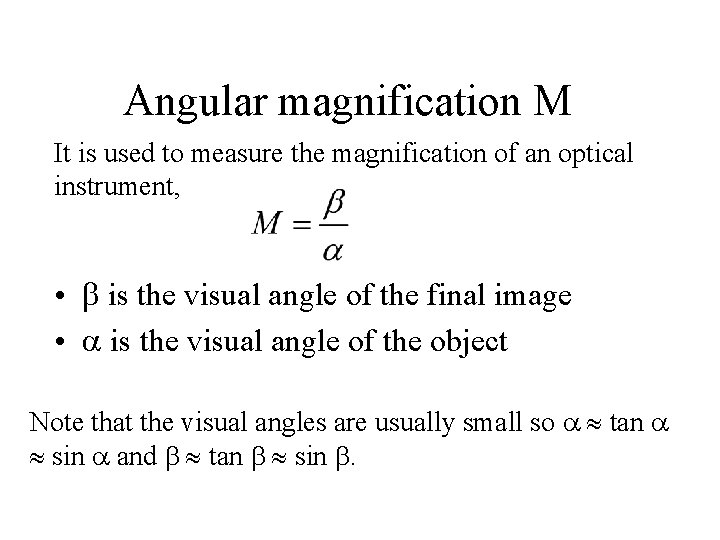

Angular magnification M It is used to measure the magnification of an optical instrument, • is the visual angle of the final image • is the visual angle of the object Note that the visual angles are usually small so tan sin and tan sin .

Normal adjustment • An optical instrument is in normal adjustment when it forms the final image at a position which the user expects to see. • Telescope: final image at infinity (far point). • Magnifying glass: final image at 25 cm (near point). • Microscope: final image at 25 cm (near point).

Magnifying glass • A magnifying glass is a convex lens. • It produces an enlarged virtual image.

Magnifying glass • Without the magnifying glass, the largest visual angle of the object is with the object at the least distance of distinct vision D = 25 cm. h object D eye visual angle without optical instrument

Magnifying glass • With the magnifying glass in normal adjustment, the final image is also at D. image h object u v=D eye visual angle with the optical instrument

Magnifying glass Apply lens formula, (1) With the visual angles, (2) (3) the angular magnification of a magnifying glass

Compound microscope • It is used to view small objects. • It consists of two convex lenses. • The objective lens and the eye-piece. Both are of short focal lengths. eye objective lens eye-piece History of compound microscope: http: //www. utmem. edu/~thjones/hist_mic. htm

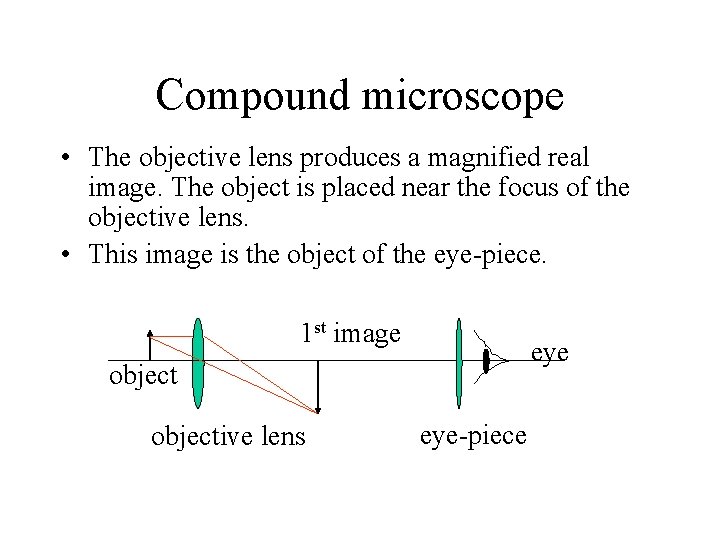

Compound microscope • The objective lens produces a magnified real image. The object is placed near the focus of the objective lens. • This image is the object of the eye-piece. 1 st image eye objective lens eye-piece

Compound microscope • The eye-piece is a magnifying glass. • It produces a magnified virtual image at D = 25 cm from the eye-piece. 1 st image eye object final image objective lens eye-piece D Note that the final image is an inverted image.

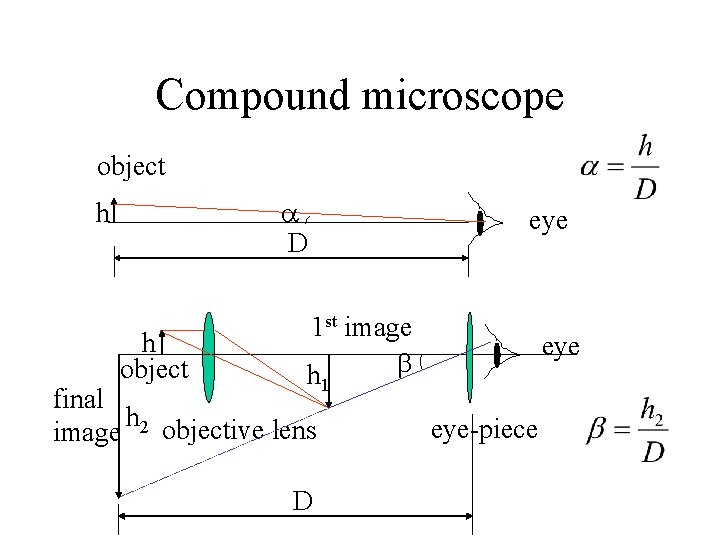

Compound microscope object D h h object eye 1 st image h final h 2 objective lens image D eye 1 eye-piece

Compound microscope The angular magnification M of a compound microscope is where me is the linear magnification of the eye-piece and mo is the linear magnification of the objective M can be increased by using lenses of short focal lengths.

Example 7 • The angular magnification = 5. 5

Refracting telescope • It is used to view distant objects e. g. stars. • Two convex lenses. • The objective lens: Pointing to the object, with very long focal length. • The eyepiece: A magnifying glass. Its focal length is short eye Objective lens Eyepiece

Refracting telescope • The object is at infinity. The incident rays are parallel • The objective lens produces a real image I 1 on its focal plane. fo I 1 Objective lens real image eye Eyepiece

Refracting telescope • The first image I 1 is the object of the eyepiece. • The eyepiece produces a virtual image at infinity. This is the normal adjustment. fe fo I 1 Objective lens Image at infinity real image eye Eyepiece

Refracting telescope In normal adjustment, the angular magnification is

Refracting telescope • The length of the refractive telescope is fo + fe • The image is inverted. fe fo I 1 Objective lens Image at infinity real image eye Eyepiece

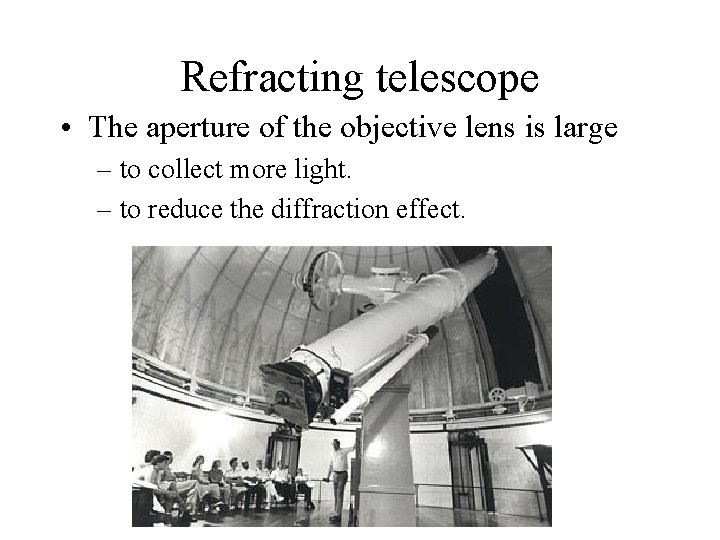

Refracting telescope • The aperture of the objective lens is large – to collect more light. – to reduce the diffraction effect.

Example 8 • Note the focal lengths of the lenses.

Eye ring • Eye ring is the position of the eye, at which most light enters the eye when using an optical instrument. • The image is brightest when the eye is at the eye ring.

Eye ring All the light collected by the objective lens passes through the position of the eye ring. All the light enters your eye if you place your eye at the eye ring.

Locating the eye ring • As the light comes from the objective lens, you may take the objective lens as the object. • The position of the eye ring is the position of the image. • Find the position of the eye ring from lens formula. where u is the distance from the objective lens to the eyepiece, f is the focal length of the eyepiece and v is the distance from the eye ring to the eyepiece.

Locating the eye ring The position of the eye ring is

Reflecting telescope • It is similar to a refracting telescope. • Light is collected by a concave mirror. plane mirror F objective (concave mirror) F’ eye piece eye

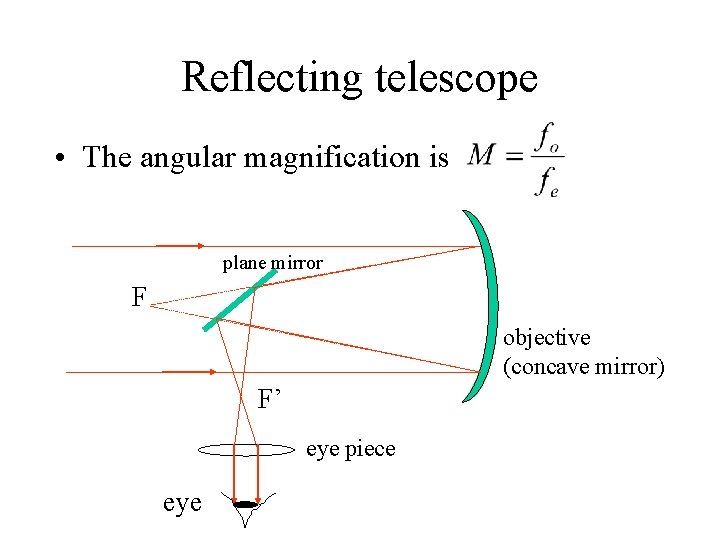

Reflecting telescope • The angular magnification is plane mirror F objective (concave mirror) F’ eye piece eye

Reflecting telescope • Advantages of using a reflecting telescope: The mirror reduces less light intensity than a lens. There is not any problem of chromatic aberration and spherical aberration. It is easier to produce a large mirror than a large lens.

Example 9 • Locating the eye ring.

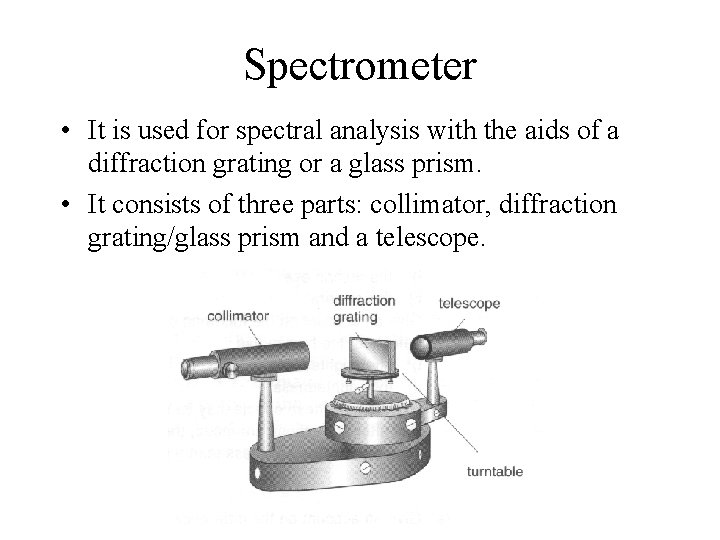

Spectrometer • It is used for spectral analysis with the aids of a diffraction grating or a glass prism. • It consists of three parts: collimator, diffraction grating/glass prism and a telescope.

Spectrometer • Collimator: Place the source S near the slit. The collimator produces a parallel beam of light. collimator S

Spectrometer • Diffraction grating: Use a diffraction grating to produce a spectrum of fringes. • The diffraction grating is on a turntable to measure the angles of bright fringes. diffraction grating collimator m=2 m=1 m=0 S turntable m=1 m=2

Spectrometer • Diffraction grating: Use a diffraction grating to produce a spectrum of fringes. • The diffraction grating is on a turntable to measure the angles of diffraction grating collimator m=2 m=1 m=0 S turntable m=1 m=2

Spectrometer • Telescope: It can be rotated to any angle to view the diffraction spectrum. eye telescope diffraction grating collimator S m=1 m=0 turntable m=1 m=2

Spectrometer Telescope: the image is formed at the position of cross-wire. objective lens light from diffraction grating eye piece cross-wire eye

Spectrometer • It is necessary to make a horizontal turntable. Adjust the levelling screws and use a spirit level to check the turntable. spirit level turntable levelling screw
