Physics 1161 Lecture 22 Blackbody Radiation Photoelectric Effect

Physics 1161: Lecture 22 Blackbody Radiation Photoelectric Effect Wave-Particle Duality • sections 30 -1 – 30 -4

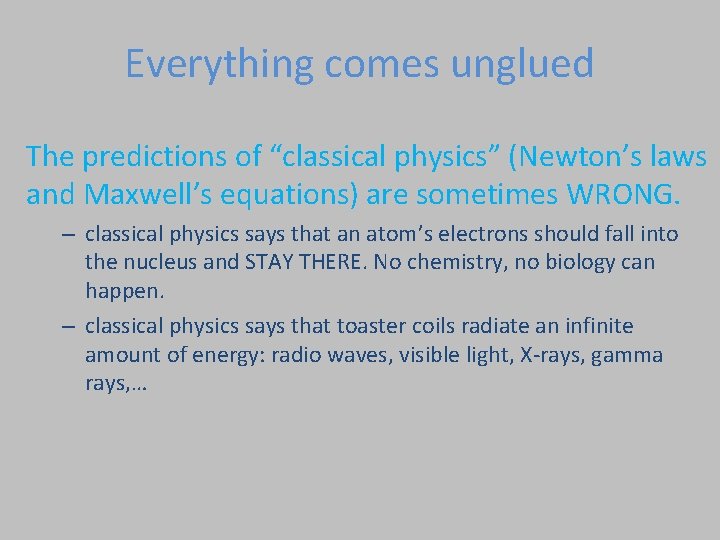

Everything comes unglued The predictions of “classical physics” (Newton’s laws and Maxwell’s equations) are sometimes WRONG. – classical physics says that an atom’s electrons should fall into the nucleus and STAY THERE. No chemistry, no biology can happen. – classical physics says that toaster coils radiate an infinite amount of energy: radio waves, visible light, X-rays, gamma rays, …

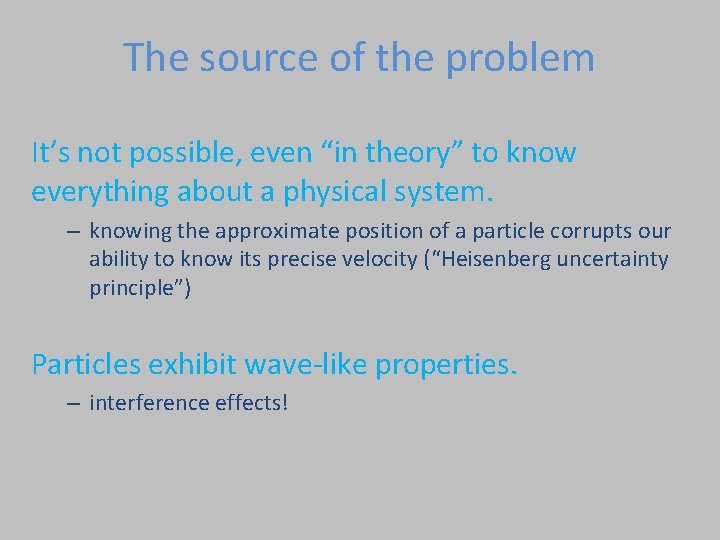

The source of the problem It’s not possible, even “in theory” to know everything about a physical system. – knowing the approximate position of a particle corrupts our ability to know its precise velocity (“Heisenberg uncertainty principle”) Particles exhibit wave-like properties. – interference effects!

Quantum Mechanics! • At very small sizes the world is VERY different! – Energy can come in discrete packets – Everything is probability; very little is absolutely certain. – Particles can seem to be in two places at same time. – Looking at something changes how it behaves.

Blackbody Radiation Hot objects glow (toaster coils, light bulbs, the sun). As the temperature increases the color shifts from Red to Blue. The classical physics prediction was completely wrong! (It said that an infinite amount of energy should be radiated by an object at finite temperature. )

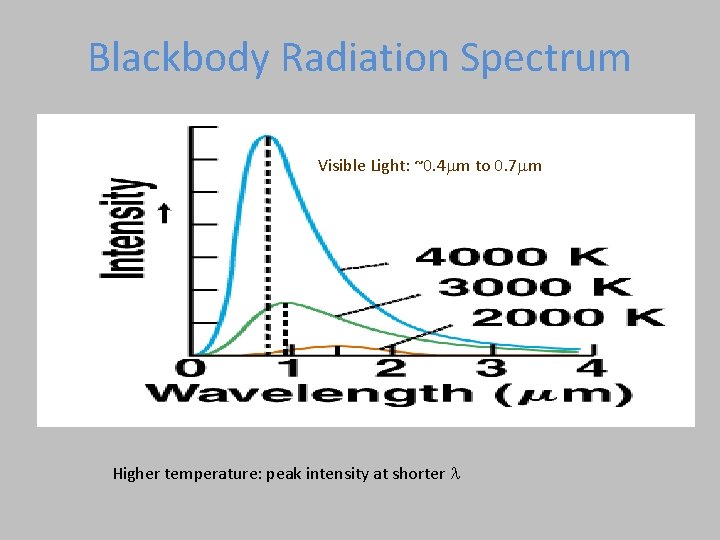

Blackbody Radiation Spectrum Visible Light: ~0. 4 mm to 0. 7 mm Higher temperature: peak intensity at shorter

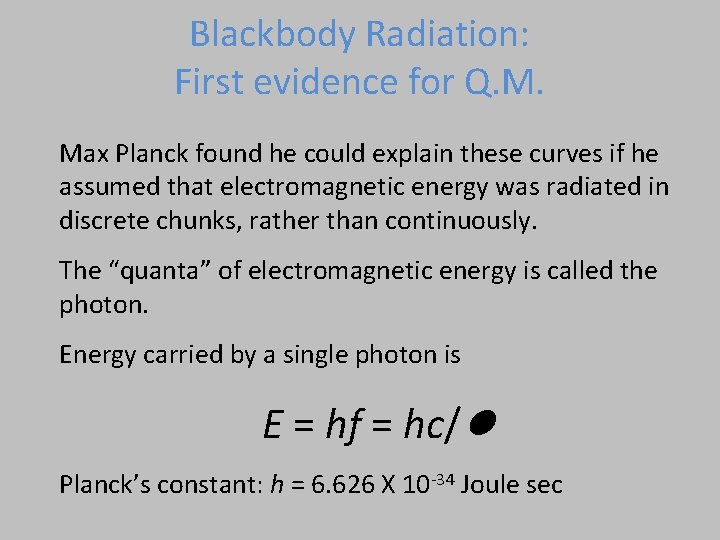

Blackbody Radiation: First evidence for Q. M. Max Planck found he could explain these curves if he assumed that electromagnetic energy was radiated in discrete chunks, rather than continuously. The “quanta” of electromagnetic energy is called the photon. Energy carried by a single photon is E = hf = hc/ Planck’s constant: h = 6. 626 X 10 -34 Joule sec

Preflights 22. 1, 22. 3 A series of light bulbs are colored red, yellow, and blue. Which bulb emits photons with the most energy? The least energy? Which is hotter? (1) stove burner glowing red (2) stove burner glowing orange

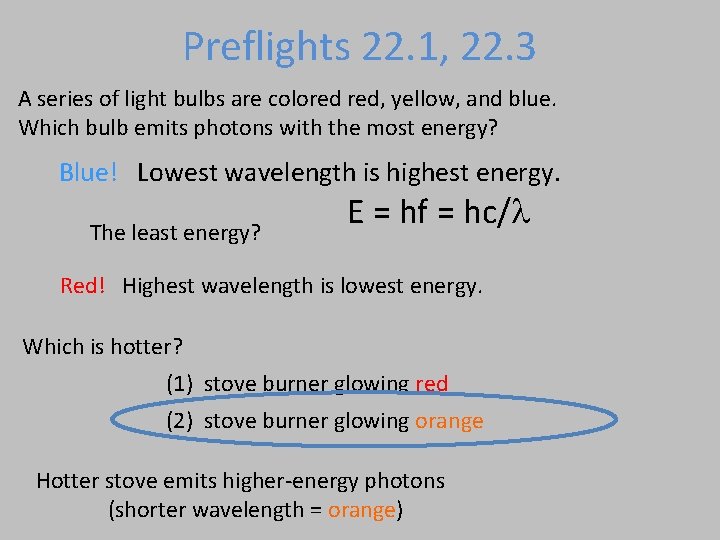

Preflights 22. 1, 22. 3 A series of light bulbs are colored red, yellow, and blue. Which bulb emits photons with the most energy? Blue! Lowest wavelength is highest energy. The least energy? E = hf = hc/ Red! Highest wavelength is lowest energy. Which is hotter? (1) stove burner glowing red (2) stove burner glowing orange Hotter stove emits higher-energy photons (shorter wavelength = orange)

Three light bulbs with identical filaments are manufactured with different colored glass envelopes: one is red, one is green, one is blue. When the bulbs are turned on, which bulb’s filament is hottest? 1. 2. 3. 4. Red Green Blue Same max

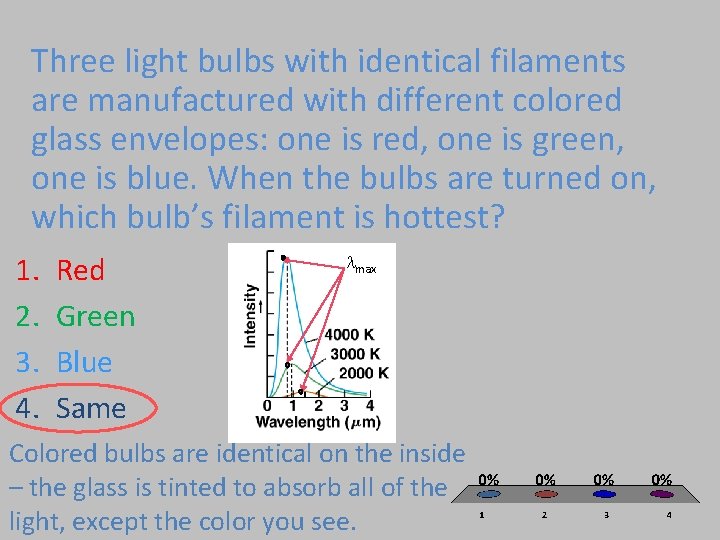

Three light bulbs with identical filaments are manufactured with different colored glass envelopes: one is red, one is green, one is blue. When the bulbs are turned on, which bulb’s filament is hottest? 1. 2. 3. 4. Red Green Blue Same max Colored bulbs are identical on the inside – the glass is tinted to absorb all of the light, except the color you see.

A red and green laser are each rated at 2. 5 m. W. Which one produces more photons/second? 1. Red 2. Green 3. Same

A red and green laser are each rated at 2. 5 m. W. Which one produces more photons/second? 1. Red 2. Green 3. Same Red light has less energy/photon so if they both have the same total energy, red has to have more photons!

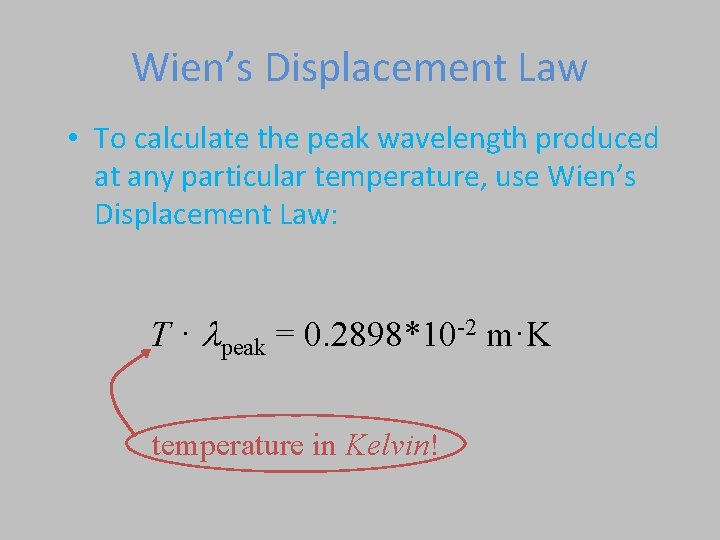

Wien’s Displacement Law • To calculate the peak wavelength produced at any particular temperature, use Wien’s Displacement Law: T · peak = 0. 2898*10 -2 m·K temperature in Kelvin!

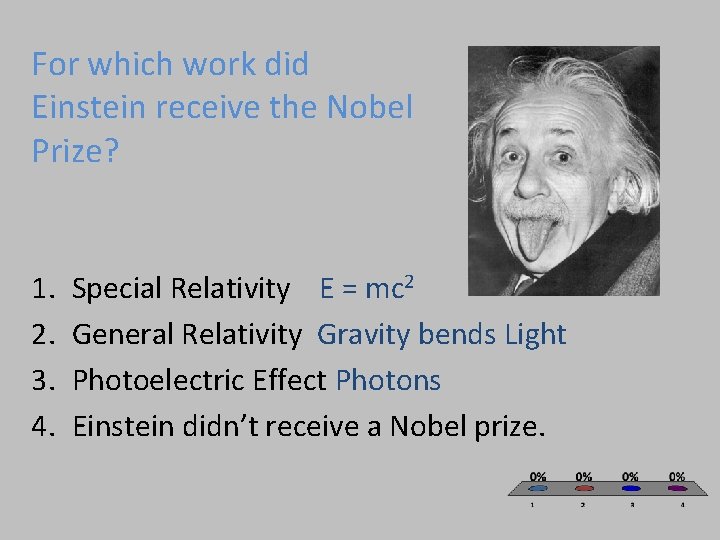

For which work did Einstein receive the Nobel Prize? 1. 2. 3. 4. Special Relativity E = mc 2 General Relativity Gravity bends Light Photoelectric Effect Photons Einstein didn’t receive a Nobel prize.

For which work did Einstein receive the Nobel Prize? 1. 2. 3. 4. Special Relativity E = mc 2 General Relativity Gravity bends Light Photoelectric Effect Photons Einstein didn’t receive a Nobel prize.

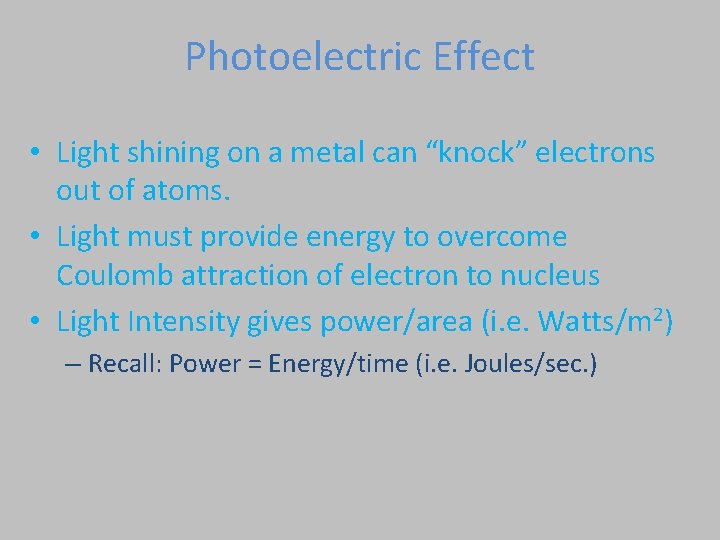

Photoelectric Effect • Light shining on a metal can “knock” electrons out of atoms. • Light must provide energy to overcome Coulomb attraction of electron to nucleus • Light Intensity gives power/area (i. e. Watts/m 2) – Recall: Power = Energy/time (i. e. Joules/sec. )

Photoelectric Effect

Light Intensity • Kinetic energy of ejected electrons is independent of light intensity • Number of electrons ejected does depend on light intensity

Threshold Frequency • Glass is not transparent to ultraviolet light • Light in visible region is lower frequency than ultraviolet • There is minimum frequency necessary to eject electrons

Difficulties With Wave Explanation • effect easy to observe with violet or ultraviolet (high frequency) light but not with red (low frequency) light • rate at which electrons ejected proportional to brightness of light • The maximum energy of ejected electrons NOT affected by brightness of light • electron's energy depends on light’s frequency

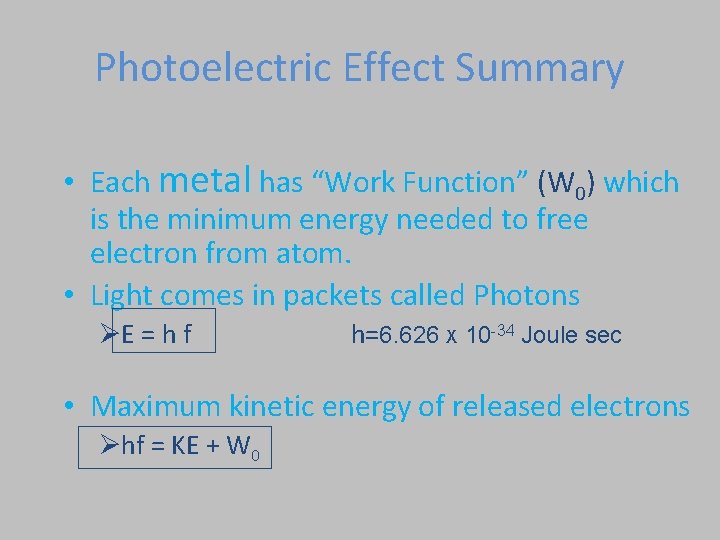

Photoelectric Effect Summary • Each metal has “Work Function” (W 0) which is the minimum energy needed to free electron from atom. • Light comes in packets called Photons ØE = h f h=6. 626 X 10 -34 Joule sec • Maximum kinetic energy of released electrons Øhf = KE + W 0

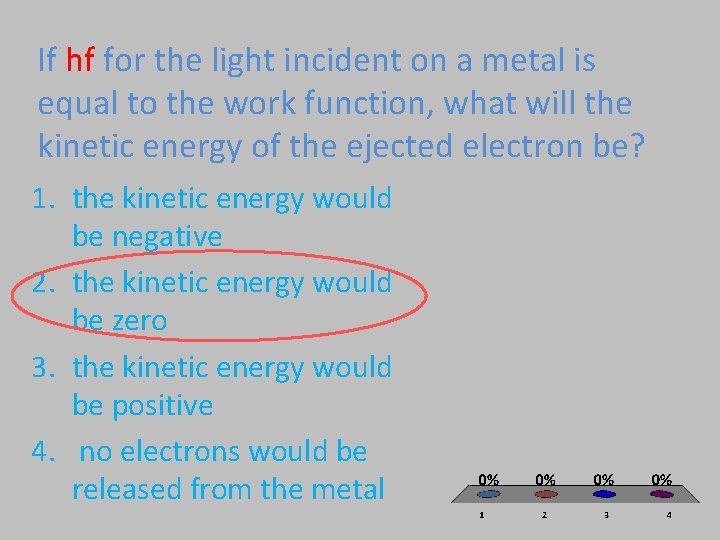

If hf for the light incident on a metal is equal to the work function, what will the kinetic energy of the ejected electron be? 1. the kinetic energy would be negative 2. the kinetic energy would be zero 3. the kinetic energy would be positive 4. no electrons would be released from the metal

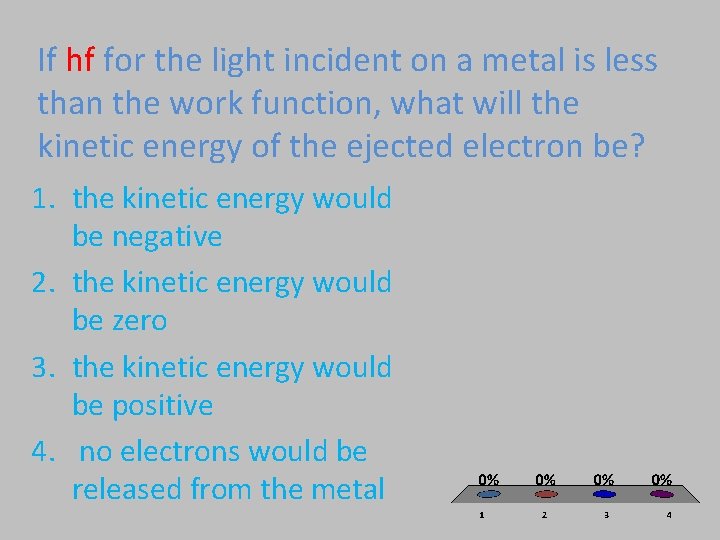

If hf for the light incident on a metal is less than the work function, what will the kinetic energy of the ejected electron be? 1. the kinetic energy would be negative 2. the kinetic energy would be zero 3. the kinetic energy would be positive 4. no electrons would be released from the metal

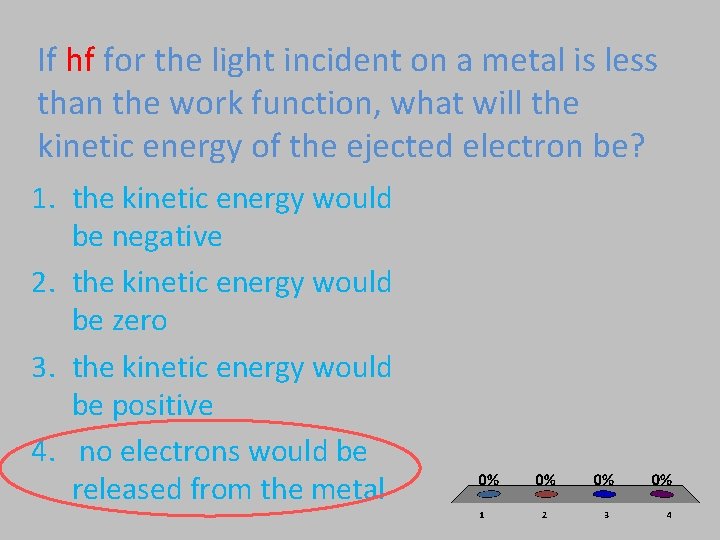

If hf for the light incident on a metal is less than the work function, what will the kinetic energy of the ejected electron be? 1. the kinetic energy would be negative 2. the kinetic energy would be zero 3. the kinetic energy would be positive 4. no electrons would be released from the metal

Preflights 22. 4, 22. 6 Which drawing of the atom is more correct? This is a drawing of an electron’s p-orbital probability distribution. At which location is the electron most likely to exist? 1 2 3

Preflights 22. 4, 22. 6 Which drawing of the atom is more correct? This is a drawing of an electron’s p-orbital probability distribution. At which location is the electron most likely to exist? 1 2 3

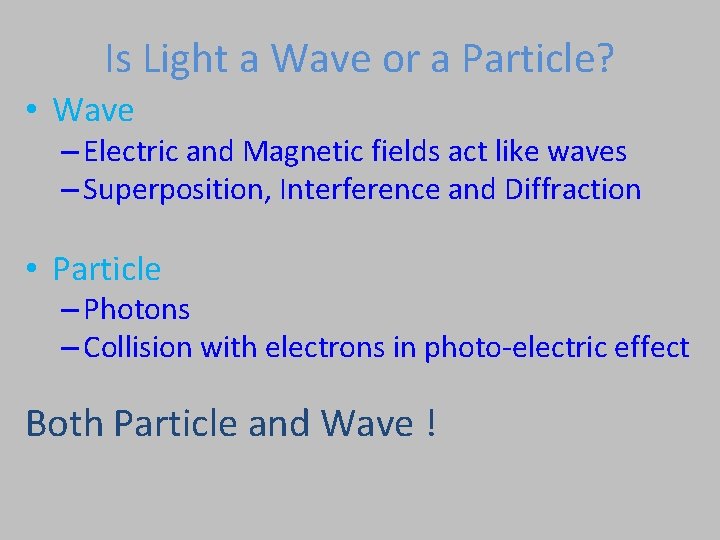

Is Light a Wave or a Particle? • Wave – Electric and Magnetic fields act like waves – Superposition, Interference and Diffraction • Particle – Photons – Collision with electrons in photo-electric effect Both Particle and Wave !

The approximate numbers of photons at each stage are (a) 3 × 103, (b) 1. 2 × 104, (c) 9. 3 × 104, (d) 7. 6 × 105, (e) 3. 6 × 106, and (f) 2. 8 × 107.

Are Electrons Particles or Waves? • • Particles, definitely particles. You can “see them”. You can “bounce” things off them. You can put them on an electroscope. • How would know if electron was a wave? Look for interference!

Interference Pattern Develops • Stages of two-slit interference pattern. • The pattern of individually exposed grains progresses from (a) 28 photons to (b) 1000 photons to (c) 10, 000 photons. • As more photons hit the screen, a pattern of interference fringes appears.

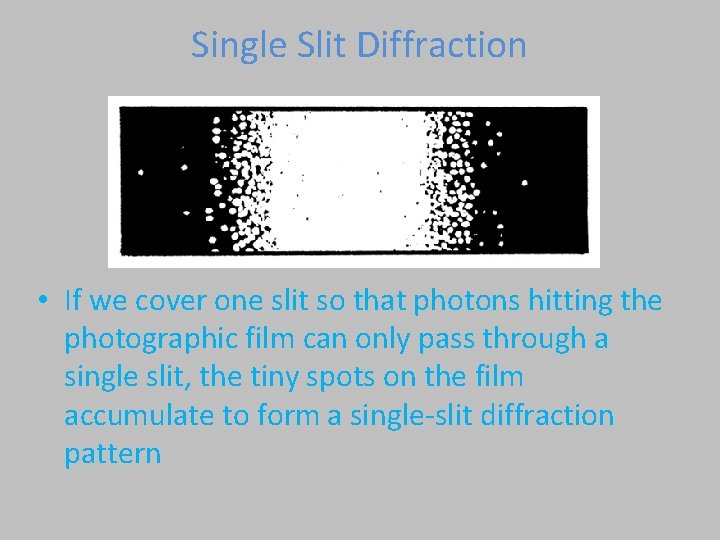

Single Slit Diffraction • If we cover one slit so that photons hitting the photographic film can only pass through a single slit, the tiny spots on the film accumulate to form a single-slit diffraction pattern

How Do They “Know” • photons hit the film at places they would not hit if both slits were open! • If we think about this classically, we are perplexed and may ask how photons passing through the single slit “know” that the other slit is covered and therefore fan out to produce the wide single-slit diffraction pattern.

How Do They “Know? ” • Or, if both slits are open, how do photons traveling through one slit “know” that the other slit is open and avoid certain regions, proceeding only to areas that will ultimately fill to form the fringed double-slit interference pattern?

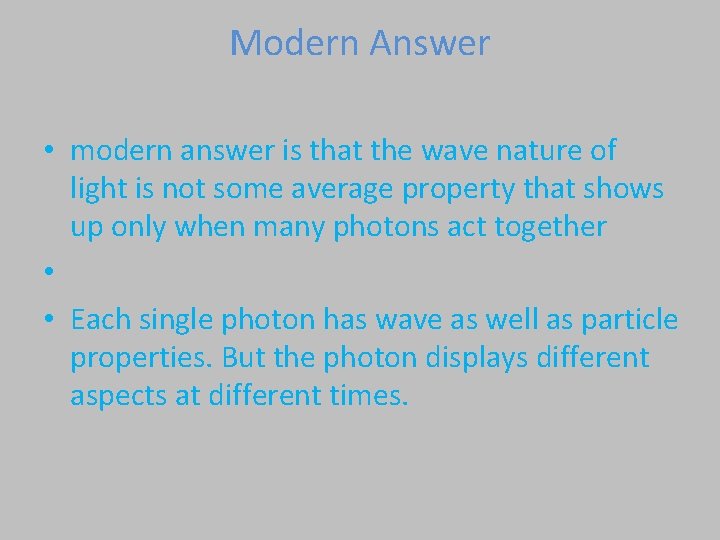

Modern Answer • modern answer is that the wave nature of light is not some average property that shows up only when many photons act together • • Each single photon has wave as well as particle properties. But the photon displays different aspects at different times.

Wavicle? • photon behaves as a particle when it is being emitted by an atom or absorbed by photographic film or other detectors • photon behaves as a wave in traveling from a source to the place where it is detected • photon strikes the film as a particle but travels to its position as a wave that interferes constructively

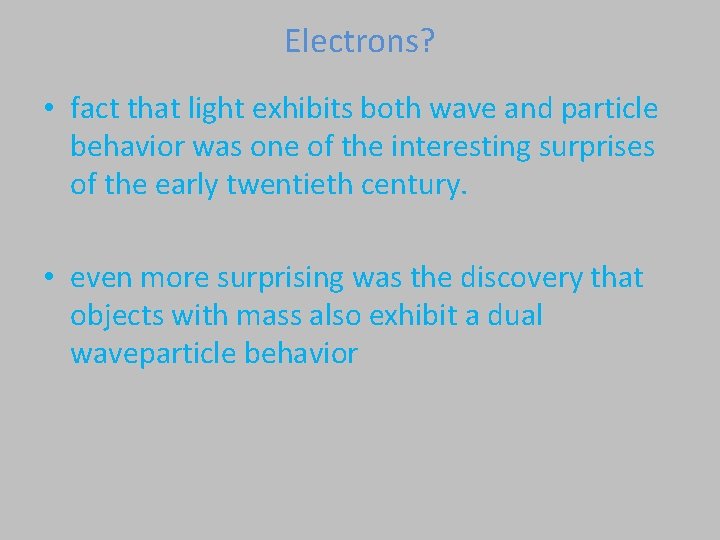

Electrons? • fact that light exhibits both wave and particle behavior was one of the interesting surprises of the early twentieth century. • even more surprising was the discovery that objects with mass also exhibit a dual waveparticle behavior

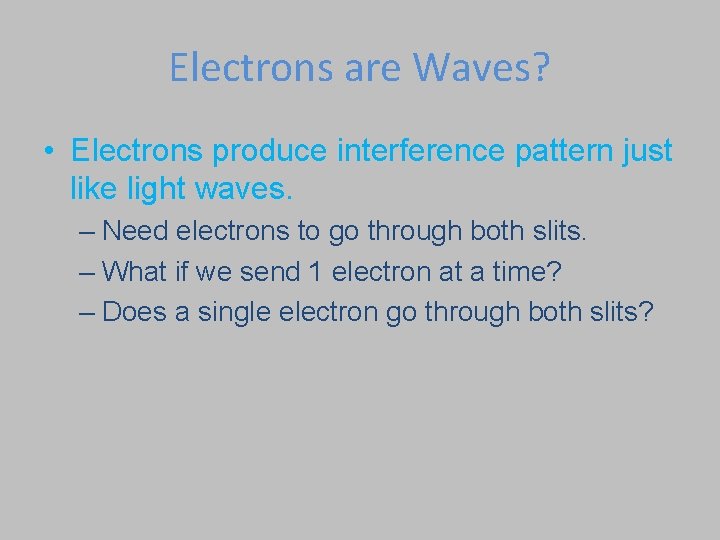

Electrons are Waves? • Electrons produce interference pattern just like light waves. – Need electrons to go through both slits. – What if we send 1 electron at a time? – Does a single electron go through both slits?

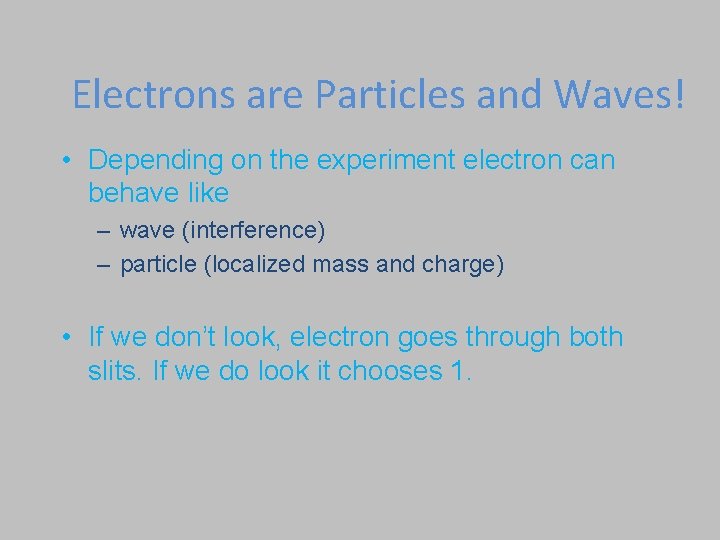

Electrons are Particles and Waves! • Depending on the experiment electron can behave like – wave (interference) – particle (localized mass and charge) • If we don’t look, electron goes through both slits. If we do look it chooses 1.

Electrons are Particles and Waves! • Depending on the experiment electron can behave like – wave (interference) – particle (localized mass and charge) • If we don’t look, electron goes through both slits. If we do look it chooses 1 of them.

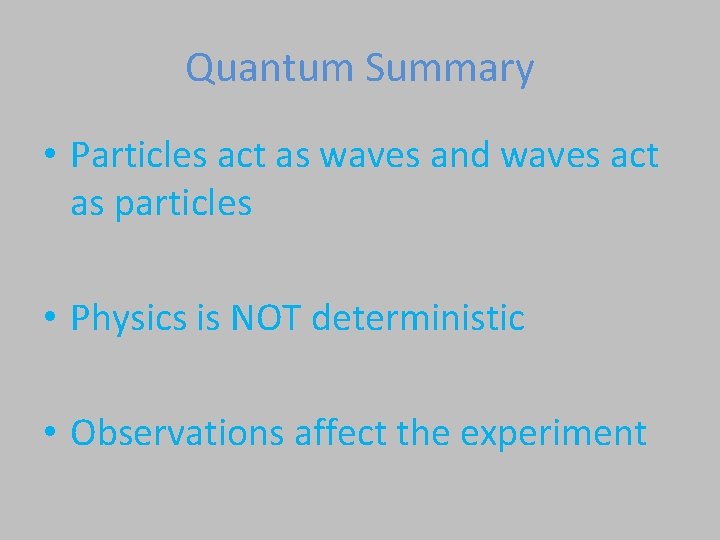

Quantum Summary • Particles act as waves and waves act as particles • Physics is NOT deterministic • Observations affect the experiment
