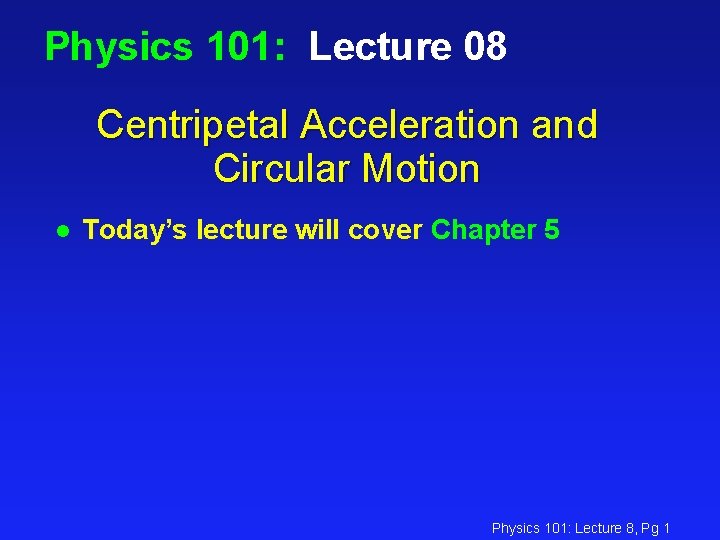

Physics 101: Lecture 08 Centripetal Acceleration and Circular Motion l Today’s lecture will cover Chapter 5 Physics 101: Lecture 8, Pg 1

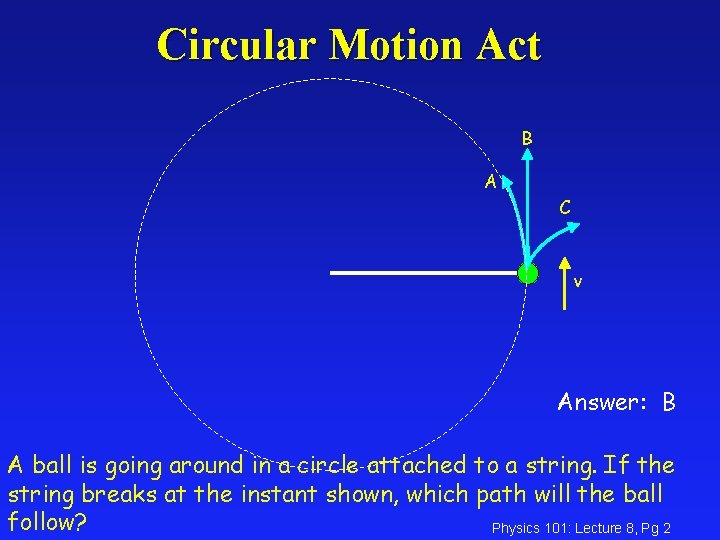

Circular Motion Act B A C v Answer: B A ball is going around in a circle attached to a string. If the string breaks at the instant shown, which path will the ball follow? Physics 101: Lecture 8, Pg 2

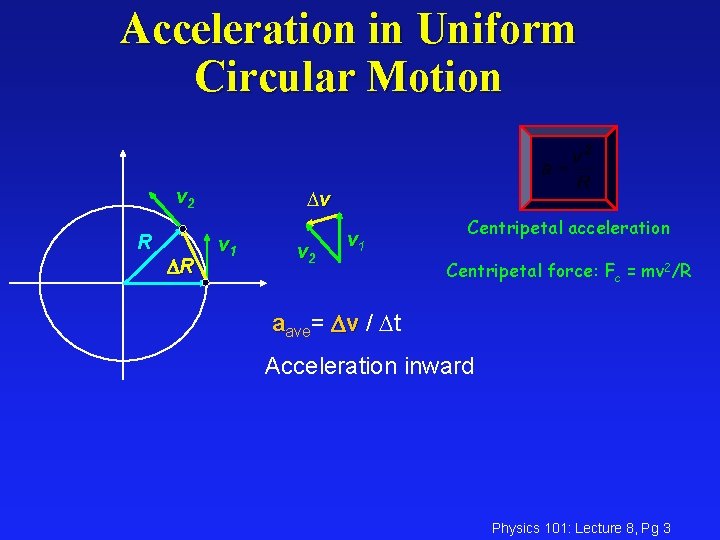

Acceleration in Uniform Circular Motion v 2 R R v v 1 v 2 v 1 Centripetal acceleration Centripetal force: Fc = mv 2/R aave= v / t Acceleration inward Physics 101: Lecture 8, Pg 3

Physics 101: Lecture 8, Pg 4

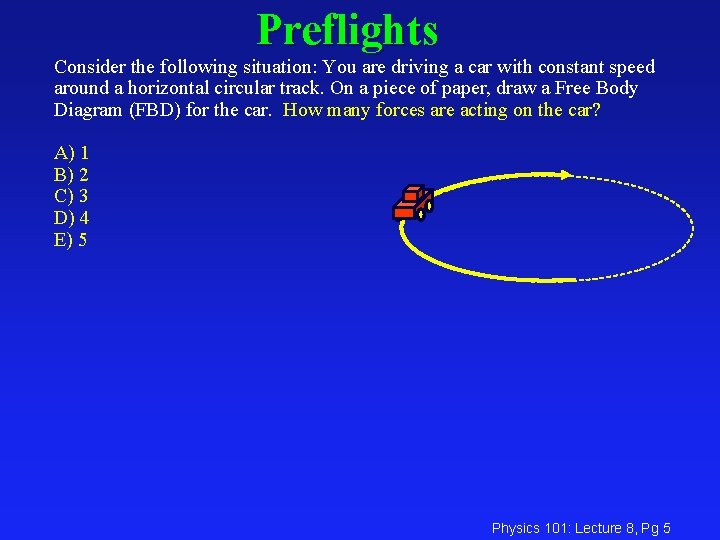

Preflights Consider the following situation: You are driving a car with constant speed around a horizontal circular track. On a piece of paper, draw a Free Body Diagram (FBD) for the car. How many forces are acting on the car? A) 1 B) 2 C) 3 D) 4 E) 5 Physics 101: Lecture 8, Pg 5

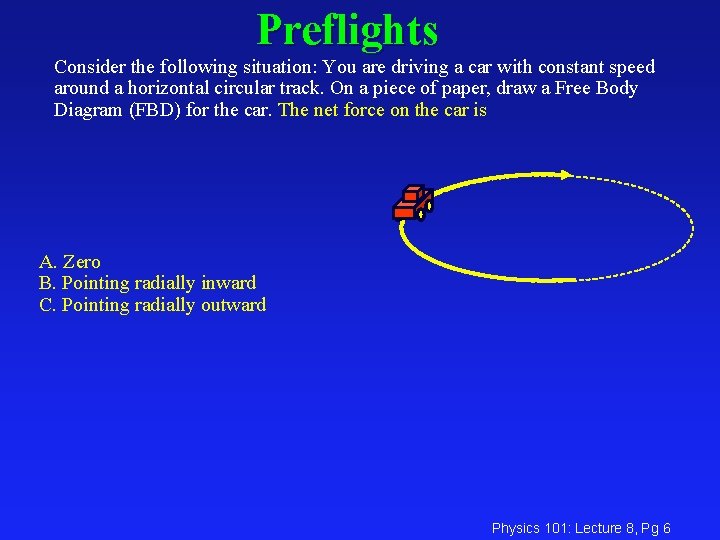

Preflights Consider the following situation: You are driving a car with constant speed around a horizontal circular track. On a piece of paper, draw a Free Body Diagram (FBD) for the car. The net force on the car is A. Zero B. Pointing radially inward C. Pointing radially outward Physics 101: Lecture 8, Pg 6

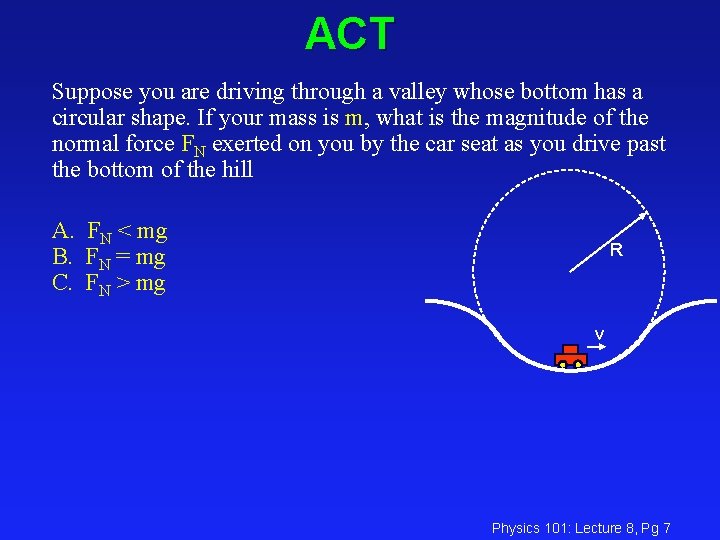

ACT Suppose you are driving through a valley whose bottom has a circular shape. If your mass is m, what is the magnitude of the normal force FN exerted on you by the car seat as you drive past the bottom of the hill A. FN < mg B. FN = mg C. FN > mg R v Physics 101: Lecture 8, Pg 7

Physics 101: Lecture 8, Pg 8

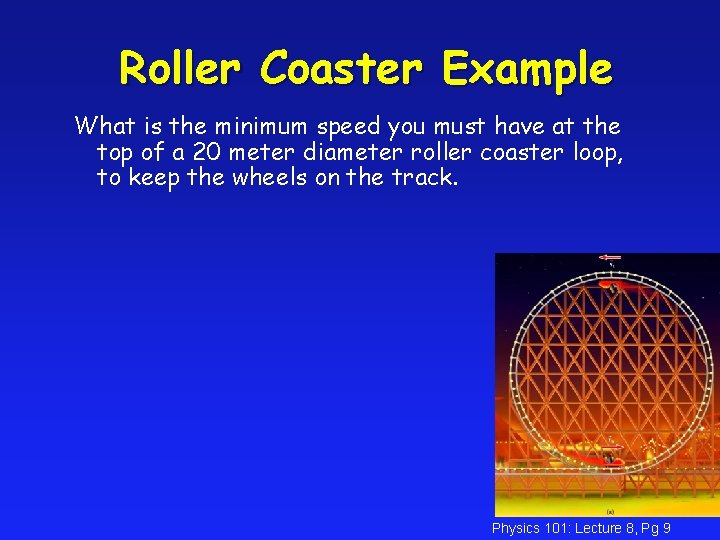

Roller Coaster Example What is the minimum speed you must have at the top of a 20 meter diameter roller coaster loop, to keep the wheels on the track. Physics 101: Lecture 8, Pg 9

Circular Motion l l l Angular displacement = 2 - 1 èHow far it has rotated Angular velocity = / t èHow fast it is rotating èUnits radians/second 2 p = 1 revolution Period =1/frequency T = 1/f = 2 p / èTime to complete 1 revolution Physics 101: Lecture 8, Pg 10

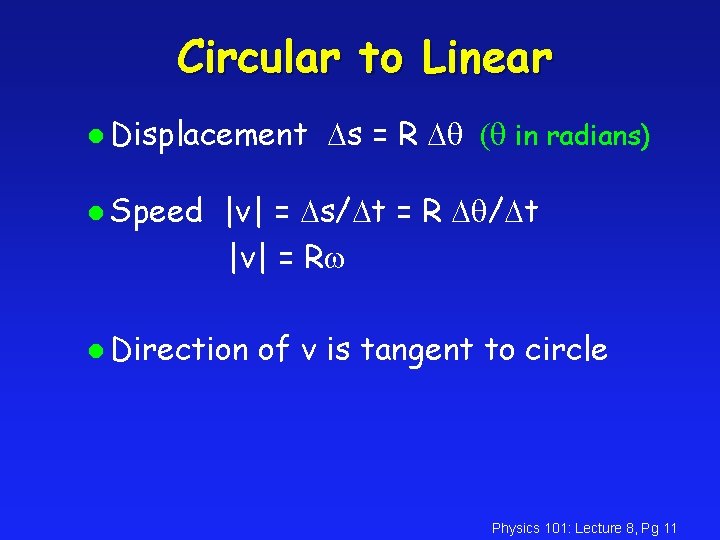

Circular to Linear l Displacement l Speed s = R ( in radians) |v| = s/ t = R / t |v| = R l Direction of v is tangent to circle Physics 101: Lecture 8, Pg 11

Physics 101: Lecture 8, Pg 12

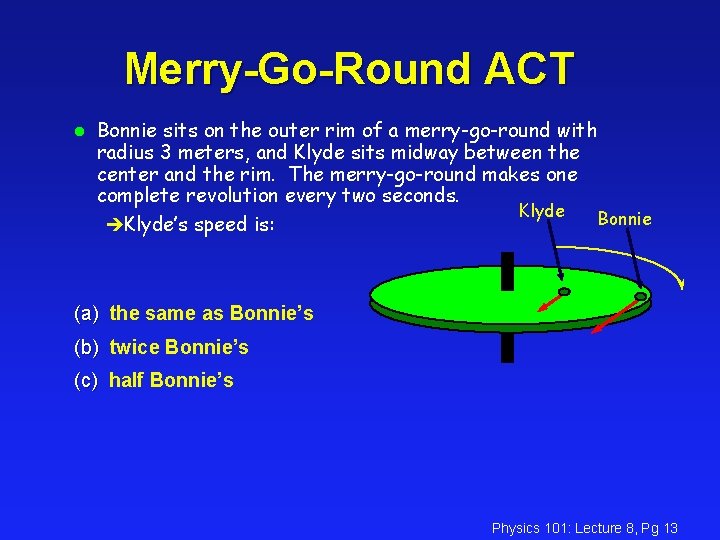

Merry-Go-Round ACT l Bonnie sits on the outer rim of a merry-go-round with radius 3 meters, and Klyde sits midway between the center and the rim. The merry-go-round makes one complete revolution every two seconds. Klyde Bonnie èKlyde’s speed is: (a) the same as Bonnie’s (b) twice Bonnie’s (c) half Bonnie’s Physics 101: Lecture 8, Pg 13

Merry-Go-Round ACT II l Bonnie sits on the outer rim of a merry-go-round, and Klyde sits midway between the center and the rim. The merry-goround makes one complete revolution every two seconds. èKlyde’s angular velocity is: Klyde Bonnie (a) the same as Bonnie’s (b) twice Bonnie’s (c) half Bonnie’s Physics 101: Lecture 8, Pg 14

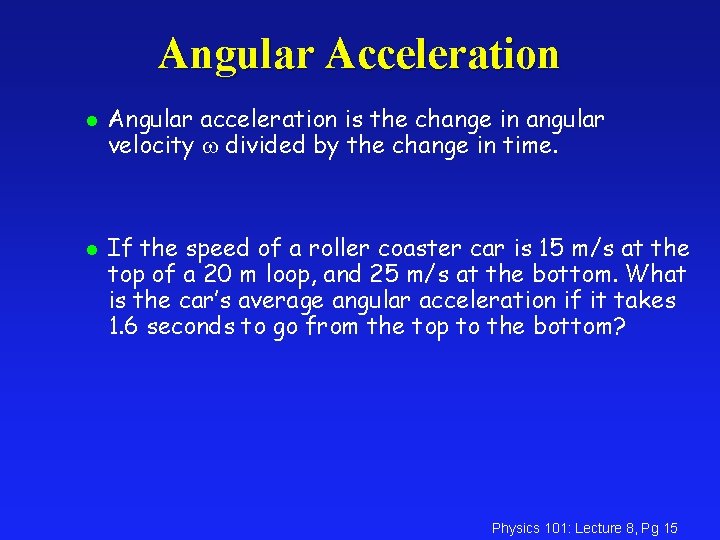

Angular Acceleration l l Angular acceleration is the change in angular velocity divided by the change in time. If the speed of a roller coaster car is 15 m/s at the top of a 20 m loop, and 25 m/s at the bottom. What is the car’s average angular acceleration if it takes 1. 6 seconds to go from the top to the bottom? Physics 101: Lecture 8, Pg 15

Physics 101: Lecture 8, Pg 16

Constant angular acceleration summary (with comparison to 1 -D kinematics) Angular Linear And for a point at a distance R from the rotation axis: x = R v = R a = R Physics 101: Lecture 8, Pg 17

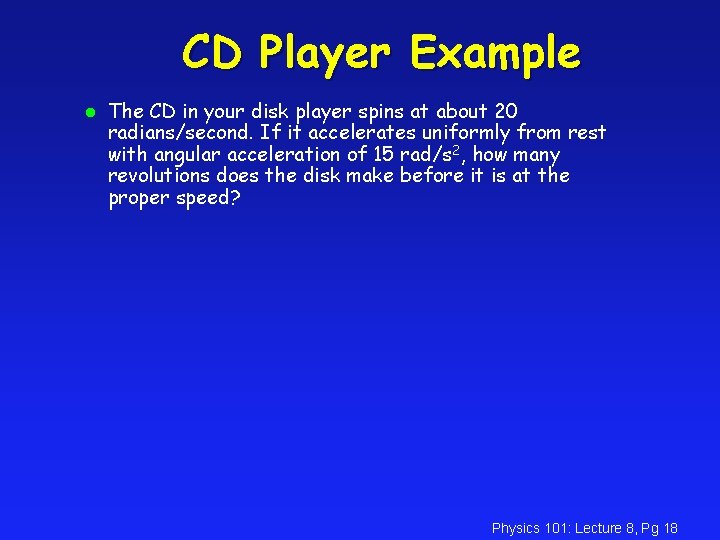

CD Player Example l The CD in your disk player spins at about 20 radians/second. If it accelerates uniformly from rest with angular acceleration of 15 rad/s 2, how many revolutions does the disk make before it is at the proper speed? Physics 101: Lecture 8, Pg 18

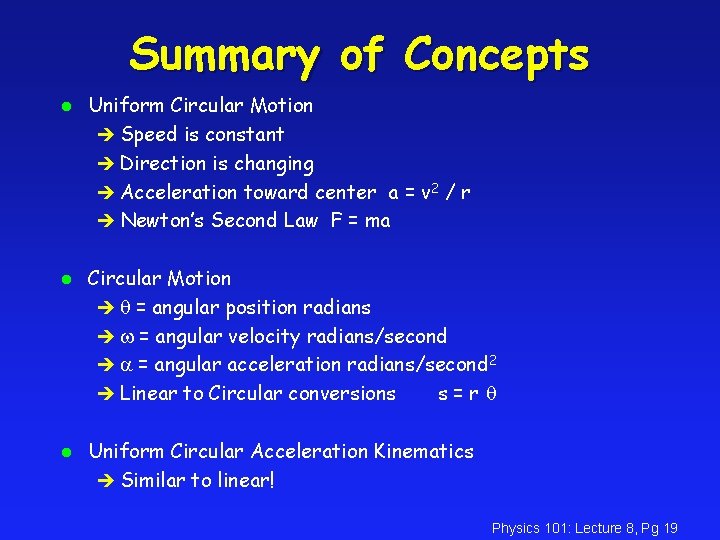

Summary of Concepts l l l Uniform Circular Motion è Speed is constant è Direction is changing è Acceleration toward center a = v 2 / r è Newton’s Second Law F = ma Circular Motion è = angular position radians è = angular velocity radians/second è = angular acceleration radians/second 2 è Linear to Circular conversions s = r Uniform Circular Acceleration Kinematics è Similar to linear! Physics 101: Lecture 8, Pg 19
