Physically Unclonable Function– Based Security and Privacy in RFID Systems Leonid Bolotnyy and Gabriel Robins Dept. of Computer Science University of Virginia www. cs. virginia. edu/robins

Contribution and Motivation Contribution • Privacy-preserving tag identification algorithm • Secure MAC algorithms • Comparison of PUF with digital hash functions Motivation • Digital crypto implementations require 1000’s of gates • Low-cost alternatives – Pseudonyms / one-time pads – Low complexity / power hash function designs – Hardware-based solutions

PUF-Based Security • Physical Unclonable Function (PUF) [Gassend et al 2002] • PUF Security is based on – wire delays – gate delays – quantum mechanical fluctuations • PUF characteristics – uniqueness – reliability – unpredictability • PUF Assumptions – Infeasible to accurately model PUF – Pair-wise PUF output-collision probability is constant – Physical tampering will modify PUF

Privacy in RFID • Privacy A B Alice was here: A, B, C privacy C

Private Identification Algorithm Database ID ID p(ID) Request ID 1, p(ID 1), p 2(ID 1), …, pk(ID 1). . . IDn, pn(IDn), pn 2(IDn), …, pnk(IDn) • It is important to have – a reliable PUF – no loops in PUF chains – no identical PUF outputs • Assumptions – no denial of service attacks (e. g. , passive adversaries, Do. S detection/prevention mechanisms) – physical compromise of tags not possible

Improving Reliability of Responses • Run PUF multiple times for same ID & pick majority number of runs unreliability chain length probability overall reliability N R(μ, N, k) ≥ (1 - ∑ m= R(0. 02, 5, 100) ≥ 0. 992 N+1 2 N μm(1 -μ)N-m )k m • Create tuples of multi-PUF computed IDs & identify a tag based on at least one valid position value tuple size expected number of identifications (ID 1, ID 2, ID 3) ∞ S(μ, q) = ∑ i q i [(1 – (1 -μ)i+1)q - (1 – (1 -μ) ) ] i=1 S(0. 02, 1) = 49, S(0. 02, 2) = 73, S(0. 02, 3) = 90

Privacy Model Experiment: 1. A passive adversary observes polynomially-many rounds of reader-tag communications with multiple tags 2. An adversary selects 2 tags 3. The reader randomly and privately selects one of the 2 tags and runs one identification round with the selected tag 4. An adversary determines the tag that the reader selected Definition: The algorithm is privacy-preserving if an adversary can not determine reader selected tag with probability substantially greater than ½ Theorem: Given random oracle assumption for PUFs, an adversary has no advantage in the above experiment.

PUF-Based MAC Algorithms • MAC = (K, τ, υ) • valid signature σ : υ K(M, σ) = 1 • forged signature σ’ : υK (M’, σ’) = 1, M = M’ • MAC based on PUF – Motivation: “yoking-proofs”, signing sensor data – large keys (PUF is the key) – cannot support arbitrary messages • Assumptions – adversary can adaptively learn poly-many (m, σ) pairs – signature verifiers are off-line – tag can store a counter (to protect against replay attacks)

Large Message Space Assumption: tag can generate good random numbers (can be PUF-based) Key: PUF σ (m) = c, r 1, . . . , rn, pc(r 1, m), . . . , pc(rn, m) Signature verification • requires tag’s presence • password-based or in radio-protected environment (Faraday Cage) • learn pc(ri, m), 1 ≤ i ≤ n • verify that the desired fraction of PUF computations is correct To protect against hardware tampering • authenticate tag before MAC verification • store verification password underneath PUF

Choosing # of PUF Computations probv(n, 0. 1 n, 0. 02) n probv(n, t, μ) = 1 - ∑ i=t+1 probf(n, 0. 1 n, 0. 4) n probf(n, t, τ) = 1 - ∑ j=t+1 n μi(1 -μ)n-i i n τj(1 -τ)n-j j α < probv ≤ 1 and probf ≤ β ≤ 1 0 ≤ t ≤ n-1

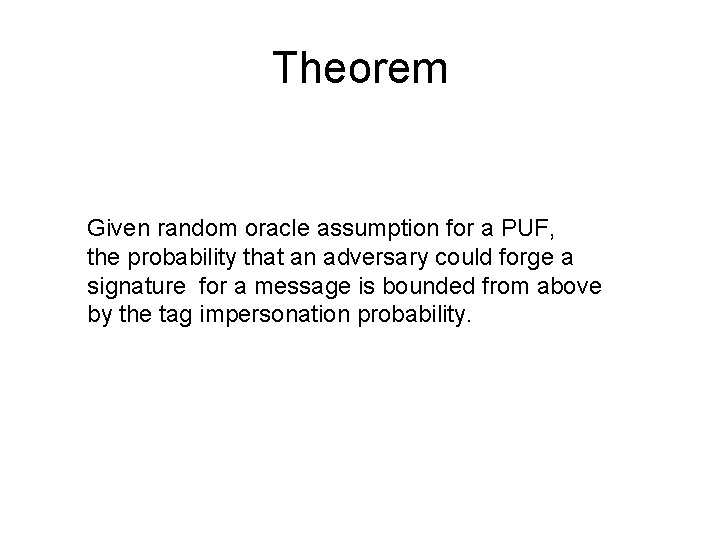

Theorem Given random oracle assumption for a PUF, the probability that an adversary could forge a signature for a message is bounded from above by the tag impersonation probability.

Small Message Space Assumption: small and known a priori message space message PUF counter Key[p, mi, c] = c, pc(1)(mi), . . . , pc(n) (mi) PUF reliability is again crucial σ(m) = c, pc(1)(m), . . . , pc(n) (m), . . . , c+q-1, pc+q-1(1)(m), pc+q-1(n)(m) sub-signature Verify that the desired number of sub-signatures are valid

Theorem Given random oracle assumption for a PUF, the probability that an adversary could forge a signature for a message is bounded by the tag impersonation probability times the number of sub-signatures.

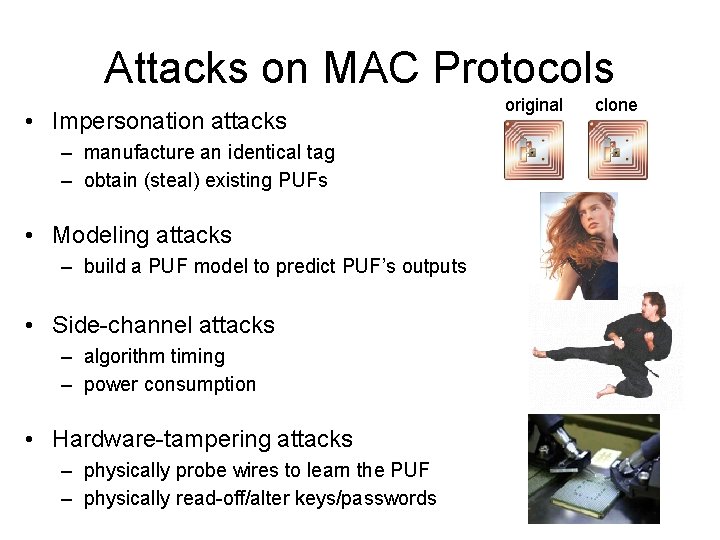

Attacks on MAC Protocols • Impersonation attacks – manufacture an identical tag – obtain (steal) existing PUFs • Modeling attacks – build a PUF model to predict PUF’s outputs • Side-channel attacks – algorithm timing – power consumption • Hardware-tampering attacks – physically probe wires to learn the PUF – physically read-off/alter keys/passwords original clone

Comparison of PUF With Digital Hash Functions algorithm MD 4 MD 5 SHA-256 AES Yuksel PUF # of gates 7350 8400 10868 3400 1701 545 • Reference PUF: 545 gates for 64 -bit input – 6 to 8 gates for each input bit – 33 gates to measure the delay • Low gate count of PUF has a cost – – probabilistic outputs difficult to characterize analytically non-unique computation extra back-end storage • Different attack target for adversaries – model building rather than key discovery • Physical security – hard to break tag and remain undetected

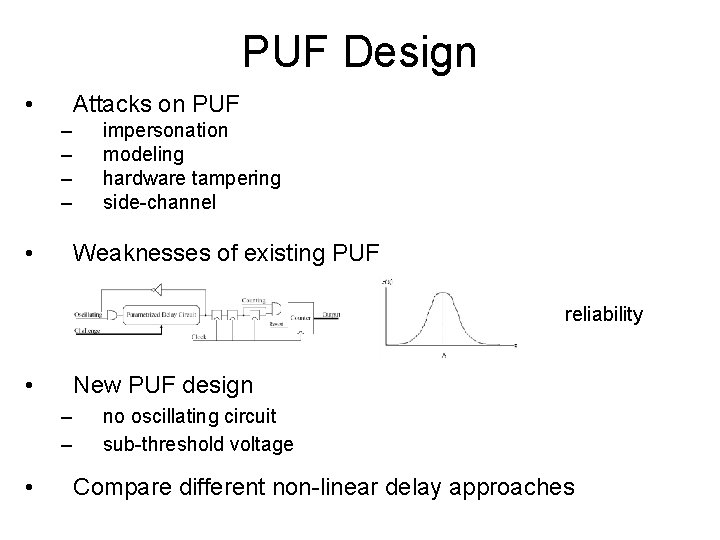

PUF Design • Attacks on PUF – – • impersonation modeling hardware tampering side-channel Weaknesses of existing PUF reliability • New PUF design – – • no oscillating circuit sub-threshold voltage Compare different non-linear delay approaches

Conclusions and Future Work • • PUF: hardware primitive for RFID security Identification and MAC algorithms based on PUFs protect tags from physical attacks PUFs is the key • Develop theoretical framework for PUF • Design new sub-threshold voltage based PUF • Manufacture and test PUFs – varying environmental conditions – motion, acceleration, vibration, temperature, noise • Design new PUF-based security protocols – ownership transfer – recovery from privacy compromise – PUFs on RFID readers } in progress

Thank You Questions ? Leonid Bolotnyy lbol@cs. virginia. edu Dept. of Computer Science University of Virginia

PUF-Based Ownership Transfer • To maintain privacy we need – ownership privacy – forward privacy • Physical security is especially important • Solutions – – public key cryptography (expensive) knowledge of owners sequence trusted authority short period of privacy

Using PUF to Detect and Restore Privacy of Compromised System s 1, 0 s 2, 0 s 3, 0 s 1, 1 s 2, 1 s 3, 2 s 2, 2 s 3, 3 s 3, 4 s 3, 5 s 1, 2 s 2, 4 s 2, 3 s 3, 6 s 3, 7 1. Detect potential tag compromise 2. Update secrets of affected tags s 3, 8 s 3, 9 s 2, 5 s 3, 10

Related Work on PUF • Optical PUF [Ravikanth 2001] • Silicon PUF [Gassend et al 2002] – Design, implementation, simulation, manufacturing – Authentication algorithm – Controlled PUF • PUF in RFID – Identification/authentication [Ranasinghe et al 2004] – Off-line reader authentication using public key cryptography [Tuyls et al 2006]
