Physical Science Motion and Forces

Physical Science Motion and Forces

Distance vs. Displacement • What two changes help you identify that an object is

Distance vs. Displacement • What two changes help you identify that an object is in motion? – Change in Direction – Change in Speed

________ is necessary to determine if something is in motion. Frame of Reference: background

________ is necessary to determine if something is in motion. Frame of Reference: background that appears to be stationary to a moving object Earth is the most common frame of reference.

How can something appear to be motionless but actually be moving? • If an

How can something appear to be motionless but actually be moving? • If an object has the same frame of reference. • If the object is moving at the same speed. • Examples?

Dist. Vs. Disp. • Distance – Actual path that an object takes – Cannot

Dist. Vs. Disp. • Distance – Actual path that an object takes – Cannot be negative • Displacement – Straight line from start to finish – Can be negative or zero Think about your charts made to calculate distance and displacement on the grid. Explain how an object can have a zero or negative displacement.

Determine the displacement for A and B below. 12 km 6 km

Determine the displacement for A and B below. 12 km 6 km

Calculating Distance and Displacement • Pick a starting point on one side of the

Calculating Distance and Displacement • Pick a starting point on one side of the room, and an ending point on the other side. • Have your partner travel to that point. • Draw a map on a separate sheet of paper. • Using a meter stick, measure the distance traveled and either calculate or measure the displacement. (remember Pythagorean theorem) • Show both distance and displacement on your map.

Speed and Velocity • Speed: the rate at which an object changes position Represented

Speed and Velocity • Speed: the rate at which an object changes position Represented by v in a formula. • m/s : SI unit for speed

Instantaneous vs. Average • Instantaneous Speed: speed at a particular point in time •

Instantaneous vs. Average • Instantaneous Speed: speed at a particular point in time • Average Speed: speed taken over a distance traveled Ex: Calculating your Ex: Speedometer of speed over an a car entire trip

Speed = distance / time v = d/t What is a good way to

Speed = distance / time v = d/t What is a good way to represent and describe motion? A distance vs. time graph What does the slope of the line in a distance vs. time graph tell you? slope = rise/run speed = rise (d)/ run (t)

How is velocity different than speed? • Velocity is speed with a direction. Ex:

How is velocity different than speed? • Velocity is speed with a direction. Ex: traveling 60 km/hr North Two ways to change velocity: 1. Change speed (speed up/slow down) 2. Change direction (turn)

Example Problems • A car travels 85 km from town A to town B,

Example Problems • A car travels 85 km from town A to town B, then 45 km from town B to town C. The total trip took 1. 5 hrs. What was the average speed of the car?

Ex. Continued • A bicyclist travels for 1. 5 hrs at an average speed

Ex. Continued • A bicyclist travels for 1. 5 hrs at an average speed of 32 km/hr. How far does the bicyclist travel in that time?

What can you say about the motion of the car in the graph from

What can you say about the motion of the car in the graph from 8 -12 seconds? – The car is stopped

If you were paddling down river at 16 mph and the river moved at

If you were paddling down river at 16 mph and the river moved at 10 mph, how fast would you actually be moving? What if you were paddling up river?

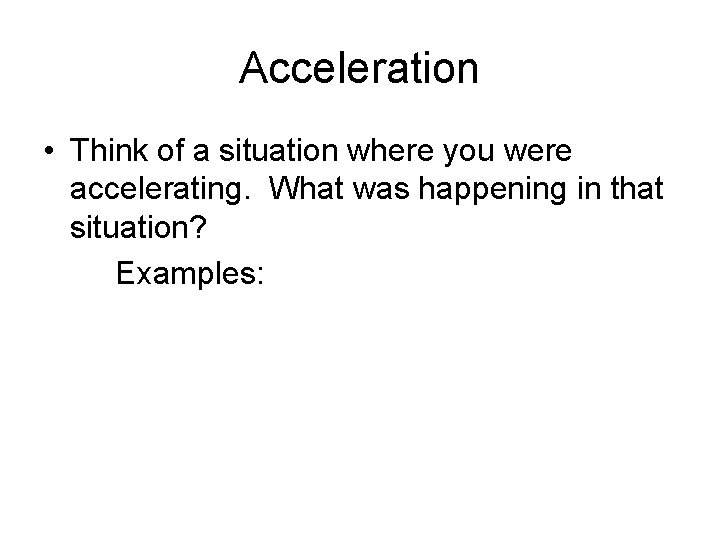

Acceleration • Think of a situation where you were accelerating. What was happening in

Acceleration • Think of a situation where you were accelerating. What was happening in that situation? Examples:

Acceleration • Acceleration: is the rate of change in velocity Acceleration = change in

Acceleration • Acceleration: is the rate of change in velocity Acceleration = change in velocity time a = v f – vi time • SI unit of acceleration = m/s/s or m/s 2

Free Fall What happens to an object during free fall? The object accelerates at

Free Fall What happens to an object during free fall? The object accelerates at a constant speed Acceleration due to gravity = 9. 8 m/s/s For every second an object falls it will move 9. 8 m/s faster

Ways to Change Acceleration • Change Speed • Change Direction Can you have negative

Ways to Change Acceleration • Change Speed • Change Direction Can you have negative acceleration? yes if the object is slowing down (deceleration)

v vs. t Graph • What is the difference between a linear speed vs.

v vs. t Graph • What is the difference between a linear speed vs. time graph and an non linear speed vs. time graph? Speed Linear = constant acceleration Nonlinear = changing acceleration Time

Example Problems 1. A car traveling at 10 m/s starts to decelerate steadily. It

Example Problems 1. A car traveling at 10 m/s starts to decelerate steadily. It comes to a complete stop in 20 s. What is its acceleration?

Ex. Continued 2. An airplane travels down a runway for 4. 0 s with

Ex. Continued 2. An airplane travels down a runway for 4. 0 s with an acceleration of 9. 0 m/s/s. What is its change in velocity during this time?

Ex. Continued 3. A boy throws a rock up into the air. It reaches

Ex. Continued 3. A boy throws a rock up into the air. It reaches the highest point of its flight after 2. 5 s. How fast was the rock going when it left the boys hand?

4. What is the acceleration from 10 – 20 seconds in the graph below?

4. What is the acceleration from 10 – 20 seconds in the graph below? 0 - 5 = 0. 5 m 10 s 2

Speed • Graph the following table representing a car trip. Make sure to put

Speed • Graph the following table representing a car trip. Make sure to put the correct labels and units making it a complete graph. 1. What was the average speed for the entire trip 2. When was the car traveling at the greatest speed? 3. What happened between the 3 rd and 4 th hours 4. Give an example of a dependent variable and explain why it is a dependent variable. Distance Time (km) (hours) 40 1 100 2 170 3 170 4 210 5

1. Which graph shows periods of constant speed? Explain your answer. • Graph A

1. Which graph shows periods of constant speed? Explain your answer. • Graph A shows periods of constant speed (0– 8 s, 8– 12 s, 12– 20 s).

2. Describe the motion of the object in Graph A. • The object moves

2. Describe the motion of the object in Graph A. • The object moves at constant speed for 8 seconds, is at rest for the next 4 seconds, and then moves at constant speed for the next 8 seconds.

3. Which graph in Figure 11 -2 shows acceleration? How do you know? •

3. Which graph in Figure 11 -2 shows acceleration? How do you know? • Graph B shows acceleration. The upward slope of the line indicates that an increasing distance is covered each second.

4. Using Graph A in Figure 11 -2, calculate the average speed of the

4. Using Graph A in Figure 11 -2, calculate the average speed of the object in motion from 12 s to 20 s. Explain your calculation. • The object moved a distance of 300 m in 8 s. The object’s average speed is 37. 5 m/s.

5. Compare Graphs A and B in Figure 11 -2. At a time of

5. Compare Graphs A and B in Figure 11 -2. At a time of 2 seconds, which graph shows a greater velocity? How do you know? • Graph A; the slope is steeper.
