Physical Properties Database for Organic Compounds and Its
유기화합물 물성 데이터베이스 Physical Properties Database for Organic Compounds and Its Verification 강정원, 양대륙 고려대학교 화공생명공학과

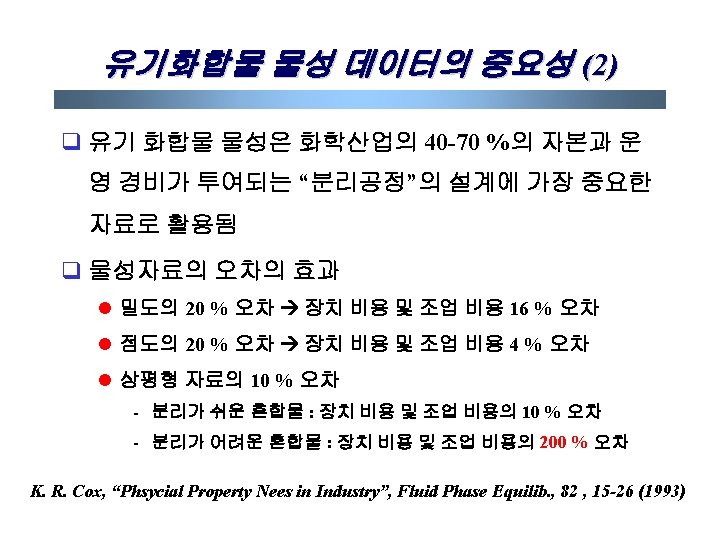

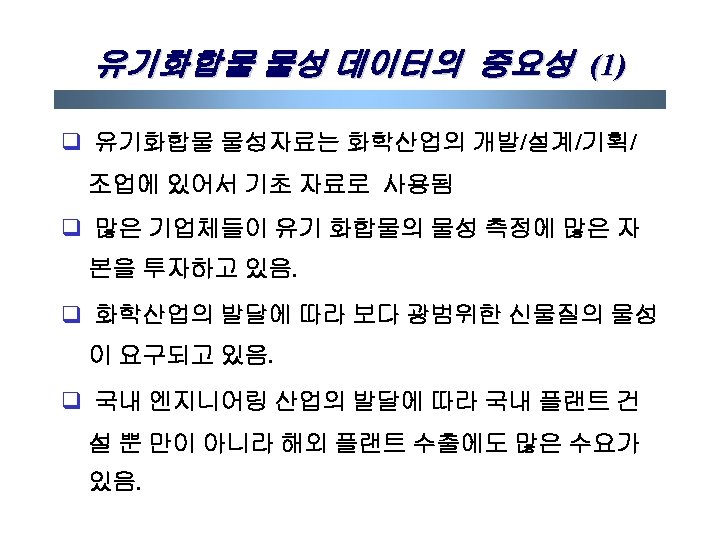

유기화합물 물성 데이터의 중요성 (3) q 국내외 많은 기업들이 정확한 물성 측정 및 데이터 구 입에 많은 비용을 투자하고 있음. l BASF 사례 l 다수의 국내 기업 유관 프로젝트 Annula total expenditure of BASF on Phase equilibria and themophysical Properties : 8, 000 Euro p. a. (1993) Other properties (30 %) Phase Equilibrium (70 %)

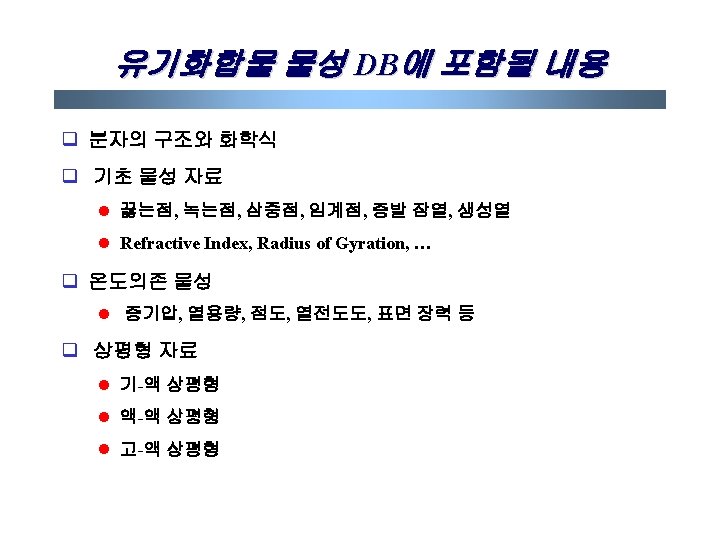

유기화합물 물성 DB의 형태와 내용 Material Properties (pure, mixture) solid, liquid, gas Thermodynamic properties Reaction kinetics Safety aspects Electrical and magnetic properties Optical properties Mechanical properties Toxicological properties • Thermal Properties • Density • Phase Equilibrium • Caloric Properties • Heat Capacity • Latent Heat • Heat of Fusion • Heat of Formation • Transport and Interfacial • Thermal Conductivity • Viscosity • Diffusion Coefficient • Surface Tension

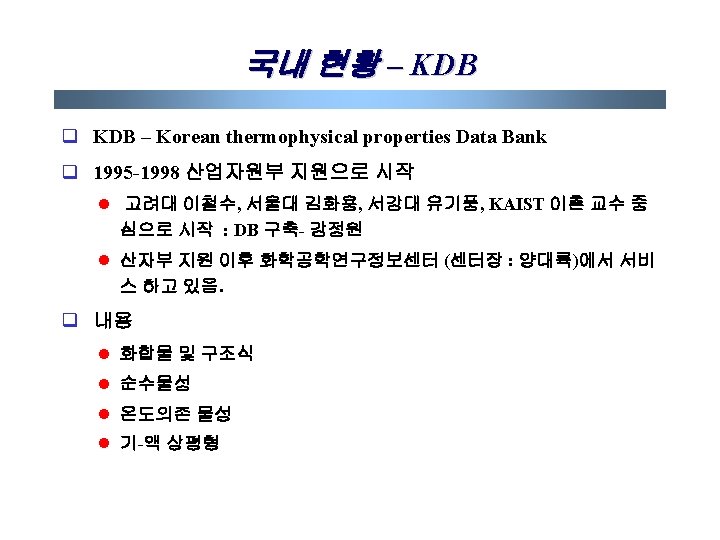

국내 현황 – KDB Databank Pure Component Pure Properties Phase Equilibrium KDB 1955 약 100, 000 약 5, 000 DDB 15, 000 약 1, 000 약 50, 000 NIST 1921 Unknown - DIPPR 7000 약 100, 000 -

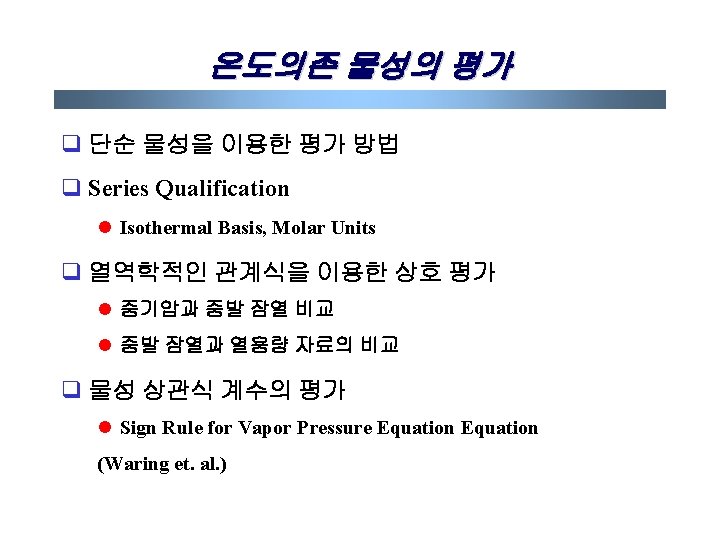

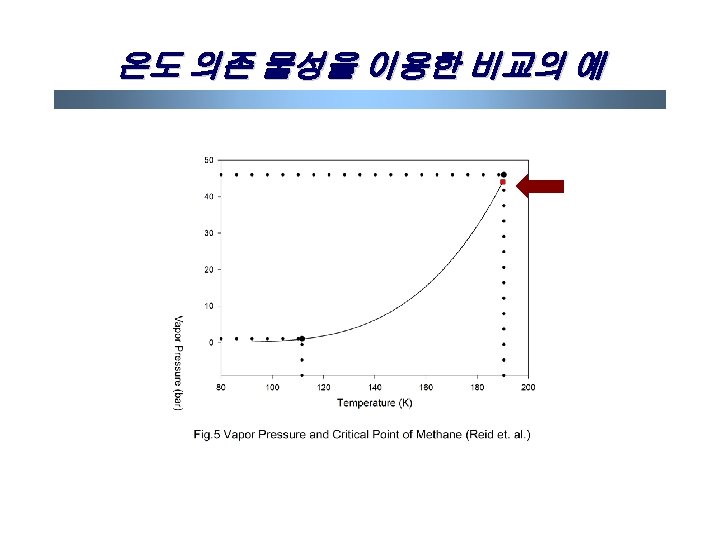

단순 물성 자료의 상호 평가 q 여러 가지 Estimation Methods 와의 비교 (Molecular Structure, Boling Point) q 온도의존 물성을 이용한 비교 l Tb versus Vapor Pressure l Tc versus Vapor Pressure l Pc versus Vapor Pressure q Homologous Series Qualification l ECN(Effective Carbon Number) Approach (Ambrose)
Sample ECN approach on KDB Databank
Sample ECN approach on KDB Databank
Sample ECN approach on KDB Databank
Sample ECN approach on KDB Databank
Realtion of Pvp, Hvap, Cp q 증기압 자료의 평가 q 저온에서 증기압 자료의 Extrapolartion q 증기압 자료의 Controlled Regression

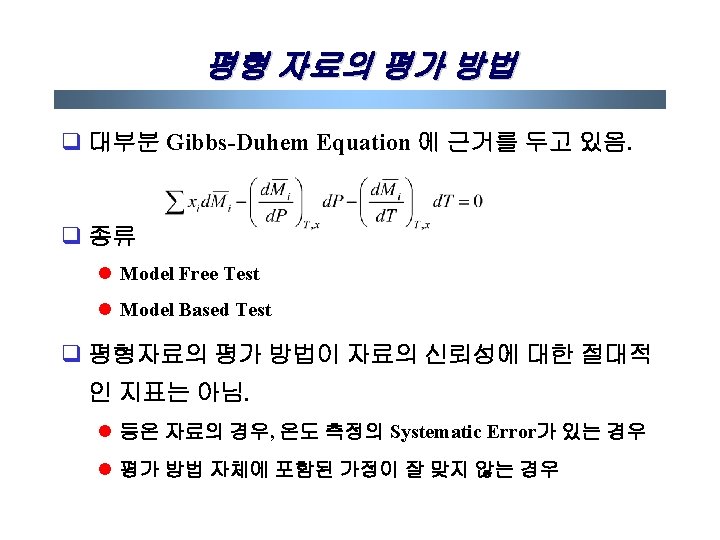

Model Free Consistency Tests q Integral Test q Differential Test q Infinite Dilution Test 무한 희석으로 외삽한 경우 두 값의 일치도를 비교함
Consistency Tests with Models q Van Ness- Byer-Gibbs Test (1982) l - Approach l Summarize in Van Ness Text Book l P-x 자료로 부터 fitting 된 결과의 residual 비교 l DDB Criteria q High Pressure Test - Bertccco et. al. (1997) l - Approach l SRK-HV Equation of State 사용
VLE Consistency Test q 테스트에 기본적으로 포함된 가정의 이해가 중요함. l Vapor Phase Fugacity Coefficient (Virial, SRK, PR, …) l Isothermal Data 인 경우 Excess Volume Data 필요 l Isobaric Data 인 경우 Excess Enthalpy Data 필요 l Model Based Test인 경우 l 모델의 Consistency Test -> Good Data 필요 l Data의 Consistency Test -> Good Model 필요

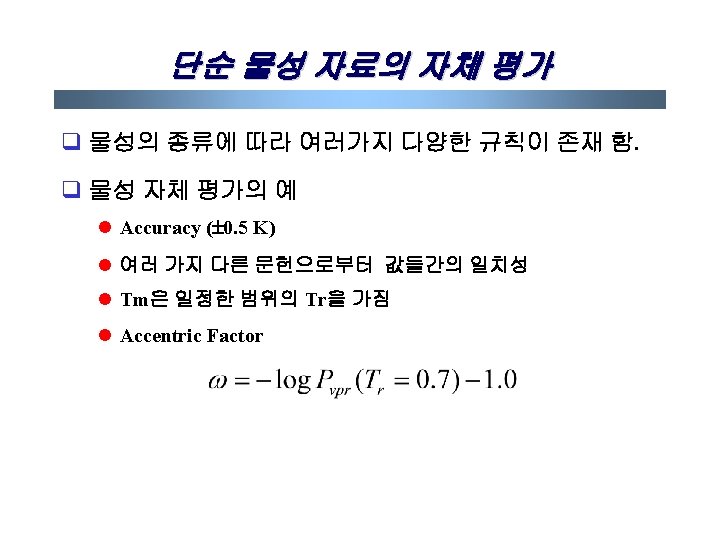

물성 자료의 평가 방법 개요 Molecular Structure Effective Carbon Number Self Checking Criteria T, P Dependent Properties Limiting Point Checking Phase Equlibrium Homologous Series Test Fixed Properties Self Checking Criteria Homologous Series Test Consistency Test
모델의 평가 방법 q 단순 물성 계산 l Extrapolartion Capability - 여러 연구자들이 연구 결과를 발표한 바 있음 - Ambrose(1980), Ruzicka and Majer (1996), … - Controlled Regression Technique의 적용 필요성 q 상태 방정식 및 활동도 계산 모델 l Multiproperty Analysis - Cox et. al. (1971) l Thermodynamic Relation l Mixing Rule Test
Test of Model and Codes (Zabaloy and Vera) q Test for Model and Computer Codes l Mixture A l Mixture B q Variant and Invariant Properties l Variant Properties : Gibbs Free Energy, Activity, Fugacity, Entropy l Invariant Properties : Volume, Excess Volume, Internal Energy, …. q Single Phase Test / Phase Equilibria Test

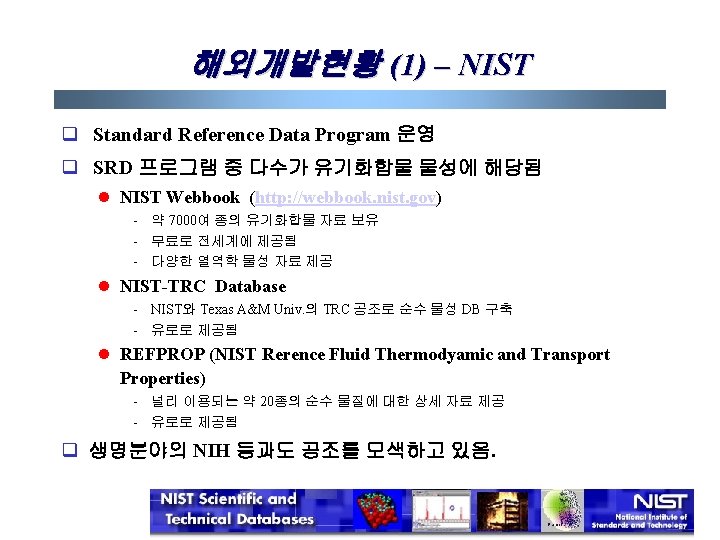

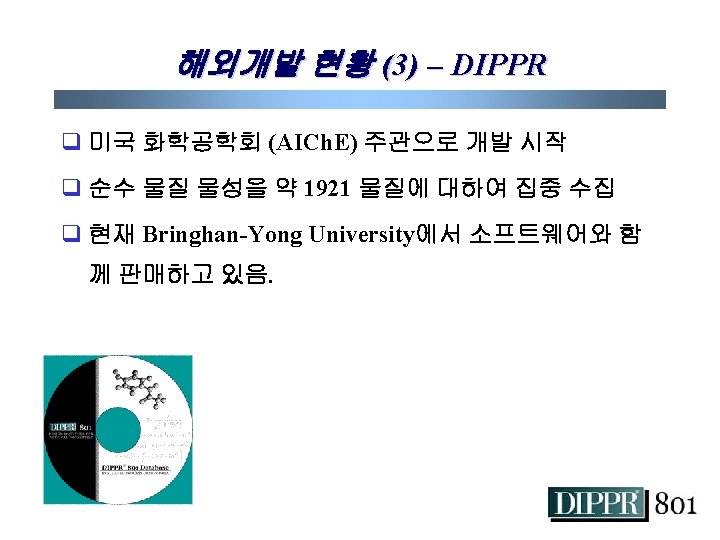

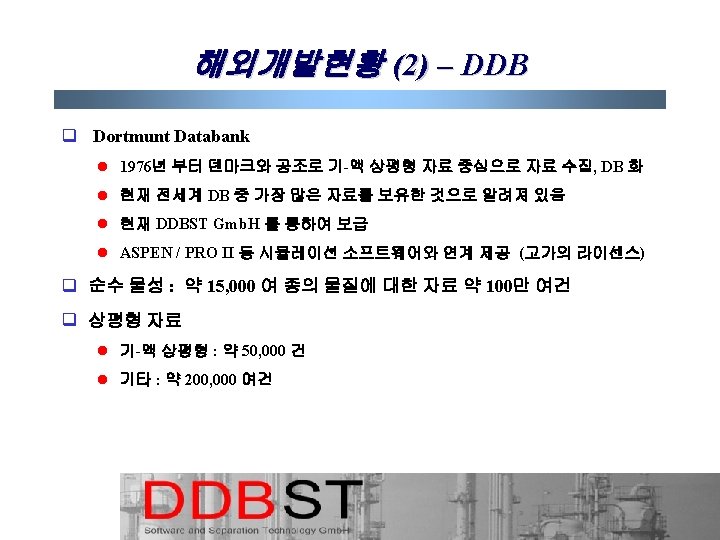

해외 연구 현황 q DIPPR (Deisign Institute of Physical Properties) l Critically Evaluated Pure Compound Data 축적 q DDB (Dortmund Databank) l VLE Data Evaluation q IUPAC l Experimental Data Evaluation q J. P. O’Connel l Model Testing
국내 연구 현황 q M. H. Moon, J. Ochi and K. Kojima l Thermodynamic consistency test on DDB (224 Sets) l Differential Test, Area Test, Infinite Dilution Test q KDB (Korean Thermophysical Data. Bank) l Over 5000 Equilibrium Data Sets l 2000 Hydrocarbons, 200 Polymers, 2000 Electrolytes l 상평형 자료에 대한 Thermodynamic Consistency Test 구현 중 l Homologous Series 에 대한 자료의 건전성 검증 l 문헌상의 자료에 대한 정확도 정보 및 실험 정보 포함
KDB Web Service
KDB 를 이용한 계산 Software – Thermo. LAB 2. 0
