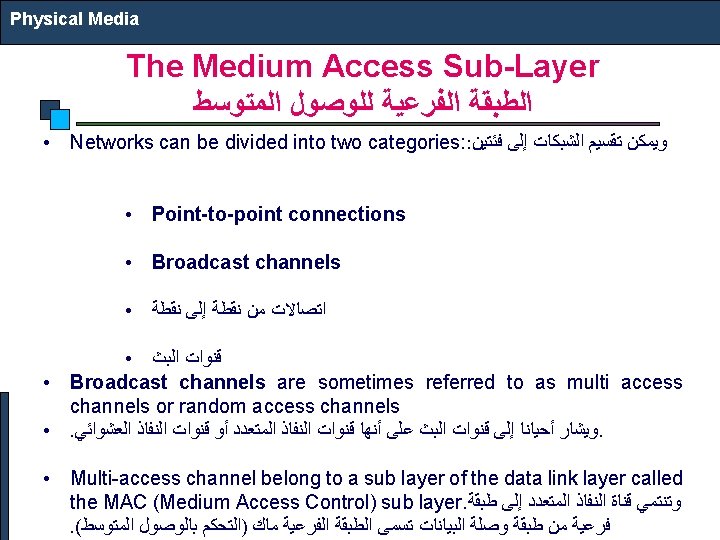

Physical Media The Medium Access Control Sub-Layer ﺍﻟﻤﺘﻮﺳﻂ ﺑﺎﻟﻮﺻﻮﻝ ﺍﻟﺘﺤﻜﻢ ﺍﻟﻔﺮﻋﻴﺔ ﻃﺒﻘﺔ Chapter 6
Physical Media Gigabit Ethernet § Gigabit Ethernet: supports both copper and fiber cabling. § Signaling at or near 1 Gbps requires encoding and sending a bit every nanosecond.

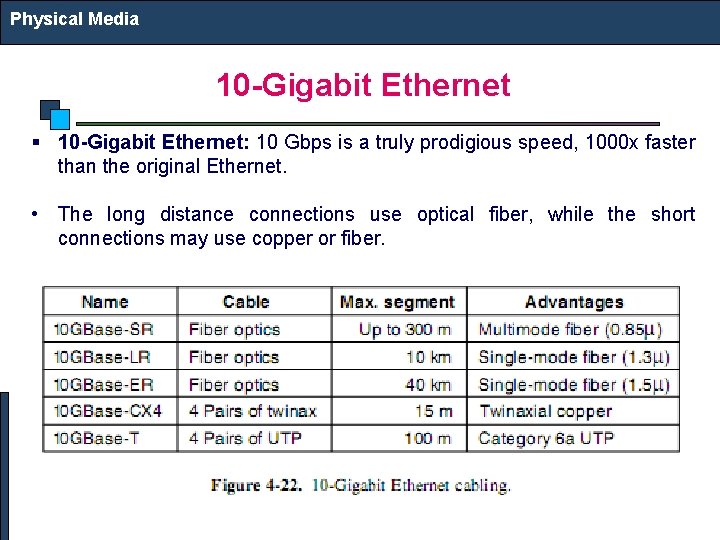

Physical Media 10 -Gigabit Ethernet § 10 -Gigabit Ethernet: 10 Gbps is a truly prodigious speed, 1000 x faster than the original Ethernet. • The long distance connections use optical fiber, while the short connections may use copper or fiber.

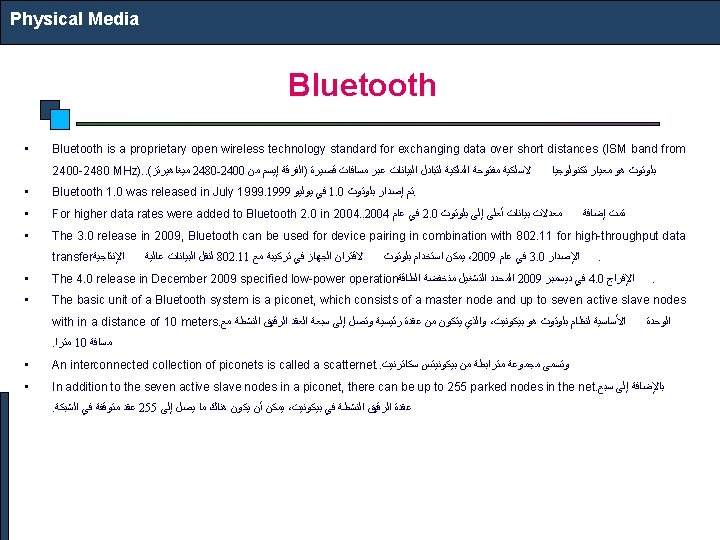

Physical Media Bluetooth Architecture
- Slides: 11
