Physical Evidence Chapter 3 Physical Evidence Examples Identification

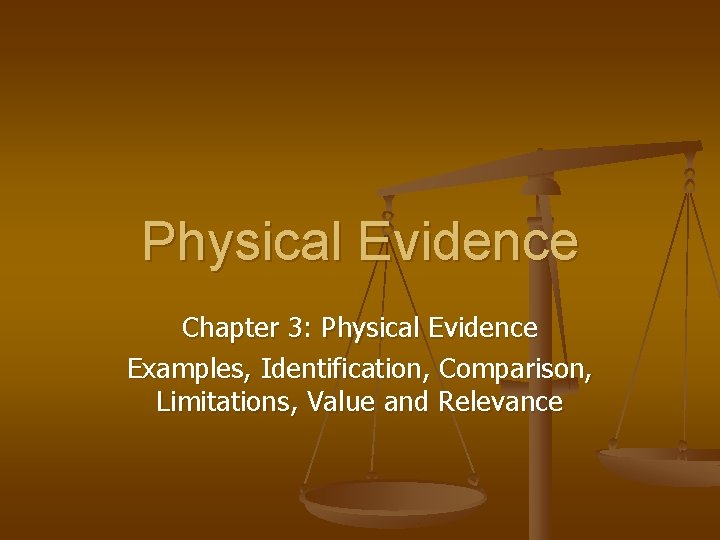

Physical Evidence Chapter 3: Physical Evidence Examples, Identification, Comparison, Limitations, Value and Relevance

Physical Evidence n Physical evidence is any and all objects that can establish that a crime has been committed or can provide a link between a crime and its victim or a crime and its perpetrator.

Physical Evidence

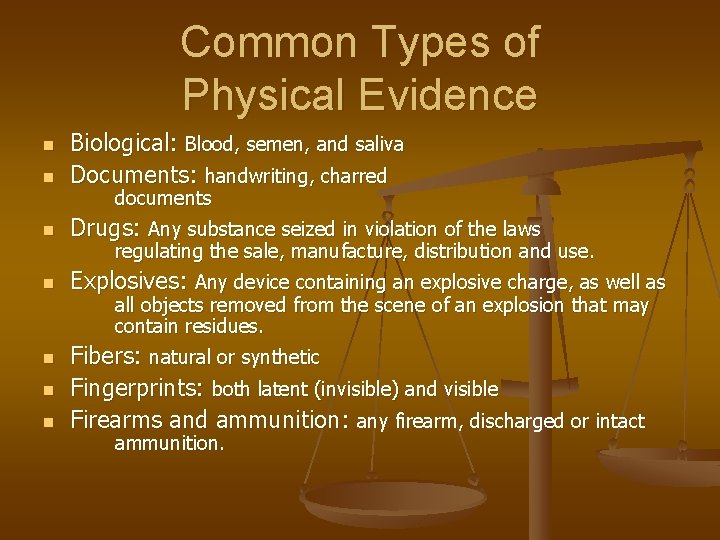

Common Types of Physical Evidence n Biological: Blood, semen, and saliva Documents: handwriting, charred n Drugs: Any substance seized in violation of the laws n Explosives: Any device containing an explosive charge, as well as n n documents regulating the sale, manufacture, distribution and use. all objects removed from the scene of an explosion that may contain residues. Fibers: natural or synthetic Fingerprints: both latent (invisible) and visible Firearms and ammunition: any firearm, discharged or intact ammunition.

Common Types of Physical Evidence n n n n Glass Hair Impressions Organs and physiological fluids Paint Petroleum Products Plastic bags

Common Types of Physical Evidence n n n n Plastic, rubber other polymers Powder residues Serial Numbers Soil and Minerals Tool Marks Vehicle Lights Wood and Other Vegetative Matter

Examination of Physical Evidence n. The examination of physical evidence by a forensic scientist is usually undertaken for identification or comparison.

Identification n The process of determining a substance’s physical or chemical identity. n The crime laboratory is frequently requested to identify the chemical composition of an unknown substance.

Examples of Identification n n Identify the chemical composition of an illicit drug preparation that may contain heroin, cocaine, barbiturates, and so on. Identify gasoline in residue recovered from the debris of a fire Identify the nature of explosive residues, example: dynamite or TNT. Identification of blood, semen, saliva, hair and include determination for species origin.

Identification n n The process of identification first requires the adoption of testing procedures that give characteristic results for specific standard materials. Once these test results have been established, they may be permanently recorded and used repeatedly to prove the identity of suspect materials.

Identification n Second, Identification requires that the number and type of tests needed to identify a substance be sufficient to exclude all other substances.

Identification

Identification – Putting it Together n n n A white powder gets submitted as physical evidence to a crime lab. The forensic scientist must use standardized tests with known results to try to determine the chemical identity of the substance. Suppose the white powder is identified as heroin. The forensic scientist must then devise a specific analytical scheme that will eliminate all other possibilities of that substance being anything but heroin. The forensic scientist’s test results must have been comprehensive enough to have excluded all other drugs or, for that matter all other substances from consideration.

Identification – Putting it Together

Identification – White Powder? n n An officer in the field can use a simple test to see if the white powder might be heroin. The white powder is submitted to a forensic laboratory. The forensic examiner then subjects the white powder to a series of preliminary standardized tests that have known results to try to confirm the identity of the substance. Once a possible identity is found then the forensic examiner MUST perform a battery of tests to “prove” or “confirm” that all other substances have been eliminated.

Problems and Pitfalls n n The forensic scientist has little or no control over the quality and quantity of the specimens received. Simple rules can not be devised for defining what constitutes a thorough and foolproof analytical scheme. Each type of evidence requires different tests and each test has a different degree of specification. It is left to the forensic scientist to determine at what point the analysis used in identification can be concluded and the criteria for positive identification satisfied.

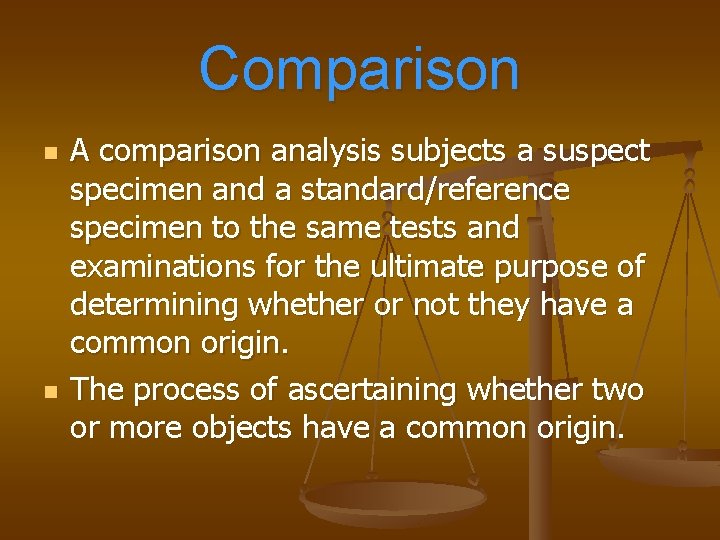

Comparison n n A comparison analysis subjects a suspect specimen and a standard/reference specimen to the same tests and examinations for the ultimate purpose of determining whether or not they have a common origin. The process of ascertaining whether two or more objects have a common origin.

Comparison: Examples n n Comparison of a hair follicle found at the crime scene with a standard/reference hair from a suspect. Paint chip found on a hit and run victim’s garment compared to a paint chip removed from a suspected vehicle

Comparison: Two Step Procedure n n First combinations of select properties are chosen from the crime-scene specimen and the standard-reference specimen for comparison. Second- the forensic scientist must be prepared to render a conclusion with respect to the origins of both specimens. Do they or do they not come from the same source?

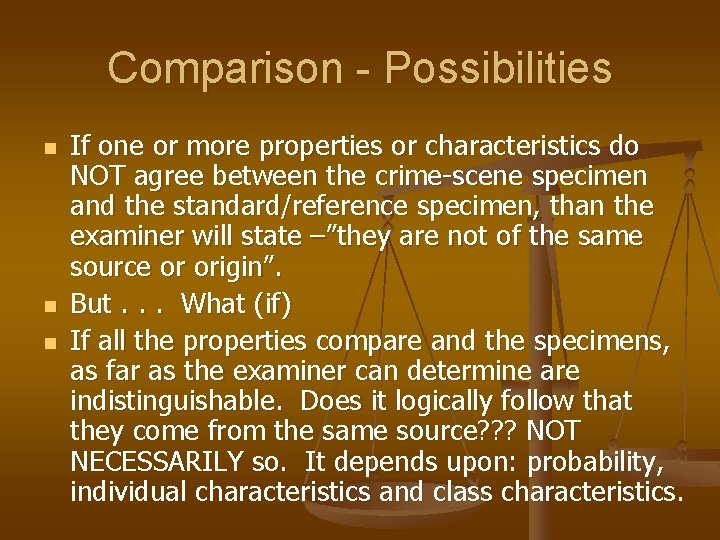

Comparison - Possibilities n n n If one or more properties or characteristics do NOT agree between the crime-scene specimen and the standard/reference specimen, than the examiner will state –”they are not of the same source or origin”. But. . . What (if) If all the properties compare and the specimens, as far as the examiner can determine are indistinguishable. Does it logically follow that they come from the same source? ? ? NOT NECESSARILY so. It depends upon: probability, individual characteristics and class characteristics.

Probability n n n Probability is the likelihood that an event will occur. Probability defines the odds at which a certain event will occur. The greater the number of similarities known as individual characteristics between the crimescene specimen and the standard/reference specimen, the higher the probability that the objects have a similar or common origin.

Individual Characteristics n Properties or characteristics of evidence that can be attributed to a common source with an extremely high degree of certainty.

Individual Characteristics Examples n n n Matching ridge characteristics of two fingerprints. The comparison of random striation markings on bullets or tool marks. The comparison of irregular and random wear patterns in tire or footwear impressions. The comparison of handwriting characteristics The fitting together of the irregular edges of broken objects in the manner of a jigsaw puzzle.

Examples of Individual Characteristics

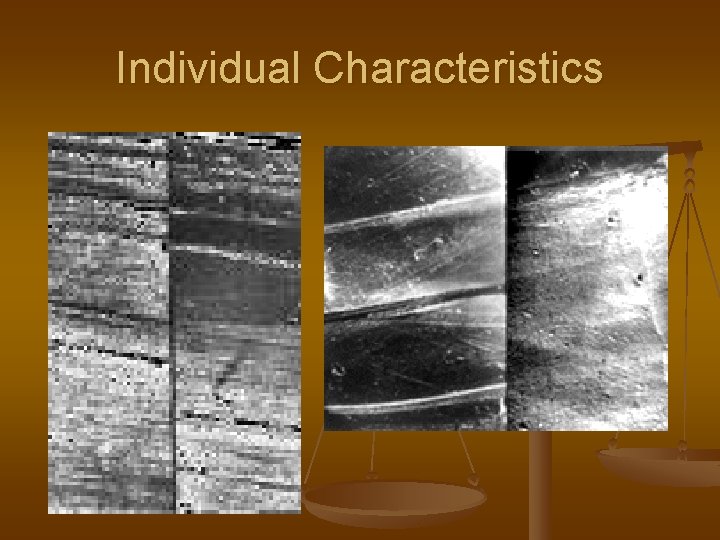

Individual Characteristics

Probability and Individual Characteristics n n Evidence that can be associated with a common source with an extremely high degree of probability is said to possess individual characteristics. In all of the prior examples of individual characteristics: ridge patterns between fingerprints, tool markings, comparisons of wear patterns for tires, an exact probability of the two specimens being of common origin is not able to be calculated. It can only be concluded that this probability is so high as to defy mathematical calculations or human comprehension. n Example: The probability of two humans or even two fingers having the same fingerprints is 1 x 1060

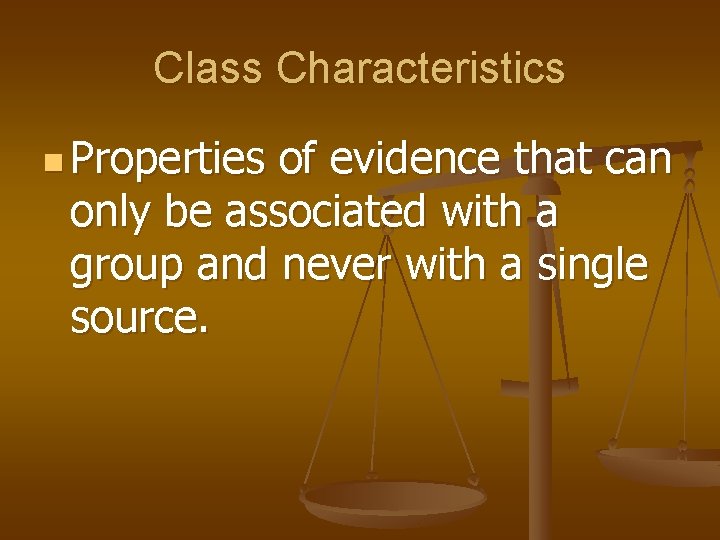

Class Characteristics n Properties of evidence that can only be associated with a group and never with a single source.

Class Characteristics and Probability - Examples n n n Comparison of two chips of paint. One from the crimescene and one from suspected vehicle. If each paint specimen is only one – layer thick the chance of their having originated from the same car is not nearly as great as if we compare two paint chips having seven similar layers, not all of which were part of the car’s original color. The single layer paint chips have class characteristics since they could only be associated at best with a specific car model. The seven layer paint chips have individual characteristics and have a high probability of originating from one specific car.

Class Characteristics and Probability Examples n n A blood sample from a crime-scene and a standard/reference sample both are found to be Type A. Since 26% of the population is Type A then there is a high probability that they are not from a common origin or person. BUT. . . What if the crime-scene sample and standard/reference sample are found to have not only the type by three other proteins in common? With the increase in the number of blood factors in common, the probability is higher that they have a common origin.

Calculating Probability. Product Rule n n Multiplying together the frequencies of independently occurring events to obtain the overall probability of occurrence for all events happening at once. Example: Blood found at the scene of the Nicole Brown Simpson murder scene matched OJ Simpson’s blood with the following blood factors and frequency of occurrence: Type A 26%, Es. D 85% and PGM 2+2 - 2%. When these are multiplied together, the overall probability that the blood is NOT OJ Simpsons is 0. 44% or 1 in 200 that it was NOT OJ’s blood at the crime scene.

Individual Characteristics VS Class Characteristics Evidence that can be associated with a common source with an extremely high degree of probability is said to possess individual characteristics. n Evidence associated with only a group is said to have class characteristics. n

What is the greatest value of class physical evidence? n The value of class physical evidence lies in its ability to corroborate events with data in a manner that is, as nearly as possible, free of human error or bias.

What is the greatest weakness of class physical evidence? n The greatest weakness of class physical evidence is that it cannot relate physical evidence to a common origin with a high degree of certainty. Evidence possessing class characteristics can be associated only with a group and never with a single source.

Cautions and Limitations in Dealing with Physical Evidence n It is important to consider the relevance of scientific evidence before allowing it to be introduced into a criminal case because physical evidence is accorded great weight during jury deliberations. In addition, failure to take proper safeguards when determining the relevance of evidence may unfairly prejudice a case against the accused.

Why does a forensic scientist often opt not to use the most sensitive analytical techniques when comparing suspect substances? n A forensic scientist opts not to use the most sensitive analytical techniques when comparing suspect substances because, carried to the extreme, no two things in this world are alike in every detail. Measurements that are extremely sensitive may show differences between two samples that suggest samples came from different sources even though they actually came from the same source.
