Phylogeny Reconstruction II

Trees are like mobiles The edges of tree can be freely rotated without changing the relationships among the terminal nodes. = =

Bifurcating and Multifurcating Trees When all the internal nodes in a cladogram are connected to three different nodes, the cladogram is said a bifurcating tree. When one or more internal nodes in a cladogram are connected to more than three different nodes, the cladogram is a multifurcating tree. The internal node is referred as polytomy. polytomies Bifurcating trees Multifurcating trees

Polytomy polytomies - Polytomy explains unresolved relationship of taxa. - Polytomies can represent two different situations: ?

Polytomy polytomies - Polytomy explains unresolved relationship of taxa. - Polytomies can represent two different situations: i) simultaneous divergence – all the descendants evolved at the same time (a “ hard” polytomy) ii) uncertainty of phylogenetic relationships or lack of resolution due to insufficient data (a “soft” polytomy)

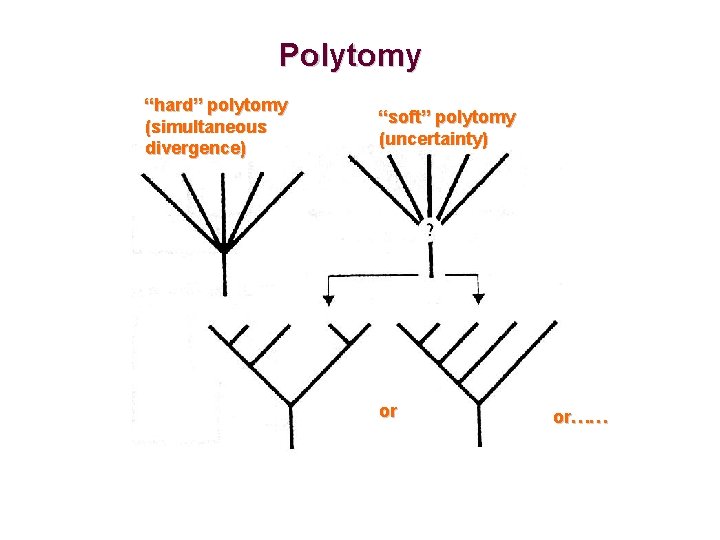

Polytomy “hard” polytomy (simultaneous divergence) “soft” polytomy (uncertainty) or or……

Rooted and Unrooted Trees - Unrooted tree explains phylogenetic relationshiops of taxa. Rooted tree explains phylogenetic relationships of taxa and also the direction of evolution of the taxa. - Root is located at the base of a phylogenetic tree. It represents the immediate ancestor to all the terminal taxa of the tree. root Unrooted tree Rooted tree

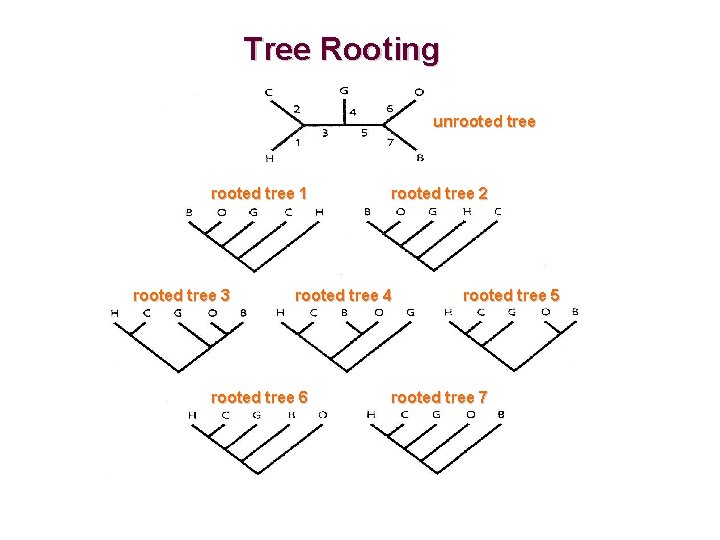

Tree Rooting unrooted tree 1 rooted tree 3 rooted tree 2 rooted tree 4 rooted tree 6 rooted tree 5 rooted tree 7

Number of taxa Number of unrooted tree Number of rooted tree 2 1 1 3 4 3 15 5 15 105 6 105 945 7 945 10, 395 8 10, 395 135, 135 9 135, 135 2, 027, 025 10 2, 027, 025 34, 459, 425

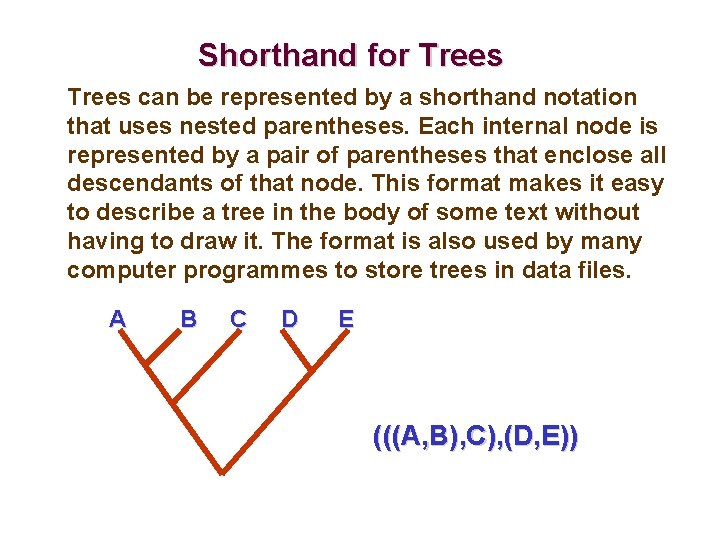

Shorthand for Trees can be represented by a shorthand notation that uses nested parentheses. Each internal node is represented by a pair of parentheses that enclose all descendants of that node. This format makes it easy to describe a tree in the body of some text without having to draw it. The format is also used by many computer programmes to store trees in data files. A B C D E (((A, B), C), (D, E))

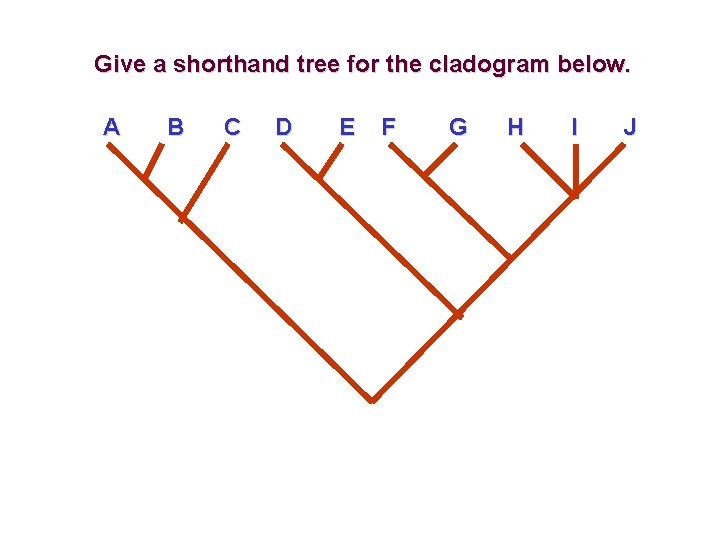

Give a shorthand tree for the cladogram below. A B C D E F G H I J A CLADOGRAM

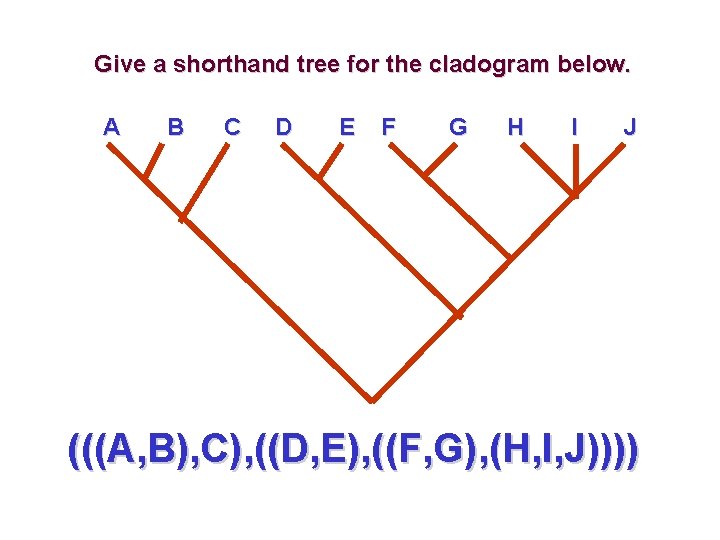

Give a shorthand tree for the cladogram below. A B C D E F G H I J A CLADOGRAM (((A, B), C), ((D, E), ((F, G), (H, I, J))))

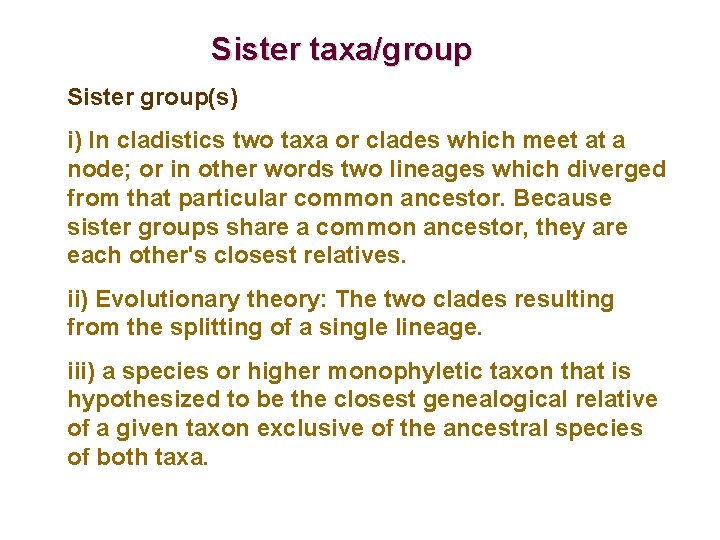

Sister taxa/group Sister group(s) i) In cladistics two taxa or clades which meet at a node; or in other words two lineages which diverged from that particular common ancestor. Because sister groups share a common ancestor, they are each other's closest relatives. ii) Evolutionary theory: The two clades resulting from the splitting of a single lineage. iii) a species or higher monophyletic taxon that is hypothesized to be the closest genealogical relative of a given taxon exclusive of the ancestral species of both taxa.

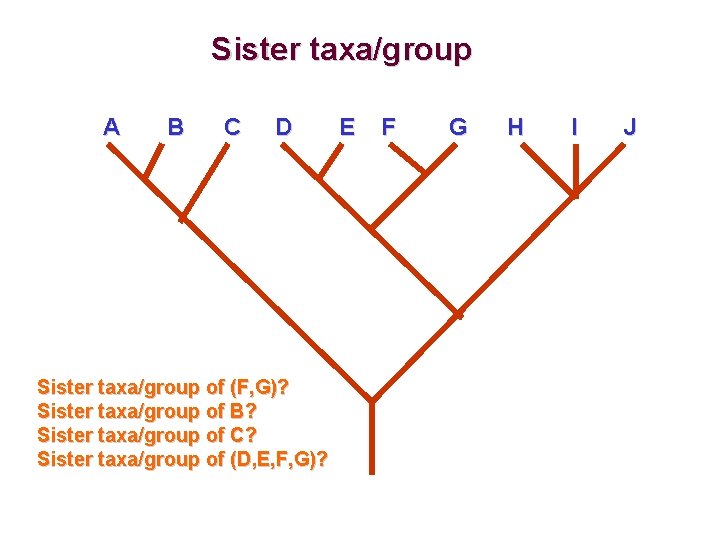

Sister taxa/group A B C D Sister taxa/group of (F, G)? Sister taxa/group of B? Sister taxa/group of C? Sister taxa/group of (D, E, F, G)? E F G H I J
