Phylogenetics and Coalescence Lab 9 October 24, 2012

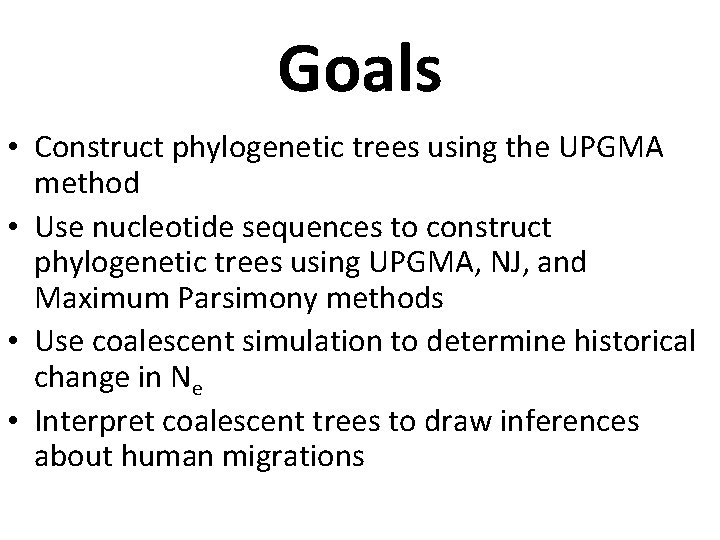

Goals • Construct phylogenetic trees using the UPGMA method • Use nucleotide sequences to construct phylogenetic trees using UPGMA, NJ, and Maximum Parsimony methods • Use coalescent simulation to determine historical change in Ne • Interpret coalescent trees to draw inferences about human migrations

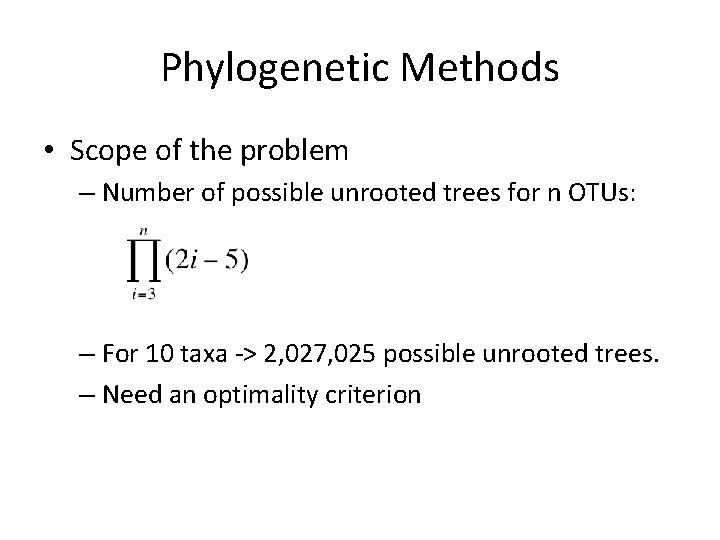

Phylogenetic Methods • Scope of the problem – Number of possible unrooted trees for n OTUs: – For 10 taxa -> 2, 027, 025 possible unrooted trees. – Need an optimality criterion

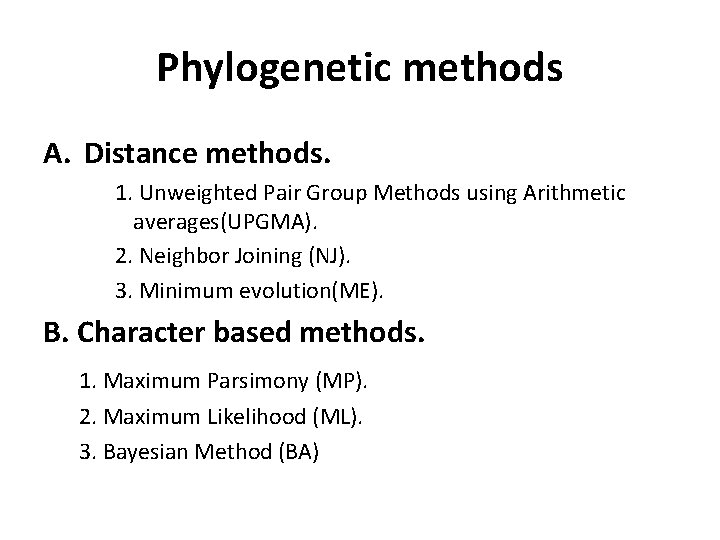

Phylogenetic methods A. Distance methods. 1. Unweighted Pair Group Methods using Arithmetic averages(UPGMA). 2. Neighbor Joining (NJ). 3. Minimum evolution(ME). B. Character based methods. 1. Maximum Parsimony (MP). 2. Maximum Likelihood (ML). 3. Bayesian Method (BA)

UPGMA Step 1: Generate data (Sequence/ Genotype/ Morphological) for each OTU. Taxa Human Chimpanzee Gorilla Orangutan Gibbon 1 T T T 2 G G A 3 C G C C G 4 G G G T T 5 T T C G A 6 A A T T G 7 T T T G C

Step 2: Calculate p- distance for all pairs of taxa Distance can be calculated by using different substitution models : 1. # of nucleotide differences. 2. p-distance. 3. JC distance 4. K 2 P distance. 5. F 81 6. HKY 85 7. GTR etc Taxa Human Chimpanzee 1 T T 2 G G 3* C G 4 G G 5 T T = 0. 142857143 6 A A 7 T T

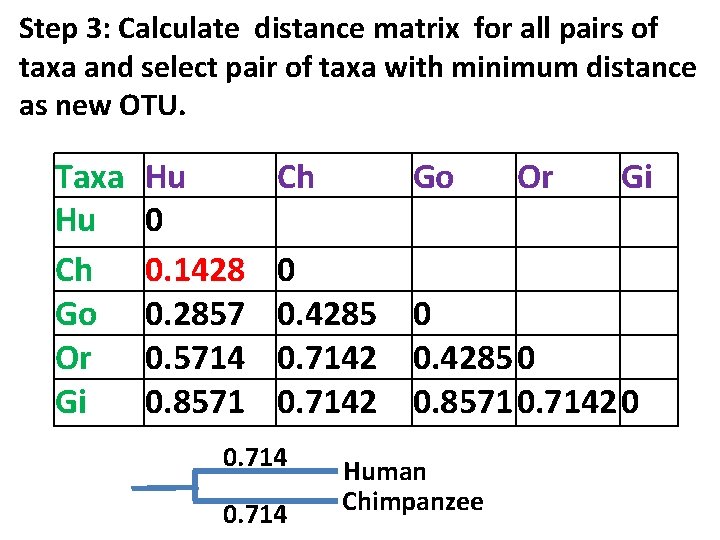

Step 3: Calculate distance matrix for all pairs of taxa and select pair of taxa with minimum distance as new OTU. Taxa Hu Ch Go Or Gi Hu 0 0. 1428 0. 2857 0. 5714 0. 8571 Ch 0 0. 4285 0. 7142 0. 714 Go Or Gi 0 0. 42850 0. 85710. 71420 Human Chimpanzee

Step 4: Recalculate new distance matrix, assuming human and chimpanzee as one OTU. Taxa taxa Hu Hu+Ch Ch Go Go Or Gi. Gi Or Gi Hu Ch Go Or Gi Hu+ch Go Or Gi. Gi Hu+ch Go Or 0 0. 1428 0 0. 35714 0 0. 2857 0. 4285 0. 64285 0. 42850 0 0. 78571 0. 85710. 42850 0. 7142 0 0. 5714 0. 7142 0. 85710. 71420 = 0. 3571

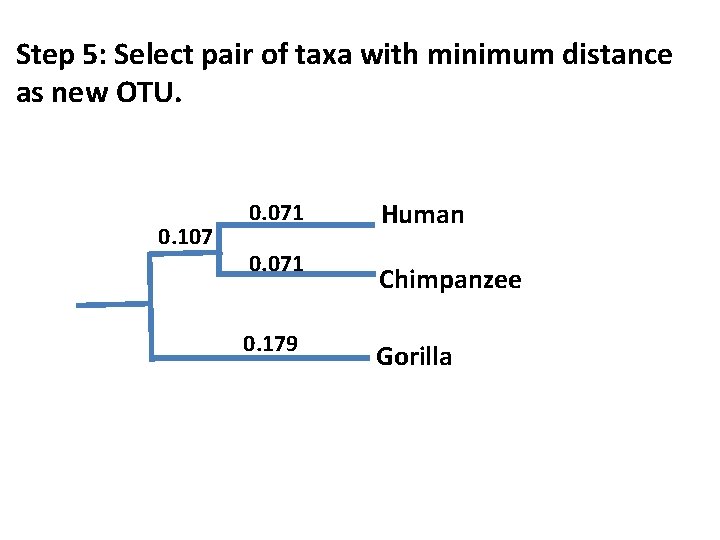

Step 5: Select pair of taxa with minimum distance as new OTU. 0. 107 0. 071 0. 179 Human Chimpanzee Gorilla

Step 6: Again select pair of OTU with minimum distance as new OTU and recalculate distance matrix. Taxa Hu (Hu+ch)Go Ch taxa Hu 0 (Hu+ch)Go taxa (Hu+ch)Go Or (Hu+ch)Go 0 0 Ch 0. 1428 Gi Or. Go 0. 2857 0. 5714 0. 4285 Gi 0. 8095 Or Gi Or. Go Or 00 0. 7142 Or. Gi Gi 0 0. 5714 0. 7142 0. 42850 0. 8571 0. 7142 0. 85710. 71420 = 0. 5714

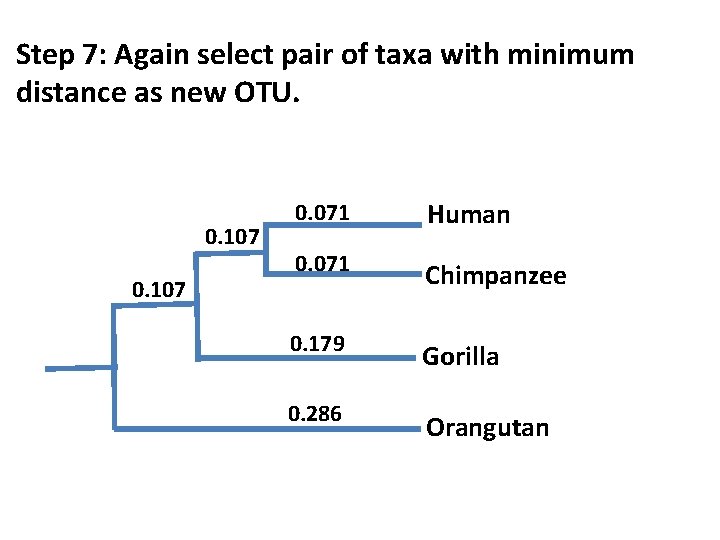

Step 7: Again select pair of taxa with minimum distance as new OTU. 0. 107 0. 071 Human 0. 071 Chimpanzee 0. 179 Gorilla 0. 286 Orangutan

Step 8: Again select pair of OTU with minimum distance as new OTU and recalculate distance matrix. Taxa Hu taxa Hu 0 ((Hu+ch)Go)Or taxa Ch 0. 1428 ((Hu+ch)Go)Or Gi. Go 0. 2857 Gi Or 0. 5714 Gi 0. 8571 Ch Go Or ((Hu+ch)Go)Or Gi 0 0 0. 4285 0 0. 7857 0. 4285 0 0 0. 7142 0. 8571 0. 7142 = 0. 7857 Gi 0

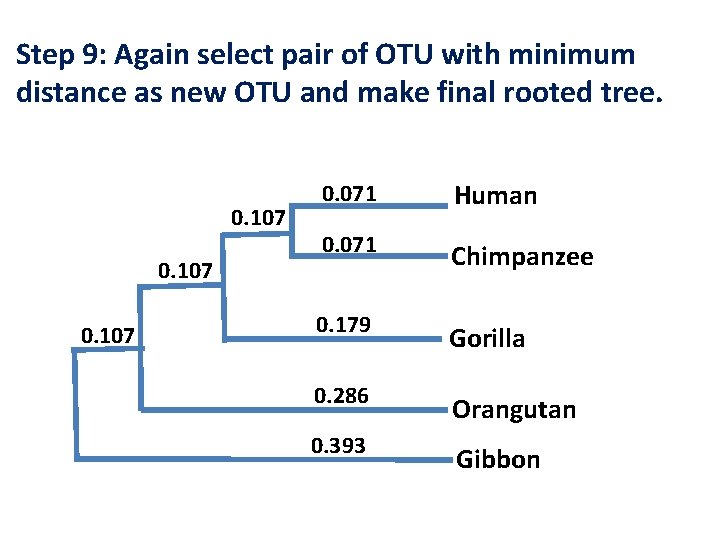

Step 9: Again select pair of OTU with minimum distance as new OTU and make final rooted tree. 0. 107 0. 071 Human 0. 071 Chimpanzee 0. 179 Gorilla 0. 286 Orangutan 0. 393 Gibbon

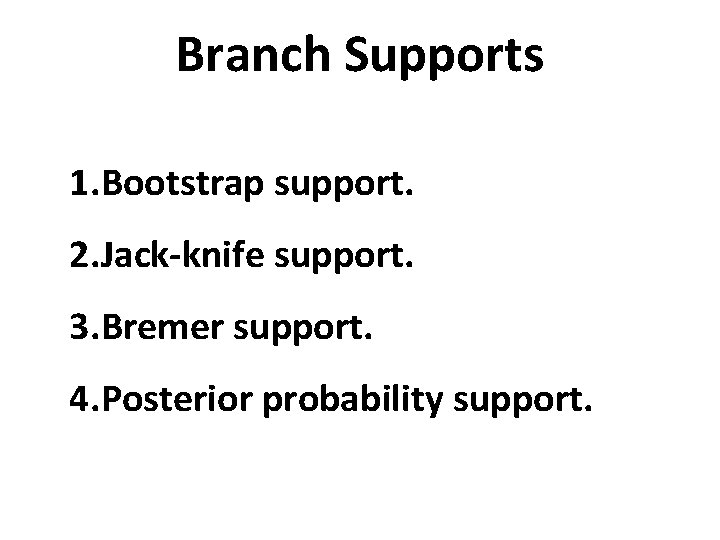

Branch Supports 1. Bootstrap support. 2. Jack-knife support. 3. Bremer support. 4. Posterior probability support.

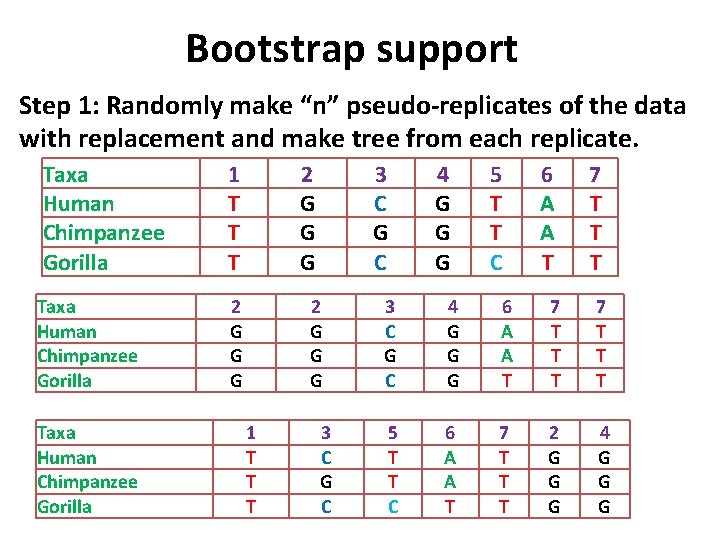

Bootstrap support Step 1: Randomly make “n” pseudo-replicates of the data with replacement and make tree from each replicate. Taxa Human Chimpanzee Gorilla 1 T Taxa Human Chimpanzee Gorilla 2 G G G 3 C G C 2 G G G 1 T T T 3 C G C 4 G G G 5 T T C 6 A A T 7 T T T 3 C G C 4 G G G 6 A A T 7 T T T 5 T T C 6 A A T 7 T T T 2 G G G 4 G G G

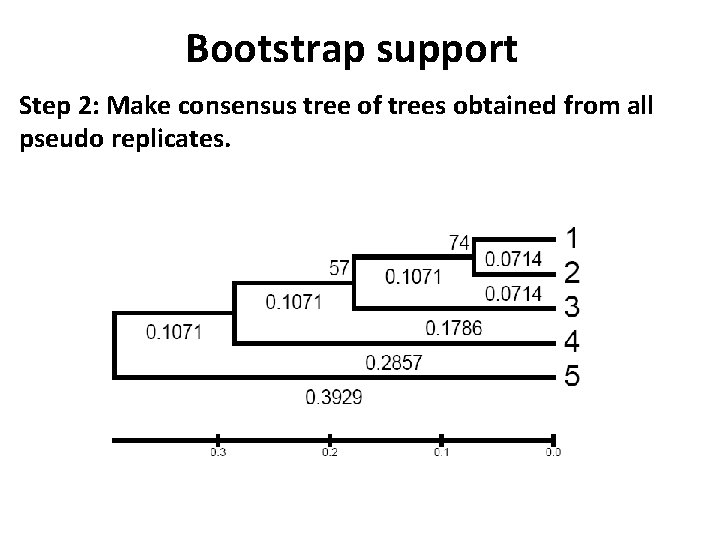

Bootstrap support Step 2: Make consensus tree of trees obtained from all pseudo replicates.

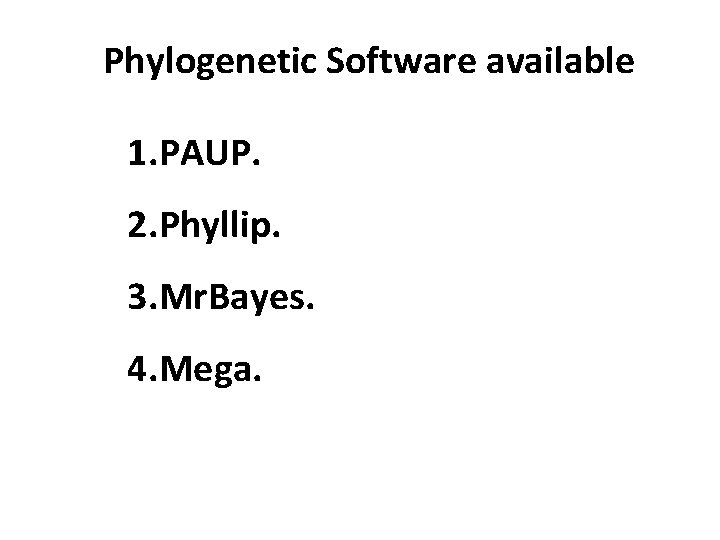

Phylogenetic Software available 1. PAUP. 2. Phyllip. 3. Mr. Bayes. 4. Mega.

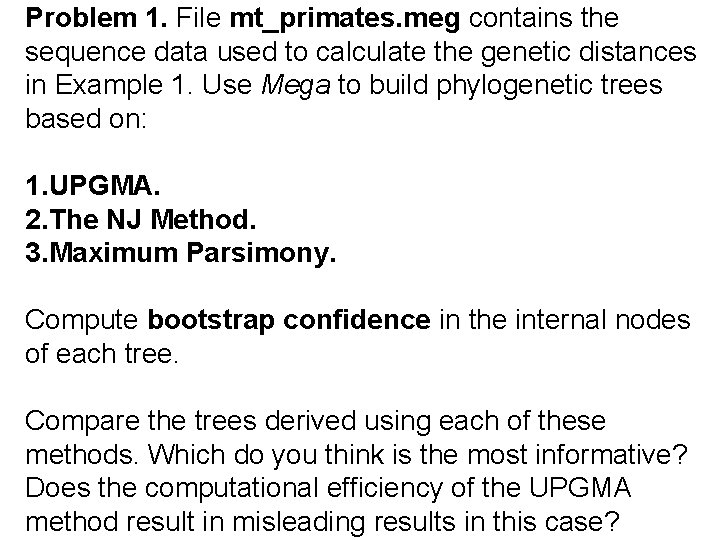

Problem 1. File mt_primates. meg contains the sequence data used to calculate the genetic distances in Example 1. Use Mega to build phylogenetic trees based on: 1. UPGMA. 2. The NJ Method. 3. Maximum Parsimony. Compute bootstrap confidence in the internal nodes of each tree. Compare the trees derived using each of these methods. Which do you think is the most informative? Does the computational efficiency of the UPGMA method result in misleading results in this case?

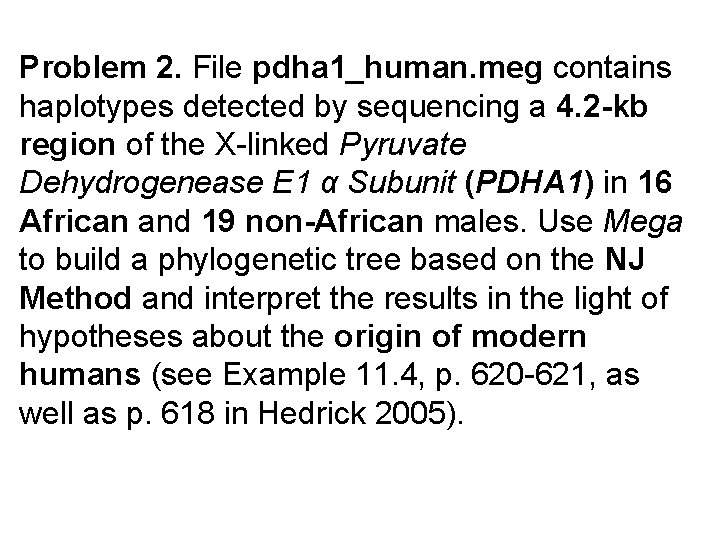

Problem 2. File pdha 1_human. meg contains haplotypes detected by sequencing a 4. 2 -kb region of the X-linked Pyruvate Dehydrogenease E 1 α Subunit (PDHA 1) in 16 African and 19 non-African males. Use Mega to build a phylogenetic tree based on the NJ Method and interpret the results in the light of hypotheses about the origin of modern humans (see Example 11. 4, p. 620 -621, as well as p. 618 in Hedrick 2005).

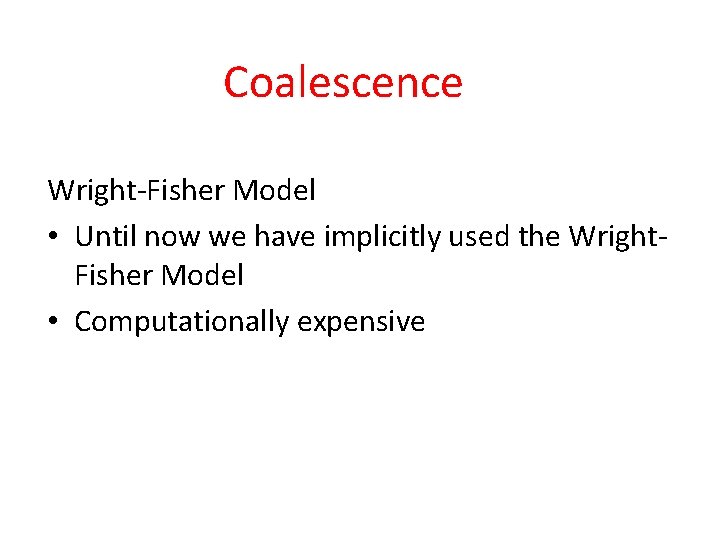

Coalescence Wright-Fisher Model • Until now we have implicitly used the Wright. Fisher Model • Computationally expensive

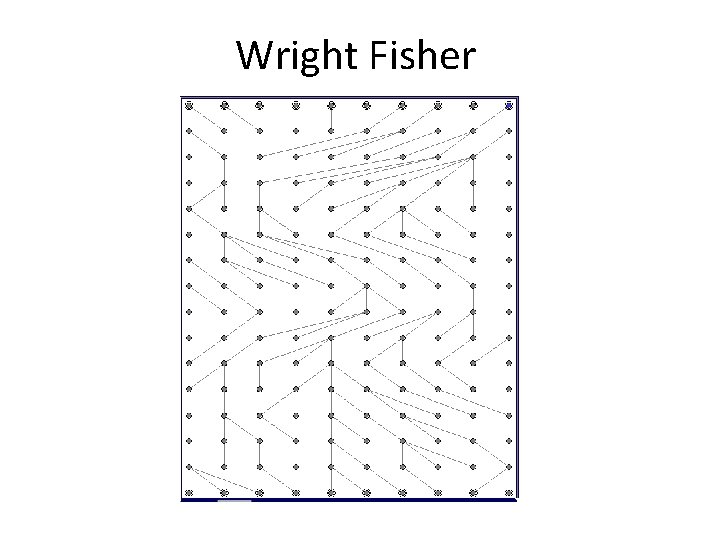

Wright Fisher

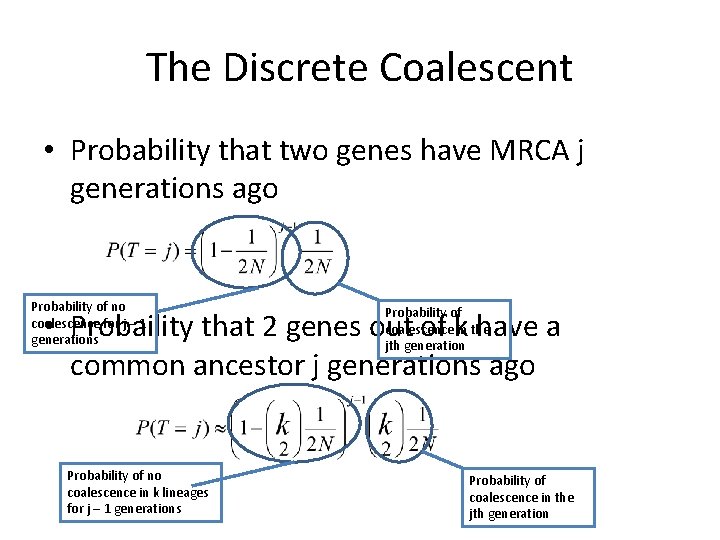

The Discrete Coalescent • Probability that two genes have MRCA j generations ago Probability of no coalescence for j – 1 generations Probability of coalescence in the jth generation • Probaility that 2 genes out of k have a common ancestor j generations ago Probability of no coalescence in k lineages for j – 1 generations Probability of coalescence in the jth generation

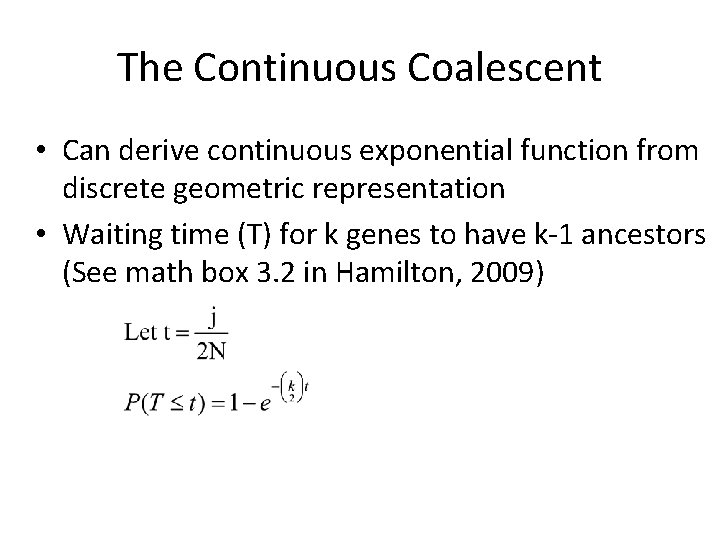

The Continuous Coalescent • Can derive continuous exponential function from discrete geometric representation • Waiting time (T) for k genes to have k-1 ancestors (See math box 3. 2 in Hamilton, 2009)

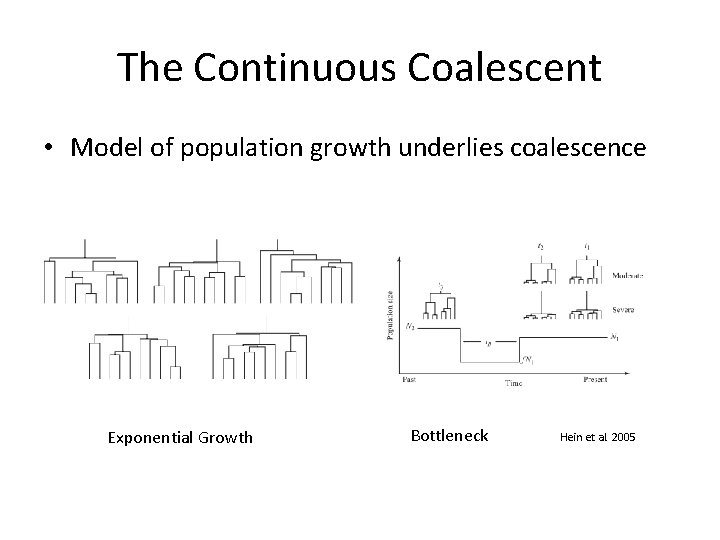

The Continuous Coalescent • Model of population growth underlies coalescence Exponential Growth Bottleneck Hein et al. 2005

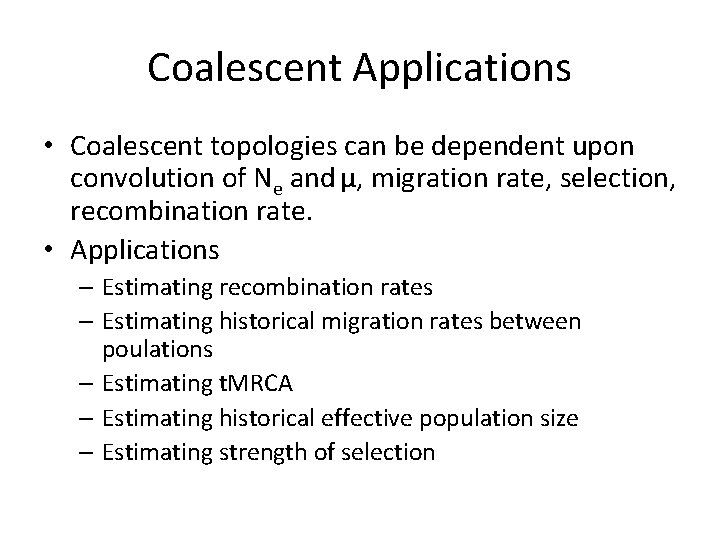

Coalescent Applications • Coalescent topologies can be dependent upon convolution of Ne and μ, migration rate, selection, recombination rate. • Applications – Estimating recombination rates – Estimating historical migration rates between poulations – Estimating t. MRCA – Estimating historical effective population size – Estimating strength of selection

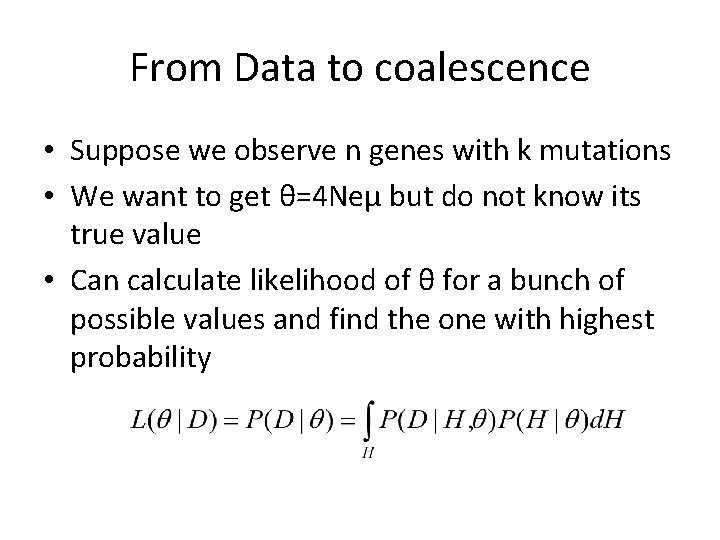

From Data to coalescence • Suppose we observe n genes with k mutations • We want to get θ=4 Neμ but do not know its true value • Can calculate likelihood of θ for a bunch of possible values and find the one with highest probability

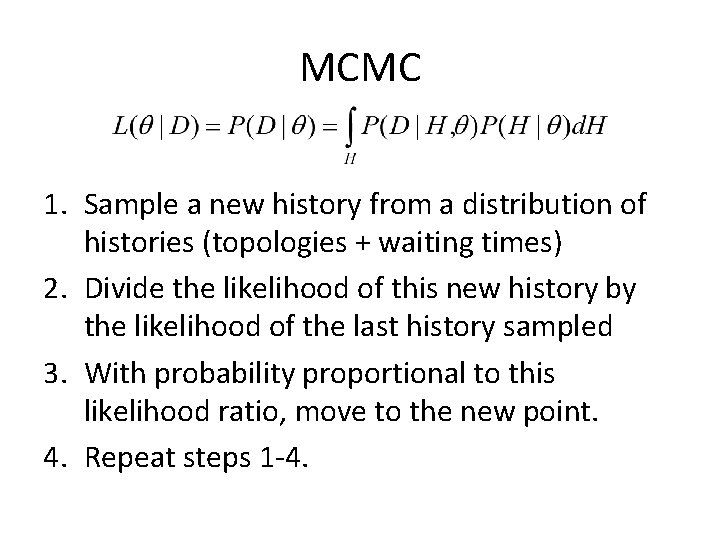

MCMC 1. Sample a new history from a distribution of histories (topologies + waiting times) 2. Divide the likelihood of this new history by the likelihood of the last history sampled 3. With probability proportional to this likelihood ratio, move to the new point. 4. Repeat steps 1 -4.

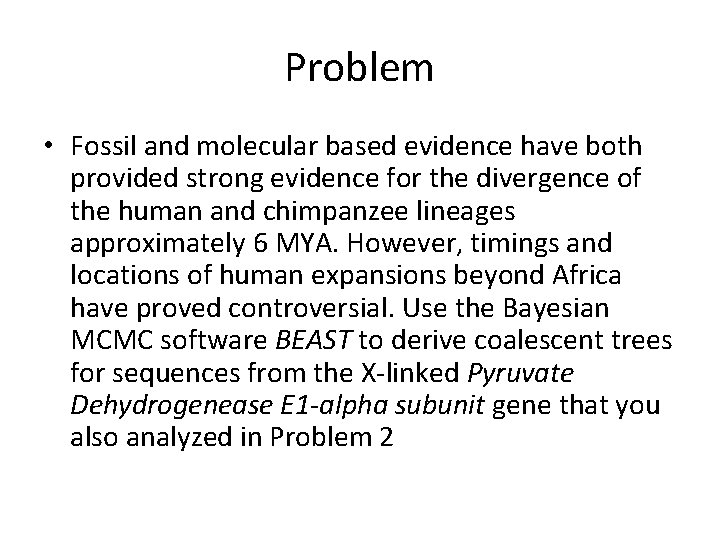

Problem • Fossil and molecular based evidence have both provided strong evidence for the divergence of the human and chimpanzee lineages approximately 6 MYA. However, timings and locations of human expansions beyond Africa have proved controversial. Use the Bayesian MCMC software BEAST to derive coalescent trees for sequences from the X-linked Pyruvate Dehydrogenease E 1 -alpha subunit gene that you also analyzed in Problem 2
