PHYLOGENETIC ANALYSIS

PHYLOGENETIC ANALYSIS

Phylogenetics • Phylogenetics is the study of the evolutionary history of living organisms using

Phylogenetics • Phylogenetics is the study of the evolutionary history of living organisms using treelike diagrams to represent pedigrees of these organisms. • The tree branching patterns representing the evolutionary divergence are referred to as phylogeny.

http: //www. agiweb. org/news/evolution/fossilrecord. html Studying phylogenetics • Fossil records – morphological information, available

http: //www. agiweb. org/news/evolution/fossilrecord. html Studying phylogenetics • Fossil records – morphological information, available only for certain species, data can be fragmentary, morphological traits are ambiguous, fossil record nonexistent for microorganisms • Molecular data (molecular fossils) – more numerous than fossils, easier to obtain, favorite for reconstruction of the evolutionary history

Tree of life http: //tikalon. com/blog. php? article=2011/domains

Tree of life http: //tikalon. com/blog. php? article=2011/domains

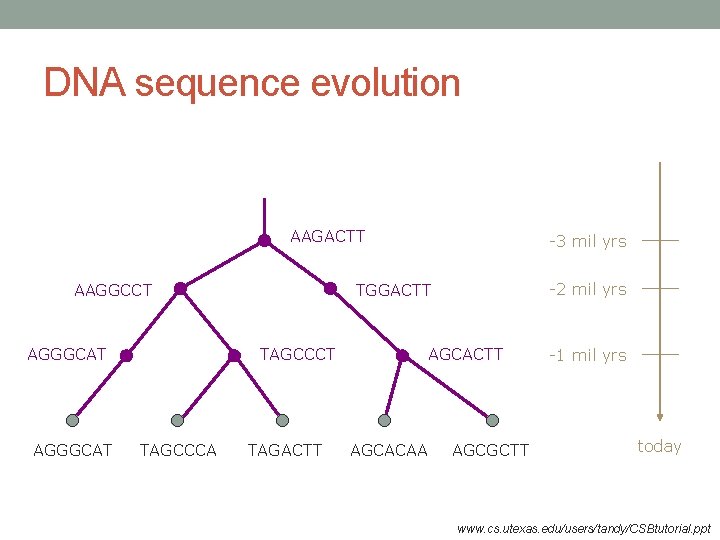

DNA sequence evolution AAGACTT AAGGCCT AGGGCAT -2 mil yrs TGGACTT TAGCCCA -3 mil yrs

DNA sequence evolution AAGACTT AAGGCCT AGGGCAT -2 mil yrs TGGACTT TAGCCCA -3 mil yrs TAGACTT AGCACAA AGCGCTT -1 mil yrs today www. cs. utexas. edu/users/tandy/CSBtutorial. ppt

Tree terminology Terminal nodes – taxa (taxon) Branches A B C D Ancestral node

Tree terminology Terminal nodes – taxa (taxon) Branches A B C D Ancestral node or root of the tree Internal nodes or Divergence points (represent hypothetical ancestors of the taxa) E Based on lectures by Tal Pupko

 • Monophyletic (clade) – a taxon that is derived from a single ancestral

• Monophyletic (clade) – a taxon that is derived from a single ancestral species. • Polyphyletic – a taxon whose members were derived from two or more ancestors not common to all members. • Paraphyletic – a taxon that excludes some members that share a common ancestor with members included in the taxon. Based on lectures by Tal Pupko

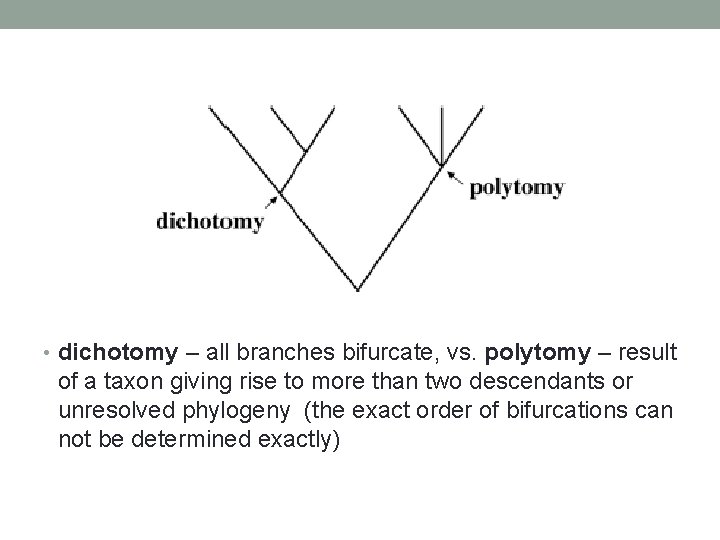

 • dichotomy – all branches bifurcate, vs. polytomy – result of a taxon

• dichotomy – all branches bifurcate, vs. polytomy – result of a taxon giving rise to more than two descendants or unresolved phylogeny (the exact order of bifurcations can not be determined exactly)

 • unrooted – no knowledge of a common ancestor, shows relative relationship of

• unrooted – no knowledge of a common ancestor, shows relative relationship of taxa, no direction of an evolutionary path • rooted – obviously, more informative

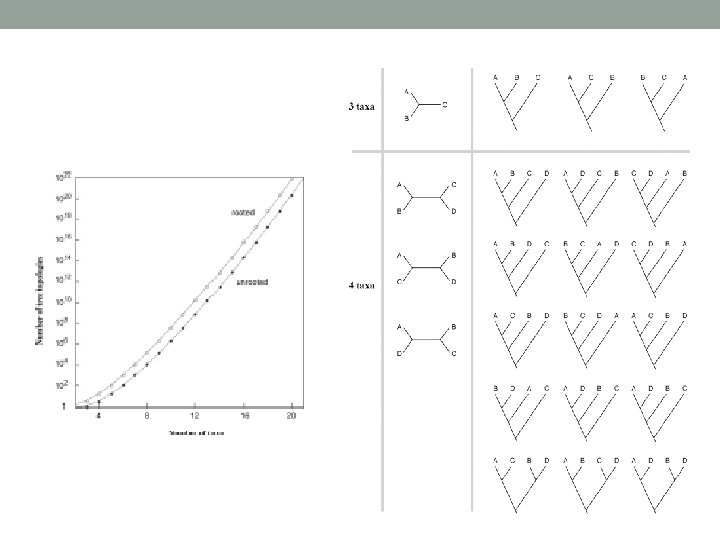

Finding a true tree is difficult •

Finding a true tree is difficult •

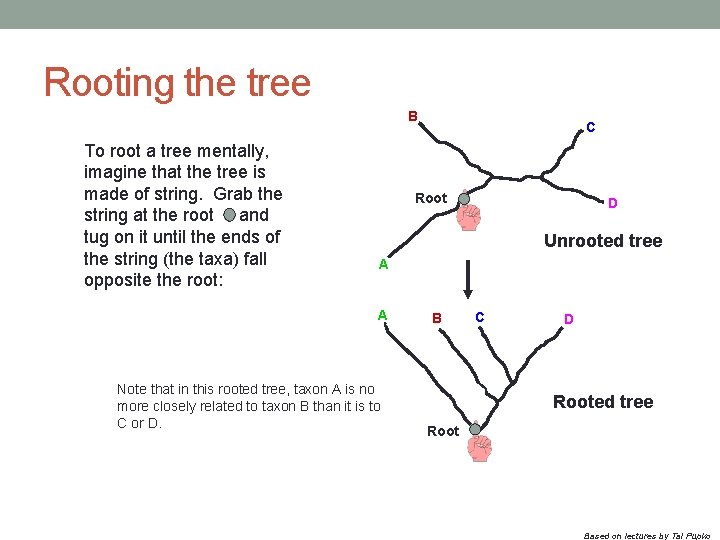

Rooting the tree B To root a tree mentally, imagine that the tree is

Rooting the tree B To root a tree mentally, imagine that the tree is made of string. Grab the string at the root and tug on it until the ends of the string (the taxa) fall opposite the root: C Root D Unrooted tree A A Note that in this rooted tree, taxon A is no more closely related to taxon B than it is to C or D. B C D Rooted tree Root Based on lectures by Tal Pupko

Now, try it again with the root at another position: B C Root Unrooted

Now, try it again with the root at another position: B C Root Unrooted tree D A A B C D Rooted tree Root Note that in this rooted tree, taxon A is most closely related to taxon B, and together they are equally distantly related to taxa C and D. Based on lectures by Tal Pupko

An unrooted, four-taxon tree theoretically can be rooted in five different places to produce

An unrooted, four-taxon tree theoretically can be rooted in five different places to produce five different rooted trees A The unrooted tree 1: 2 4 1 B C 5 D 3 Rooted tree 1 a Rooted tree 1 b Rooted tree 1 c Rooted tree 1 d Rooted tree 1 e B A A C D A B B D C C A A D D D B B These trees show five different evolutionary relationships among the taxa! Based on lectures by Tal Pupko

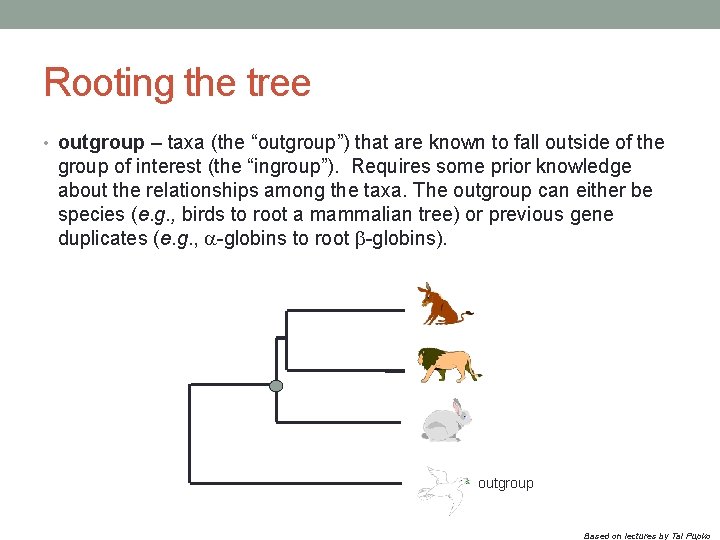

Rooting the tree • outgroup – taxa (the “outgroup”) that are known to fall

Rooting the tree • outgroup – taxa (the “outgroup”) that are known to fall outside of the group of interest (the “ingroup”). Requires some prior knowledge about the relationships among the taxa. The outgroup can either be species (e. g. , birds to root a mammalian tree) or previous gene duplicates (e. g. , a-globins to root b-globins). outgroup Based on lectures by Tal Pupko

Rooting the tree • midpoint rooting approach - roots the tree at the midway

Rooting the tree • midpoint rooting approach - roots the tree at the midway point between the two most distant taxa in the tree, as determined by branch lengths. Assumes that the taxa are evolving in a clock-like manner. A d (A, D) = 10 + 3 + 5 = 18 Midpoint = 18 / 2 = 9 10 C 3 B 2 2 5 D Based on lectures by Tal Pupko

Molecular clock • This concept was proposed by Emil Zuckerkandl and Linus Pauling (1962)

Molecular clock • This concept was proposed by Emil Zuckerkandl and Linus Pauling (1962) as well as Emanuel Margoliash (1963). • This hypothesis states that for every given gene (or protein), the rate of molecular evolution is approximately constant. • Pioneering study by Zuckerkandl and Pauling • They observed the number of amino acid differences between human globins – β and δ (~ 6 differences), β and γ (~ 36 differences), α and β (~ 78 differences), and α and γ (~ 83 differences). • They could also compare human to gorilla (both β and α globins), observing either 2 or 1 differences respectively. • They knew from fossil evidence that humans and gorillas diverged from a common ancestor about 11 MYA. • Using this divergence time as a calibration point, they estimated that gene duplications of the common ancestor to β and δ occurred 44 MYA; β and derived from a common ancestor 260 MYA; α and β 565 MYA; and α and γ 600 MYA.

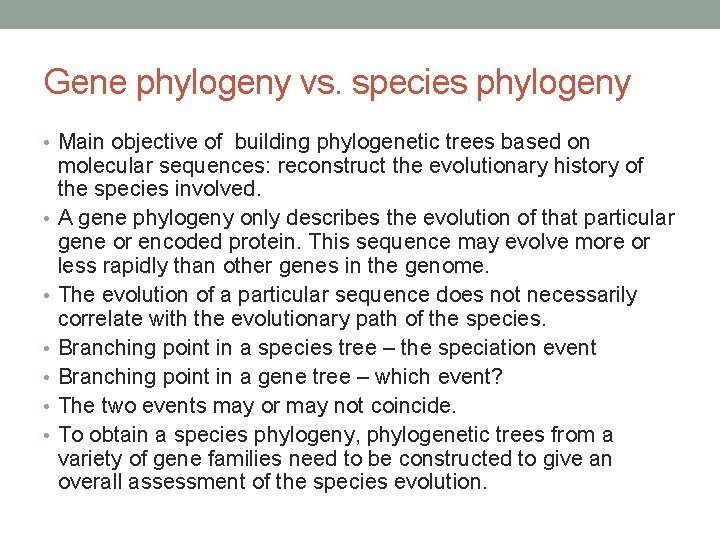

Gene phylogeny vs. species phylogeny • Main objective of building phylogenetic trees based on

Gene phylogeny vs. species phylogeny • Main objective of building phylogenetic trees based on • • • molecular sequences: reconstruct the evolutionary history of the species involved. A gene phylogeny only describes the evolution of that particular gene or encoded protein. This sequence may evolve more or less rapidly than other genes in the genome. The evolution of a particular sequence does not necessarily correlate with the evolutionary path of the species. Branching point in a species tree – the speciation event Branching point in a gene tree – which event? The two events may or may not coincide. To obtain a species phylogeny, phylogenetic trees from a variety of gene families need to be constructed to give an overall assessment of the species evolution.

Closest living relatives of humans? Based on lectures by Tal Pupko

Closest living relatives of humans? Based on lectures by Tal Pupko

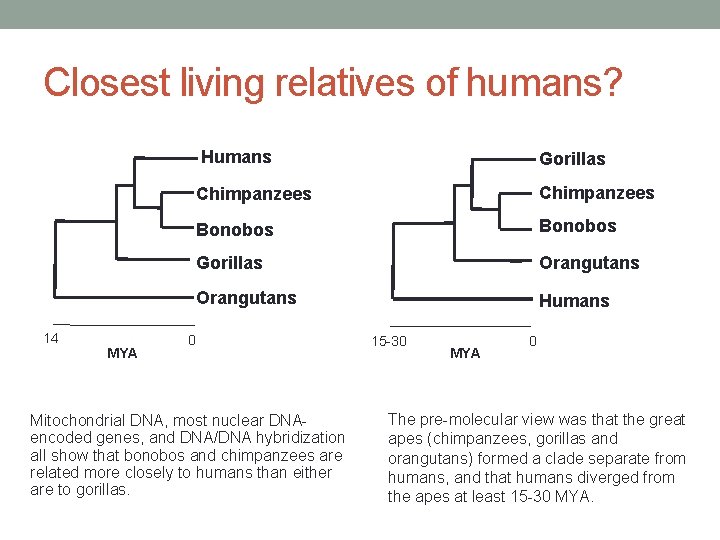

Closest living relatives of humans? 14 MYA Humans Gorillas Chimpanzees Bonobos Gorillas Orangutans Humans

Closest living relatives of humans? 14 MYA Humans Gorillas Chimpanzees Bonobos Gorillas Orangutans Humans 0 Mitochondrial DNA, most nuclear DNAencoded genes, and DNA/DNA hybridization all show that bonobos and chimpanzees are related more closely to humans than either are to gorillas. 15 -30 MYA 0 The pre-molecular view was that the great apes (chimpanzees, gorillas and orangutans) formed a clade separate from humans, and that humans diverged from the apes at least 15 -30 MYA.

Orangutan Gorilla Chimpanzee Human From the Tree of the Life Website, University of Arizona

Orangutan Gorilla Chimpanzee Human From the Tree of the Life Website, University of Arizona

Forms of tree representation • phylogram – branch lengths represent the amount of evolutionary

Forms of tree representation • phylogram – branch lengths represent the amount of evolutionary divergence • cladogram – external taxa line up neatly, only the topology matters

Taxon B Taxon C Taxon A Taxon D No meaning to the spacing between

Taxon B Taxon C Taxon A Taxon D No meaning to the spacing between the taxa, or to the order in which they appear from top to bottom. Taxon E This dimension either can have no scale (for ‘cladograms’), can be proportional to genetic distance or amount of change (for ‘phylograms’), or can be proportional to time (for ‘ultrametric trees’ or true evolutionary trees). ((A, (B, C)), (D, E)) = The above phylogeny as nested parentheses These say that B and C are more closely related to each other than either is to A, and that A, B, and C form a clade that is a sister group to the clade composed of D and E. If the tree has a time scale, then D and E are the most closely related. Based on lectures by Tal Pupko

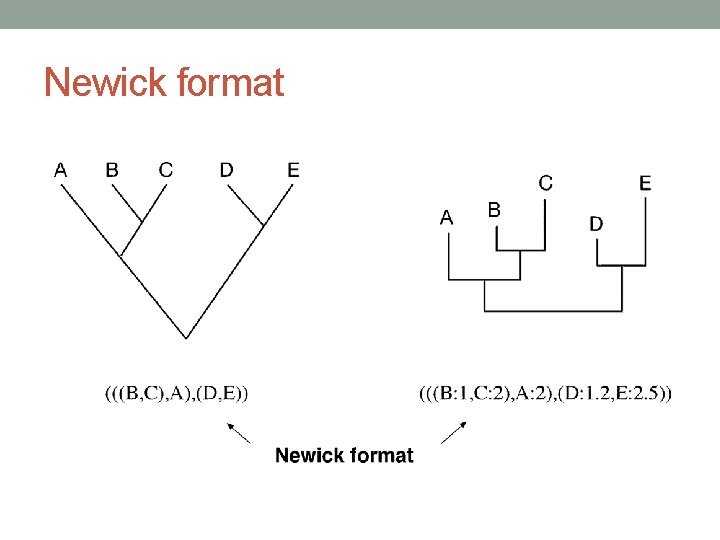

Newick format

Newick format

A consensus tree • combining the nodes: • strict consensus - all conflicting nodes

A consensus tree • combining the nodes: • strict consensus - all conflicting nodes are collapsed into polytomies • majority rule – among the conflicting nodes, those that agree by more than 50% of the nodes are retained whereas the remaining nodes are collapsed into polytomies

Procedure 1. Choice of molecular markers 2. Multiple sequence alignment 3. Choice of a

Procedure 1. Choice of molecular markers 2. Multiple sequence alignment 3. Choice of a model of evolution 4. Determine a tree building method 5. Assess tree reliability

Choice of molecular markers • Nucleotide or protein sequence data? • NA sequences evolve

Choice of molecular markers • Nucleotide or protein sequence data? • NA sequences evolve more rapidly. • They can be used for studying very closely related organisms. • E. g. , for evolutionary analysis of different individuals within a population, noncoding regions of mt. DNA are often used. • Evolution of more divergent organisms – either slowly evolving NA (e. g. , r. RNA) or protein sequences. • Deepest level (e. g. , relatioships between bacteria and eukaryotes) – conserved protein sequences • NA sequences: good if sequences are closely related, reveal synonymous/nonsynonymous substitutions

Positive and negative selection •

Positive and negative selection •

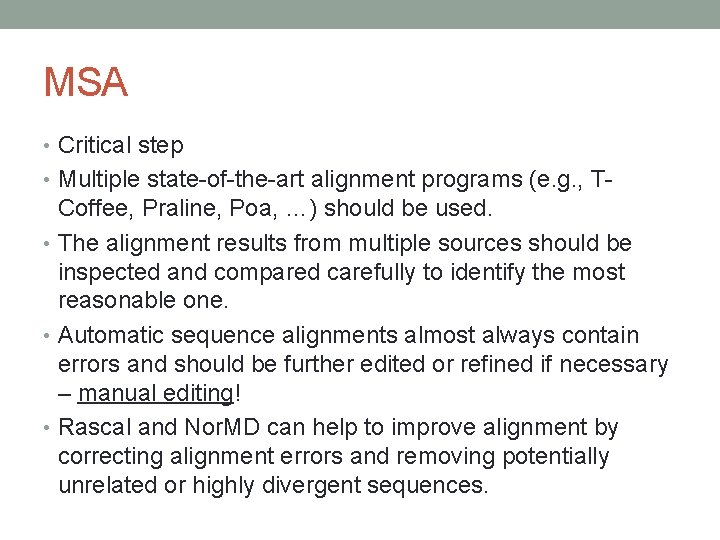

MSA • Critical step • Multiple state-of-the-art alignment programs (e. g. , T- Coffee,

MSA • Critical step • Multiple state-of-the-art alignment programs (e. g. , T- Coffee, Praline, Poa, …) should be used. • The alignment results from multiple sources should be inspected and compared carefully to identify the most reasonable one. • Automatic sequence alignments almost always contain errors and should be further edited or refined if necessary – manual editing! • Rascal and Nor. MD can help to improve alignment by correcting alignment errors and removing potentially unrelated or highly divergent sequences.

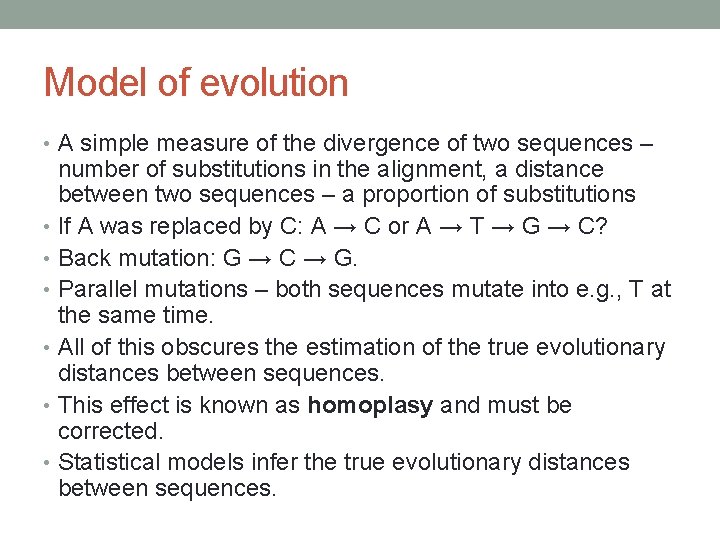

Model of evolution • A simple measure of the divergence of two sequences –

Model of evolution • A simple measure of the divergence of two sequences – number of substitutions in the alignment, a distance between two sequences – a proportion of substitutions • If A was replaced by C: A → C or A → T → G → C? • Back mutation: G → C → G. • Parallel mutations – both sequences mutate into e. g. , T at the same time. • All of this obscures the estimation of the true evolutionary distances between sequences. • This effect is known as homoplasy and must be corrected. • Statistical models infer the true evolutionary distances between sequences.

Model of evolution •

Model of evolution •

Models of amino acids substitutions •

Models of amino acids substitutions •

Among site variations • Up to now we have assumed that different positions in

Among site variations • Up to now we have assumed that different positions in a sequence are assumed to be evolving at the same rate. • However, in reality is may not be true. • In DNA, the rates of substitution differ for different codon positions. 3 rd codon mutates much faster. • In proteins, some AA change much more rarely than others owing to functional constraints. • It has been shown that there always a proportion of positions in a sequence dataset that have invariant rates and a proportion that have more variable rates. • The distribution of variant sites follows a Gamma distribution pattern.

Gamma distribution

Gamma distribution

Tree building methods • Two major categories. • Distance based methods. • Based on

Tree building methods • Two major categories. • Distance based methods. • Based on the amount of dissimilarity between pairs of sequences, computed on the basis of sequence alignment. • Characters based methods. • Based on discrete characters, which are molecular sequences from individual taxa.

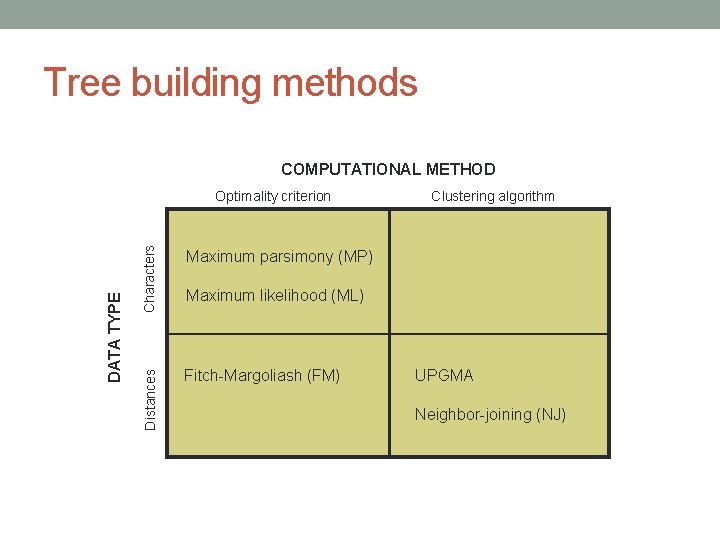

Tree building methods COMPUTATIONAL METHOD Characters Maximum parsimony (MP) Distances DATA TYPE Optimality criterion

Tree building methods COMPUTATIONAL METHOD Characters Maximum parsimony (MP) Distances DATA TYPE Optimality criterion Fitch-Margoliash (FM) Clustering algorithm Maximum likelihood (ML) UPGMA Neighbor-joining (NJ)

Distance based methods • Calculate evolutionary distances d. AB between sequences using some of

Distance based methods • Calculate evolutionary distances d. AB between sequences using some of the evolutionary model. • Construct a distance matrix – distances between all pairs of taxa. • Based on the distance scores, construct a phylogenetic tree. • clustering algorithms – UPGMA, neighbor joining (NJ) • optimality based – Fitch-Margoliash (FM), minimum evolution (ME)

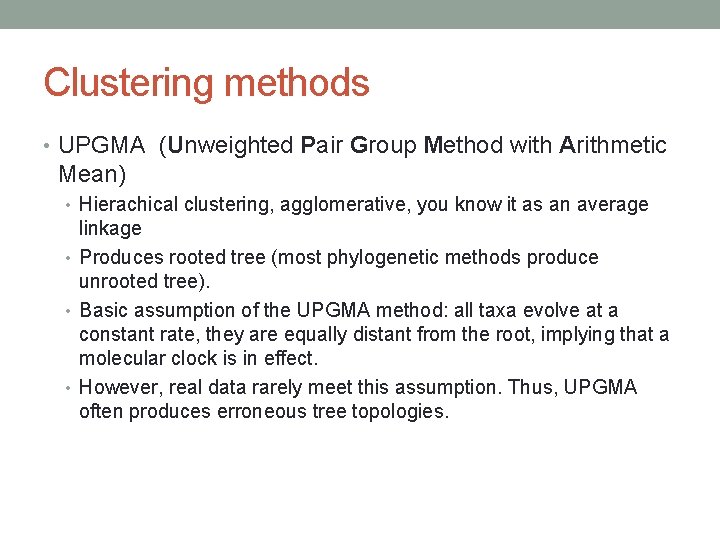

Clustering methods • UPGMA (Unweighted Pair Group Method with Arithmetic Mean) • Hierachical clustering,

Clustering methods • UPGMA (Unweighted Pair Group Method with Arithmetic Mean) • Hierachical clustering, agglomerative, you know it as an average linkage • Produces rooted tree (most phylogenetic methods produce unrooted tree). • Basic assumption of the UPGMA method: all taxa evolve at a constant rate, they are equally distant from the root, implying that a molecular clock is in effect. • However, real data rarely meet this assumption. Thus, UPGMA often produces erroneous tree topologies.

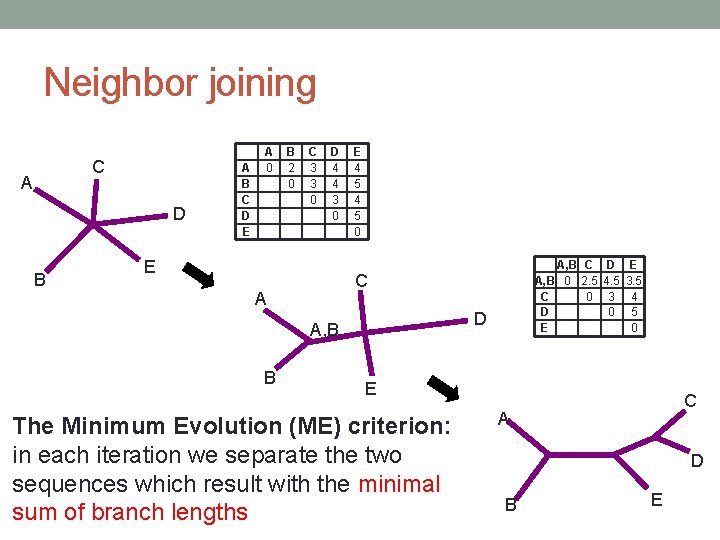

Neighbor joining C A D B A B C D E A 0 B

Neighbor joining C A D B A B C D E A 0 B 2 0 C 3 3 0 D 4 4 3 0 E E 4 5 0 C A D A, B B A, B C A, B 0 2. 5 C 0 D E D 4. 5 3 0 E 3. 5 4 5 0 E The Minimum Evolution (ME) criterion: in each iteration we separate the two sequences which result with the minimal sum of branch lengths C A D B E

Optimality based methods • Clustering methods produce a single tree. • There is no

Optimality based methods • Clustering methods produce a single tree. • There is no criterion in judging how this tree is compared to other alternative trees. • Optimality based methods have a well-defined algorithm to compare all possible tree topologies and select a tree that best fits the actual evolutionary distance matrix.

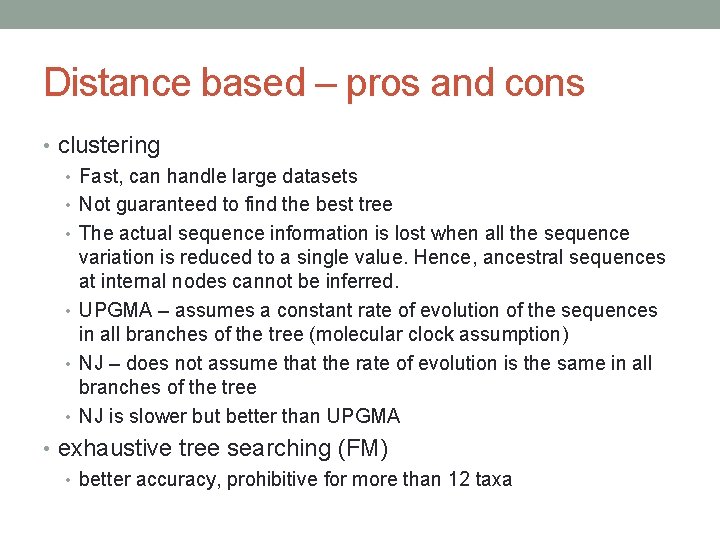

Distance based – pros and cons • clustering • Fast, can handle large datasets

Distance based – pros and cons • clustering • Fast, can handle large datasets • Not guaranteed to find the best tree • The actual sequence information is lost when all the sequence variation is reduced to a single value. Hence, ancestral sequences at internal nodes cannot be inferred. • UPGMA – assumes a constant rate of evolution of the sequences in all branches of the tree (molecular clock assumption) • NJ – does not assume that the rate of evolution is the same in all branches of the tree • NJ is slower but better than UPGMA • exhaustive tree searching (FM) • better accuracy, prohibitive for more than 12 taxa

Character based methods • Also called discreet methods • Based directly on the sequence

Character based methods • Also called discreet methods • Based directly on the sequence characters • They count mutational events accumulated on the sequences and may therefore avoid the loss of information when characters are converted to distances. • Evolutionary dynamics of each character can be studied • Ancestral sequences can also be inferred. • The two most popular character-based approaches: maximum parsimony (MP) and maximum likelihood (ML) methods.

Maximum parsimony • Based on Occam’s razor. • William of Occam, 13 th century.

Maximum parsimony • Based on Occam’s razor. • William of Occam, 13 th century. • The simplest explanation is probably the correct one. • This is because the simplest explanation requires the fewest assumptions and the fewest leaps of logic. • A tree with the least number of substitutions is probably the best to explain the differences among the taxa under study.

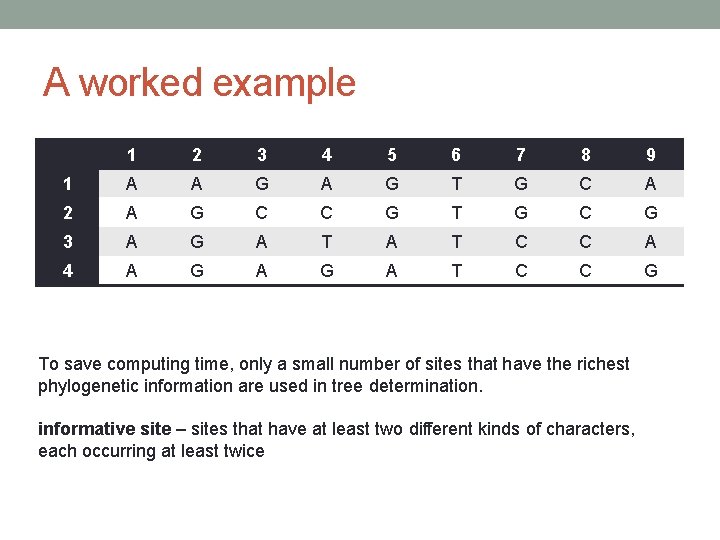

A worked example 1 2 3 4 5 6 7 8 9 1 A

A worked example 1 2 3 4 5 6 7 8 9 1 A A G T G C A 2 A G C C G T G C G 3 A G A T C C A 4 A G A T C C G To save computing time, only a small number of sites that have the richest phylogenetic information are used in tree determination. informative site – sites that have at least two different kinds of characters, each occurring at least twice

A worked example 1 2 3 4 5 6 7 8 9 1 A

A worked example 1 2 3 4 5 6 7 8 9 1 A A G T G C A 2 A G C C G T G C G 3 A G A T C C A 4 A G A T C C G To save computing time, only a small number of sites that have the richest phylogenetic information are used in tree determination. informative site – sites that have at least two different kinds of characters, each occurring at least twice

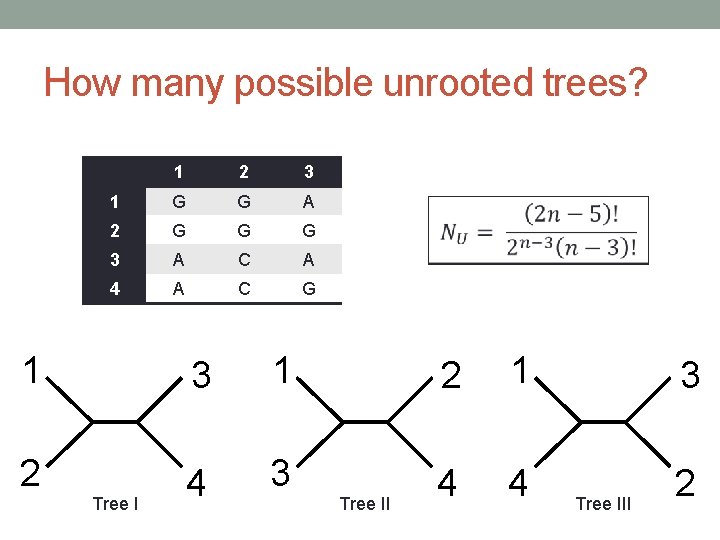

How many possible unrooted trees? 1 2 3 1 G G A 2 G

How many possible unrooted trees? 1 2 3 1 G G A 2 G G G 3 A C A 4 A C G 1 3 1 2 1 3 2 4 3 4 4 2 Tree III

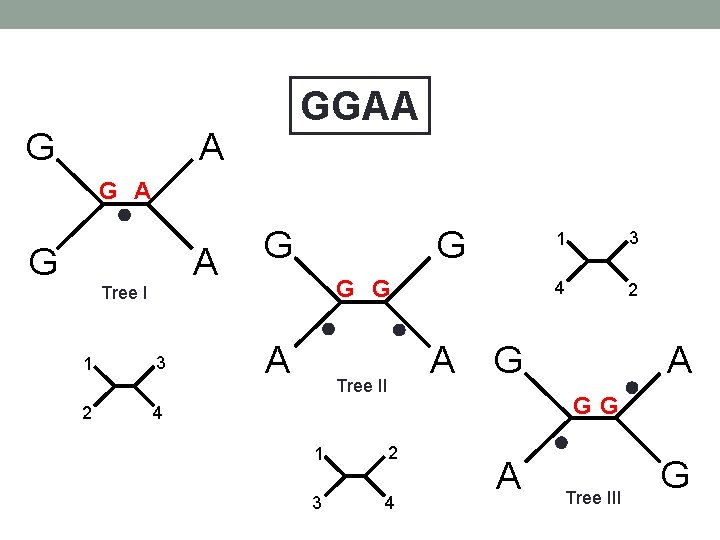

G GGAA A G A Tree I 1 2 3 G G A Tree

G GGAA A G A Tree I 1 2 3 G G A Tree II 2 3 4 2 A GG 4 1 1 A Tree III G

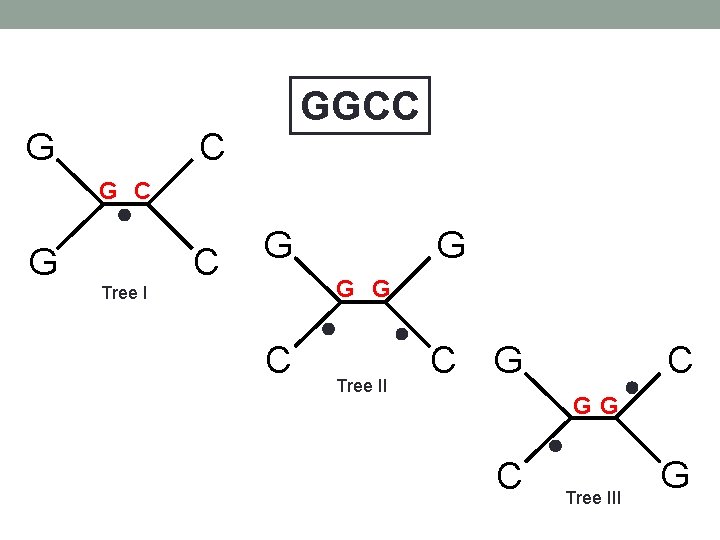

G GGCC C G Tree I C G G C Tree II C GG

G GGCC C G Tree I C G G C Tree II C GG C Tree III G

A AGAG A A A G Tree I G A G A Tree II

A AGAG A A A G Tree I G A G A Tree II G A A GG G Tree III G

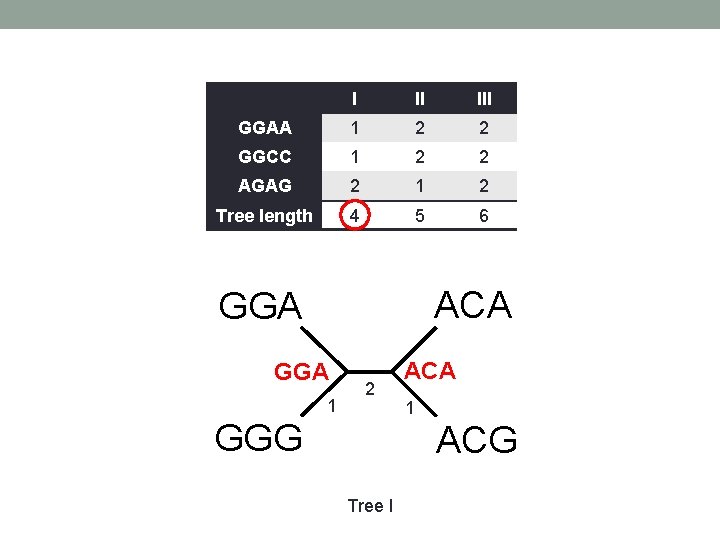

I II III GGAA 1 2 2 GGCC 1 2 2 AGAG 2 1

I II III GGAA 1 2 2 GGCC 1 2 2 AGAG 2 1 2 Tree length 4 5 6 ACA GGA 1 2 GGG ACA 1 ACG Tree I

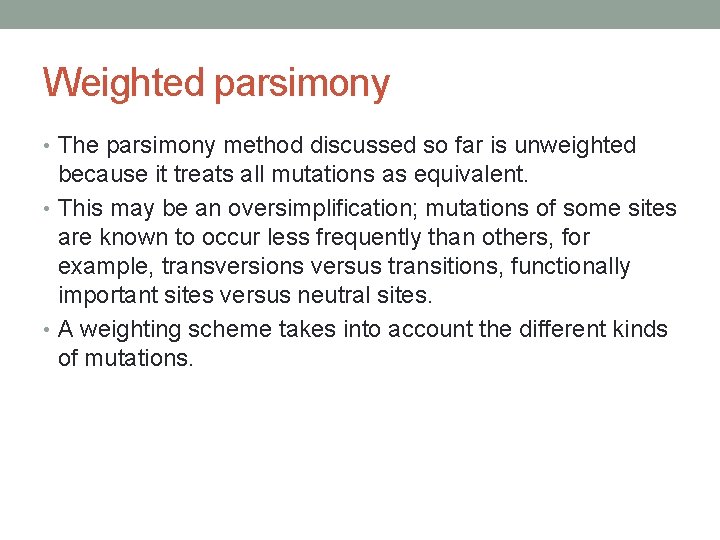

Weighted parsimony • The parsimony method discussed so far is unweighted because it treats

Weighted parsimony • The parsimony method discussed so far is unweighted because it treats all mutations as equivalent. • This may be an oversimplification; mutations of some sites are known to occur less frequently than others, for example, transversions versus transitions, functionally important sites versus neutral sites. • A weighting scheme takes into account the different kinds of mutations.

Branch-and-bound • The parsimony method examines all possible tree topologies to find the maximally

Branch-and-bound • The parsimony method examines all possible tree topologies to find the maximally parsimonious tree. • This is an exhaustive search method, expensive. • N = 10 … 2 027 025 • N = 20 … 2. 22 × 1020 • Branch-and-bound • Rationale: a maximally parsimonious tree must be equal to or shorter than the distance-based tree. • First build a distance tree using NJ or UPGMA. • Compute the minimum number of substitutions for this tree. • The resulting number defines the upper bound to which any other trees are compared. • I. e. , when you build a parsimonous tree, you stop growing it when its length exceeds the upper bound.

Heuristic methods • When a number of taxa exceeds 20, even branch-and- bound becomes

Heuristic methods • When a number of taxa exceeds 20, even branch-and- bound becomes computationally unfeasible. • Then, heuristic search can be applied. • Both exhaustive search and branch-and-bound methods lead to the optimum tree. • Heuristic search leads to the suboptimum tree (compare to BLAST which is also heuristic).

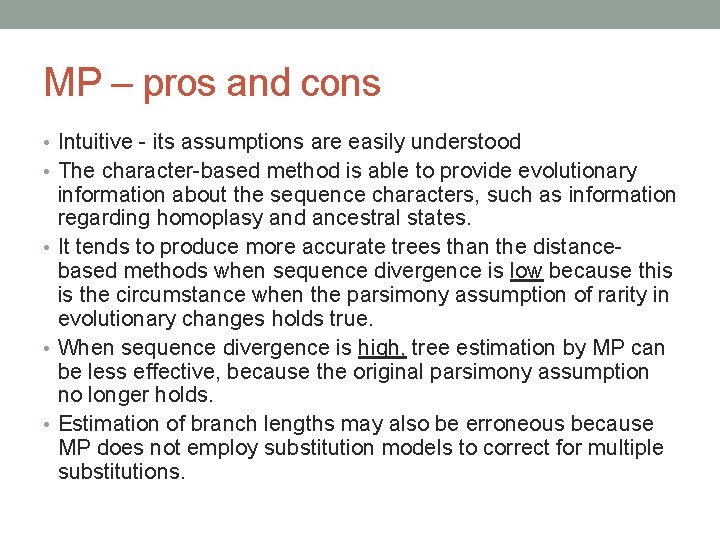

MP – pros and cons • Intuitive - its assumptions are easily understood •

MP – pros and cons • Intuitive - its assumptions are easily understood • The character-based method is able to provide evolutionary information about the sequence characters, such as information regarding homoplasy and ancestral states. • It tends to produce more accurate trees than the distancebased methods when sequence divergence is low because this is the circumstance when the parsimony assumption of rarity in evolutionary changes holds true. • When sequence divergence is high, tree estimation by MP can be less effective, because the original parsimony assumption no longer holds. • Estimation of branch lengths may also be erroneous because MP does not employ substitution models to correct for multiple substitutions.

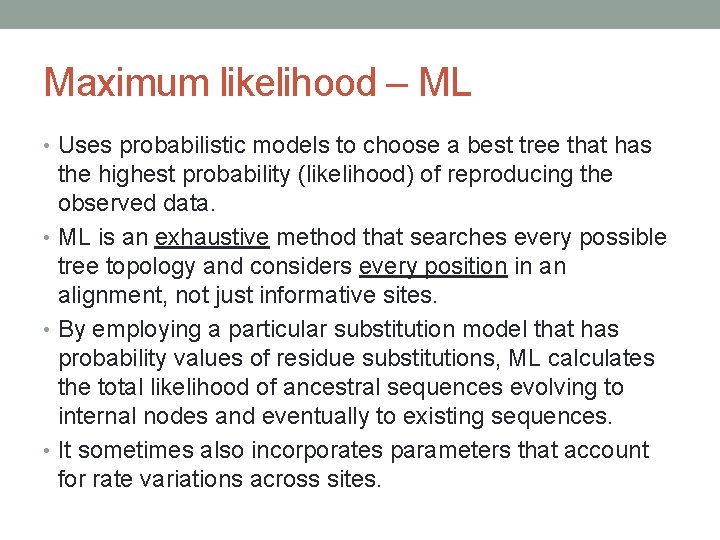

Maximum likelihood – ML • Uses probabilistic models to choose a best tree that

Maximum likelihood – ML • Uses probabilistic models to choose a best tree that has the highest probability (likelihood) of reproducing the observed data. • ML is an exhaustive method that searches every possible tree topology and considers every position in an alignment, not just informative sites. • By employing a particular substitution model that has probability values of residue substitutions, ML calculates the total likelihood of ancestral sequences evolving to internal nodes and eventually to existing sequences. • It sometimes also incorporates parameters that account for rate variations across sites.

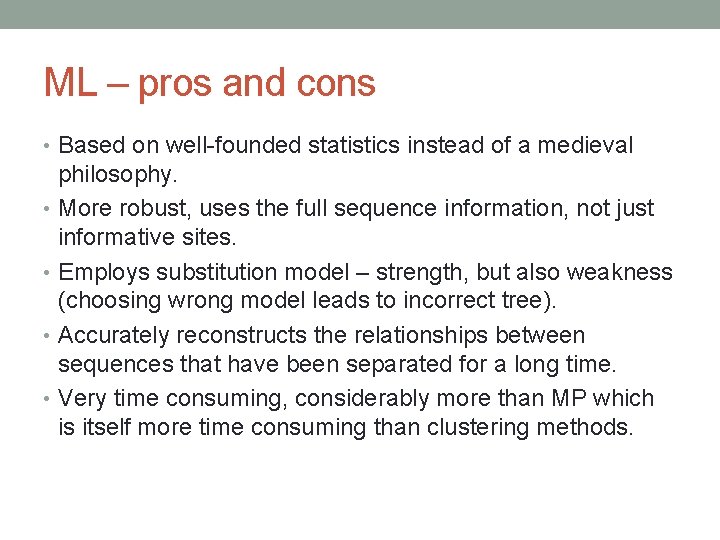

ML – pros and cons • Based on well-founded statistics instead of a medieval

ML – pros and cons • Based on well-founded statistics instead of a medieval philosophy. • More robust, uses the full sequence information, not just informative sites. • Employs substitution model – strength, but also weakness (choosing wrong model leads to incorrect tree). • Accurately reconstructs the relationships between sequences that have been separated for a long time. • Very time consuming, considerably more than MP which is itself more time consuming than clustering methods.

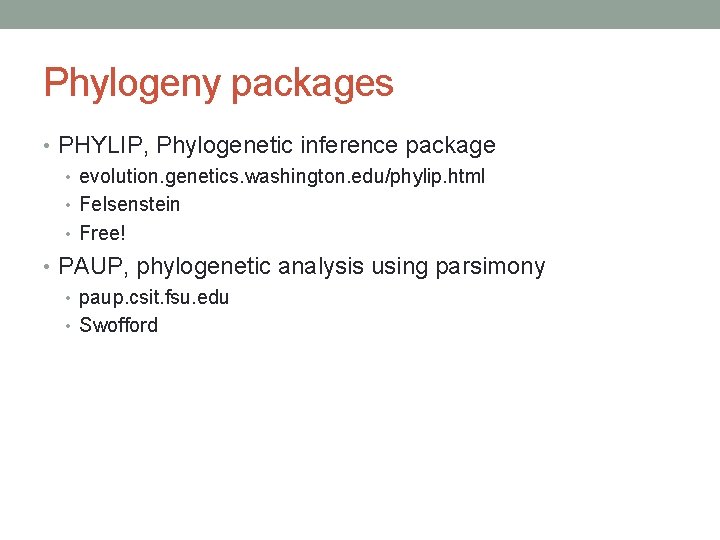

Phylogeny packages • PHYLIP, Phylogenetic inference package • evolution. genetics. washington. edu/phylip. html •

Phylogeny packages • PHYLIP, Phylogenetic inference package • evolution. genetics. washington. edu/phylip. html • Felsenstein • Free! • PAUP, phylogenetic analysis using parsimony • paup. csit. fsu. edu • Swofford
