PHOTOELECTRON SPECTROSCOPY

Spectroscopy uses interaction of electromagnetic radiation with matter to learn something about the matter. Characteristics of absorbed, emitted or scattered electromegnetic radiation are measured Photoelectron spectroscopy is entirely different! Kinetic energies of the ionized electrons are monitored It is an extension of PHOTOELECTRIC EFFECT

Photoelectric Effect Ionization occurs when matter interacts with light of sufficient energy (Heinrich Hertz, 1886) (Einstein, A. Ann. Phys. Leipzig 1905, 17, 132 -148. ) e- e- e- hn Ehn = electron kinetic energy + electron binding energy Photoelectron spectroscopy uses this phenomenon to learn about the electronic structure of matter

Ionization continuum Virtual orbitals (empty) E N E R G Y hn = I. E + K. E PHOTO IONIZATION PHOTO EXCITATION Valence level (partially filled) Core level (completely filled) Excitation and Photoionization Processes from Core & Valence level

Photoelectron spectroscopy is based on Einstein's photoelectric effect. A photon can ionize an electron from a molecule if the photon has an energy greater than the energy holding the electron in the molecule. Any photon energy in excess of that needed for ionization is carried by the outgoing electron in the form of kinetic energy.

OR OR

INSTRUMENTATION UV P. E. S. He(I) - 21. 22 ev. Ar (I), He (II) XPS Mg Ka – 1253. 6 ev Al Ka – 1486. 6 ev

P. E. S. of Molecules Electron signal Counts/s secsecec • Spectrum consists of bands, corresponding to ionizations from individual orbitals. • Bands may have a single peak or consist of a series of peaks (fine structure), arising from excitations to the various vibrational-rotational states of the ion, M+. (Usually, only vibrational fine structure is resolved. ) • Spin-orbital coupling (producing two distinct J values and corresponding energies) or Jahn-Teller effects (causing splitting of degenerate states) can cause additional band splitting.

Molecular Ionization from a Non-Bonding MO Ionization from a non-bonding M. O. does not change bond length, so the vertical transition is the adiabatic transition, M(v = 0) to M+ (v' = 0). P. E. S. bands for ionizations from nonbonding M. O. s tend to have little or no vibrational fine structure.

Molecular Ionization from a Bonding MO Ionization from a bonding or antibonding M. O. causes a change in bond length in the ion M+, compared to the bond length in M. • The vertical transition is to an M+ vibrational state v' > 0 with maximum wave-function overlap at the same internuclear separation as the normal bond length of the neutral molecule, M. (Not the adiabatic transition). • Transitions to other v' states are possible with lesser probability, resulting in vibrational fine structure on the ionization band. The frequency separations between the vibrational peaks can be used to calculate the vibrational frequency of the ion, M+. P. E. S. bands for ionizations from bonding or antibonding M. O. s tend to have pronounced vibrational fine structure.

Ionizations as State-to-State Transitions Possible ionizations may be viewed as state-to-state transitions. • Adiabatic Transition - Transition from M in v = 0 to M+ in v' = 0. • Vertical Transition - Transition without change in bond length (Franck. Condon Principle).

MO diagram & Photoelectron spectrum of H 2 PES of H – atom one peak at 13. 60 ev 1 S 1 S H + hn H+ + e 1 S 1 + hn 1 S 0 + e. PES of H 2 15. 45 ev to 18 ev H 2 (sgb)2 + hn H 2+ (sgb)1 + e- (sgb)2 electrons are more stable than 1 S 1 electron of H-atom First Peak at 15. 45 ev n=0 of H 2 to n’ = 0 of H 2+ so Adiabetic Ionization Energy Most Intense Peak n=0 of H 2 to n’ = 2 of H 2+ so Vertical Ionization Energy

MO diagram & Photo Electron Spectrum of O 2. One e- M. O Ionic electronic state PES peak (ev) n’ = 0 to n’ = 1 of n. O 2+ (vibrational spacing, cm-1) Nature of orbital Pg 2 p 2 P g 12. 10 1780 Antibonding Pu 2 p 4 P 2 u , Pu 1010 Bonding sg 2 p 16. 26 17. 7 4 S g 18. 18 1090 Bonding 2 S g 20. 3 1130 Bonding Vibrational frequency of O 2 = 1568 cm-1

3 sg (p) 1 Pu 1 Pg O 2 ground state O 2+ 3 sg (p) quartet spin down e- ionized 4 Sg O 2+ 3 sg (p) doublet spin up e- ionized 2 Sg 3 sg (p) 1 Pu 1 Pg O 2 ground state O 2+ 1 Pu quartet spin down e- ionized 4 Pu O 2+ 1 Pu doublet spin up e- ionized 2 Pu

MO diagram & Photoelectron spectrum of N 2 Koopman’s Theoram Most widely used approximation IEn = - En Valid for one e- atoms For multi electron atoms & molecules, “frozen orbital” approximation Still valid provided the orbitals in the ionized molecule are unchanged from those of the neutral molecules Quantum mechanical calculations – The order of energies of orbitals (2 sg)2 (2 su)2 (3 sg)2 (1 Pu)4 From PES – The lowest ionic state of N 2+ (2 sg)2 (2 su)2 (1 Pu)4(3 sg)1 The ordering of the orbitals in the ground state Different from that of the molecule ion Breakdown of Koopman’s theoram s-p mixing

s-p mixing Interactions or mixing between 2 s and 2 pz AOs cause a reordering of the MOs. This mixing results in a decrease in energy for MO 1 and MO 2, while MO 3 and MO 6 increase. Hence 2σu and 1πu switch positions (b). This switch is the order that is observed for Li 2 … N 2, while O 2 and F 2 show the order in (a). Mixing between 2 s and 2 pz AOs leads to a new arrangement of MOs (b).

PES peak (ev) n’ = 0 to n’ = 1 of N 2+ n. N 2+ (vibrational spacing, cm-1) Nature of orbital g 15. 57 2150 Weakly bonding Pu 2 p 2 P u 16. 96 1810 Strongly Bonding su 2 s 2 S u 18. 75 2385 Weakly Antibonding One e- M. O Ionic electronic state sg 2 p 2 S Vibrational frequency of N 2 = 2345 cm-1

MO diagram & Photoelectron spectrum of F 2 1 pg 1 pu 3 sg 1 pg band shows vibrational fine structure Increase in n F 2+ - antibonding Same orbital energy sequence as that of O 2 1 pg 1 pu 3 sg

MO diagram & Photoelectron spectrum of CO CO is isoelectronic with N 2 PES is similar orbital PES peak (ev) Nature of orbital 3 s 13. 98 Weakly bonding 1 p 16. 58 Strongly Bonding 2 s 19. 67 Weakly Antibonding

MO diagram & Photoelectron spectrum of HF 1 p 2 s 1 s 16 18 20 38 40 42

MO diagram & Photoelectron spectrum of NH 3 3 a 1 10. 88 ev 1 e 16. 0 ev

MO diagram & Photoelectron spectrum of water 1 b 1 3 a 1 orbital PES peak (ev) 1 b 1 12. 61 Nature of orbital non bonding 3 a 1 14. 70 Bonding 1 b 2 18. 60 Bonding 1 b 2

XPS (ESCA) BE of core electrons of atom in sample - BE of core electrons of atom in standard environment

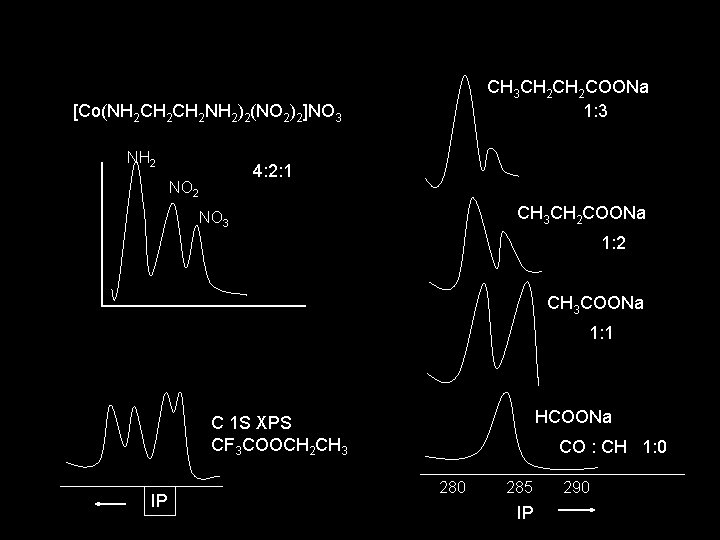

[Co(NH 2 CH 2 NH 2)2(NO 2)2]NO 3 NH 2 CH 3 CH 2 COONa 1: 3 4: 2: 1 NO 2 NO 3 CH 3 CH 2 COONa 1: 2 CH 3 COONa 1: 1 HCOONa C 1 S XPS CF 3 COOCH 2 CH 3 IP CO : CH 1: 0 280 285 290 IP

N 1 S XPS of Na 2 N 2 O 3 _ _ O = N – O – N – O O O = N – N O _ _ _ _ O – N = N- O – O I II III XPS structurally non-equivalent nitrogen atoms MO calculations & detailed BE considerations structure II O R – S – S – R O I II Two sulphur core lines ,

• Elemental Analysis: atoms have valence and core electrons: Corelevel Binding energies provide unique signature of elements. • Quantitative analysis: measure intensities, use standards or tables of sensitivity factor

When atom loses valence charge (Si 0 -> Si 4+ ) BE increases. • When atom gains valence charge (O --> O--) BE decreases.

Auger Electron Spectroscopy KL 1 L 2 Process

Summary • PES is a fairly new technique, continuing to develop • PES has unique features compared to other spectroscopies • Valence spectroscopy: information on bonding • Core spectroscopy: qualitative and quantitative analysis, “chemical shift”

References International series of Monographs, Vol. 53: Photoelectron Spectroscopy, D. Beckerand D. Betteridge Physical Methods for Chemists, Russell S. Drago Electronic Absorption Spectroscopy and Related Techniques D. N. Satyanarayana
