The Galactic Plane at 1420 MHz Shawn Price and Elissa Thorn ST 562 Radio Astronomy for Teachers Summer 2006

HI emission Zeilik & Gregory Figure 15 -2, p 294 1420 MHz is the emission line for the hyperfine transition of neutral hydrogen shown above. We chose this observing band for two primary reasons: the SRT can easily observe at this wavelength, and there are large numbers of neutral hydrogen atoms in the clouds of interstellar material in our galaxy.

Galactic Motion Zeilik & Gregory Figure 148, p 280 • Shifted spectral lines imply motion of the source and/or observer. • Mapping the motion of points in our galaxy provides clues to large scale motion. • Points along the galactic disk should show the most pronounced velocities.

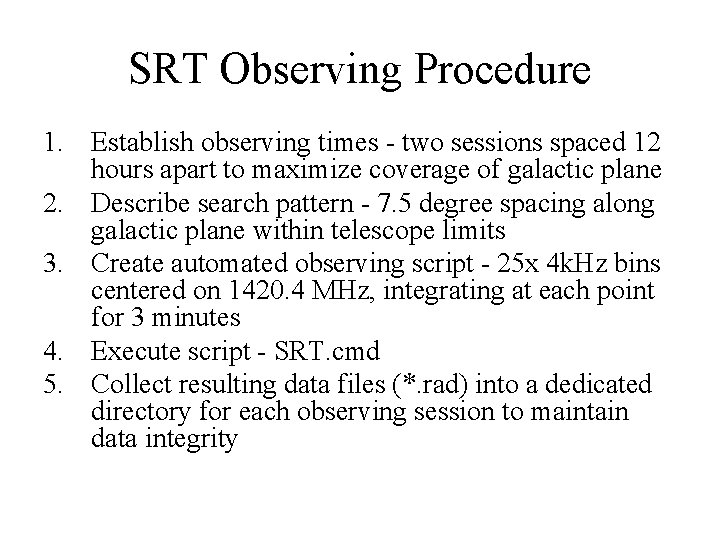

SRT Observing Procedure 1. Establish observing times - two sessions spaced 12 hours apart to maximize coverage of galactic plane 2. Describe search pattern - 7. 5 degree spacing along galactic plane within telescope limits 3. Create automated observing script - 25 x 4 k. Hz bins centered on 1420. 4 MHz, integrating at each point for 3 minutes 4. Execute script - SRT. cmd 5. Collect resulting data files (*. rad) into a dedicated directory for each observing session to maintain data integrity

Data Reduction We began by graphing intensity vs. frequency for each point observed. We then placed a linear trend on the graph to approximate the noise in the signal. The second graph shows the observed data with this trend line subtracted.

Graph of data for all observed longitudes (337. 5 -240)

Local Standard of Rest (LSR) Zeilik & Gregory Figure 19 -9, p 387

Expected Velocity vs. Longitude

Turning our frequency data into velocities: • Doppler Shift • LSR Correction • Equation: Vrad = {[(νo – ν) / νo] * c} – VLSR = {[(1420. 4 MHz - ν)/1420. 4 MHz]*3*105 km/s )-VLSR

Observed Velocity vs. Longitude

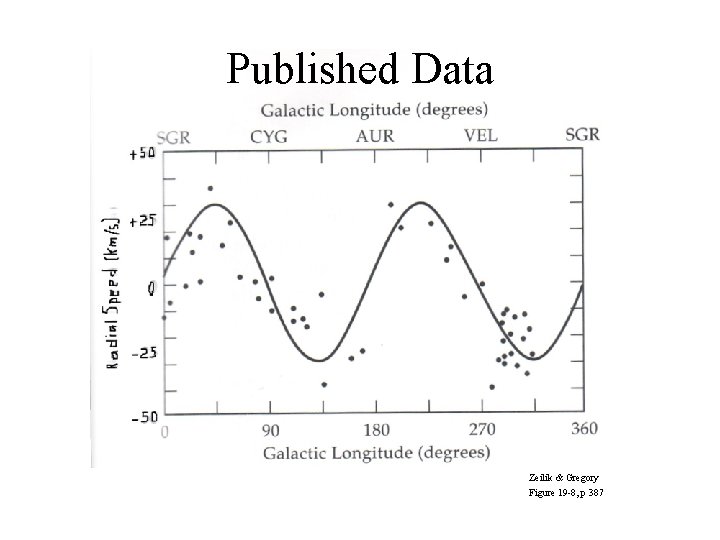

Published Data Zeilik & Gregory Figure 19 -8, p 387

Our Data

Conclusions • Some galactic structure was evident in our data • The structure observed, albeit rough, resembles that noted in published sources • The SRT is indeed an adequate instrument for basic exploration of HI emission phenomena

Refinements 1. We see evidence of relatively fine scale structure in the data we collected; it would be productive to explore this using a more closely spaced search pattern and finer frequency gradations across a wider frequency range. 2. It would be interesting to augment our data with that from similar observations at other latitudes, allowing us to fill in areas of the galactic plane that cannot be observed from our site.

Extensions 1. All points covered by our observations were on the galactic plane. It would be interesting to expand the observations to include points at latitudes other than zero, allowing us to further explore the structure we observed in two dimensions. 2. Comparing our HI data to data collected at other wavelengths might allow the structure we observed at 1420 MHz to be connected to features observed in infrared, optical, etc. 3. Galactic rotation curve information could be calculated from our data (although we would need to repeat our work with refinement #1 in place in order to get reasonable results).

Obtaining a Galactic Rotation Curve Zeilik & Gregory Figure 20 -2, p 394

Illustration by R. Hurt http: //antwrp. gsfc. nasa. gov/apod/ap 050825. html

Rotation Curves for Simple Models • Kepler’s Law: rapid drop in V as D increases (1/D 2) • Solid body rotation: linear increase in V as D increases

Observed Galactic Rotation Curve Zeilik & Gregory Figure 19 -10, p 388 • The Milky Way exhibits differential rotation (not solid body), but not Keplerian! • There must be a lot of mass beyond the Sun’s orbit. (Dark matter!)

http: //antwrp. gsfc. nasa. gov/apod/ap 050104. html

Helpful Resources MIT. "Measurement of Galactic Rotation Curve, " lab exercise. MIT Haystack Observatory. <http: //www. haystack. mit. edu/undergrad/srt/SRT%20 Projects/index. html>. Murphy, Ed. "VLSR Calculator V 1. 0. " Johns Hopkins University. <http: //fuse. pha. jhu. edu/support/tools/vlsr. html>. NASA/IPAC. "Coordinate Transformation & Galactic Extinction Calculator. " Jet Propulsion Lab. , Calif. Institute of Tech. <http: //nedwww. ipac. caltech. edu/forms/calculator. html>. Nemiroff, Robert and Jerry Bonnell. "Astronomy Picture of the Day. " Jay Norris. NASA. <http: //antwrp. gsfc. nasa. gov/apod/astropix. html>. NEROC Haystack Obs. Undergrad. Research Initiative. "Small Radio Telescope Operator's Manual. " MIT Haystack Observatory. <http: //www. haystack. mit. edu/undergrad/srt/SRT%20 Software/SRTManual. pdf>. Zeilik, Michael and Stephen A. Gregory. Introductory Astronomy and Astrophysics. 4 th ed. Fort Worth: Saunders College Publishing, 1998.
