Studio SOA & HPC Da modelagem de APIs ao Big Data Web design Graphic design 3 D modeling 6

Felipe Oliveira @scaphe | felipe. oliveira@soaexpert. com. br 8

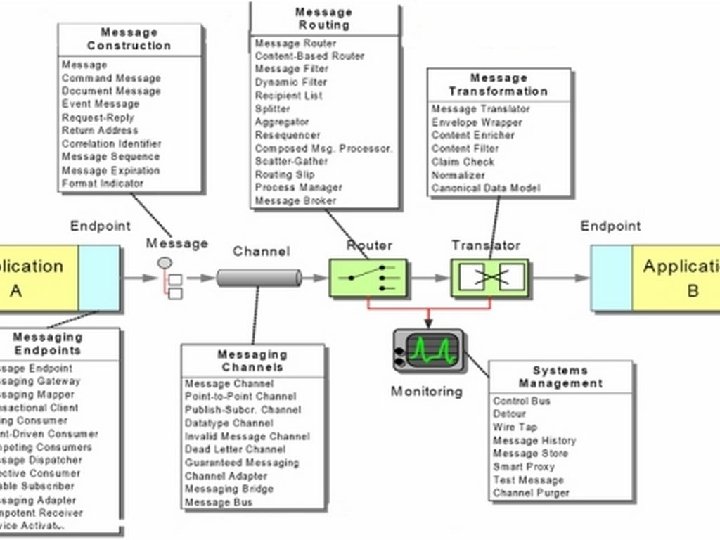

I <3 Patterns 12

Leia o livro ! 12

Case 3: Notas, Itens, Clientes… Magazine Luiza Correlacionando Tudo. 12

Rascunho da solução: 12

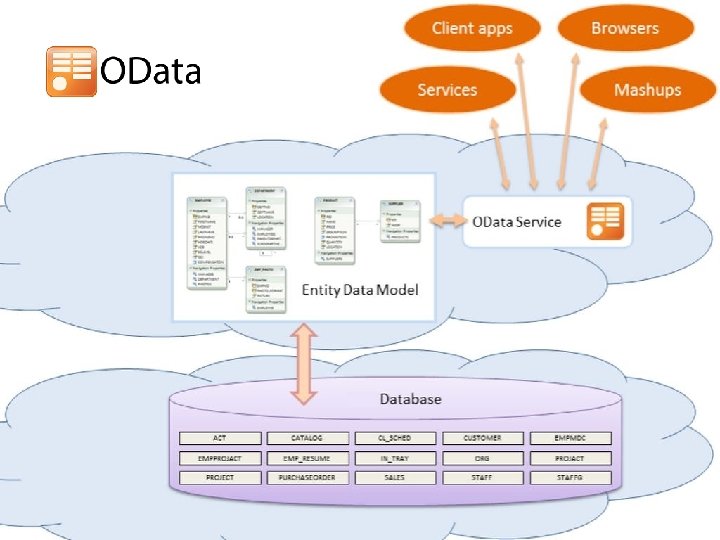

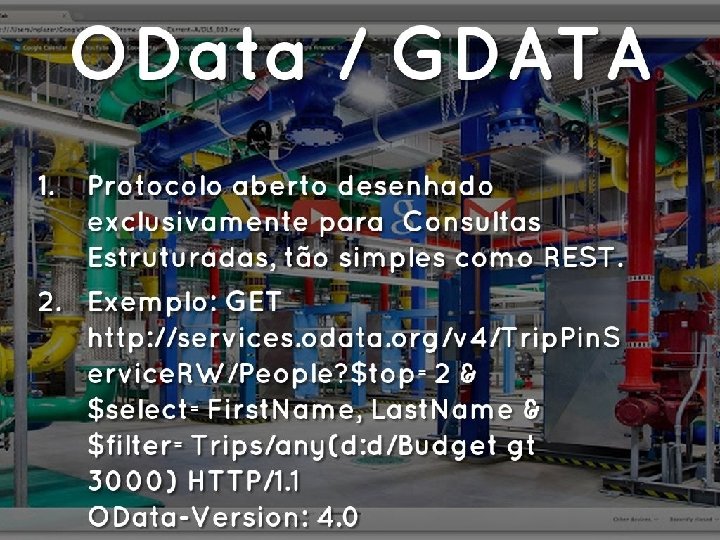

Exemplos SQL Query OData Request select * from products where id = 1 /Products(1) select * from products where name = ‘Milk’ /Products? $filter=name eq ‘Milk’ select name from products /Products? $select=name select * from products order by name /Products? $orderby=name select * from products offset 10 limit 10 /Products? $top=10&$skip=10 select * from prices r, products p where r. id = p. id /Products(1)? $expand=Prices

Filters /Categories? $filter=Name eq ‘Dairy’ Logical Operators eq ne gt ge lt le eq or and Arithmetic Operators add sub mul div mod Parenthesis Operator () Canonical Functions

Formato /Categories? $format=json atom json xml (Ou qualquer outro formato que você defina. ) *

Metadata <edmx: Edmx Version="1. 0" xmlns: edmx="http: //schemas. microsoft. com/ado/2007/06/edmx"> <edmx: Data. Services xmlns: m="http: //schemas. microsoft. com/ado/2007/08/dataservices/metadata" m: Data. Service. Version="1. 0"> <Schema Namespace="Northwind. Model" xmlns: d="http: //schemas. microsoft. com/ado/2007/08/dataservices" xmlns: m="http: //schemas. microsoft. com/ado/2007/08/dataservices/metadata" xmlns="http: //schemas. microsoft. com/ado/2008/09/edm"> <Entity. Type Name="Category"> <Key> <Property. Ref Name="Category. ID" /> </Key> <Property Name="Category. ID" Type="Edm. Int 32" Nullable="false" p 8: Store. Generated. Pattern="Identity" xmlns: p 8="http: //schemas. microsoft. com/ado/2009/02/edm/annotation" /> <Property Name="Category. Name" Type="Edm. String" Nullable="false" Max. Length="15" Unicode="true" Fixed. Length="false" /> <Property Name="Description" Type="Edm. String" Nullable="true" Max. Length="Max" Unicode="true" Fixed. Length="false" /> </Entity. Type> </Schema> </edmx: Data. Services> </edmx: Edmx>

Content Management • Maior parte das grandes organizações possuem múltiplas soluções ECM • Não há padrão entre os sistemas ECM • As APIs são proprietárias, o que eleva o skill set da equipe • Linguagens de Query proprietárias • Dependendes de plataforma e linguagens: Java, NET • Difícil e caro de implementar. . .

CMIS Ajuda a definir ● CMIS Define: ● Modelos e. g. Tipos, Relações ● Padronização da Query Language ● Protocolos Bindings ex: REST, Web Services ● Services ex: Check out/in, versionamento

Entendendo CMS

Exemplos de Queries • SELECT * FROM cmis: document • SELECT cmis: Name FROM cmis: folder • SELECT cmis: Name FROM cmis: document WHERE IN_TREE(‘soaexpert’) • SELECT cmis: Object. Id, cmis: Object. Type. Id, cmis: Name FROM cmis: folder. QCON

Streams API Consumindo: Produzindo: XMLHttp. Request Web Audio Media Source Extensions Web Cryptography API Text. Encoder Text. Decoder Web. Sockets RTCPeer. Connection File. Writer XMLHttp. Request File. Reader Media Capture Media. Stream Recording API Indexed Database Web Cryptography API Text. Encoder Text. Decoder Web. Sockets Event. Source RTCPeer. Connection
