Phosphorous Organic Phosphorous Components of soil organic matter

Phosphorous

Organic Phosphorous Components of soil organic matter and plant tissue Phosphate sugars Nucleic Acids (DNA/RNA) ATP Phospholipids ATP

Importance Essential Macronutrient Limiting Resource Present in Fertilizers, animal wastes, wastewater Availability can be very limited

Fertility -Total soil phosphorous is low -Most of the total is unavailable to plants -Much of soil P forms insoluble solids (limiting to availability) 10 -15% of applied fertilizer phosphorous used by plants 85 – 90% is bound to soil particles or forms insoluble solids =>excess application =>saturation of soil capacity => mobility in the environment

Unimpacted P-impacted

Soil Phosphorous Inorganic PO 4 -3 (Orthophosphate) H 3 PO 4 H 2 PO 4 - HPO 4 -2 The form of available phosphorus is p. H-dependent

Plant Availablity H 2 PO 4 p. H 3 -6 - Most Available p. H 6 -8 HPO 4 -2 p. H 8 -11 Optimum p. H = 6. 5 for mineral soils

Acidic Soils

Acid Soils (Low p. H) Aluminum and Iron availability increased at low p. H Fe. OOH Al(OH)3 Solubility increased Al 3+ Fe 3+ example Al(OH)3 + 3 H+ = Al 3+ + 3 H 2 O

Aluminum Precipitation at Low p. H Form of available P at low p. H: H 2 PO 4 - (p. H 3 -6) H 2 PO 4 - combines with free Al 3+ and Fe 3+ (Insoluble) Al 3+ + H 2 PO 4 - + 2 H 20 = Al(OH)2 H 2 PO 4 + 2 H+ simplified Al 3+ + PO 4 -3 = Al(PO 4) • H 2 O Variscite

Basic Soils (High p. H)

Calcium Binding in Basic Soils Ca. CO 3 (higher calcium availability) H 2(PO 4)- is the available form of P Ca. CO 3 + 2 H 2(PO 4)- = Ca [H 2(PO 4)]2 + CO 32 Ca. HPO 4 Ca 5(PO 4)3 OH (Apatite mineral)

Availability and p. H Formation of insoluble solids Low p. H Aluminum and Iron phosphates High p. H Calcium Phosphates

Reaction with Soil Minerals

Fixation on Iron and Aluminum A dominant interaction between Phosphorus and soils is strong interaction with Iron and Aluminum Oxides OH Al OH Fe OH OH

Fixation: Aluminum/Iron oxides OH OH Fe Fe OH H (PO ) + 2 4 H 2(PO 4)FE Fe OH OH + OH-

OH O- Fe OH + Fe O- P OH OH O- O- P Fe Fe OH OH OH

Coatings on Sands and Silicate Clays OH Fe H 2(PO 4)Fe OH Fe coating

Organic Matter Organic matter does not typically bind strongly with phosphorus. Organic matter covers fixation sites Organic matter reacts with free Fe and Al Organic matter competes for anion exch. sites Organic Matter tends to increase P availability

Inorganic Soil Phosphorous Inorganic -Plant Available H 2 PO 4 - HPO 4 -2 (low) -Fe, Al bound -Calcium bound - Fixed on oxides Al(PO 4) • H 2 O Ca 3(PO 4)2 H 2 PO 4 - Phosphorus is generally removed from solution by soil processes These processes have a finite capacity to retain phosphorus When the capacity is exceeded, phosphorus can become mobile.

South Florida and Phosphorus

Historic Flow Patterns Okeechobee and the Everglades Historic flow patterns in the Kissimmee – Okeechobee – Everglades system has been significantly altered, beginning in the late 1800’s. The design was to drain significant areas for agriculture and development and to prevent floodwaters from communities to the south and east.

Development

First Survey 1835 Buckingham Smith "The first and most abiding impression is the utter worthlessness to civilized man, in its present condition, of the entire region. " In 1850, the Swamplands Act Passed Transferred 20 million aces to FL for drainage and reclamation Population: 87, 445

1881 11 miles (17. 7 km) of canal south of Lake Okeechobee towards Miami. Hamilton Disston Okeechobee north to Kissimmee and west to the Gulf of Mexico. 50, 000 acres drained

1904 Broward Elected “pestilence-ridden swamp” Empire of the Everglades

1905 Everglades Drainage District Authorized Canals, taxes By 1920, 4 major canal systems linked Okeechobee to the Atlantic,

Began in 1881 By 1920

Melaleuca Tree 1906 Invasive ornamental 6 -12 ft. growth per year displaces native vegetation 359, 000 acres

Florida East Coast Railway WWI 1914 -1918 Tamiami Trail 1911 Flagler 1928

1928 Belle Glade Hurricane 135 mph winds 20 -foot deep floodwaters South of Okeechobee 3000 to 8000 dead

After the storm Hoover Dike 19 water control structures 45 feet high and 150 feet wide 143 miles of levee

Drainage Former extent of Kissimmee Basin and floodplain Hoover Dike (1932) Everglades Agricultural Area (EAA) Perimeter Levee (1954) Water Conservation Areas (management of flow) To Atlantic To Gulf

Historic Current EAA

Phosphorus loading to S. Florida Ecosystem Dairy/Beef Inputs North and South of Okeechobee Crop Production Kissimmee Basin

Crops: Everglades Agricultural Area EAA Sugar, Rice, Veg. 700, 000 ac

EAA 1940’s thousands of acres converted to agricultural production 1959 Cuban exiles established sugar plantations 19591960 s Sugar production increased 4 -fold Sugar Today, sugarcane production contributes two-thirds of the economic production of Everglades agriculture, and uses nearly 80% of the crop land in the EAA Sugar and vegetable production contributes phosphorus to the ecosystem primarily through fertilizers and to a lesser extent through decomposition of plants. 382, 000 acres 46% U. S. Palm Beach, Glades, Hendry

Phosphorus Fertilization (lbs/ac) V. High Soil P Low Soil P Celery 260 200 140 80 20 0 0 Endive 200 175 150 125 100 75 50 25 0 Lettuce (Head) 200 175 150 125 100 75 50 25 0 Radish 100 40 0 0 0 Romaine 200 175 150 125 100 75 50 25 0 Sugar Cane 120 100 80 40 20 0 Escarole 0

Phosphorus loading to S. Florida Ecosystem Dairy/Beef Inputs North and South of Okeechobee Agriculture Kissimmee Basin

Dairy and Beef In 1521 Ponce de Leon brought horses and cattle to Florida, making it the oldest cattle raising state in the country. No other part of our country had cattle until the Pilgrims brought cattle in the early 1600's Florida's ranchers now raise third largest number of cattle of any state east of the Mississippi Kissimmee drainage basin 12, 000 km 2 (1947)

Phosphorus Solid Manure: 5. 5 g / kg total Phosphorus One cow can excrete between 40 and 60 g of phosphorus per day Subject to movement via runoff, stream flow, soil water movement, and groundwater movement

Cattle and Dairy Okeechobee, Highlands, and Glades Counties: 328, 000 head (19% of total) Okeechobee County is ranked number one for all cattle in the state

Kissimmee – Okeechobee - Everglades The Lower Kissimmee River Basin is among largest sources of external phosphorus loading to Lake Okeechobee The Kissimmee river alone contributes about 20% of the phosphorus flowing into Lake Okeechobee, in turn, is a source of phosphorus to the Everglades

Surface Water Improvement Management Act: SWIM (1987) Mandates phosphorus load level of 397 tons/yr Clean Water act: 154. 3 tons per year deadline of January 1, 2015 SWIM Plan priority basins Lake Target level of 40 ppb in Lake Okeechobee

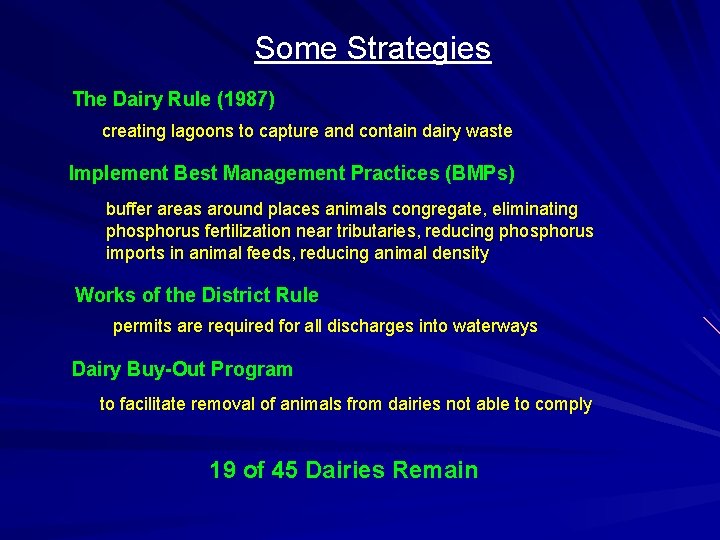

Some Strategies The Dairy Rule (1987) creating lagoons to capture and contain dairy waste Implement Best Management Practices (BMPs) buffer areas around places animals congregate, eliminating phosphorus fertilization near tributaries, reducing phosphorus imports in animal feeds, reducing animal density Works of the District Rule permits are required for all discharges into waterways Dairy Buy-Out Program to facilitate removal of animals from dairies not able to comply 19 of 45 Dairies Remain

Above SWIM target (tons) Phosphorus Loads to Okeechobee Above Target SWIM target: 397 tons 2007: 146 ton reduction of P entering Okeechobee

2007: 146 ton reduction of P entering Okeechobee The target level is 40 ppb. Phosphorus concentrations in the Lake remain at about 117 ppb

Internal Loading Two Sources Decomposition of submerged aquatic vegetation releasing phosphorus back into the water column Dissolution of compounds in sediments which bind and store phosphorus.

Internal Loading Phosphorus and Iron Phosphorus has a strong affinity for iron Fe. PO 4 Solid Precipitate Readily incorporates into bottom sediments

Internal Loading Fe 3+ high oxygen Fe 2+ low oxygen Dissolved phosphorus combines with oxidized iron (Fe 3+) to create an insoluble compound that becomes buried in lake sediments. Simplified: Fe 3+ + PO 43 - = Fe(PO 4) solid Fe 3+ If oxygen contents are reduced (anoxic bottom sediments) the converts to Fe 2+ which solubilizes the compound returning P to water. 2+ Fe (PO 4) 3 - to water P released by sediments is taken up by photosynthetic algae faster than it can be returned to the sediments

Lake Okeechobee Action Plan Developed by the Lake Okeechobee Issue Team December 6, 1999 RECOMMENDATION – Control Internal Phosphorus Loading. Phosphorus-rich mud sediments need to be removed from the lake to the maximum extent that is practical, in order to reduce internal phosphorus loading. Unless this internal loading is substantially reduced, it may take as long as 100 years for the lake to respond to watershed phosphorus control programs.

Lost Lands

Former extent of Kissimmee Basin and floodplain Hoover Dike (1932) Everglades Agricultural Area (EAA) Perimeter Levee (1954) Water Conservation Areas (management of flow) To Atlantic To Gulf

Historic Current EAA

Crops: Everglades Agricultural Area EAA Sugar, Rice, Veg. 700, 000 ac

Florida to Buy Out Sugar Land for Everglades Restoration WTVJ NBC 6 June 25, 2008: WEST PALM BEACH, Florida -- The largest U. S. producer of cane sugar, U. S. Sugar Corp. , would close up shop in a $1. 75 billion deal to sell its 292 square miles of land to Florida for Everglades restoration, the company president and Florida Governor Charlie Crist said Tuesday. The deal, announced at a news conference at the Arthur R. Marshall Loxahatchee National Wildlife Refuge, allows the state to buy U. S. Sugar's holdings in the Everglades south of Lake Okeechobee, the heart of the wetland ecosystem. 186, 000 acres

Organic soils possessing high natural fertility Historically flooded

Water restricts the movement of oxygen The diffusion of oxygen through water is about 1000 times slower than diffusion through air Flooded Marsh Under flooded conditions, oxygen levels tend to be low Organisms?

Aquatic Plants Die Heterotrophic microorganisms decompose tissues Aerobic heterotrophic organisms use oxygen Oxygen becomes depleted in water; it cannot diffuse fast enough to support aerobic heterotrophs Anaerobic heterotrophs become dominant

Anaerobic Heterotrophic Organisms Can use energy stored in complex carbon compounds in the absence of free oxygen The energy is obtained by exchanging electrons with elements other than oxygen. Nitrogen (nitrate) Sulfur (sulfate) Iron (Fe 3+)

Anaerobic respiration is less efficient and produces less energy. C 6 H 12 O 6 + 6 O 2 → 6 CO 2 + 6 H 2 O C 6 H 12 O 6 + 3 NO 3 - + 3 H 2 O = 6 HCO 3 - + 3 NH 4+ C 6 H 12 O 6 + 3 SO 42 - + 3 H+ = 6 HCO 3 - + 3 HS- 2880 k. J 1796 k. J 453 k. J Therefore, anaerobic decomposition is much slower than aerobic decomposition.

Flooded Soils anaerobic decomposition of organic matter is much slower than aerobic decomposition. Organic matter is added to the soil faster than it can be decomposed by microorganisms Accumulation of organic matter at the soil surface additions Losses (CO 2) Organic matter limestone

Buildup of Organic soils Organic matter decomposes slowly when submerged in water. (anaerobic decomposition) Soils throughout the glades historically have been submerged. (anaerobic conditions) Led to vast amounts of organic matter accumulation, sometimes >10 ft. thick. Organic matter continues to accumulate as long as flooded conditions persist.

Drainage exposes soils to oxygen and decomposition by aerobic heterotrophic organisms which can more efficiently decompose organic matter EAA

Drainage Losses (CO 2) additions Conversion from anaerobic to Aerobic decomposition (much more efficient) C 6 H 12 O 6 + 6 O 2 → 6 CO 2 + 6 H 2 O Losses of organic matter by decomposition exceed new additions – soils disappear

Subsidence of Organic soils up to 10 feet

1912 to 2000

Public Funding Issues Revisited in State’s Buyout of U. S. Sugar South Florida Business Journal - by Paul Brinkmann a bill in the Florida Senate that would require voter approval of any certificates of appreciation (bonds) issued by water districts.

Restoration of More Natural Flow Regimes Comprehensive Everglades Restoration Plan restoration, preservation, and protection of the South Florida ecosystem recover and sustain those essential hydrological and biological characteristics that defined the original pre-drainage Everglades interconnected and interrelated wetlands provide for water supply and flood protection reestablishment of native plant communities Low levels of nutrients

Next: Phosphorus and South Florida
