PHI 710 Scanning Auger Nanoprobe Complete Auger Compositional

PHI 710 Scanning Auger Nanoprobe Complete Auger Compositional Analysis for Nanotechnology, Semiconductors, Advanced Metallurgy and Advanced Materials www. phi. com 1

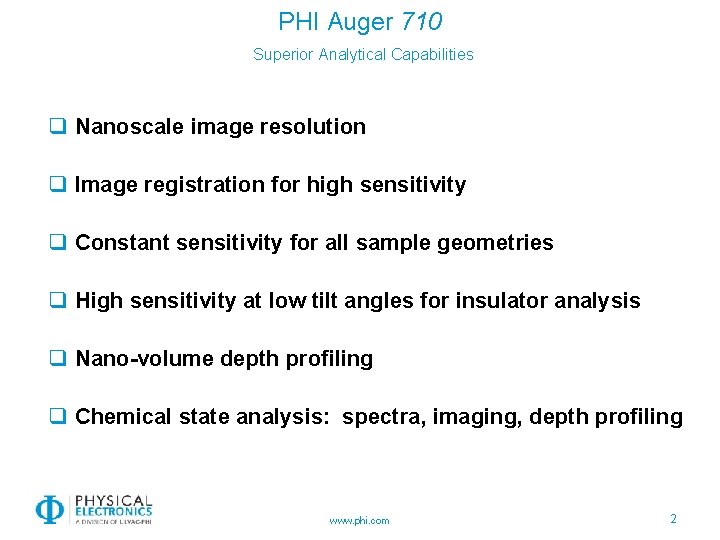

PHI Auger 710 Superior Analytical Capabilities q Nanoscale image resolution q Image registration for high sensitivity q Constant sensitivity for all sample geometries q High sensitivity at low tilt angles for insulator analysis q Nano-volume depth profiling q Chemical state analysis: spectra, imaging, depth profiling www. phi. com 2

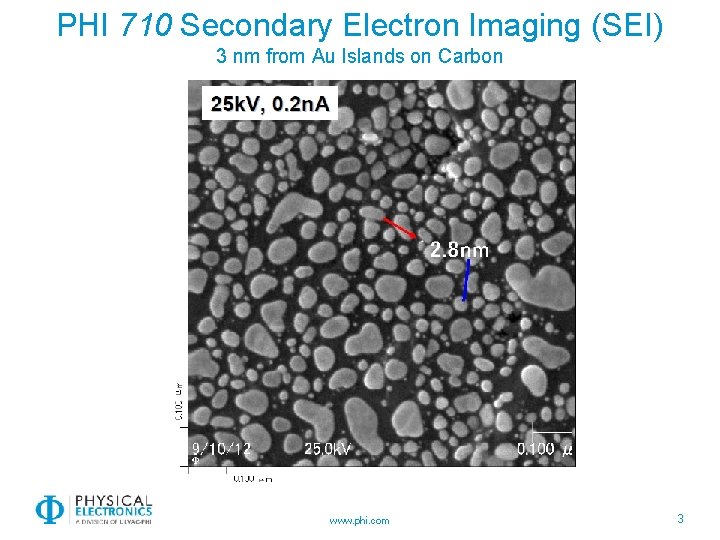

PHI 710 Secondary Electron Imaging (SEI) 3 nm from Au Islands on Carbon www. phi. com 3

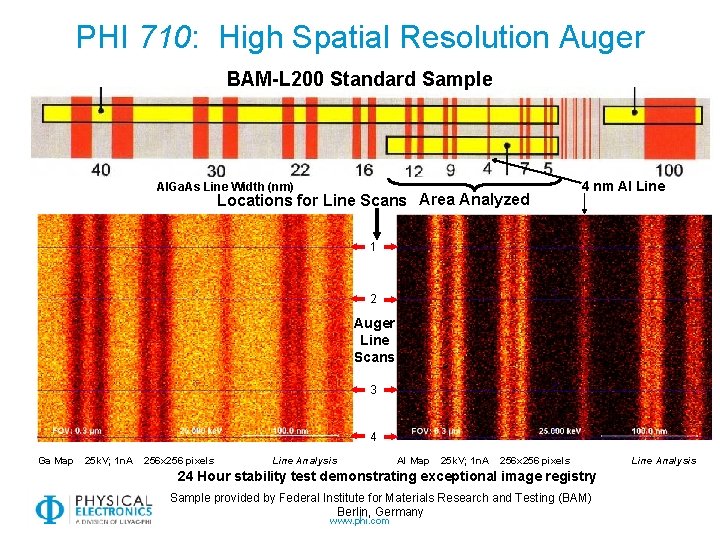

PHI 710: High Spatial Resolution Auger BAM-L 200 Standard Sample Al. Ga. As Line Width (nm) Locations for Line Scans Area Analyzed 4 nm Al Line 1 2 Auger Line Scans 3 4 Ga Map 25 k. V; 1 n. A 256 x 256 pixels Line Analysis Al Map 25 k. V; 1 n. A 256 x 256 pixels 24 Hour stability test demonstrating exceptional image registry Sample provided by Federal Institute for Materials Research and Testing (BAM) Berlin, Germany www. phi. com Line Analysis

PHI 710: High Spatial Resolution Auger BAM-L 200 Standard Sample Line Scan #4 Intensity Ga Al (X 3) 4 nm Line 0 0. 05 0. 15 0. 2 Distance (µm) 0. 25 0. 35 24 hour analysis demonstrating exceptional image registration www. phi. com 5

Constant Sensitivity for All Geometries 2, 000 Minimum Beam Diameter 1, 800 1, 600 Cylindrical Mirror Analyzer Sensitivity (kcps) Multi. Channel Detector Sensitivity vs. Sample Tilt Field Emission Electron Source 1, 400 1, 200 1, 000 800 Coaxial CMA 600 400 Non-Coaxial SCA 200 0 -90 -75 -60 -45 -30 -15 0 15 30 45 60 75 90 Tilt Angle (degree) Ar+ Ion Gun Sample holder with high energy resolution optics www. phi. com The CMA with a coaxial electron gun provides high sensitivity at all sample tilt angles which is essential for insulator analysis 6

CMA with Coaxial Electron Gun Only the PHI 710 can image samples such as FIB sections with uniform, high sensitivity Poly-Si/W Deposition and Patterning Auger Analysis of ex situ FIB cut Auger maps show: § § Defect is sub-micron Si oxide particle Surrounded by elemental Si Introduced during poly-Si deposition Covered with W Auger Maps: Si oxide Si elemental W www. phi. com 7

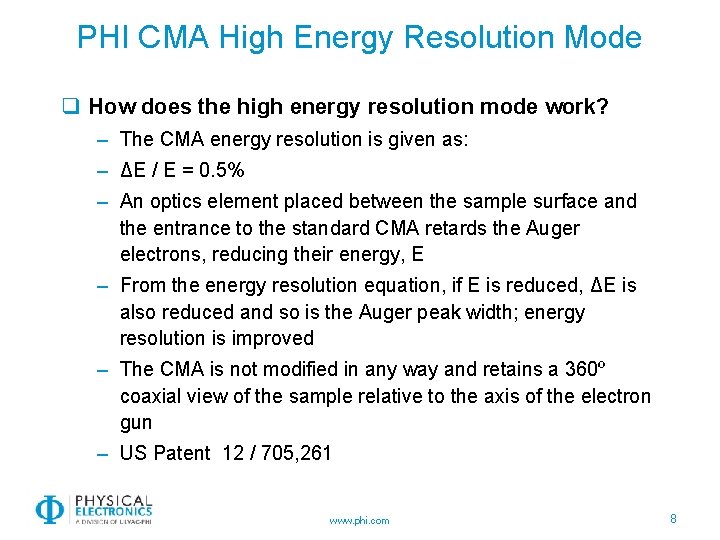

PHI CMA High Energy Resolution Mode q How does the high energy resolution mode work? – The CMA energy resolution is given as: – ΔE / E = 0. 5% – An optics element placed between the sample surface and the entrance to the standard CMA retards the Auger electrons, reducing their energy, E – From the energy resolution equation, if E is reduced, ΔE is also reduced and so is the Auger peak width; energy resolution is improved – The CMA is not modified in any way and retains a 360º coaxial view of the sample relative to the axis of the electron gun – US Patent 12 / 705, 261 www. phi. com 8

PHI CMA High Energy Resolution Mode 710 Energy Resolution Specification 0. 6 ΔE / E (%) 0. 5 0. 4 0. 3 0. 2 0. 1 0. 0 0 500 1000 1500 2000 2500 Auger Peak Kinetic Energy (e. V) www. phi. com 9

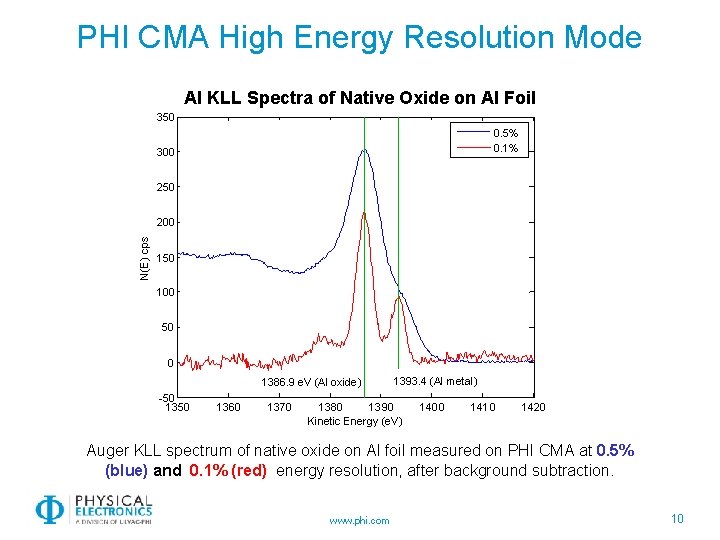

PHI CMA High Energy Resolution Mode Al KLL Spectra of Native Oxide on Al Foil 350 0. 5% 0. 1% 300 250 N(E) cps 200 150 100 50 0 1386. 9 e. V (Al oxide) -50 1360 1370 1393. 4 (Al metal) 1380 1390 Kinetic Energy (e. V) 1400 1410 1420 Auger KLL spectrum of native oxide on Al foil measured on PHI CMA at 0. 5% (blue) and 0. 1% (red) energy resolution, after background subtraction. www. phi. com 10

PHI CMA High Energy Resolution Mode Zn LMM Spectra of Sputter Cleaned Zn Metal 1 0. 5% Energy Resolution 0. 1% Energy Resolution 0. 9 0. 8 Normalized Intensity 0. 7 0. 6 0. 5 0. 4 0. 3 0. 2 0. 1 0 970 980 990 1000 1010 Kinetic Energy (e. V) www. phi. com 1020 1030 11

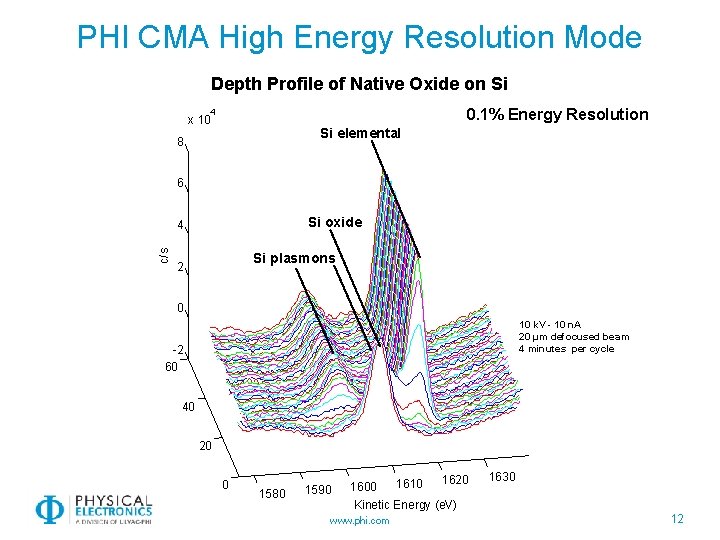

PHI CMA High Energy Resolution Mode Depth Profile of Native Oxide on Si 0. 1% Energy Resolution 4 x 10 Si elemental 8 6 Si oxide c/s 4 Si plasmons 2 0 10 k. V - 10 n. A 20 µm defocused beam 4 minutes per cycle -2 60 40 20 0 1580 1590 1600 1610 1620 1630 Kinetic Energy (e. V) www. phi. com 12

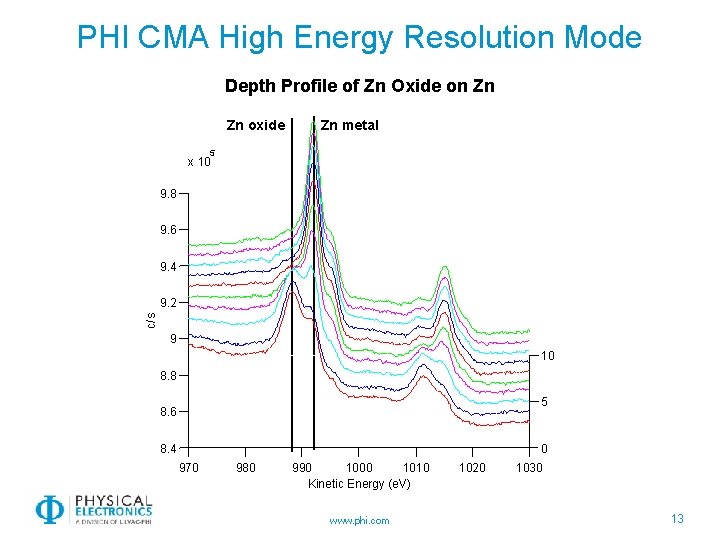

PHI CMA High Energy Resolution Mode Depth Profile of Zn Oxide on Zn Zn oxide Zn metal 5 x 10 9. 8 9. 6 9. 4 c/s 9. 2 9 10 8. 8 5 8. 6 8. 4 0 970 980 990 1000 1010 Kinetic Energy (e. V) www. phi. com 1020 1030 13

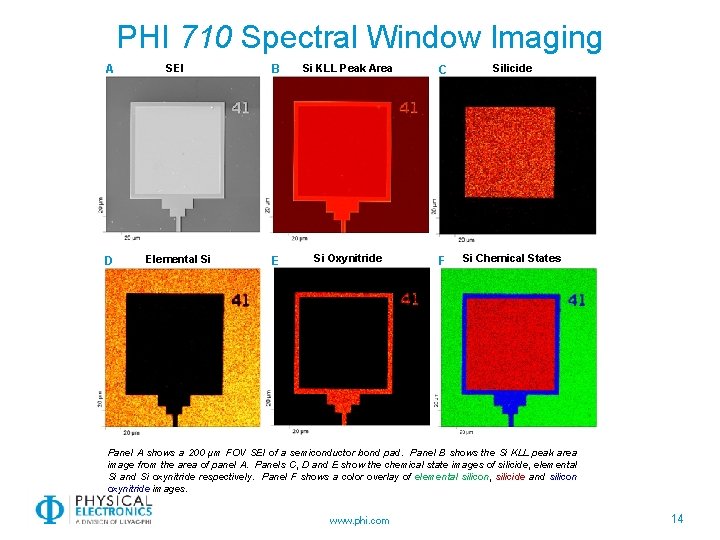

PHI 710 Spectral Window Imaging A D SEI Elemental Si B Si KLL Peak Area C Silicide E Si Oxynitride F Si Chemical States Panel A shows a 200 µm FOV SEI of a semiconductor bond pad. Panel B shows the Si KLL peak area image from the area of panel A. Panels C, D and E show the chemical state images of silicide, elemental Si and Si oxynitride respectively. Panel F shows a color overlay of elemental silicon, silicide and silicon oxynitride images. www. phi. com 14

PHI 710 Spectral Window Imaging Composite Si KLL 1605 1615 1625 Kinetic Energy (e. V) C Si KLL Basis Spectra Si Oxynitride Silicide Intensity Panel A shows the Si KLL spectrum from the sum of all pixel spectra in the Si KLL Auger image shown in panel B. Panel B shows the three Regions Of Interest (ROI) selected for creation of the basis spectra for Linear Least Squares (LLS) fitting of the Si KLL image data set. Panel C shows the three basis spectra with their corresponding chemical state identifications. B Si KLL image with ROI areas Intensity A Elemental Si PHI App. Note: Chemical State Imaging With The PHI 710 Scanning Auger Nano. Probe 1604 1608 www. phi. com 1612 1616 Kinetic Energy (e. V) 1620 1624 15

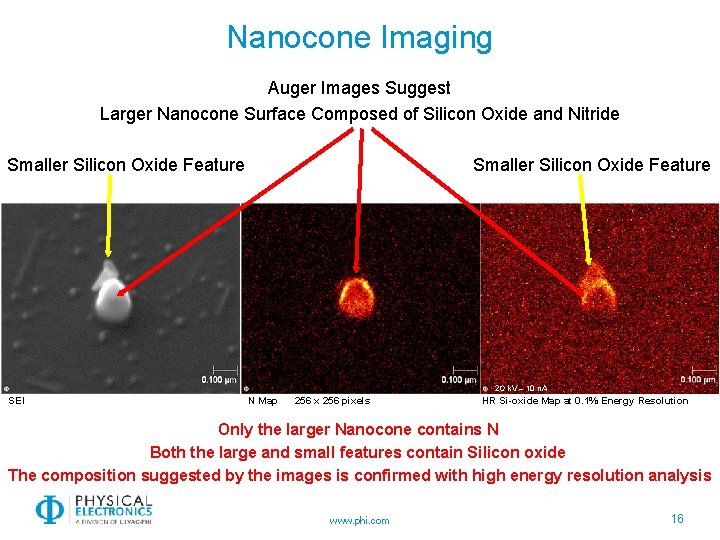

Nanocone Imaging Auger Images Suggest Larger Nanocone Surface Composed of Silicon Oxide and Nitride Smaller Silicon Oxide Feature 2 O k. V – 10 n. A SEI N Map 256 x 256 pixels HR Si-oxide Map at 0. 1% Energy Resolution Only the larger Nanocone contains N Both the large and small features contain Silicon oxide The composition suggested by the images is confirmed with high energy resolution analysis www. phi. com 16

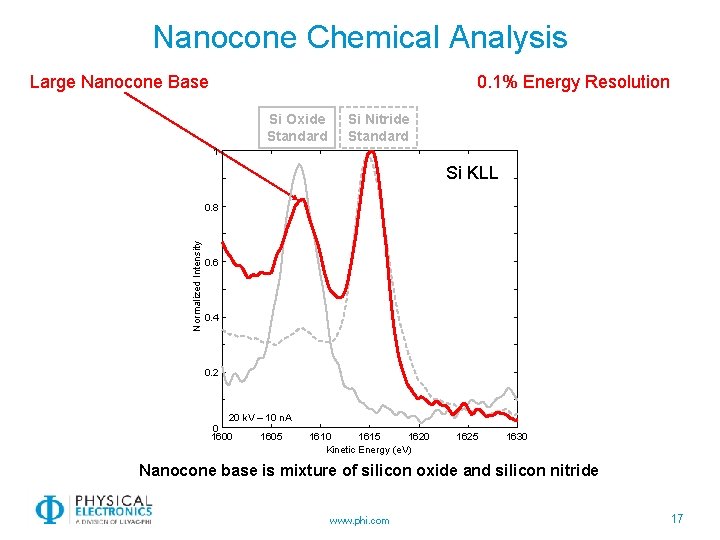

Nanocone Chemical Analysis Large Nanocone Base 0. 1% Energy Resolution Si Oxide Standard Si Nitride Standard 1 Si KLL Normalized Intensity 0. 8 0. 6 0. 4 0. 2 20 k. V – 10 n. A 0 1605 1610 1615 1620 Kinetic Energy (e. V) 1625 1630 Nanocone base is mixture of silicon oxide and silicon nitride www. phi. com 17

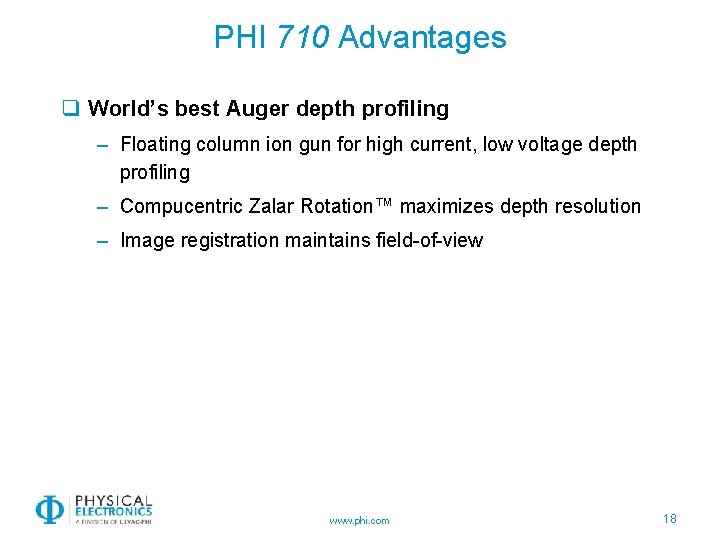

PHI 710 Advantages q World’s best Auger depth profiling – Floating column ion gun for high current, low voltage depth profiling – Compucentric Zalar Rotation™ maximizes depth resolution – Image registration maintains field-of-view www. phi. com 18

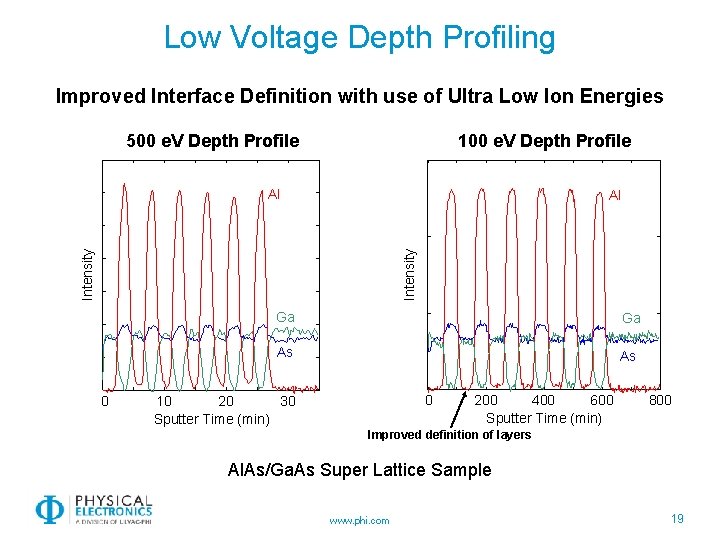

Low Voltage Depth Profiling Improved Interface Definition with use of Ultra Low Ion Energies 500 e. V Depth Profile 100 e. V Depth Profile Al Intensity Al 0 Ga Ga As As 0 10 20 30 Sputter Time (min) 200 400 600 Sputter Time (min) 800 Improved definition of layers Al. As/Ga. As Super Lattice Sample www. phi. com 19

Nano Depth Profiling 60 nm Diameter Si Nanowire 4 1 Surface Spectrum of Nanowire A x 10 Atomic % Si 97. 5 P 2. 5 SEI 0. 5 0 P c/s 1 -0. 5 O -1 20 k. V, 10 n. A, 13 nm Beam -1. 5 C Si -2 100 200 300 400 500 600 Kinetic Energy (e. V) 700 800 P from the growth gas is detected on the surface of a Si nanowire www. phi. com 20

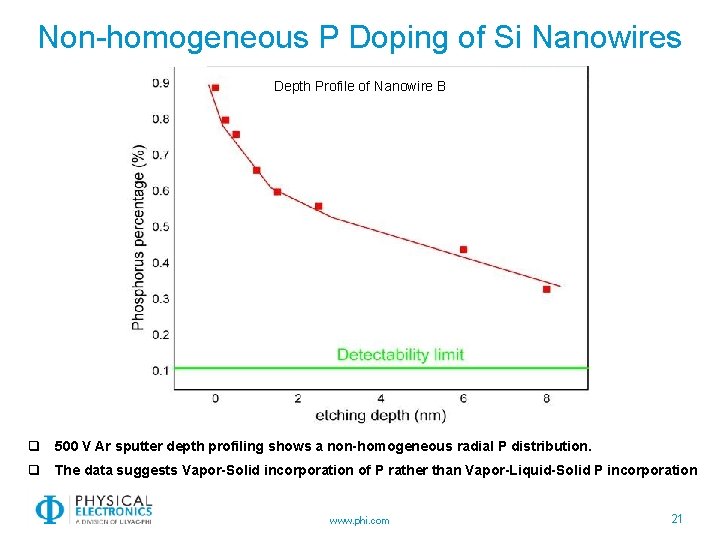

Non-homogeneous P Doping of Si Nanowires Depth Profile of Nanowire B q 500 V Ar sputter depth profiling shows a non-homogeneous radial P distribution. q The data suggests Vapor-Solid incorporation of P rather than Vapor-Liquid-Solid P incorporation www. phi. com 21

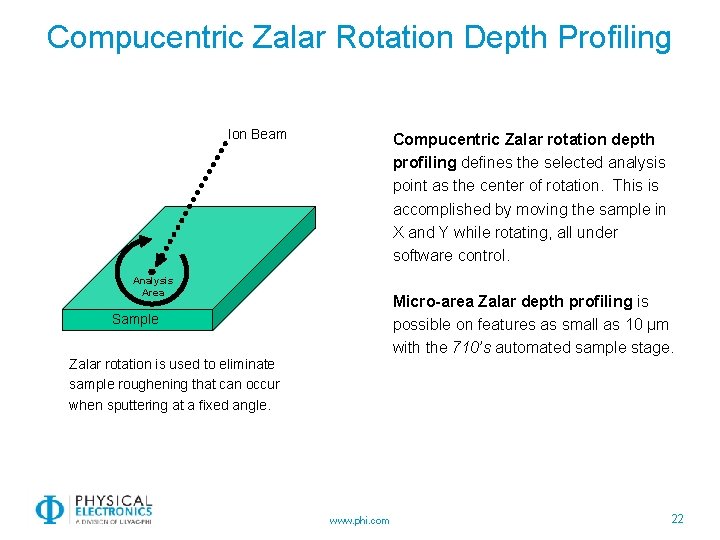

Compucentric Zalar Rotation Depth Profiling Ion Beam Compucentric Zalar rotation depth profiling defines the selected analysis point as the center of rotation. This is accomplished by moving the sample in X and Y while rotating, all under software control. Analysis Area Micro-area Zalar depth profiling is possible on features as small as 10 µm with the 710’s automated sample stage. Sample Zalar rotation is used to eliminate sample roughening that can occur when sputtering at a fixed angle. www. phi. com 22

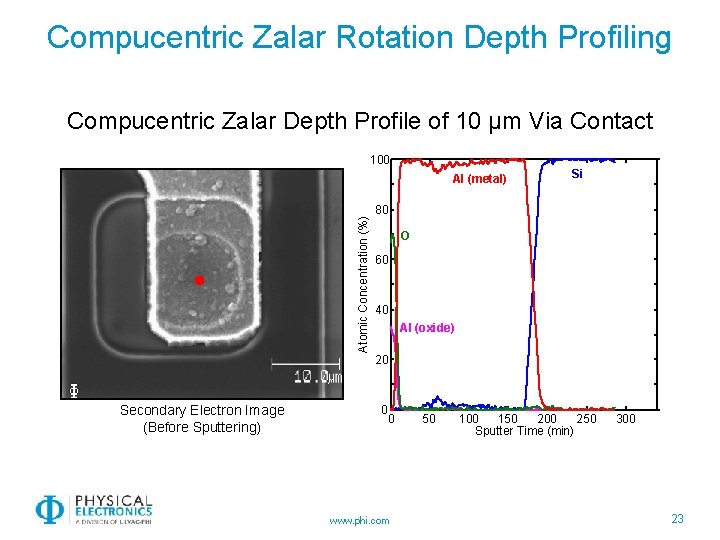

Compucentric Zalar Rotation Depth Profiling Compucentric Zalar Depth Profile of 10 µm Via Contact 100 Atomic Concentration (%) Al (metal) Si 80 O 60 40 Al (oxide) 20 Secondary Electron Image (Before Sputtering) 0 0 www. phi. com 50 100 150 200 250 Sputter Time (min) 300 23

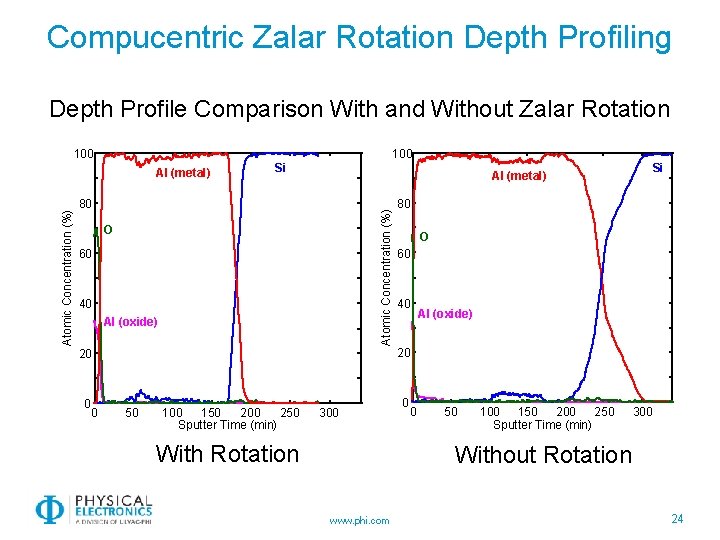

Compucentric Zalar Rotation Depth Profiling Depth Profile Comparison With and Without Zalar Rotation 100 Al (metal) 80 Atomic Concentration (%) Al (metal) Si O 60 40 Al (oxide) 0 80 O 60 40 Al (oxide) 20 20 0 Si 50 100 150 200 250 Sputter Time (min) 300 With Rotation 0 0 50 100 150 200 250 Sputter Time (min) 300 Without Rotation www. phi. com 24

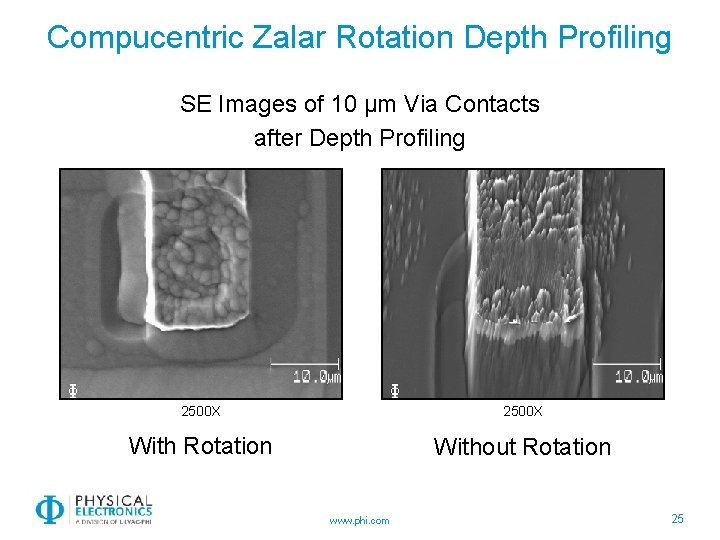

Compucentric Zalar Rotation Depth Profiling SE Images of 10 µm Via Contacts after Depth Profiling 2500 X With Rotation Without Rotation www. phi. com 25

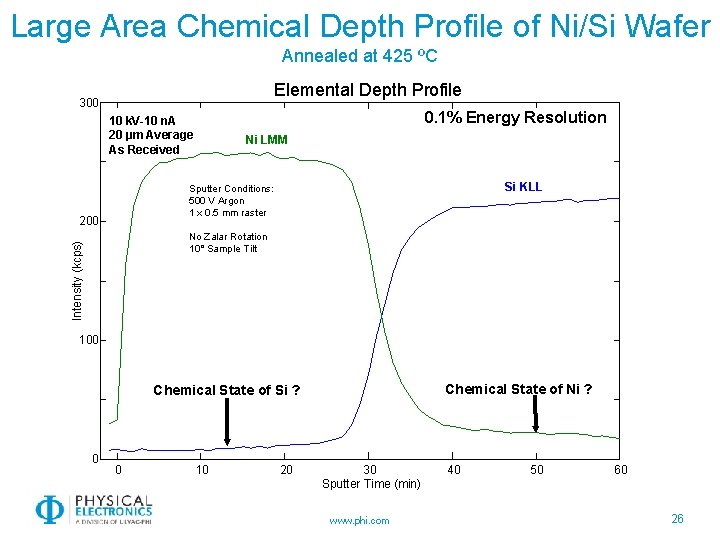

Large Area Chemical Depth Profile of Ni/Si Wafer Annealed at 425 ºC Elemental Depth Profile 300 0. 1% Energy Resolution 10 k. V-10 n. A 20 µm Average As Received Ni LMM Si KLL Sputter Conditions: 500 V Argon 1 x 0. 5 mm raster 200 Intensity (kcps) No Zalar Rotation 10° Sample Tilt 100 Chemical State of Ni ? Chemical State of Si ? 0 0 10 20 30 Sputter Time (min) www. phi. com 40 50 60 26

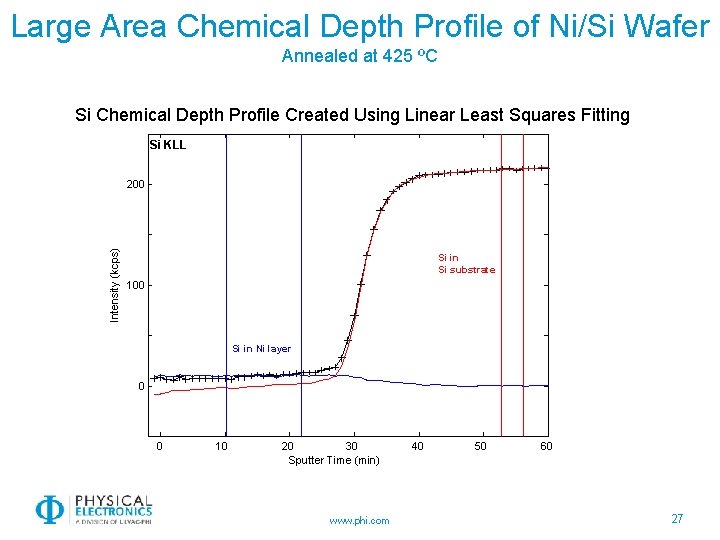

Large Area Chemical Depth Profile of Ni/Si Wafer Annealed at 425 ºC Si Chemical Depth Profile Created Using Linear Least Squares Fitting Si KLL Intensity (kcps) 200 Si in Si substrate 100 Si in Ni layer 0 0 10 20 30 Sputter Time (min) www. phi. com 40 50 60 27

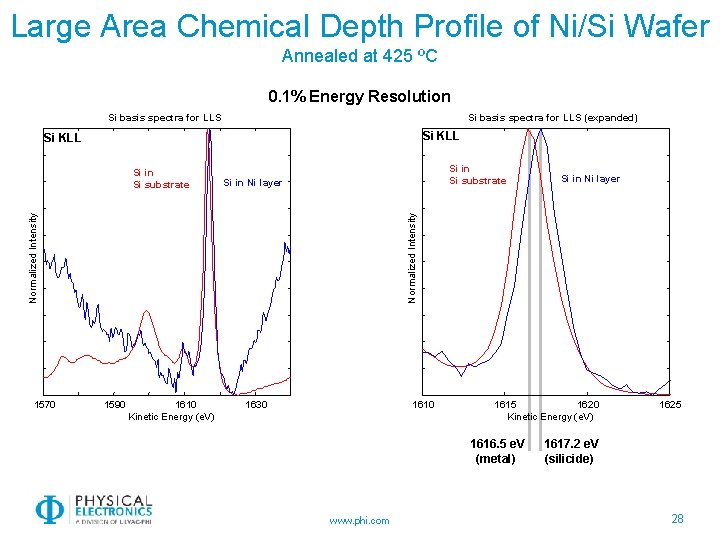

Large Area Chemical Depth Profile of Ni/Si Wafer Annealed at 425 ºC 0. 1% Energy Resolution Si basis spectra for LLS (expanded) Si basis spectra for LLS Si KLL Si in Si substrate Si in Ni layer Normalized Intensity 1570 Si in Ni layer Normalized Intensity Si in Si substrate 1590 1610 Kinetic Energy (e. V) 1630 1615 1620 Kinetic Energy (e. V) 1616. 5 e. V (metal) www. phi. com 1625 1617. 2 e. V (silicide) 28

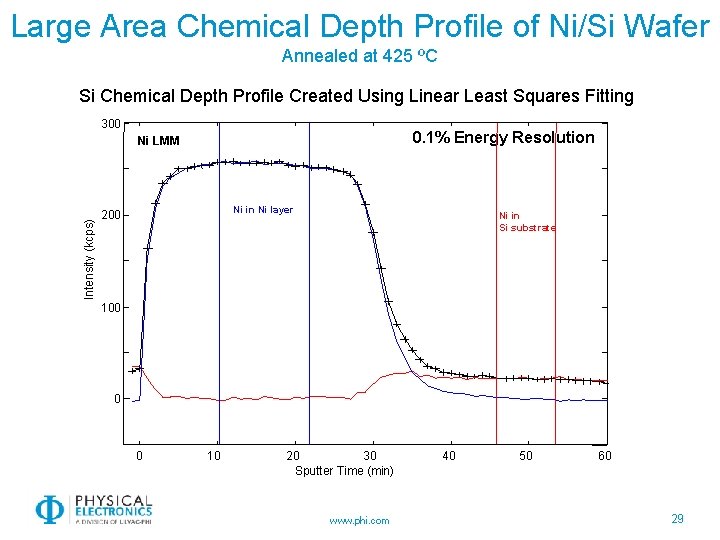

Large Area Chemical Depth Profile of Ni/Si Wafer Annealed at 425 ºC Si Chemical Depth Profile Created Using Linear Least Squares Fitting 300 0. 1% Energy Resolution Intensity (kcps) Ni LMM Ni in Ni layer 200 Ni in Si substrate 100 0 0 10 20 30 Sputter Time (min) www. phi. com 40 50 60 29

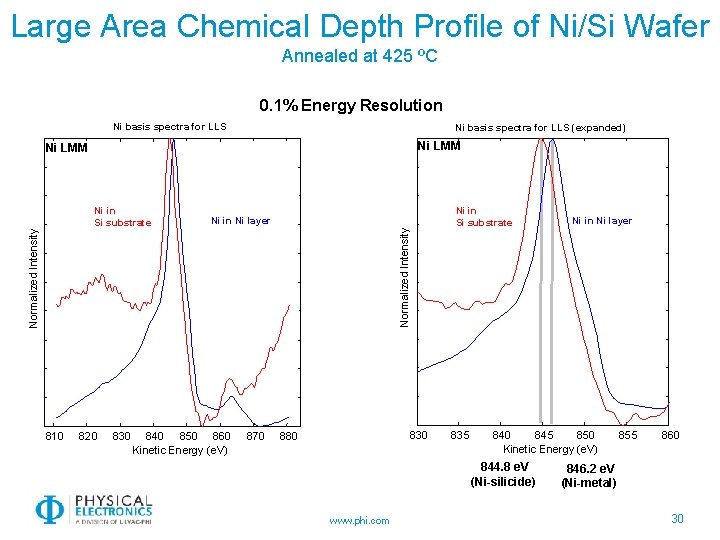

Large Area Chemical Depth Profile of Ni/Si Wafer Annealed at 425 ºC 0. 1% Energy Resolution Ni basis spectra for LLS (expanded) Ni LMM Normalized Intensity Ni in Ni layer Normalized Intensity Ni in Si substrate 810 820 830 840 850 860 Kinetic Energy (e. V) 870 830 880 Ni in Si substrate 835 840 845 850 Kinetic Energy (e. V) 844. 8 e. V (Ni-silicide) www. phi. com Ni in Ni layer 855 860 846. 2 e. V (Ni-metal) 30

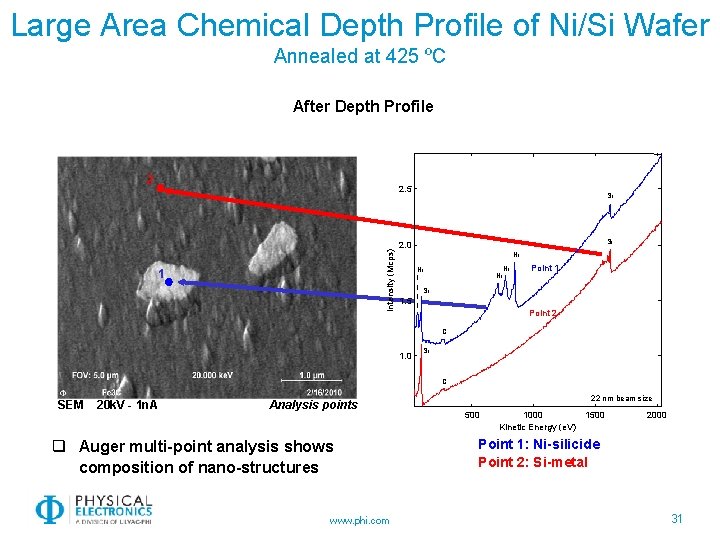

Large Area Chemical Depth Profile of Ni/Si Wafer Annealed at 425 ºC After Depth Profile 2 Intensity (Mcps) 2. 5 1 Si Si 2. 0 Ni 1. 5 Ni | | Si | | Ni Ni Point 1 Point 2 C 1. 0 Si C SEM 20 k. V - 1 n. A Analysis points q Auger multi-point analysis shows composition of nano-structures www. phi. com 22 nm beam size 500 1000 1500 Kinetic Energy (e. V) 2000 Point 1: Ni-silicide Point 2: Si-metal 31

Large Area Chemical Depth Profile of Ni/Si Wafer Annealed at 425 ºC After Depth Profile 0. 1% Energy Resolution Si KLL Point 2 Si in Si substrate Point 1 Si in Ni layer Normalized Intensity 22 nm beam size Si KLL (expanded) 22 nm beam size 1570 1580 1590 1600 1610 1620 Kinetic Energy (e. V) 1630 1640 1615 1620 Kinetic Energy (e. V) 1616. 5 e. V (metal) www. phi. com 1625 1617. 2 e. V (silicide) 32

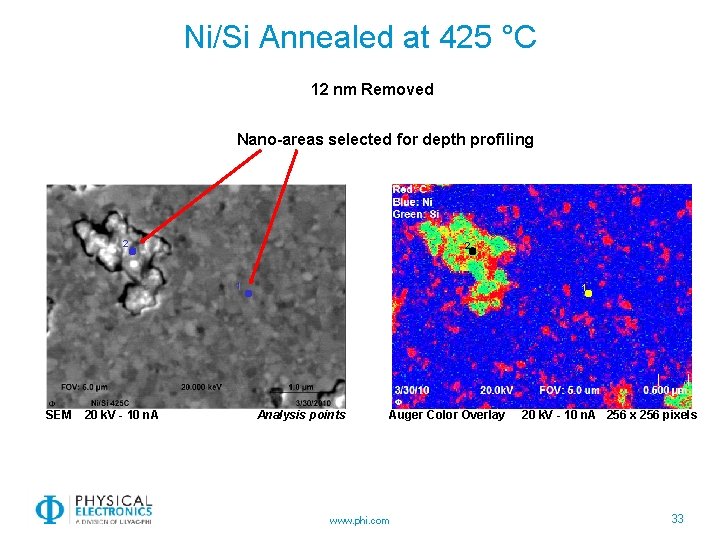

Ni/Si Annealed at 425 °C 12 nm Removed Nano-areas selected for depth profiling 2 2 1 SEM 20 k. V - 10 n. A 1 Analysis points Auger Color Overlay www. phi. com 20 k. V - 10 n. A 256 x 256 pixels 33

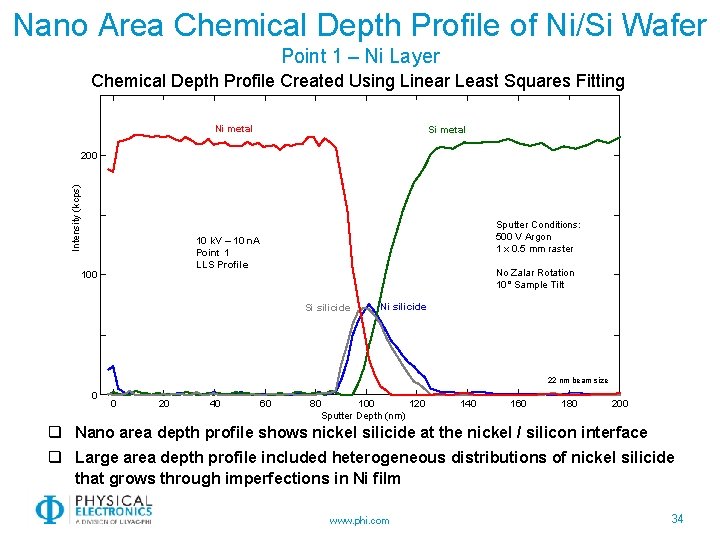

Nano Area Chemical Depth Profile of Ni/Si Wafer Point 1 – Ni Layer Chemical Depth Profile Created Using Linear Least Squares Fitting Ni metal Si metal Intensity (kcps) 200 Sputter Conditions: 500 V Argon 1 x 0. 5 mm raster 10 k. V – 10 n. A Point 1 LLS Profile 100 No Zalar Rotation 10° Sample Tilt Si silicide Ni silicide 22 nm beam size 0 0 20 40 60 80 100 120 Sputter Depth (nm) 140 160 180 200 q Nano area depth profile shows nickel silicide at the nickel / silicon interface q Large area depth profile included heterogeneous distributions of nickel silicide that grows through imperfections in Ni film www. phi. com 34

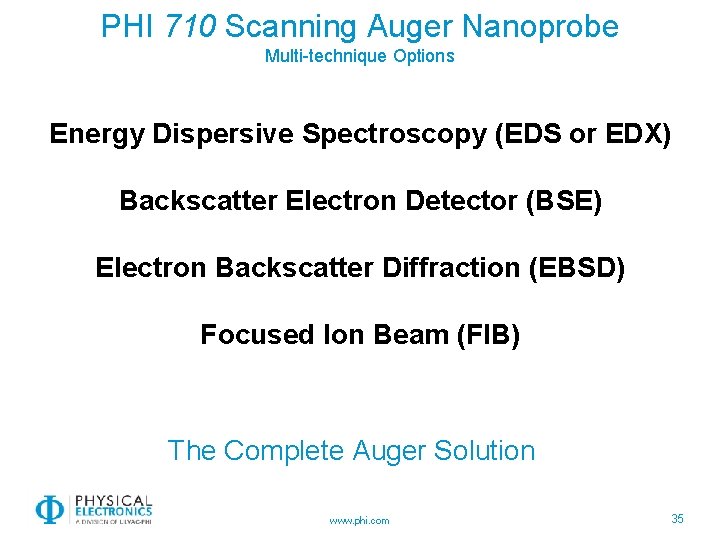

PHI 710 Scanning Auger Nanoprobe Multi-technique Options Energy Dispersive Spectroscopy (EDS or EDX) Backscatter Electron Detector (BSE) Electron Backscatter Diffraction (EBSD) Focused Ion Beam (FIB) The Complete Auger Solution www. phi. com 35

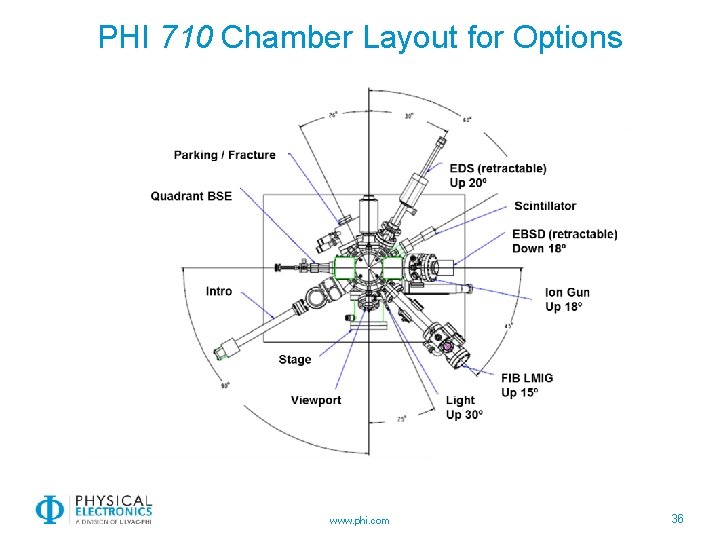

PHI 710 Chamber Layout for Options www. phi. com 36

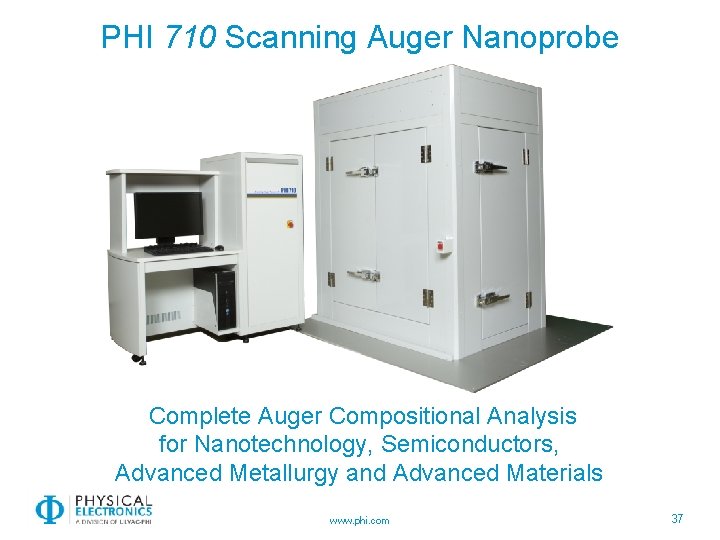

PHI 710 Scanning Auger Nanoprobe Complete Auger Compositional Analysis for Nanotechnology, Semiconductors, Advanced Metallurgy and Advanced Materials www. phi. com 37
