PHD Connector Purpose To introduce the PHD disconnectable

PHD Connector Purpose: To introduce the PHD disconnectable, double-row, wire to board crimp style connector.

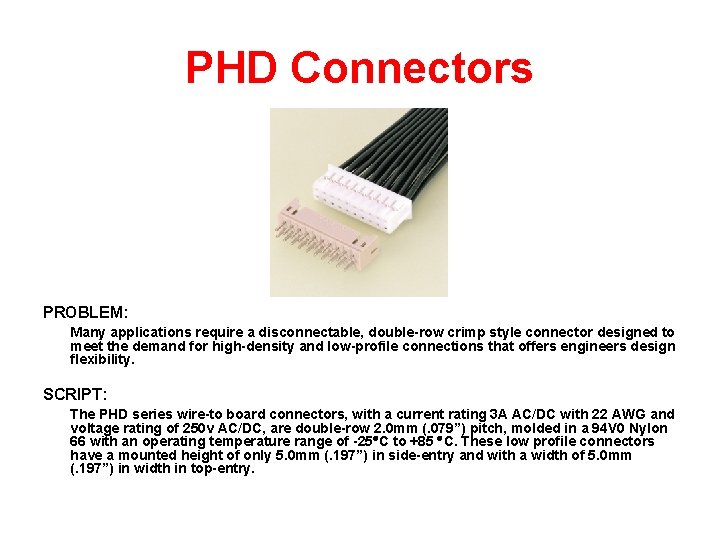

PHD Connectors PROBLEM: Many applications require a disconnectable, double-row crimp style connector designed to meet the demand for high-density and low-profile connections that offers engineers design flexibility. SCRIPT: The PHD series wire-to board connectors, with a current rating 3 A AC/DC with 22 AWG and voltage rating of 250 v AC/DC, are double-row 2. 0 mm (. 079”) pitch, molded in a 94 V 0 Nylon 66 with an operating temperature range of -25 C to +85 C. These low profile connectors have a mounted height of only 5. 0 mm (. 197”) in side-entry and with a width of 5. 0 mm (. 197”) in width in top-entry.

PHD Connectors Disconnectable Crimp style contacts Socket Contact SCRIPT: The PHD contacts are designed to accommodate a range of 22 to 28 AWG, are tin-plated over a phosphor bronze base material. The box contact construction ensures stable electrical contact and low contact resistance at all times even when subjected to vibration and distortion.

PHD Housing SCRIPT: Available in even numbered sizes from 8 to 34 circuits, the housings are 94 V 0 Nylon 66 and incorporate a friction lock when mating with the PCB mounted headers.

PHD Headers SCRIPT: Ro. HS compliant, 94 V 0 Glass-filled, Nylon 66 through-hole polarized headers, are available in side-entry (right angle) and top-entry (straight) mounting configurations and are fully shrouded to prevent improper mating and the intrusion of flux and other contaminants. The posts are a copper-undercoated copper alloy with reflow tin-plating for maximum effectiveness for deterring whisker growth.

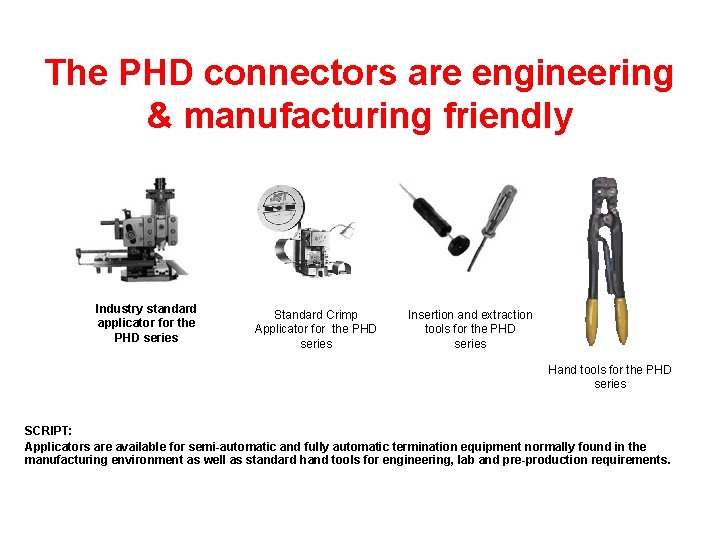

The PHD connectors are engineering & manufacturing friendly Industry standard applicator for the PHD series Standard Crimp Applicator for the PHD series Insertion and extraction tools for the PHD series Hand tools for the PHD series SCRIPT: Applicators are available for semi-automatic and fully automatic termination equipment normally found in the manufacturing environment as well as standard hand tools for engineering, lab and pre-production requirements.

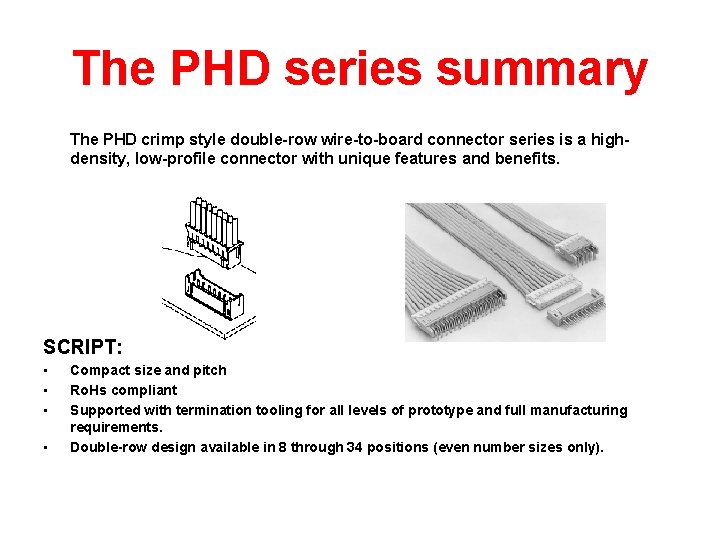

The PHD series summary The PHD crimp style double-row wire-to-board connector series is a highdensity, low-profile connector with unique features and benefits. SCRIPT: • • Compact size and pitch Ro. Hs compliant Supported with termination tooling for all levels of prototype and full manufacturing requirements. Double-row design available in 8 through 34 positions (even number sizes only).
