Phase Conjugation in Silicon waveguide Xiujian Li Dec. 22, 2011 Xiujian Li xl 2311@columbia.

Phase Conjugation in Silicon waveguide Xiujian Li Dec. 22, 2011 Xiujian Li xl 2311@columbia. edu Wong group, Optical Nanostructures Laboratory, Columbia University

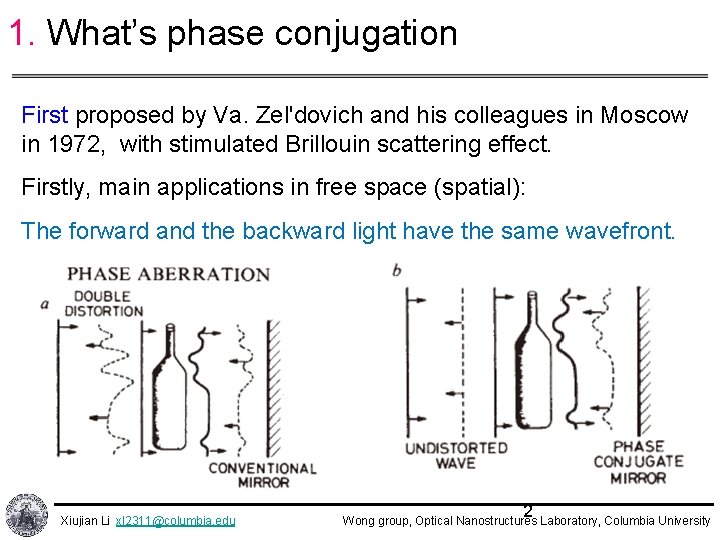

1. What’s phase conjugation First proposed by Va. Zel'dovich and his colleagues in Moscow

1. What’s phase conjugation First proposed by Va. Zel'dovich and his colleagues in Moscow in 1972, with stimulated Brillouin scattering effect. Firstly, main applications in free space (spatial): The forward and the backward light have the same wavefront. Xiujian Li xl 2311@columbia. edu 2 Wong group, Optical Nanostructures Laboratory, Columbia University

2. Applications of phase conjugation 1. Adaptive Optics; 2. Lensless Imaging; 3. Generating "Time-reversed"

2. Applications of phase conjugation 1. Adaptive Optics; 2. Lensless Imaging; 3. Generating "Time-reversed" Light; 4. Phase-Conjugate Resonators; 5. Image processing; 6. Associative memory; 7. Frequency effect/ shift; 8. Time-Domain Applications (dispersion and nonlinear effect compensation). Xiujian Li xl 2311@columbia. edu 3 Wong group, Optical Nanostructures Laboratory, Columbia University

3. Time- and Spectral-Phase conjugation Xiujian Li xl 2311@columbia. edu 4 Wong group, Optical

3. Time- and Spectral-Phase conjugation Xiujian Li xl 2311@columbia. edu 4 Wong group, Optical Nanostructures Laboratory, Columbia University

Xiujian Li xl 2311@columbia. edu Wong group, Optical Nanostructures Laboratory, Columbia University

Xiujian Li xl 2311@columbia. edu Wong group, Optical Nanostructures Laboratory, Columbia University

4. Phase conjugation and Four-Wave Mixing Xiujian Li xl 2311@columbia. edu 6 Wong group,

4. Phase conjugation and Four-Wave Mixing Xiujian Li xl 2311@columbia. edu 6 Wong group, Optical Nanostructures Laboratory, Columbia University

5. Implement Hu, H. , et al. . Optics Letters, 2010. 35(17): p. 2867

5. Implement Hu, H. , et al. . Optics Letters, 2010. 35(17): p. 2867 -2869. Xiujian Li xl 2311@columbia. edu 7 Wong group, Optical Nanostructures Laboratory, Columbia University

6. Next step 1. Design the parameters based on Silicon nano-waveguide; 2. Design the

6. Next step 1. Design the parameters based on Silicon nano-waveguide; 2. Design the experimental setup based on current setup (for compression, SPM, and CPM); 3. Observe the frequency distribution via OSA; 4. Observe the phase distribution via FROG / X-FROG. 5. Associated with phase noise and timing jitter. Xiujian Li xl 2311@columbia. edu 8 Wong group, Optical Nanostructures Laboratory, Columbia University

7. Referenced setup Xiujian Li xl 2311@columbia. edu 9 Wong group, Optical Nanostructures Laboratory,

7. Referenced setup Xiujian Li xl 2311@columbia. edu 9 Wong group, Optical Nanostructures Laboratory, Columbia University
