Phage display

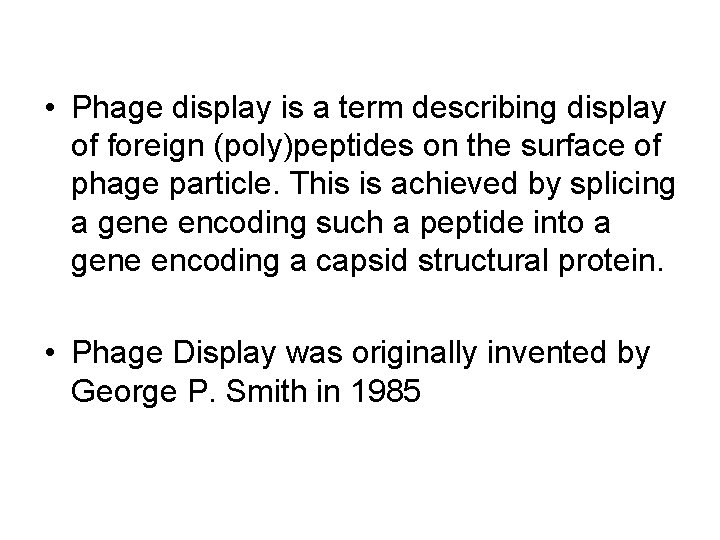

• Phage display is a term describing display of foreign (poly)peptides on the surface of phage particle. This is achieved by splicing a gene encoding such a peptide into a gene encoding a capsid structural protein. • Phage Display was originally invented by George P. Smith in 1985

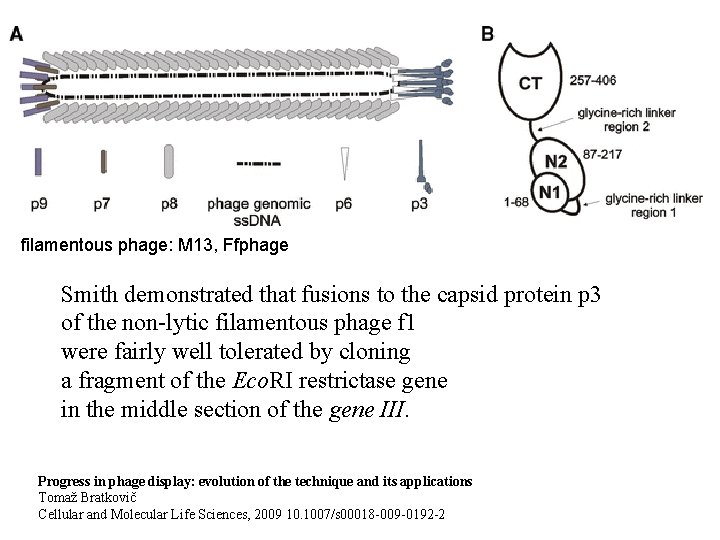

filamentous phage: M 13, Ffphage Smith demonstrated that fusions to the capsid protein p 3 of the non-lytic filamentous phage f 1 were fairly well tolerated by cloning a fragment of the Eco. RI restrictase gene in the middle section of the gene III. Progress in phage display: evolution of the technique and its applications Tomaž Bratkovič Cellular and Molecular Life Sciences, 2009 10. 1007/s 00018 -009 -0192 -2

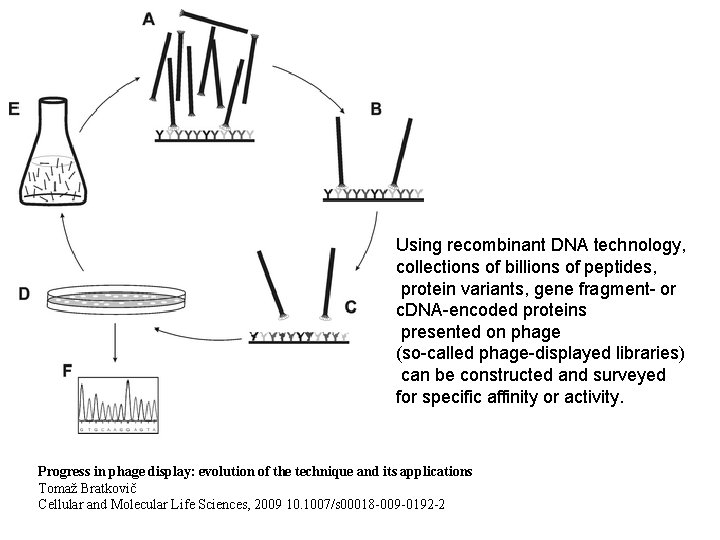

Using recombinant DNA technology, collections of billions of peptides, protein variants, gene fragment- or c. DNA-encoded proteins presented on phage (so-called phage-displayed libraries) can be constructed and surveyed for specific affinity or activity. Progress in phage display: evolution of the technique and its applications Tomaž Bratkovič Cellular and Molecular Life Sciences, 2009 10. 1007/s 00018 -009 -0192 -2

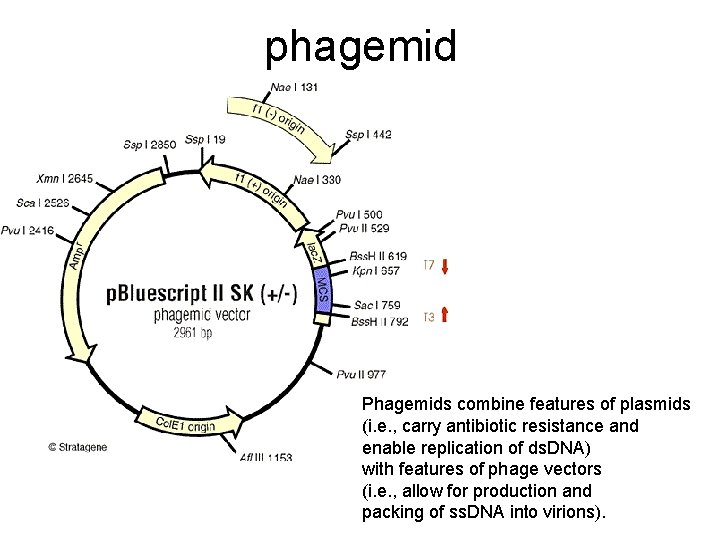

phagemid Phagemids combine features of plasmids (i. e. , carry antibiotic resistance and enable replication of ds. DNA) with features of phage vectors (i. e. , allow for production and packing of ss. DNA into virions).
helper phage • Phagemids are engineered to express recombinant p 3 fusions under controlled conditions, but do not encode any viral structural or replication proteins. • Only upon superinfection of a bacterial host by a helper phage which contributes the missing genes can the phagemid ss. DNA replication and packing take place. • Helper phage are defective in their origin of replication or packaging signal thereby ensuring preferential packing of phagemids.
c. DNA library transformation E. coli pool containing phagemid construction different phages phage pool screening Cells with desired DNA transduction helper phage transduction

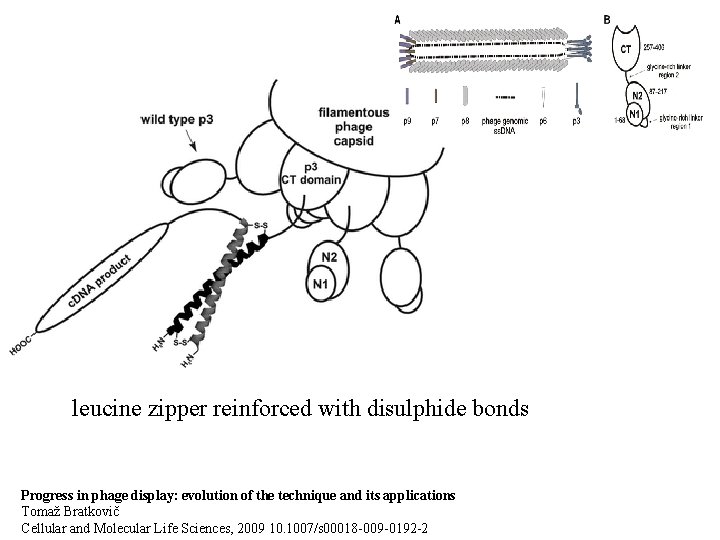

leucine zipper reinforced with disulphide bonds Progress in phage display: evolution of the technique and its applications Tomaž Bratkovič Cellular and Molecular Life Sciences, 2009 10. 1007/s 00018 -009 -0192 -2
leucine zipper, aka leucine scissors • Each half of a leucine zipper consists of a short alpha-helix with a leucine residue at every seventh position. The standard 3. 6 -residues-per-turn alphahelix structure changes slightly to become a 3. 5 -residues-perturn alpha-helix.
• Schematic representation of antibody fragment types displayed as fusions to p 3: a single-chain variable fragment (sc. Fv); b antigen-binding fragment (Fab) with light chain-p 3 fusion (left) or heavy chain-p 3 fusion (right). Progress in phage display: evolution of the technique and its applications Tomaž Bratkovič Cellular and Molecular Life Sciences, 2009 10. 1007/s 00018 -009 -0192 -2

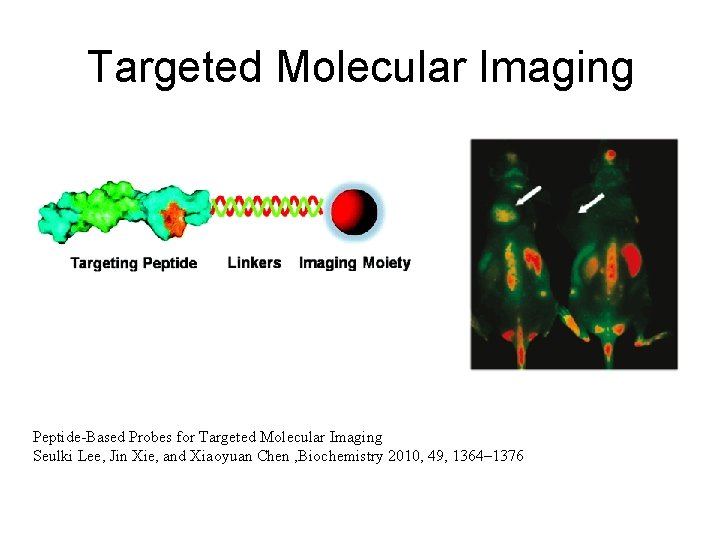

Targeted Molecular Imaging Peptide-Based Probes for Targeted Molecular Imaging Seulki Lee, Jin Xie, and Xiaoyuan Chen , Biochemistry 2010, 49, 1364– 1376
• Although some success has been achieved, the use of these probes has been largely unsuccessful mainly because of their low specificity (small molecules) or limited target permeability (antibodies). • For an imaging probe to be clinically useful, it should provide a sufficient “target-to-background” ratio to maximize the “signal-to-noise” ratio or contrast in vivo. The ideal imaging compound would exhibit high binding affinity for the target, specific uptake and retention in the target, rapid clearance from nontarget tissue, adequate capillary permeability, and high stability and integrity in vivo and would be easy to prepare and safe for use. Peptide-Based Probes for Targeted Molecular Imaging Seulki Lee, Jin Xie, and Xiaoyuan Chen , Biochemistry 2010, 49, 1364– 1376
Combinatorial peptide chemistry and phage display technology, a molecular genetics approach to ligand discovery, have profoundly impacted the pool of available bioactive synthetic peptides and peptide hormones.
Combinatorial peptide chemistry Combinatorial libraries of peptide dendrimers: design, synthesis, on-bead high-throughput screening, bead decoding and characterization Noélie Maillard, Anthony Clouet, Tamis Darbre & Jean-Louis Reymond Nature Protocols 4, 132 - 142 (2009) Published online: 15 January 2009 doi: 10. 1038/nprot. 2008. 241

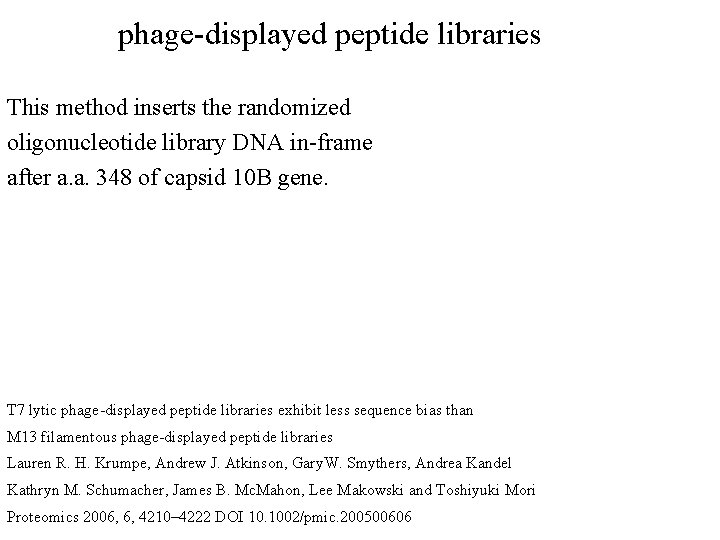

phage-displayed peptide libraries This method inserts the randomized oligonucleotide library DNA in-frame after a. a. 348 of capsid 10 B gene. T 7 lytic phage-displayed peptide libraries exhibit less sequence bias than M 13 filamentous phage-displayed peptide libraries Lauren R. H. Krumpe, Andrew J. Atkinson, Gary. W. Smythers, Andrea Kandel Kathryn M. Schumacher, James B. Mc. Mahon, Lee Makowski and Toshiyuki Mori Proteomics 2006, 6, 4210– 4222 DOI 10. 1002/pmic. 200500606
