PG100 SMART GAUGE Battery type Smart Pressure Gauge

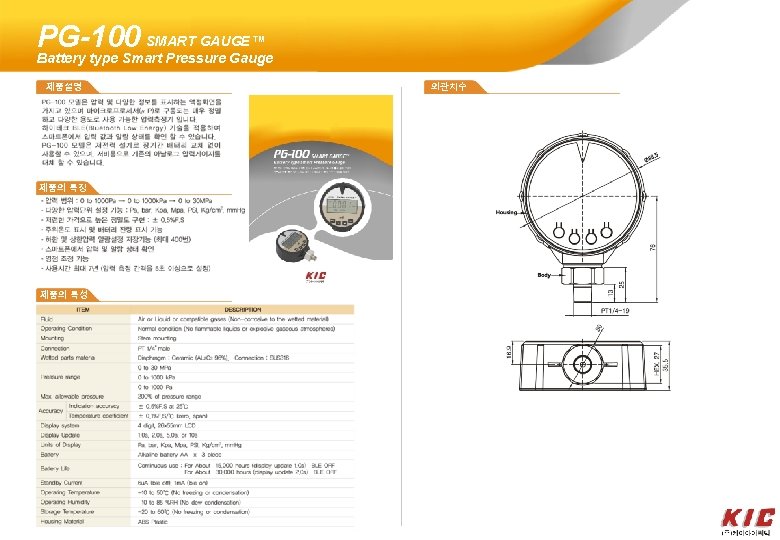

PG-100 SMART GAUGE™ Battery type Smart Pressure Gauge 제품설명 제품의 특징 제품의 특성 외관치수

KP-HT 100 A High-temperature Pressure Transmitter 외관치수 Product 제품설명 KP-HT 100 A transmitter uses high temperature pressure sensor as sensing element. The media is transferred onto sensor through heating cooling parts, and high accuracy amplified circuit board is in stainless steel housing, transmitting sensor signal into standard output signal. The whole product is produced through components making, simi-finished product and all-finished product strict testing and aging, having stable and reliable performance. The transmitter is widely used for high and low measurement and control of food, medicine, power station, engineering, automobile, ship manufacture, petroleum, metallurgy, steam and heat exchanging, aviation, spaceflight, and scientific research and laboratory instrument, etc Outline Contruction (Unit: mm) G (P ＜ 16 k. Pa) Construction 제품의 특징 • Full welded sensor with pressure port; protection IP 65; ·Stainless steel contacting with media, good corrosive • resistance; ·High, low and common temperature measurement, good • long-term stability; ·Good anti-impact, anti-shock ability; ·Wider operation 제품의 특성 ITEM DESCRIPTION Pressure range -0. 1 MPa… 0 MPa～ 0. 01 MPa… 160 MPa(G)； 0 MPa～ 0. 025 MPa… 60 MPa(A) Overpressure 200%FS or 150 MPa（min. value is valid） Media liquid or gas which is compatible with stainless steel Power supply 10～ 30 VDC, suggested 24 VDC Output signal 4～ 20 m. ADC 2 -wire Load RL≤（（U-10）/0. 02）（Ω） Accuracy ± 0. 25%FS, ± 0. 5%FS（including non-lin. , rep. and hys. ） Thermal error ≤± 0. 025%FS/℃（@25℃） Long-term stability ≤± 0. 5%FS/year Endurance 106 pressure cycles Environment temp -40℃～+80℃ Media temp -40℃～+150℃ Relative humility 0～ 90%RH Protection IP 65 Response frequency ＞ 1 k. Hz Insulation 100 MΩ，50 VDC Pressure port and housing stainless steel 1 Cr 18 Ni 9 Ti Wiring plug Hirschmann plug 연결도

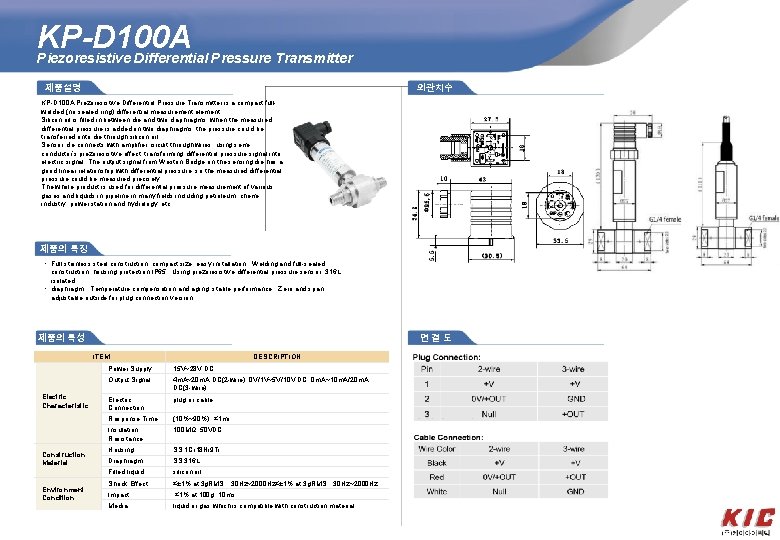

KP-D 100 A Piezoresistive Differential Pressure Transmitter 외관치수 Product 제품설명 KP-D 100 A Piezoresistive Differential Pressure Transmitter is a compact fullwelded (no sealed ring) differential measurement element. Silicon oil is filled in between die and two diaphragms, when the measured differential pressure is added on two diaphragms, the pressure could be transferred onto die through silicon oil. Sensor die connects with amplifier circuit through wires, using semiconductor’s piezoresistive effect, transforming differential pressure signal into electric signal. The output signal from Weston Bridge on the sensing die has a good linear relationship with differential pressure, so the measured differential pressure could be measured precisely. The whole product is used for differential pressure measurement of various gases and liquids in pipeline in many fields including petroleum, chemiindustry, power station and hydrology, etc. 제품의 특징 • Full stainless steel construction, compact size, easy installation; ·Welding and full-sealed construction; housing protection IP 65; ·Using piezoresistive differential pressure sensor, 316 L isolated • diaphragm; ·Temperature compensation and aging, stable performance; ·Zero and span adjustable outside for plug connection version. 제품의 특성 연결도 ITEM Electric Characteristic Construction Material Environment Condition DESCRIPTION Power Supply 15 V~28 V DC Output Signal 4 m. A~20 m. A DC(2 -wire); 0 V/1 V~5 V/10 V DC, 0 m. A~10 m. A/20 m. A DC(3 -wire) Electric Connection plug or cable Response Time (10%~90%): ≤ 1 ms Insulation Resistance 100 MΩ, 50 VDC Housing SS 1 Cr 18 Ni 9 Ti Diaphragm SS 316 L Filled liquid silicon oil Shock Effect ≤± 1% at 3 g. RMS，30 Hz~2000 Hz Impact ≤ 1% at 100 g, 10 ms Media liquid or gas which is compatible with construction material

PG-S 300 Intelligent Pressure Switch 외관치수 제품설명 PG-S 300 is an intelligent pressure switch combining pressure measurement, local display and control together. It uses advanced ARM industrial-grade MCU as core and high quality pressure sensor as sensing element. With well-designation and adjustment, PG-S 300 has quick reaction and good electro-magnetic compatibility for pressure control at the premise of accuracy. It can be widely used for industrial site pressure control in pump, hydraulic and pneumatic equipments. PG-S 300 is able to visually process the process pressure and switch contacts status through switch output, analog output and display screen. It has various output signals for different application. PG-S 300 switch has functions such as time delay setting, ranges drift setting (scales: 25%FS~100%FS), as well setting: clear zero, base point, peak display. With special designation and construction, it can be installed vertically, horizontally or rack mounting. The body can rotate 330 o; display can rotate 180 oin order for viewer to face up to the display screen. OLED display is very clear to read. With specialized MS 701 communication adaptor, PG-S 300 can be connected with PC to realize Modbus communication function. 제품의 특징 • • • Pressure measurement for gas and liquid Optional for PNP, voltage and current output Peak value display Ranges drift function PNP switch point setting, time delay setting for action Modbus communication① OLED display Display rotate 180 o Body rotate 330 o Change-over of different units 제품의 특성 Outputs ITEM DESCRIPTION Range (MPa) : 0. 1, 0. 35, 0. 7, 1. 6, 3. 5, 7, 10, 25, 40, 60 Range drift 25%FS～ 100%FS Pressure Type Gauge, Absolute Overpressure 2×FS or 100 MPa (min. value is valid) Accuracy ± 0. 5%FS Hysteresis ± 0. 2%FS Thermal error ± 0. 02%FS/℃(Zero/FS) Power supply 12 V～ 30 VDC Long Time Stability ± 0. 3%FS/year ITEM 1 switch 2 switches 1 switch + voltage output 2 switches + voltage output 1 switch + current output 2 switches + current output Switch current Switch life time Switch reaction Switch time delay Switch action pattern DESCRIPTION 1×PNP 2×PNP 1×PNP + 0 V～ 5 VDC/10 VDC 2×PNP + 0 V～ 5 VDC/10 VDC 1×PNP + 0 m. A/4 m. A～ 20 m. ADC 2×PNP + 0 m. A/4 m. A～ 20 m. ADC 1. 2 A(Max. ) >100 ms <10 ms 0. 00 s～ 99. 99 s Hys. Mode / Win. Mode

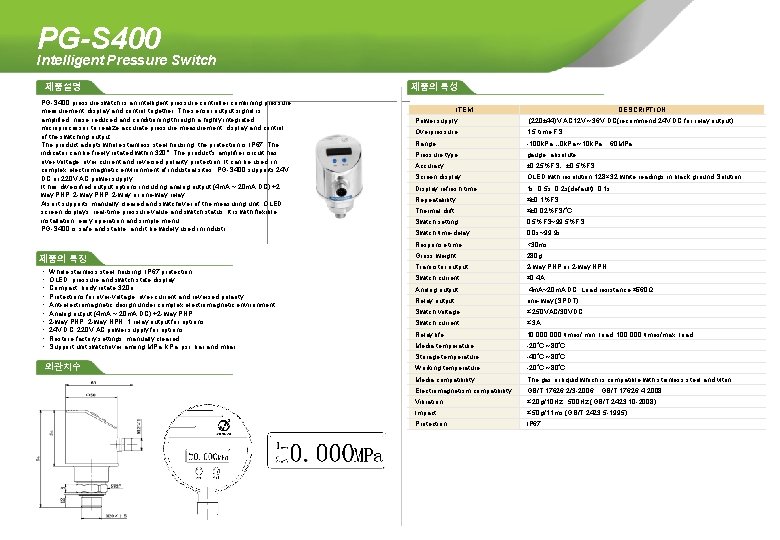

PG-S 400 Intelligent Pressure Switch 제품설명 PG-S 400 pressure switch is an intelligent pressure controller combining pressure measurement, display and control together. The sensor output signal is amplified, noise reduced and conditioning through a highly integrated microprocessor to realize accurate pressure measurement, display and control of the switching output. The product adopts whole stainless steel housing, the protection is IP 67. The indicator can be freely rotated within 320°. The product's amplifier circuit has over-voltage, over current and reversed polarity protection. It can be used in complex electromagnetic environment of industrial sites. PG-S 400 supports 24 V DC or 220 V AC power supply. It has diversified output options including analog output (4 m. A ~ 20 m. A DC) +2 way PNP, 2 -way or one-way relay. Also it supports manually cleared and switchover of the measuring unit. OLED screen displays real-time pressure value and switch status. It is with flexible installation, easy operation and simple menu. PG-S 400 is safe and stable, and it be widely used in industr 제품의 특징 • • • Whole stainless steel housing, IP 67 protection OLED, pressure and switch state display Compact, body rotate 320 o Protections for over-voltage, over-current and reversed polarity Anti-electromagnetic design under complex electromagnetic environment Analog output (4 m. A ~ 20 m. A DC) +2 -way PNP, 2 -way NPN, 1 relay output for options. 24 V DC, 220 V AC power supply for options Restore factory settings, manually cleared Support unit switchover among MPa, k. Pa, psi, bar and mbar 외관치수 제품의 특성 ITEM DESCRIPTION Power supply (220± 44)V AC 12 V～ 36 V DC(recommend 24 V DC for relay output) Overpressure 1. 5 time FS Range -100 k. Pa… 0 k. Pa～ 10 k. Pa. . . 60 MPa Pressure type gauge, absolute Accuracy ± 0. 25%FS、± 0. 5%FS Screen display OLED with resolution 128× 32 white readings in black ground Solution Display refresh time 1 s, 0. 5 s, 0. 2 s(default), 0. 1 s Repeatability ≤± 0. 1%FS Thermal drift ≤± 0. 02%FS/℃ Switch setting 0. 5%FS~99. 5%FS Switch time-delay 0. 0 s~99. 9 s Response time <30 ms Gross weight 280 g Transistor output 2 -way PNP or 2 -way NPN Switch current ≤ 0. 4 A Analog output 4 m. A~20 m. A DC; Load resistance: ≤ 560Ω Relay output one-way (SPDT) Switch voltage ≤ 250 VAC/30 VDC Switch current ≤ 3 A Relay life 10, 000 times/ min. load, 100, 000 times/max. load Media temperature -20℃～ 80℃ Storage temperature -40℃～ 80℃ Working temperature -20℃～ 80℃ Media compatibility The gas or liquid which is compatible with stainless steel and viton. Electromagnetism compatibility GB/T 17626. 2/3 -2006，GB/T 17626. 4 -2008 Vibration ≤ 20 g/10 Hz. . . 500 Hz (GB/T 2423. 10 -2008) Impact ≤ 50 g/11 ms (GB/T 2423. 5 -1995) Protection IP 67

TG-S 300 Intelligent Temperature Switch 제품설명 TG-S 300 is an intelligent temperature switch combining temperature measurement, local display and control together. It usesadvanced ARM industrial-grade MCU as core and high accuracy PT 100 temperature sensor as sensing element. TG-S 300 has quick response, high accuracy and stable performance. It can be widely used for equipment matching andtemperature measurement and control in industrial process or lab etc. . TG-S 300 is able to visually process the process temperature and switch contacts status through switch output, analog output and display screen. It has various output signals for different application. TG-S 300 switch has functions such as time delay setting, ranges drift setting (scales: 25%~100%FS), The body can rotate 330 o; display can rotate 180 o in order for viewer to face up to the display screen. OLED display is very clear to read. With special designation and construction, it has two construction: integrated and separated. Both are easy for nstallation. With specialized MS 701 communication adaptor, TG-S 300 can be connected with PC to realize Modbus communication function 제품의 특징 • • • Temperature measurement for gas and liquid Optional for PNP , voltage and current output Peak value display Ranges drift function PNP switch point setting, time delay setting for action Modbus communication① OLED display Environment reference temperature display Display rotate 180 o Body rotate 330 o Change-over of different units: ℃ or℉ 외관치수 제품의 특성 ITEM DESCRIPTION Range -50℃~200℃（-58℉~392℉） Range drift 25%FS~100%FS Accuracy ± 1. 0℃(± 2. 0℉) Resolution 0. 1℃ Power supply 12 V~30 VDC Sealing PTFE gasket Thermal drift 0. 15%/10 K Response about 20 s Display units ℃ l ℉ Key 3 silicone rubber keys, please operate according to instructions on the screen. Main screen measured media temperature Sub screen environment temperature = 2 * GB 3 ② Peak display Temperature peak in process Media Temperature -50℃~200℃ Environment Temperature -25℃~70℃ Storage Temperature -40℃~80℃ Relative Humidity 0%～ 85% EMC GB/T 17626. 2/3/4 -2006 Shock ≤ 10 g/10 Hz. . . 500 Hz(IEC 60068 -2 -6 -2007) Impact ≤ 50 g/11 ms(IEC 60068 -2 -27 -2008) Protection IP 65 Pipe and housing SS Contact media material SS Display board PMMA Sealing PTFE gasket Sensing element PT 100 Electric connection M 12× 1 round plug Pressure connection M 20 x 1. 5 male Gross weight 300 g (integrated), 580 g (separated)

TG-S 400 Temperature Switch 제품설명 TG-S 400 is an intelligent temperature switch combining temperature measurement, display and control together. The sensor output signal is amplified, noise reduced and conditioning through a highly integrated microprocessor to realize accurate temperature measurement, display and control of the switching output. The product adopts whole stainless steel housing, the protection is IP 67. The indicator can be freely rotated within 320°. The product's amplifier circuit has over-voltage, over current and reversed polarity protection. It can beused in complex electromagnetic environment of industrial sites. It has diversified output options including analog output (4 m. A ~ 20 m. A DC) +2 way PNP, 2 -way or one-way relay. Also it supports manually cleared and switchover of the measuring unit between ℃ and ℉. OLED screen displays real-time temperature value and switch status. It is with flexible installation, easy operation and simple menu. TG-S 400 is safe and stable, and it can be widely used in industries such as water utilities, petrochemical, metallurgy, transport, electricity, machinery manufacturing etc 제품의 특징 • • • Whole stainless steel housing, IP 67 protection OLED, pressure and switch state display Compact, body rotate 320° Protections for over-voltage, over-current and reversed polarity Anti-electromagnetic design under complex electromagnetic environment Analog output (4 m. A~20 m. A DC)+2 -way PNP, 2 -way NPN, 1 relay • output for options • Restore factory settings, linear correction • Support unit switch-over between 외관치수 제품의 특성 ITEM DESCRIPTION Power supply 24 V DC Range -50℃~150℃ Accuracy ≤ ± 1℃ (FS≤ 100℃), ≤± 2℃(FS＞ 100℃) Screen display OLED with resolution 128× 32 whitereadings in black ground Solution Display refresh time 1 s, 0. 5 s, 0. 2 s(default) Repeatability ≤± 0. 1%FS Switch setting 0. 5%FS~99. 5%FS Switch delay 0. 0 s~99. 9 s Weight around 280 g Protection IP 67 Impact ≤ 50 g/11 ms (GB/T 2423. 5 -1995) Media compatibility The gas or liquid which is compatible with stainless steel Vibration ≤ 20 g/10 Hz. . . 500 Hz (GB/T 2423. 10 -2008) Transistor output 2 -way PNP or 2 -way NPN Switch current ≤ 0. 4 A Analog output 4 m. A~20 m. A DC; load resistance ≤ 560Ω Relay output one-way (SPDT) Switch voltage ≤ 250 VAC/30 VDC Switch current ≤ 3 A Life 10, 000 times/ min. load, 100, 000 times/max. load Media temperature -50℃~150℃/-58℉~302℉ Storage temperature -40℃~80℃/-40℉~176℉ Environmental temperature -20℃~80℃/-4℉～ 176℉ Electromagnetism Compatibility GB/T 17626. 2/3 -2006, GB/T 17626. 4 -2008 연결도

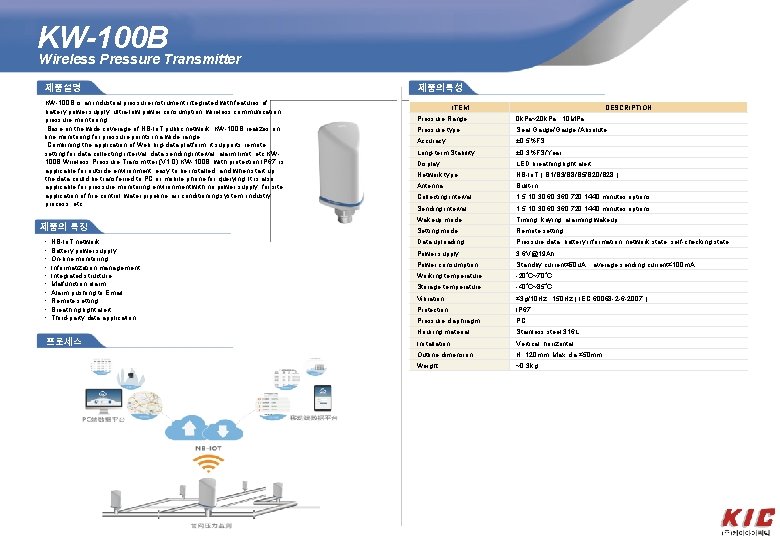

KW-100 B Wireless Pressure Transmitter 제품설명 KW-100 B is an industrial pressure instrument integrated with features of battery power supply, ultra-low power consumption, wireless communication, pressure monitoring. Base on the wide coverage of NB-Io. T public network, KW-100 B realizes online monitoring for pressure points in a wide range. Combining the application of Web big-data platform, it supports remote setting for data collecting interval, data sending interval, alarm limit, etc. KW 100 B Wireless Pressure Transmitter (V 1. 0) KW-100 B, with protection IP 67, is applicable for outside environment, easy to be installed, and when start up, the data could be transferred to PC or mobile phone for querying. It is also applicable for pressure monitoring environment with no power supply, for site application of fire control, water pipeline, air conditioning system, industry process, etc. 제품의 특징 • • • NB-Io. T network Battery power supply On-line monitoring Informatization management Integrated structure Malfunction alarm Alarm pushing to Email Remote setting Breathing light alert Third-party data application 프로세스 제품의특성 ITEM DESCRIPTION Pressure Range 0 k. Pa~20 k. Pa. . . 10 MPa Pressure type Seal Gauge/Gauge /Absolute Accuracy ± 0. 5%FS Long-term Stability ± 0. 3%FS/Year Display LED breathing light alert Network type NB-Io. T（B 1/B 3/B 8/B 5/B 20/B 28） Antenna Built-in Collecting interval 1, 5, 10, 30, 60, 360, 720, 1440 minutes options Sending interval 1, 5, 10, 30, 60, 360, 720, 1440 minutes options Wakeup mode Timing, keying, alarming wakeup Setting mode Remote setting Data uploading Pressure data, battery information, network state, self-checking state Power supply 3. 6 V@19 Ah Power consumption Standby current≤ 50 u. A，average sending current≤ 100 m. A Working temperature -20℃~70℃ Storage temperature -40℃~85℃ Vibration ≤ 3 g/10 Hz. . . 150 Hz（IEC 60068 -2 -6 -2007） Protection IP 67 Pressure diaphragm PC Housing material Stainless steel 316 L Installation Vertical, horizontal Outline dimension H: 120 mm, Max dia. ≤ 50 mm Weight ~0. 3 kg

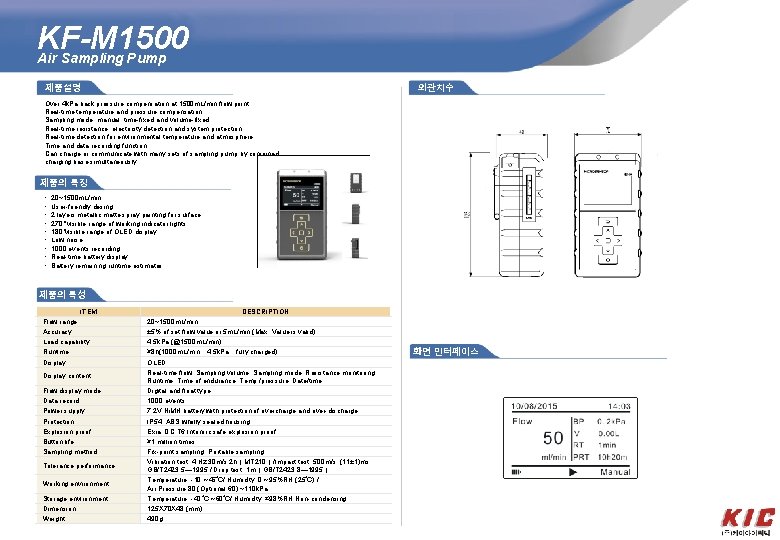

KF-M 1500 Air Sampling Pump 외관치수 제품설명 Over 4 k. Pa back pressure compensation at 1500 m. L/min flow point Real-time temperature and pressure compensation Sampling mode: manual, time-fixed and volume-fixed Real-time resistance, electricity detection and system protection Real-time detection for environmental temperature and atmosphere Time and data recording function Can charge or communicate with many sets of sampling pump by conjoined charging base simultaneously 제품의 특징 • • • 20~1500 m. L/min User-friendly desing 2 layers metallic matte spray painting for surface 270˚ visible range of working indicator lights 180˚visible range of OLED display Low noise 1000 events recording Real-time battery display Battery remaining runtime estimates 제품의 특성 ITEM Flow range Accuracy Load capability Runtime Display content Flow display mode Data record Power supply Protection Explosion proof Button life Sampling method Tolerance performance Working environment Storage environment Dimension Weight DESCRIPTION 20~1500 m. L/min ± 5% of set flow value or 5 m. L/min (Max. Value is valid) 4. 5 k. Pa (@1500 m. L/min) ≥ 8 h(1000 m. L/min，4. 5 k. Pa，fully charged) OLED Real-time flow, Sampling volume, Sampling mode, Resistance monitoring, Runtime, Time of endurance, Temp. /pressure, Date/time Digital and float type 1000 events 7. 2 V Ni. MH battery with protection of overcharge and over-discharge. IP 54, ABS wholly sealed housing Exia ⅡC T 6 Intrinsic safe explosion proof ≥ 1 million times Fix-point sampling, Portable sampling Vibration test: 4 Hz, 30 m/s, 2 h（MT 210）/Impact test: 500 m/s, (11± 1)ms GB/T 2423. 5— 1995 / Drop test: 1 m（GB/T 2423. 8— 1995） Temperature: -10～ 45℃/ Humidity: 0～ 95%RH (25℃) / Air Pressure 80 (Optional 60) ~110 k. Pa Temperature: -40℃～ 60℃/ Humidity: ≤ 98%RH Non-condensing 125 X 70 X 48 (mm) 490 g 화면 인터페이스
