PFOS USE IN THE SEMICONDUCTOR INDUSTRY LRTAP Review Process June 2005

PFOS USE IN THE SEMICONDUCTOR INDUSTRY LRTAP Review Process June 2005

Addition of Chemicals to LRTAP – Information Elements v Executive Body Decision 1998/2, Paragraph

Addition of Chemicals to LRTAP – Information Elements v Executive Body Decision 1998/2, Paragraph 1 lays out information required for evaluating proposed additions v Data elements include: § Production/uses/emissions… § Socio-economic factors, including: • Alternatives and their efficacy • Known adverse environmental or health effects of alternatives • Process changes, controls, prevention techniques which can reduce emissions of the substance

Key Messages v Semiconductor sector is a strategic industry – enables economic productivity growth,

Key Messages v Semiconductor sector is a strategic industry – enables economic productivity growth, sustainable development, etc. v PFOS is used in very small quantities in s/c photolithography, playing a critical role in several applications – no current substitutes v PFOS carefully managed in s/c manufacturing to yield de minimis emissions and exposure § This fact recognized by EU SCHER Committee and US EPA v Semiconductor industry committed to finding substitutes for current critical uses of PFOS § No “drop-in” or “one-size-fits-all” substitutes available; substitution process will take time and millions of Dollars/Euros of research v Most likely PFOS alternatives are PFASs; they are not PBTs

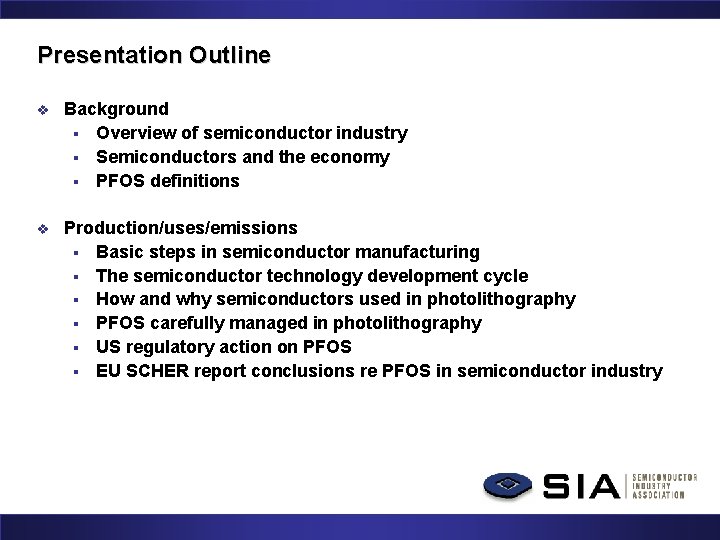

Presentation Outline v Background § Overview of semiconductor industry § Semiconductors and the economy

Presentation Outline v Background § Overview of semiconductor industry § Semiconductors and the economy § PFOS definitions v Production/uses/emissions § Basic steps in semiconductor manufacturing § The semiconductor technology development cycle § How and why semiconductors used in photolithography § PFOS carefully managed in photolithography § US regulatory action on PFOS § EU SCHER report conclusions re PFOS in semiconductor industry

Presentation Outline v Alternatives § Critical vs. Non-critical § The PFOS substitution process §

Presentation Outline v Alternatives § Critical vs. Non-critical § The PFOS substitution process § Progress in eliminating “non-critical” PFOS uses v Known health effects of alternatives v Industry Voluntary Commitment

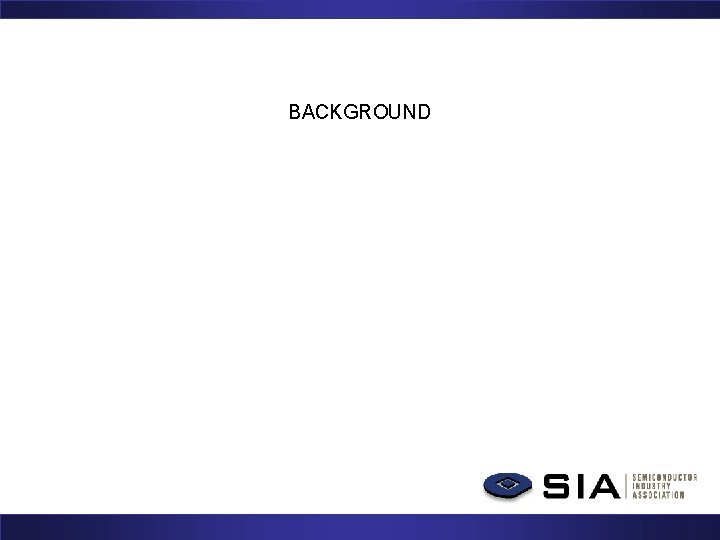

BACKGROUND

BACKGROUND

Semiconductors at the Heart of the Modern Economy Research Banking systems Services Leisure Informatic

Semiconductors at the Heart of the Modern Economy Research Banking systems Services Leisure Informatic Medical systems Microelectronic National Security Communications Education Electronic Transportation Industry Environment

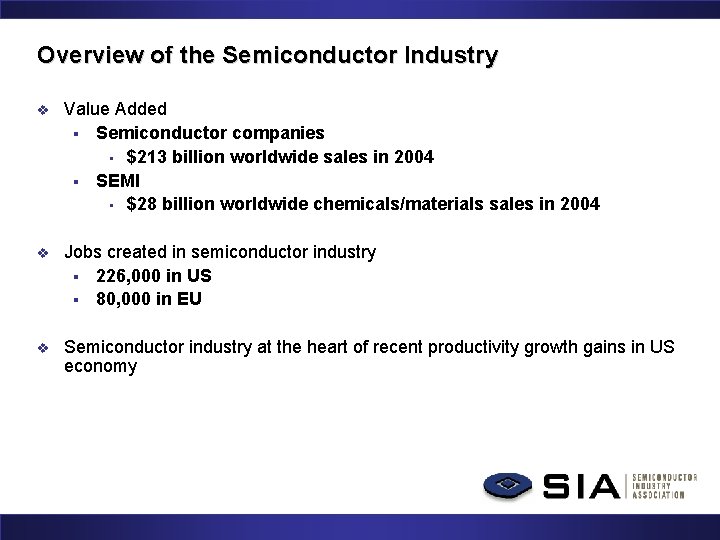

Overview of the Semiconductor Industry v Value Added § Semiconductor companies • $213 billion

Overview of the Semiconductor Industry v Value Added § Semiconductor companies • $213 billion worldwide sales in 2004 § SEMI • $28 billion worldwide chemicals/materials sales in 2004 v Jobs created in semiconductor industry § 226, 000 in US § 80, 000 in EU v Semiconductor industry at the heart of recent productivity growth gains in US economy

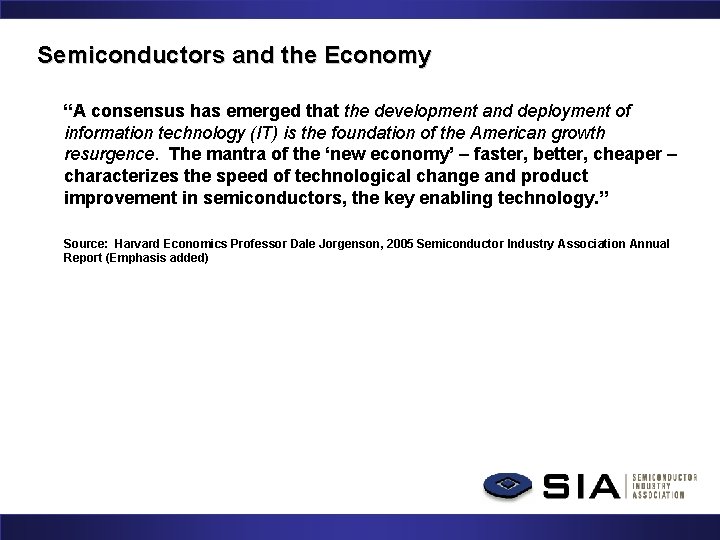

Semiconductors and the Economy “A consensus has emerged that the development and deployment of

Semiconductors and the Economy “A consensus has emerged that the development and deployment of information technology (IT) is the foundation of the American growth resurgence. The mantra of the ‘new economy’ – faster, better, cheaper – characterizes the speed of technological change and product improvement in semiconductors, the key enabling technology. ” Source: Harvard Economics Professor Dale Jorgenson, 2005 Semiconductor Industry Association Annual Report (Emphasis added)

Semiconductors and the Economy "Semiconductors are for the Information Society, what grain was for

Semiconductors and the Economy "Semiconductors are for the Information Society, what grain was for the agrarian society and iron and steel were for the industrial society. " Source: Adapted from the Shanghai Museum for Urban Development 2004

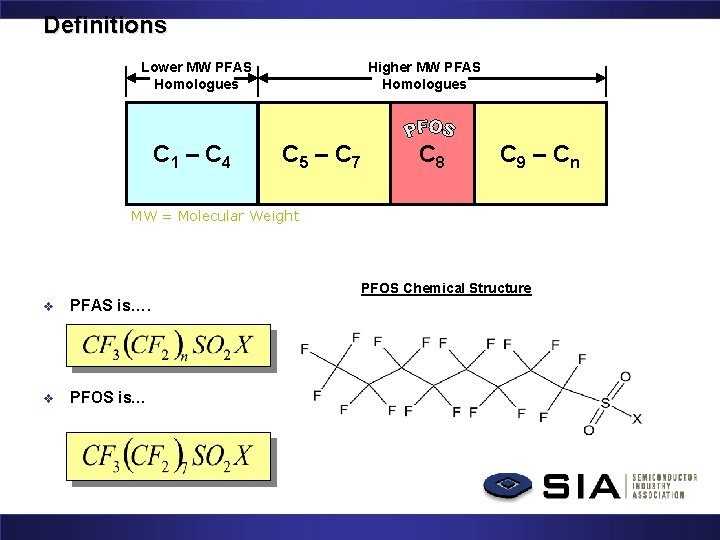

Definitions Lower MW PFAS Homologues C 1 – C 4 Higher MW PFAS Homologues

Definitions Lower MW PFAS Homologues C 1 – C 4 Higher MW PFAS Homologues C 5 – C 7 C 8 C 9 – C n MW = Molecular Weight PFOS Chemical Structure v PFAS is…. v PFOS is…

PRODUCTION/USES/EMISSIONS

PRODUCTION/USES/EMISSIONS

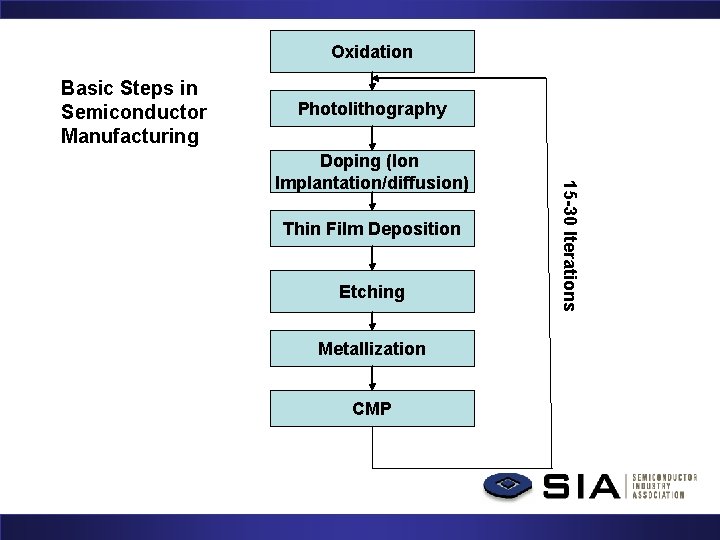

Oxidation Basic Steps in Semiconductor Manufacturing Photolithography Thin Film Deposition Etching Metallization CMP 15

Oxidation Basic Steps in Semiconductor Manufacturing Photolithography Thin Film Deposition Etching Metallization CMP 15 -30 Iterations Doping (Ion Implantation/diffusion)

Typical Photolithography Process Life Cycle Exhaust routed to appropriate air pollution control device Resist

Typical Photolithography Process Life Cycle Exhaust routed to appropriate air pollution control device Resist EBR/RER Typical Photolithography Process BARC applied TARC Pre. Life Cycle via via applied expose Spin Bake Coating BARC, Resist Wastes and EBR/RER To Solvent Waste Tank Disposed via Fuel Blend/Incineration Expose Postexpose Bake Developer and TARC Wastes to IW Drain Process may or may not be utilized Lithography Process Steps Effluents Polyimides

The Semiconductor Technology Development Cycle v The semiconductor manufacturing process is highly complex v

The Semiconductor Technology Development Cycle v The semiconductor manufacturing process is highly complex v As circuit features get ever smaller, specialty chemicals like PFOS become ever more important v Chemicals and materials must work precisely with advanced equipment (“tools”) to accomplish high-yield, high-volume manufacturing v The process for developing new chemicals, new tools, and ensuring that the two work together in a manufacturing environment can take 10 -15 years to complete v Substitution of new materials into an existing process cannot happen quickly

The Semiconductor Technology Development Cycle Too close for change Supplier R&D Integration Fundamental Research

The Semiconductor Technology Development Cycle Too close for change Supplier R&D Integration Fundamental Research 10 8 Toxicity Evaluation 6 Mfg. Ramp Demonstration 4 Years 2 0 Ramp to High Volume Manufacturing

How PFOS is Used in Photolithography v Photoacid Generators (PAGs) v Anti-Reflective Coatings (ARCs)

How PFOS is Used in Photolithography v Photoacid Generators (PAGs) v Anti-Reflective Coatings (ARCs) § Top Anti-Reflective Coatings (TARCs) § Bottom Anti-Reflective Coatings (BARCs) v PFOS-based Surfactants

Why is PFOS in Photoacid Generators? v Photoacid Generators (PAGs) § § Photoresists for

Why is PFOS in Photoacid Generators? v Photoacid Generators (PAGs) § § Photoresists for 248 nm and shorter wavelengths rely on chemical amplification During exposure the photoacid generator forms an acid catalyst which aids in creating the desired image • PAGs control diffussion which results in better resolved features and smaller scale roughness • Reduced roughness translates into reduced risk of semiconductor failure during critical applications Photo-acid generators used for this purpose are typically sulfonic acids PFOS is currently the ONLY chemical that can provide the necessary acidity

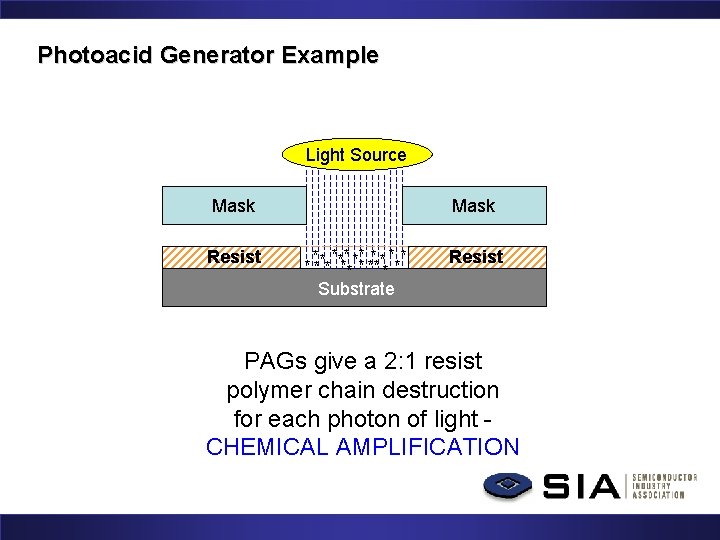

Photoacid Generator Example Light Source Mask Resist Mask * ***** **** * Substrate Resist

Photoacid Generator Example Light Source Mask Resist Mask * ***** **** * Substrate Resist PAGs give a 2: 1 resist polymer chain destruction for each photon of light CHEMICAL AMPLIFICATION

Photoacid Diffusion Control 65 nm Short Diffusion Long Diffusion Path of catalyst Resist morphology

Photoacid Diffusion Control 65 nm Short Diffusion Long Diffusion Path of catalyst Resist morphology Feature Foot Well resolved features Smaller scale roughness (exemplary of PFOS PAG) Poorly resolved features Larger scale roughness (exemplary of non-PFOS PAG) Feature roughness can cause failure in critical applications

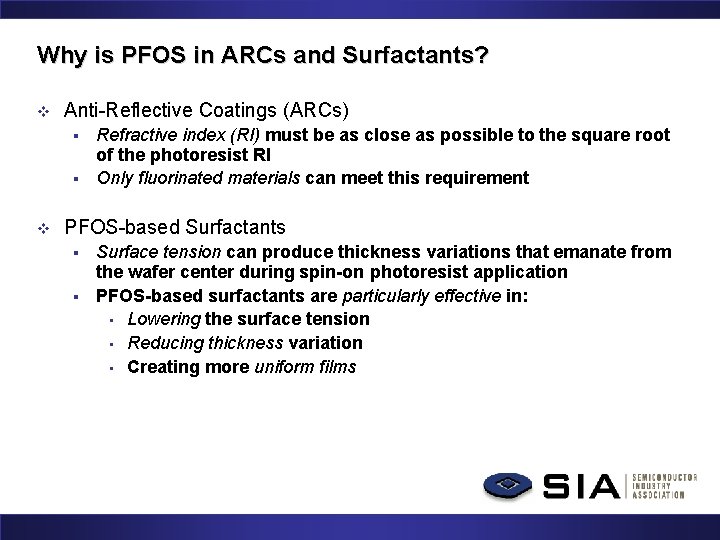

Why is PFOS in ARCs and Surfactants? v Anti-Reflective Coatings (ARCs) § § v

Why is PFOS in ARCs and Surfactants? v Anti-Reflective Coatings (ARCs) § § v Refractive index (RI) must be as close as possible to the square root of the photoresist RI Only fluorinated materials can meet this requirement PFOS-based Surfactants § § Surface tension can produce thickness variations that emanate from the wafer center during spin-on photoresist application PFOS-based surfactants are particularly effective in: • Lowering the surface tension • Reducing thickness variation • Creating more uniform films

Anti-Reflective Coating Example Light Source Mask Resist Metal substrates can reflect photons back from

Anti-Reflective Coating Example Light Source Mask Resist Metal substrates can reflect photons back from the surface – into areas of the resist not to be exposed. Metal Substrate Light Source Mask Resist ARC Metal Substrate ARCs absorb the photons and prevent them from reflecting back – the composition and capabilities of the ARC must be matched to the resist and the light source.

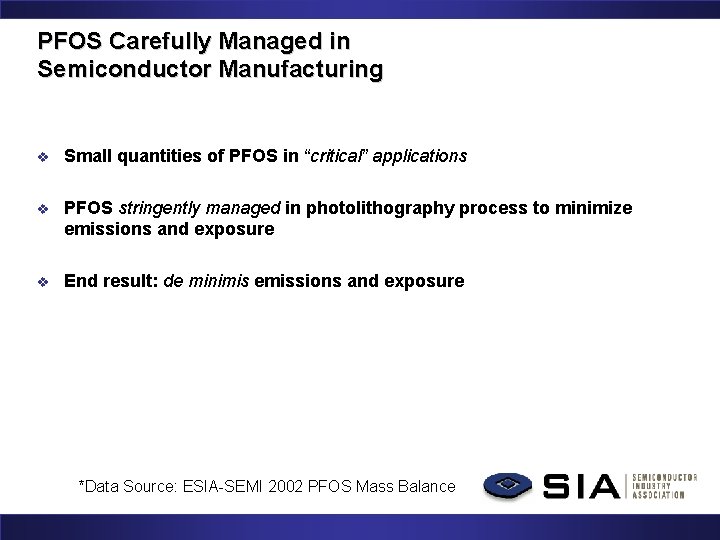

PFOS Carefully Managed in Semiconductor Manufacturing v Small quantities of PFOS in “critical” applications

PFOS Carefully Managed in Semiconductor Manufacturing v Small quantities of PFOS in “critical” applications v PFOS stringently managed in photolithography process to minimize emissions and exposure v End result: de minimis emissions and exposure *Data Source: ESIA-SEMI 2002 PFOS Mass Balance

Photolithography Equipment Coater Bowl Cabinet

Photolithography Equipment Coater Bowl Cabinet

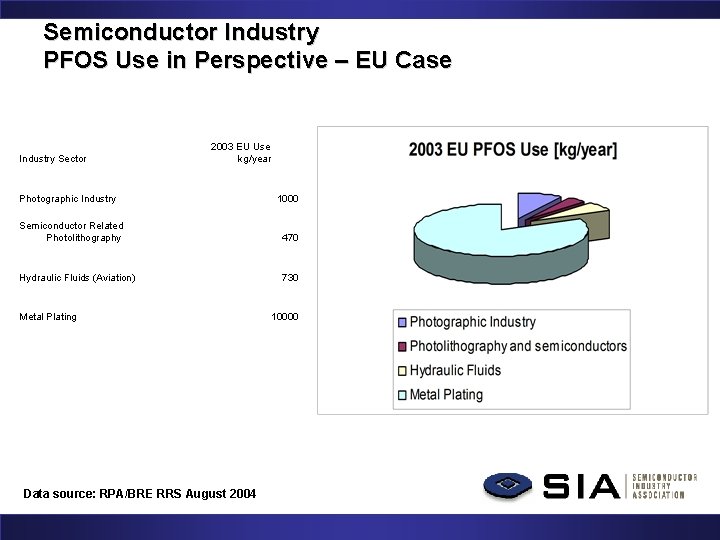

Semiconductor Industry PFOS Use in Perspective – EU Case Industry Sector 2003 EU Use

Semiconductor Industry PFOS Use in Perspective – EU Case Industry Sector 2003 EU Use kg/year Photographic Industry 1000 Semiconductor Related Photolithography 470 Hydraulic Fluids (Aviation) 730 Metal Plating Data source: RPA/BRE RRS August 2004 10000

Generic Semiconductor PFOS Mass Balance Flow Diagram Resist Chemical Developer Chemical Dry Strip Cleans

Generic Semiconductor PFOS Mass Balance Flow Diagram Resist Chemical Developer Chemical Dry Strip Cleans Photo PFOS Destroyed Develop Wet Strip Trash (solid) Wastewater In Some Countries Incineration Air Processing Steps PFOS Waste Sinks

ESIA-SEMI PFOS Mass Balance Example 2002 Summary v v Total PFOS incinerated Total PFOS

ESIA-SEMI PFOS Mass Balance Example 2002 Summary v v Total PFOS incinerated Total PFOS released to wastewater Total amount of PFOS used annually % of PFOS incinerated 196. 5 kg 238. 4 kg 435. 9 kg 45% Example in event of no PFOS use in developer: v PFOS in EBR PFOS in photoresist PAG & Surfactant PFOS in TARC PFOS in BARC Total amount of PFOS used annually 44. 9 kg 104. 1 kg 6. 6 kg 240. 9 kg v Total estimated PFOS released to wastewater 43. 38 kg v % PFOS incinerated v v 85. 3 kg 82%

US Regulatory Action on PFOS v Following 3 M action phasing out their PFOS

US Regulatory Action on PFOS v Following 3 M action phasing out their PFOS products, USEPA issued rule essentially banning future uses of PFOS without new chemical approval v USEPA provided for three limited exemptions from the ban, including one for critical photolithography uses in the semiconductor industry – photoresists, ARCs, and surfactants v Exemption was based on showing by industry that: § These chemicals are critical to semiconductor manufacturing § Their use in semiconductor manufacturing is tightly controlled § Releases to the environment are de minimis

EU SCHER Conclusions on Semiconductor PFOS Use v v Scientific Committee on Health and

EU SCHER Conclusions on Semiconductor PFOS Use v v Scientific Committee on Health and Environment (SCHER) advises EU Commission on chemical risk management issues Recent review of PFOS uses in Europe concluded: “The contribution of the confirmed on-going industrial/professional uses to the overall risks for the environment and for the general public are probably negligible with regard to the sectors…[including] semiconductor industry…” Source: SCHER report, February 2005 (Emphasis added)

ALTERNATIVES

ALTERNATIVES

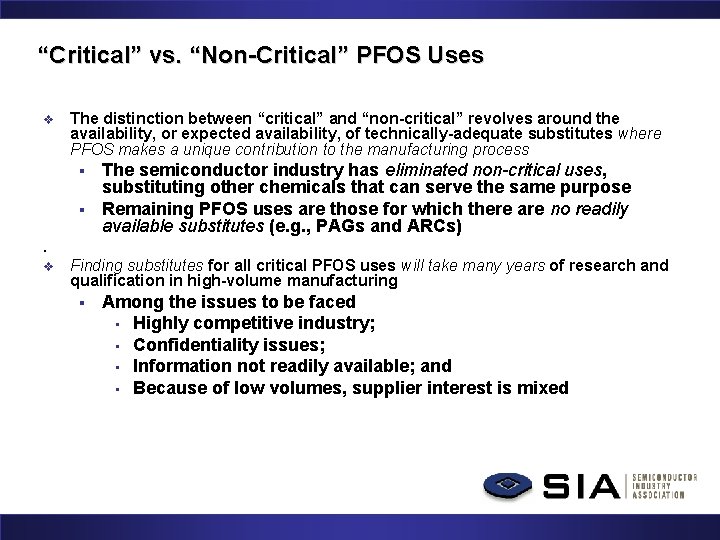

“Critical” vs. “Non-Critical” PFOS Uses v The distinction between “critical” and “non-critical” revolves around

“Critical” vs. “Non-Critical” PFOS Uses v The distinction between “critical” and “non-critical” revolves around the availability, or expected availability, of technically-adequate substitutes where PFOS makes a unique contribution to the manufacturing process § § The semiconductor industry has eliminated non-critical uses, substituting other chemicals that can serve the same purpose Remaining PFOS uses are those for which there are no readily available substitutes (e. g. , PAGs and ARCs) . v Finding substitutes for all critical PFOS uses will take many years of research and qualification in high-volume manufacturing § Among the issues to be faced • Highly competitive industry; • Confidentiality issues; • Information not readily available; and • Because of low volumes, supplier interest is mixed

The PFOS Substitution Process v Considerable engineering required to make the PFOS-free alternatives work

The PFOS Substitution Process v Considerable engineering required to make the PFOS-free alternatives work in manufacturing § A semiconductor manufacturing is a combination of 100 -400 steps that are all partly dependent on each other § Each technology is unique • § § A photolithography step in one technology is not equivalent to another technology, although sometimes they are similar Introducing a new resist requires an extensive qualification for each technology use • § Any or all of the steps may be different, as well as their processing parameters (e. g. feature size) Up to 20 different resist uses could exist in one technology This qualification is costly and involves many engineers • • Development engineers working primarily on legacy resists cannot work on the newest technologies Total technology development timeline impacted PFOS alternatives are not “drop-in” replacements

Semiconductor Industry Progress in Eliminating “Non-Critical” PFOS Uses v v Developers: § Industry is

Semiconductor Industry Progress in Eliminating “Non-Critical” PFOS Uses v v Developers: § Industry is in the process of phasing out PFOS-containing developers because alternatives exist with same performance Etchants: § Alternatives with same performance exist and are used Emission controls: § PFOS containing solvent waste from semiconductor manufacturing is incinerated at high temperatures Wastewater treatment: § Wastewater point of use abatement technology under evaluation (ISMT); Concentration in ng/l ALARA principle

Semiconductor Industry Progress in Eliminating “Non-Critical” PFOS Uses v PFOS Consumption: § Total use

Semiconductor Industry Progress in Eliminating “Non-Critical” PFOS Uses v PFOS Consumption: § Total use of PFOS continues to decline as the industry goes from 200 mm to 300 mm wafer size • Wafer area increases 125% • Amount of resist used drops from 3 ml to 1 ml per wafer 85 % less resist used on a per wafer basis v Voluntary Commitment: § Industry is working on an INTERNATIONAL voluntary approach to reduce emissions from PFOS use because the semiconductor manufacturing industry is truly a global industry

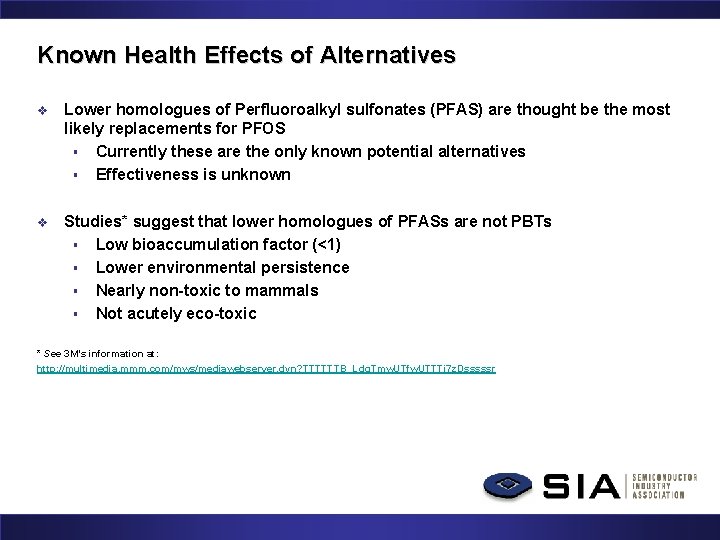

Known Health Effects of Alternatives v Lower homologues of Perfluoroalkyl sulfonates (PFAS) are thought

Known Health Effects of Alternatives v Lower homologues of Perfluoroalkyl sulfonates (PFAS) are thought be the most likely replacements for PFOS § Currently these are the only known potential alternatives § Effectiveness is unknown v Studies* suggest that lower homologues of PFASs are not PBTs § Low bioaccumulation factor (<1) § Lower environmental persistence § Nearly non-toxic to mammals § Not acutely eco-toxic * See 3 M’s information at: http: //multimedia. mmm. com/mws/mediawebserver. dyn? TTTTTTB_Ldg. Tmw. UTfw. UTTTj 7 z. Dsssssr

Industry Voluntary Commitment v Voluntary Commitment being developed by World Semiconductor Council member associations

Industry Voluntary Commitment v Voluntary Commitment being developed by World Semiconductor Council member associations (SIA, ESIA, JSIA, etc. ) § Proposed elements include: • • Stop non-critical uses Incineration of solvents containing PFOS Equipment effluent optimization research Work towards critical use phase-out Research for alternatives to perfluorinated chemistry Wastewater effluent evaluations of control technology Reporting activity

BACKUP

BACKUP

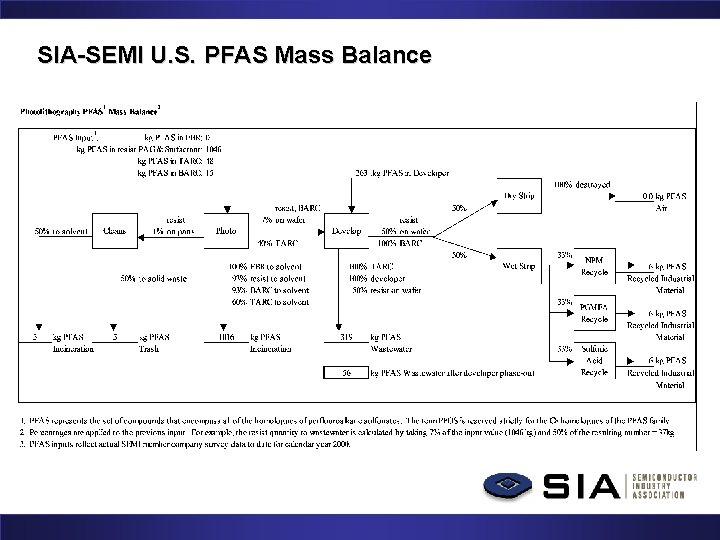

SIA-SEMI U. S. PFAS Mass Balance
