PFD Process Flow Diagram

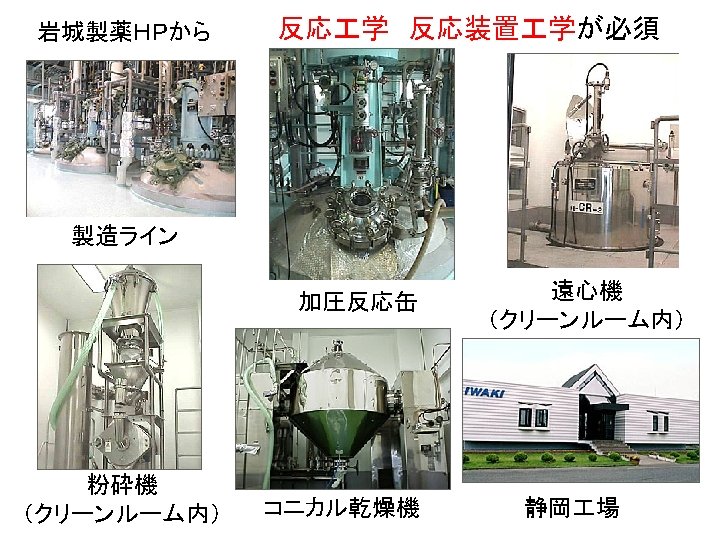

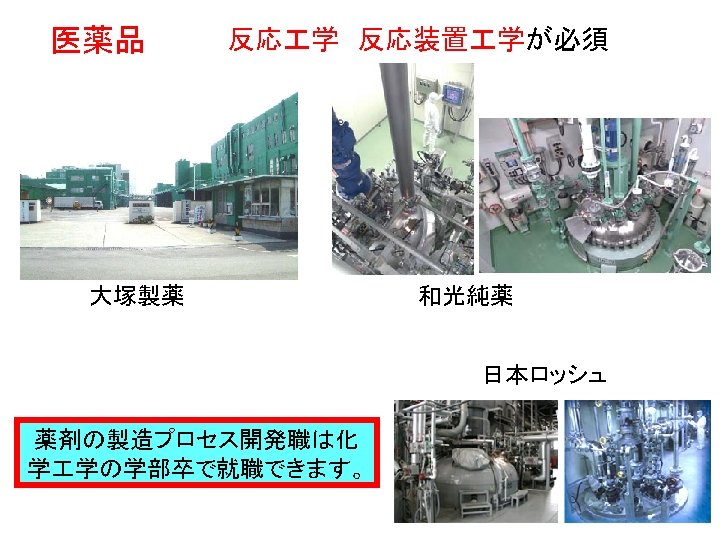

連続培養装置 Novasep ﾌﾗﾝｽ・日本他 microbial and yeast fermentation, insect and mammalian cell culture, virus production, fermentation technologies including perfusion.

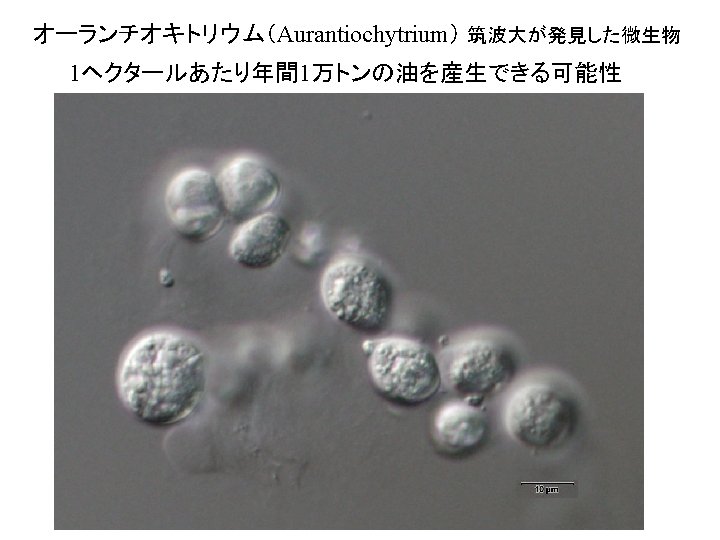

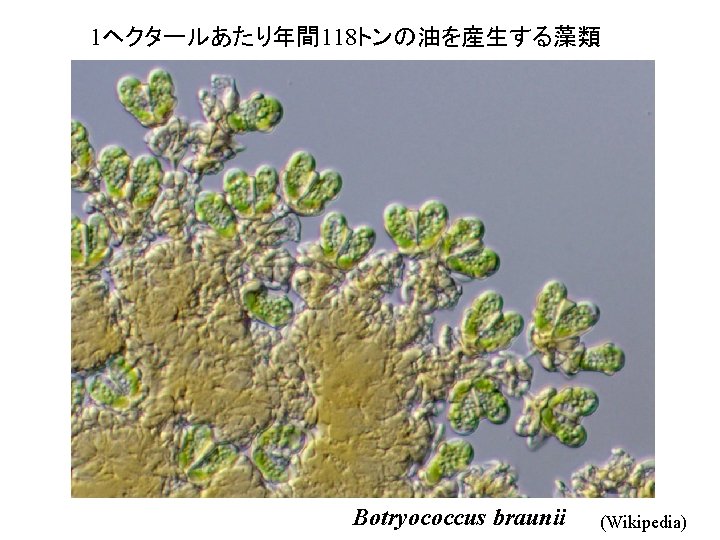

1ヘクタールあたり年間 118トンの油を産生する藻類 Botryococcus braunii (Wikipedia)
Solix Biosystems, Inc Fort Collins, Colorado photosynthetic algal culture system

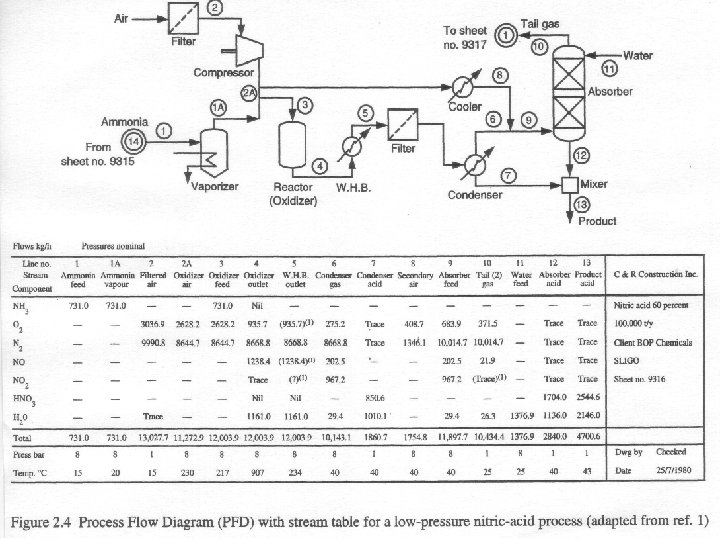

Block Flow Diagram 反応器 Process Flow Diagram 分離器

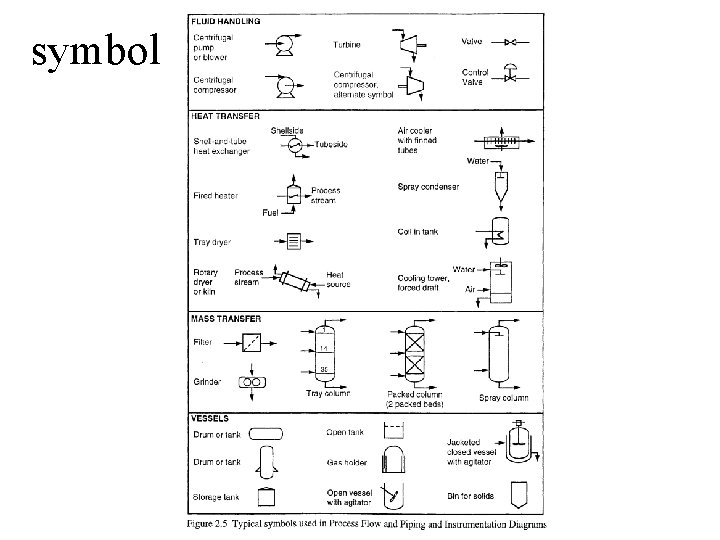

symbol

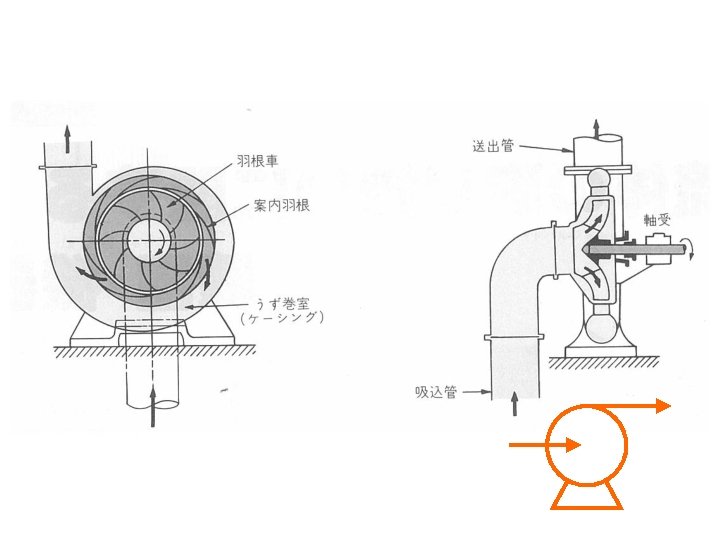

Centrifugal pump 遠心ポンプ

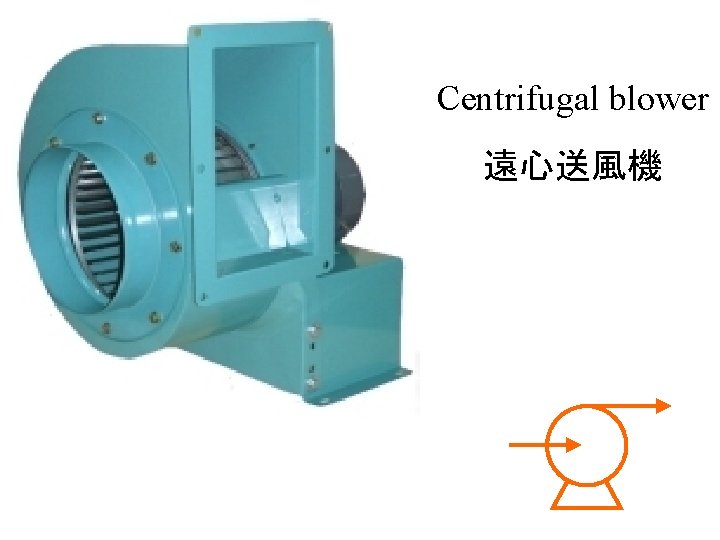

Centrifugal blower 遠心送風機

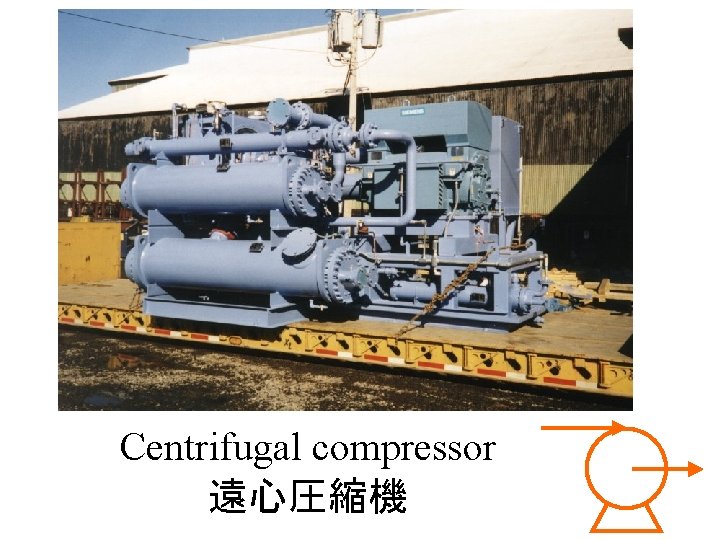

Centrifugal compressor 遠心圧縮機
タービン Turbine

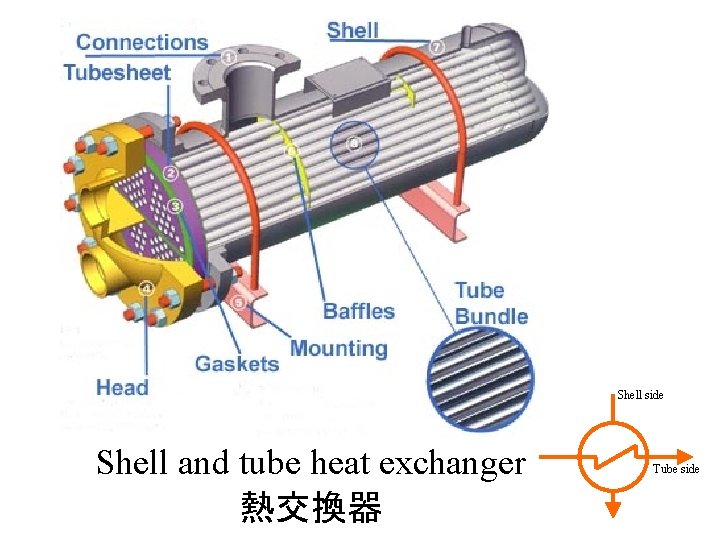

Shell side Shell and tube heat exchanger 熱交換器 Tube side
Shell side Shell and coil heat exchanger 熱交換器 Tube side

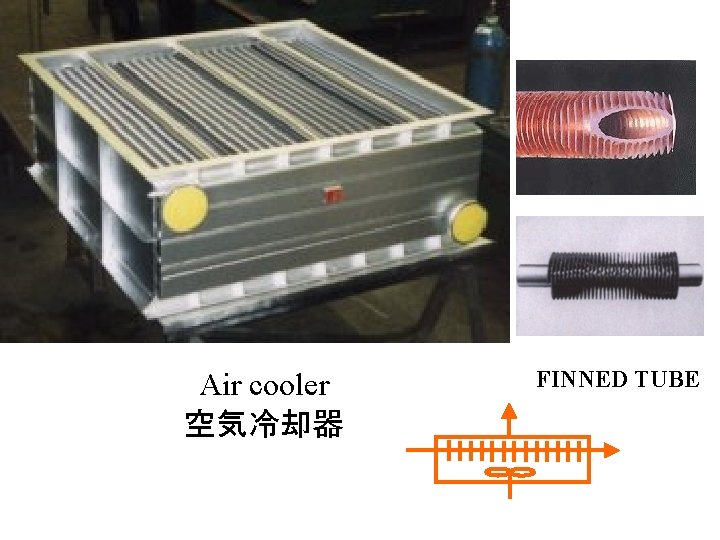

Air cooler 空気冷却器 FINNED TUBE
Air Cooler
Fired Heater 加熱炉 Process stream Fuel
Fired Heater 加熱炉 Fuel
Spray condenser 凝縮器 Water 1. Water inlet 2. Spray 3. Incondensables outlet 4. Inlet of fluids to be condensed 5. Condensates outlet

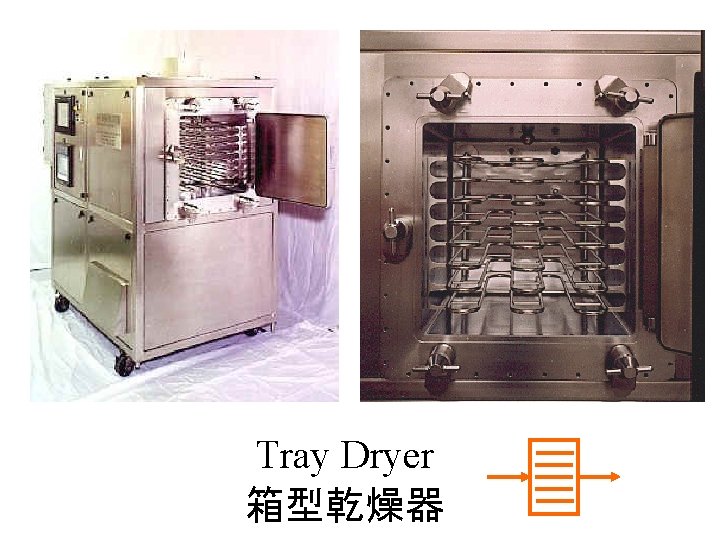

Tray Dryer 箱型乾燥器
Cooling tower 冷却塔 Water Air

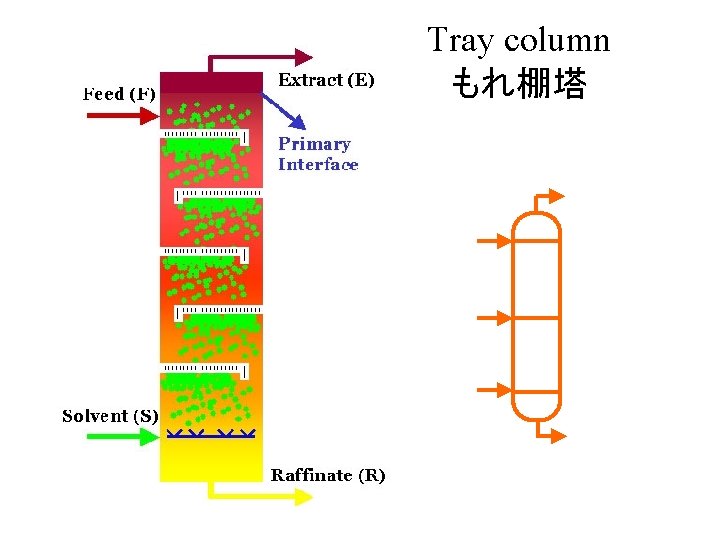

Tray column もれ棚塔
Tray column もれ棚塔
Packed column 充填塔
Spray column スプレー塔

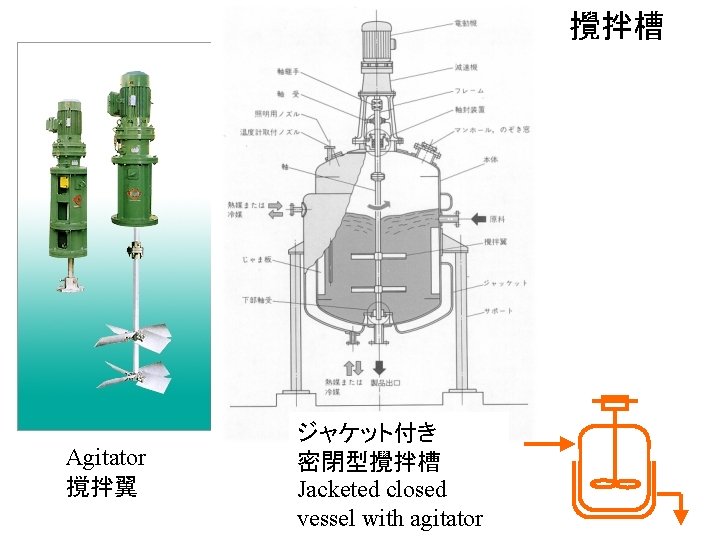

攪拌槽 Agitator 撹拌翼 ジャケット付き 密閉型攪拌槽 Jacketed closed vessel with agitator
貯蔵タンク Storage tank
- Slides: 37
