PEX Is Recyclable PPFA 2015 What is PEX

PEX Is Recyclable © PPFA 2015

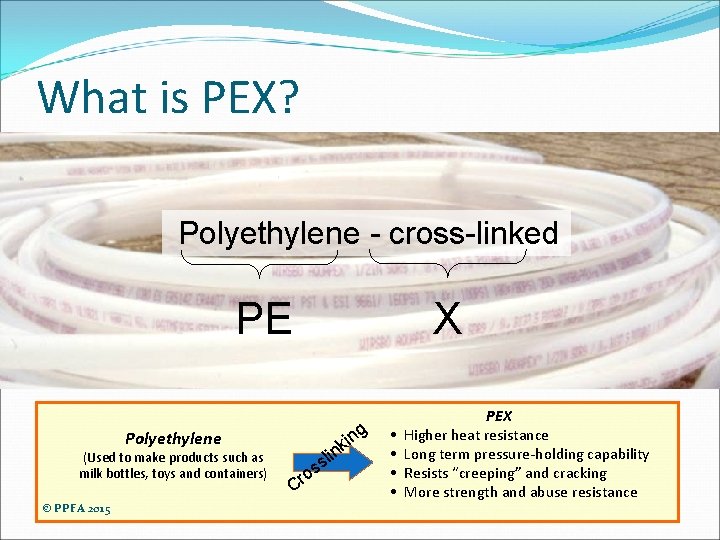

What is PEX? Polyethylene - cross-linked PE X g Polyethylene (Used to make products such as milk bottles, toys and containers) © PPFA 2015 li in k n Cr s os • • PEX Higher heat resistance Long term pressure-holding capability Resists “creeping” and cracking More strength and abuse resistance

The primary reason that PEX is such a great material for making tubing to distribute hot and cold pressurized water is the same reason why the recycling characteristics of PEX are different than those for most other plastic piping materials. That reason is crosslinking. © PPFA 2015

Crosslinking affects recycling methods PEX Tubing Other Plastic Piping (PVC, ABS, PE, CPVC) Crosslinked Not crosslinked Crosslinked materials cannot be ‘re-melted’ Can be ‘re-melted’ Re-melting would be necessary to produce additional tubing Can be used to produce additional pipe or tubing © PPFA 2015

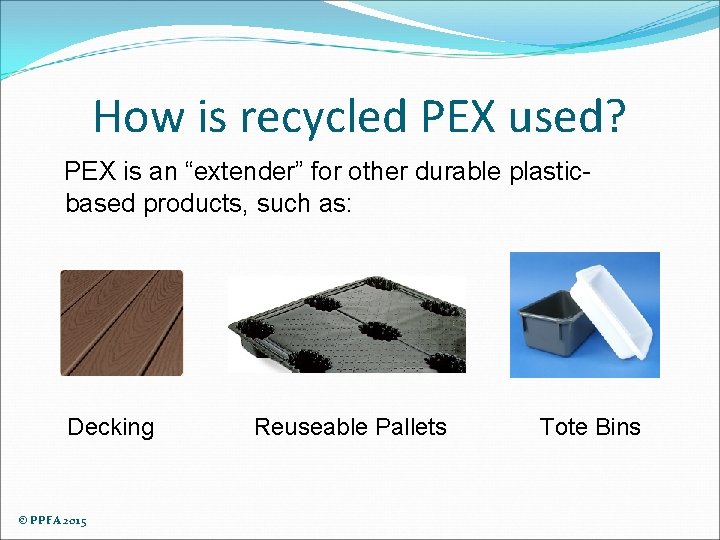

How is recycled PEX used? PEX is an “extender” for other durable plasticbased products, such as: Decking © PPFA 2015 Reuseable Pallets Tote Bins

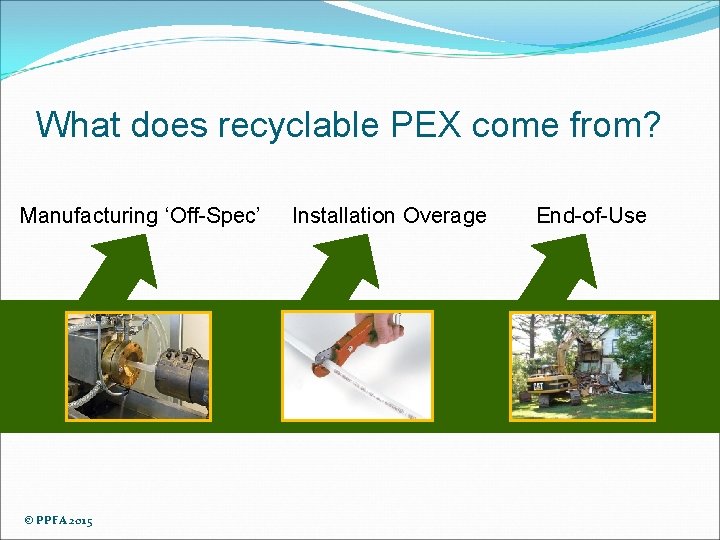

What does recyclable PEX come from? Manufacturing ‘Off-Spec’ © PPFA 2015 Installation Overage End-of-Use

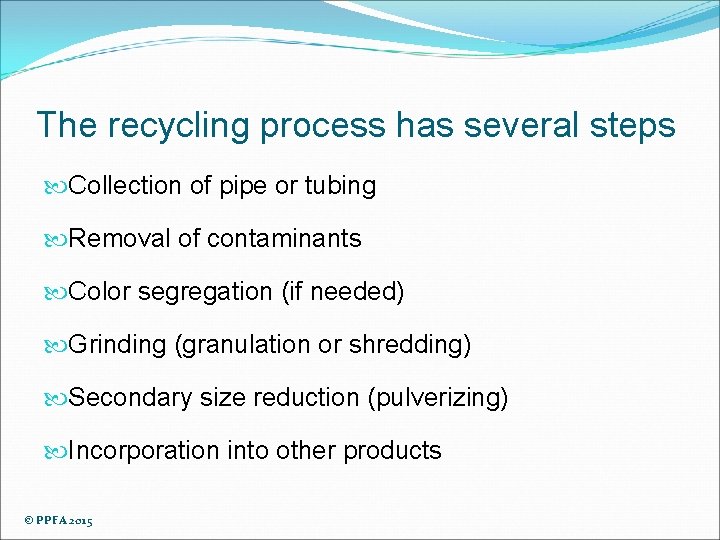

The recycling process has several steps Collection of pipe or tubing Removal of contaminants Color segregation (if needed) Grinding (granulation or shredding) Secondary size reduction (pulverizing) Incorporation into other products © PPFA 2015

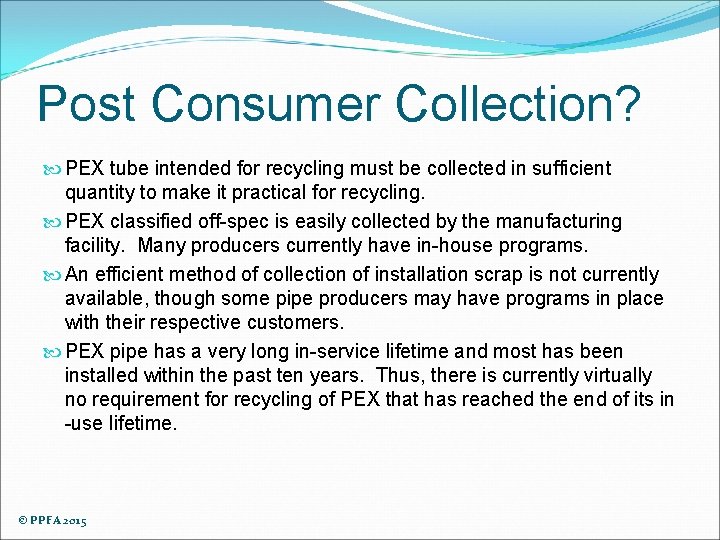

Post Consumer Collection? PEX tube intended for recycling must be collected in sufficient quantity to make it practical for recycling. PEX classified off-spec is easily collected by the manufacturing facility. Many producers currently have in-house programs. An efficient method of collection of installation scrap is not currently available, though some pipe producers may have programs in place with their respective customers. PEX pipe has a very long in-service lifetime and most has been installed within the past ten years. Thus, there is currently virtually no requirement for recycling of PEX that has reached the end of its in -use lifetime. © PPFA 2015

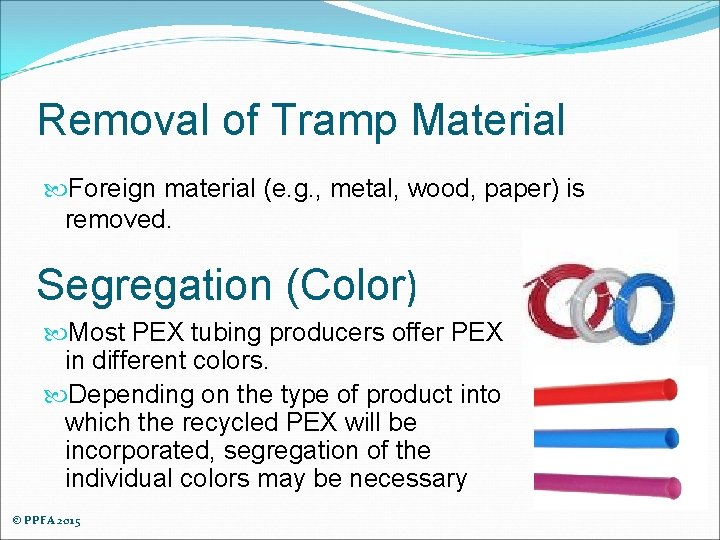

Removal of Tramp Material Foreign material (e. g. , metal, wood, paper) is removed. Segregation (Color) Most PEX tubing producers offer PEX in different colors. Depending on the type of product into which the recycled PEX will be incorporated, segregation of the individual colors may be necessary © PPFA 2015

Size Reduction Primary The tubing must be reduced in size in order to make it easily handled and transportable Tubing is first ground or shredded to create small ‘granules’ (typically 1/8 to 1/2 inch in longest dimension) Secondary Using sophisticated pulverizing techniques, the granules are further reduced in size to a fine powder. © PPFA 2015

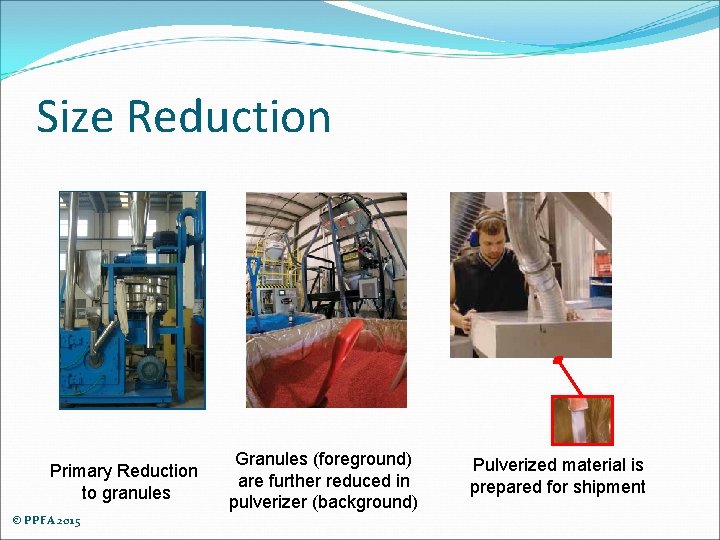

Size Reduction Primary Reduction to granules © PPFA 2015 Granules (foreground) are further reduced in pulverizer (background) Pulverized material is prepared for shipment

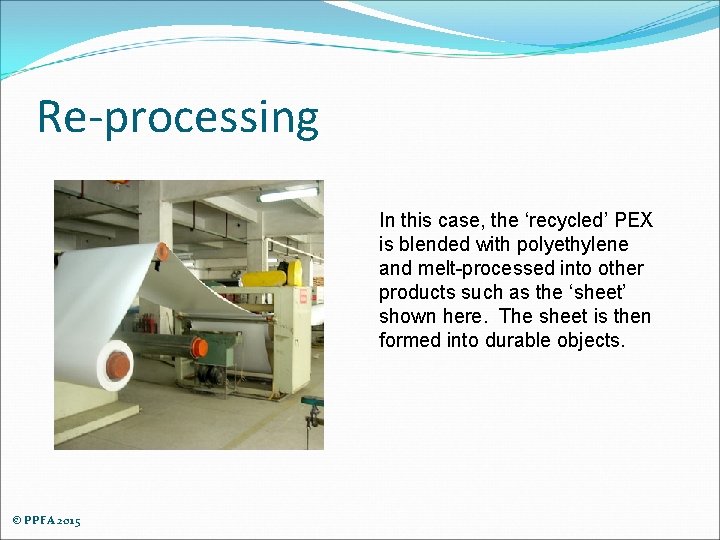

Re-processing In this case, the ‘recycled’ PEX is blended with polyethylene and melt-processed into other products such as the ‘sheet’ shown here. The sheet is then formed into durable objects. © PPFA 2015
