Liquid Level (125) • • Level is measured in unit lengths Level can be determined from weight – head pressure • Sight glass or gauge

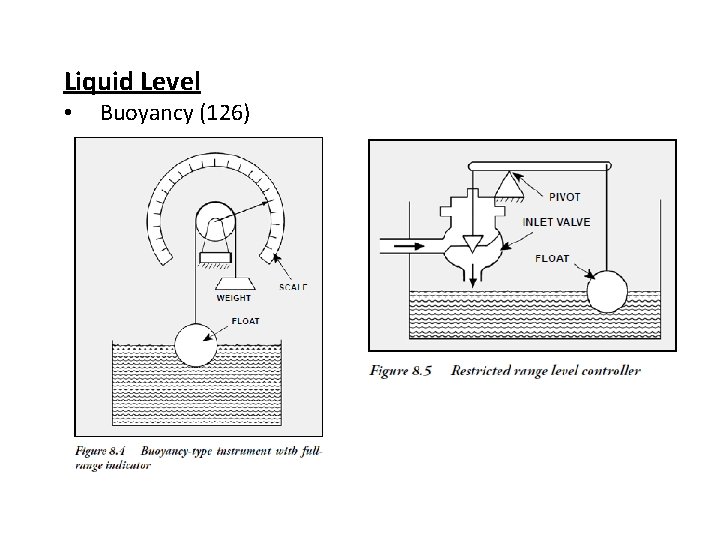

Liquid Level • Buoyancy (126)

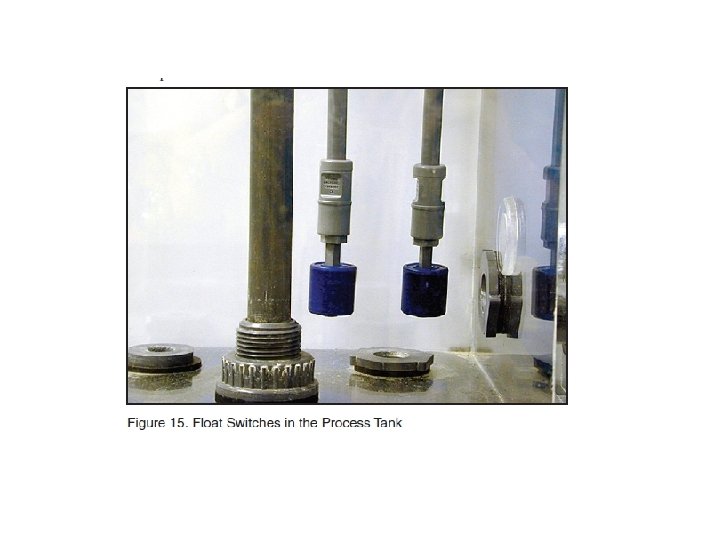

Liquid Level • Electric – on / off (134)

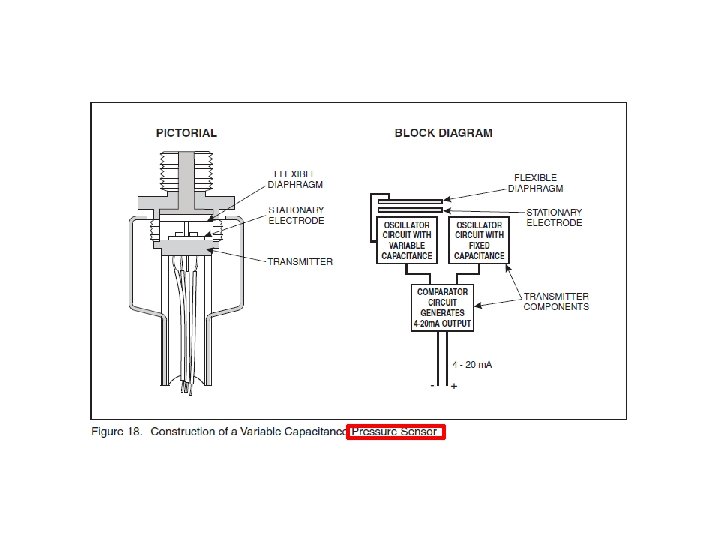

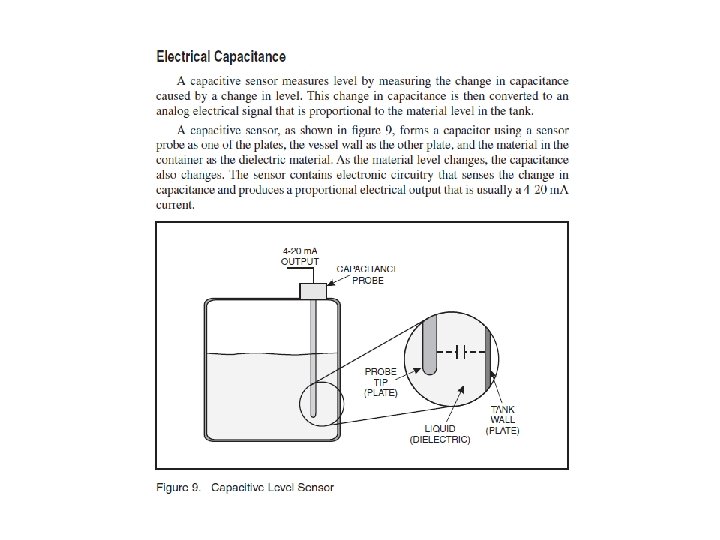

Liquid Level • Proportional - Capacitance (135)

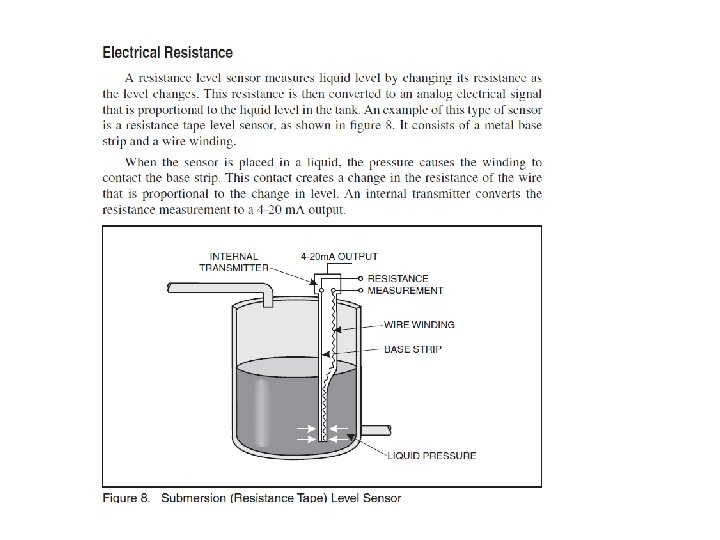

Liquid Level • • • Resistive (136) Magnetic switches Metritape

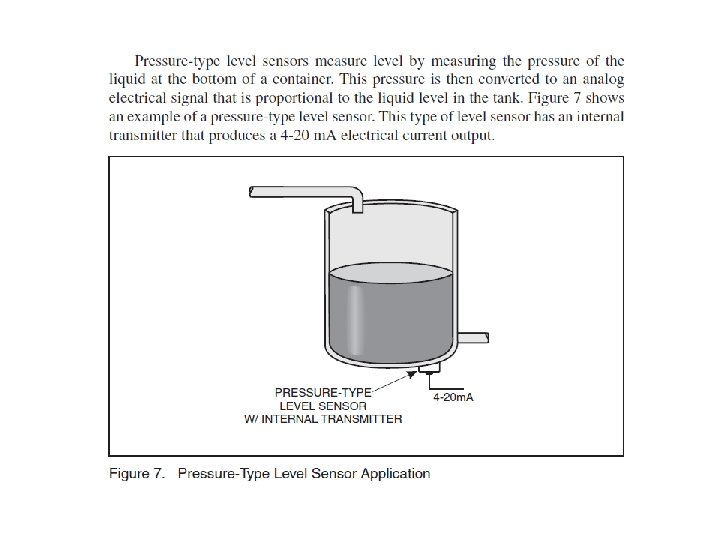

Liquid Level • • Electronic Transmitters (137) Differential pressure using hydrostatic pressure

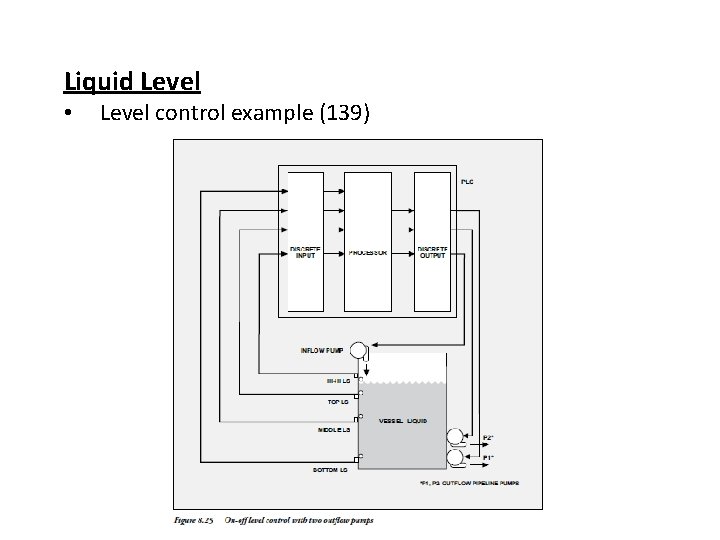

Liquid Level • Level control example (139)
Liquid Level • Summary (140) • Review Exercise (141)

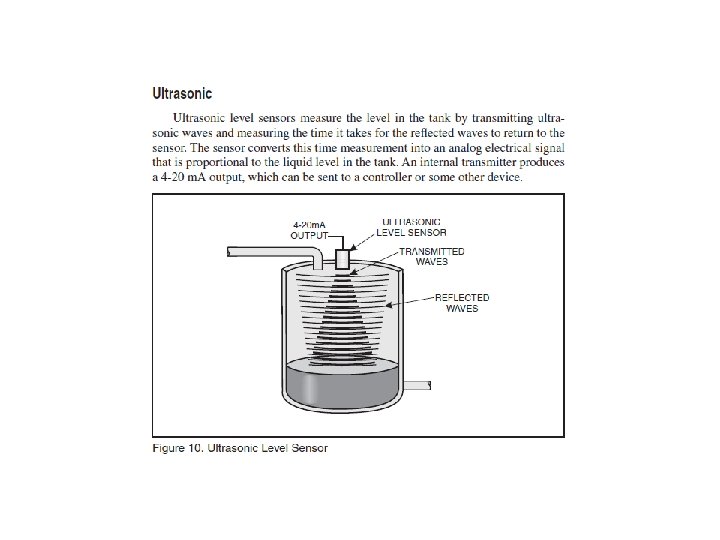

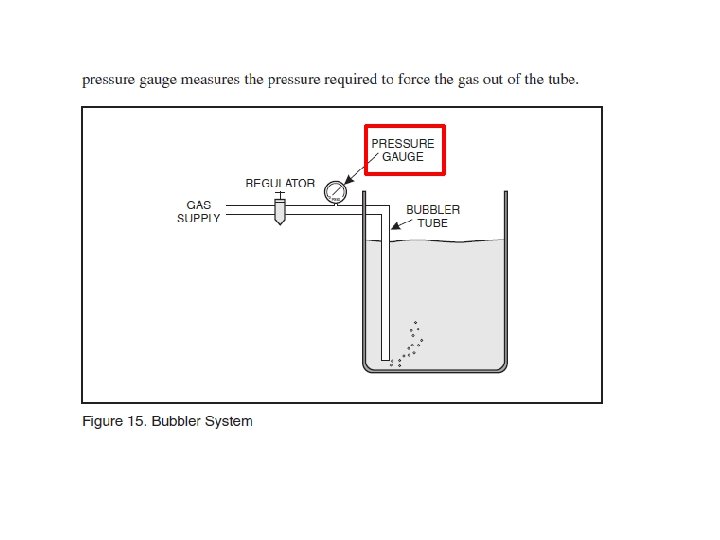

Level Measurement – Amatrol LAP
